MITSUBISHI LANCER IX 2006 Service Manual

CENTRAL DOOR LOCKING SYSTEM

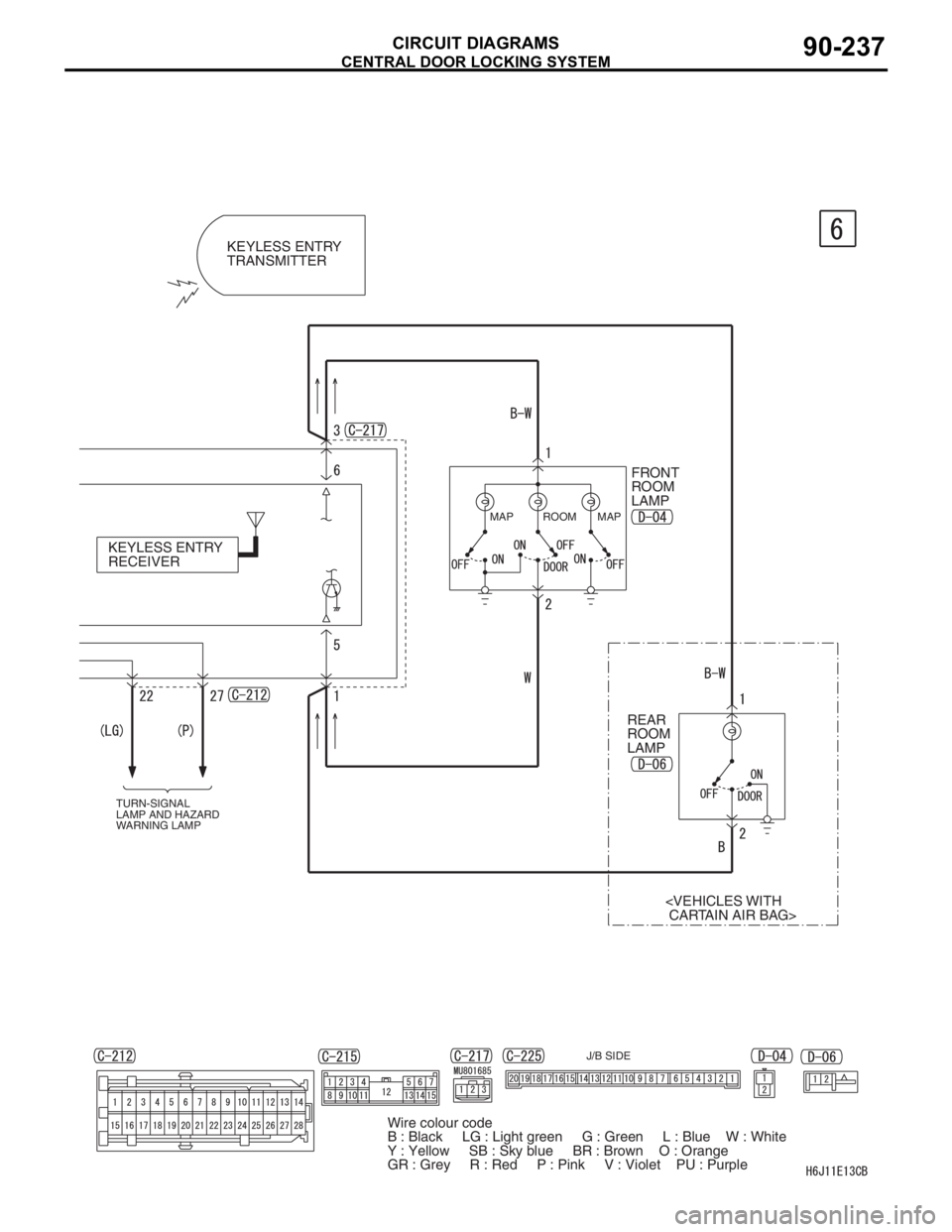

CIRCUIT DIAGRAMS90-237
TURN-SIGNAL
LAMP AND HAZARD
WARNING LAMP
KEYLESS ENTRY
RECEIVERKEYLESS ENTRY
TRANSMITTER
J/B SIDE
FRONT
ROOM
LAMP
REAR
ROOM
LAMP
CARTAIN AIR BAG>
MAP MAPROOM
Wire colour code
B : Black LG : Light green G : Green L : Blue W : White
Y : Yellow SB : Sky blue BR : Brown O : Orange
GR : Grey R : Red P : Pink V : Violet PU : Purple

CENTRAL DOOR LOCKING SYSTEM
CIRCUIT DIAGRAMS90-238
CENTRAL DOOR LOCKING SYSTEM (CONTINUED)
ETACS-ECU
FRONT
SIDE
(FUSE )15
DIAGNOSIS
CONNECTORSRS-ECU
CRASH
DETECTION
DOOR
UNLOCK
SIGNAL
PROCESS
CIRCUIT
Wire colour code
B : Black LG : Light green G : Green L : Blue W : White Y : Yellow SB : Sky blue
BR : Brown O : Orange GR : Grey R : Red P : Pink V : Violet PU : Purple

CENTRAL DOOR LOCKING SYSTEM
CIRCUIT DIAGRAMS90-239
NOTES

CENTRAL DOOR LOCKING SYSTEM
CIRCUIT DIAGRAMS90-240
CENTRAL DOOR LOCKING SYSTEM
M1901004703365
IGNITION
SWITCH (IG1)
BATTERY
POWER
SOURCE FUSIBLE
LINK1
FRONT
DOOR LOCK
ACTUATOR
(RH)
·FRONT
FOG LAMP
·HEADLAMP
·HEADLAMP
LEVELLING
SYSTEM
·REAR FOG LAMP
·TAIL LAMP,
POSITION LAMP,
LICENCE PLATE LAMP
AND LIGHTING
MONITOR BUZZER
·WINDSHIELD
WIPER AND WASHER
RELAY
BOX
J/B SIDE

CENTRAL DOOR LOCKING SYSTEM

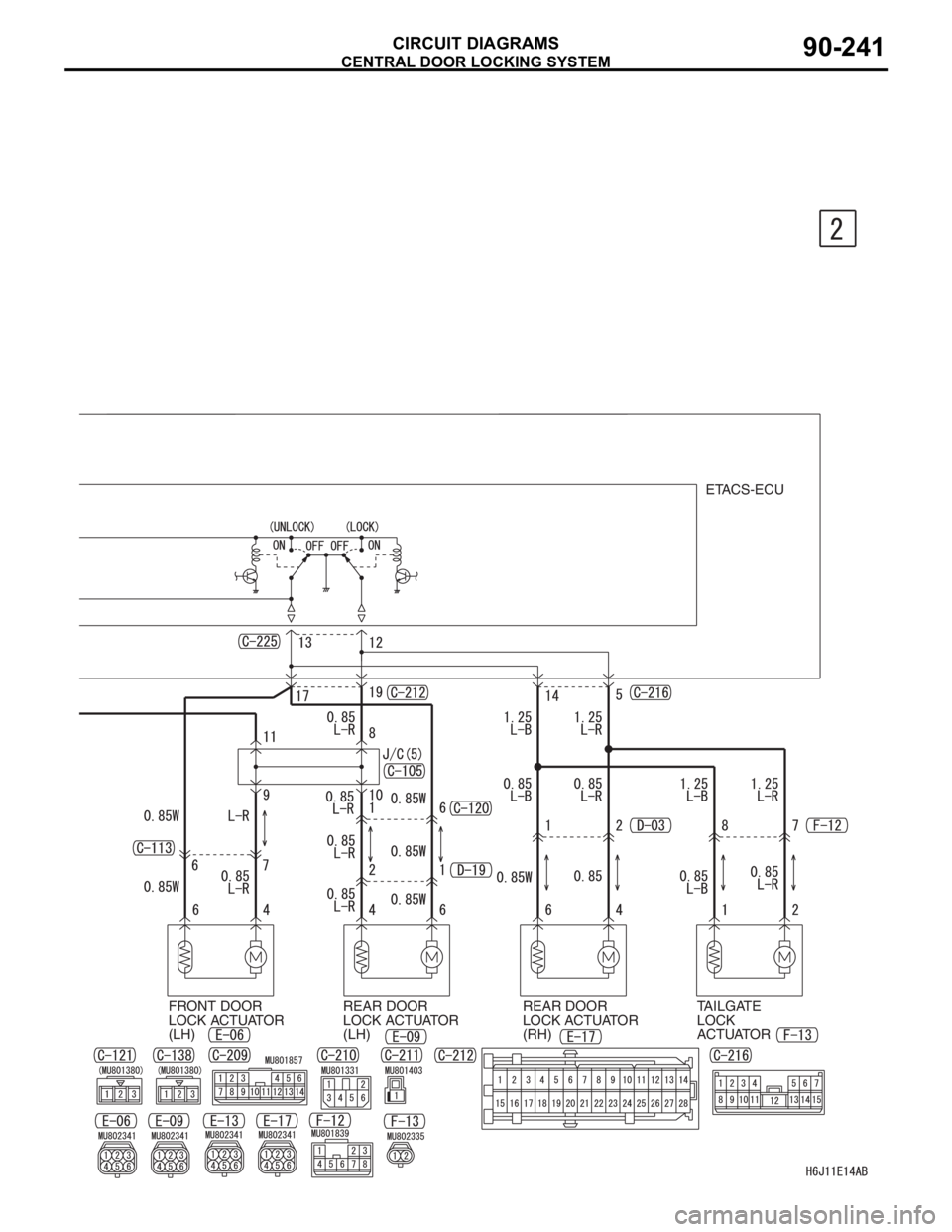

CIRCUIT DIAGRAMS90-241
FRONT DOOR
LOCK ACTUATOR
(LH)REAR DOOR
LOCK ACTUATOR
(LH)ETACS-ECU
REAR DOOR
LOCK ACTUATOR
(RH)TAILGATE
LOCK
ACTUATOR

CENTRAL DOOR LOCKING SYSTEM

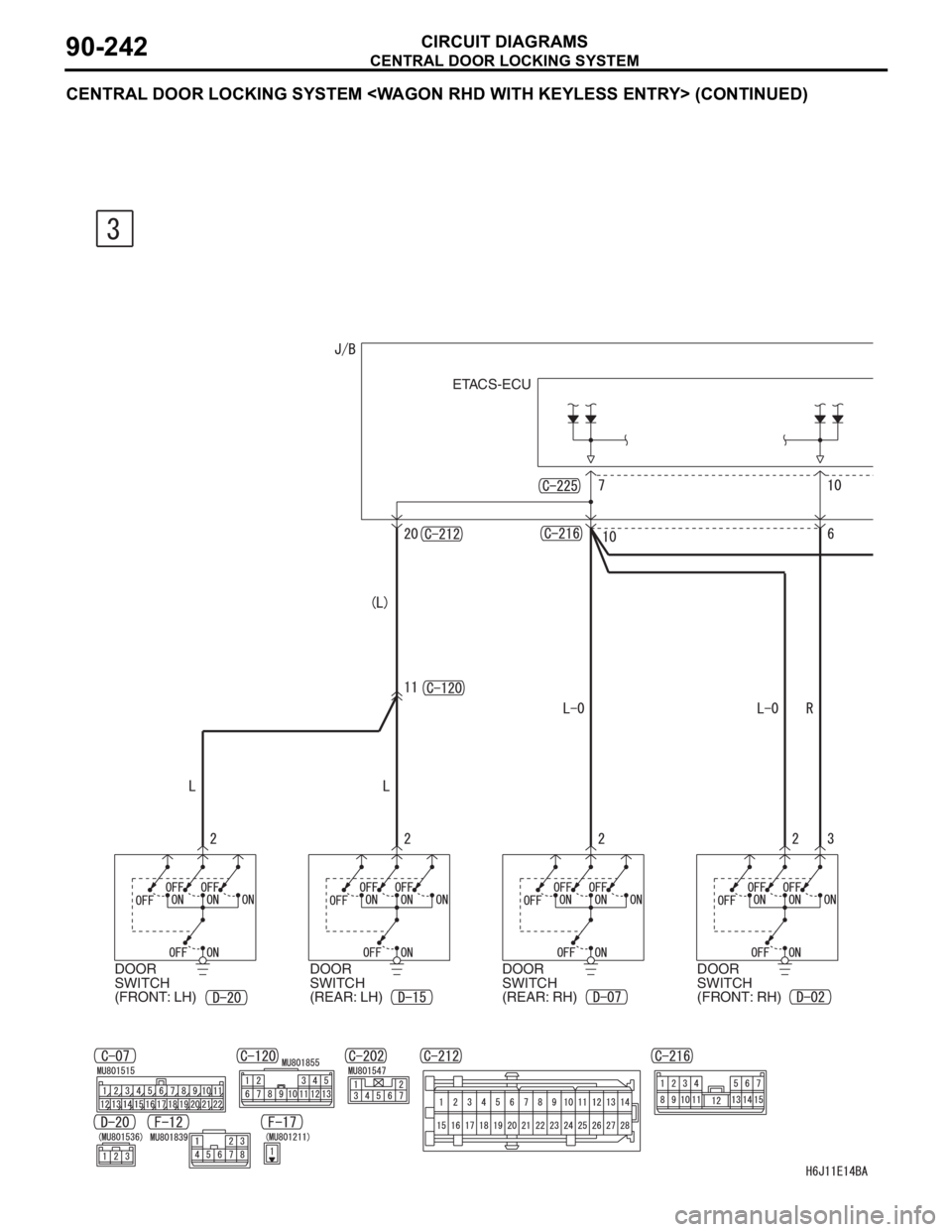

CIRCUIT DIAGRAMS90-242
CENTRAL DOOR LOCKING SYSTEM (CONTINUED)
ETACS-ECU
DOOR
SWITCH
(FRONT: LH)DOOR
SWITCH
(REAR: LH)DOOR
SWITCH
(REAR: RH)DOOR
SWITCH
(FRONT: RH)

CENTRAL DOOR LOCKING SYSTEM

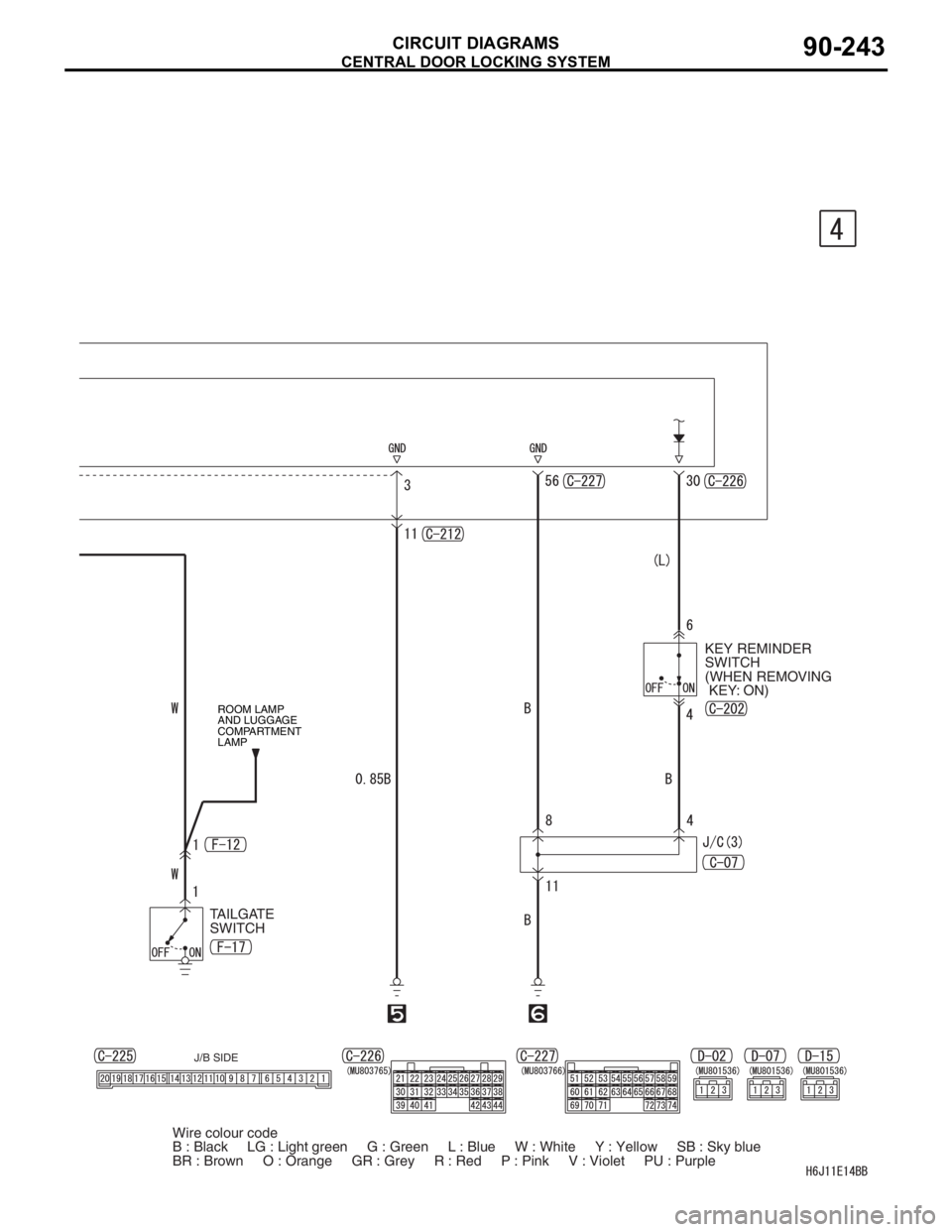

CIRCUIT DIAGRAMS90-243
ROOM LAMP
AND LUGGAGE
COMPARTMENT
LAMP
J/B SIDE
TAILGATE
SWITCHKEY REMINDER
SWITCH
(WHEN REMOVING
KEY: ON)
Wire colour code
B : Black LG : Light green G : Green L : Blue W : White Y : Yellow SB : Sky blue
BR : Brown O : Orange GR : Grey R : Red P : Pink V : Violet PU : Purple

CENTRAL DOOR LOCKING SYSTEM
CIRCUIT DIAGRAMS90-244
CENTRAL DOOR LOCKING SYSTEM (CONTINUED)
BATTERY
RELAY
BOX
SIDE
TURN
SIGNAL
LAMP (LH)ETACS-
ECU
FRONT
TURN
SIGNAL
LAMP (LH)REAR
COMBI-
NATION
LAMP
(TURN:
LH)REAR
COMBI-
NATION
LAMP
(TURN:
RH)FRONT
TURN
SIGNAL
LAMP
(RH)SIDE
TURN
SIGNAL
LAMP (RH) TURN-SIGNAL
LAMP RELAY: LH
TURN-SIGNAL
LAMP RELAY: RH

CENTRAL DOOR LOCKING SYSTEM

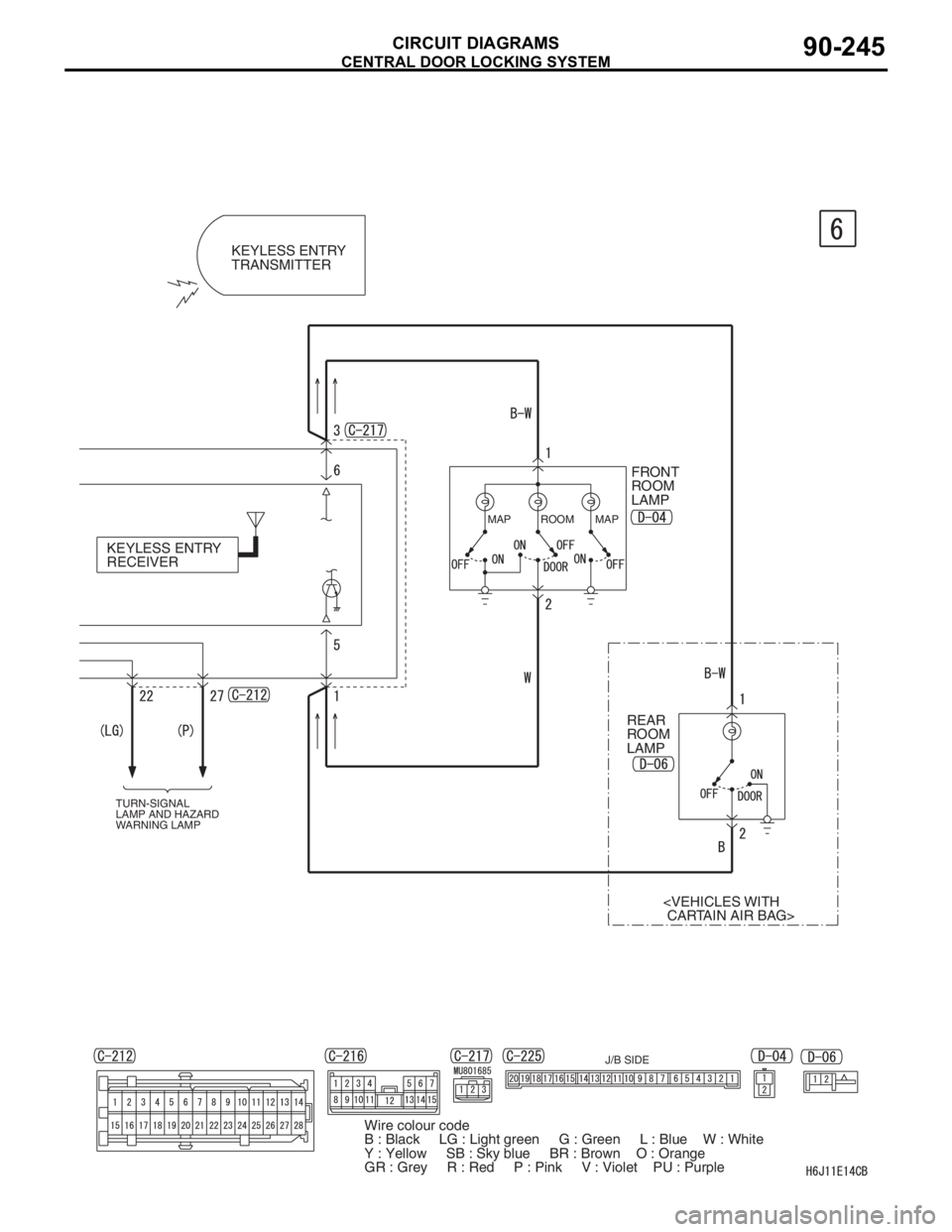

CIRCUIT DIAGRAMS90-245
TURN-SIGNAL
LAMP AND HAZARD
WARNING LAMP
KEYLESS ENTRY
RECEIVERKEYLESS ENTRY
TRANSMITTER
J/B SIDE
FRONT
ROOM
LAMP
REAR
ROOM
LAMP
CARTAIN AIR BAG>
MAP MAPROOM
Wire colour code
B : Black LG : Light green G : Green L : Blue W : White
Y : Yellow SB : Sky blue BR : Brown O : Orange
GR : Grey R : Red P : Pink V : Violet PU : Purple

CENTRAL DOOR LOCKING SYSTEM

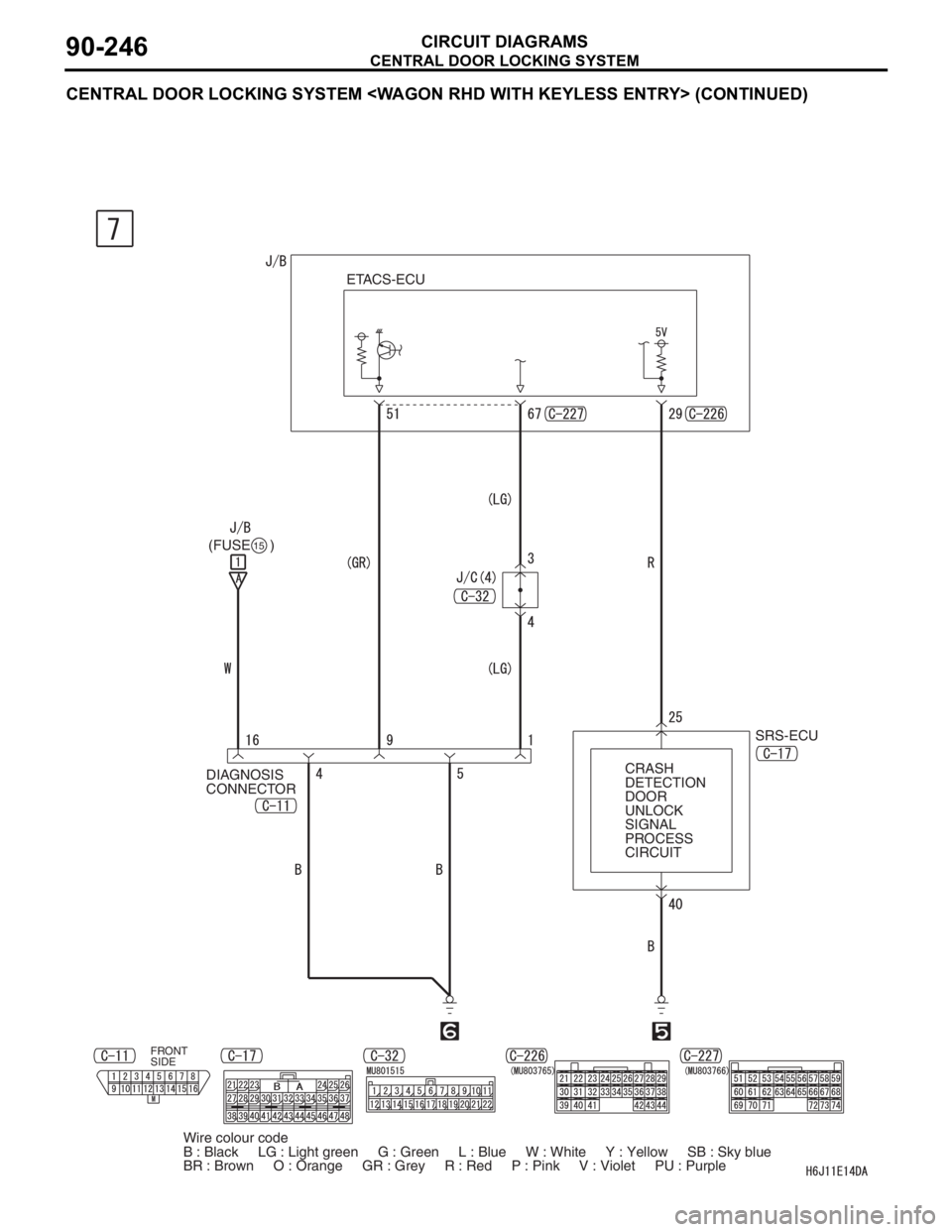

CIRCUIT DIAGRAMS90-246
CENTRAL DOOR LOCKING SYSTEM (CONTINUED)
ETACS-ECU
FRONT
SIDE
(FUSE )15
DIAGNOSIS
CONNECTORSRS-ECU
CRASH
DETECTION
DOOR
UNLOCK
SIGNAL
PROCESS
CIRCUIT
Wire colour code
B : Black LG : Light green G : Green L : Blue W : White Y : Yellow SB : Sky blue
BR : Brown O : Orange GR : Grey R : Red P : Pink V : Violet PU : Purple
