MITSUBISHI LANCER RALLIART 2012 8.G Owners Manual

7-64 Vehicle care and maintenance
7

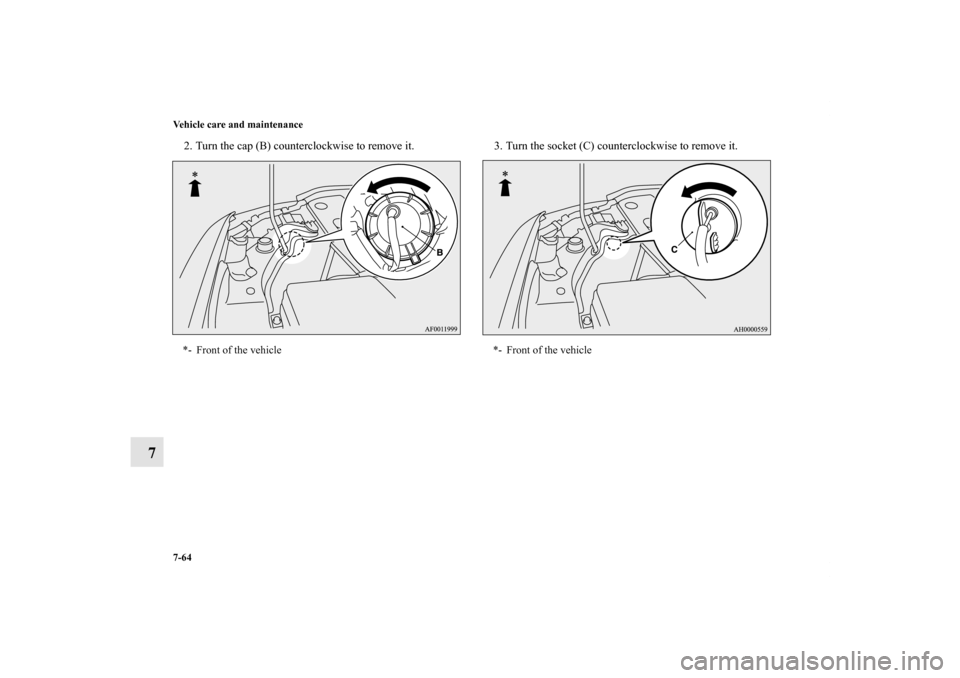

2. Turn the cap (B) counterclockwise to remove it. 3. Turn the socket (C) counterclockwise to remove it.*- Front of the vehicle
*- Front of the vehicle
BK0138600US.book 64 ページ ２０１１年７月１７日　日曜日　午後２時３２分

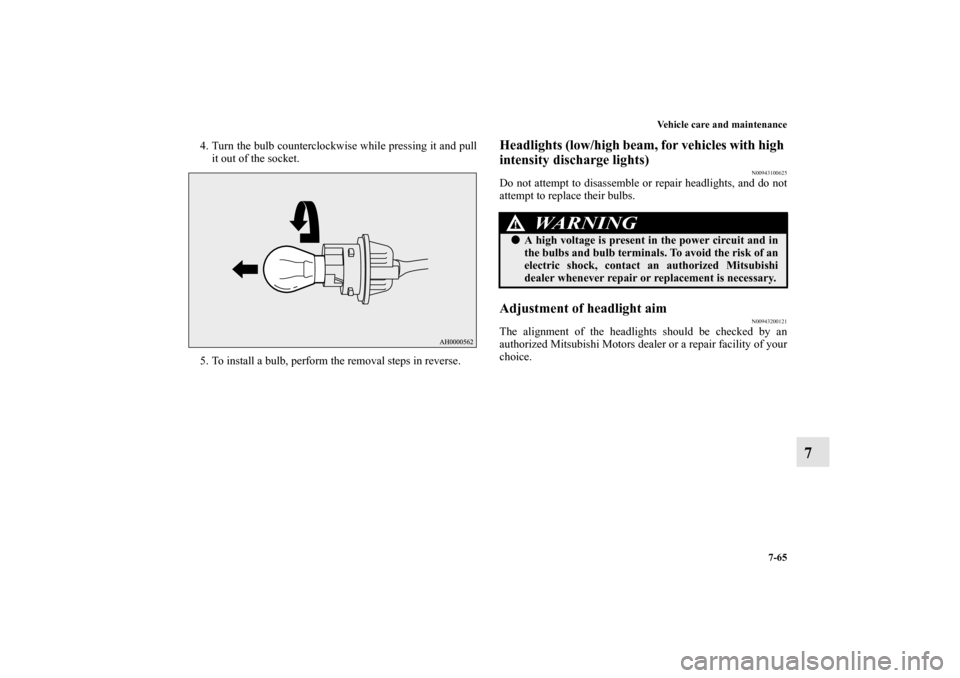

Vehicle care and maintenance
7-65
7
4. Turn the bulb counterclockwise while pressing it and pull
it out of the socket.
5. To install a bulb, perform the removal steps in reverse.
Headlights (low/high beam, for vehicles with high
intensity discharge lights)
N00943100625
Do not attempt to disassemble or repair headlights, and do not
attempt to replace their bulbs.Adjustment of headlight aim
N00943200121
The alignment of the headlights should be checked by an
authorized Mitsubishi Motors dealer or a repair facility of your
choice.
WA R N I N G
!
A high voltage is present in the power circuit and in
the bulbs and bulb terminals. To avoid the risk of an
electric shock, contact an authorized Mitsubishi
dealer whenever repair or replacement is necessary.
BK0138600US.book 65 ページ ２０１１年７月１７日　日曜日　午後２時３２分

7-66 Vehicle care and maintenance
7
Parking and side-marker lights (except for vehi-
cles with high intensity discharge headlights)
N00917300512
1. For vehicles equipped with turbocharger, when replacing
the bulb on the driver’s side, remove the bolt (A) holding
down the relay box and move the relay box toward the
rear of the vehicle.2. For vehicles equipped with turbocharger, when replacing
the bulb on the passenger’s side, lift up the engine coolant
reservoir (B).*- Front of the vehicle
*- Front of the vehicle
BK0138600US.book 66 ページ ２０１１年７月１７日　日曜日　午後２時３２分

Vehicle care and maintenance
7-67
7

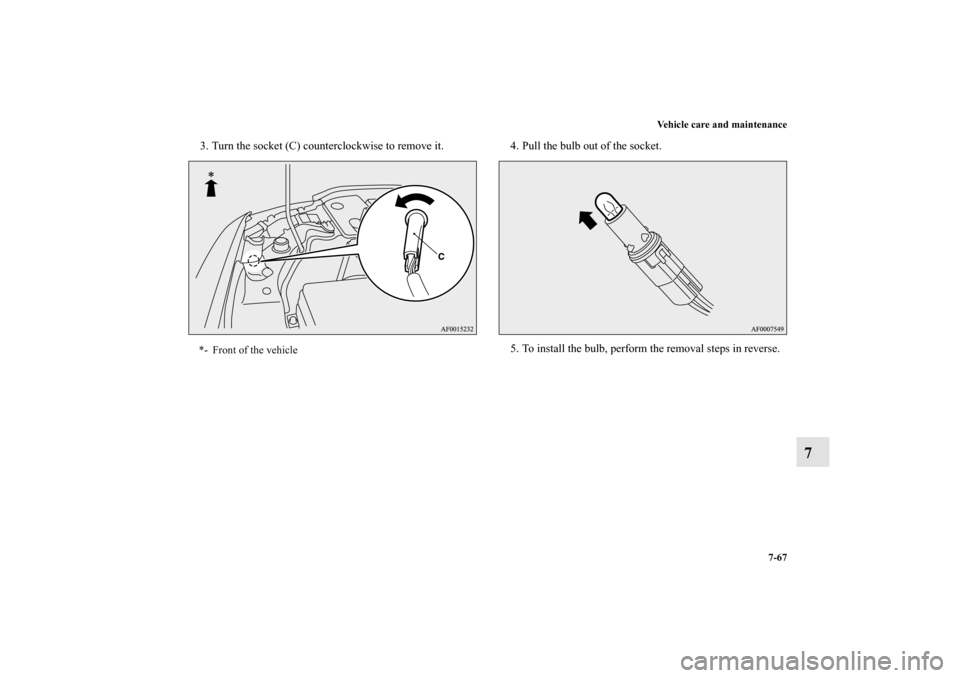

3. Turn the socket (C) counterclockwise to remove it. 4. Pull the bulb out of the socket.
5. To install the bulb, perform the removal steps in reverse.*- Front of the vehicle
BK0138600US.book 67 ページ ２０１１年７月１７日　日曜日　午後２時３２分

7-68 Vehicle care and maintenance
7

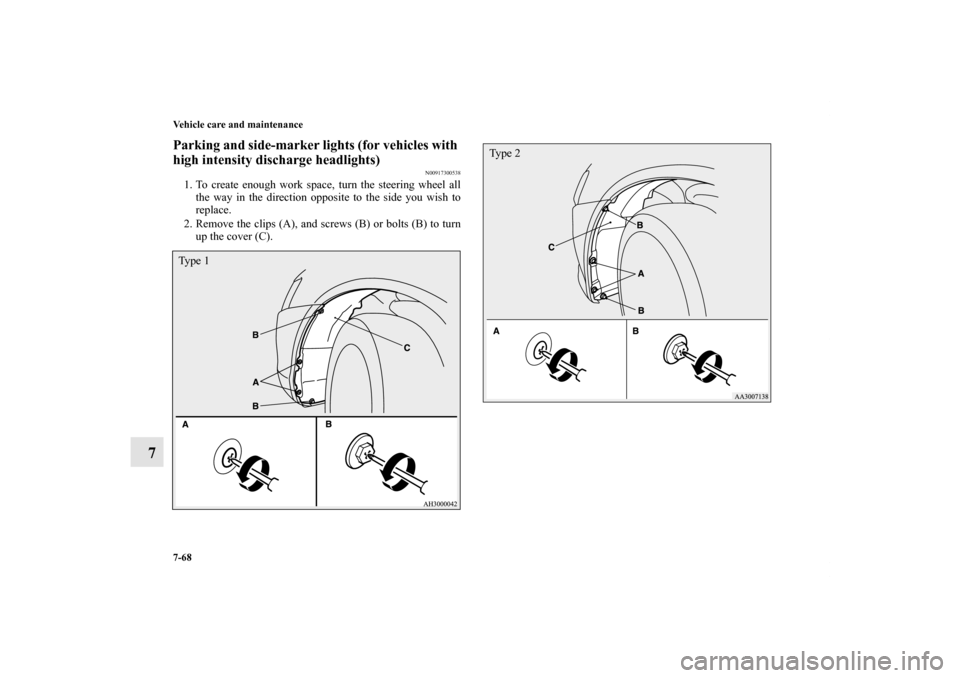

Parking and side-marker lights (for vehicles with
high intensity discharge headlights)
N00917300538
1. To create enough work space, turn the steering wheel all
the way in the direction opposite to the side you wish to
replace.
2. Remove the clips (A), and screws (B) or bolts (B) to turn
up the cover (C).Ty p e 1
Ty p e 2
BK0138600US.book 68 ページ ２０１１年７月１７日　日曜日　午後２時３２分

Vehicle care and maintenance
7-69
7

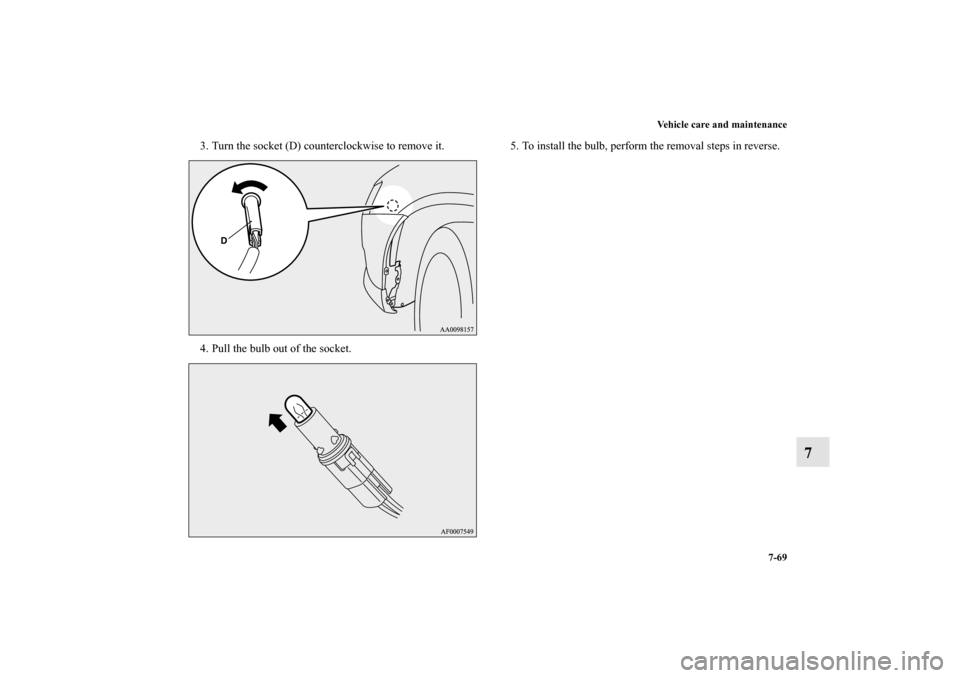

3. Turn the socket (D) counterclockwise to remove it.
4. Pull the bulb out of the socket.5. To install the bulb, perform the removal steps in reverse.
BK0138600US.book 69 ページ ２０１１年７月１７日　日曜日　午後２時３２分

7-70 Vehicle care and maintenance
7

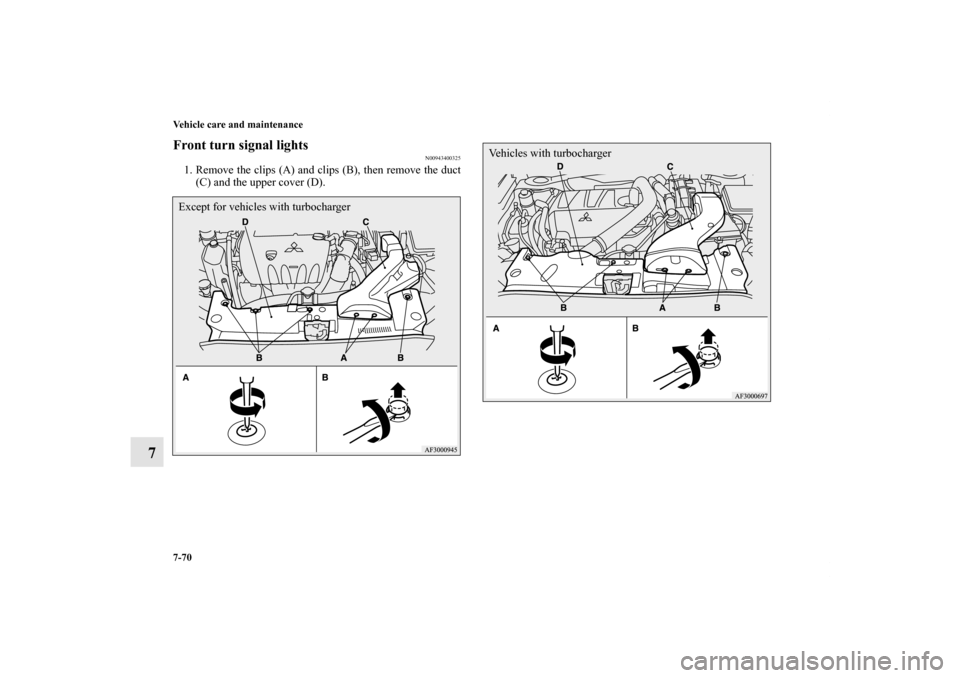

Front turn signal lights
N00943400325
1. Remove the clips (A) and clips (B), then remove the duct
(C) and the upper cover (D).Except for vehicles with turbocharger
Vehicles with turbocharger
BK0138600US.book 70 ページ ２０１１年７月１７日　日曜日　午後２時３２分

Vehicle care and maintenance
7-71
7

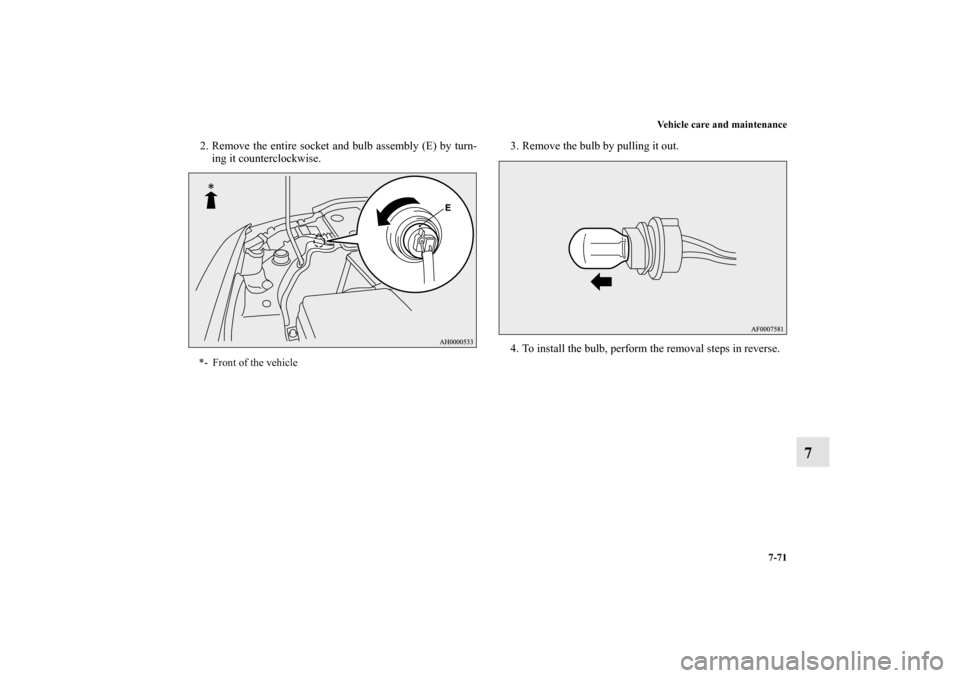

2. Remove the entire socket and bulb assembly (E) by turn-
ing it counterclockwise.3. Remove the bulb by pulling it out.
4. To install the bulb, perform the removal steps in reverse.*- Front of the vehicle
BK0138600US.book 71 ページ ２０１１年７月１７日　日曜日　午後２時３２分

7-72 Vehicle care and maintenance
7

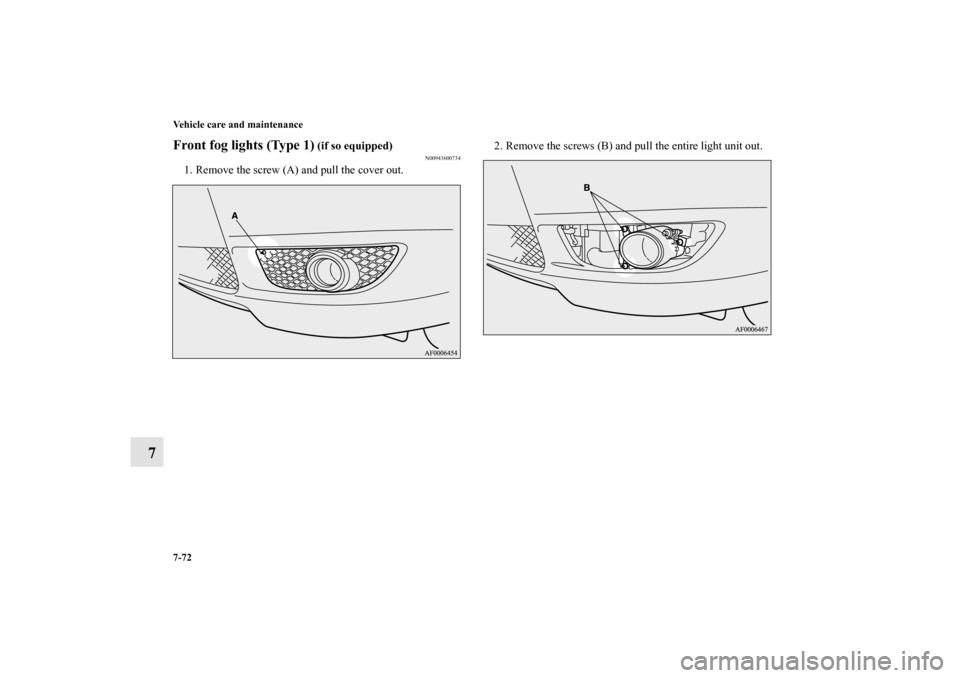

Front fog lights (Type 1)
(if so equipped)
N00943600734
1. Remove the screw (A) and pull the cover out.2. Remove the screws (B) and pull the entire light unit out.
BK0138600US.book 72 ページ ２０１１年７月１７日　日曜日　午後２時３２分

Vehicle care and maintenance
7-73
7

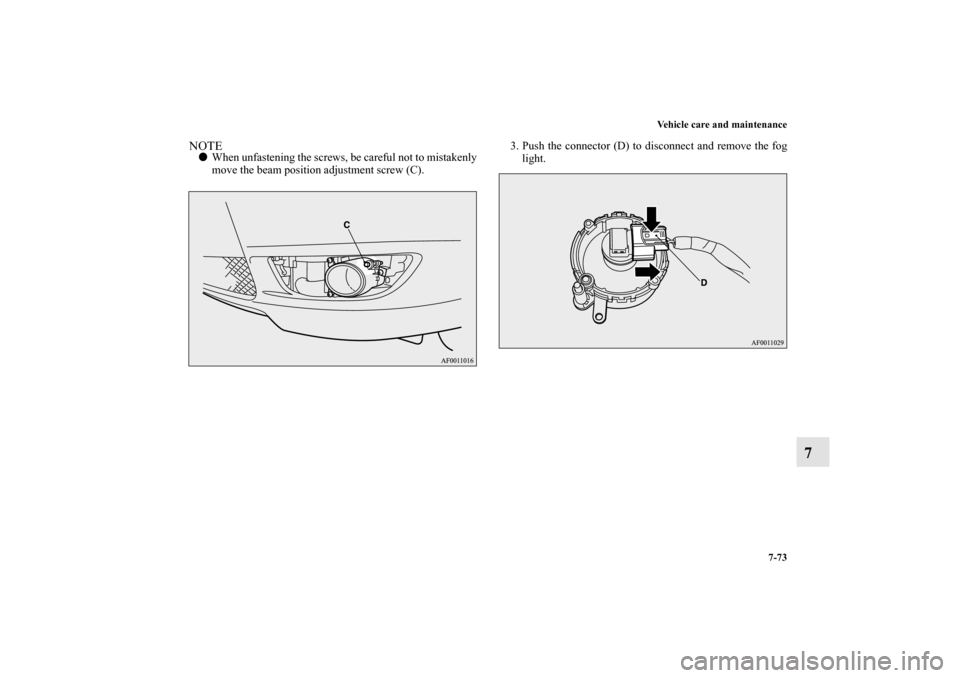

NOTE
When unfastening the screws, be careful not to mistakenly
move the beam position adjustment screw (C).3. Push the connector (D) to disconnect and remove the fog
light.
