MITSUBISHI LANCER RALLIART 2012 8.G Owners Manual

7-74 Vehicle care and maintenance
7

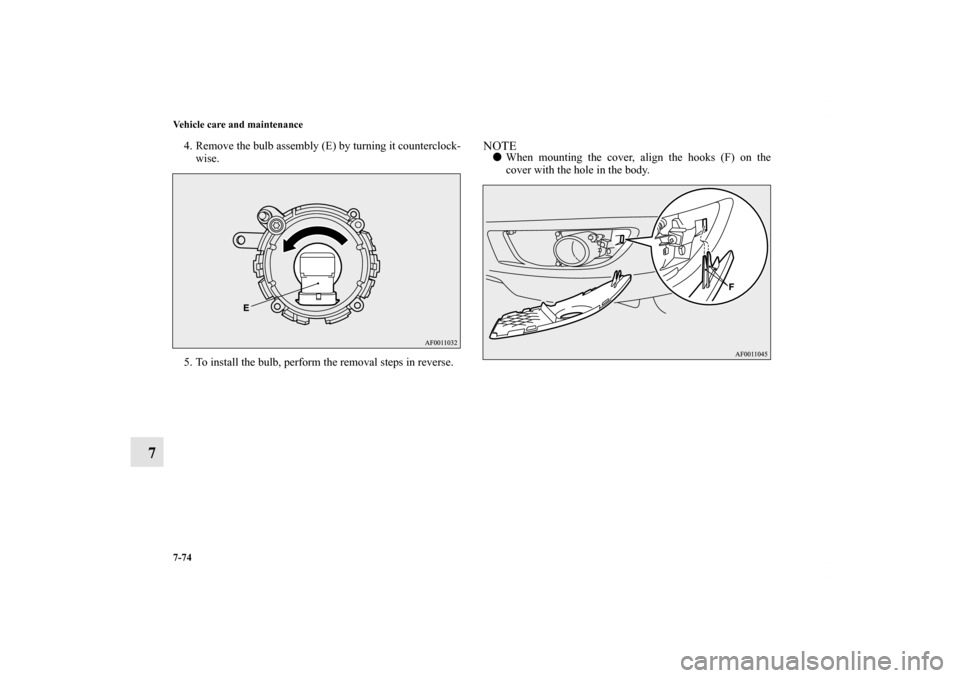

4. Remove the bulb assembly (E) by turning it counterclock-
wise.
5. To install the bulb, perform the removal steps in reverse.
NOTE
When mounting the cover, align the hooks (F) on the
cover with the hole in the body.
BK0138600US.book 74 ページ ２０１１年７月１７日　日曜日　午後２時３２分

Vehicle care and maintenance
7-75
7

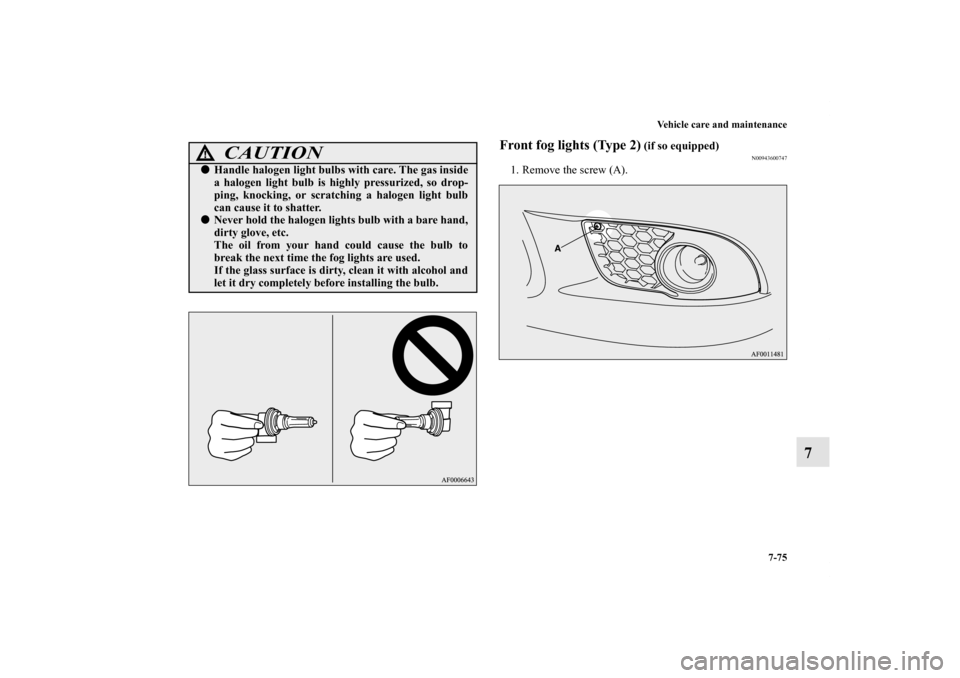

Front fog lights (Type 2)
(if so equipped)
N00943600747
1. Remove the screw (A).
CAUTION
!
Handle halogen light bulbs with care. The gas inside
a halogen light bulb is highly pressurized, so drop-
ping, knocking, or scratching a halogen light bulb
can cause it to shatter.
Never hold the halogen lights bulb with a bare hand,
dirty glove, etc.
The oil from your hand could cause the bulb to
break the next time the fog lights are used.
If the glass surface is dirty, clean it with alcohol and
let it dry completely before installing the bulb.
BK0138600US.book 75 ページ ２０１１年７月１７日　日曜日　午後２時３２分

7-76 Vehicle care and maintenance
7

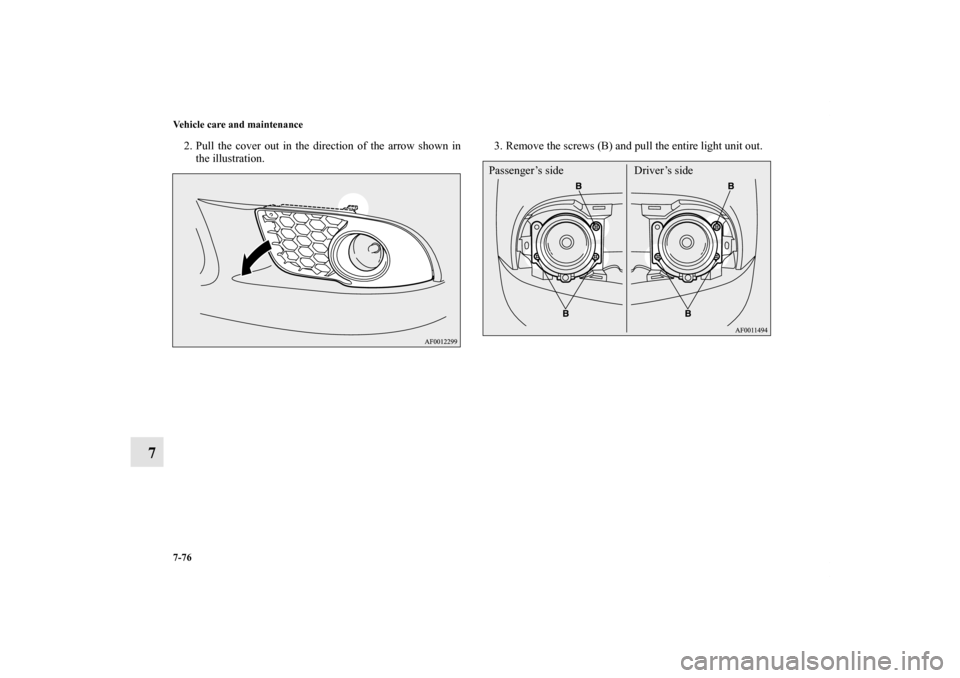

2. Pull the cover out in the direction of the arrow shown in
the illustration.3. Remove the screws (B) and pull the entire light unit out.
Passenger’s side Driver’s side
BK0138600US.book 76 ページ ２０１１年７月１７日　日曜日　午後２時３２分

Vehicle care and maintenance
7-77
7

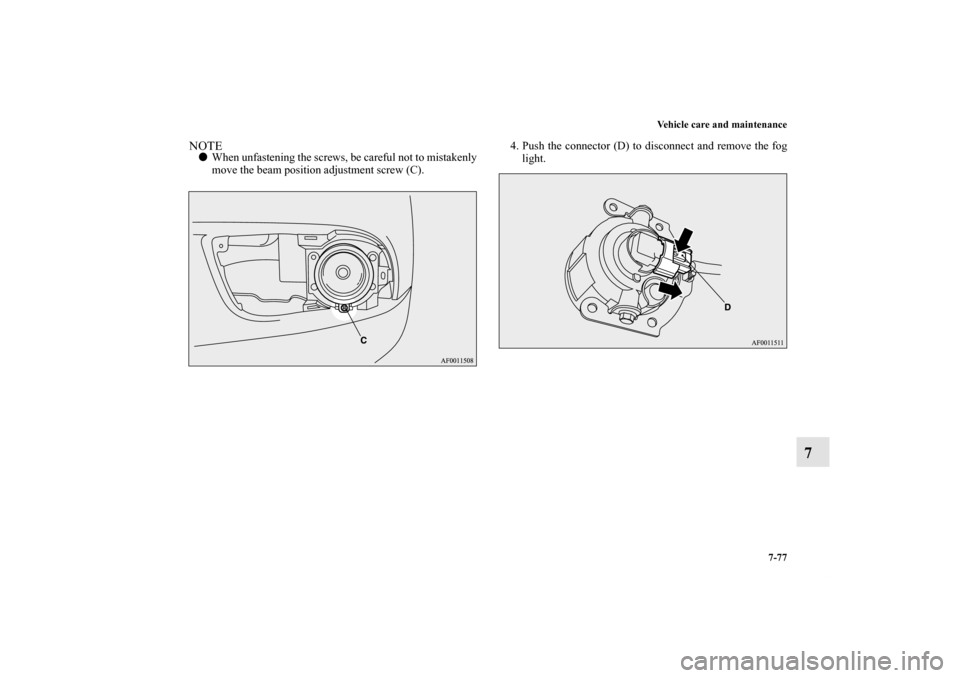

NOTE
When unfastening the screws, be careful not to mistakenly
move the beam position adjustment screw (C).4. Push the connector (D) to disconnect and remove the fog
light.
BK0138600US.book 77 ページ ２０１１年７月１７日　日曜日　午後２時３２分

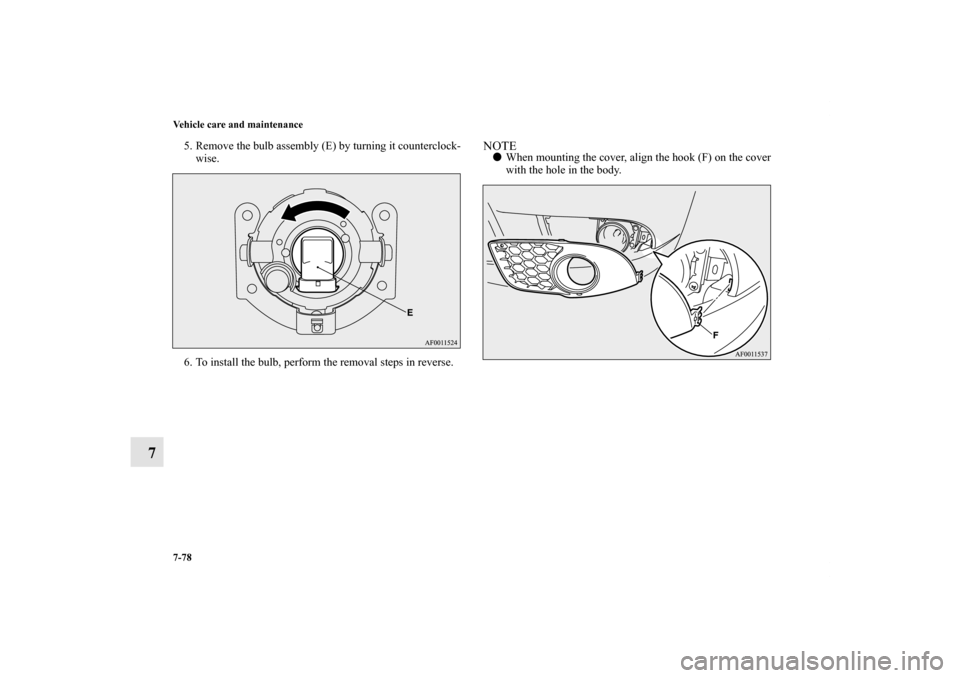

7-78 Vehicle care and maintenance
7
5. Remove the bulb assembly (E) by turning it counterclock-
wise.
6. To install the bulb, perform the removal steps in reverse.
NOTE
When mounting the cover, align the hook (F) on the cover
with the hole in the body.
BK0138600US.book 78 ページ ２０１１年７月１７日　日曜日　午後２時３２分

Vehicle care and maintenance
7-79
7
Rear combination lights
N00943700386
Tail and stop lights, rear turn signal lights and rear
side-marker lights1. Remove the screws (A) from the light unit.
CAUTION
!
Handle halogen light bulbs with care. The gas inside
a halogen light bulb is highly pressurized, so drop-
ping, knocking, or scratching a halogen light bulb
can cause it to shatter.
Never hold the halogen lights bulb with a bare hand,
dirty glove, etc.
The oil from your hand could cause the bulb to
break the next time the fog lights are used.
If the glass surface is dirty, clean it with alcohol and
let it dry completely before installing the bulb.
BK0138600US.book 79 ページ ２０１１年７月１７日　日曜日　午後２時３２分

7-80 Vehicle care and maintenance
7

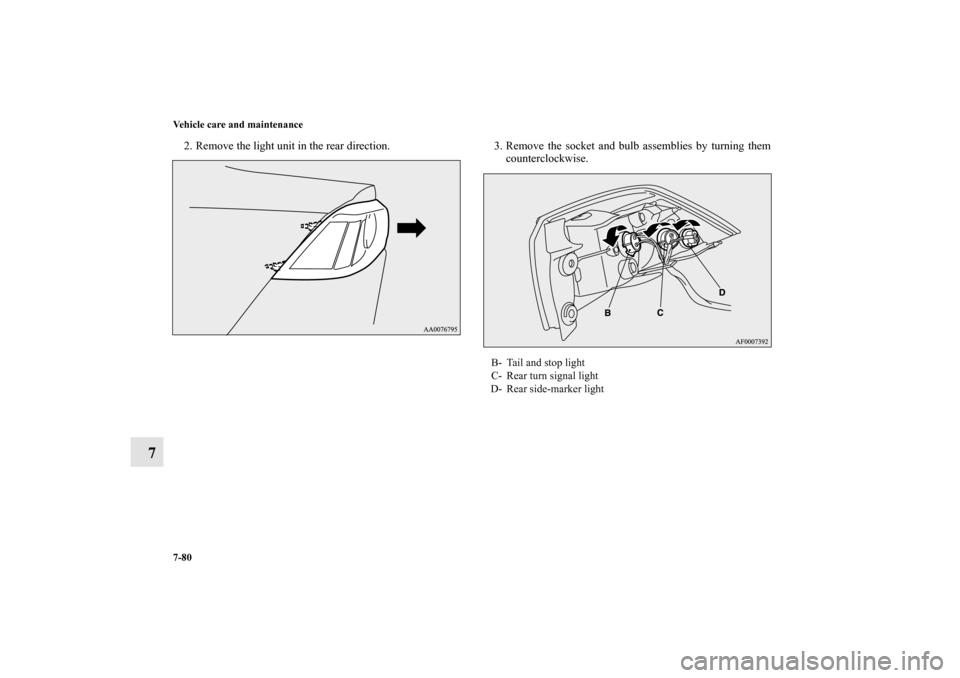

2. Remove the light unit in the rear direction. 3. Remove the socket and bulb assemblies by turning them
counterclockwise.
B- Tail and stop light
C- Rear turn signal light
D- Rear side-marker light
BK0138600US.book 80 ページ ２０１１年７月１７日　日曜日　午後２時３２分

Vehicle care and maintenance
7-81
7

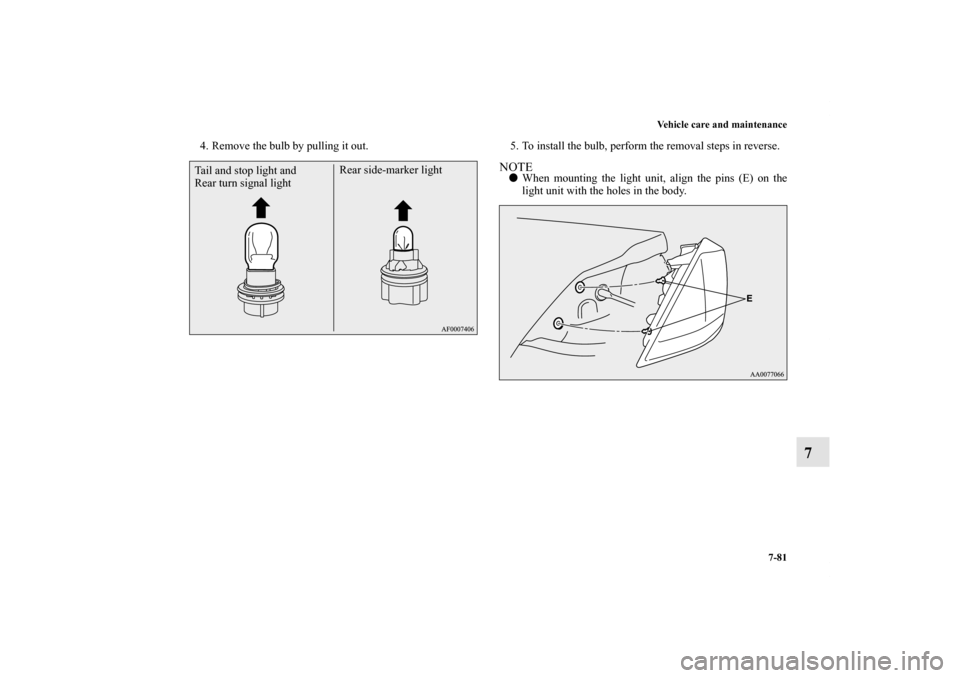

4. Remove the bulb by pulling it out. 5. To install the bulb, perform the removal steps in reverse.
NOTE
When mounting the light unit, align the pins (E) on the
light unit with the holes in the body.
Tail and stop light and
Rear turn signal lightRear side-marker light
BK0138600US.book 81 ページ ２０１１年７月１７日　日曜日　午後２時３２分

7-82 Vehicle care and maintenance
7

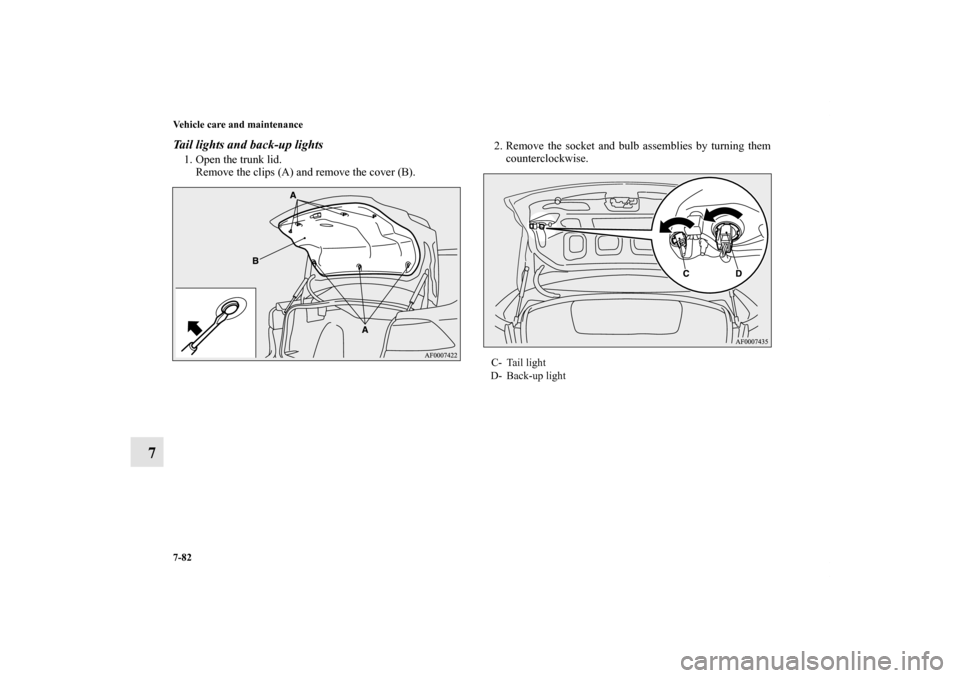

Tail lights and back-up lights1. Open the trunk lid.
Remove the clips (A) and remove the cover (B).2. Remove the socket and bulb assemblies by turning them
counterclockwise.
C- Tail light
D- Back-up light
BK0138600US.book 82 ページ ２０１１年７月１７日　日曜日　午後２時３２分

Vehicle care and maintenance
7-83
7

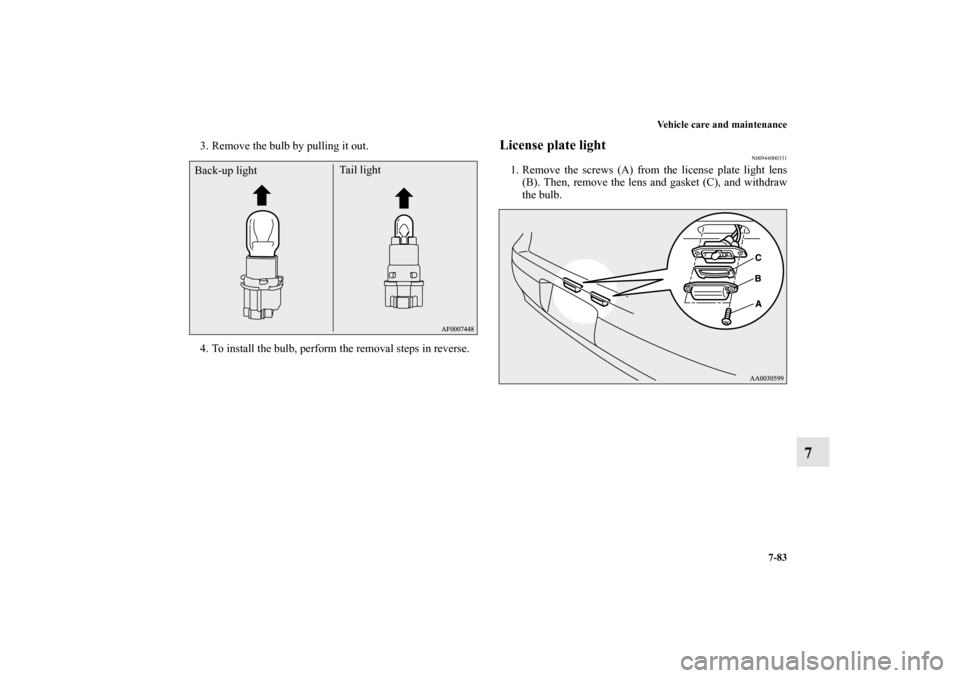

3. Remove the bulb by pulling it out.
4. To install the bulb, perform the removal steps in reverse.
License plate light
N00944000331
1. Remove the screws (A) from the license plate light lens
(B). Then, remove the lens and gasket (C), and withdraw
the bulb.
Back-up lightTail light
