MITSUBISHI LANCER RALLIART 2012 8.G Owners Manual

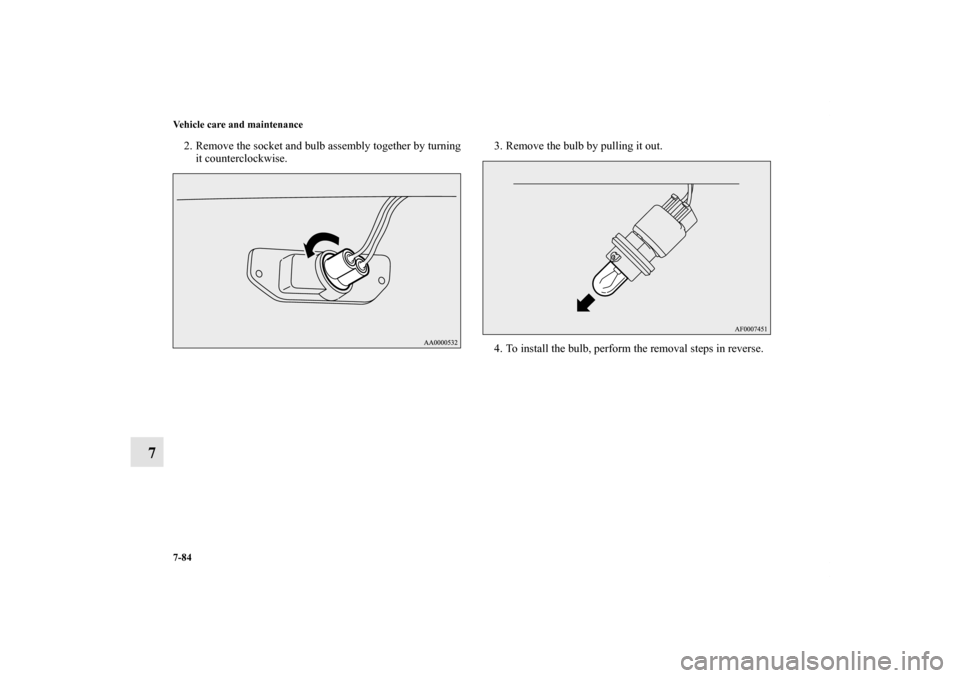

7-84 Vehicle care and maintenance
7
2. Remove the socket and bulb assembly together by turning
it counterclockwise.3. Remove the bulb by pulling it out.
4. To install the bulb, perform the removal steps in reverse.
BK0138600US.book 84 ページ ２０１１年７月１７日　日曜日　午後２時３２分

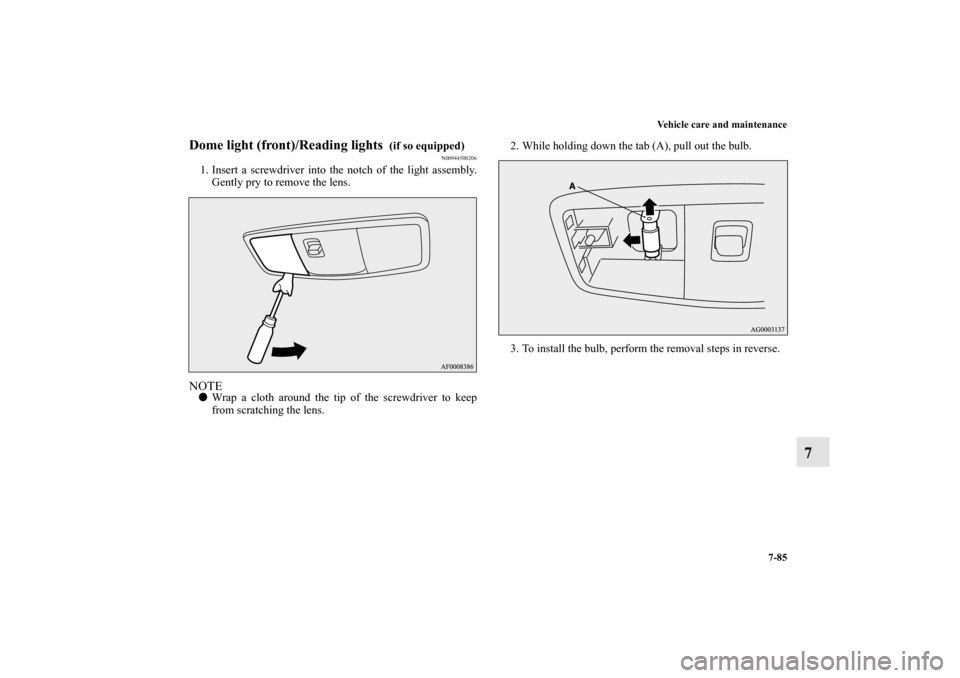

Vehicle care and maintenance
7-85
7
Dome light (front)/Reading lights
(if so equipped)
N00944500206
1. Insert a screwdriver into the notch of the light assembly.
Gently pry to remove the lens.NOTE
Wrap a cloth around the tip of the screwdriver to keep
from scratching the lens.2. While holding down the tab (A), pull out the bulb.
3. To install the bulb, perform the removal steps in reverse.
BK0138600US.book 85 ページ ２０１１年７月１７日　日曜日　午後２時３２分

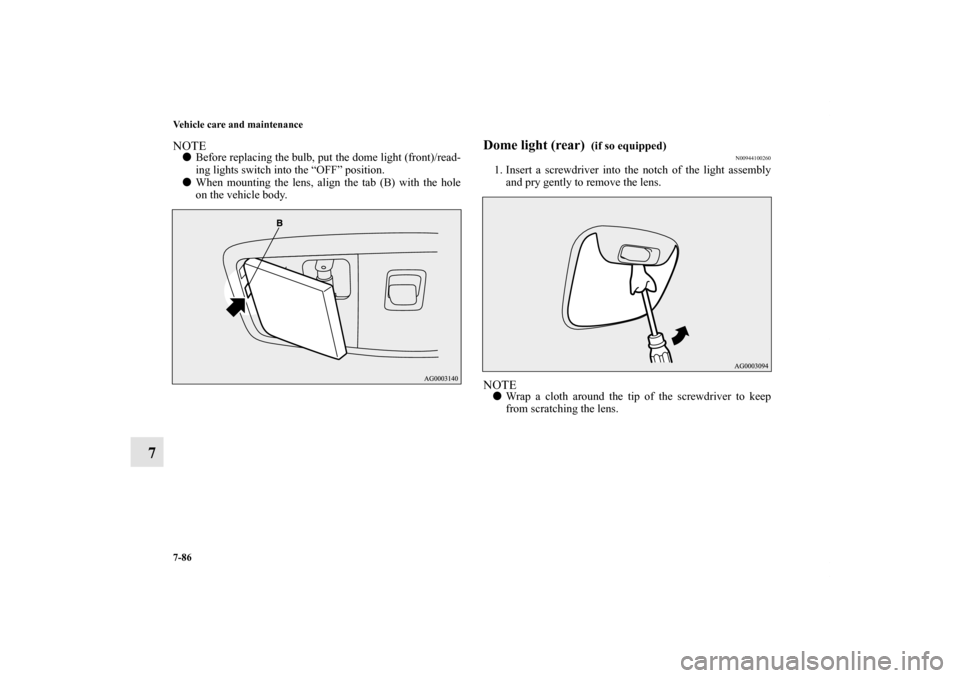

7-86 Vehicle care and maintenance
7
NOTE
Before replacing the bulb, put the dome light (front)/read-
ing lights switch into the “OFF” position.

When mounting the lens, align the tab (B) with the hole
on the vehicle body.
Dome light (rear)
(if so equipped)
N00944100260
1. Insert a screwdriver into the notch of the light assembly
and pry gently to remove the lens.NOTE
Wrap a cloth around the tip of the screwdriver to keep
from scratching the lens.
BK0138600US.book 86 ページ ２０１１年７月１７日　日曜日　午後２時３２分

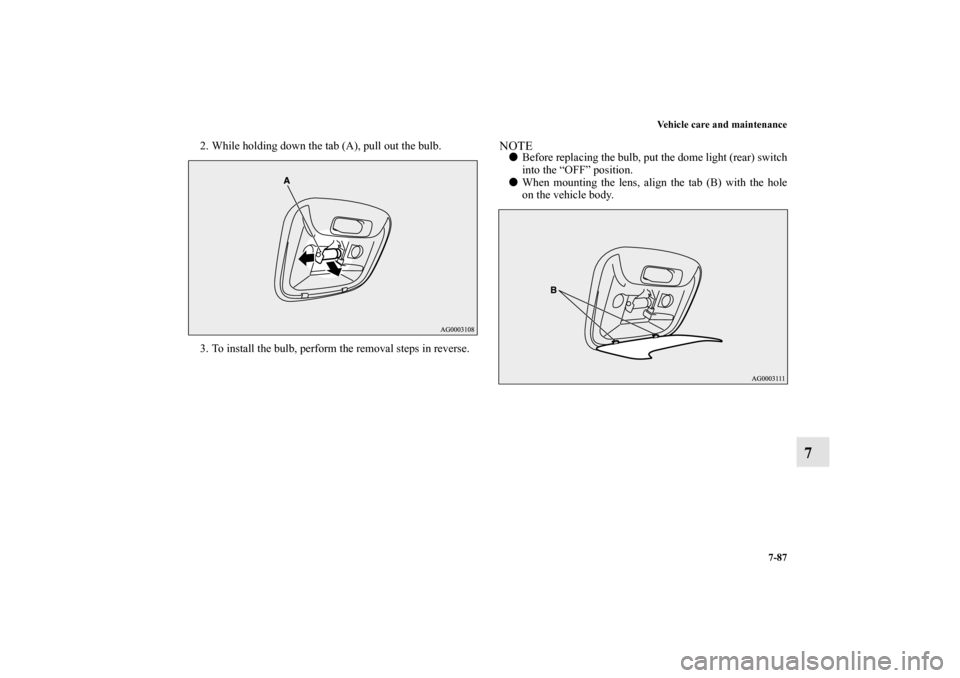

Vehicle care and maintenance
7-87
7
2. While holding down the tab (A), pull out the bulb.
3. To install the bulb, perform the removal steps in reverse.
NOTE
Before replacing the bulb, put the dome light (rear) switch
into the “OFF” position.

When mounting the lens, align the tab (B) with the hole
on the vehicle body.
BK0138600US.book 87 ページ ２０１１年７月１７日　日曜日　午後２時３２分

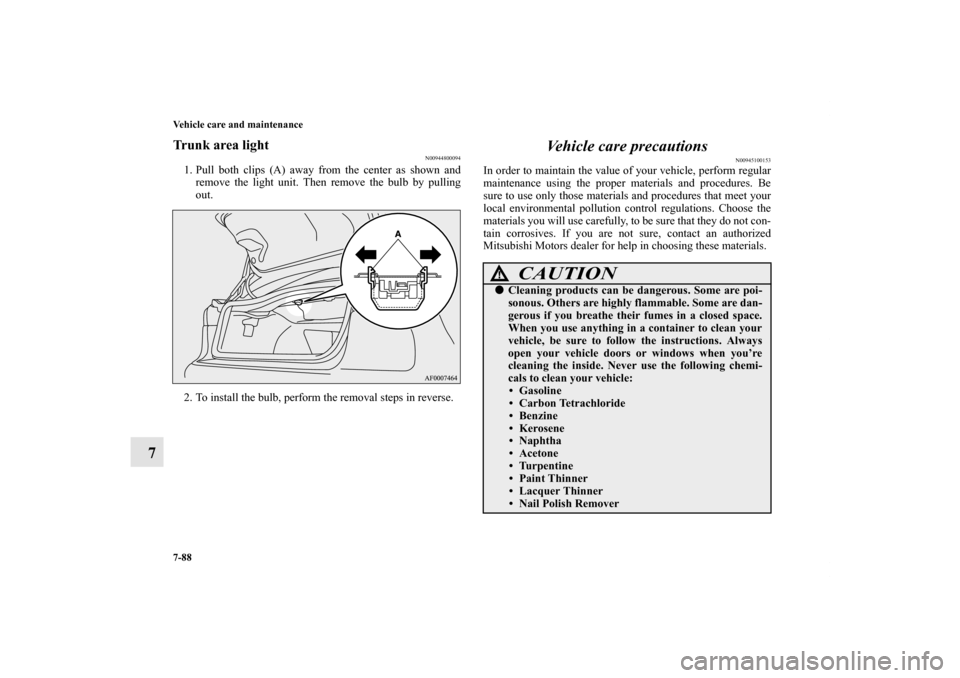

7-88 Vehicle care and maintenance
7
Trunk area light
N00944800094
1. Pull both clips (A) away from the center as shown and
remove the light unit. Then remove the bulb by pulling
out.
2. To install the bulb, perform the removal steps in reverse.
Vehicle care precautions
N00945100153
In order to maintain the value of your vehicle, perform regular
maintenance using the proper materials and procedures. Be
sure to use only those materials and procedures that meet your
local environmental pollution control regulations. Choose the
materials you will use carefully, to be sure that they do not con-
tain corrosives. If you are not sure, contact an authorized
Mitsubishi Motors dealer for help in choosing these materials.
CAUTION
!
Cleaning products can be dangerous. Some are poi-
sonous. Others are highly flammable. Some are dan-
gerous if you breathe their fumes in a closed space.
When you use anything in a container to clean your
vehicle, be sure to follow the instructions. Always
open your vehicle doors or windows when you’re
cleaning the inside. Never use the following chemi-
cals to clean your vehicle:
• Gasoline
• Carbon Tetrachloride
• Benzine
• Kerosene
• Naphtha
• Acetone
• Turpentine
• Paint Thinner
• Lacquer Thinner
• Nail Polish Remover
BK0138600US.book 88 ページ ２０１１年７月１７日　日曜日　午後２時３２分

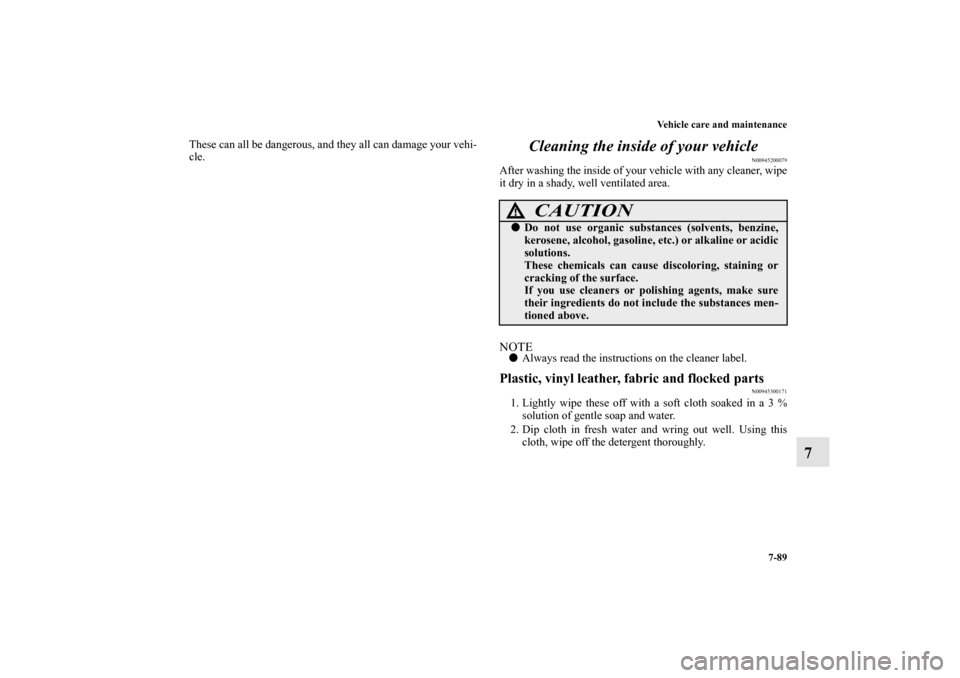

Vehicle care and maintenance
7-89
7
These can all be dangerous, and they all can damage your vehi-
cle.
Cleaning the inside of your vehicle
N00945200079
After washing the inside of your vehicle with any cleaner, wipe
it dry in a shady, well ventilated area. NOTE
Always read the instructions on the cleaner label.Plastic, vinyl leather, fabric and flocked parts
N00945300171
1. Lightly wipe these off with a soft cloth soaked in a 3 %
solution of gentle soap and water.
2. Dip cloth in fresh water and wring out well. Using this
cloth, wipe off the detergent thoroughly.
CAUTION
!
Do not use organic substances (solvents, benzine,
kerosene, alcohol, gasoline, etc.) or alkaline or acidic
solutions.
These chemicals can cause discoloring, staining or
cracking of the surface.
If you use cleaners or polishing agents, make sure
their ingredients do not include the substances men-
tioned above.
BK0138600US.book 89 ページ ２０１１年７月１７日　日曜日　午後２時３２分

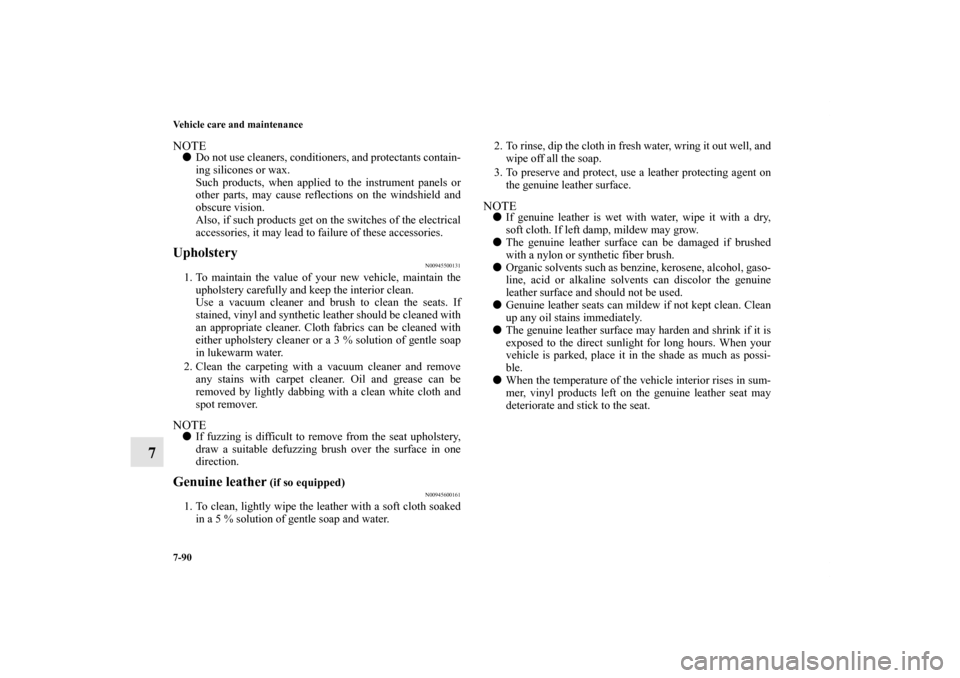

7-90 Vehicle care and maintenance
7
NOTE
Do not use cleaners, conditioners, and protectants contain-
ing silicones or wax.
Such products, when applied to the instrument panels or
other parts, may cause reflections on the windshield and
obscure vision.
Also, if such products get on the switches of the electrical
accessories, it may lead to failure of these accessories.Upholstery
N00945500131
1. To maintain the value of your new vehicle, maintain the
upholstery carefully and keep the interior clean.
Use a vacuum cleaner and brush to clean the seats. If
stained, vinyl and synthetic leather should be cleaned with
an appropriate cleaner. Cloth fabrics can be cleaned with
either upholstery cleaner or a 3 % solution of gentle soap
in lukewarm water.
2. Clean the carpeting with a vacuum cleaner and remove
any stains with carpet cleaner. Oil and grease can be
removed by lightly dabbing with a clean white cloth and
spot remover. NOTE
If fuzzing is difficult to remove from the seat upholstery,
draw a suitable defuzzing brush over the surface in one
direction.Genuine leather
(if so equipped)
N00945600161
1. To clean, lightly wipe the leather with a soft cloth soaked
in a 5 % solution of gentle soap and water. 2. To rinse, dip the cloth in fresh water, wring it out well, and
wipe off all the soap.
3. To preserve and protect, use a leather protecting agent on
the genuine leather surface.
NOTE
If genuine leather is wet with water, wipe it with a dry,
soft cloth. If left damp, mildew may grow.

The genuine leather surface can be damaged if brushed
with a nylon or synthetic fiber brush.

Organic solvents such as benzine, kerosene, alcohol, gaso-
line, acid or alkaline solvents can discolor the genuine
leather surface and should not be used.

Genuine leather seats can mildew if not kept clean. Clean
up any oil stains immediately.

The genuine leather surface may harden and shrink if it is
exposed to the direct sunlight for long hours. When your
vehicle is parked, place it in the shade as much as possi-
ble.

When the temperature of the vehicle interior rises in sum-
mer, vinyl products left on the genuine leather seat may
deteriorate and stick to the seat.
BK0138600US.book 90 ページ ２０１１年７月１７日　日曜日　午後２時３２分

Vehicle care and maintenance
7-91
7 Cleaning the outside of your vehicle
N00945700061
To protect your vehicle’s finish, wash it often and thoroughly.
If desired, you may wax your vehicle using a nonabrasive auto-
mobile wax. Foreign material
N00945800046
Industrial pollution, road tar, bird droppings, tree sap, insect
remains, sea water and other foreign matters can damage the
finish on your vehicle.
Generally, the longer any foreign material stays on the finish,
the worse the damage. Wash your vehicle as soon as possible
whenever the finish gets soiled.Wash i ng
N00945900526
Chemicals contained in the dirt and dust picked up from air,
rain, snow or road surfaces can damage the paint and body of
your vehicle if left on.
Frequent washing and waxing is the best way to protect your
vehicle from this damage.
Do not wash the vehicle in direct sunlight. Park the vehicle in
the shade and spray it with water to remove dust. Next, using
plenty of clean water and a car washing mitt or sponge, wash
the vehicle from top to bottom.
Use a mild car washing soap if necessary. Rinse thoroughly
and wipe dry with a chamois or soft cloth. After washing the
vehicle, carefully clean the joints and flanges of the doors,
hood, etc., where dirt is likely to remain.
CAUTION
!
When washing the underside of your vehicle or the
wheels, wear a pair of gloves to protect your hands.
If your vehicle has rain sensor wipers, place the
wiper switch lever in the “OFF” position to deacti-
vate the rain sensor before washing the vehicle. Oth-
erwise, the wipers will operate in the presence of
water spray on the windshield and may get damaged
as a result.
Never spray or splash water on the electrical parts
in the engine compartment. This may damage them.
Be careful also when washing the underbody. Do not
spray water into the engine compartment.
Avoid automatic car washers that use rotating
brushes. These brushes may scratch the paint sur-
face and make it dull.
Scratches are more noticeable on darker colored
vehicles.
Some hot water washing equipment uses high pres-
sure and heat to clean your vehicle. This heated
water may damage your vehicle’s resin parts. It can
flood the interior of the vehicle. Therefore, be sure
of the following:
• Keep the washing nozzle at least 20 inches (50 cm)
away from the vehicle body.
• When washing around the door glass, hold the
nozzle at a distance of more than 20 inches (50 cm)
and at right angles to the glass surface.
BK0138600US.book 91 ページ ２０１１年７月１７日　日曜日　午後２時３２分

7-92 Vehicle care and maintenance
7
During cold weather Salt and other chemicals spread on winter roads in some geo-
graphical areas can have a detrimental effect on the vehicle
underbody. You should flush the underbody with a high pres-
sure hose every time you wash the outside of your vehicle.
Take special care to remove mud or other debris which could
trap and hold salt and moisture.
After washing your vehicle, wipe off all waterdrops from the
rubber parts around the doors to prevent the doors from freez-
ing.
NOTE
When the door is frozen, opening it by force may tear off
or crack the rubber gasket installed around the door. Pour
warm water to melt the ice. Be sure to thoroughly wipe off
the water after opening the door. To prevent freezing of
the weatherstripping on the doors, hood, etc., treat with
silicone lubricant.Waxing
N00946000188
Wax your vehicle once or twice a year, or when water does not
bead up on the paint.
Use a soft cloth to put a small amount of wax on the painted
surfaces. After the wax has dried, polish with a dry soft cloth.
Do not wax your vehicle in direct sunlight.
You should wax when the painted surfaces are cool.

When using high-pressure water to wash a vehicle
equipped with the F.A.S.T.-key system, keep the
water from spraying on the open button on the
trunk. This could cause the trunk to open and flood
the inside of the trunk.
Make sure to do the following when using an auto-
matic car wash, with help from either this manual or
the car wash operator, to avoid damaging your vehi-
cle:
• Fold the outside mirrors.
• Put down (except for vehicles with SIRIUS satellite
radio antenna) or remove the antenna.
• If your vehicle is equipped with rear spoiler, check
with the car wash operator before using the car
wash.
• If your vehicle has rain sensor wipers, place the
wiper switch lever in the “OFF” position to deacti-
vate the rain sensor.CAUTION
!
CAUTION
!
Waxes containing high abrasive compounds should
not be used. These waxes remove rust and stain
effectively from the paintwork, but are harmful to
the finish on the paint and the plate, because they
also remove clearcoat.
They are also harmful to other glossy surfaces such
as the grille, trim, moldings, etc.
Do not use gasoline, kerosene, benzine or paint thin-
ners to remove road tar or other dirt from the vehi-
cle surface.
BK0138600US.book 92 ページ ２０１１年７月１７日　日曜日　午後２時３２分

Vehicle care and maintenance
7-93
7
Polishing
N00946100059
If painted surfaces have been severely damaged and lost their
original luster and color tone, polish the surface lightly with a
fine polishing compound. Avoid limiting your polishing to the
damaged surface only; polish a somewhat wider area, moving
the polishing cloth in one direction. After polishing, flush the
compound from the surface and apply a coat of wax to regain a
beautiful luster.Damaged paint
N00946200063
Small cracks and scratches in the paint coat should be touched
up as soon as possible with touch-up paint to prevent corrosion.
Check body areas facing the road or the tires carefully for dam-
age to the paint caused by flying stones, etc. The paint code
number for your vehicle can be found on the vehicle informa-
tion code plate in the engine compartment.
Cleaning plastic parts
N00946300178
Use a sponge or chamois to clean these parts.
If a vehicle wax sticks to a gray or black rough surface of the
bumper, molding or lights, the surface may appear white in
color. In this case, wipe it off using lukewarm water and a soft
cloth or chamois. Chrome parts
N00946400065
To prevent spots and corrosion of chrome parts, wash with
water, dry thoroughly, and apply a nonabrasive automotive
wax. If the chrome is severely damaged or pitted, use a com-
mercially available chrome polish.

Do not put wax on the areas having black matte
coating because it can cause uneven discoloration,
patches, blurs, etc. If these get wax on them, wipe
the wax off right away with a soft cloth and warm
water.
On vehicles with sunroof, be careful not to apply any
wax on the weatherstrip (black rubber) when wax-
ing the area around the sunroof opening.
If stained with wax, the weatherstrip cannot main-
tain a weatherproof seal with the sunroof.
CAUTION
!
CAUTION
!
Do not use a scrubbing brush or other rough scrub-
ber as these may damage the plastic surface.
Do not use wax containing compounds (polishing
powder) which may damage the plastic surface.
Do not let the plastic parts get soiled with gasoline,
oil, brake fluids, engine oils, greases, paint thinner,
and sulfuric acid (battery electrolyte). These fluids,
etc., may crack, stain or discolor the plastic parts.
If any of these get on the plastic parts, wipe them up
with a soft cloth or chamois and a mild solution of
soap and water. Then rinse them immediately with
water.
BK0138600US.book 93 ページ ２０１１年７月１７日　日曜日　午後２時３２分
