MITSUBISHI LANCER RALLIART 2012 8.G Owners Manual

9-2 Specifications
9Vehicle labeling
N01147400667
Keep a record of the chassis number and vehicle identification
number. Such information will assist the police if your vehicle
is stolen.
1 - Vehicle emission control information labelThe vehicle emission control information label is affixed on the
inside panel of the engine hood.2 - Vehicle identification number plateThe vehicle identification number is stamped on the plate riv-
eted to the left front corner of the dashboard. It is visible from
outside of the vehicle through the windshield.3 - Air conditioning labelThe air conditioning label is affixed on the inside panel of the
engine compartment.
Except for vehicles with turbocharger
Vehicles with turbocharger
BK0138600US.book 2 ページ ２０１１年７月１７日　日曜日　午後２時３２分

Specifications
9-3
9

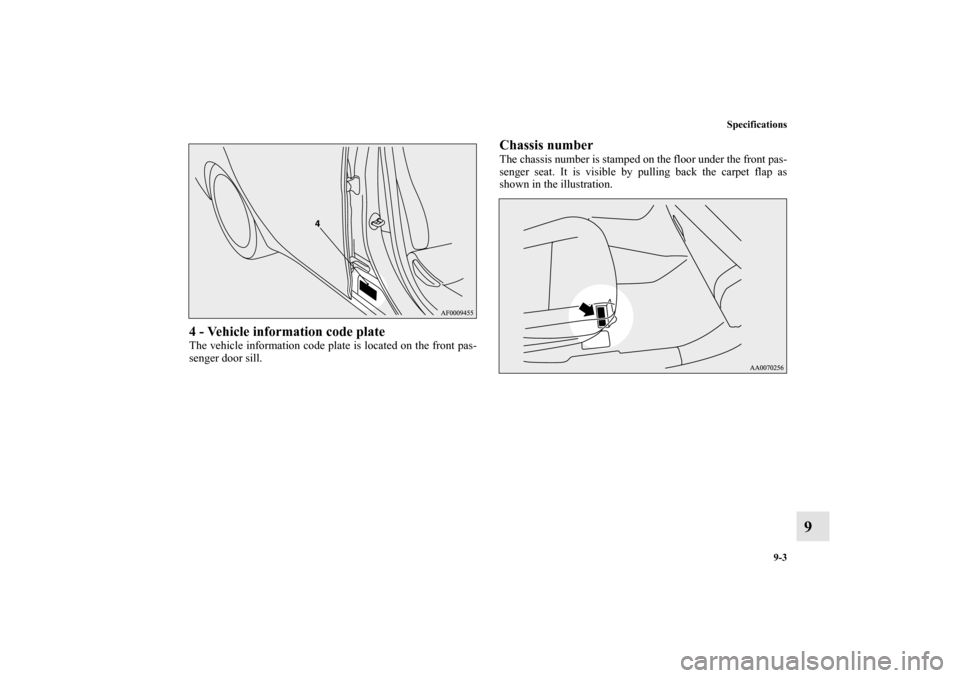

4 - Vehicle information code plateThe vehicle information code plate is located on the front pas-
senger door sill.
Chassis numberThe chassis number is stamped on the floor under the front pas-
senger seat. It is visible by pulling back the carpet flap as
shown in the illustration.
BK0138600US.book 3 ページ ２０１１年７月１７日　日曜日　午後２時３２分

9-4 Specifications
9

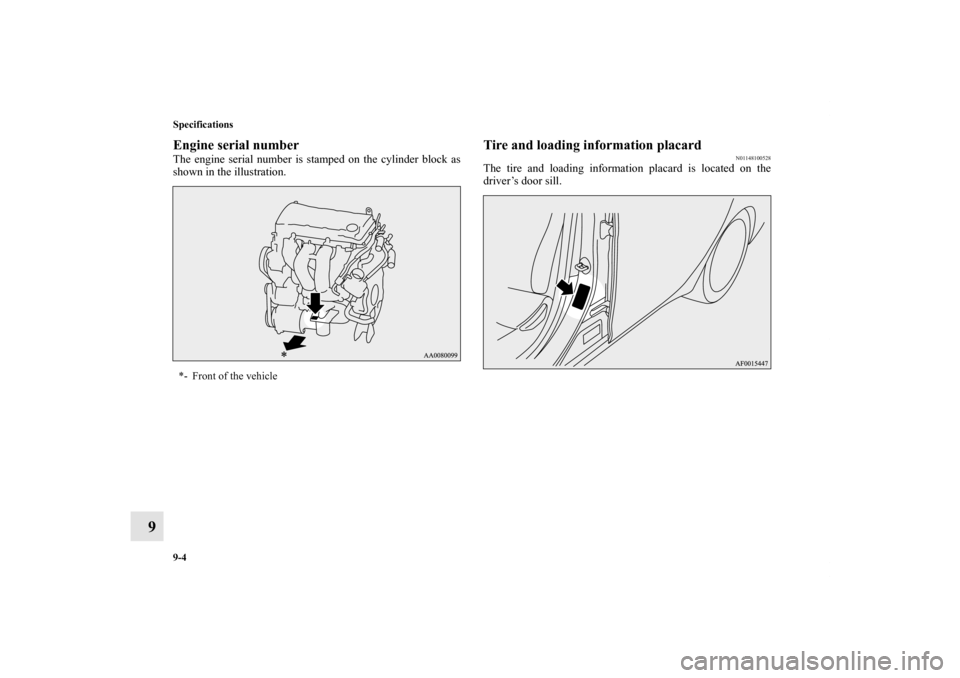

Engine serial numberThe engine serial number is stamped on the cylinder block as
shown in the illustration.
Tire and loading information placard
N01148100528
The tire and loading information placard is located on the
driver’s door sill.
*- Front of the vehicleBK0138600US.book 4 ページ ２０１１年７月１７日　日曜日　午後２時３２分

Specifications
9-5
9

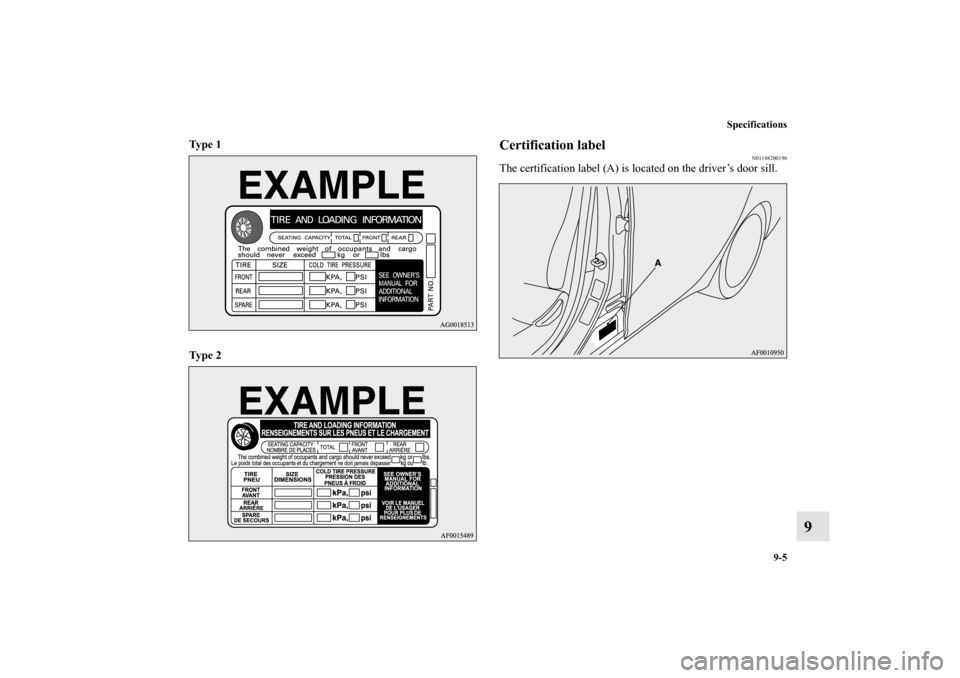

Ty p e 1

Ty p e 2

Certification label
N01148200196
The certification label (A) is located on the driver’s door sill.
BK0138600US.book 5 ページ ２０１１年７月１７日　日曜日　午後２時３２分

9-6 Specifications

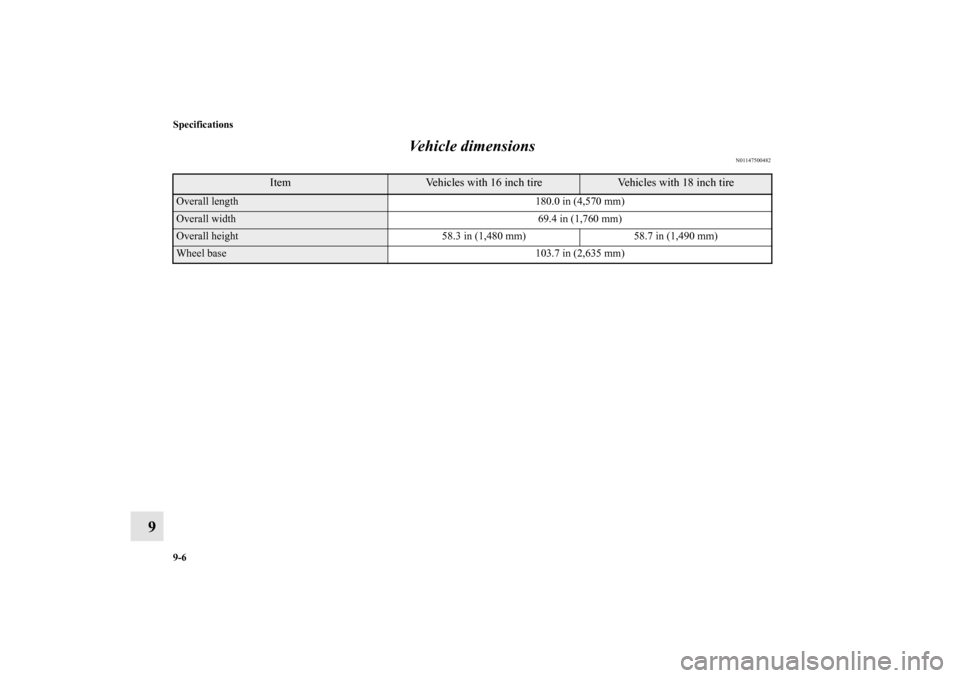

9Vehicle dimensions
N01147500482
Item
Vehicles with 16 inch tire
Vehicles with 18 inch tire
Overall length 180.0 in (4,570 mm) Overall width 69.4 in (1,760 mm) Overall height 58.3 in (1,480 mm) 58.7 in (1,490 mm)Wheel base 103.7 in (2,635 mm) BK0138600US.book 6 ページ ２０１１年７月１７日　日曜日　午後２時３２分

Specifications
9-7

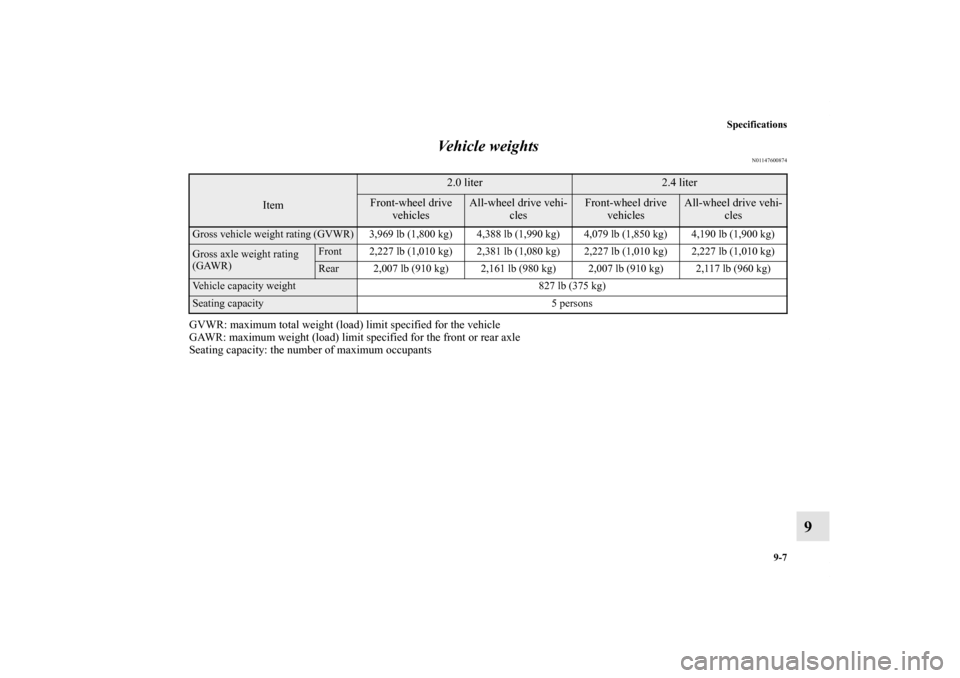

9 Vehicle weights
N01147600874
GVWR: maximum total weight (load) limit specified for the vehicle
GAWR: maximum weight (load) limit specified for the front or rear axle
Seating capacity: the number of maximum occupants
Item
2.0 liter
2.4 liter
Front-wheel drive
vehicles
All-wheel drive vehi-
cles
Front-wheel drive
vehicles
All-wheel drive vehi-
cles
Gross vehicle weight rating (GVWR) 3,969 lb (1,800 kg) 4,388 lb (1,990 kg) 4,079 lb (1,850 kg) 4,190 lb (1,900 kg)Gross axle weight rating
(GAWR)
Front 2,227 lb (1,010 kg) 2,381 lb (1,080 kg) 2,227 lb (1,010 kg) 2,227 lb (1,010 kg)Rear 2,007 lb (910 kg) 2,161 lb (980 kg) 2,007 lb (910 kg) 2,117 lb (960 kg)
Vehicle capacity weight 827 lb (375 kg)Seating capacity 5 persons
BK0138600US.book 7 ページ ２０１１年７月１７日　日曜日　午後２時３２分

9-8 Specifications

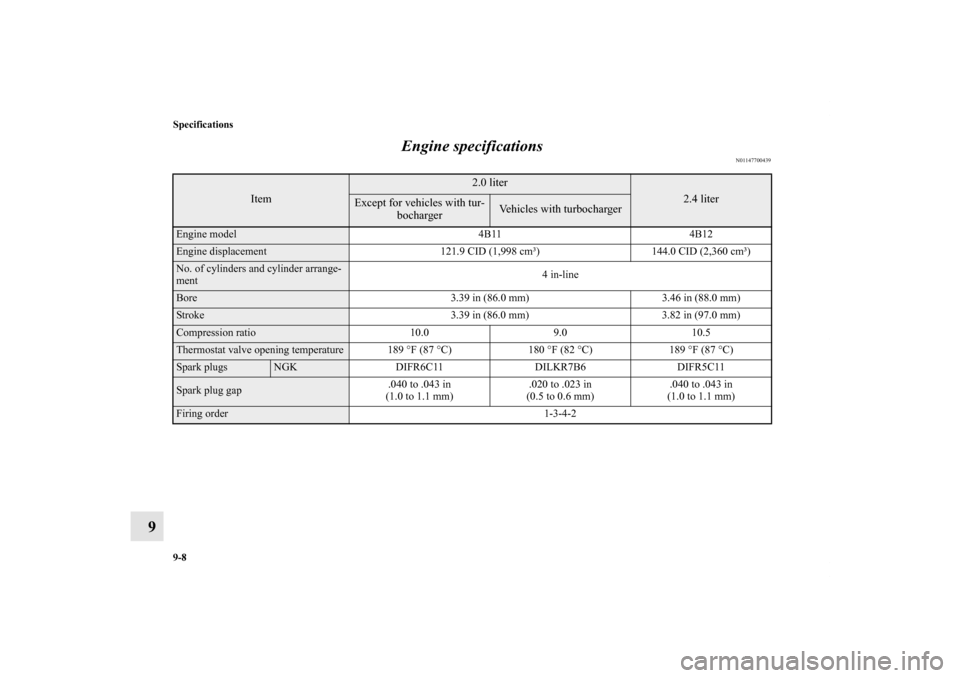

9Engine specifications
N01147700439
Item
2.0 liter
2.4 liter
Except for vehicles with tur-
bocharger
Vehicles with turbocharger
Engine model 4B11 4B12Engine displacement 121.9 CID (1,998 cm³) 144.0 CID (2,360 cm³)No. of cylinders and cylinder arrange-
ment4 in-lineBore 3.39 in (86.0 mm) 3.46 in (88.0 mm)Stroke 3.39 in (86.0 mm) 3.82 in (97.0 mm)Compression ratio 10.0 9.0 10.5Thermostat valve opening temperature 189 °F (87 °C) 180 °F (82 °C) 189 °F (87 °C)Spark plugs
NGK DIFR6C11 DILKR7B6 DIFR5C11
Spark plug gap.040 to .043 in
(1.0 to 1.1 mm).020 to .023 in
(0.5 to 0.6 mm).040 to .043 in
(1.0 to 1.1 mm)Firing order 1-3-4-2BK0138600US.book 8 ページ ２０１１年７月１７日　日曜日　午後２時３２分

Specifications
9-9

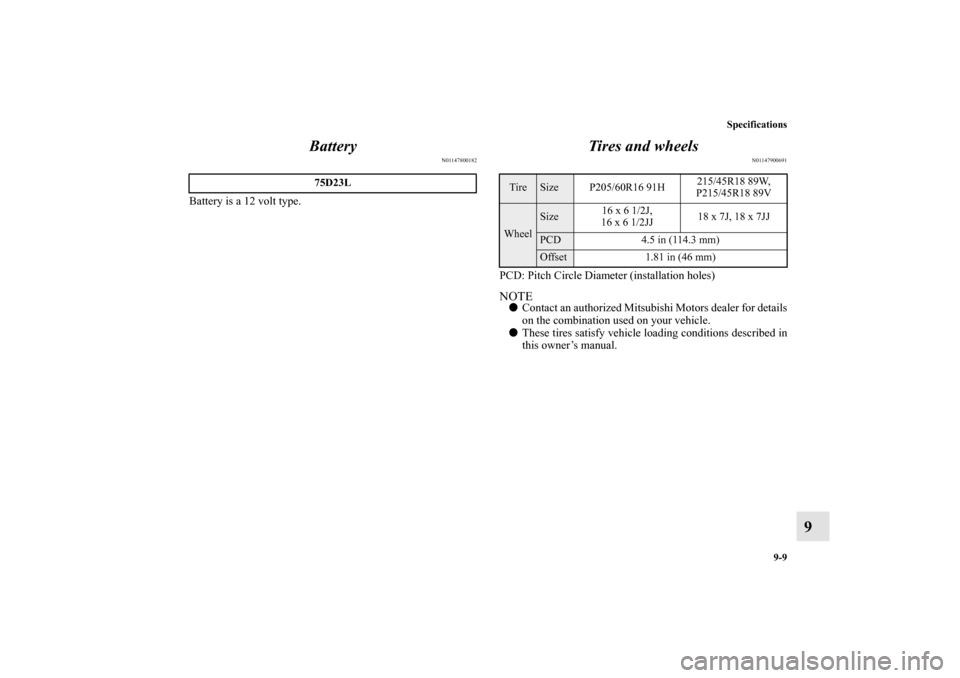

9 Battery
N01147800182
Battery is a 12 volt type.
Tires and wheels
N01147900691
PCD: Pitch Circle Diameter (installation holes)NOTE
Contact an authorized Mitsubishi Motors dealer for details
on the combination used on your vehicle.

These tires satisfy vehicle loading conditions described in
this owner’s manual.
75D23L
Tire
Size P205/60R16 91H215/45R18 89W,
P215/45R18 89V
Wheel
Size16 x 6 1/2J,
16x61/2JJ18 x 7J, 18 x 7JJPCD 4.5 in (114.3 mm)Offset 1.81 in (46 mm)
BK0138600US.book 9 ページ ２０１１年７月１７日　日曜日　午後２時３２分

9-10 Specifications

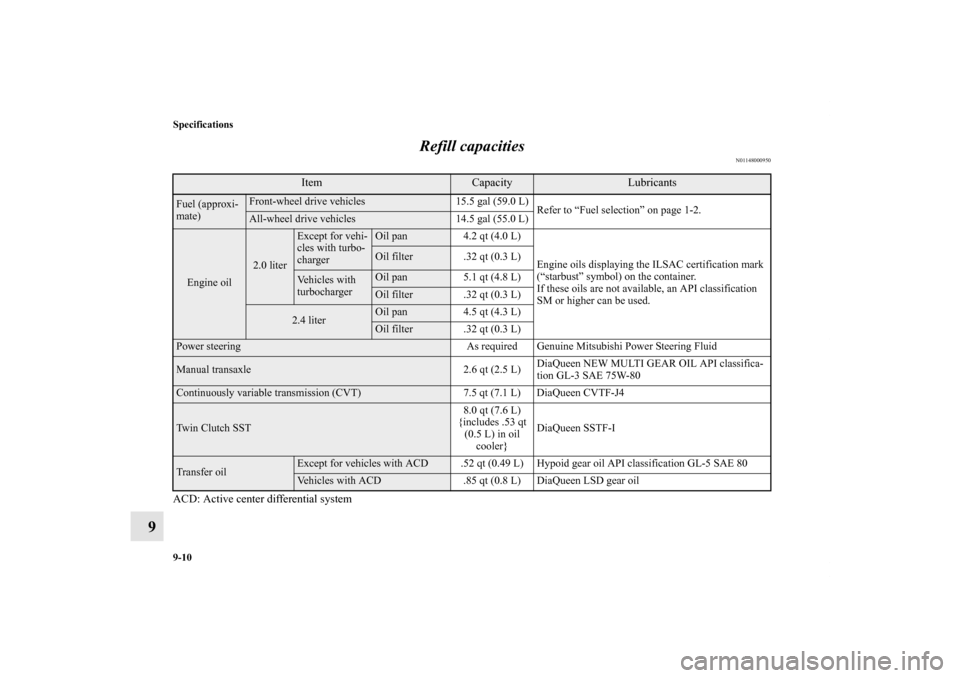

9Refill capacities
N01148000950
ACD: Active center differential system
Item
Capacity
Lubricants
Fuel (approxi-
mate)
Front-wheel drive vehicles 15.5 gal (59.0 L)
Refer to “Fuel selection” on page 1-2.All-wheel drive vehicles 14.5 gal (55.0 L)
Engine oil
2.0 liter
Except for vehi-
cles with turbo-
charger
Oil pan 4.2 qt (4.0 L)
Engine oils displaying the ILSAC certification mark
(“starbust” symbol) on the container.
If these oils are not available, an API classification
SM or higher can be used.Oil filter .32 qt (0.3 L)
Vehicles with
turbocharger
Oil pan 5.1 qt (4.8 L)Oil filter .32 qt (0.3 L)
2.4 liter
Oil pan 4.5 qt (4.3 L)Oil filter .32 qt (0.3 L)
Power steering As required Genuine Mitsubishi Power Steering Fluid Manual transaxle 2.6 qt (2.5 L)DiaQueen NEW MULTI GEAR OIL API classifica-
tion GL-3 SAE 75W-80Continuously variable transmission (CVT) 7.5 qt (7.1 L) DiaQueen CVTF-J4Tw i n C l u t c h S S T8.0 qt (7.6 L)
{includes .53 qt
(0.5 L) in oil
cooler}DiaQueen SSTF-ITransfer oil
Except for vehicles with ACD .52 qt (0.49 L) Hypoid gear oil API classification GL-5 SAE 80Vehicles with ACD .85 qt (0.8 L) DiaQueen LSD gear oil
SC00001200-9.fm 10 ページ ２０１１年８月２日　火曜日　午後３時３７分

Specifications
9-11
9

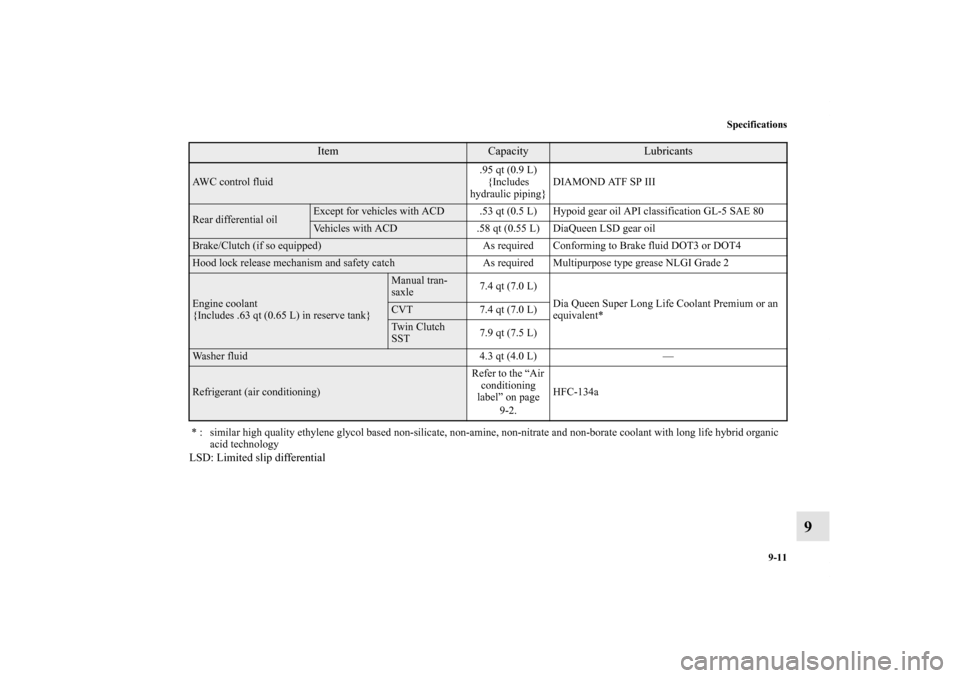

LSD: Limited slip differential
Item
Capacity
Lubricants
AWC control fluid.95 qt (0.9 L)
{Includes
hydraulic piping}DIAMOND ATF SP IIIRear differential oil
Except for vehicles with ACD .53 qt (0.5 L) Hypoid gear oil API classification GL-5 SAE 80Vehicles with ACD .58 qt (0.55 L) DiaQueen LSD gear oil
Brake/Clutch (if so equipped) As required Conforming to Brake fluid DOT3 or DOT4 Hood lock release mechanism and safety catch As required Multipurpose type grease NLGI Grade 2 Engine coolant
{Includes .63 qt (0.65 L) in reserve tank}
Manual tran-
saxle7.4 qt (7.0 L)
Dia Queen Super Long Life Coolant Premium or an
equivalent*CVT 7.4 qt (7.0 L)Tw i n C l u t c h
SST7.9 qt (7.5 L)
Washer fluid 4.3 qt (4.0 L) — Refrigerant (air conditioning)Refer to the “Air
conditioning
label” on page
9-2.HFC-134a
* : similar high quality ethylene glycol based non-silicate, non-amine, non-nitrate and non-borate coolant with long life hybrid organic
acid technology
