Page 561 of 706

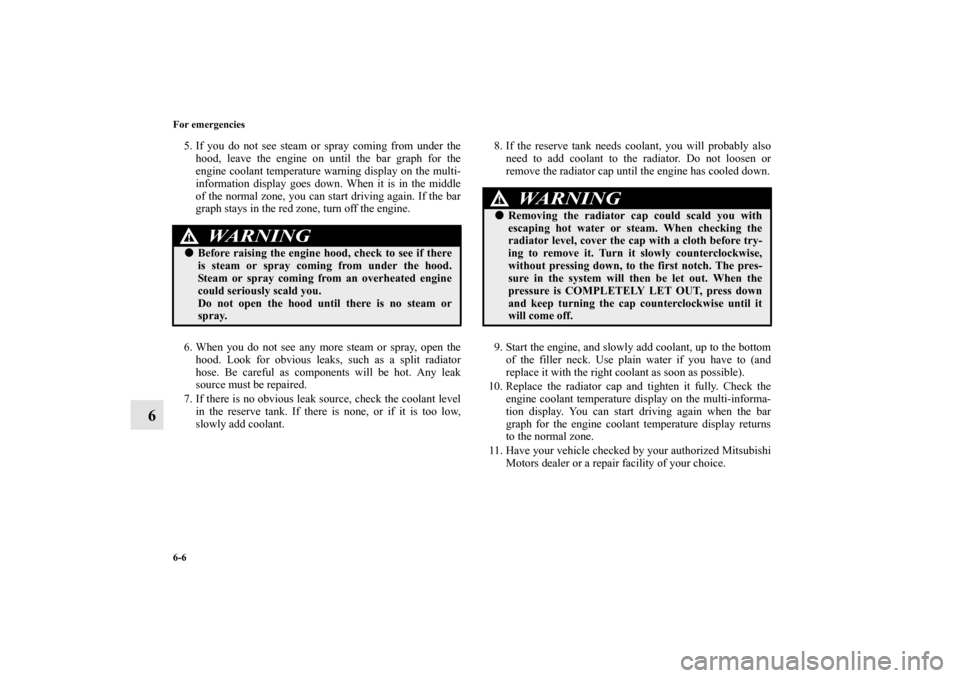

MITSUBISHI LANCER SPORTBACK 2011 8.G Owners Manual 6-6 For emergencies
6
5. If you do not see steam or spray coming from under the
hood, leave the engine on until the bar graph for the
engine coolant temperature warning display on the multi-
informati

Page 562 of 706

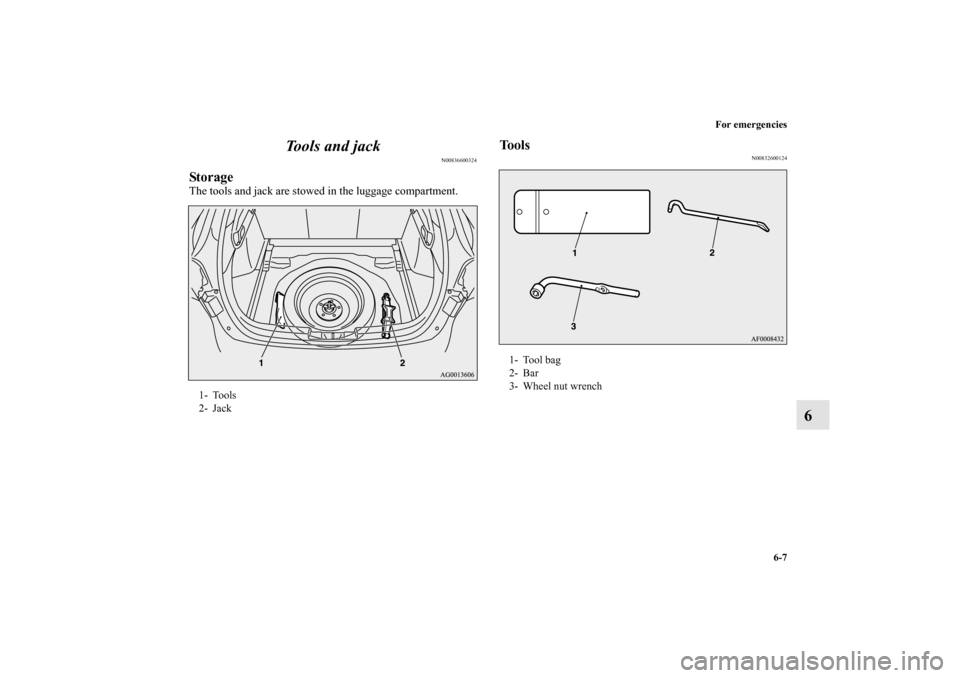

MITSUBISHI LANCER SPORTBACK 2011 8.G Owners Manual For emergencies
6-7
6 Tools and jack
N00836600324
StorageThe tools and jack are stowed in the luggage compartment.
Tools
N00832600124
1- Tools
2- Jack
1- Tool bag
2- Bar
3- Wheel nut wrench
BK0125300U

Page 563 of 706

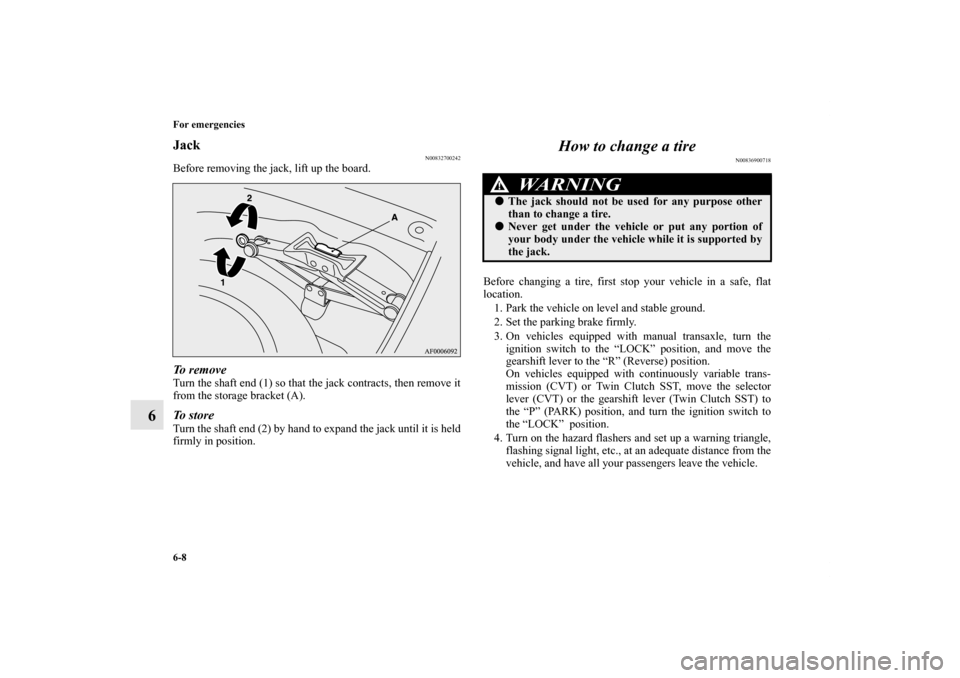

MITSUBISHI LANCER SPORTBACK 2011 8.G Owners Manual 6-8 For emergencies
6
Jack
N00832700242
Before removing the jack, lift up the board.To  r e m o v eTurn the shaft end (1) so that the jack contracts, then remove it
from the storage bracket (A).To  s

Page 564 of 706

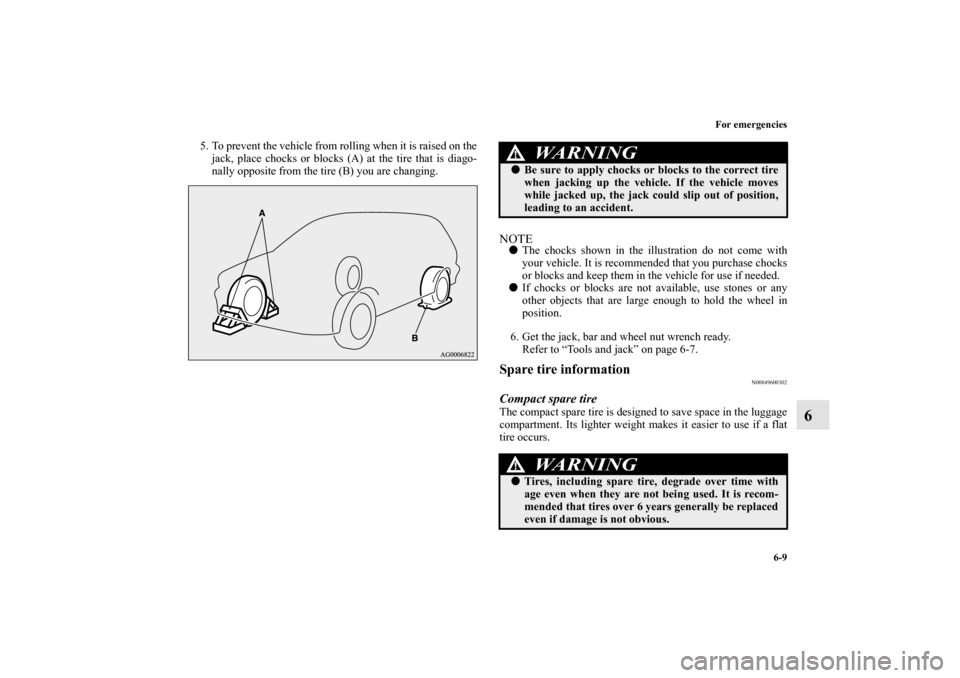

MITSUBISHI LANCER SPORTBACK 2011 8.G Owners Manual For emergencies
6-9
6
5. To prevent the vehicle from rolling when it is raised on the
jack, place chocks or blocks (A) at the tire that is diago-
nally opposite from the tire (B) you are changing.
NOT

Page 565 of 706

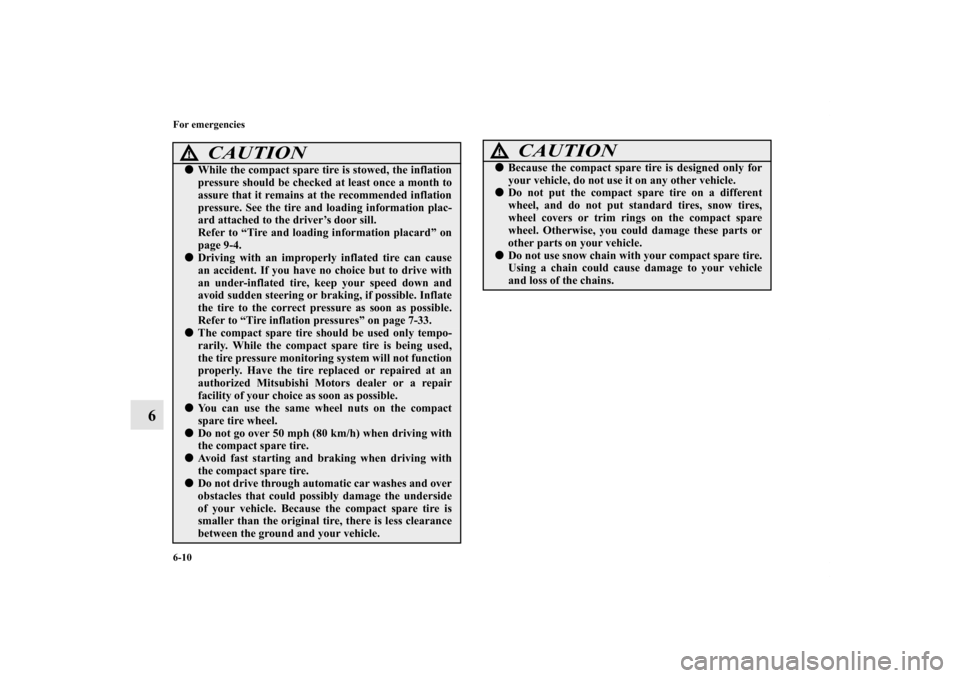

MITSUBISHI LANCER SPORTBACK 2011 8.G Owners Manual 6-10 For emergencies
6
CAUTION
!While the compact spare tire is stowed, the inflation
pressure should be checked at least once a month to
assure that it remains at the recommended inflation
pressure.

Page 566 of 706

MITSUBISHI LANCER SPORTBACK 2011 8.G Owners Manual For emergencies
6-11
6

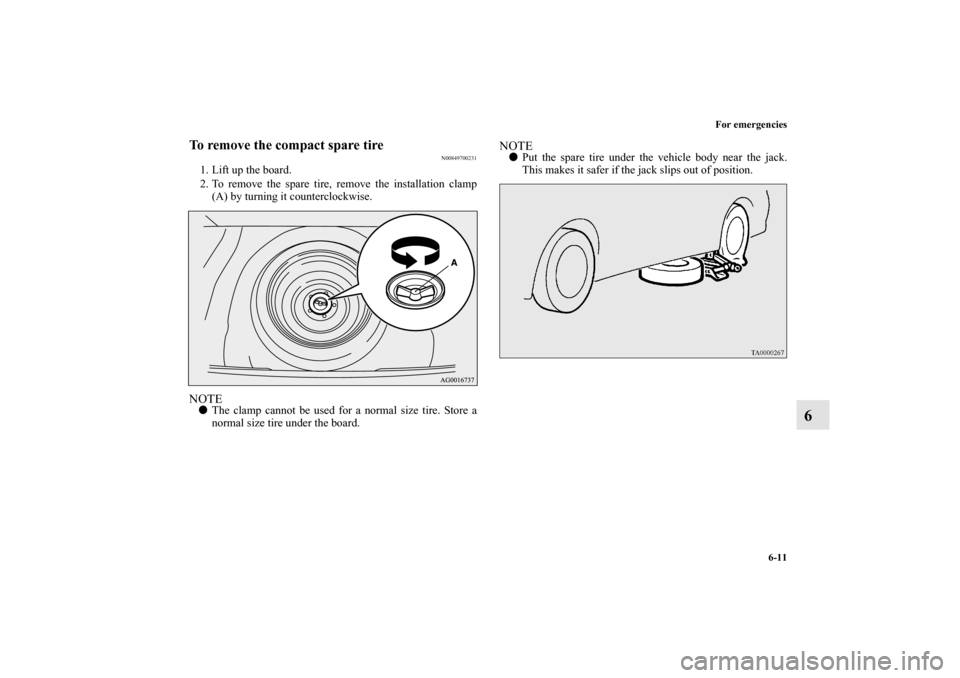

To remove the compact spare tire
N00849700231
1. Lift up the board.
2. To remove the spare tire, remove the installation clamp
(A) by turning it counterclockwise.NOTEThe clamp

Page 567 of 706

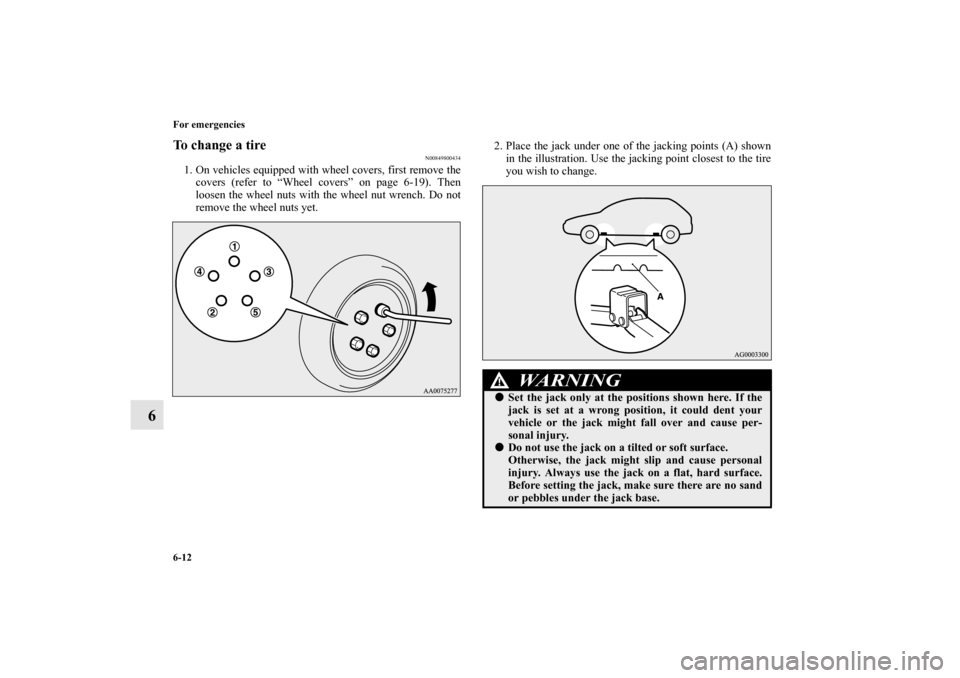

MITSUBISHI LANCER SPORTBACK 2011 8.G Owners Manual 6-12 For emergencies
6
To change a tire
N00849800434
1. On vehicles equipped with wheel covers, first remove the
covers (refer to “Wheel covers” on page 6-19). Then
loosen the wheel nuts with the

Page 568 of 706

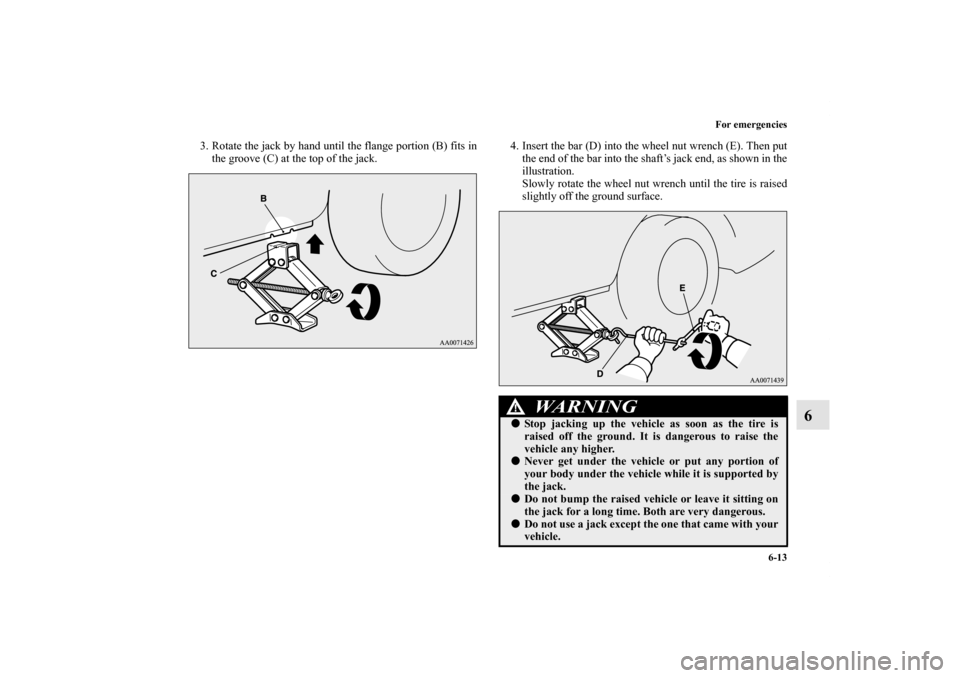

MITSUBISHI LANCER SPORTBACK 2011 8.G Owners Manual For emergencies
6-13
6
3. Rotate the jack by hand until the flange portion (B) fits in
the groove (C) at the top of the jack. 4. Insert the bar (D) into the wheel nut wrench (E). Then put
the end of t

Page 569 of 706

MITSUBISHI LANCER SPORTBACK 2011 8.G Owners Manual 6-14 For emergencies
6

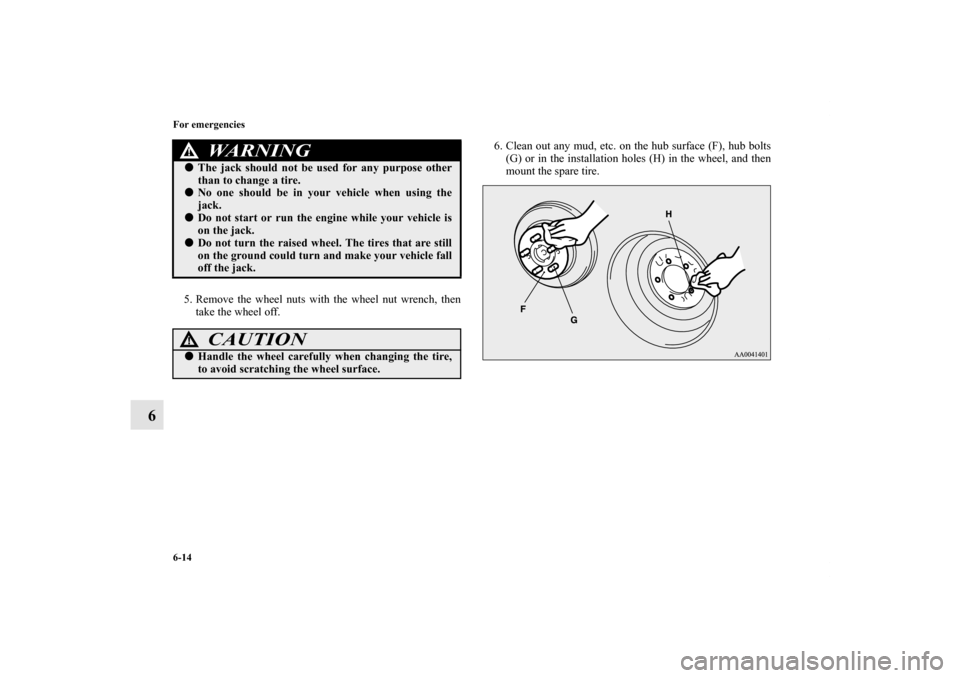

5. Remove the wheel nuts with the wheel nut wrench, then
take the wheel off. 6. Clean out any mud, etc. on the hub surface (F), hub bolts
(G) or in the installation holes (H) in

Page 570 of 706

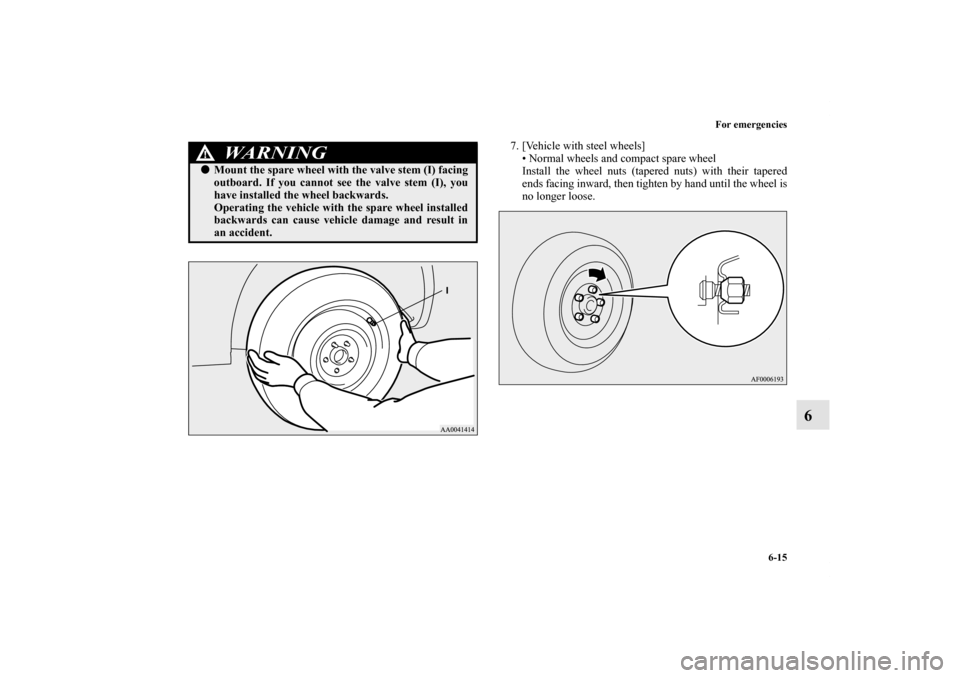

MITSUBISHI LANCER SPORTBACK 2011 8.G Owners Manual For emergencies
6-15
6
7. [Vehicle with steel wheels]
• Normal wheels and compact spare wheel
Install the wheel nuts (tapered nuts) with their tapered
ends facing inward, then tighten by hand until
