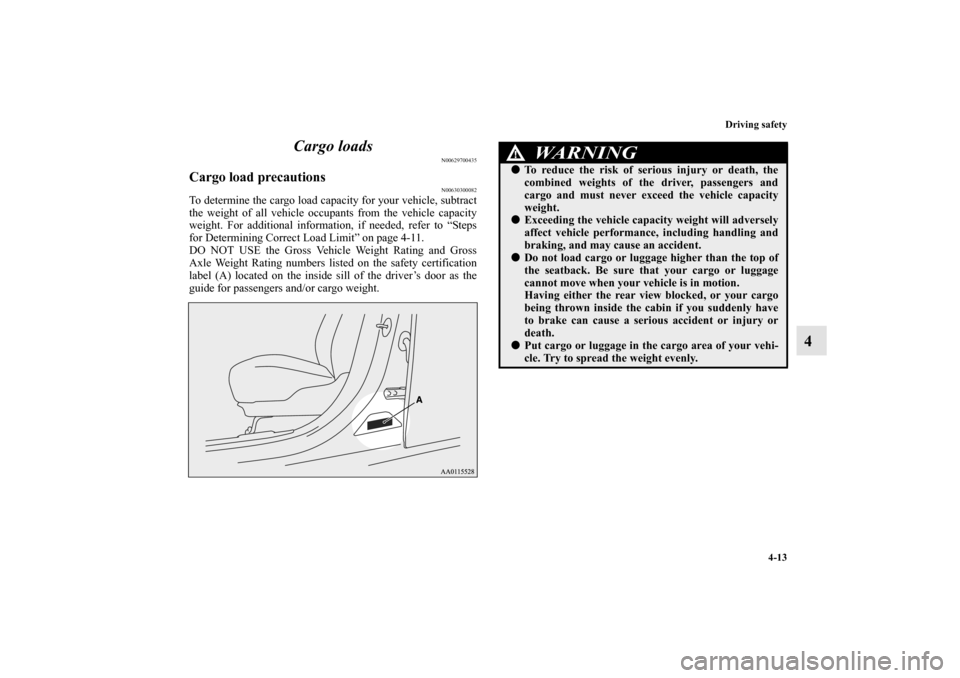

Driving safety
4-13
4 Cargo loads
N00629700435
Cargo load precautions
N00630300082
To determine the cargo load capacity for your vehicle, subtract
the weight of all vehicle occupants from the vehicle capacity
weight. For additional information, if needed, refer to “Steps
for Determining Correct Load Limit” on page 4-11.
DO NOT USE the Gross Vehicle Weight Rating and Gross
Axle Weight Rating numbers listed on the safety certification
label (A) located on the inside sill of the driver’s door as the
guide for passengers and/or cargo weight.
WA R N I N G
!
To reduce the risk of serious injury or death, the
combined weights of the driver, passengers and
cargo and must never exceed the vehicle capacity
weight.
Exceeding the vehicle capacity weight will adversely
affect vehicle performance, including handling and
braking, and may cause an accident.
Do not load cargo or luggage higher than the top of
the seatback. Be sure that your cargo or luggage
cannot move when your vehicle is in motion.
Having either the rear view blocked, or your cargo
being thrown inside the cabin if you suddenly have
to brake can cause a serious accident or injury or
death.
Put cargo or luggage in the cargo area of your vehi-
cle. Try to spread the weight evenly.
BK0162600US.book 13 ページ ２０１３年３月２２日　金曜日　午後２時４１分

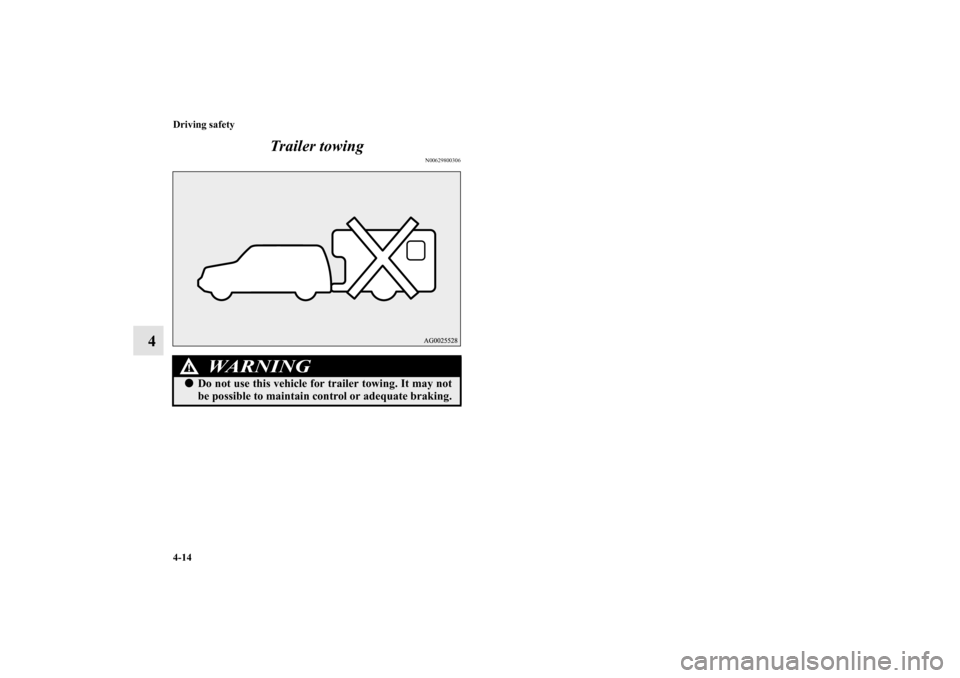

4-14 Driving safety
4Trailer towing
N00629800306
WA R N I N G
!
Do not use this vehicle for trailer towing. It may not
be possible to maintain control or adequate braking.
BK0162600US.book 14 ページ ２０１３年３月２２日　金曜日　午後２時４１分

5
Comfort controls
Vents. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .5- 2
Heater without air conditioning function (if so
equipped) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .5- 6
Manual air conditioning (if so equipped). . . . . . . .5- 11
Automatic air conditioning (if so equipped) . . . . .5- 17
Important air conditioning operating tips . . . . . . .5- 28
Air purifier (if so equipped) . . . . . . . . . . . . . . . . . .5- 29
AM/FM electronically tuned radio with
CD player (if so equipped) . . . . . . . . . . . . . . . . .5- 30
To play tracks from USB device (if so equipped) .5- 43
To play tracks from a Bluetooth
® device
(vehicles with Bluetooth
® 2.0 interface) . . . . . .5- 56
Steering wheel audio remote control switches
(if so equipped) . . . . . . . . . . . . . . . . . . . . . . . . . .5- 59
Error codes . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .5- 60
Handling of compact discs . . . . . . . . . . . . . . . . . . .5- 62
Antenna . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .5- 64
General information about your radio . . . . . . . . . .5- 65
BK0162600US.book 1 ページ ２０１３年３月２２日　金曜日　午後２時４１分

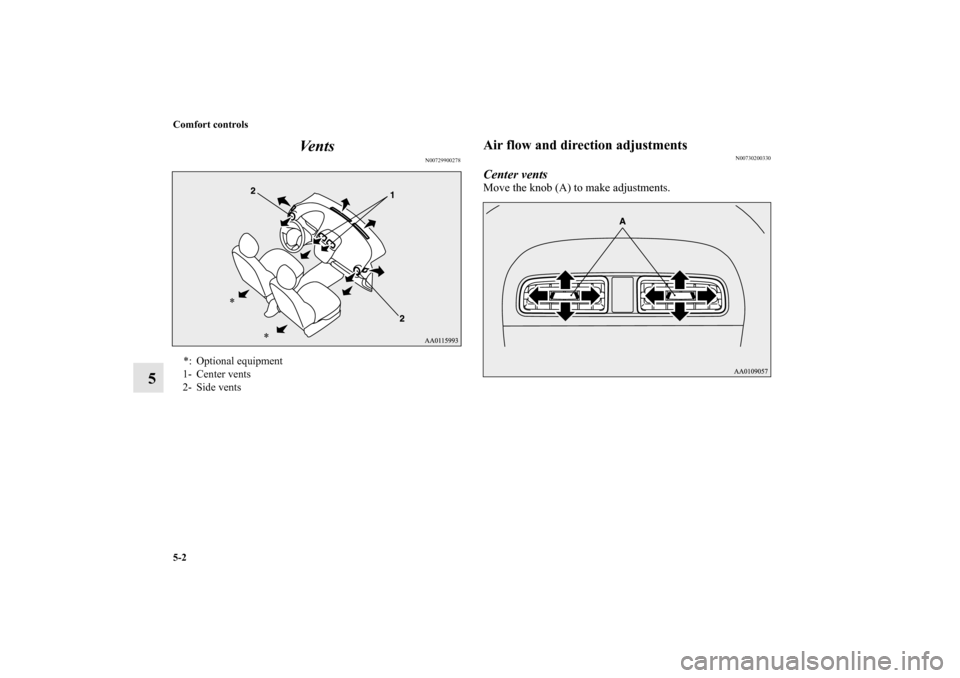

5-2 Comfort controls
5Ve n t s
N00729900278
Air flow and direction adjustments
N00730200330
Center ventsMove the knob (A) to make adjustments.
*: Optional equipment
1- Center vents
2- Side vents
*
*
BK0162600US.book 2 ページ ２０１３年３月２２日　金曜日　午後２時４１分

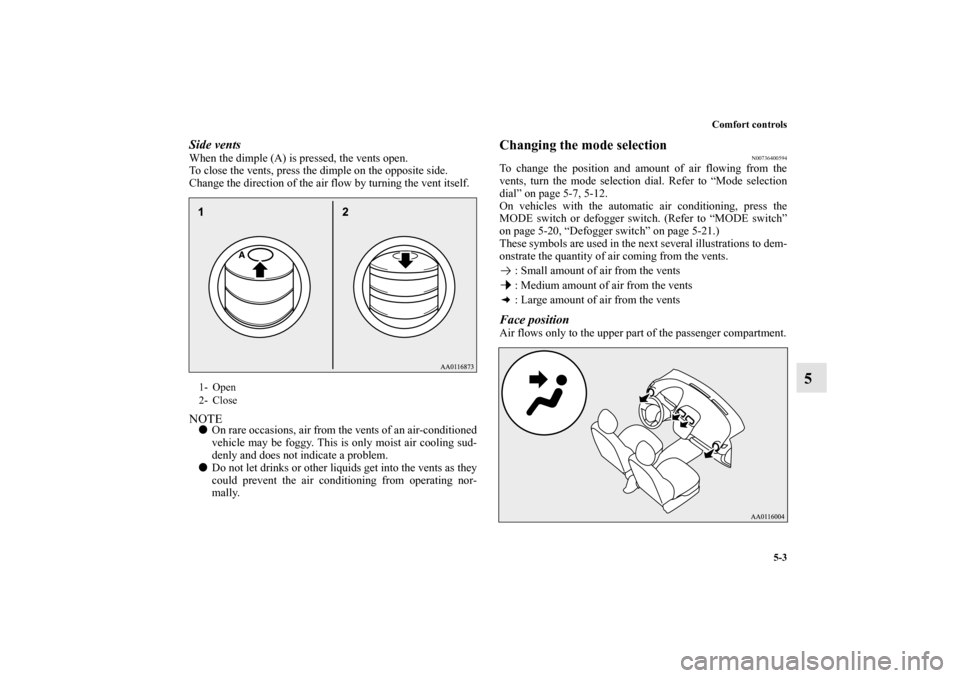

Comfort controls
5-3
5
Side ventsWhen the dimple (A) is pressed, the vents open.
To close the vents, press the dimple on the opposite side.
Change the direction of the air flow by turning the vent itself.NOTE
On rare occasions, air from the vents of an air-conditioned
vehicle may be foggy. This is only moist air cooling sud-
denly and does not indicate a problem.

Do not let drinks or other liquids get into the vents as they
could prevent the air conditioning from operating nor-
mally.
Changing the mode selection
N00736400594
To change the position and amount of air flowing from the
vents, turn the mode selection dial. Refer to “Mode selection
dial” on page 5-7, 5-12.
On vehicles with the automatic air conditioning, press the
MODE switch or defogger switch. (Refer to “MODE switch”
on page 5-20, “Defogger switch” on page 5-21.)
These symbols are used in the next several illustrations to dem-
onstrate the quantity of air coming from the vents.
: Small amount of air from the vents
: Medium amount of air from the vents
: Large amount of air from the ventsFace positionAir flows only to the upper part of the passenger compartment.
1- Open
2- Close
BK0162600US.book 3 ページ ２０１３年３月２２日　金曜日　午後２時４１分

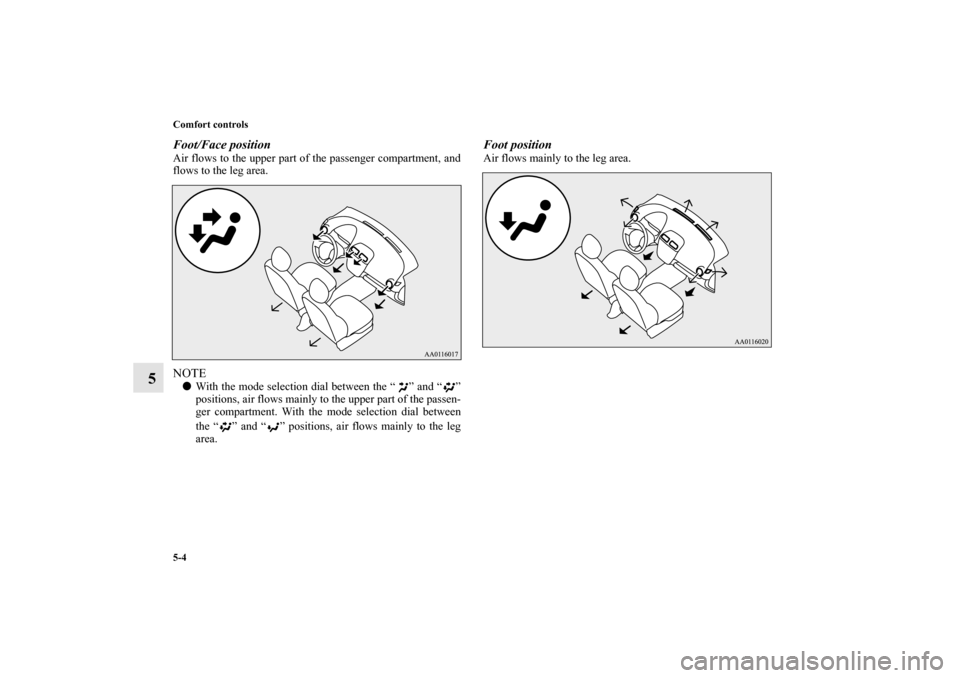

5-4 Comfort controls
5
Foot/Face positionAir flows to the upper part of the passenger compartment, and
flows to the leg area.NOTE
With the mode selection dial between the “ ” and “ ”
positions, air flows mainly to the upper part of the passen-
ger compartment. With the mode selection dial between
the “ ” and “ ” positions, air flows mainly to the leg
area.
Foot positionAir flows mainly to the leg area.
BK0162600US.book 4 ページ ２０１３年３月２２日　金曜日　午後２時４１分

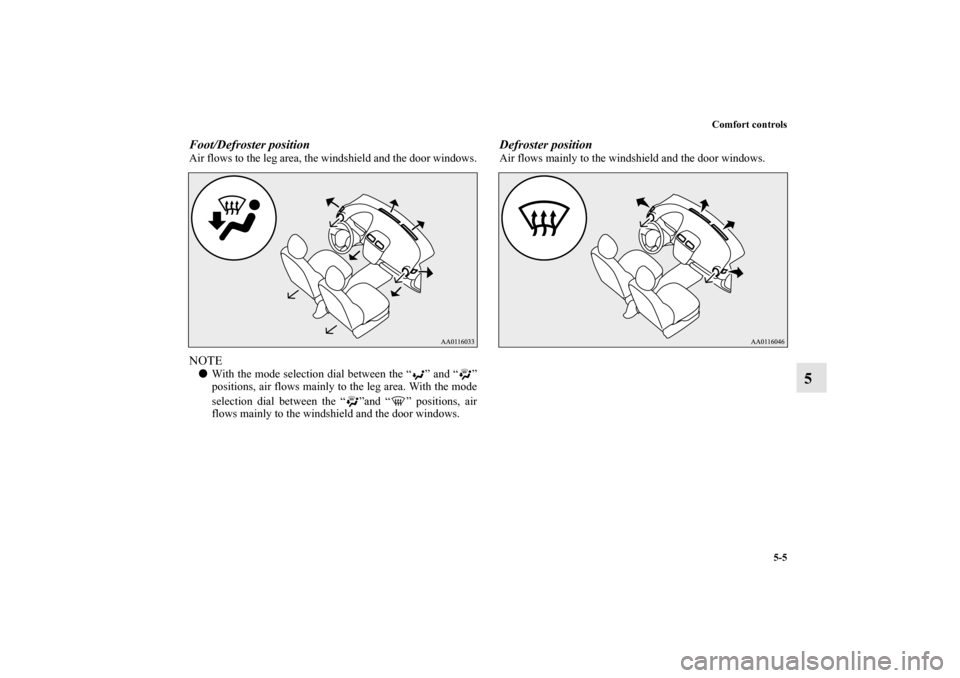

Comfort controls
5-5
5
Foot/Defroster positionAir flows to the leg area, the windshield and the door windows.NOTE
With the mode selection dial between the “ ” and “ ”
positions, air flows mainly to the leg area. With the mode
selection dial between the “ ”and “ ” positions, air
flows mainly to the windshield and the door windows.
Defroster positionAir flows mainly to the windshield and the door windows.
BK0162600US.book 5 ページ ２０１３年３月２２日　金曜日　午後２時４１分

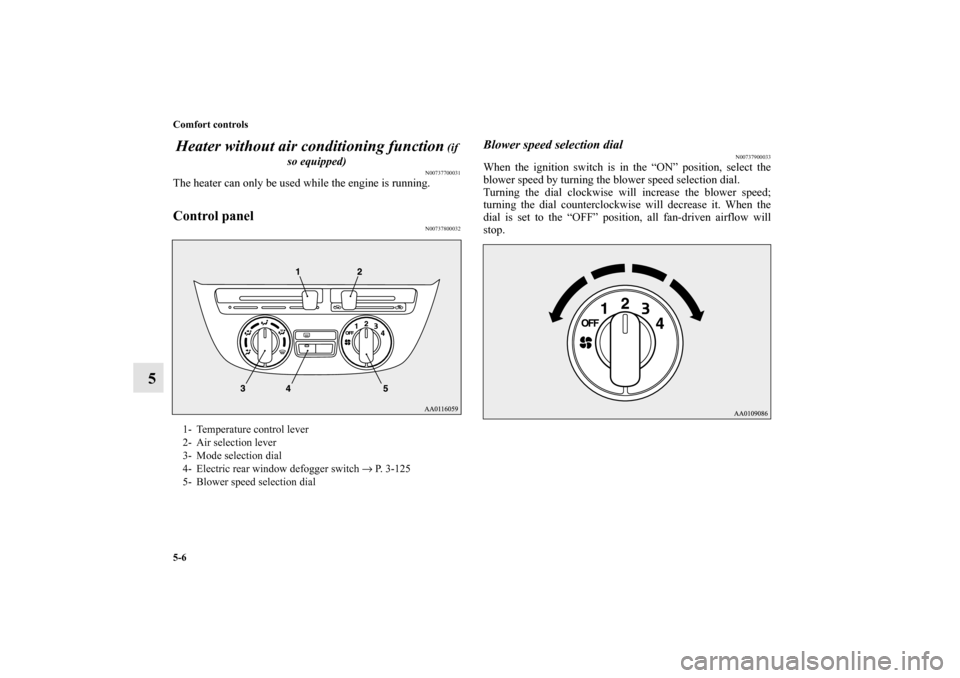

5-6 Comfort controls
5Heater without air conditioning function
(if
so equipped)
N00737700031
The heater can only be used while the engine is running.Control panel
N00737800032
Blower speed selection dial
N00737900033
When the ignition switch is in the “ON” position, select the
blower speed by turning the blower speed selection dial.
Turning the dial clockwise will increase the blower speed;
turning the dial counterclockwise will decrease it. When the
dial is set to the “OFF” position, all fan-driven airflow will
stop.
1- Temperature control lever
2- Air selection lever
3- Mode selection dial
4- Electric rear window defogger switch → P. 3 - 1 2 5
5- Blower speed selection dial
BK0162600US.book 6 ページ ２０１３年３月２２日　金曜日　午後２時４１分

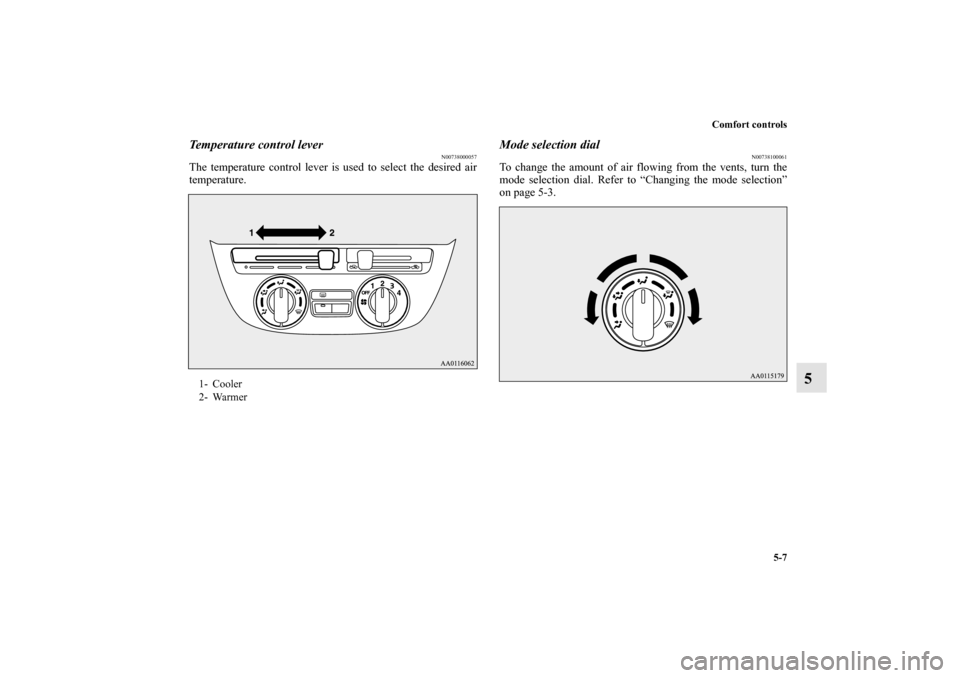

Comfort controls
5-7
5
Temperature control lever
N00738000057
The temperature control lever is used to select the desired air
temperature.
Mode selection dial
N00738100061
To change the amount of air flowing from the vents, turn the
mode selection dial. Refer to “Changing the mode selection”
on page 5-3.
1- Cooler
2- Warmer
BK0162600US.book 7 ページ ２０１３年３月２２日　金曜日　午後２時４１分

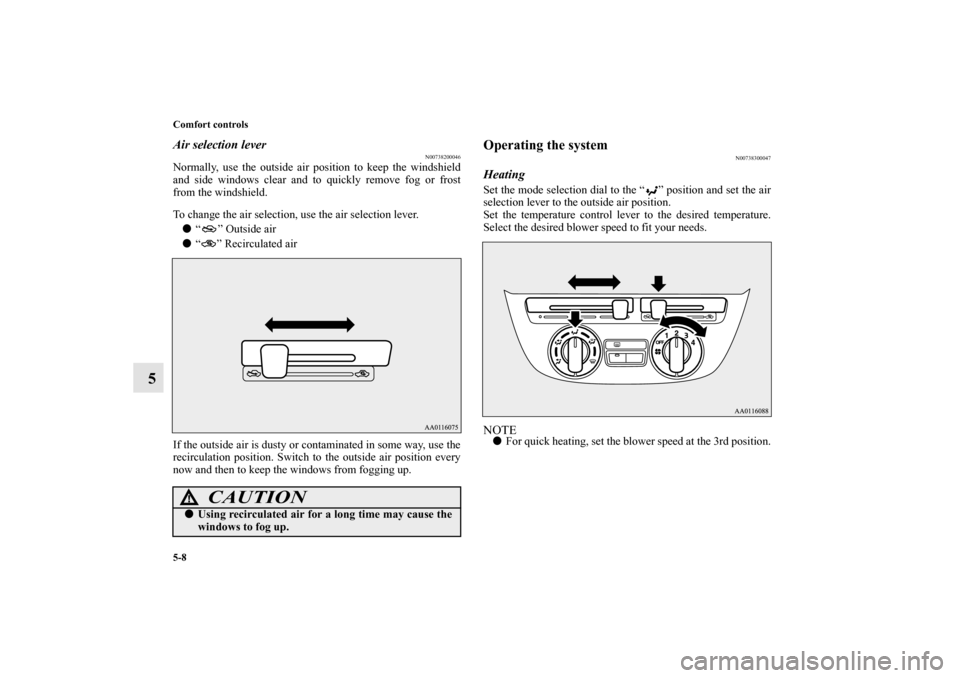

5-8 Comfort controls
5
Air selection lever
N00738200046
Normally, use the outside air position to keep the windshield
and side windows clear and to quickly remove fog or frost
from the windshield.
To change the air selection, use the air selection lever.

“ ” Outside air

“ ” Recirculated air
If the outside air is dusty or contaminated in some way, use the
recirculation position. Switch to the outside air position every
now and then to keep the windows from fogging up.
Operating the system
N00738300047
HeatingSet the mode selection dial to the “ ” position and set the air
selection lever to the outside air position.
Set the temperature control lever to the desired temperature.
Select the desired blower speed to fit your needs.NOTE
For quick heating, set the blower speed at the 3rd position.
CAUTION
!
Using recirculated air for a long time may cause the
windows to fog up.
BK0162600US.book 8 ページ ２０１３年３月２２日　金曜日　午後２時４１分
