MITSUBISHI MIRAGE 2014 6.G Owners Manual

Comfort controls
5-29
5

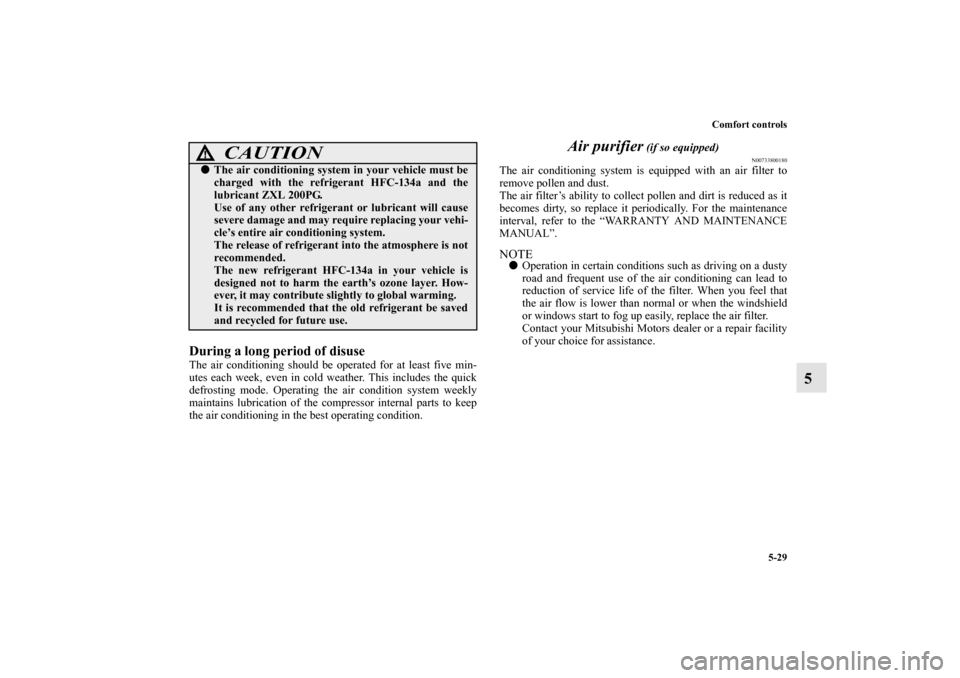

During a long period of disuseThe air conditioning should be operated for at least five min-
utes each week, even in cold weather. This includes the quick
defrosting mode. Operating the air condition system weekly
maintains lubrication of the compressor internal parts to keep
the air conditioning in the best operating condition.
Air purifier
(if so equipped)
N00733800180
The air conditioning system is equipped with an air filter to
remove pollen and dust.
The air filter’s ability to collect pollen and dirt is reduced as it
becomes dirty, so replace it periodically. For the maintenance
interval, refer to the “WARRANTY AND MAINTENANCE
MANUAL”.NOTE
Operation in certain conditions such as driving on a dusty
road and frequent use of the air conditioning can lead to
reduction of service life of the filter. When you feel that
the air flow is lower than normal or when the windshield
or windows start to fog up easily, replace the air filter.
Contact your Mitsubishi Motors dealer or a repair facility
of your choice for assistance.
CAUTION
!
The air conditioning system in your vehicle must be
charged with the refrigerant HFC-134a and the
lubricant ZXL 200PG.
Use of any other refrigerant or lubricant will cause
severe damage and may require replacing your vehi-
cle’s entire air conditioning system.
The release of refrigerant into the atmosphere is not
recommended.
The new refrigerant HFC-134a in your vehicle is
designed not to harm the earth’s ozone layer. How-
ever, it may contribute slightly to global warming.
It is recommended that the old refrigerant be saved
and recycled for future use.
BK0162600US.book 29 ページ ２０１３年３月２２日　金曜日　午後２時４１分

5-30 Comfort controls

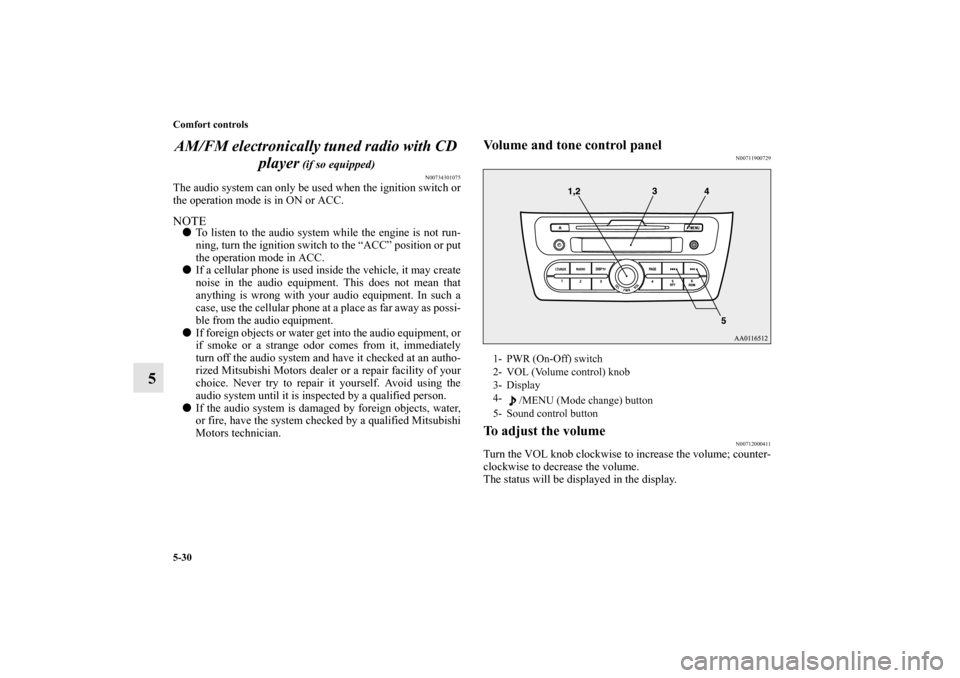

5AM/FM electronically tuned radio with CD
player
(if so equipped)
N00734301075
The audio system can only be used when the ignition switch or
the operation mode is in ON or ACC.NOTE
To listen to the audio system while the engine is not run-
ning, turn the ignition switch to the “ACC” position or put
the operation mode in ACC.

If a cellular phone is used inside the vehicle, it may create
noise in the audio equipment. This does not mean that
anything is wrong with your audio equipment. In such a
case, use the cellular phone at a place as far away as possi-
ble from the audio equipment.

If foreign objects or water get into the audio equipment, or
if smoke or a strange odor comes from it, immediately
turn off the audio system and have it checked at an autho-
rized Mitsubishi Motors dealer or a repair facility of your
choice. Never try to repair it yourself. Avoid using the
audio system until it is inspected by a qualified person.

If the audio system is damaged by foreign objects, water,
or fire, have the system checked by a qualified Mitsubishi
Motors technician.
Volume and tone control panel
N00711900729
To adjust the volume
N00712000411
Turn the VOL knob clockwise to increase the volume; counter-
clockwise to decrease the volume.
The status will be displayed in the display.1- PWR (On-Off) switch
2- VOL (Volume control) knob
3- Display
4-
/MENU (Mode change) button
5- Sound control button
BK0162600US.book 30 ページ ２０１３年３月２２日　金曜日　午後２時４１分

Comfort controls
5-31
5

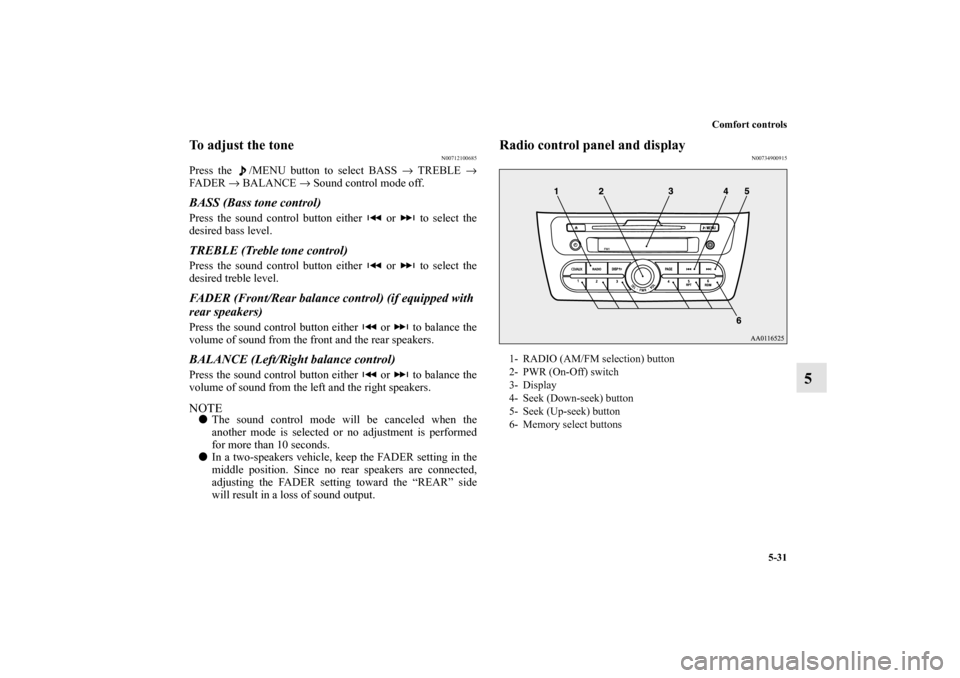

To adjust the tone
N00712100685
Press the /MENU button to select BASS → TREBLE →
FA D E R → BALANCE → Sound control mode off.BASS (Bass tone control)Press the sound control button either or to select the
desired bass level.TREBLE (Treble tone control)Press the sound control button either or to select the
desired treble level.FADER (Front/Rear balance control) (if equipped with
rear speakers)Press the sound control button either or to balance the
volume of sound from the front and the rear speakers.BALANCE (Left/Right balance control)Press the sound control button either or to balance the
volume of sound from the left and the right speakers.NOTE
The sound control mode will be canceled when the
another mode is selected or no adjustment is performed
for more than 10 seconds.

In a two-speakers vehicle, keep the FADER setting in the
middle position. Since no rear speakers are connected,
adjusting the FADER setting toward the “REAR” side
will result in a loss of sound output.
Radio control panel and display
N00734900915
1- RADIO (AM/FM selection) button
2- PWR (On-Off) switch
3- Display
4- Seek (Down-seek) button
5- Seek (Up-seek) button
6- Memory select buttons
BK0162600US.book 31 ページ ２０１３年３月２２日　金曜日　午後２時４１分

5-32 Comfort controls
5

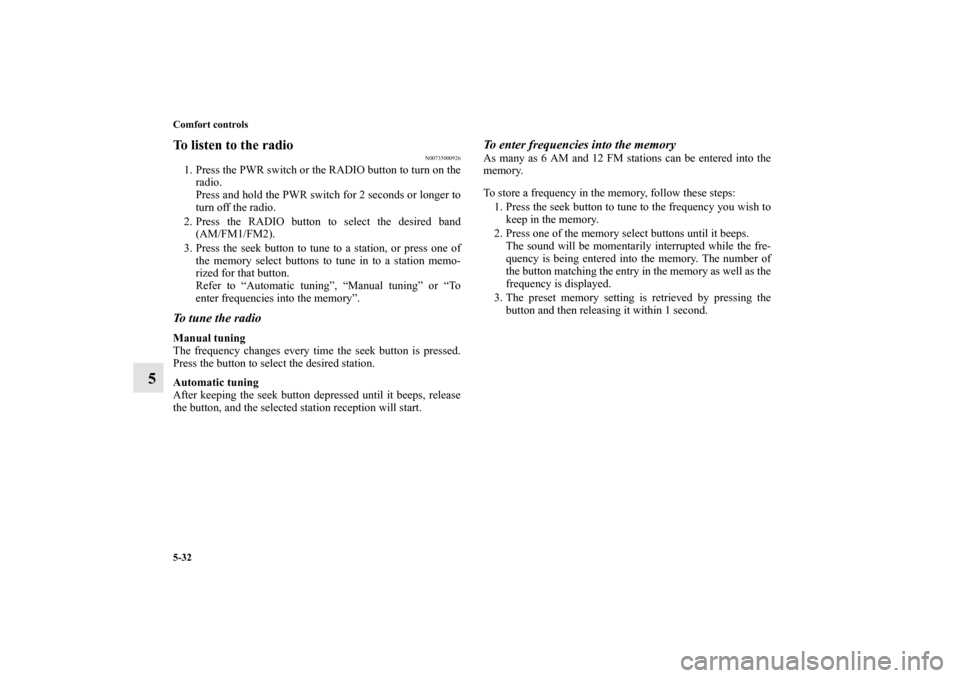

To listen to the radio
N00735000926
1. Press the PWR switch or the RADIO button to turn on the
radio.
Press and hold the PWR switch for 2 seconds or longer to
turn off the radio.
2. Press the RADIO button to select the desired band
(AM/FM1/FM2).
3. Press the seek button to tune to a station, or press one of
the memory select buttons to tune in to a station memo-
rized for that button.
Refer to “Automatic tuning”, “Manual tuning” or “To
enter frequencies into the memory”.To tune the radioManual tuning
The frequency changes every time the seek button is pressed.
Press the button to select the desired station.
Automatic tuning
After keeping the seek button depressed until it beeps, release
the button, and the selected station reception will start.
To enter frequencies into the memoryAs many as 6 AM and 12 FM stations can be entered into the
memory.
To store a frequency in the memory, follow these steps:
1. Press the seek button to tune to the frequency you wish to
keep in the memory.
2. Press one of the memory select buttons until it beeps.
The sound will be momentarily interrupted while the fre-
quency is being entered into the memory. The number of
the button matching the entry in the memory as well as the
frequency is displayed.
3. The preset memory setting is retrieved by pressing the
button and then releasing it within 1 second.
BK0162600US.book 32 ページ ２０１３年３月２２日　金曜日　午後２時４１分

Comfort controls
5-33
5

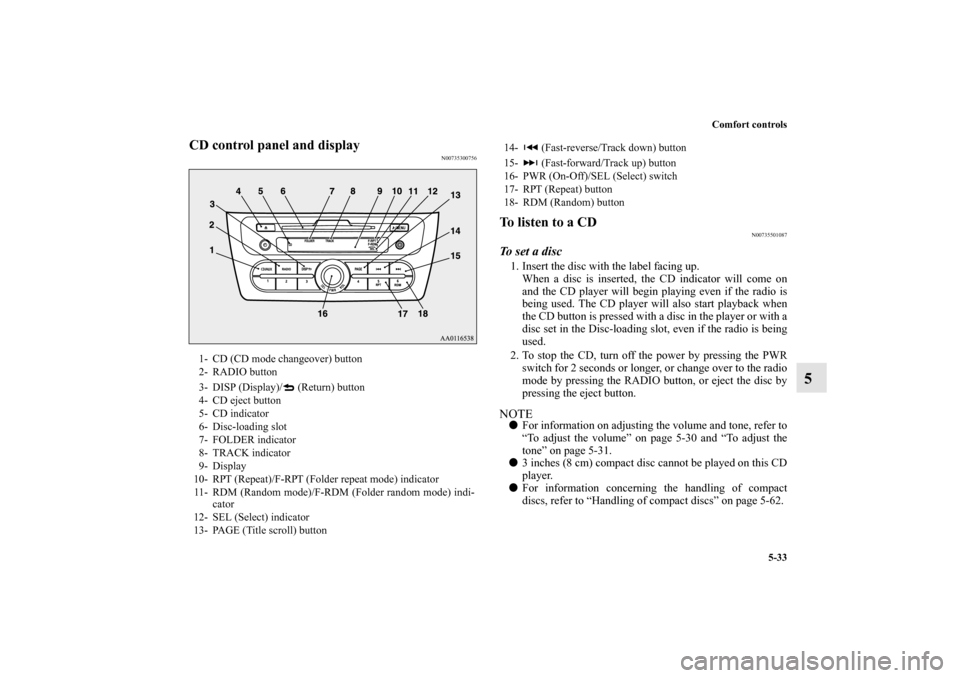

CD control panel and display
N00735300756
To listen to a CD
N00735501087
To s e t a d i s c1. Insert the disc with the label facing up.
When a disc is inserted, the CD indicator will come on
and the CD player will begin playing even if the radio is
being used. The CD player will also start playback when
the CD button is pressed with a disc in the player or with a
disc set in the Disc-loading slot, even if the radio is being
used.
2. To stop the CD, turn off the power by pressing the PWR
switch for 2 seconds or longer, or change over to the radio
mode by pressing the RADIO button, or eject the disc by
pressing the eject button.NOTE
For information on adjusting the volume and tone, refer to
“To adjust the volume” on page 5-30 and “To adjust the
tone” on page 5-31.

3 inches (8 cm) compact disc cannot be played on this CD
player.

For information concerning the handling of compact
discs, refer to “Handling of compact discs” on page 5-62.
1- CD (CD mode changeover) button
2- RADIO button
3- DISP (Display)/ (Return) button
4- CD eject button
5- CD indicator
6- Disc-loading slot
7- FOLDER indicator
8- TRACK indicator
9- Display
10- RPT (Repeat)/F-RPT (Folder repeat mode) indicator
11- RDM (Random mode)/F-RDM (Folder random mode) indi-
cator
12- SEL (Select) indicator
13- PAGE (Title scroll) button
14- (Fast-reverse/Track down) button
15- (Fast-forward/Track up) button
16- PWR (On-Off)/SEL (Select) switch
17- RPT (Repeat) button
18- RDM (Random) button
BK0162600US.book 33 ページ ２０１３年３月２２日　金曜日　午後２時４１分

5-34 Comfort controls
5

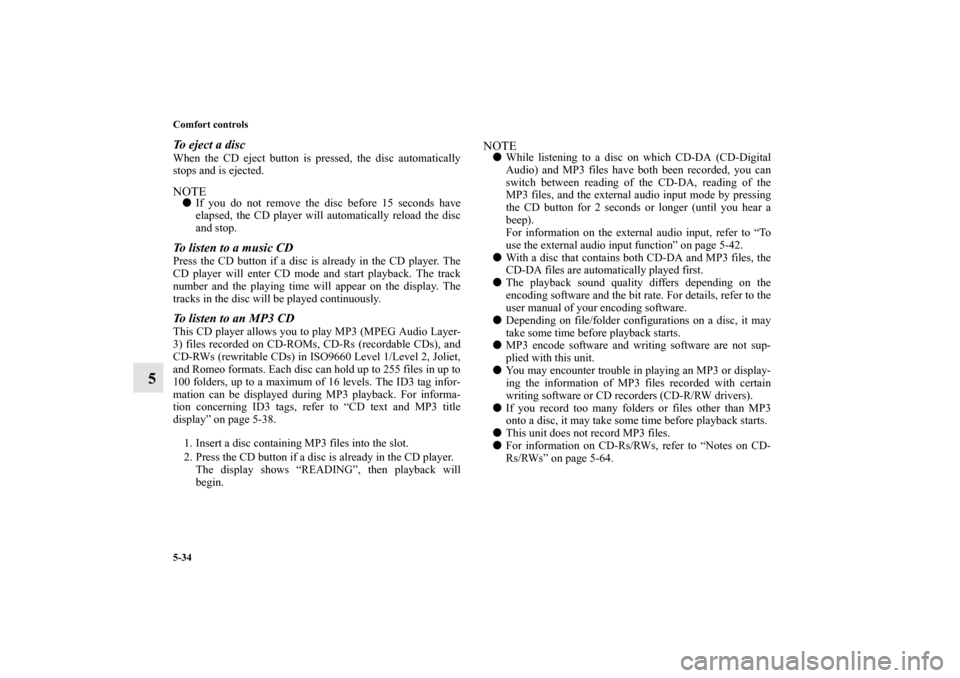

To eject a discWhen the CD eject button is pressed, the disc automatically
stops and is ejected.NOTE
If you do not remove the disc before 15 seconds have
elapsed, the CD player will automatically reload the disc
and stop.To listen to a music CDPress the CD button if a disc is already in the CD player. The
CD player will enter CD mode and start playback. The track
number and the playing time will appear on the display. The
tracks in the disc will be played continuously.To listen to an MP3 CDThis CD player allows you to play MP3 (MPEG Audio Layer-
3) files recorded on CD-ROMs, CD-Rs (recordable CDs), and
CD-RWs (rewritable CDs) in ISO9660 Level 1/Level 2, Joliet,
and Romeo formats. Each disc can hold up to 255 files in up to
100 folders, up to a maximum of 16 levels. The ID3 tag infor-
mation can be displayed during MP3 playback. For informa-
tion concerning ID3 tags, refer to “CD text and MP3 title
display” on page 5-38.
1. Insert a disc containing MP3 files into the slot.
2. Press the CD button if a disc is already in the CD player.
The display shows “READING”, then playback will
begin.
NOTE
While listening to a disc on which CD-DA (CD-Digital
Audio) and MP3 files have both been recorded, you can
switch between reading of the CD-DA, reading of the
MP3 files, and the external audio input mode by pressing
the CD button for 2 seconds or longer (until you hear a
beep).
For information on the external audio input, refer to “To
use the external audio input function” on page 5-42.

With a disc that contains both CD-DA and MP3 files, the
CD-DA files are automatically played first.

The playback sound quality differs depending on the
encoding software and the bit rate. For details, refer to the
user manual of your encoding software.

Depending on file/folder configurations on a disc, it may
take some time before playback starts.

MP3 encode software and writing software are not sup-
plied with this unit.

You may encounter trouble in playing an MP3 or display-
ing the information of MP3 files recorded with certain
writing software or CD recorders (CD-R/RW drivers).

If you record too many folders or files other than MP3
onto a disc, it may take some time before playback starts.

This unit does not record MP3 files.

For information on CD-Rs/RWs, refer to “Notes on CD-
Rs/RWs” on page 5-64.
BK0162600US.book 34 ページ ２０１３年３月２２日　金曜日　午後２時４１分

Comfort controls
5-35
5

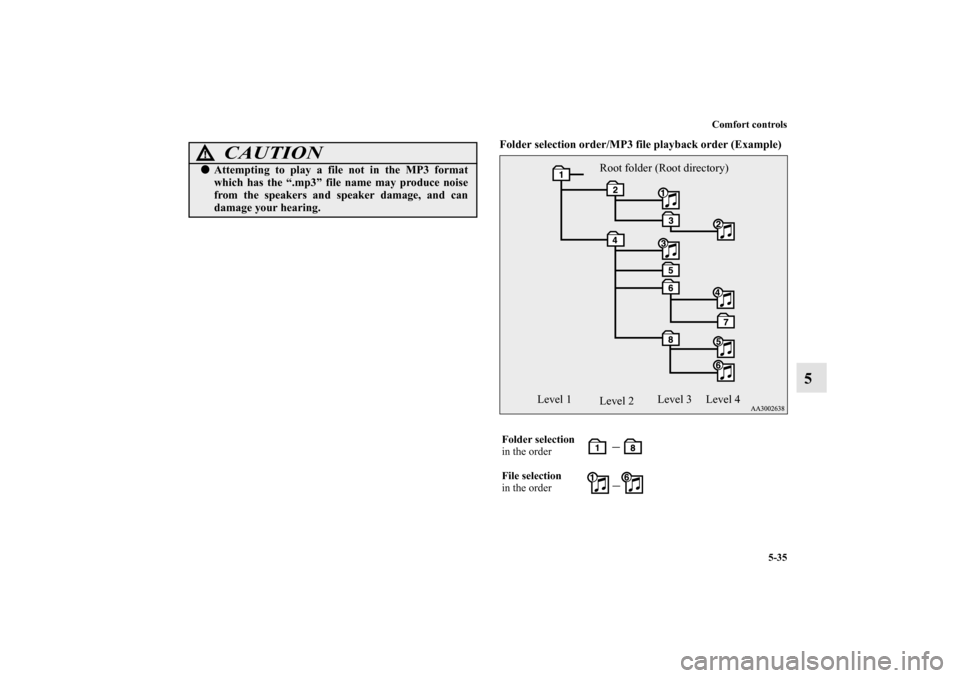

Folder selection order/MP3 file playback order (Example)

CAUTION
!
Attempting to play a file not in the MP3 format
which has the “.mp3” file name may produce noise
from the speakers and speaker damage, and can
damage your hearing.
Folder selection
in the order
File selection
in the order
Root folder (Root directory)
Level 1
Level 2Level 3 Level 4
BK0162600US.book 35 ページ ２０１３年３月２２日　金曜日　午後２時４１分

5-36 Comfort controls
5

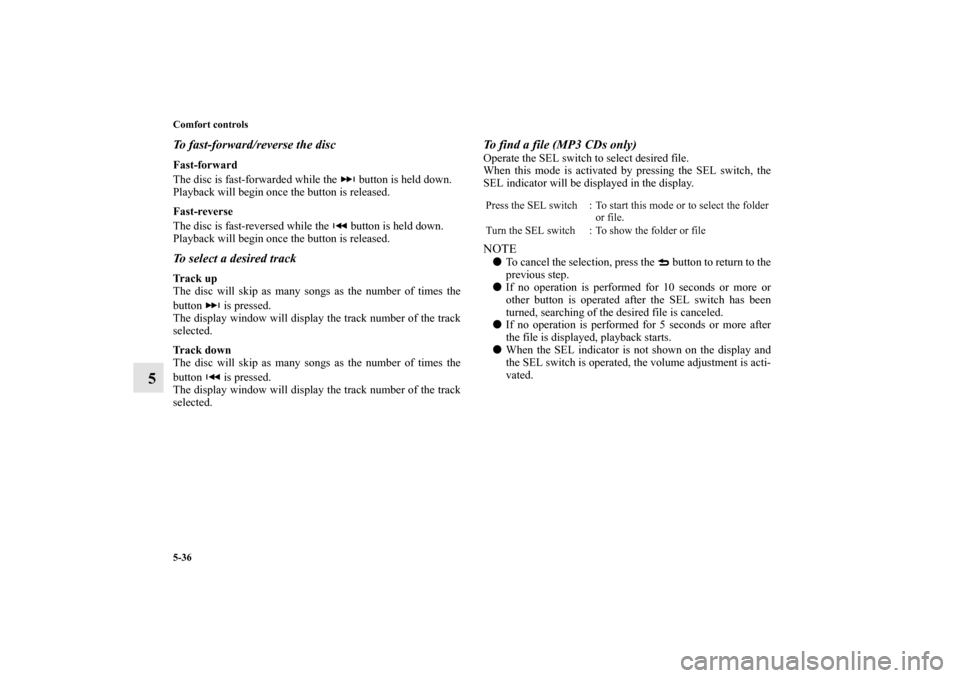

To fast-forward/reverse the discFast-forward
The disc is fast-forwarded while the button is held down.
Playback will begin once the button is released.
Fast-reverse
The disc is fast-reversed while the button is held down.
Playback will begin once the button is released.To select a desired trackTrack up
The disc will skip as many songs as the number of times the
button is pressed.
The display window will display the track number of the track
selected.
Track down
The disc will skip as many songs as the number of times the
button is pressed.
The display window will display the track number of the track
selected.
To find a file (MP3 CDs only)Operate the SEL switch to select desired file.
When this mode is activated by pressing the SEL switch, the
SEL indicator will be displayed in the display.NOTE
To cancel the selection, press the button to return to the
previous step.

If no operation is performed for 10 seconds or more or
other button is operated after the SEL switch has been
turned, searching of the desired file is canceled.

If no operation is performed for 5 seconds or more after
the file is displayed, playback starts.

When the SEL indicator is not shown on the display and
the SEL switch is operated, the volume adjustment is acti-
vated.Press the SEL switch : To start this mode or to select the folder
or file.
Turn the SEL switch : To show the folder or file
BK0162600US.book 36 ページ ２０１３年３月２２日　金曜日　午後２時４１分

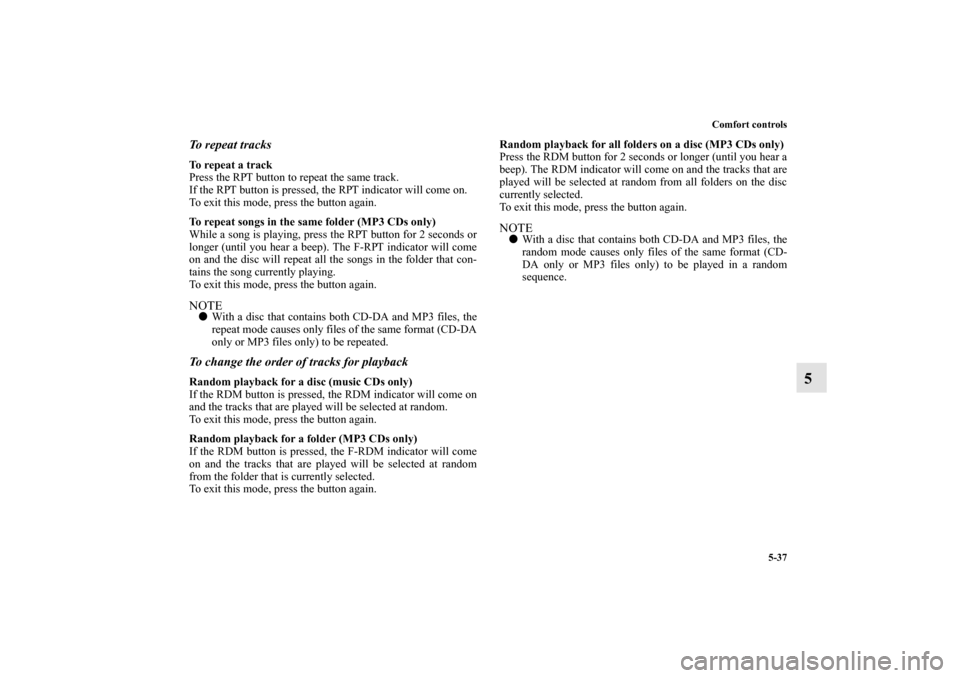

Comfort controls
5-37
5
To repeat tracksTo repeat a track
Press the RPT button to repeat the same track.
If the RPT button is pressed, the RPT indicator will come on.
To exit this mode, press the button again.
To repeat songs in the same folder (MP3 CDs only)
While a song is playing, press the RPT button for 2 seconds or
longer (until you hear a beep). The F-RPT indicator will come
on and the disc will repeat all the songs in the folder that con-
tains the song currently playing.
To exit this mode, press the button again.NOTE
With a disc that contains both CD-DA and MP3 files, the
repeat mode causes only files of the same format (CD-DA
only or MP3 files only) to be repeated.To change the order of tracks for playbackRandom playback for a disc (music CDs only)
If the RDM button is pressed, the RDM indicator will come on
and the tracks that are played will be selected at random.
To exit this mode, press the button again.
Random playback for a folder (MP3 CDs only)
If the RDM button is pressed, the F-RDM indicator will come
on and the tracks that are played will be selected at random
from the folder that is currently selected.
To exit this mode, press the button again.Random playback for all folders on a disc (MP3 CDs only)
Press the RDM button for 2 seconds or longer (until you hear a
beep). The RDM indicator will come on and the tracks that are
played will be selected at random from all folders on the disc
currently selected.
To exit this mode, press the button again.
NOTE
With a disc that contains both CD-DA and MP3 files, the
random mode causes only files of the same format (CD-
DA only or MP3 files only) to be played in a random
sequence.
BK0162600US.book 37 ページ ２０１３年３月２２日　金曜日　午後２時４１分

5-38 Comfort controls
5
CD text and MP3 title display
N00752100179
This CD player can display CD text and MP3 titles, including
ID3 tag information.
CD text
The CD player can display disc and track titles for discs with
converted disc and track title information. Press the DISP but-
ton repeatedly to make selections in the following sequence:
disc name → track name → normal display mode.NOTE
The display can show up to 11 characters. If a disc name
or track name has more than 11 characters, press the
PAGE button to view the next 11 characters.

When there is no title information to be displayed, the dis-
play shows “NO TITLE”.

Characters that the CD player cannot display are shown as
“•”.
MP3 titles
The CD player can display folder and file titles for discs with
converted folder and file information. Press the DISP button
repeatedly to make selections in the following sequence: folder
name → file name → normal display mode.ID3 tag information
The CD player can display ID3 tag information for files that
have been recorded with ID3 tag information.
1. Press the DISP button for 2 seconds or longer to switch to
the ID3 tag information.
2. Press the DISP button repeatedly to make selections in the
following sequence: album TAG → track TAG → artist
TA G → normal display mode.
NOTE
To return from ID3 tag information to the folder name,
press the DISP button again for 2 seconds or longer.

When there is no title information to be displayed, the dis-
play shows “NO TITLE”.

The display can show up to 11 characters. If a folder
name, track name, or item of ID3 tag information has
more than 11 characters, press the PAGE button to view
the next 11 characters.

Characters that the CD player cannot display are shown as
“•”.
BK0162600US.book 38 ページ ２０１３年３月２２日　金曜日　午後２時４１分
