Vehicle care and maintenance
7-37
7
There are spare fuses in the fuse block in the engine compart-
ment. Always replace a blown fuse with one of the same capac-
ity as the original.

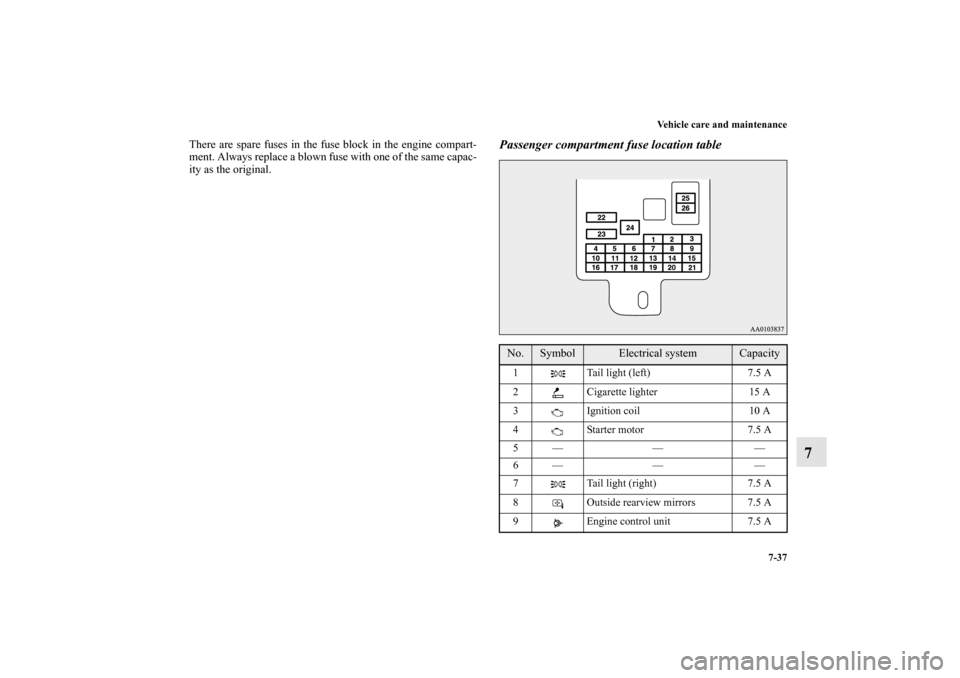

Passenger compartment fuse location tableNo.
Symbol
Electrical system
Capacity
1 Tail light (left) 7.5 A
2 Cigarette lighter 15 A
3 Ignition coil 10 A
4 Starter motor 7.5 A
5— — —
6— — —
7 Tail light (right) 7.5 A
8 Outside rearview mirrors 7.5 A
9 Engine control unit 7.5 A
BK0162600US.book 37 ページ ２０１３年３月２２日　金曜日　午後２時４１分

7-38 Vehicle care and maintenance
7

Some fuses may not be installed on your vehicle, depend-
ing on the vehicle model or specifications.

The table above shows the main equipment corresponding
to each fuse.

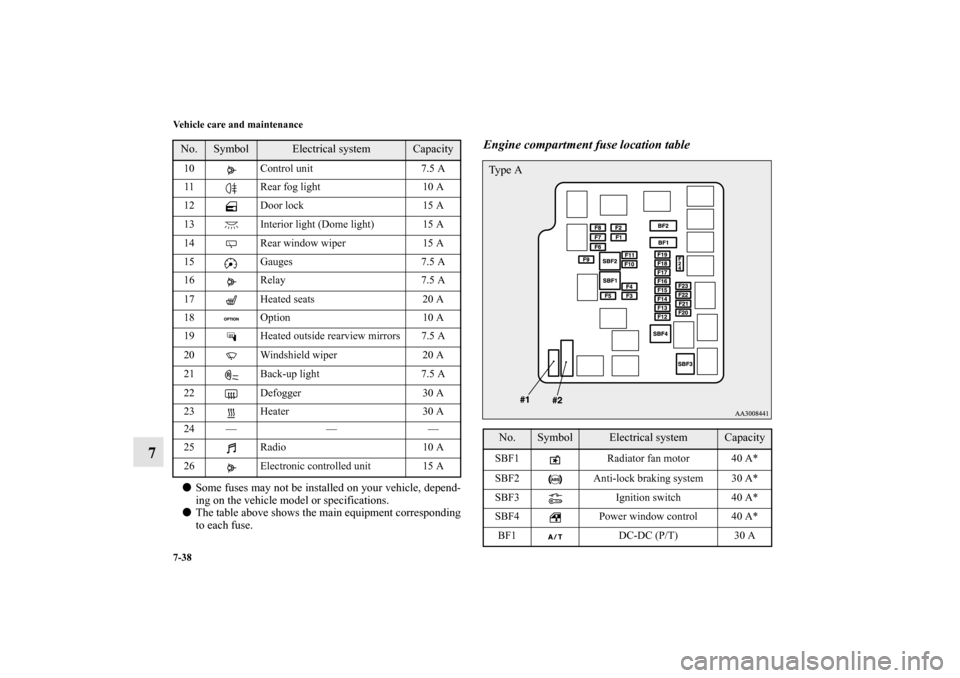

Engine compartment fuse location table
10 Control unit 7.5 A
11 Rear fog light 10 A
12 Door lock 15 A
13 Interior light (Dome light) 15 A
14 Rear window wiper 15 A
15 Gauges 7.5 A
16 Relay 7.5 A
17 Heated seats 20 A
18 Option 10 A
19 Heated outside rearview mirrors 7.5 A
20 Windshield wiper 20 A
21 Back-up light 7.5 A
22 Defogger 30 A
23 Heater 30 A
24 — — —
25 Radio 10 A
26 Electronic controlled unit 15 ANo.
Symbol
Electrical system
Capacity
No.
Symbol
Electrical system
Capacity
SBF1 Radiator fan motor 40 A*
SBF2 Anti-lock braking system 30 A*
SBF3 Ignition switch 40 A*
SBF4 Power window control 40 A*
BF1 DC-DC (P/T) 30 ATy p e A
BK0162600US.book 38 ページ ２０１３年３月２２日　金曜日　午後２時４１分

Vehicle care and maintenance
7-39
7

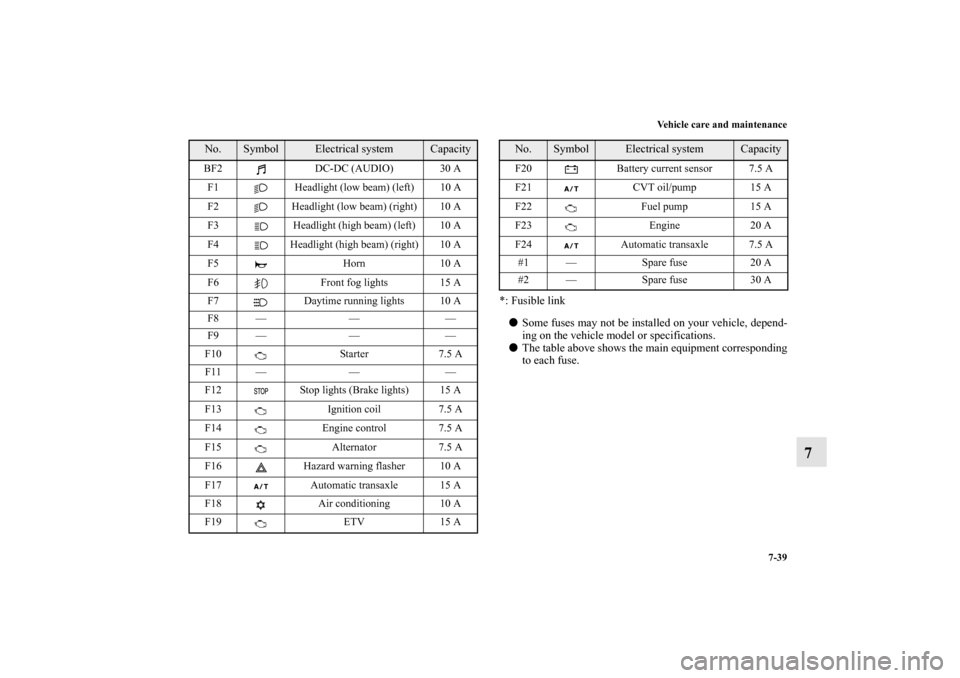

*: Fusible link

Some fuses may not be installed on your vehicle, depend-
ing on the vehicle model or specifications.

The table above shows the main equipment corresponding
to each fuse.
BF2 DC-DC (AUDIO) 30 A
F1 Headlight (low beam) (left) 10 A
F2 Headlight (low beam) (right) 10 A
F3 Headlight (high beam) (left) 10 A
F4 Headlight (high beam) (right) 10 A
F5 Horn 10 A
F6 Front fog lights 15 A
F7 Daytime running lights 10 A
F8 — — —
F9 — — —
F10 Starter 7.5 A
F11 — — —
F12 Stop lights (Brake lights) 15 A
F13 Ignition coil 7.5 A
F14 Engine control 7.5 A
F15 Alternator 7.5 A
F16 Hazard warning flasher 10 A
F17 Automatic transaxle 15 A
F18 Air conditioning 10 A
F19 ETV 15 ANo.
Symbol
Electrical system
Capacity
F20 Battery current sensor 7.5 A
F21 CVT oil/pump 15 A
F22 Fuel pump 15 A
F23 Engine 20 A
F24 Automatic transaxle 7.5 A
#1 — Spare fuse 20 A
#2 — Spare fuse 30 ANo.
Symbol
Electrical system
Capacity
BK0162600US.book 39 ページ ２０１３年３月２２日　金曜日　午後２時４１分

7-40 Vehicle care and maintenance
7
*: Fusible link

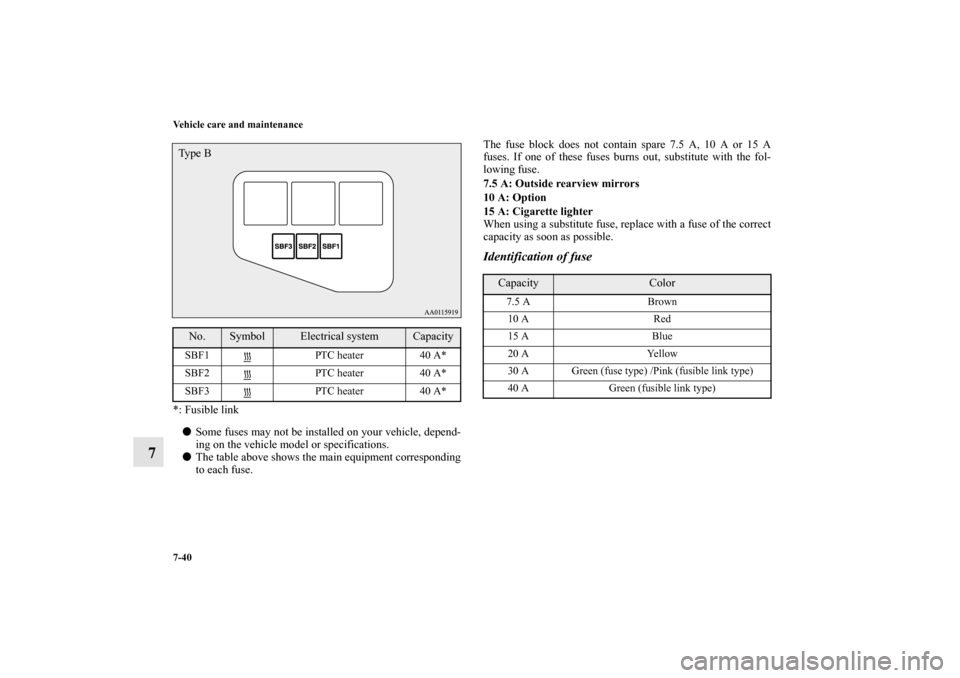

Some fuses may not be installed on your vehicle, depend-
ing on the vehicle model or specifications.

The table above shows the main equipment corresponding
to each fuse.The fuse block does not contain spare 7.5 A, 10 A or 15 A
fuses. If one of these fuses burns out, substitute with the fol-
lowing fuse.
7.5 A: Outside rearview mirrors
10 A: Option
15 A: Cigarette lighter
When using a substitute fuse, replace with a fuse of the correct
capacity as soon as possible.
Identification of fuse
No.
Symbol
Electrical system
Capacity
SBF1 PTC heater 40 A*
SBF2 PTC heater 40 A*
SBF3 PTC heater 40 A*Ty p e B
Capacity
Color
7.5 A Brown
10 A Red
15 A Blue
20 A Yellow
30 A Green (fuse type) /Pink (fusible link type)
40 A Green (fusible link type)
BK0162600US.book 40 ページ ２０１３年３月２２日　金曜日　午後２時４１分

Vehicle care and maintenance
7-41
7

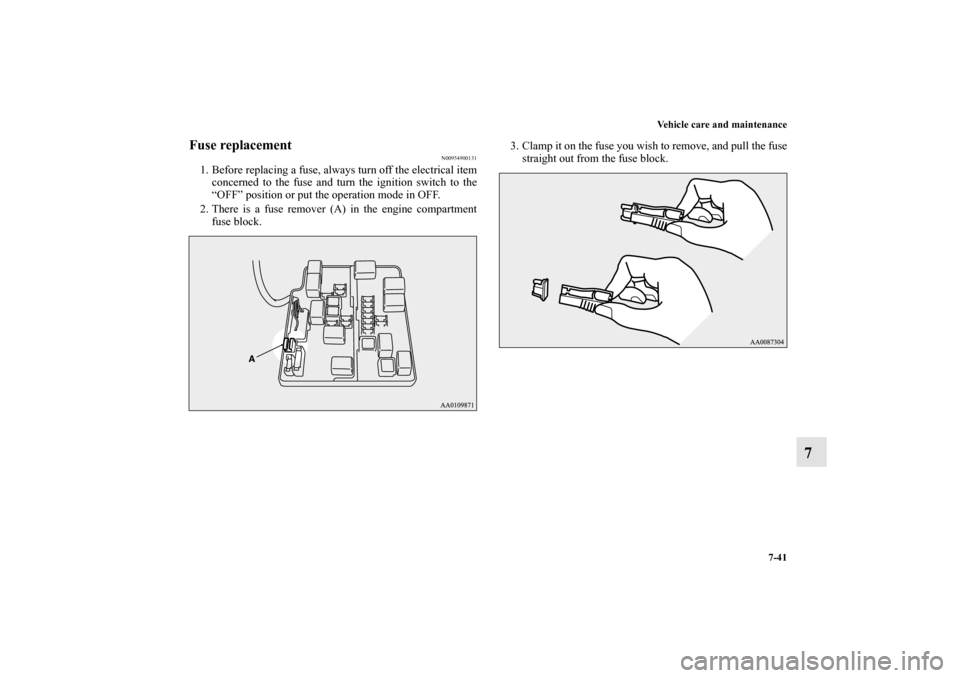

Fuse replacement
N00954900131
1. Before replacing a fuse, always turn off the electrical item
concerned to the fuse and turn the ignition switch to the
“OFF” position or put the operation mode in OFF.
2. There is a fuse remover (A) in the engine compartment
fuse block.3. Clamp it on the fuse you wish to remove, and pull the fuse
straight out from the fuse block.
BK0162600US.book 41 ページ ２０１３年３月２２日　金曜日　午後２時４１分

7-42 Vehicle care and maintenance
7

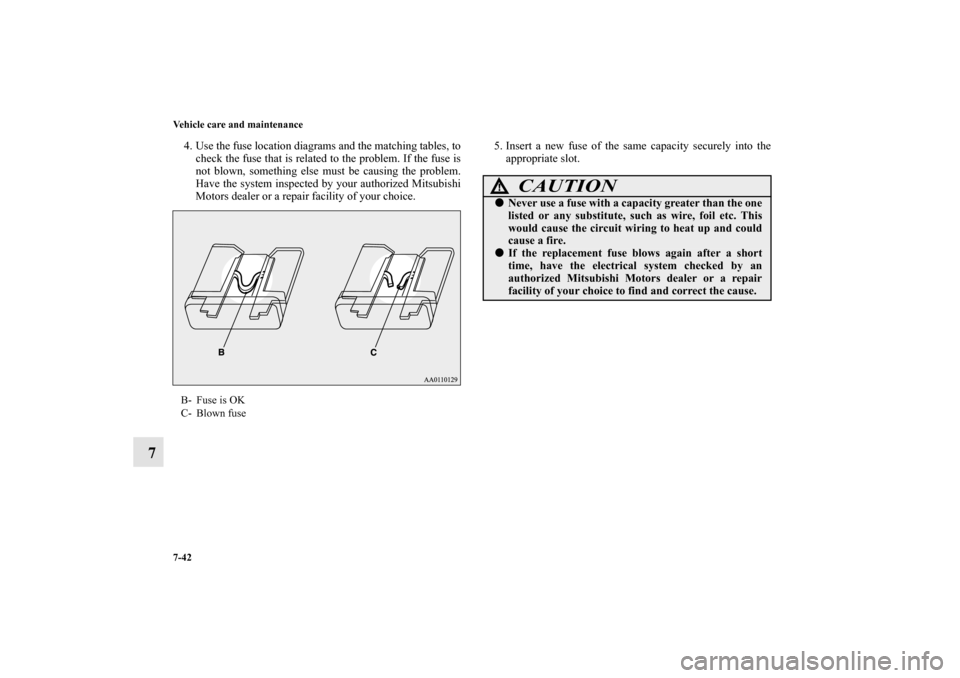

4. Use the fuse location diagrams and the matching tables, to
check the fuse that is related to the problem. If the fuse is
not blown, something else must be causing the problem.
Have the system inspected by your authorized Mitsubishi
Motors dealer or a repair facility of your choice.5. Insert a new fuse of the same capacity securely into the
appropriate slot.B- Fuse is OK
C- Blown fuse
CAUTION
!
Never use a fuse with a capacity greater than the one
listed or any substitute, such as wire, foil etc. This
would cause the circuit wiring to heat up and could
cause a fire.
If the replacement fuse blows again after a short
time, have the electrical system checked by an
authorized Mitsubishi Motors dealer or a repair
facility of your choice to find and correct the cause.
BK0162600US.book 42 ページ ２０１３年３月２２日　金曜日　午後２時４１分

Vehicle care and maintenance
7-43
7 Replacement of light bulbs
N00942900349
Before replacing the bulb, be sure the light is off. Do not touch
the glass part of the new bulb with your bare fingers; the oil
from your skin will stay on the glass and dim or destroy the
bulb when it gets hot.
NOTE
If you are unsure of how to carry out the work as required,
it is recommended that these procedures be carried out by
an authorized Mitsubishi Motors dealer or a repair facility
of your choice.

Be careful not to scratch the vehicle body when removing
a light and lens.

When it rains, or when the vehicle has been washed, the
inside of the lens sometimes becomes temporarily foggy.
This is the same phenomenon as when window glass mists
up on a humid day, and does not indicate a functional
problem.
When the light is switched on, the heat will remove the
fog. However, if water gathers inside the light, please
have it checked by an authorized Mitsubishi Motors
dealer or a repair facility of your choice.
CAUTION
!
Bulbs are extremely hot immediately after being
turned off.
When replacing the bulb, wait for it to cool suffi-
ciently before touching it. You could otherwise be
burned.
Handle halogen light bulb with care. The gas inside
halogen light bulb is highly pressurized, so drop-
ping, knocking, or scratching a halogen light bulb
can cause it to shatter.
Never hold the halogen light bulb with a bare hand,
dirty glove, etc.
The oil from your hand could cause the bulb to
break the next time the headlights are used.
If the glass surface is dirty, clean it with alcohol and
let it dry completely before installing the bulb.
BK0162600US.book 43 ページ ２０１３年３月２２日　金曜日　午後２時４１分

7-44 Vehicle care and maintenance
7

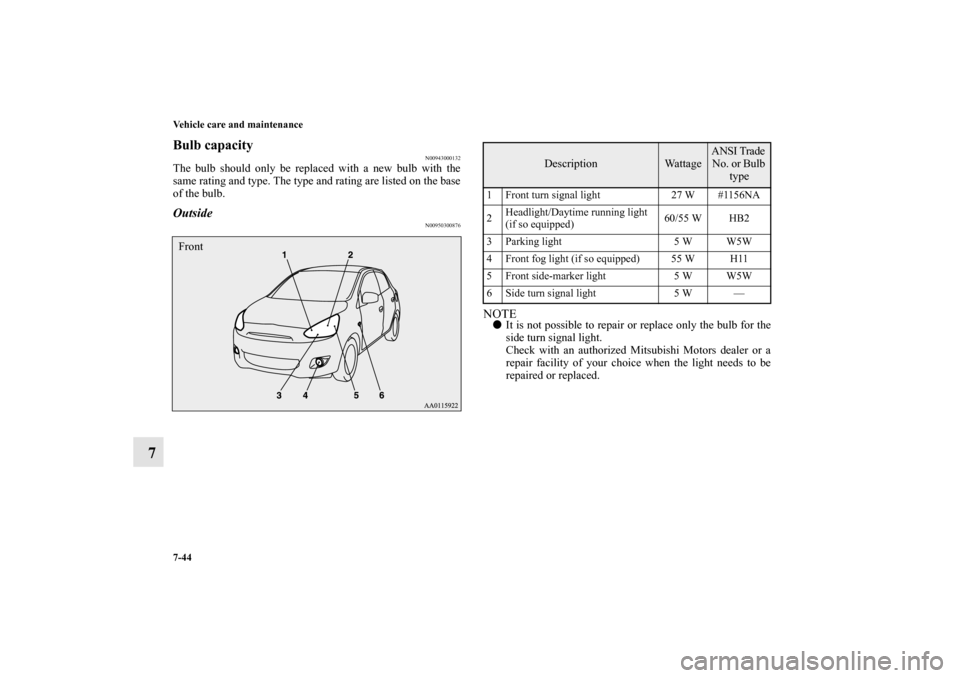

Bulb capacity
N00943000132
The bulb should only be replaced with a new bulb with the
same rating and type. The type and rating are listed on the base
of the bulb.Outside
N00950300876
NOTE
It is not possible to repair or replace only the bulb for the
side turn signal light.
Check with an authorized Mitsubishi Motors dealer or a
repair facility of your choice when the light needs to be
repaired or replaced.
Front
Description
Wattage
ANSI Trade
No. or Bulb
type
1 Front turn signal light 27 W #1156NA
2 Headlight/Daytime running light
(if so equipped)60/55 W HB2
3 Parking light 5 W W5W
4 Front fog light (if so equipped) 55 W H11
5 Front side-marker light 5 W W5W
6 Side turn signal light 5 W —
BK0162600US.book 44 ページ ２０１３年３月２２日　金曜日　午後２時４１分

Vehicle care and maintenance
7-45
7
NOTE

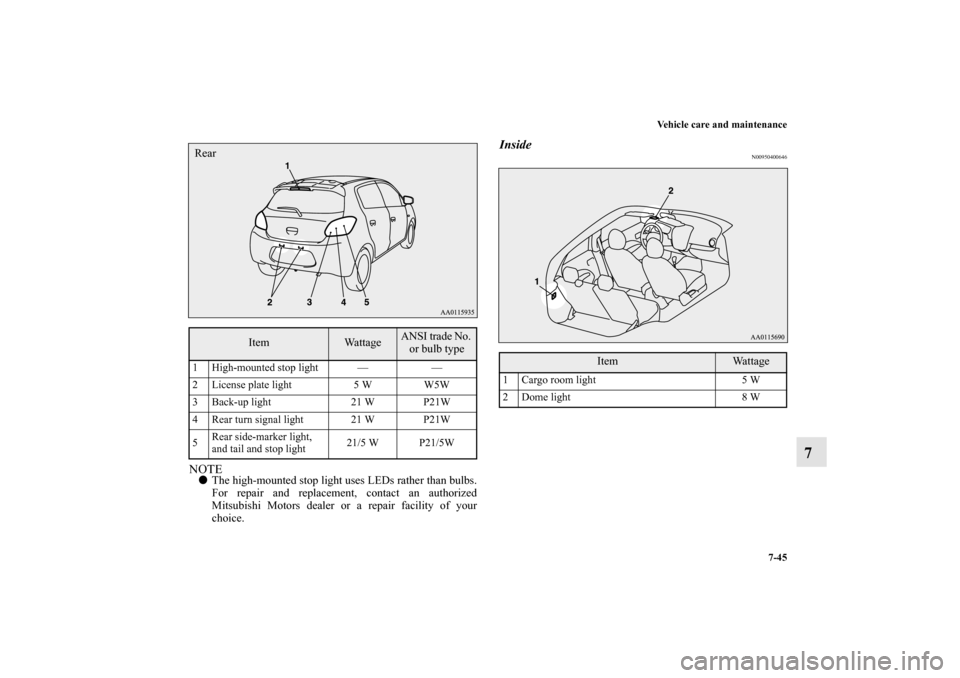

The high-mounted stop light uses LEDs rather than bulbs.
For repair and replacement, contact an authorized
Mitsubishi Motors dealer or a repair facility of your
choice.
Inside
N00950400646
Item
Wattage
ANSI trade No.
or bulb type
1 High-mounted stop light — —
2 License plate light 5 W W5W
3 Back-up light 21 W P21W
4 Rear turn signal light 21 W P21W
5Rear side-marker light,
and tail and stop light21/5 W P21/5WRear
Item
Wa t t a g e
1 Cargo room light 5 W
2 Dome light 8 W
BK0162600US.book 45 ページ ２０１３年３月２２日　金曜日　午後２時４１分

7-46 Vehicle care and maintenance
7

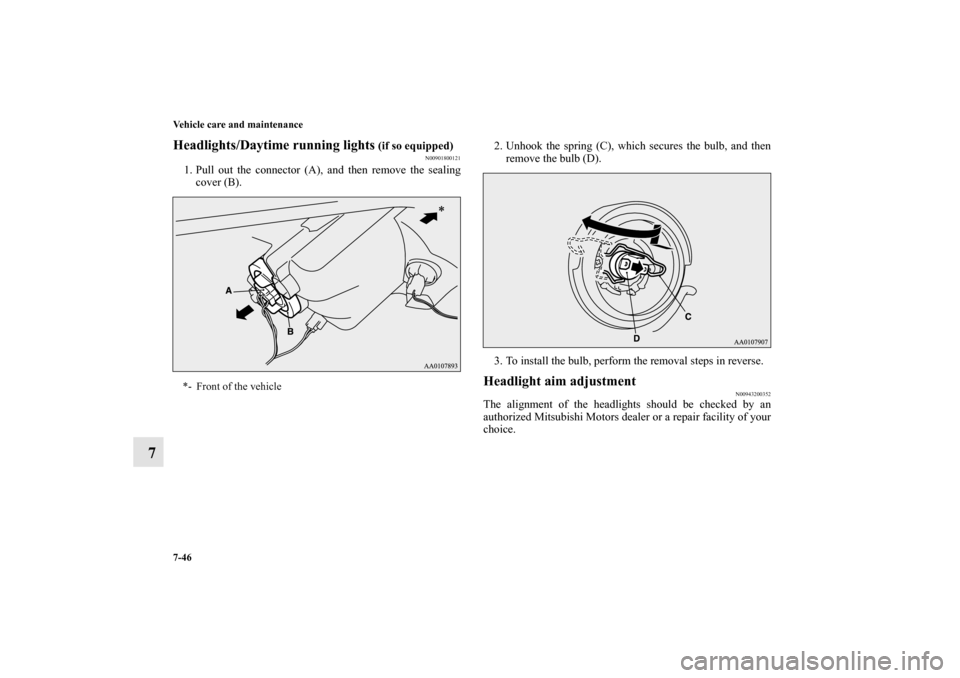

Headlights/Daytime running lights
(if so equipped)
N00901800121
1. Pull out the connector (A), and then remove the sealing
cover (B).2. Unhook the spring (C), which secures the bulb, and then
remove the bulb (D).
3. To install the bulb, perform the removal steps in reverse.
Headlight aim adjustment
N00943200352
The alignment of the headlights should be checked by an
authorized Mitsubishi Motors dealer or a repair facility of your
choice.
*- Front of the vehicle
