View of the engine compartment
N00937600713
1- Engine oil level dipstick
2- Air cleaner filter
3- Battery
4- Brake fluid
5- Windshield and rear window washer fluid reservoir
6- Engine oil filler cap
7- Radiator cap
8- Engine coolant reserve tank
BK0162600US.book 7 ページ ２０１３年３月２２日　金曜日　午後２時４１分

7-8 Vehicle care and maintenance
7Engine oil and oil filter
N00937700945
To check and refill engine oilIt is normal for an engine to use oil. You may need to add oil
between the recommended oil change intervals. Before starting
the engine, check the engine oil level. Refill if necessary.
To check the oil level, remove the dipstick, wipe it off, and
gently reinsert it all the way. Slowly pull the dipstick straight
out and check the oil level by checking the upper surface of the
dipstick. The oil level must not go above the line on the dip-
stick.NOTE
If it is difficult to verify the oil level, wipe off the dipstick
and reinsert it. Wait a moment and then recheck the oil
level by checking the upper surface of the dipstick.
If the level does not reach the line which shows the minimum
amount of oil required, remove the oil filler cap on the engine
valve cover, and fill to within the “Good” range.
CAUTION
!
Overfilling will cause oil aeration and loss of oil
pressure, which could damage the engine.
WA R N I N G
!
Used engine oil is poisonous, and can damage your
skin. Prolonged and repeated contact may cause
serious skin disorders, including dermatitis and can-
cer. Do not let used oil touch your skin and wash
thoroughly after working with it.
Keep used oil out of the reach of children.
Good
BK0162600US.book 8 ページ ２０１３年３月２２日　金曜日　午後２時４１分

Vehicle care and maintenance
7-9
7
NOTE
Engine oil consumption is greatly influenced by payload,
engine speed, etc.

The engine oil will deteriorate rapidly if the vehicle is
subjected to severe conditions (for example, repeated
operation on rough roads, in mountainous regions, on
roads with many uphill and downhill gradients, or over
short distances). Consequently, the oil will require earlier
replacement in accordance with the schedule in the
“WARRANTY AND MAINTENANCE MANUAL”.
Engine oil identification markMitsubishi Motors recommends using only engine oils with the
ILSAC certification symbol on the front of the container.ILSAC certification symbol
BK0162600US.book 9 ページ ２０１３年３月２２日　金曜日　午後２時４１分

7-10 Vehicle care and maintenance
7
If you cannot find oils with the ILSAC certification symbol,
use an API classification SN or higher oil with the following
label.
This mark appears on the top of the oil container and tells you
two important things about the oil.
Recommended engine oil viscosityUse engine oil with the proper thickness for the outdoor tem-
peratures where you will be driving.
SAE 0W-20 engine oil is strongly recommended for optimum
fuel economy and cold starting.
If SAE 0W-20 is not available, the ILSAC certification oil of
other viscosity grades can be temporarily used.
1- The upper part indicates the quality of the oil.
2- The center part indicates the SAE grade of the oil viscosity.API service symbolBK0162600US.book 10 ページ ２０１３年３月２２日　金曜日　午後２時４１分

Vehicle care and maintenance
7-11
7
To replace the oil filterThe oil filter should be replaced at the time or mileage speci-
fied in the “WARRANTY AND MAINTENANCE MAN-
UAL”.
Only use high quality replacement filters on this vehicle. The
manufacturer’s specifications for Genuine Mitsubishi oil filters
require that the filter can withstand a pressure of 256 psi (1.8
MPa). A Genuine Mitsubishi oil filter is the best replacement
filter.
Follow the installation instructions printed on the filter.
Engine coolant
N00937800597
To check the coolant levelThe engine coolant reserve tank (A) lets you quickly see when
you need to add coolant. When the engine is cold, the level of
the coolant in the reserve tank should be between the FULL
and LOW marks. The radiator usually stays full so there is no
reason to remove the radiator cap (B) except when you check
the coolant freeze point or replace the antifreeze coolant.
FULL
LOW
BK0162600US.book 11 ページ ２０１３年３月２２日　金曜日　午後２時４１分

7-12 Vehicle care and maintenance
7

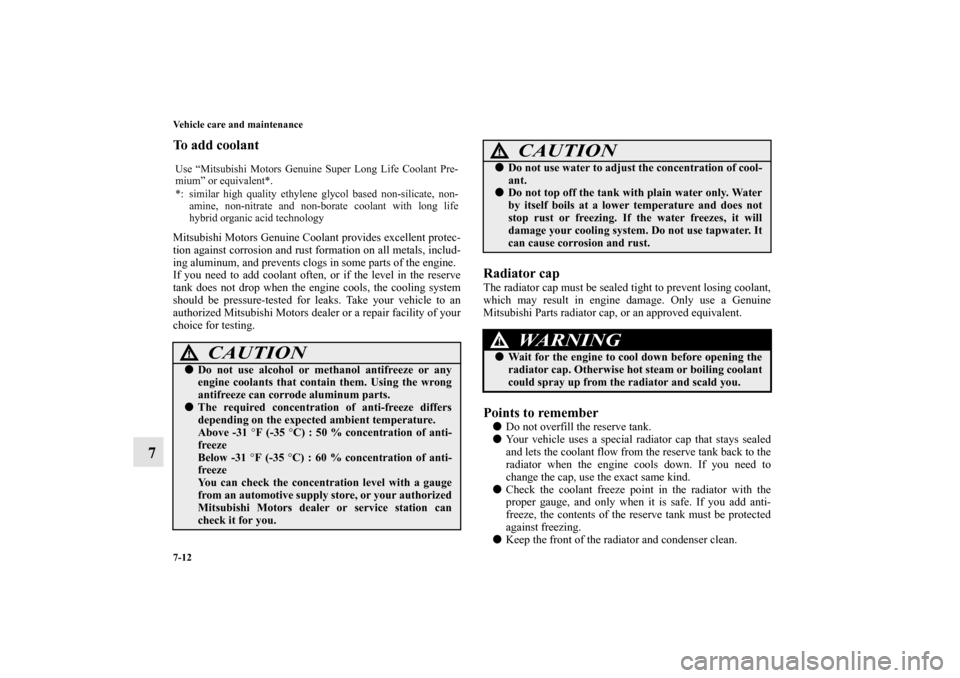

To add coolantMitsubishi Motors Genuine Coolant provides excellent protec-
tion against corrosion and rust formation on all metals, includ-
ing aluminum, and prevents clogs in some parts of the engine.
If you need to add coolant often, or if the level in the reserve
tank does not drop when the engine cools, the cooling system
should be pressure-tested for leaks. Take your vehicle to an
authorized Mitsubishi Motors dealer or a repair facility of your
choice for testing.
Radiator capThe radiator cap must be sealed tight to prevent losing coolant,
which may result in engine damage. Only use a Genuine
Mitsubishi Parts radiator cap, or an approved equivalent.Points to remember
Do not overfill the reserve tank.

Your vehicle uses a special radiator cap that stays sealed
and lets the coolant flow from the reserve tank back to the
radiator when the engine cools down. If you need to
change the cap, use the exact same kind.

Check the coolant freeze point in the radiator with the
proper gauge, and only when it is safe. If you add anti-
freeze, the contents of the reserve tank must be protected
against freezing.

Keep the front of the radiator and condenser clean.
Use “Mitsubishi Motors Genuine Super Long Life Coolant Pre-
mium” or equivalent*.
*: similar high quality ethylene glycol based non-silicate, non-
amine, non-nitrate and non-borate coolant with long life
hybrid organic acid technology
CAUTION
!
Do not use alcohol or methanol antifreeze or any
engine coolants that contain them. Using the wrong
antifreeze can corrode aluminum parts.
The required concentration of anti-freeze differs
depending on the expected ambient temperature.
Above -31 °F (-35 °C) : 50 % concentration of anti-
freeze
Below -31 °F (-35 °C) : 60 % concentration of anti-
freeze
You can check the concentration level with a gauge
from an automotive supply store, or your authorized
Mitsubishi Motors dealer or service station can
check it for you.

Do not use water to adjust the concentration of cool-
ant.
Do not top off the tank with plain water only. Water
by itself boils at a lower temperature and does not
stop rust or freezing. If the water freezes, it will
damage your cooling system. Do not use tapwater. It
can cause corrosion and rust.
WA R N I N G
!
Wait for the engine to cool down before opening the
radiator cap. Otherwise hot steam or boiling coolant
could spray up from the radiator and scald you.
CAUTION
!
BK0162600US.book 12 ページ ２０１３年３月２２日　金曜日　午後２時４１分

Vehicle care and maintenance
7-13
7

If the engine coolant temperature does not rise after the
engine is warmed-up, take your vehicle to an authorized
Mitsubishi Motors dealer or a repair facility of your
choice to have the thermostat checked, and replaced if
necessary.
Air cleaner filter
N00937900413
The air cleaner filter will get dirty and dusty from use and not
filter properly. Replace it with a new filter using the schedule
in the “WARRANTY AND MAINTENANCE MANUAL”.

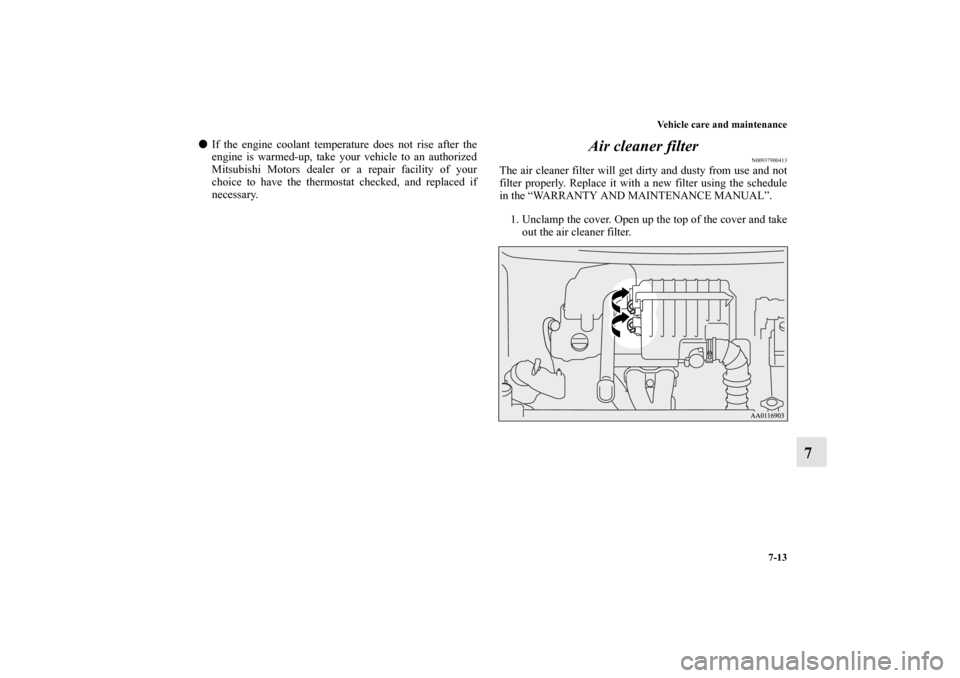

1. Unclamp the cover. Open up the top of the cover and take
out the air cleaner filter.
BK0162600US.book 13 ページ ２０１３年３月２２日　金曜日　午後２時４１分

7-14 Vehicle care and maintenance
7
2. Replacing the air cleaner filter and put the cover back on
in its original position.NOTE
Genuine Mitsubishi Motors Parts are recommended when
replacing the air cleaner filter.

Make sure that the connector is properly reconnected.

After replacing the air cleaner filter, make sure that the
hinges at the bottom of cover are firmly set.

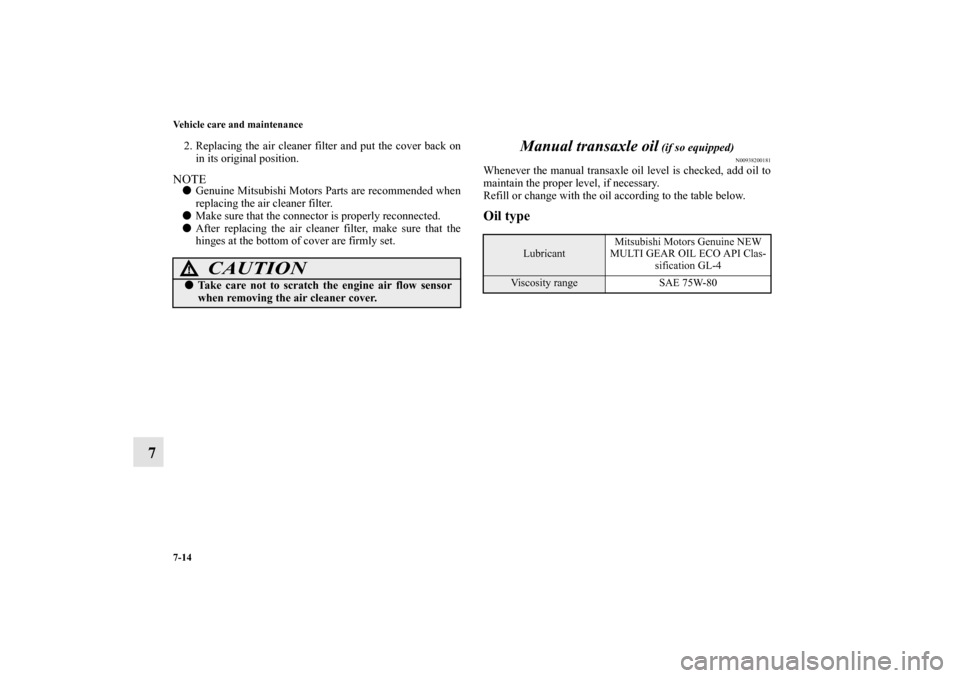

Manual transaxle oil
(if so equipped)
N00938200181
Whenever the manual transaxle oil level is checked, add oil to
maintain the proper level, if necessary.
Refill or change with the oil according to the table below.Oil type
CAUTION
!
Take care not to scratch the engine air flow sensor
when removing the air cleaner cover.
LubricantMitsubishi Motors Genuine NEW
MULTI GEAR OIL ECO API Clas-
sification GL-4
Viscosity range SAE 75W-80
BK0162600US.book 14 ページ ２０１３年３月２２日　金曜日　午後２時４１分

Vehicle care and maintenance
7-15
7 Continuously variable transmission (CVT)
fluid
(if so equipped)
N00938100089
The continuously variable transmission (CVT) should be main-
tained and serviced by an authorized Mitsubishi Motors dealer
or a repair facility of your choice to obtain the best perfor-
mance and longest life. It is important that the transmission

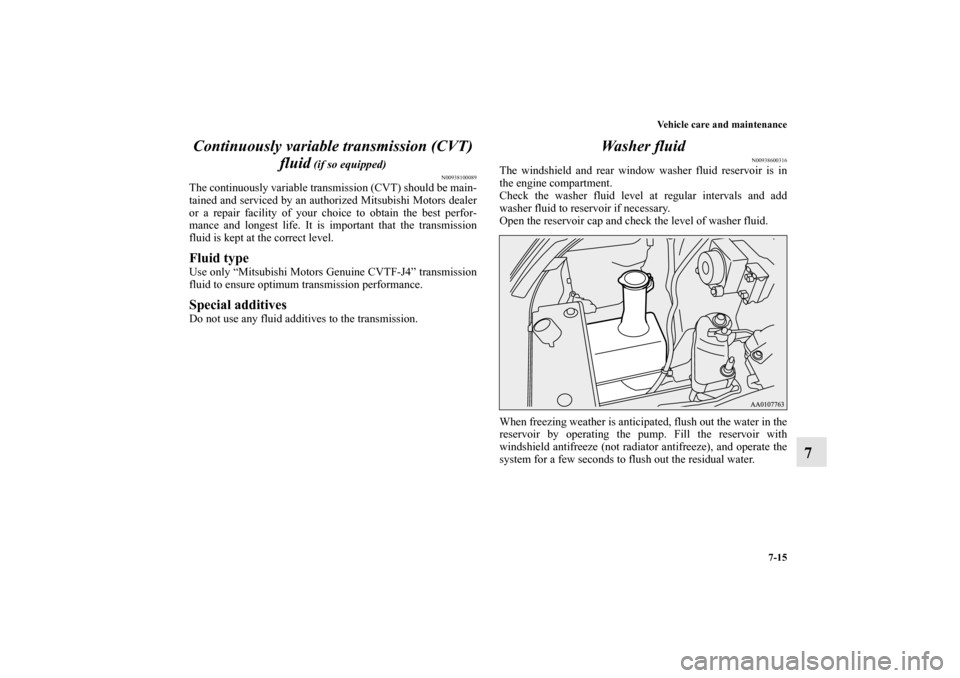

fluid is kept at the correct level.Fluid typeUse only “Mitsubishi Motors Genuine CVTF-J4” transmission
fluid to ensure optimum transmission performance.Special additivesDo not use any fluid additives to the transmission.
Wa s h e r f l u i d
N00938600316
The windshield and rear window washer fluid reservoir is in
the engine compartment.
Check the washer fluid level at regular intervals and add
washer fluid to reservoir if necessary.
Open the reservoir cap and check the level of washer fluid.
When freezing weather is anticipated, flush out the water in the
reservoir by operating the pump. Fill the reservoir with
windshield antifreeze (not radiator antifreeze), and operate the
system for a few seconds to flush out the residual water.
BK0162600US.book 15 ページ ２０１３年３月２２日　金曜日　午後２時４１分

7-16 Vehicle care and maintenance
7Brake fluid
N00938700274
To check the fluid levelThe fluid level must be between the “MAX” and “MIN” marks
on the reservoir.
The fluid level falls slightly with wear of the brake pads, but
this does not indicate any abnormality.
The fluid in the master cylinder should be checked when doing
other work under the engine hood. The brake system should
also be checked for leaks at the same time.
If the fluid level falls noticeably in a short length of time, it
indicates leaks from the brake system.
If this occurs, have the vehicle checked by an authorized
Mitsubishi Motors dealer or a repair facility of your choice.
Fluid typeUse the brake fluid conforming to DOT 3 or DOT 4. The reser-
voir cap must be tightly sealed to keep dirt and water out.
MAX
MIN
CAUTION
!
Do not let any petroleum-based fluid touch, mix
with, or get into the brake fluid. This will damage
the seals.
Be careful when handling brake fluid. It can damage
painted surfaces.
Use only the listed brake fluid. Different brands of
brake fluid have different additives, and these can
cause a chemical reaction. Do not mix brands of
brake fluid.
Keep the reservoir tank cap closed to keep the brake
fluid from evaporating.
