Tire repair kit (if so equipped) 8-6 For emergencies
8
N00800400015
The tire repair kit can be used to temporarily repair a minor puncture in tread area caused by a nail, screw or similar object. Therefore, a spare tire is not provided.
N00800500016
The tire repair kit is
stored beneath the floor
board of the cargo area.
N00800600017
WA R N I N G After storing the jack in place, make sure the jack is securely fixed in the holder.If the jack is not fixed securely, it may move and hit an occu
pant in an accident
resulting in serious in
jury or death. Also
the jack may move fo
rward during driv-
ing and could interfere with driver’s pedal operation causin
g an accident.
Tire repair kit
(if so equipped)
WA R N I N GThe tire repair kit may not permanently seal a punctured tire. Have the tirerepaired as soon as possible. Using the tire repair kit may damage the wheel and/or the tire inflation pressuresensor for the tire. The vehicle must promptly be inspected and repaired by an authorized Mitsubishi
Motors dealer after
using the tire repair kit. Use only the Mitsubishi Motors genuine tire repair kit. Sealant in other repair kits may not sufficiently seal the tire puncture.
Tire repair kit storage

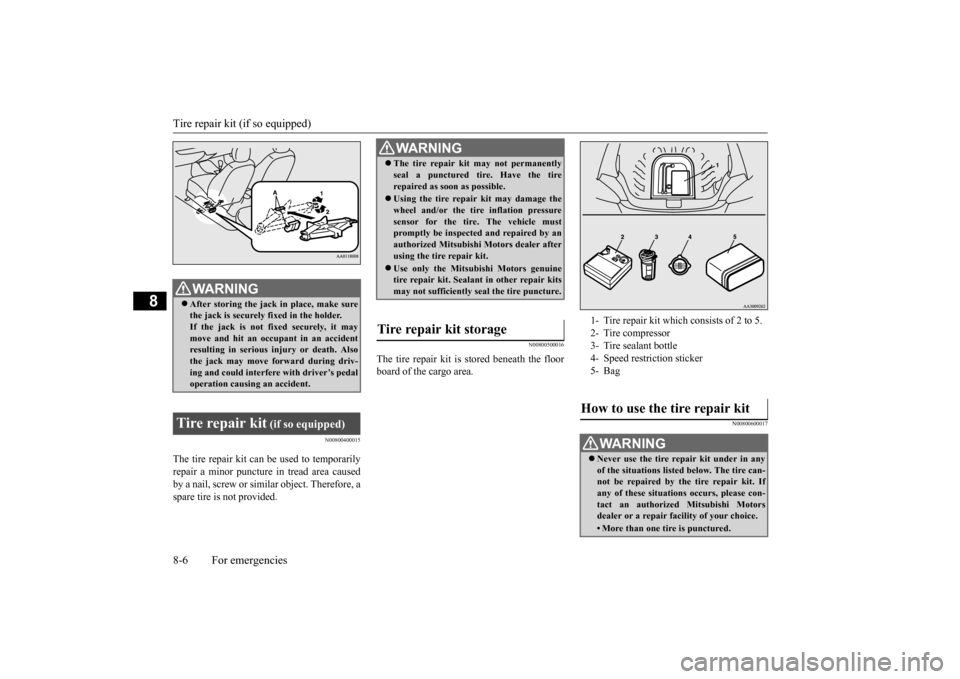

1- Tire repair kit which consists of 2 to 5. 2- Tire compressor 3- Tire sealant bottle4- Speed restriction sticker 5- BagHow to use the tire repair kit

WA R N I N G Never use the tire repair kit under in any of the situations listed below. The tire can- not be repaired by the tire repair kit. If any of these situations occurs, please con-tact an authorized
Mitsubishi Motors
dealer or a repair fa
cility of your choice.
• More than one tire is punctured.
BK0212400US.book 6 ページ ２０１４年４月１日　火曜日　午後２時２１分

Tire repair kit (if so equipped)
For emergencies 8-7
8
1. Park the vehicle on a safe, flat and level place.2. Set the parking brake firmly. 3. On vehicles equipped with manual trans- axle, stop the engine and move the gear-shift lever to the “R” (Reverse) position. On vehicles equippe
d with continuously
variable transmissi
on (CVT), move the
selector lever to the “P” (PARK) position, and stop the engine. 4. Turn on the hazard warning flashers and set up a warning sign, such as a warning triangle or flashing signal lamp, at an ade-quate distance from the vehicle, and have all your passengers
leave the vehicle.
5. Take out the tire repair kit.Make sure that the compressor switch is OFF. 6. Shake the tire sealant bottle well.

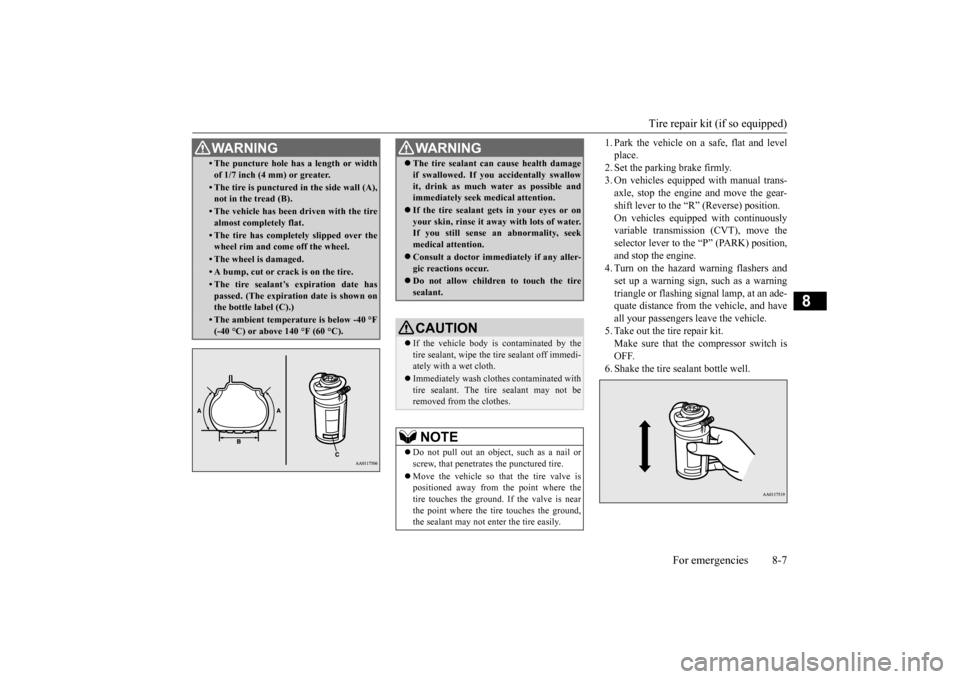

• The puncture hole has a length or width of 1/7 inch (4 mm) or greater.• The tire is punctured in the side wall (A), not in the tread (B).• The vehicle has been driven with the tirealmost completely flat.• The tire has completely slipped over thewheel rim and come off the wheel.• The wheel is damaged.• A bump, cut or crack is on the tire.• The tire sealant’s expiration date has passed. (The expiration date is shown onthe bottle label (C).)• The ambient temperature is below -40 °F(-40 °C) or above 140 °F (60 °C).WA R N I N G
WA R N I N G The tire sealant can
cause health damage
if swallowed. If you
accidentally swallow
it, drink as much water as possible andimmediately seek
medical attention.
If the tire sealant ge
ts in your eyes or on
your skin, rinse it away with lots of water. If you still sense an abnormality, seek medical attention. Consult a doctor immediately if any aller- gic reactions occur. Do not allow children to touch the tire sealant.CAUTION If the vehicle body is contaminated by the tire sealant, wipe the tire sealant off immedi- ately with a wet cloth. Immediately wash clot
hes contaminated with
tire sealant. The tire sealant may not be removed from the clothes.NOTE
 Do not pull out an object, such as a nail or screw, that penetrat
es the punctured tire.
 Move the vehicle so that the tire valve is positioned away from the point where thetire touches the ground. If the valve is near the point where the tire touches the ground, the sealant may not enter the tire easily.
BK0212400US.book 7 ページ ２０１４年４月１日　火曜日　午後２時２１分

Tire repair kit (if so equipped) 8-8 For emergencies
8

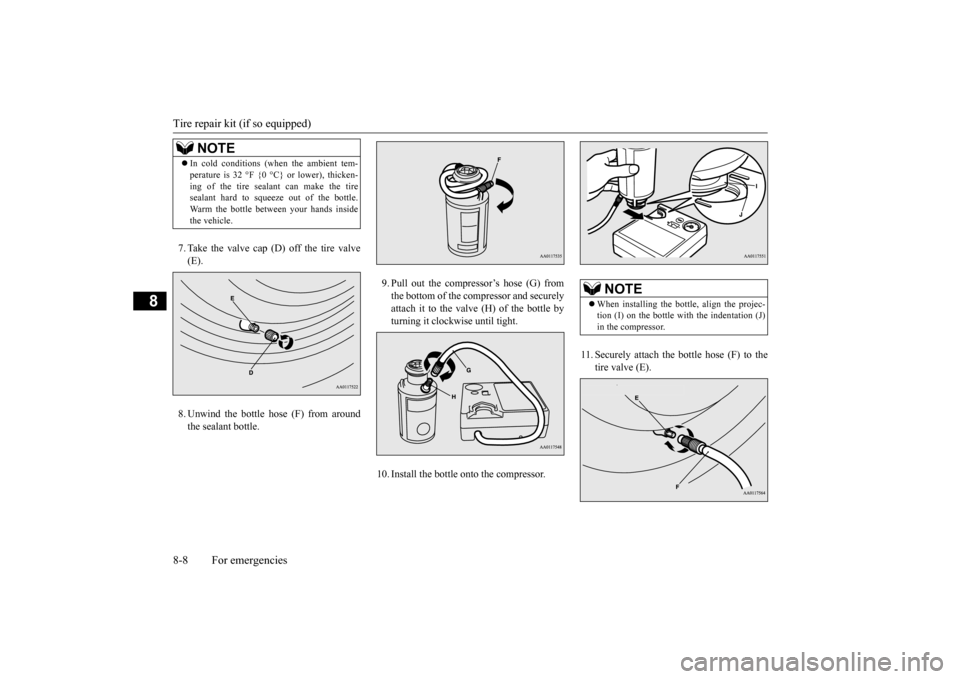

7. Take the valve cap (D) off the tire valve (E). 8. Unwind the bottle hose (F) from around the sealant bottle.
9. Pull out the compressor’s hose (G) from the bottom of the compressor and securelyattach it to the valve (H) of the bottle by turning it clockw
ise until tight.
10. Install the bottle onto the compressor.
11. Securely attach the
bottle hose (F) to the
tire valve (E).
NOTE
 In cold conditions (w
hen the ambient tem-
perature is 32 °F {0 °C} or lower), thicken-ing of the tire sealant can make the tiresealant hard to squeeze out of the bottle. Warm the bottle betw
een your hands inside
the vehicle.
NOTE
 When installing the bottle, align the projec- tion (I) on the bottle with
the indentation (J)
in the compressor.
BK0212400US.book 8 ページ ２０１４年４月１日　火曜日　午後２時２１分

Tire repair kit (if so equipped)
For emergencies 8-9
8

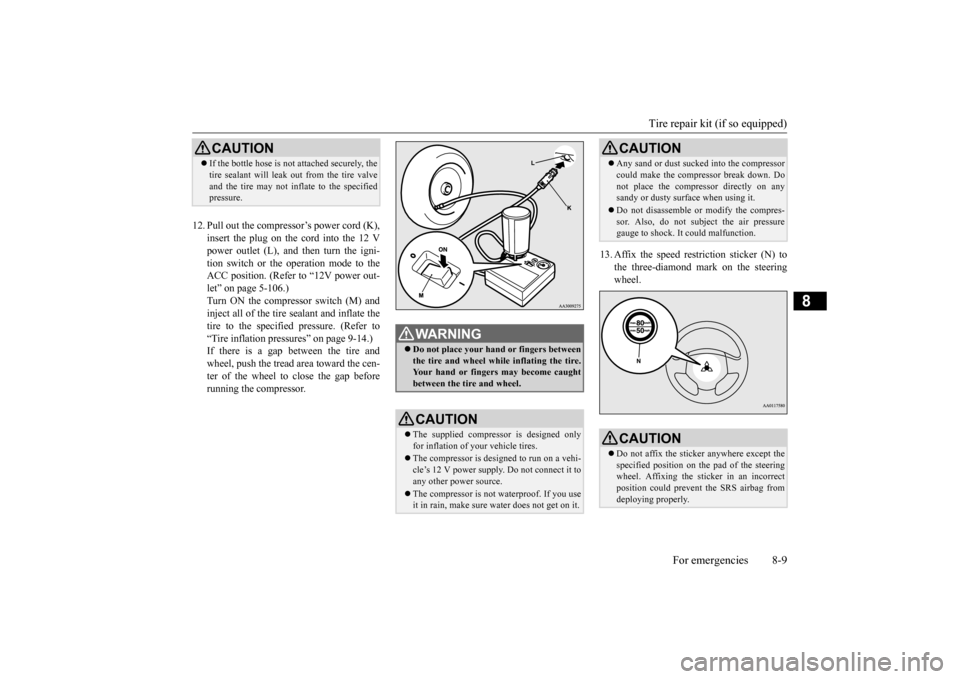

12. Pull out the compressor’s power cord (K),
insert the plug on the cord into the 12 Vpower outlet (L), and then turn the igni- tion switch or the operation mode to the ACC position. (Refer to “12V power out-let” on page 5-106.) Turn ON the compressor switch (M) and inject all of the tire sealant and inflate thetire to the specified pressure. (Refer to “Tire inflation pressures” on page 9-14.) If there is a gap between the tire andwheel, push the tread area toward the cen- ter of the wheel to close the gap before running the compressor.
13. Affix the speed rest
riction sticker (N) to
the three-diamond mark on the steeringwheel.
CAUTION If the bottle hose is not attached securely, the tire sealant will leak out from the tire valveand the tire may not inflate to the specifiedpressure.
WA R N I N G Do not place your hand or fingers between the tire and wheel while inflating the tire. Your hand or fingers may become caughtbetween the tire and wheel.CAUTION The supplied compressor is designed only for inflation of your vehicle tires. The compressor is designed to run on a vehi- cle’s 12 V power supply. Do not connect it to any other power source. The compressor is not waterproof. If you use it in rain, make sure water does not get on it.
 Any sand or dust sucked into the compressor could make the compressor break down. Donot place the compressor directly on anysandy or dusty surface when using it. Do not disassemble or modify the compres- sor. Also, do not subject the air pressure gauge to shock. It
could malfunction.
CAUTIONDo not affix the sticke
r anywhere except the
specified position on th
e pad of the steering
wheel. Affixing the sticker in an incorrect position could prevent the SRS airbag from deploying properly.CAUTION
BK0212400US.book 9 ページ ２０１４年４月１日　火曜日　午後２時２１分

Tire repair kit (if so equipped) 8-10 For emergencies
8
14. Check and adjust the tire pressure with
reference to the air pressure gauge on thecompressor. If you overinflate the tire, release air by pressing the pressure release switch (O) on the compressor.
15. Turn OFF the compressor switch, then
pull the power cord plug out of the 12 V power outlet.
16. When you have inflated the tire to the
specified pressure, stow the compressor and bottle in the vehicle and promptly start driving the vehicle so that the tiresealant can spread evenly in the tire. Drive with great care. Do not exceed a speed of 50 mph (80
km/h). Observe local
speed limits.
17. After driving for 10 minutes or 3 miles (5
km), park the vehicl
e in a safe place.
Remove the air compressor from the stowed position. Check the tire pressure using the air pressure gauge on the com-pressor. If the tire pressure has not dropped, the emergency repair procedure is complete. Proceed to step 19.If the tire pressure is insufficient, inflate the tire to the specified pressure again and drive the vehicle carefully withoutexceeding a speed of 50 mph (80 km/h). Before driving, make sure that the com- pressor is stowed.

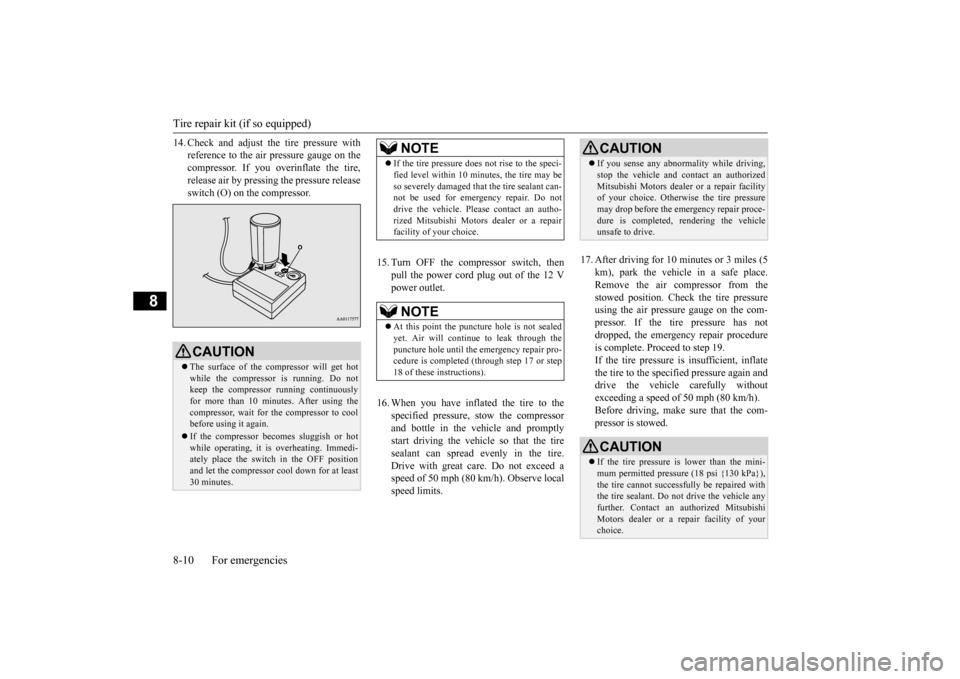

CAUTION The surface of the compressor will get hot while the compressor is running. Do not keep the compressor running continuously for more than 10 minutes. After using thecompressor, wait for the compressor to cool before using it again. If the compressor becomes sluggish or hot while operating, it is
overheating. Immedi-
ately place the switch in the OFF positionand let the compressor cool down for at least 30 minutes.
NOTE
 If the tire pressure does not rise to the speci- fied level within 10 minutes, the tire may beso severely damaged that
the tire sealant can-
not be used for emergency repair. Do not drive the vehicle. Plea
se contact an autho-
rized Mitsubishi Motors dealer or a repairfacility of your choice.NOTE
 At this point the punctu
re hole is
not sealed
yet. Air will continue to leak through thepuncture hole until the emergency repair pro- cedure is completed (through step 17 or step 18 of these instructions).
CAUTION If you sense any abnorma
lity while driving,
stop the vehicle and c
ontact an authorized
Mitsubishi Motors dealer
or a repair facility
of your choice. Otherw
ise the tire pressure
may drop before the emergency repair proce- dure is completed,
rendering the vehicle
unsafe to drive.CAUTION If the tire pressure is lower than the mini- mum permitted pressure
(18 psi {130 kPa}),
the tire cannot successful
ly be repaired with
the tire sealant. Do not drive the vehicle any further. Contact an
authorized Mitsubishi
Motors dealer or a repair facility of yourchoice.
BK0212400US.book 10 ページ ２０１４年４月１日　火曜日　午後２時２１分

How to change a tire (Vehicle
s equipped with spare tire) For emergencies 8-11
8
18. After driving for 10 minutes or 3 miles (5
km) again, check the tire pressure usingthe air pressure gauge on the compressor. If the tire pressure has not dropped, the emergency repair proc
edure is complete.
Before driving, make sure that the com- pressor is stowed. You must still not exceed a speed of 50 mph (80 km/h).Observe local speed limits.
19. Immediately drive with great care to an
authorized Mitsubishi
Motors dealer or a
repair facility of your
choice and have the
tire repair/replacement performed.
N00836900819
Before changing a tire, first stop your vehicle in a safe, flat location. 1. Park the vehicle on level and stable ground. 2. Set the parking brake firmly.
3. On vehicles equipped with manual trans- axle, stop the engine and move the gear-shift lever to the “R” (Reverse) position. On vehicles equippe
d with continuously
variable transmissi
on (CVT), move the
selector lever to the “P” (PARK) position, and stop the engine. 4. Turn on the hazard flashers and set up awarning triangle, flas
hing signal light,
etc., at an adequate distance from the vehicle, and have a
ll your passengers exit
the vehicle. 5. To prevent the vehicle from rolling whenit is raised on the jack, place chocks or blocks (A) at the tire
that is diagonally
opposite from the tire (B) you are chang-ing.
NOTE
 If the tire pressure has dropped below the specified level when you check it at the end of the repair procedure, do not drive the vehicle any further.
Contact an authorized
Mitsubishi Motors dealer
or a repair facility
of your choice.  In cold conditions (when the ambient tem- perature is 32 °F {0 °C} or lower), the time and driving distance
required until comple-
tion of the repair can become longer than in warmer conditions, and th
e tire pressure may
drop below the specified level even after youhave inflated the tire
the second time and
subsequently driven the
vehicle. If this hap-
pens, inflate the tire to the specified pressureonce more, drive for about 10 minutes or 3 miles (5 km), then check the tire pressure again. If the tire pressure has again droppedbelow the specified level, stop driving the vehicle and cont
act an authorized Mitsubishi
Motors dealer or a repair facility of yourchoice.
NOTE
 Please give the empty sealant bottle to an authorized Mitsubishi Mo
tors dealer or dis-
pose of the sealant bottle according to regu- lations for the disposal of chemical waste.  To purchase a new tire sealant bottle, contact an authorized Mitsubishi Motors dealer.
How to change a tire (Vehi- cles equipped with spare tire)
WA R N I N G The jack should not be used for any pur- pose other than to
change a tire.
Never get unde
r the vehicle or put any
portion of your body under the vehiclewhile it is supported by the jack.
BK0212400US.book 11 ページ ２０１４年４月１日　火曜日　午後２時２１分

How to change a tire (Vehicle
s equipped with spare tire)
8-12 For emergencies
8
6. Get the jack, bar and wheel nut wrench ready. (Refer to “Jack and tools” on page 8-5.)
N00849600344
The compact spare tire is stowed beneath thefloor board of the cargo area. It is designed to save space in the cargo area. Its lighter weightmakes it easier to use if a flat tire occurs.
N00849700286

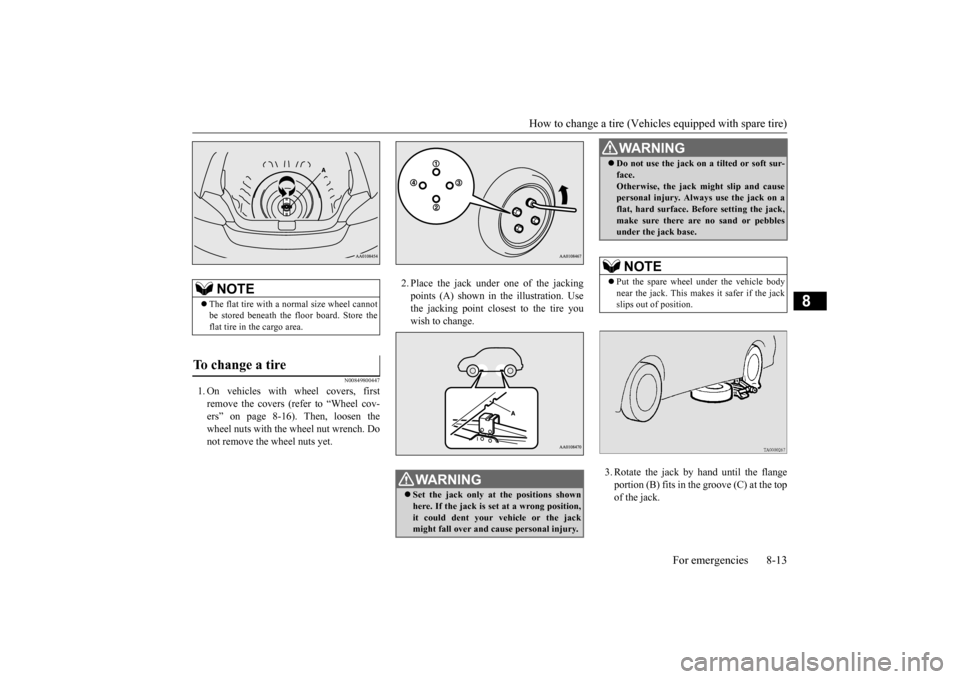

1. Lift up the floor board of the cargo area.2. To remove the spare tire, remove the installation clamp (A) by turning it coun- terclockwise.

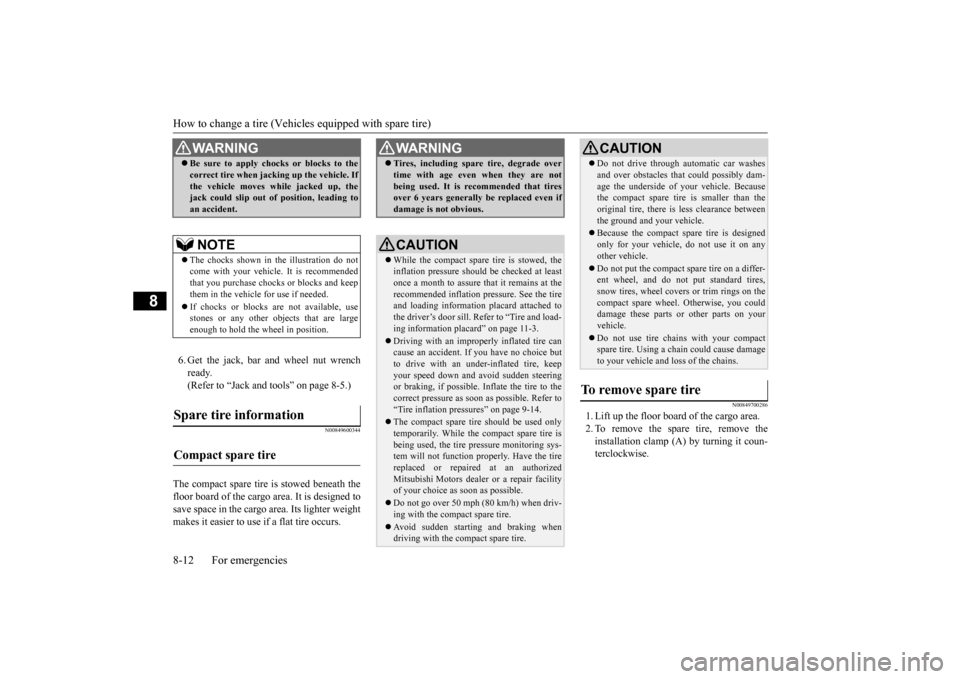

WA R N I N G Be sure to apply choc
ks or blocks to the
correct tire when jacking up the vehicle. Ifthe vehicle moves while jacked up, thejack could slip out of
position, leading to
an accident.NOTE
 The chocks shown in the illustration do not come with your vehicle. It is recommendedthat you purchase chocks
or blocks and keep
them in the vehicle for use if needed.  If chocks or blocks ar
e not available, use
stones or any other obj
ects that are large
enough to hold the wheel in position.
Spare tire information Compact spare tire
WA R N I N G Tires, including spar
e tire, degrade over
time with age even when they are notbeing used. It is recommended that tiresover 6 years generally
be replaced even if
damage is not obvious.CAUTION While the compact spare tire is stowed, the inflation pressure shoul
d be checked at least
once a month to assure
that it remains at the
recommended inflation pressure. See the tire and loading informati
on placard attached to
the driver’s door sill. Refer to “Tire and load- ing information placard” on page 11-3. Driving with an improperly inflated tire can cause an accident. If
you have no choice but
to drive with an under-inflated tire, keepyour speed down and avoid sudden steering or braking, if possible. Inflate the tire to the correct pressure as s
oon as possible. Refer to
“Tire inflation pressures” on page 9-14. The compact spare tire should be used only temporarily. While the compact spare tire is being used, the tire pr
essure monitoring sys-
tem will not function pr
operly. Have the tire
replaced or repaired at an authorizedMitsubishi Motors dealer or a repair facility of your choice as soon as possible. Do not go over 50 mph (80 km/h) when driv- ing with the compact spare tire. Avoid sudden starting and braking when driving with the compact spare tire.
 Do not drive through automatic car washes and over obstacles that
could possibly dam-
age the underside of your vehicle. Becausethe compact spare tire is smaller than the original tire, there is less clearance between the ground and your vehicle. Because the compact spare tire is designed only for your vehicle, do not use it on anyother vehicle. Do not put the compact spare tire on a differ- ent wheel, and do not put standard tires, snow tires, wheel covers or trim rings on the compact spare wheel.
Otherwise, you could
damage these parts or other parts on your vehicle. Do not use tire chains with your compact spare tire. Using a ch
ain could cause damage
to your vehicle and loss of the chains.
To remove spare tire
CAUTION
BK0212400US.book 12 ページ ２０１４年４月１日　火曜日　午後２時２１分

How to change a tire (Vehicle
s equipped with spare tire) For emergencies 8-13
8
N00849800447
1. On vehicles with
wheel covers, first
remove the covers (re
fer to “Wheel cov-
ers” on page 8-16). Then, loosen thewheel nuts with the wheel nut wrench. Do not remove the
wheel nuts yet.
2. Place the jack under one of the jacking points (A) shown in the illustration. Usethe jacking point closest to the tire you wish to change.
3. Rotate the jack by hand until the flange portion (B) fits in the groove (C) at the top of the jack.
NOTE
 The flat tire with a normal size wheel cannot be stored beneath the floor board. Store theflat tire in the cargo area.
To change a tire
WA R N I N G Set the jack only at the positions shown here. If the jack is set at a wrong position,it could dent your vehicle or the jack might fall over and cause personal injury.
 Do not use the jack on a tilted or soft sur- face.Otherwise, the jack might slip and causepersonal injury. Always
use the jack on a
flat, hard surface. Before setting the jack, make sure there are no sand or pebblesunder the jack base.NOTE
 Put the spare wheel under the vehicle body near the jack. This makes it safer if the jack slips out of position.WA R N I N G
BK0212400US.book 13 ページ ２０１４年４月１日　火曜日　午後２時２１分

How to change a tire (Vehicle
s equipped with spare tire)
8-14 For emergencies
8

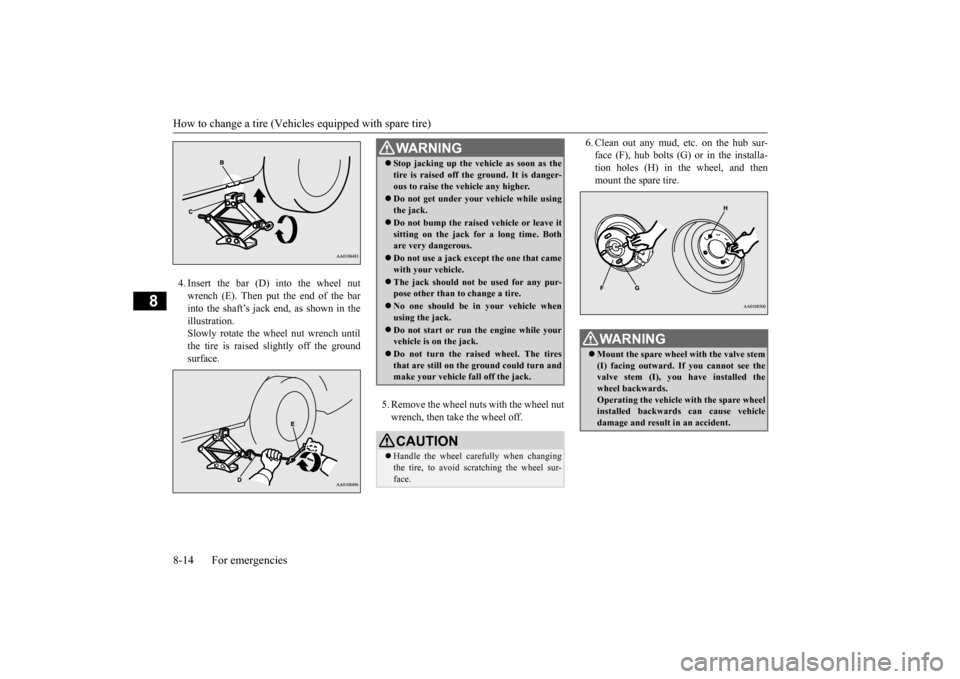

4. Insert the bar (D) into the wheel nut wrench (E). Then put the end of the barinto the shaft’s jack end, as shown in the illustration. Slowly rotate the wheel nut wrench untilthe tire is raised slightly off the ground surface.
5. Remove the wheel nuts with the wheel nut wrench, then take the wheel off.
6. Clean out any mud, etc. on the hub sur- face (F), hub bolts (G)
or in the installa-
tion holes (H) in the wheel, and then mount the spare tire.
WA R N I N G Stop jacking up the ve
hicle as soon as the
tire is raised off the ground. It is danger-ous to raise the ve
hicle any higher.
Do not get under your vehicle while using the jack. Do not bump the raised
vehicle or leave it
sitting on the jack for a long time. Bothare very dangerous. Do not use a jack except the one that came with your vehicle. The jack should not be used for any pur- pose other than to change a tire. No one should be
in your vehicle when
using the jack. Do not start or run
the engine while your
vehicle is on the jack. Do not turn the raised wheel. The tires that are still on the ground could turn and make your vehicle fall off the jack.CAUTION Handle the wheel carefully when changing the tire, to avoid scratching the wheel sur-face.
WA R N I N G Mount the spare wheel with the valve stem (I) facing outward. If
you cannot see the
valve stem (I), you
have installed the
wheel backwards. Operating the vehicle with the spare wheel installed backwards can cause vehicledamage and result
in an ac
cident.
BK0212400US.book 14 ページ ２０１４年４月１日　火曜日　午後２時２１分

How to change a tire (Vehicle
s equipped with spare tire) For emergencies 8-15
8
7. Install the wheel nuts with their tapered ends facing inward, then tighten by handuntil the wheel is no longer loose.
8. Lower the vehicle slowly until the tire touches the ground, by rotating the wheelnut wrench counterclockwise. 9. Tighten the nuts in the order shown in the illustration until each
nut has been tight-
ened to the torque listed here. 65 to 80 ft-lb (88 to 108 N•m)
10. Lower the jack all the way and remove it. 11. Check the tire inflation pressure. The rec-
ommended tire pressure for your vehicleis listed on the tire and loading informa- tion placard attached to the driver’s door sill as shown in the illustration. Refer to“Tire inflation pressures” on page 9-14.
CAUTION Never apply oil to either the wheel bolts or the nuts or they will tighten too much.
Steel wheel Aluminum wheel
CAUTION Never use your foot or a pipe extension to apply added force to the wheel nut wrenchwhen tightening the wheel nuts. If you do so,you can over-tighten the wheel nuts and damage the wheel, wheel nuts and hub bolts.
BK0212400US.book 15 ページ ２０１４年４月１日　火曜日　午後２時２１分
