Manual air conditioning (if so equipped) 7-10 Comfort controls
7
N00731400560
Set the mode selection dial (between “ ” and “ ”) to remove frost or mist from the windshield and door window. Use this setting to ke
ep the windshield and
door windows clear of mist, and to keep the leg area heated (when driving in rain or snow). 1. Set the mode select
ion dial to the “ ”
position.
2. Set the air selection le
ver to the outside air
position.3. Select your desired
blower speed by turn-
ing the blower spee
d selection dial.
4. Select your
desired temperature by setting
the temperature control lever. 5. Push the air conditioning switch. For quick defrosting 1. Set the mode selection dial to the “ ” position.2. Set the air selection le
ver to the outside air
position. 3. Set your blower to the maximum speed.4. Set the temperature to the highest posi- tion. 5. Push the air conditioning switch.
Defrosting or defogging (wind- shield, door windows)

CAUTION For safety, make sure you have a clear view through all the windows.
For ordinary defrosting
NOTE
 To defog quickly, direct the air flow from the side vents toward the door windows.
 When defrosting, do not set the temperature control dial near the
maximum cool position.
This would blow cool air on the windowglass and fog it up.NOTE
BK0212400US.book 10 ページ ２０１４年４月１日　火曜日　午後２時２１分

Automatic air conditioning (if so equipped)
Comfort controls 7-11
7
N00731500301
The air conditioning can only be used
while the engine is running.
N00711801624
Automatic air conditioning
(if so equipped)
Control panel

Ty p e 1 Ty p e 2

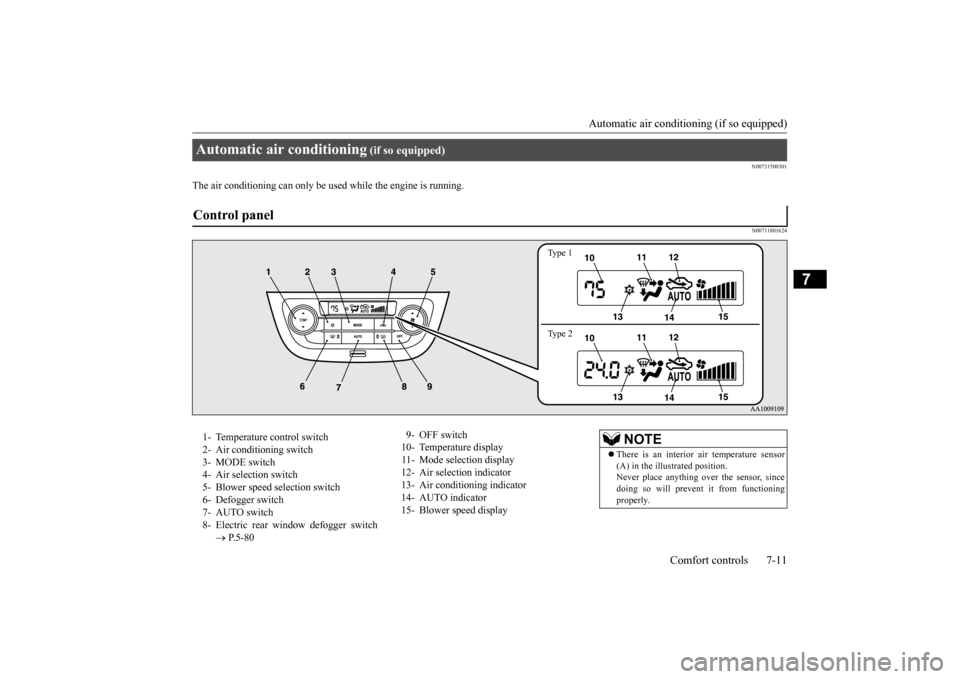

1- Temperature control switch 2- Air conditioning switch 3- MODE switch4- Air selection switch 5- Blower speed
selection switch
6- Defogger switch7- AUTO switch 8- Electric rear window defogger switch
 P.5-80
9- OFF switch 10- Temperature display 11- Mode selection display 12- Air selection indicator13- Air conditioning indicator 14- AUTO indicator 15- Blower speed display
NOTE

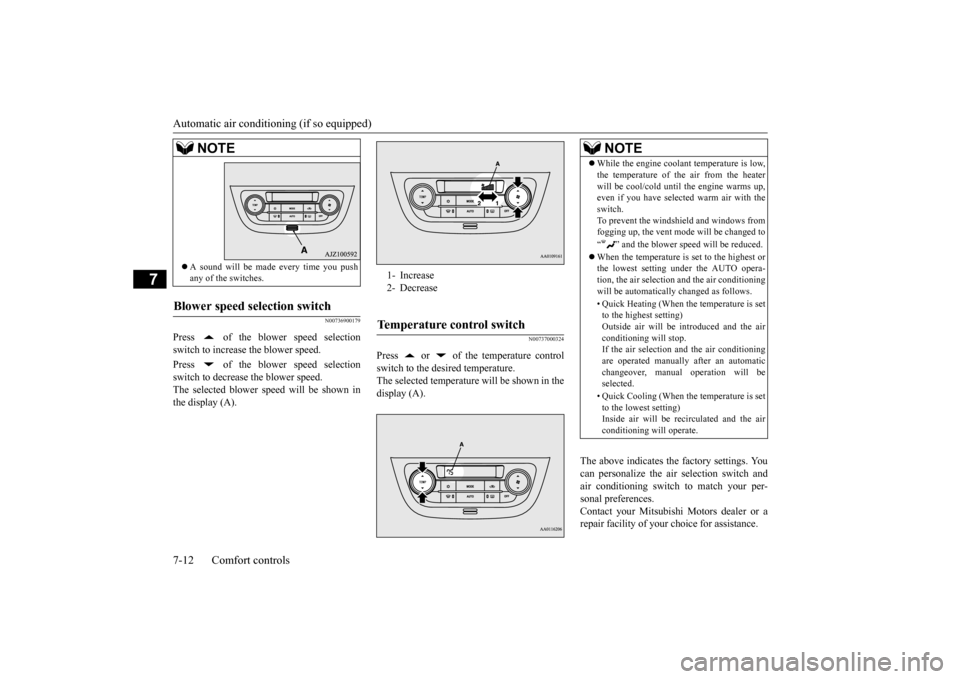

 There is an interior air temperature sensor (A) in the illustrated position. Never place anything ove
r the sensor, since
doing so will prevent
it from functioning
properly.
BK0212400US.book 11 ページ ２０１４年４月１日　火曜日　午後２時２１分

Automatic air conditioning (if so equipped) 7-12 Comfort controls
7
N00736900179
Press of the blower speed selection switch to increase the blower speed. Press of the blower speed selection switch to decrease the blower speed.The selected blower sp
eed will be shown in
the display (A).
N00737000324
Press or of the temperature controlswitch to the desired temperature. The selected temperature will be shown in thedisplay (A).
The above indicates the
factory settings. You
can personalize the air
selection switch and
air conditioning switch to match your per- sonal preferences. Contact your Mitsubishi Motors dealer or arepair facility of your choice for assistance.
 A sound will be made every time you push any of the switches.
Blower speed selection switch

NOTE
1- Increase 2- DecreaseTemperature control switch

NOTE
 While the engine coolant temperature is low, the temperature of the air from the heaterwill be cool/cold until
the engine warms up,
even if you have selected warm air with the switch. To prevent the windshield and windows fromfogging up, the vent mode will be changed to “ ” and the blower sp
eed will be reduced.
 When the temperature is set to the highest or the lowest setting under the AUTO opera- tion, the air selection
and the air conditioning
will be automatically changed as follows. • Quick Heating (When th
e temperature is set
to the highest setting) Outside air will be introduced and the air conditioning will stop.If the air selection
and the air conditioning
are operated ma
nually after an automatic
changeover, manual
operation will be
selected. • Quick Cooling (When th
e temperature is set
to the lowest setting) Inside air will be recirculated and the air conditioning wi
ll operate.
BK0212400US.book 12 ページ ２０１４年４月１日　火曜日　午後２時２１分

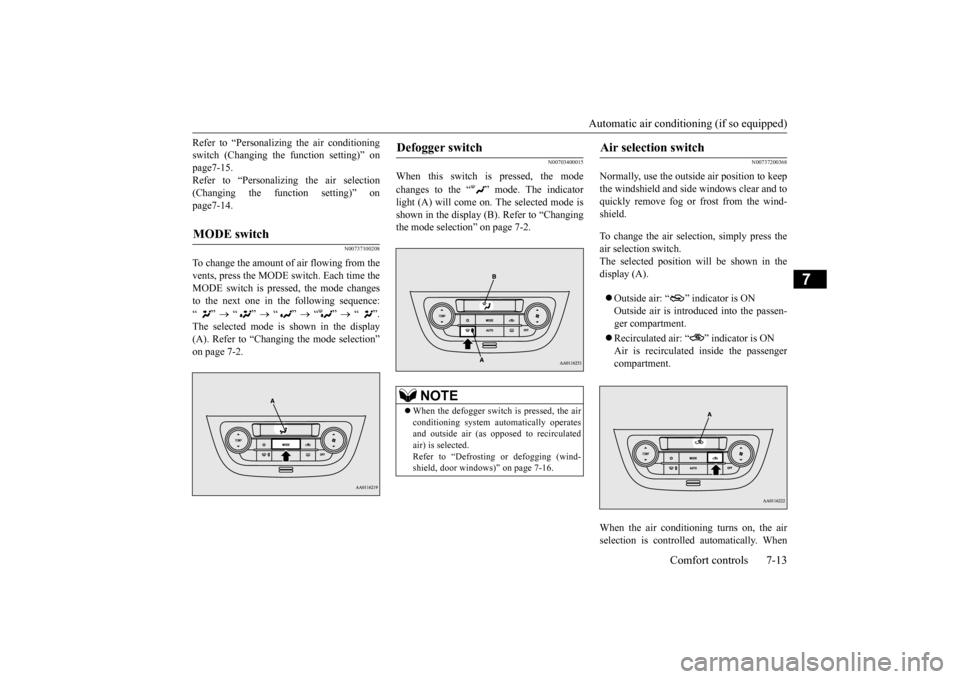

Automatic air conditioning (if so equipped)
Comfort controls 7-13
7
Refer to “Personalizi
ng the air conditioning
switch (Changing the function setting)” onpage7-15. Refer to “Personalizing the air selection (Changing the function setting)” onpage7-14.
N00737100208

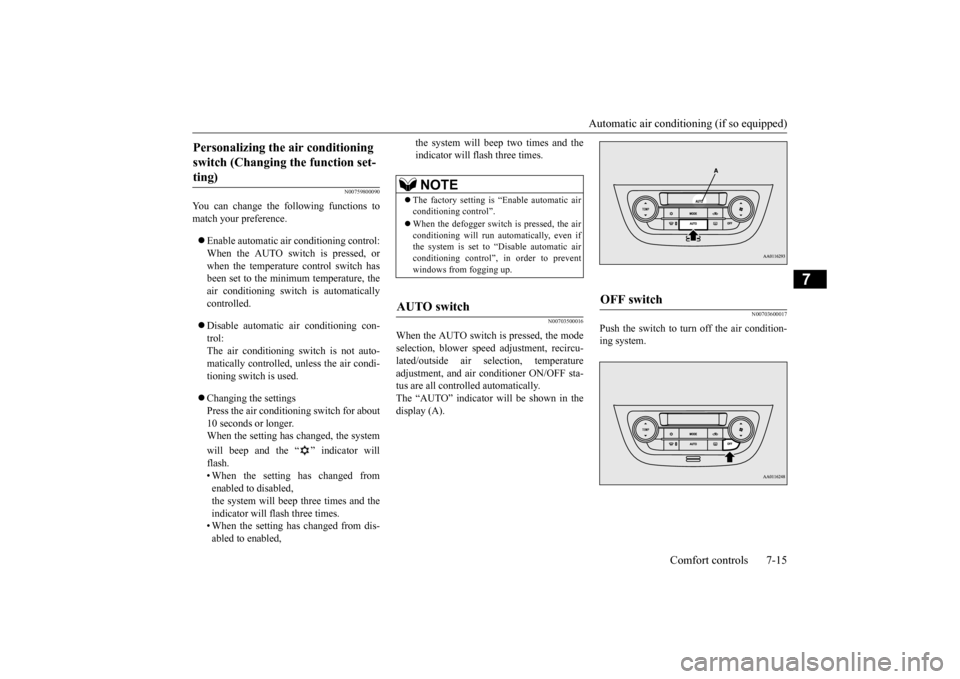

To change the amount of air flowing from the vents, press the MODE switch. Each time the MODE switch is pressed, the mode changesto the next one in the following sequence: “”
 “”
 “”
 “”
 “”.
The selected mode is shown in the display (A). Refer to “Changing the mode selection” on page 7-2.
N00703400015
When this switch is pressed, the mode changes to the “ ” mode. The indicator light (A) will come on. The selected mode is shown in the display (B). Refer to “Changingthe mode selection” on page 7-2.
N00737200368
Normally, use the outside
air position to keep
the windshield and side
windows clear and to
quickly remove fog or frost from the wind-shield. To change the air selection, simply press the air selection switch. The selected position will be shown in thedisplay (A).  Outside air: “ ” indicator is ON Outside air is introduced into the passen- ger compartment.  Recirculated air: “ ” indicator is ON Air is recirculated
inside the passenger
compartment.
When the air conditioning turns on, the air selection is controlled automatically. When
MODE switch

Defogger switch

NOTE
 When the defogger switch is pressed, the air conditioning system au
tomatically operates
and outside air (as oppos
ed to recirculated
air) is selected.Refer to “Defrostin
g or defogging (wind-
shield, door windows)” on page 7-16.
Air selection switch

BK0212400US.book 13 ページ ２０１４年４月１日　火曜日　午後２時２１分

Automatic air conditioning (if so equipped) 7-14 Comfort controls
7
the air conditioning turns
off, the air selection
automatically goes back to the outside airposition. If high cooling performanc
e is desired, or if
the outside air is dusty
or contaminated in
some way, use the
recirculat
ion position.
Switch to the outside
air position every now
and then to keep the windows from foggingup.
N00760000089
You can change the following functions to match your preference.  Enable automatic air control: When the AUTO switch is pressed, the airselection switch will also be automatically controlled.
 Disable automatic air control: Even when the AUTO switch is pressed,the air selection switch will not be auto- matically controlled.  Changing the settings Press the air selecti
on switch for about 10
seconds or longer. When the setting has changed, the system will beep and the “ ” indicator will flash. • When the setting has changed from enabled to disabled,the system will beep three times and the indicator will flash three times. • When the setting has changed from dis-abled to enabled, the system will beep two times and the indicator will flash three times.
N00737300343

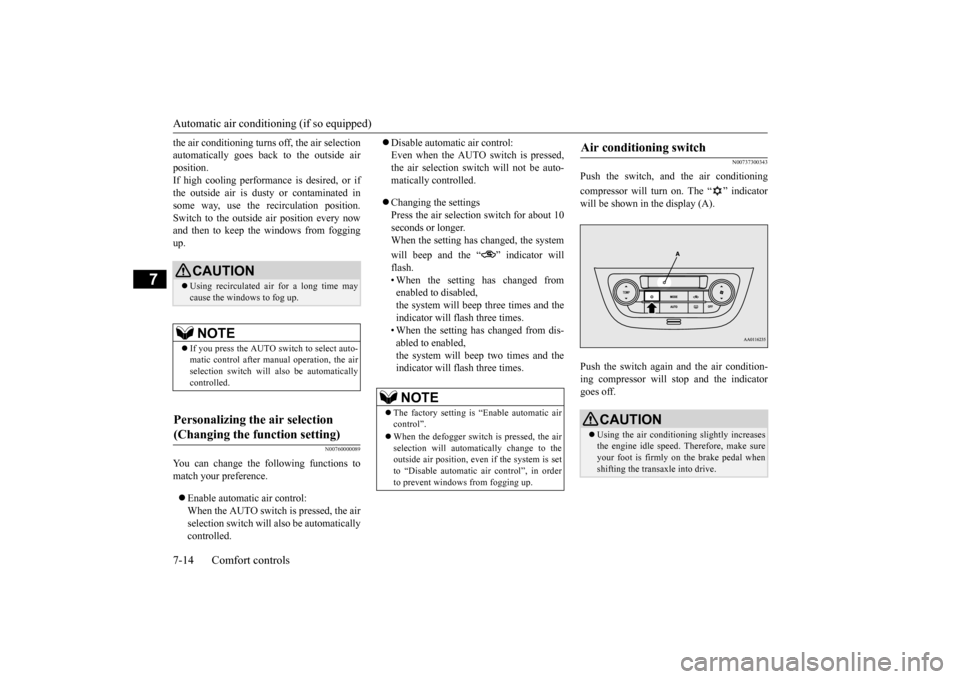

Push the switch, and the air conditioning compressor will turn on. The “ ” indicator will be shown in the display (A). Push the switch again and the air condition- ing compressor will stop and the indicatorgoes off.
CAUTION Using recirculated air for a long time may cause the windows to fog up.NOTE
 If you press the AUTO swit
ch to select auto-
matic control after manual operation, the air selection switch will also be automatically controlled.
Personalizing the air selection (Changing the function setting)

NOTE
 The factory setting is
“Enable automatic air
control”.  When the defogger switch is pressed, the air selection will automatically change to the outside air position, even if the system is setto “Disable automatic air control”, in order to prevent windows from fogging up.
Air conditioning switch

CAUTION Using the air conditioni
ng slightly increases
the engine idle
speed. Therefore, make sure
your foot is firmly on the brake pedal when shifting the transaxle into drive.
BK0212400US.book 14 ページ ２０１４年４月１日　火曜日　午後２時２１分

Automatic air conditioning (if so equipped)
Comfort controls 7-15
7
N00759800090
You can change the following functions to match your preference.  Enable automatic ai
r conditioning control:
When the AUTO switch is pressed, or when the temperature control switch has been set to the minimum temperature, the air conditioning switch
is automatically
controlled.  Disable automatic air conditioning con- trol: The air conditioning switch is not auto- matically controlled, unless the air condi-tioning switch is used.  Changing the settings Press the air conditi
oning switch for about
10 seconds or longer.When the setting has changed, the system will beep and the “ ” indicator will flash. • When the setting has changed fromenabled to disabled, the system will beep three times and the indicator will flash three times.• When the setting has changed from dis- abled to enabled,
the system will beep two times and the indicator will flash three times.
N00703500016
When the AUTO switch is pressed, the modeselection, blower spee
d adjustment, recircu-
lated/outside air selection, temperature adjustment, and air conditioner ON/OFF sta-tus are all controlled automatically. The “AUTO” indicator
will be shown in the
display (A).
N00703600017
Push the switch to turn off the air condition-ing system.
Personalizing the air conditioning switch (Changing the function set-ting)

NOTE
 The factory setting is “Enable automatic air conditioning control”.  When the defogger switch is pressed, the air conditioning will run au
tomatically, even if
the system is set to “Disable automatic air conditioning control”, in order to preventwindows from fogging up.
AUTO switch

OFF switch

BK0212400US.book 15 ページ ２０１４年４月１日　火曜日　午後２時２１分

Automatic air conditioning (if so equipped) 7-16 Comfort controls
7
N00731700361
In normal conditions, use the system in the AUTO mode and follow these procedures: 1. Push the AUTO switch. 2. Set the temperature control switch to the desired temperature. The temperature can be set within a range of around 61 to 89(Type 1) or 17 to 31 (Type 2).
The vents, recirculati
on/outside air, blower
speed, temperature ad
justment and ON/OFF
of air conditioning will be controlled auto-matically.
N00731800115
Blower speed and vent
mode may be con-
trolled manually by setting the blower speedselection switch and the MODE switch to the desired positions. To return to automatic operation, press the AUTO switch.
N00732400466

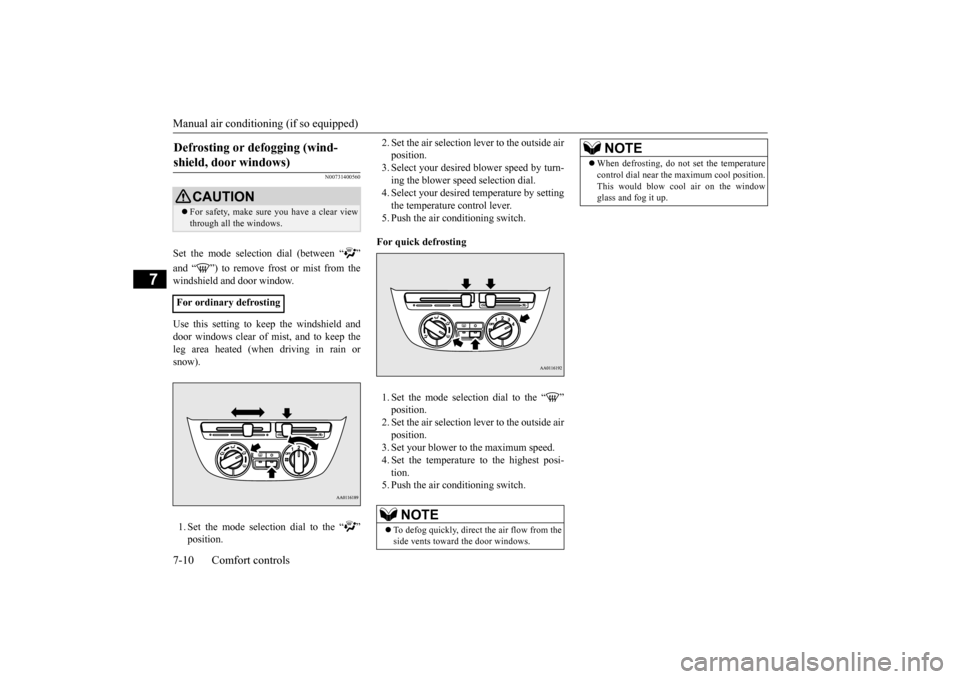

To remove frost or mist from the windshieldand door windows, use the MODE switch or defogger switch (“ ” or “ ”). Use this setting to ke
ep the windshield and
door windows clear of mist, and to keep the
leg area heated (when driving in rain or snow). 1. Set the MODE switch to the “ ” posi- tion. 2. Set the air selection switch to the outside air position.3. Select your desired blower speed by pressing the blower speed selection switch.4. Select your desired temperature by press- ing the temperature control switch. 5. Push the air conditioning switch.
Operating the ai
r conditioning
system (automatic mode)

NOTE
 Set the temperature at about 75 (Type 1) or 24 (Type 2) under normal conditions.
Operating the air conditioning system (manual mode)

Defrosting or defogging (wind- shield, door windows)

CAUTION For safety, make sure
you have a clear view
through all the windows.
For ordinary defrosting
BK0212400US.book 16 ページ ２０１４年４月１日　火曜日　午後２時２１分

Important air conditioning operating tips
Comfort controls 7-17
7

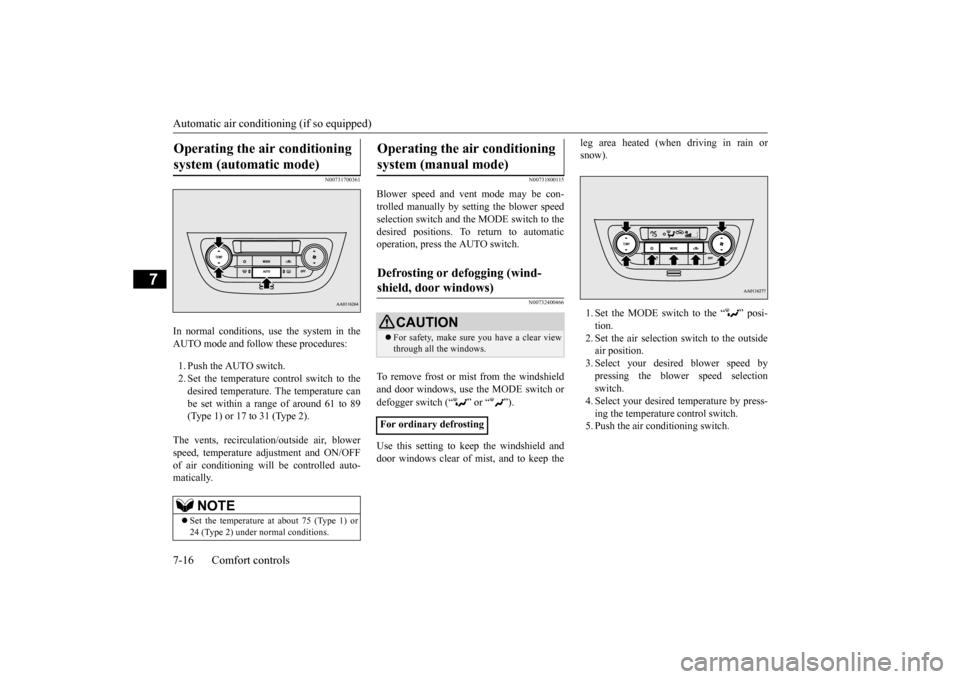

For quick defrosting 1. Push the defogger switch to change to the “ ” position. 2. Set your blower to the maximum speed. 3. Set the temperature to the highest posi-tion.
N00733700336
1. Park the vehicle in the shade whenever possible. Parking in the hot sun makes the vehicle interior extremely hot which thenrequires more time to cool. If it is neces- sary to park in the sun, open the windows for the first few minutes of air condition-ing to expel the hot air. 2. Afterwards, keep the windows closed when the air conditioning is in use. The entry of outside air through open windows will reduce cooling efficiency.3. When running the air conditioning, make sure the air intake, which is located in front of the windshield, is free of obstruc-tions such as leaves. Leaves collected in the air-intake chamber may reduce air flow and plug the water drains.
If the air conditioning seems less effective than usual, the cause might be a refrigerant leak.
Have the system inspected by your authorized Mitsubishi Motors dealer or a repair facilityof your choice. The air conditioning should be operated for at least five minutes each week, even in cold weather. This includes the quick defrosting mode. Operating the
air condition system
weekly maintains lubrication of the compres- sor internal parts to keep the air conditioning in the best operating condition.
NOTE
 While the mode selection is set “ ” posi- tion, the air conditioni
ng compressor will run
automatically. The outside air position will also be selected automatically.  If the mode selection is set “ ” position, you cannot turn the air conditioning off or select the recirculati
on position. This pre-
vents the windows from fogging up.  To defog quickly, direct the air flow from the side vents toward the door windows.  When defrosting, do not set the temperature to the maximum cool position. This will blow cool air on the
window glass and fog it
up.
Important air conditioning operating tips Air conditioning system refrig- erant and lubricant recommen- dations
CAUTION The air conditioning system in your vehicle must be charged with the refrigerant HFC-134a and the lubricant ZXL 200PG. Use of any other refrigerant or lubricant will cause severe damage a
nd may require replac-
ing your vehicle’s en
tire air conditioning
system. The release of refrigerant into the atmo-sphere is not recommended. The new refrigerant HFC-134a in your vehi- cle is designed not to
harm the earth’s ozone
layer. However, it ma
y contribute slightly to
global warming. It is recommended that the old refrigerant besaved and recycled for future use.
During a long period of disuse
BK0212400US.book 17 ページ ２０１４年４月１日　火曜日　午後２時２１分

Air purifier (if so equipped) 7-18 Comfort controls
7
N00733800180
The air conditioning system is equipped with an air filter to re
move pollen
and dust.
The air filter’s ability to collect pollen and dirt is reduced as it be
comes dirty, so replace
it periodically. For the maintenance interval,refer to the “WARRANTY AND MAINTE- NANCE MANUAL”.
N00734302131
The audio system can onl
y be used when the
ignition switch or the operation mode is inON or ACC.
N00711900729 N00712000411
Turn the VOL knob clockwise to increase the volume; counterclockwis
e to decrease the
volume. The status will be displayed in the display.
Air purifier
(if so equipped)
NOTE
 Operation in certain conditions such as driv- ing on a dusty road and frequent use of the air conditioning
can lead to re
duction of ser-
vice life of the filter. When you feel that the air flow is lower than normal or when the windshield or windows st
art to fog up easily,
replace the air filter. Contact your Mitsubishi
Motors dealer or a
repair facility of your
choice for assistance.
AM/FM electronically tuned radio with CD player
(if so
equipped)
NOTE
 To listen to the audio system while the engine is not running, turn the ignitionswitch to the “ACC” position or put the oper-ation mode in ACC. For vehicles equipped with the F.A.S.T.-key, if the operation mode is left in ACC, theaccessory power will automatically turn off after a certain period
of time and you will no
longer be able to use the audio system. Theaccessory power comes on again if the engine switch is operated with it in the “ACC” position. Refer
to “ACC power auto-
cutout function” on page 5-14.  If a cellular phone is
used inside the vehicle,
it may create noise in the audio equipment. This does not mean that anything is wrong with your audio equipment. In such a case,use the cellular phone at
a place as far away
as possible from the audio equipment.  If foreign objects or wa
ter get into the audio
equipment, or if smoke or a strange odor comes from it, immediately turn off theaudio system and have
it checked at an
authorized Mitsubishi Motors dealer or a repair facility of your
choice. Never try to
repair it yourself. Avoid using the audio sys- tem until it is inspected by a qualified per- son.  If the audio system is damaged by foreign objects, water, or fire, have the systemchecked by a qualified
Mitsubishi Motors
technician.
Volume and tone control panel

1- PWR (On-Off) switch 2- VOL (Volume control) knob3- Display 4-
/MENU (Mode change) button
5- Sound control buttonTo adjust the volume

BK0212400US.book 18 ページ ２０１４年４月１日　火曜日　午後２時２１分

AM/FM electronically tuned radio with CD player (if so equipped)
Comfort controls 7-19
7
N00712100685
Press the /MENU button to select BASS  TREBLE
 FA D E R
 BALANCE

Sound control mode off. Press the sound control button either or
to select the de
sired bass level.
Press the sound control button either or
to select the desired treble level.
Press the sound control button either or
to balance the volume of sound from the
front and the rear speakers.
Press the sound control button either or
to balance the volume of sound from the
left and the right speakers.
N00734900915 N00735000926
1. Press the PWR switch or the RADIO but- ton to turn on the radio.Press and hold the PWR switch for 2 sec- onds or longer to turn off the radio. 2. Press the RADIO but
ton to select the
desired band (AM/FM1/FM2).
To adjust the tone

BASS (Bass tone control)

TREBLE (Treble tone control)

FADER (Front/Rear balance con- trol) (if equipped with rear speak-ers)

BALANCE (Left/Right balance control)

NOTE
 The sound control mode
will be canceled
when the another mode
is selected or no
adjustment is performed for more than 10 seconds.  In a two-speakers vehi
cle, keep the FADER
setting in the middle position. Since no rearspeakers are connect
ed, adjusting the
FADER setting toward the “REAR” side will result in a loss of sound output.
Radio control panel and display

1- RADIO (AM/FM selection) button 2- PWR (On-Off) switch3- Display 4- Seek (Down-seek) button 5- Seek (Up-seek) button6- Memory select buttonsTo listen to the radio

BK0212400US.book 19 ページ ２０１４年４月１日　火曜日　午後２時２１分
