MITSUBISHI MIRAGE 2017 6.G Owners Manual

Anti-lock braking system 5-48 Features and controls
5
N00531600674
If there is a malfunction in the system, the anti-lock braking system warning light will come on.Under normal conditions, the ABS warning light comes on when the ignition switch is turned to the “ON” position or the operationmode is put in ON and goes off a few seconds later.
N00531700604
 Avoid hard braking and high-speed driv- ing. Stop the vehicl
e in a safe place.
Test the system by restarting the engine and driving at a speed of about 12 mph (20 km/h) or higher.If the warning light then remains off dur- ing driving, there is no abnormal condi- tion.However, if the warning light does not disappear, or if they come on again when the vehicle is driven, have the vehiclechecked by an authorized MITSUBISHI MOTORS dealer or repair facility of your choice as soon as possible.
The anti-lock braking system and brake force distribution function ma
y not work, so hard
braking could make the vehicle unstable. Avoid hard braking and high-speed driving.Stop the vehicle in a safe place and contact an authorized MITSUBISHI MOTORS dealer or repair facility of your choice.
N00529200080
After driving on snow
or icy roads, remove
any snow and ice whic
h may have be left
around the wheels. On vehicles that have an anti-lock braking syst
em, be careful not to
damage the wheel spee
d sensors (A) or the
cables located at each wheel.
Anti-lock braking system warn- ing light
CAUTION Any of the following indicates that the anti- lock braking system is not functioning andonly the standard brake system is working. (The standard brake system is functioning normally.) If this happe
ns, take your vehicle
to an authorized Mits
ubishi Motors dealer or
a repair facility of your choice.
• When the ignition switch is turned to the “ON” position or the operation mode is putin ON, the warning li
ght does not come on
or it remains on and does not go off.• The warning light comes on while driving
If the warning light illuminate while driving If only the anti-lock braking sys- tem warning light illuminate
CAUTION
If the anti-lock braking system warning light and brake warning light illuminate at the same time After driving on icy roads
BK0235100US.book 48 ページ ２０１５年１１月２０日　金曜日　午後３時１２分

Electric power steering system (EPS)
Features and controls 5-49
5
N00568400074
The power steering system operates while the engine is running. It helps reduce the effort needed to turn the steering wheel. The power steering system has mechanicalsteering capability in ca
se the power assist is
lost. If the power assist is lost for some rea- son, you will still be ab
le to steer your vehi-
cle, but you will notice it takes much more effort to steer. If this happens, have your vehi- cle inspected at an authorized MitsubishiMotors dealer or a repair facility of your choice.
If there is a malfunction in the system, the warning light will come on. Under normal conditions
, the warning lamp
comes on when the ignition switch is turnedto the “ON” position or the operation mode is put in ON, and goes off after the engine has started.
Electric power steering sys- tem (EPS) Front Rear
WA R N I N G Do not stop the engine while the vehicle is moving. Stopping the engine would makethe steering wheel extremely hard to turn,possibly resulting
in an ac
cident.
NOTE
During repeated full-lock turning of the steering wheel (for example, while you are manoeuvring the vehicl
e into a parking
space), a protection
function may be acti-
vated to prevent overheating of the power steering system. This f
unction will make the
steering wheel graduall
y harder to turn. In
this event, limit your turning of the steering wheel for a while. When the system hascooled down, the steeri
ng effort will return
to normal.  If you turn the steering wheel while the vehi- cle is stationary with
the headlights on, the
headlights may become
dim. This behavior
is not abnormal. The he
adlights will return to
their original brightne
ss after a short while.
Electric power steering system warning light
CAUTION If the warning light appears while the engine is running, have the vehicle inspected by an authorized Mitsubishi Motors dealer or arepair facility of your choice as soon as pos- sible. It may become ha
rder to turn the steer-
ing wheel.
BK0235100US.book 49 ページ ２０１５年１１月２０日　金曜日　午後３時１２分

Active stability control (ASC)
5
N00559100176
The Active stability
control (ASC) takes
overall control of the
anti-lock braking sys-
tem, traction control function and skid controlfunction to help maintain the vehicle’s control and traction. Please read
this section in con-
junction with the page on the anti-lock brak-ing system, traction control function and skid control function. Anti-lock braking system
 P.5-47
Traction control function
 P.5-50
Skid control function
 P.5-50
N00559200076
On slippery surfaces, the traction control function prevents the drive wheels from spin-
ning excessive, thus helping the vehicle to start moving from a stopp
ed condition.
It also
provides sufficient driv
ing force and steering
performance as the vehicle turns while press- ing the acceleration pedal.
N00559300051
The skid control function is designed to helpthe driver maintain control of the vehicle onslippery roads or during rapid steering maneuvers. It works by controlling the engine output and the brake on each wheel.
N00559400254
The ASC is automatically activated when theignition switch is turned to the “ON” position or the operation mode is put in ON. You can
Active stability control (ASC)
CAUTION Do not over-rely on the ASC. Even the ASC cannot prevent the natural laws of physicsfrom acting on the vehicle. This system, like any other system, has
limits and cannot help
you to maintain traction and control of thevehicle in all circumstances. Reckless driv- ing can lead to accidents. It is the driver’s responsibillty to drive carefully, This meanstaking into account the tr
affic, road and envi-
ronmental conditions. Be sure to use the same specified type and size of tire on all four wheels. Otherwise, the ASC may not work properly.
 Do not install any aftermarket limited slip differential (LSD) on your vehicle. The ASCmay stop functioning properly.NOTE
 An operating sound or vibration may be emitted from under the body in the followingsituations. The sound or
vibration is associ-
ated with checking th
e operations of the
ASC. At this time, you may feel a shockfrom under the body and the brake pedal if you depress it. These do
not indicate a mal-
function. • When the ignition switch is turned to the “ON” position or the operation mode is putin ON. • When the vehicle is driven for a while after the engine is turned on.
 When the ASC is acti
vated, you may feel a
vibration in the vehicle body or hear a whin- ing sound from the engine compartment. This indicates that the system is operatingnormally. It does not i
ndicate a malfunction.
 When the anti-lock braking system warning light is illuminated, the ASC is not active.
Traction control function
CAUTION
CAUTION When driving a vehicle on a snowy or icy road, be sure to install snow tires and drive the vehicle at moderate speeds.
Skid control function
NOTE
 The skid control function operates at speeds of about 9 mph (15 km/h) or higher.
ASC OFF switch
BK0235100US.book 50 ページ ２０１５年１１月２０日　金曜日　午後３時１２分

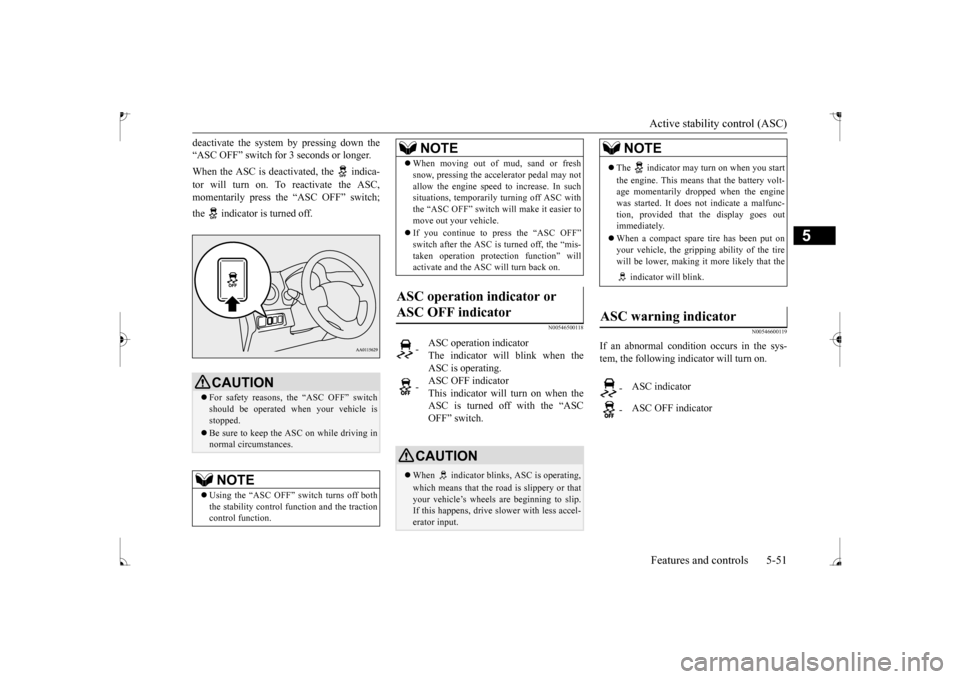

Active stability control (ASC) Features and controls 5-51
5
deactivate the system
by pressing down the
“ASC OFF” switch for
3 seconds or longer.
When the ASC is deactivated, the indica- tor will turn on. To reactivate the ASC, momentarily press the “ASC OFF” switch; the indicator is turned off.
N00546500118
N00546600119
If an abnormal condition occurs in the sys- tem, the following i
ndicator will turn on.
CAUTIONFor safety reasons, the “ASC OFF” switch should be operated when your vehicle isstopped.  Be sure to keep the ASC on while driving in normal circumstances.NOTE
 Using the “ASC OFF” switch turns off both the stability control function and the traction control function.
 When moving out of mud, sand or fresh snow, pressing the accelerator pedal may notallow the engine speed to increase. In suchsituations, temporarily turning off ASC with the “ASC OFF” switch will make it easier to move out your vehicle.  If you continue to press the “ASC OFF” switch after the ASC is turned off, the “mis-taken operation
protection function” will
activate and
the ASC will turn back on.
ASC operation indicator or ASC OFF indicator
-
ASC operation indicator The indicator will blink when the ASC is operating.
-
ASC OFF indicator This indicator will turn on when the ASC is turned off with the “ASCOFF” switch.
CAUTION When indicator blinks, ASC is operating, which means that the road is slippery or that your vehicle’s wheels are beginning to slip. If this happens, drive slower with less accel-erator input.NOTE
NOTE
 The indicator may turn on when you start the engine. This means
that the battery volt-
age momentarily dropped when the enginewas started. It does not
indicate
a malfunc-
tion, provided that the display goes out immediately.  When a compact spare tire has been put on your vehicle, the grippi
ng ability of the tire
will be lower, making it more likely that the indicator will blink.
ASC warning indicator
-
ASC indicator
-
ASC OFF indicator
BK0235100US.book 51 ページ ２０１５年１１月２０日　金曜日　午後３時１２分

Cruise control (if so equipped)
5
N00546300031
N00518300573
Cruise control is an
automatic speed control
system that keeps a set speed. It can be acti-vated at speeds from about 25 mph (40 km/h). Cruise control does not work at speeds below about 25 mph (40 km/h).
Used to turn on and off the cruise control. Used to reduce the set speed and to set the desired speed.
CAUTION The system may be malfunctioning. Park your vehicle in a
safe place and stop the
engine.Restart the engine and check whether the indicator goes out. If they go out, there is no abnormal condition. If they do not go out orappear frequently, it is
not necessary to stop
the vehicle imme
diately, but you should have
your vehicle inspecte
d by an authorized
Mitsubishi Motors dealer
or a repair facility
of your choice as soon as possible.
To w i n g
CAUTION When towing the vehicle with only the front wheels or only the rear wheels raised off theground, do not place the ignition switch in the “ON” position or do
not put the operation
mode in ON. Placing
the ignition switch in
the “ON” position or
putting the operation
mode in ON could cause the ASC to operate, resulting in an accident.Note that the correct towing method dependson the transmission type and the vehicle’s drive configuration. For details, refer to
“Towing” on page 8-12.
Cruise control
(if so equipped)
CAUTIONWhen you do not wish to drive at a set speed, turn off the cruise control for safety. Do not use cruise cont
rol when driving con-
ditions will not allow you to stay at the same speed, such as in heavy traffic or on roads that are winding, icy, snow-covered, wet,slippery, on a stee
p downhill slope.
On vehicles equipped
with manual transaxle,
do not move the gearshift lever to the “N” (Neutral) position whil
e driving at a set
speed without depressi
ng the clutch pedal.
The engine will run
too fast and might be
damaged.NOTE
 Cruise control may not
be able to keep your
speed on uphills or downhills.  Your speed may decrease on a steep uphill. You may use the accelerator pedal if you want to stay at your set speed.
 Your speed may increase to more than the set speed on a steep downhill. You have to usethe brake to control your speed. As a result,the set speed driving is deactivated.
Cruise control switches

A- CRUISE CONTRO
L ON/OFF switch
B- SET - switch
NOTE
BK0235100US.book 52 ページ ２０１５年１１月２０日　金曜日　午後３時１２分

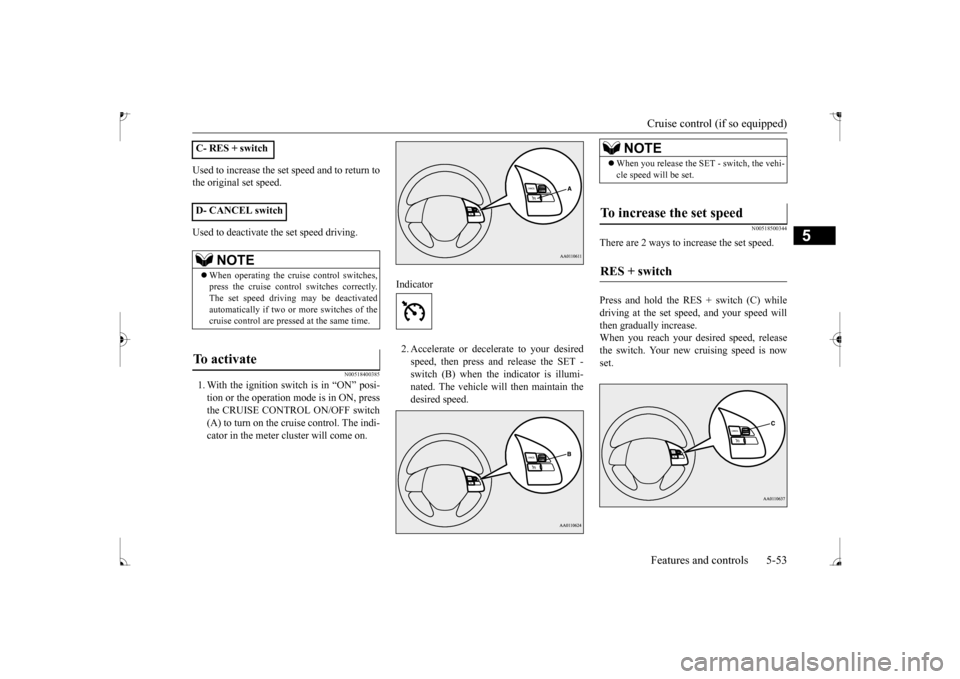

Cruise control (if so equipped) Features and controls 5-53
5
Used to increase the set speed and to return to the original set speed. Used to deactivate the set speed driving.
N00518400385
1. With the ignition switch is in “ON” posi- tion or the operation mode is in ON, press the CRUISE CONTROL ON/OFF switch (A) to turn on the cruise control. The indi-cator in the meter cluster will come on.
2. Accelerate or decele
rate to your desired
speed, then press and release the SET - switch (B) when the indicator is illumi-nated. The vehicle will then maintain the desired speed.
N00518500344
There are 2 ways to increase the set speed. Press and hold the RES + switch (C) while driving at the set speed, and your speed will then gradually increase.When you reach your desired speed, release the switch. Your new cruising speed is now set.
C- RES + switch D- CANCEL switch
NOTE
 When operating the crui
se control switches,
press the cruise control switches correctly. The set speed driving may be deactivated automatically if two or
more switches of the
cruise control are pre
ssed at the same time.
To activate

Indicator
NOTE
When you release the SET - switch, the vehi- cle speed will be set.
To increase the set speed

RES + switch

BK0235100US.book 53 ページ ２０１５年１１月２０日　金曜日　午後３時１２分

Cruise control (if so equipped)
5
To increase your speed in small amounts, press the RES + switch
for less than about 1
second and release it. Each time you press the RES + switch, your vehicle will go about 1 mp
h (1.6 km/h) faster.
While driving at the set speed, use the accel- erator pedal to reach your desired speed and then press the SET - switch (B) and release the switch momentarily to set a new desiredcruising speed.
N00518600273
There are 2 ways to decrease the set speed.
Press and hold the SET - switch (B) while driving at the set speed, and your speed will slow down gradually.When you reach your desired speed, release the switch. Your new cruising speed is now set. To slow down your speed in small amounts, press the SET - switch for less than about 1 second and release it. Each time you press the SET - switch, yourvehicle will slow down by about 1 mph (1.6 km/h). While driving at the set speed, use the brake pedal, which disengage
s the cruise control,
then press the SET - switch (B) and release the switch momentarily to set a new desiredcruising speed.
N00541700056
Depress the accelerator pedal as you wouldnormally. When you release the pedal, you will return to your set speed.
Accelerator pedal

To decrease the set speed

SET - switch

Brake pedal

To temporarily increase or decrease the speed

To temporarily increase the speed

BK0235100US.book 54 ページ ２０１５年１１月２０日　金曜日　午後３時１２分

Cruise control (if so equipped) Features and controls 5-55
5
Depress the brake pedal to decrease the speed. To return to the previously set speed, press the RES + switch (C). Refer to “To resume the set speed” on page5-56.
N00518800565
The set speed driving can be deactivated as follows:  Press the CRUISE CONTROL ON/OFF switch (A). (Cruise control will be turnedoff.)  Press the CANCEL switch (D).  Depress the brake pedal.
The set speed driving is deactivated automati- cally in any of th
e following ways.
 When you depress the clutch pedal (on vehicles equipped with manual transaxle).  When your speed slows to about 10 mph (15 km/h) or more below the set speed because of a hill, etc.  When your speed slows to about 25 mph (40 km/h) or less.
 When the active stability control (ASC) starts operating.Refer to “Active stability control (ASC)”
Also, the set speed dr
iving may be deacti-
vated as follow:  When the engine speed rises and approaches the tachom
eter’s red zone (the
red-colored part of the tachometer dial).
To temporarily decrease the speed

To deactivate

WA R N I N G On vehicles equipped with continuously variable transmission
(CVT), although the
set speed driving will
be deactivated when
shifting to the “N” (NEUTRAL) position, never move the select
or lever to the “N”
You would have no engine braking and could cause a serious accident.CAUTION When the set speed driving is deactivated automatically in any
situation other than
those listed above, th
ere may be a system
malfunction. Press the CRUISE CONTROL ON/OFFswitch to turn off the cruise control and have your vehicle inspected by an authorized Mitsubishi Motors dealer
or a repair facility
of your choice.
BK0235100US.book 55 ページ ２０１５年１１月２０日　金曜日　午後３時１２分

Tire pressure monitoring
system (if so equipped)
5-56 Features and controls
5
N00518900306
If the set speed driving is deactivated by the condition described in “To deactivate” on page 5-55, you can resume
the previously set
speed by pressing the RES + switch (C) while driving at a speed of about 25 mph (40 km/h) or higher. Under either of the following conditions, however, using the switch does not allow you to resume the previously set speed. In these situations, repeat the
speed setting procedure:
 The CRUISE CONTROL ON/OFF switch is pressed.  [Except for vehicles
equipped with the
F. A . S . T. - k e y ] Turn the ignition switch to the “OFF” or “ACC” position. [Vehicles equipped with the F.A.S.T.-key]
Put the operation mode in OFF or ACC.  Indicator is turned OFF.
N00530201609
The tire pressure monitoring system uses tire inflation pressure sensors (A) on the wheelsto monitor the tire inflation pressures. The system only indicates when a tire is signifi- cantly under-inflated.
To resume the set speed

Tire pressure monitoring system
(if so equipped)
 The compact spare wheel does not have a tire inflation pressure sensor.When the spare tire is used, the tire pres-sure monitoring system will not work properly. See an authorized
Mitsubishi Motors
dealer as soon as po
ssible to replace or
repair the original tire.NOTE
 The tire pressure monitoring system is not a substitute for regularly
checking tire infla-
tion pressures. Be sure to check the tire inflation pressures as described in “Tires” on page 9-12.  The tire inflation pressure sensor (A) is installed in the illustrated location. • On vehicles with Type 1 sensor which has the metallic air valve (B), replace grommetand washer (C) with a new one when the tire is replaced. • On vehicles with Type 2 sensor which has the rubber air valve (D), replace rubber air valve (D) with a new
one when the tire is
replaced.
BK0235100US.book 56 ページ ２０１５年１１月２０日　金曜日　午後３時１２分

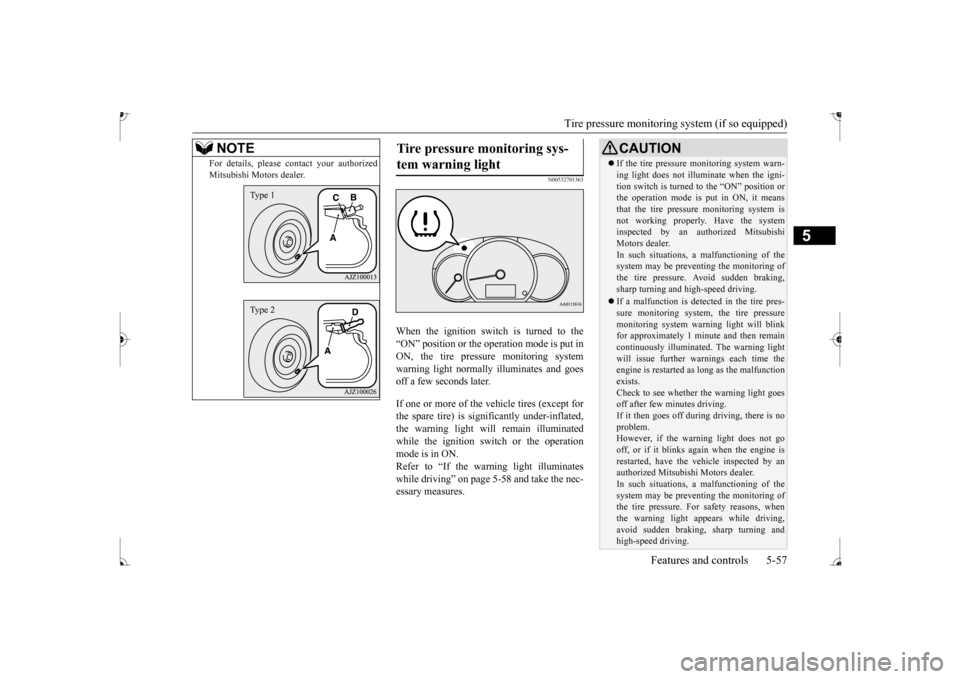

Tire pressure monitoring system (if so equipped)
Features and controls 5-57
5
N00532701363
When the ignition switch is turned to the “ON” position or the ope
ration mode is put in
ON, the tire pressure monitoring system warning light normally
illuminates and goes
off a few seconds later. If one or more of the vehicle tires (except for the spare tire) is signi
ficantly under-inflated,
the warning light will remain illuminated while the ignition switch or the operationmode is in ON. Refer to “If the warning light illuminates while driving” on page 5-58 and take the nec-essary measures.
For details, please
contact your authorized
Mitsubishi Motors dealer.NOTE
Type 1Type 2
Tire pressure monitoring sys- tem warning light

CAUTION If the tire pressure monitoring system warn- ing light does not illumi
nate when the igni-
tion switch is turned to the “ON” position orthe operation mode is put in ON, it means that the tire pressure monitoring system is not working properly. Have the systeminspected by an authorized Mitsubishi Motors dealer. In such situations, a malfunctioning of thesystem may be preventing the monitoring of the tire pressure. Avoid sudden braking, sharp turning and high-speed driving. If a malfunction is detected in the tire pres- sure monitoring system, the tire pressuremonitoring system warning light will blink for approximately 1 mi
nute and then remain
continuously illuminate
d. The warning light
will issue further warnings each time the engine is restarted as
long as the malfunction
exists.Check to see whether the warning light goes off after few minutes driving. If it then goes off during driving, there is noproblem. However, if the warning light does not go off, or if it blinks again when the engine isrestarted, have the
vehicle inspected by an
authorized Mitsubish
i Motors dealer.
In such situations, a malfunctioning of thesystem may be preventing the monitoring of the tire pressure. For safety reasons, when the warning light appears while driving,avoid sudden braking, sharp turning and high-speed driving.
BK0235100US.book 57 ページ ２０１５年１１月２０日　金曜日　午後３時１２分
