Service brake 5-44 Features and controls
5
For short waiting periods, such as at traffic lights, the vehicle can be
left in selector lever
position and held stationary with the servicebrake. For longer waiting periods with the engine running, place th
e selector lever in the “N”
(NEUTRAL) position a
nd apply the parking
brake, while holding the vehicle stationary with the service brake. Prior to moving off after having stopped the vehicle, make sure that
the selector lever is in
“D” (DRIVE) position. To park the vehicle, first bring it to a com- plete stop, fully engage the parking brake,
and then move the sele
ctor lever to the “P”
(PARK) position. If the CVT does not shift while driving, or your vehicle does not pick up enough speed when starting on an uphill slope, it may bethat there is something unusual happening in the transmission. Have your vehicle checked at an authorized Mitsubishi Motors dealer or a repair facility of your
choice as soon as pos-
sible.
N00517501328
Overuse of the brake can cause weakening,resulting in poor brake response and prema-ture wear of the brake pads. When driving down a long or steep hill, use engine braking by movi
ng the selector lever
to “Ds” (DOWNSHIFT & SPORTY DRIV- ING) or “L” (LOW) position.
N00517601462
Your vehicle is equipped with power brakes for more braking force with less brake pedaleffort. Your brakes are designed to operate at full capacity, even if the power assist is not beingused. If the power assist is not being used, the effort needed to press the brake pedal is greater.If you should lose the power assist for some reason, the brakes will still work.
Waiting

CAUTION To avoid transmission
overheating, never try
to keep your vehicle
stationary on a hill by
using the accelerator
pedal. Always apply
the parking brake and/or service brake. Do not rev the engine unnecessarily while the vehicle is stationary. Unexpected acceler-ation may occur if the selector lever is in a position other than “P” (PARK) or “N”
Parking

When the CVT makes no speed change

Service brake Brake pedal
WA R N I N G Do not leave any obje
cts near the brake
pedal or let a floor
mat slide under it;
doing so could prevent the full pedalstroke that would be necessary in an emergency. Make sure that the pedal can be operated freely at
all times. Make sure
the floor mat is securely held in place.CAUTION It is important not to drive the vehicle with your foot resting on the brake pedal when braking is not required.
This practice can
result in very high brake temperatures, pre- mature lining wear, a
nd possible damage to
the brakes.
Power brakes
BK0235100US.book 44 ページ ２０１５年１１月２０日　金曜日　午後３時１２分

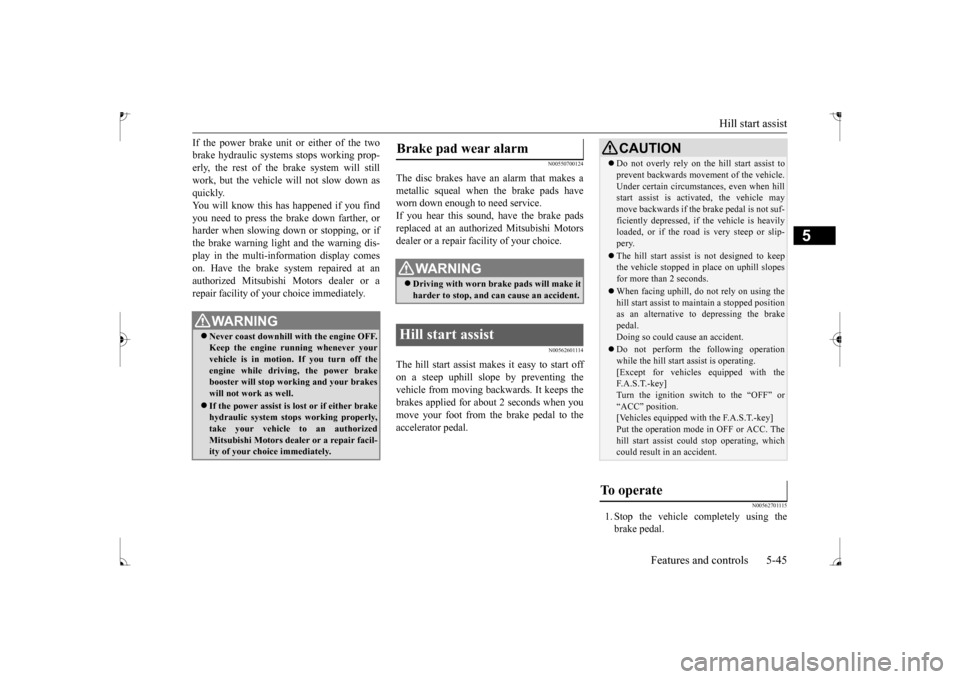

Hill start assist
Features and controls 5-45
5
If the power brake unit or either of the two brake hydraulic systems stops working prop-erly, the rest of the brake system will still work, but the vehicle will not slow down as quickly.You will know this ha
s happened if you find
you need to press the brake down farther, or harder when slowing down or stopping, or ifthe brake warning light and the warning dis- play in the multi-information display comes on. Have the brake system repaired at an authorized Mitsubishi Motors dealer or a repair facility of y
our choice immediately.
N00550700124
The disc brakes have an alarm that makes a metallic squeal when
the brake pads have
worn down enough to need service.If you hear this sound, have the brake pads replaced at an authorized Mitsubishi Motors dealer or a repair facility of your choice.
N00562601114
The hill start assist makes it easy to start offon a steep uphill slope by preventing the vehicle from moving backwards. It keeps the brakes applied for about 2 seconds when youmove your foot from the brake pedal to the accelerator pedal.
N00562701115
1. Stop the vehicle completely using the brake pedal.
WA R N I N G Never coast downhill
with the engine OFF.
Keep the engine running whenever your vehicle is in motion. If you turn off theengine while driving, the power brake booster will stop wo
rking and your brakes
will not work as well. If the power assist is lost or if either brake hydraulic system stop
s working properly,
take your vehicle
to an authorized
Mitsubishi Motors dealer
or a repair facil-
ity of your choice immediately.
Brake pad wear alarm
WA R N I N G Driving with worn brake pads will make it harder to stop, and can cause an accident.
Hill start assist
CAUTION Do not overly rely on the hill start assist to prevent backwards movement of the vehicle.Under certain circumstan
ces, even when hill
start assist is activated, the vehicle may move backwards if the brake pedal is not suf- ficiently depressed, if the vehicle is heavilyloaded, or if the road is very steep or slip- pery.  The hill start assist is
not designed to keep
the vehicle stopped in place on uphill slopes for more than 2 seconds. When facing uphill, do not rely on using the hill start assist to
maintain a stopped position
as an alternative to depressing the brake pedal. Doing so could cause an accident. Do not perform the following operation while the hill start assist is operating.[Except for vehicles equipped with the F. A . S . T. - k e y ] Turn the ignition switch to the “OFF” or“ACC” position. [Vehicles equipped with the F.A.S.T.-key] Put the operation mode
in OFF or ACC. The
hill start assist coul
d stop operating, which
could result in an accident.
To operate
BK0235100US.book 45 ページ ２０１５年１１月２０日　金曜日　午後３時１２分

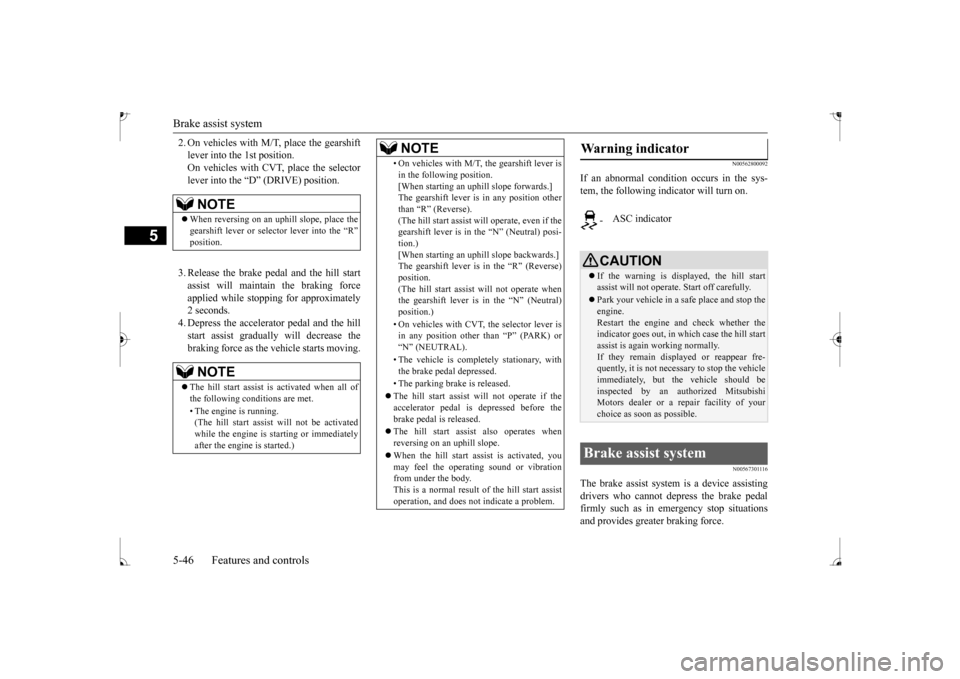

Brake assist system 5-46 Features and controls
5
2. On vehicles with M/T, place the gearshift lever into the 1st position.On vehicles with CVT, place the selector lever into the “D” (DRIVE) position. 3. Release the brake pedal and the hill start assist will maintain the braking force applied while stopping for approximately2 seconds. 4. Depress the accelerator pedal and the hill start assist gradually will decrease thebraking force as the vehicle starts moving.
N00562800092
If an abnormal condition occurs in the sys- tem, the following indicator will turn on.
N00567301116
The brake assist system
is a device assisting
drivers who cannot depress the brake pedalfirmly such as in em
ergency stop situations
and provides greater braking force.
NOTE
 When reversing on an uph
ill slope, place the
gearshift lever or select
or lever into the “R”
NOTE
 The hill start assist is activated when all of the following c
onditions are met.
• The engine is running. (The hill start assist
will not be activated
while the engine is st
arting or immediately
after the engine is started.)
in the following position.[When starting an uphill slope forwards.]The gearshift lever is in any position other than

Anti-lock braking system
Features and controls 5-47
5
If the brake pedal is depressed suddenly, the brakes will be applied with more force thanusual.
N00517900338
The anti-lock braking system helps prevent the wheels from locking up when braking. This helps maintain vehicle drivability andsteering wheel handling.  When using the anti-lock brakes (sudden braking), steering is slightly different from normal driving conditions. Use the steering wheel carefully. Always keep a safe distance from the vehicle in front of you. Even if your vehi- cle is equipped with
the anti-lock braking
system, leave a greater braking distance when: • Driving on gravel or snow-coveredroads. • Driving on uneven road surfaces.  Operation of anti-lock braking system is not restricted
situations where brakes are
applied suddenly. This system may also prevent the wheels from locking whenyou drive over manholes, steel roadwork plates, road markings
, or any uneven road
surface.
 When the anti-lock braking system is in use, you may feel the brake pedal vibrat-ing and hear a unique sound. It may also feel as if the pedal
resists being pressed.
In this situation, si
mply hold the brake
pedal down firmly. Do not pump the brake, which will result in reduced braking performance.
CAUTION The brake assist system is not a device designed to exercise
braking force greater
than its capacity. Make sure to always keep a sufficient distance be
tween your vehicle and
a vehicle in front of
you without relying too
much on the brake assist system.NOTE
 Once the brake assist system is operational, it maintains great braking force even if the brake pedal is lightly released.To stop its operation, completely remove your foot from the brake pedal.  When the brake assist system is in use while driving, you may feel as if the depressed brake pedal is soft, the pedal moves in smallmotions in conjunction with the operation noise, or the vehicle body and the steering wheel vibrate. This occurs when the brakeassist system is ope
rating normally and does
not indicate faulty
operation. Continue to
depress the brake pedal.  When the anti-lock brake system warning light is illuminated, the brake assist system is not functioning.
Anti-lock braking system Driving hints
CAUTION The anti-lock braking system cannot prevent accidents. It is your
responsibility to take
safety precautions a
nd to drive carefully.
To prevent failure of the anti-lock braking system, be sure all 4 wheels and tires are the same size and the same type.NOTE
 You may feel the operating sound or vibra- tion from under the body when driving immediately after starting the engine. This is a normal result the anti-lock braking systemmakes when performing a self-check. It does not indicate a problem.  The anti-lock braking system can be used after the vehicle has
reached a speed over
approximately 6 mph (10 km/h). It stops working when the vehicle slows below 3mph (5 km/h).
BK0235100US.book 47 ページ ２０１５年１１月２０日　金曜日　午後３時１２分

Anti-lock braking system 5-48 Features and controls
5
N00531600674
If there is a malfunction in the system, the anti-lock braking system warning light will come on.Under normal conditions, the ABS warning light comes on when the ignition switch is turned to the “ON” position or the operationmode is put in ON and goes off a few seconds later.
N00531700604
 Avoid hard braking and high-speed driv- ing. Stop the vehicl
e in a safe place.
Test the system by restarting the engine and driving at a speed of about 12 mph (20 km/h) or higher.If the warning light then remains off dur- ing driving, there is no abnormal condi- tion.However, if the warning light does not disappear, or if they come on again when the vehicle is driven, have the vehiclechecked by an authorized MITSUBISHI MOTORS dealer or repair facility of your choice as soon as possible.
The anti-lock braking system and brake force distribution function ma
y not work, so hard
braking could make the vehicle unstable. Avoid hard braking and high-speed driving.Stop the vehicle in a safe place and contact an authorized MITSUBISHI MOTORS dealer or repair facility of your choice.
N00529200080
After driving on snow
or icy roads, remove
any snow and ice whic
h may have be left
around the wheels. On vehicles that have an anti-lock braking syst
em, be careful not to
damage the wheel spee
d sensors (A) or the
cables located at each wheel.
Anti-lock braking system warn- ing light
CAUTION Any of the following indicates that the anti- lock braking system is not functioning andonly the standard brake system is working. (The standard brake system is functioning normally.) If this happe
ns, take your vehicle
to an authorized Mits
ubishi Motors dealer or
a repair facility of your choice.
• When the ignition switch is turned to the “ON” position or the operation mode is putin ON, the warning li
ght does not come on
or it remains on and does not go off.• The warning light comes on while driving
If the warning light illuminate while driving If only the anti-lock braking sys- tem warning light illuminate
CAUTION
If the anti-lock braking system warning light and brake warning light illuminate at the same time After driving on icy roads
BK0235100US.book 48 ページ ２０１５年１１月２０日　金曜日　午後３時１２分

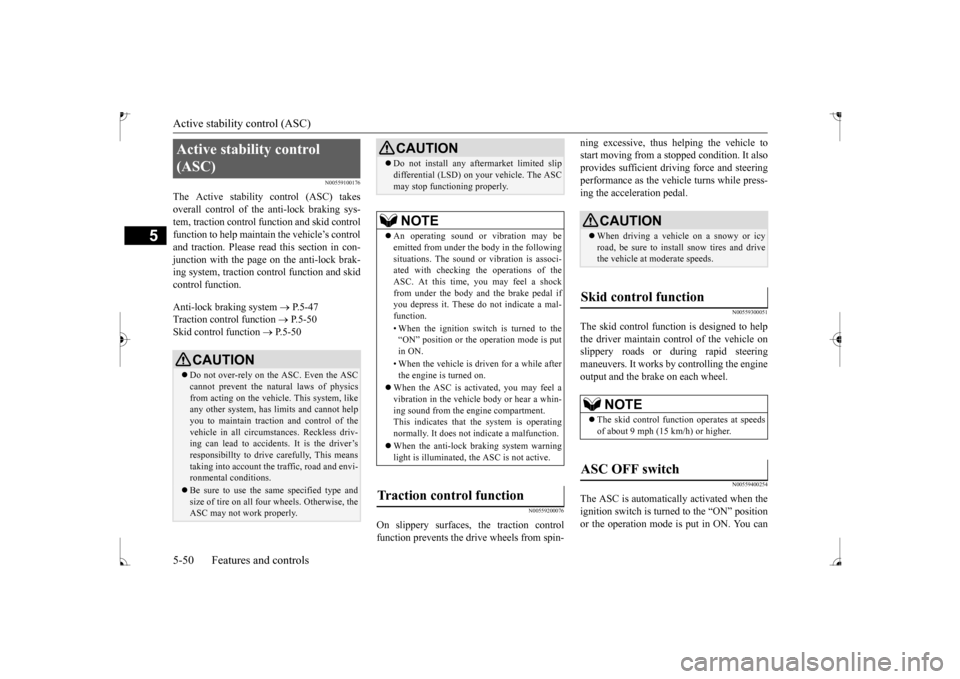

Active stability control (ASC)
5
N00559100176
The Active stability
control (ASC) takes
overall control of the
anti-lock braking sys-
tem, traction control function and skid controlfunction to help maintain the vehicle’s control and traction. Please read
this section in con-
junction with the page on the anti-lock brak-ing system, traction control function and skid control function. Anti-lock braking system
 P.5-47
Traction control function
 P.5-50
Skid control function
 P.5-50
N00559200076
On slippery surfaces, the traction control function prevents the drive wheels from spin-
ning excessive, thus helping the vehicle to start moving from a stopp
ed condition.
It also
provides sufficient driv
ing force and steering
performance as the vehicle turns while press- ing the acceleration pedal.
N00559300051
The skid control function is designed to helpthe driver maintain control of the vehicle onslippery roads or during rapid steering maneuvers. It works by controlling the engine output and the brake on each wheel.
N00559400254
The ASC is automatically activated when theignition switch is turned to the “ON” position or the operation mode is put in ON. You can
Active stability control (ASC)
CAUTION Do not over-rely on the ASC. Even the ASC cannot prevent the natural laws of physicsfrom acting on the vehicle. This system, like any other system, has
limits and cannot help
you to maintain traction and control of thevehicle in all circumstances. Reckless driv- ing can lead to accidents. It is the driver’s responsibillty to drive carefully, This meanstaking into account the tr
affic, road and envi-
ronmental conditions. Be sure to use the same specified type and size of tire on all four wheels. Otherwise, the ASC may not work properly.
 Do not install any aftermarket limited slip differential (LSD) on your vehicle. The ASCmay stop functioning properly.NOTE
 An operating sound or vibration may be emitted from under the body in the followingsituations. The sound or
vibration is associ-
ated with checking th
e operations of the
ASC. At this time, you may feel a shockfrom under the body and the brake pedal if you depress it. These do
not indicate a mal-
function. • When the ignition switch is turned to the “ON” position or the operation mode is putin ON. • When the vehicle is driven for a while after the engine is turned on.
 When the ASC is acti
vated, you may feel a
vibration in the vehicle body or hear a whin- ing sound from the engine compartment. This indicates that the system is operatingnormally. It does not i
ndicate a malfunction.
 When the anti-lock braking system warning light is illuminated, the ASC is not active.
Traction control function
CAUTION
CAUTION When driving a vehicle on a snowy or icy road, be sure to install snow tires and drive the vehicle at moderate speeds.
Skid control function
NOTE
 The skid control function operates at speeds of about 9 mph (15 km/h) or higher.
ASC OFF switch
BK0235100US.book 50 ページ ２０１５年１１月２０日　金曜日　午後３時１２分

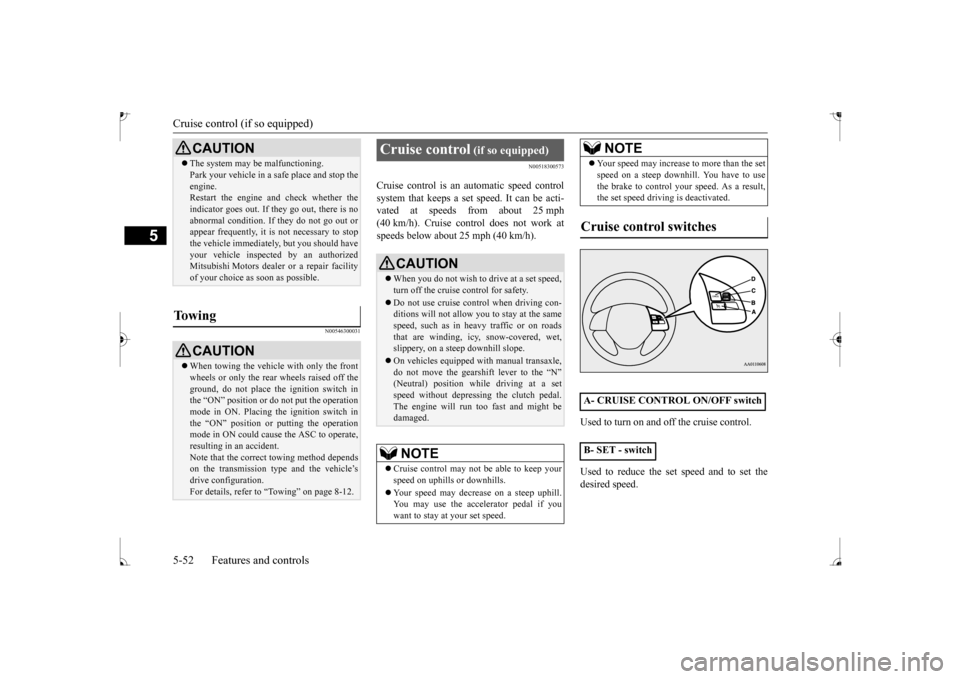

Cruise control (if so equipped)
5
N00546300031
N00518300573
Cruise control is an
automatic speed control
system that keeps a set speed. It can be acti-vated at speeds from about 25 mph (40 km/h). Cruise control does not work at speeds below about 25 mph (40 km/h).
Used to turn on and off the cruise control. Used to reduce the set speed and to set the desired speed.
CAUTION The system may be malfunctioning. Park your vehicle in a
safe place and stop the
engine.Restart the engine and check whether the indicator goes out. If they go out, there is no abnormal condition. If they do not go out orappear frequently, it is
not necessary to stop
the vehicle imme
diately, but you should have
your vehicle inspecte
d by an authorized
Mitsubishi Motors dealer
or a repair facility
of your choice as soon as possible.
To w i n g
CAUTION When towing the vehicle with only the front wheels or only the rear wheels raised off theground, do not place the ignition switch in the “ON” position or do
not put the operation
mode in ON. Placing
the ignition switch in
the “ON” position or
putting the operation
mode in ON could cause the ASC to operate, resulting in an accident.Note that the correct towing method dependson the transmission type and the vehicle’s drive configuration. For details, refer to
“Towing” on page 8-12.
Cruise control
(if so equipped)
CAUTIONWhen you do not wish to drive at a set speed, turn off the cruise control for safety. Do not use cruise cont
rol when driving con-
ditions will not allow you to stay at the same speed, such as in heavy traffic or on roads that are winding, icy, snow-covered, wet,slippery, on a stee
p downhill slope.
On vehicles equipped
with manual transaxle,
do not move the gearshift lever to the “N” (Neutral) position whil
e driving at a set
speed without depressi
ng the clutch pedal.
The engine will run
too fast and might be
damaged.NOTE
 Cruise control may not
be able to keep your
speed on uphills or downhills.  Your speed may decrease on a steep uphill. You may use the accelerator pedal if you want to stay at your set speed.
 Your speed may increase to more than the set speed on a steep downhill. You have to usethe brake to control your speed. As a result,the set speed driving is deactivated.
Cruise control switches

A- CRUISE CONTRO
L ON/OFF switch
B- SET - switch
NOTE
BK0235100US.book 52 ページ ２０１５年１１月２０日　金曜日　午後３時１２分

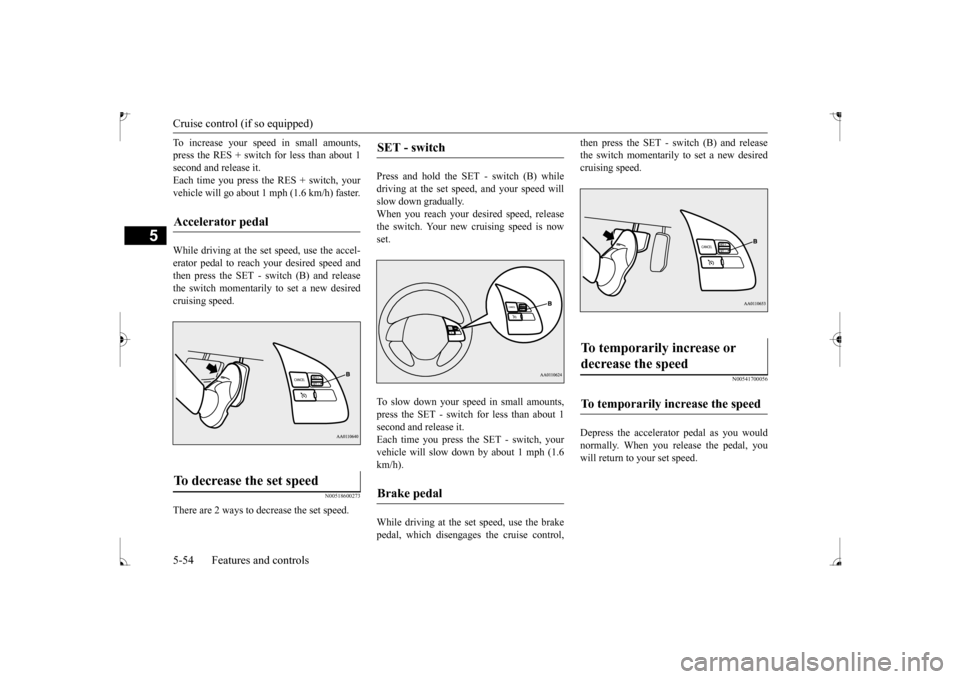

Cruise control (if so equipped)
5
To increase your speed in small amounts, press the RES + switch
for less than about 1
second and release it. Each time you press the RES + switch, your vehicle will go about 1 mp
h (1.6 km/h) faster.
While driving at the set speed, use the accel- erator pedal to reach your desired speed and then press the SET - switch (B) and release the switch momentarily to set a new desiredcruising speed.
N00518600273
There are 2 ways to decrease the set speed.
Press and hold the SET - switch (B) while driving at the set speed, and your speed will slow down gradually.When you reach your desired speed, release the switch. Your new cruising speed is now set. To slow down your speed in small amounts, press the SET - switch for less than about 1 second and release it. Each time you press the SET - switch, yourvehicle will slow down by about 1 mph (1.6 km/h). While driving at the set speed, use the brake pedal, which disengage
s the cruise control,
then press the SET - switch (B) and release the switch momentarily to set a new desiredcruising speed.
N00541700056
Depress the accelerator pedal as you wouldnormally. When you release the pedal, you will return to your set speed.
Accelerator pedal

To decrease the set speed

SET - switch

Brake pedal

To temporarily increase or decrease the speed

To temporarily increase the speed

BK0235100US.book 54 ページ ２０１５年１１月２０日　金曜日　午後３時１２分

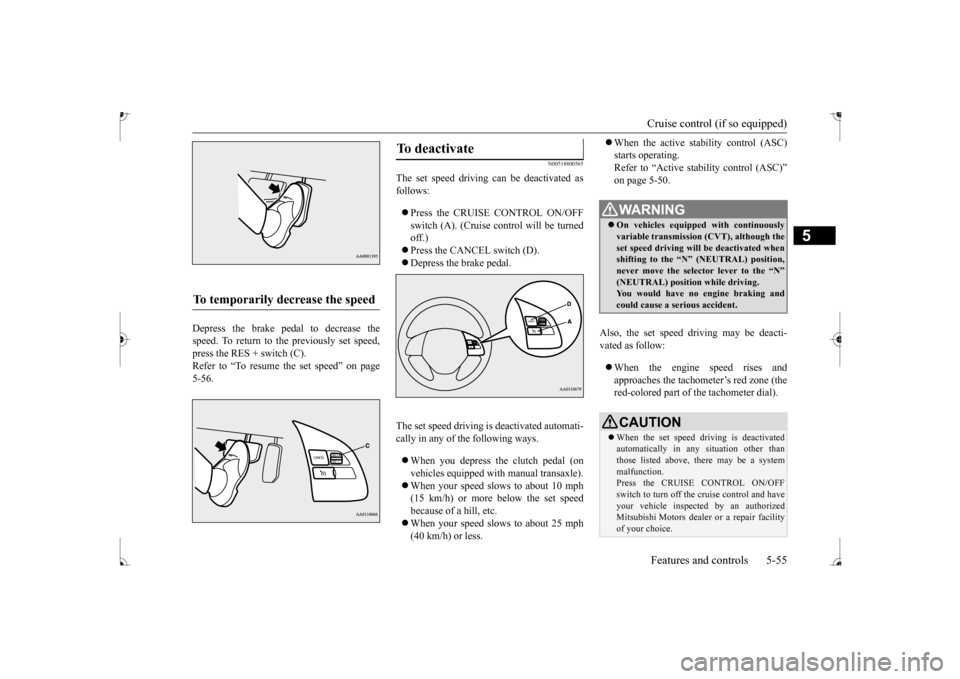

Cruise control (if so equipped) Features and controls 5-55
5
Depress the brake pedal to decrease the speed. To return to the previously set speed, press the RES + switch (C). Refer to “To resume the set speed” on page5-56.
N00518800565
The set speed driving can be deactivated as follows:  Press the CRUISE CONTROL ON/OFF switch (A). (Cruise control will be turnedoff.)  Press the CANCEL switch (D).  Depress the brake pedal.
The set speed driving is deactivated automati- cally in any of th
e following ways.
 When you depress the clutch pedal (on vehicles equipped with manual transaxle).  When your speed slows to about 10 mph (15 km/h) or more below the set speed because of a hill, etc.  When your speed slows to about 25 mph (40 km/h) or less.
 When the active stability control (ASC) starts operating.Refer to “Active stability control (ASC)”
Also, the set speed dr
iving may be deacti-
vated as follow:  When the engine speed rises and approaches the tachom
eter’s red zone (the
red-colored part of the tachometer dial).
To temporarily decrease the speed

To deactivate

WA R N I N G On vehicles equipped with continuously variable transmission
(CVT), although the
set speed driving will
be deactivated when
shifting to the “N” (NEUTRAL) position, never move the select
or lever to the “N”
You would have no engine braking and could cause a serious accident.CAUTION When the set speed driving is deactivated automatically in any
situation other than
those listed above, th
ere may be a system
malfunction. Press the CRUISE CONTROL ON/OFFswitch to turn off the cruise control and have your vehicle inspected by an authorized Mitsubishi Motors dealer
or a repair facility
of your choice.
BK0235100US.book 55 ページ ２０１５年１１月２０日　金曜日　午後３時１２分

Indicator and warning light package 5-70 Features and controls
5
N00519801905

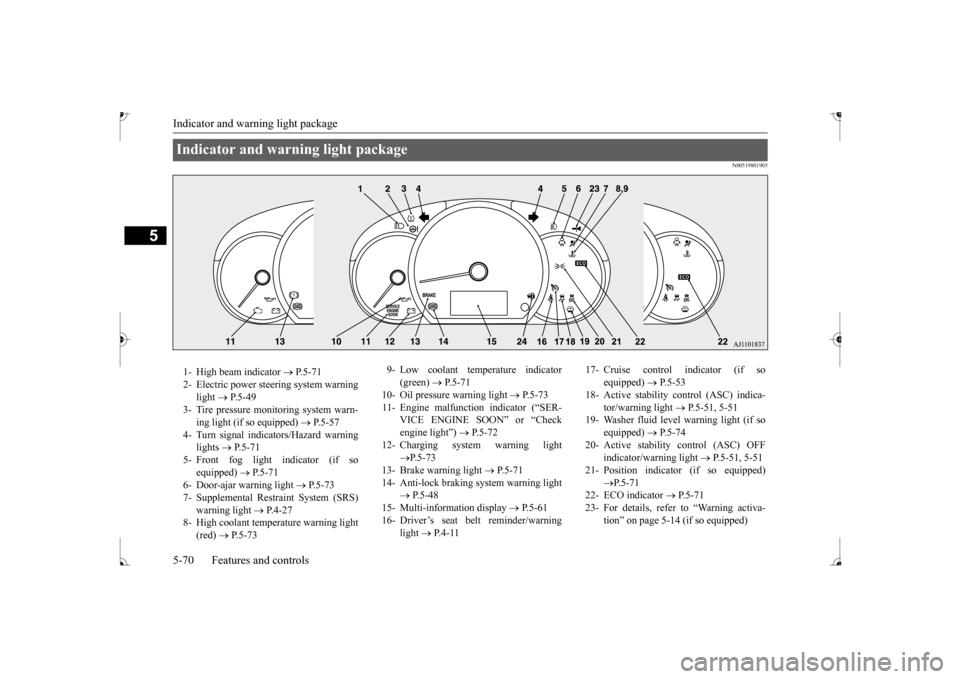

Indicator and warning light package 1- High beam indicator
 P.5-71
2- Electric power steering system warning
light
 P.5-49
3- Tire pressure moni
toring system warn-
ing light (if so equipped)
 P.5-57
4- Turn signal indicators/Hazard warning
lights
 P.5-71
5- Front fog light indicator (if so
equipped)
 P.5-71
6- Door-ajar warning light
 P.5-73
7- Supplemental Restraint System (SRS)
warning light
 P.4-27
8- High coolant temperature warning light
(red)
 P.5-73
9- Low coolant temperature indicator
(green)
 P. 5 - 7 1
10- Oil pressure warning light
 P.5-73
11- Engine malfunction indicator (“SER-
VICE ENGINE SOON” or “Check engine light”)
 P.5-72
12- Charging system warning light
 P.5-73
13- Brake warning light
 P.5-71
14- Anti-lock braking system warning light
 P.5-48
15- Multi-information display
 P. 5 - 6 1
16- Driver’s seat belt reminder/warning
light
 P. 4 - 1 1
17- Cruise control indicator (if so
equipped)
 P.5-53
18- Active stability c
ontrol (ASC) indica-
tor/warning light
 P.5-51, 5-51
19- Washer fluid level warning light (if so
equipped)
 P.5-74
20- Active stability control (ASC) OFF
indicator/warning light
 P.5-51, 5-51
21- Position indicator (if so equipped)
 P.5-71
22- ECO indicator
 P.5-71
23- For details, refer
to “Warning activa-
tion” on page 5-14 (if so equipped)
BK0235100US.book 70 ページ ２０１５年１１月２０日　金曜日　午後３時１２分
