brake MITSUBISHI MIRAGE 2017 6.G Workshop Manual

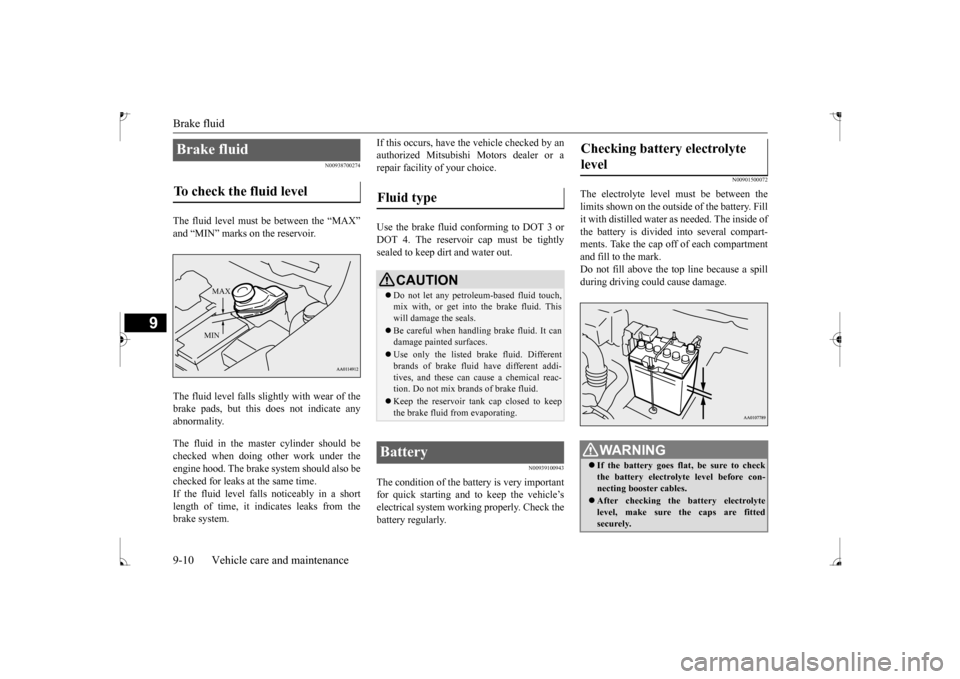

Brake fluid 9-10 Vehicle care and maintenance
9
N00938700274
The fluid level must be between the “MAX” and “MIN” marks on the reservoir. The fluid level falls slightly with wear of the brake pads, but this
does not indicate any
abnormality. The fluid in the master cylinder should be checked when doing other work under the engine hood. The brake
system should also be
checked for leaks at the same time. If the fluid level falls noticeably in a short length of time, it indi
cates leaks from the
brake system.
If this occurs, have
the vehicle checked by an
authorized Mitsubishi Motors dealer or arepair facility of your choice. Use the brake fluid conforming to DOT 3 or DOT 4. The reservoir cap must be tightly sealed to keep dirt and water out.
N00939100943
The condition of the batte
ry is very important
for quick starting and to keep the vehicle’selectrical system working properly. Check the battery regularly.
N00901500072
The electrolyte level
must be between the
limits shown on the outside
of the battery. Fill
it with distilled water
as needed. The inside of
the battery is divided into several compart- ments. Take the cap off of each compartmentand fill to the mark. Do not fill above the t
op line because a spill
during driving could cause damage.
Brake fluid To check the fluid level
MAX MIN
Fluid type
CAUTION Do not let any petrol
eum-based fluid touch,
mix with, or get into the brake fluid. This will damage the seals. Be careful when handling brake fluid. It can damage painted surfaces. Use only the listed brake fluid. Different brands of brake fluid have different addi-tives, and these can cause a chemical reac- tion. Do not mix brands of brake fluid. Keep the reservoir ta
nk cap closed to keep
the brake fluid from evaporating.
Battery
Checking battery electrolyte level
WA R N I N G If the battery goes flat, be sure to check the battery electrolyte level before con- necting booster cables. After checking the battery electrolyte level, make sure the caps are fittedsecurely.
BK0235100US.book 10 ページ ２０１５年１１月２０日　金曜日　午後３時１２分

Clutch pedal free play (if so equipped) 9-18 Vehicle care and maintenance
9
N00940001431
In some areas of the country, snow tires are required for winter driving. If snow tires are required in your area, you must choose snowtires of the same size
and type as the original
tires provided with your vehicle. Snow tires should also be installe
d on all four wheels.
Otherwise your safety and vehicle handling can be reduced. Even where laws may permit it, snow tires should not be operated
at sustained speeds
over 75 mph (120 km/h).
N00940100116
N00940200090
To check the clutch pedal free play (A), turn off the engine and pr
ess the pedal until you
feel resistance. Clutch pedal free play: .4 to .6 inch (11 to 16 mm) If the free play is not within these limits, take your vehicle to an
authorized Mitsubishi
Motors dealer or a repair facility of yourchoice for adjustment.
N00940300336
To check the brake pedal free play (A), turn off the engine and press the brake pedal sev- eral times with your foot. Then press thepedal down with your fingers until you first feel resistance. Brake pedal free play: .1 to .3 inch (3 to 8 mm) If the free play is not within these limits, take your vehicle to an authorized Mitsubishi Motors dealer or a repair facility of yourchoice for adjustment.
Snow tires
CAUTION If your vehicle is equippe
d with a tire pres-
sure monitoring system, only Mitsubishi Motors Authorized wheels should be used.Use of another type of
wheel risks air leaks
and sensor damage, as
it will not be possible
to install the tire pressure sensor properly.
Tire chains
CAUTION Tire chains cannot be used on your vehicle. The clearance between
the chains and the
body is not sufficient to allow proper clear- ance, and the vehicle body might be dam- aged.
Clutch pedal free play
(if so
equipped)
Brake pedal free play
BK0235100US.book 18 ページ ２０１５年１１月２０日　金曜日　午後３時１２分

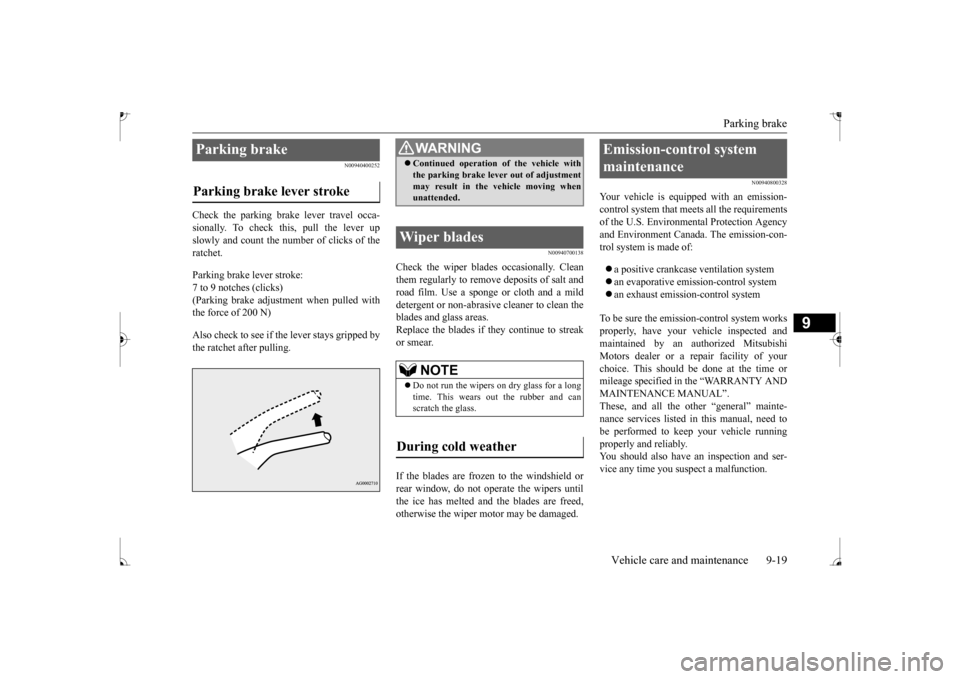

Parking brake
Vehicle care and maintenance 9-19
9
N00940400252
Check the parking brake lever travel occa- sionally. To check this, pull the lever up slowly and count the number of clicks of the ratchet. Parking brake lever stroke: 7 to 9 notches (clicks) (Parking brake adjustment when pulled withthe force of 200 N) Also check to see if the lever stays gripped by the ratchet after pulling.
N00940700138
Check the wiper blades
occasionally. Clean
them regularly to remove
deposits of salt and
road film. Use a sponge or cloth and a mild detergent or non-abrasive cleaner to clean theblades and glass areas. Replace the blades if th
ey continue to streak
or smear. If the blades are frozen to the windshield or rear window, do not ope
rate the wipers until
the ice has melted and the blades are freed, otherwise the wiper mo
tor may be damaged.
N00940800328
Your vehicle is equi
pped with an emission-
control system that meets all the requirements of the U.S. Environm
ental Protection Agency
and Environment Cana
da. The emission-con-
trol system is made of:  a positive crankcase
ventilati
on system
 an evaporative emis
sion-control system
 an exhaust emission-control system
To be sure the emissi
on-control system works
properly, have your vehicle inspected andmaintained by an authorized Mitsubishi Motors dealer or a repair facility of your choice. This should be done at the time ormileage specified in the “WARRANTY AND MAINTENANCE MANUAL”. These, and all the other “general” mainte-nance services listed in this manual, need to be performed to keep
your vehicle running
properly and reliably.You should also have an inspection and ser- vice any time you suspect a malfunction.
Parking brake Parking brake lever stroke
WA R N I N G Continued operation
of the vehicle with
the parking brake leve
r out of adjustment
may result in the
vehicle moving when
unattended.
Wiper blades
NOTE
 Do not run the wipers on dry glass for a long time. This wears out
the rubber and can
scratch the glass.
During cold weather
Emission-control system maintenance
BK0235100US.book 19 ページ ２０１５年１１月２０日　金曜日　午後３時１２分

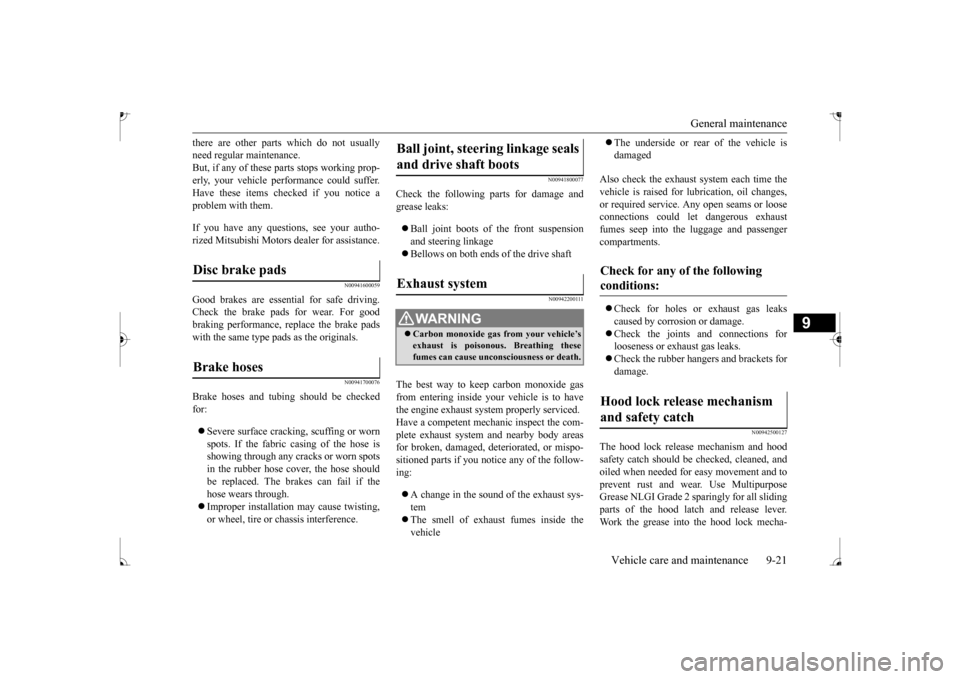

General maintenance
Vehicle care and maintenance 9-21
9
there are other parts which do not usually need regular maintenance.But, if any of these
parts stops working prop-
erly, your vehicle performance could suffer. Have these items checked if you notice aproblem with them. If you have any questions, see your autho- rized Mitsubishi Motors dealer for assistance.
N00941600059
Good brakes are essential for safe driving. Check the brake pads for wear. For goodbraking performance, replace the brake pads with the same type pa
ds as the originals.
N00941700076
Brake hoses and tubing should be checked for:  Severe surface cracki
ng, scuffing or worn
spots. If the fabric casing of the hose isshowing through any cracks or worn spots in the rubber hose cover, the hose should be replaced. The brakes can fail if thehose wears through.  Improper installation
may cause twisting,
or wheel, tire or
chassis interference.
N00941800077
Check the following parts for damage and grease leaks:  Ball joint boots of the front suspension and steering linkage  Bellows on both ends of the drive shaft
N00942200111
The best way to keep carbon monoxide gas from entering inside your
vehicle is to have
the engine exhaust syst
em properly serviced.
Have a competent mechanic inspect the com- plete exhaust system
and nearby body areas
for broken, damaged, deteriorated, or mispo- sitioned parts if you no
tice any of the follow-
ing:  A change in the sound of the exhaust sys- tem  The smell of exhaust fumes inside the vehicle
 The underside or rear of the vehicle is damaged
Also check the exhaust system each time the vehicle is raised for l
ubrication, oil changes,
or required service. A
ny open seams or loose
connections could le
t dangerous exhaust
fumes seep into the luggage and passenger compartments.  Check for holes or exhaust gas leaks caused by corrosion or damage.  Check the joints and connections for looseness or exhaust gas leaks. Check the rubber hangers and brackets for damage.
N00942500127
The hood lock release mechanism and hood safety catch should be
checked, cleaned, and
oiled when needed for easy movement and to prevent rust and wear. Use Multipurpose Grease NLGI Grade 2 sp
aringly for all sliding
parts of the hood latc
h and release lever.
Work the grease into the hood lock mecha-
Disc brake pads Brake hoses
Ball joint, steering linkage seals and drive shaft boots Exhaust system
WA R N I N G Carbon monoxide gas
from your vehicle’s
exhaust is poisonous. Breathing thesefumes can cause unconsciousness or death.
Check for any of the following conditions: Hood lock release mechanism and safety catch
BK0235100US.book 21 ページ ２０１５年１１月２０日　金曜日　午後３時１２分

Fuses 9-24 Vehicle care and maintenance
9
 The table above shows the main equip- ment corresponding to each fuse.
* : Fusible link
Engine compartment fuse location table No.
Sym- bol
Electrical system
Capac-ity
SBF1 Radiator fan motor 40 A
*
SBF2
Anti-lock braking
system
30 A
*
SBF3 Ignition switch 40 A
*
SBF4
Power window
control
40 A
*
Type A
BF1 DC-DC (P/T) 30 A BF2 DC-DC (AUDIO) 30 A F1
Headlight (low beam) (left)
Halo- gen
10 A
Dis- charge
20 A
F2
Headlight (low beam) (right)
Halo- gen
10 A
Dis- charge
20 A
F3
Headlight (high beam) (left)
10 A
F4
Headlight (high beam) (right)
10 A
F5 Horn 10 A F6 Front fog lights 15 A F7
Daytime running
lights
10 A
F8 — — —
Battery current
sensor
7.5 A
F11 — — —
Sym- bol
Electrical system
Capac-ity
F12
Stop lights (Brake
lights)
15 A
F13 Ignition coil 7.5 A F14 Engine control 7.5 AF15 Alternator 7.5 A F16
Hazard warning
flasher
10 A
F17
Automatic trans-
axle
15 A
F18 Air conditioning 10 A F19 ETV 15 A F20 Starter 7.5 A F21 CVT oil/pump 15 A F22 Fuel pump 15 A F23 Engine 20 A F24
Automatic trans-
axle
7.5 A
#1 — Spare fuse 20 A #2 — Spare fuse 30 ANo.
Sym- bol
Electrical system
Capac-ity
BK0235100US.book 24 ページ ２０１５年１１月２０日　金曜日　午後３時１２分

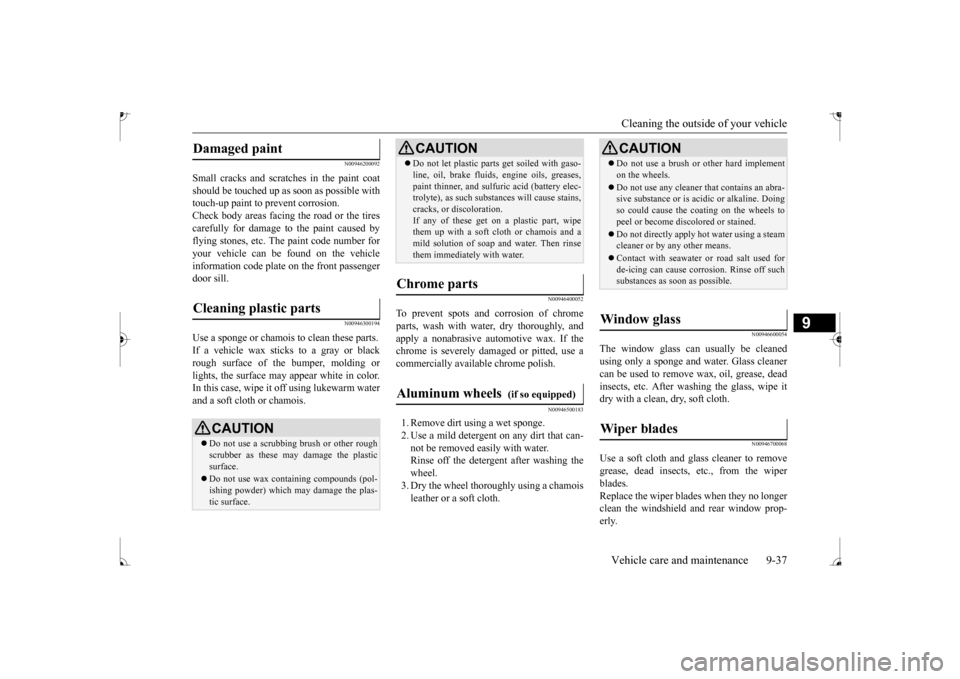

Cleaning the outside of your vehicle Vehicle care and maintenance 9-37
9
N00946200092
Small cracks and scratches in the paint coat should be touched up as
soon as possible with
touch-up paint to prevent corrosion.Check body areas facing the road or the tires carefully for damage to the paint caused by flying stones, etc. The
paint code number for
your vehicle can be found on the vehicle information code plat
e on the front passenger
door sill.
N00946300194
Use a sponge or chamois to clean these parts.If a vehicle wax sticks to a gray or black rough surface of the bumper, molding or lights, the surface may appear white in color.In this case, wipe it
off using lukewarm water
and a soft cloth or chamois.
N00946400052
To prevent spots and corrosion of chrome parts, wash with water, dry thoroughly, and apply a nonabrasive automotive wax. If the chrome is severely da
maged or pitted, use a
commercially available chrome polish.
N00946500183
1. Remove dirt using a wet sponge.2. Use a mild detergent on any dirt that can- not be removed ea
sily with water.
Rinse off the detergent after washing thewheel. 3. Dry the wheel thoroughly using a chamois leather or a soft cloth.
N00946600054
The window glass can
usually be cleaned
using only a sponge and
water. Glass cleaner
can be used to remove
wax, oil, grease, dead
insects, etc. After washing the glass, wipe it dry with a clean, dry, soft cloth.
N00946700068
Use a soft cloth and gl
ass cleaner to remove
grease, dead insects, etc., from the wiperblades. Replace the wiper blades when they no longer clean the windshield and rear window prop-erly.
Damaged paint Cleaning plastic parts
CAUTION Do not use a scrubbing brush or other rough scrubber as these may
damage the plastic
surface. Do not use wax containing compounds (pol- ishing powder) which
may damage the plas-
tic surface.
 Do not let plastic parts get soiled with gaso- line, oil, brake fluids
, engine oils, greases,
paint thinner, and sulfur
ic acid (battery elec-
trolyte), as such substa
nces will cause stains,
cracks, or discoloration. If any of these get on a plastic part, wipethem up with a soft cloth or chamois and a mild solution of soap and water. Then rinse them immediately with water.
Chrome parts Aluminum wheels
(if so equipped)
CAUTION
CAUTION Do not use a brush or
other hard implement
on the wheels. Do not use any cleaner th
at contains an abra-
sive substance or is ac
idic or alkaline. Doing
so could cause the coating on the wheels topeel or become disc
olored or stained.
Do not directly apply
hot water using a steam
cleaner or by any other means. Contact with seawater or road salt used for de-icing can cause corr
osion. Rinse off such
substances as soon as possible.
Window glass Wiper blades
BK0235100US.book 37 ページ ２０１５年１１月２０日　金曜日　午後３時１２分

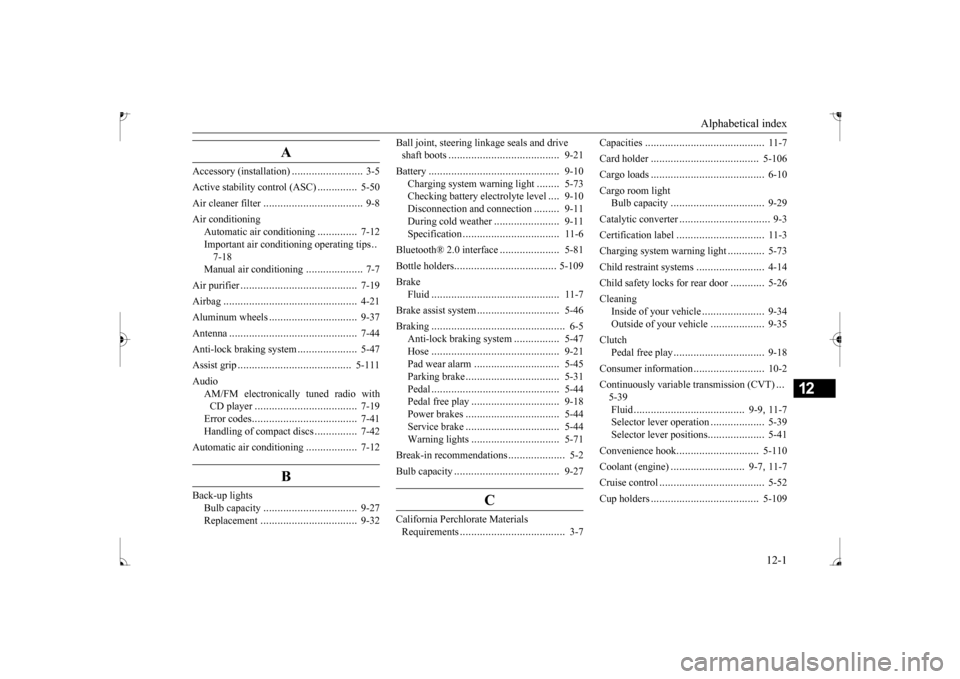

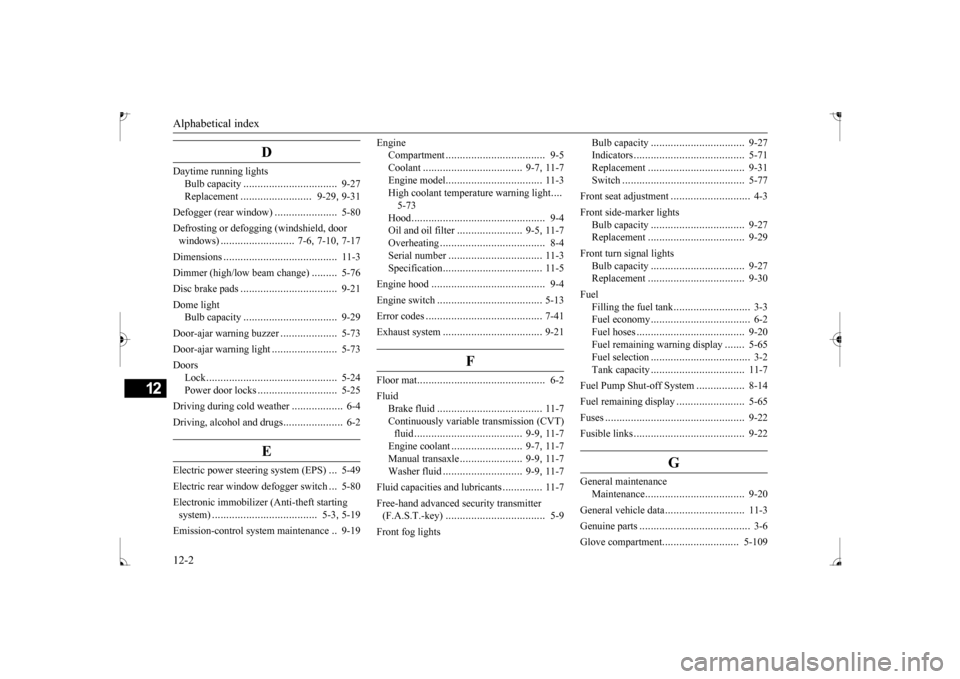

Alphabetical index
12-1
12
A
Accessory (installation)
.........................
3-5
Active stability control (ASC)
..............
5-50
Air cleaner filter
...................................
9-8
Air conditioning
Automatic air conditioning
..............
7-12
Important air condi
tioning operating tips
..
7-18Manual air conditioning
....................
7-7
Air purifier
.........................................
7-19
Airbag
...............................................
4-21
Aluminum wheels
...............................
9-37
Antenna
.............................................
7-44
Anti-lock braking system
.....................
5-47
Assist grip
........................................
5-111
Audio
AM/FM electronically
tuned radio with
CD player
....................................
7-19
Error codes
.....................................
7-41
Handling of compact discs
...............
7-42
Automatic air conditioning
..................
7-12
B
Back-up lights
Bulb capacity
.................................
9-27
Replacement
..................................
9-32
Ball joint, steering li
nkage seals and drive
shaft boots
.......................................
9-21
Battery
..............................................
9-10
Charging system warning light
........
5-73
Checking battery
electrolyte level
....
9-10
Disconnection and connection
.........
9-11
During cold weather
.......................
9-11
Specification
..................................
11-6
Bluetooth® 2.0 interface
.....................
5-81
Bottle holders
....................................
5-109
Brake
Fluid
.............................................
11-7
Brake assist system
.............................
5-46
Braking
...............................................
6-5
Anti-lock braking system
................
5-47
Hose
.............................................
9-21
Pad wear alarm
..............................
5-45
Parking brake
.................................
5-31
Pedal
.............................................
5-44
Pedal free play
...............................
9-18
Power brakes
.................................
5-44
Service brake
.................................
5-44
Warning lights
...............................
5-71
Break-in recommendations
....................
5-2
Bulb capacity
.....................................
9-27
C
California Perchl
orate Materials
Requirements
.....................................
3-7
Capacities
..........................................
11-7
Card holder
......................................
5-106
Cargo loads
........................................
6-10
Cargo room light
Bulb capacity
.................................
9-29
Catalytic converter
................................
9-3
Certification label
...............................
11-3
Charging system warning light
.............
5-73
Child restraint systems
........................
4-14
Child safety locks for rear door
............
5-26
Cleaning
Inside of your vehicle
......................
9-34
Outside of your vehicle
...................
9-35
Clutch
Pedal free play
................................
9-18
Consumer information
.........................
10-2
Continuously variable transmission (CVT)
...
5-39 Fluid
.......................................
9-9
, 11-7
Selector lever operation
...................
5-39
Selector lever positions
....................
5-41
Convenience hook
.............................
5-110
Coolant (engine)
..........................
9-7
, 11-7
Cruise control
.....................................
5-52
Cup holders
......................................
5-109
BK0235100US.book 1 ページ ２０１５年１１月２０日\b 5 Y

Alphabetical index 12-2
12
D
Daytime running lights
Bulb capacity
.................................
9-27
Replacement
.........................
9-29
, 9-31
Defogger (rear window)
......................
5-80
Defrosting or defogging (windshield, door windows)
..........................
7-6
, 7-10
, 7-17
Dimensions
........................................
11-3
Dimmer (high/lo
w beam change)
.........
5-76
Disc brake pads
..................................
9-21
Dome light
Bulb capacity
.................................
9-29
Door-ajar warning buzzer
....................
5-73
Door-ajar warning light
.......................
5-73
Doors
Lock
..............................................
5-24
Power door locks
............................
5-25
Driving during cold weather
..................
6-4
Driving, alcohol and drugs
.....................
6-2
E
Electric power steering system (EPS)
5-49
Electric rear win
dow defogger switch
...
5-80
Electronic immobilizer (Anti-theft starting system)
5-3
, 5-19
Emission-control sy
stem maintenance
..9-19
Engine
Compartment
...................................
9-5
Coolant
...................................
9-7
, 11-7
Engine model
..................................
11-3
High coolant temperature warning light
....
5-73 Hood
...............................................
9-4
Oil and oil filter
.......................
9-5
, 11-7
Overheating
.....................................
8-4
Serial number
.................................
11-3
Specification
...................................
11-5
Engine hood
........................................
9-4
Engine switch
.....................................
5-13
Error codes
.........................................
7-41
Exhaust system
...................................
9-21
F
Floor mat
.............................................
6-2
Fluid
Brake fluid
.....................................
11-7
Continuously variable
transmission (CVT)
......................................
9-9
, 11-7
Engine coolant
.........................
9-7
, 11-7
Manual transaxle
......................
9-9
, 11-7
Washer fluid
............................
9-9
, 11-7
Fluid capacities and lubricants
..............
11-7
Free-hand advanced security transmitter (F.A.S.T.-key)
...................................
5-9
Front fog lights
Bulb capacity
.................................
9-27
Indicators
.......................................
5-71
Replacement
..................................
9-31
Switch
...........................................
5-77
Front seat adjustment
............................
4-3
Front side-marker lights
Bulb capacity
.................................
9-27
Replacement
..................................
9-29
Front turn signal lights
Bulb capacity
.................................
9-27
Replacement
..................................
9-30
Fuel
Filling the fuel tank
...........................
3-3
Fuel economy
...................................
6-2
Fuel hoses
......................................
9-20
Fuel remaining warning display
.......
5-65
Fuel selection
...................................
3-2
Tank capacity
.................................
11-7
Fuel Pump Shut-off System
.................
8-14
Fuel remaining display
........................
5-65
Fuses
.................................................
9-22
Fusible links
.......................................
9-22
G
General maintenance
Maintenance
...................................
9-20
General vehicle data
............................
11-3
Genuine parts
.......................................
3-6
Glove compartment
...........................
5-109
BK0235100US.book 2 ページ ２０１５年１１月２０日\b 5 Y

Alphabetical index 12-4
12
Parking brake lever stroke
...............
9-19
Parking brake
............................
5-31
, 9-19
Parking lights
Bulb capacity
.................................
9-27
Replacement
..................................
9-31
Polishing
............................................
9-36
Power brakes
......................................
5-44
Power outlet
.....................................
5-107
Power windows
..................................
5-28
Puncture (Tire changing)
.......................
8-6
R
Radio
AM/FM electronically tuned radio with CD player
....................................
7-19
General information about your radio 7-44
Rear combination lights
Bulb capacity
.................................
9-27
Replacement
..................................
9-32
Rear seats
............................................
4-5
Rear shelf panel
................................
5-110
Rear side-marker lights
Bulb capacity
.................................
9-27
Replacement
..................................
9-32
Rear turn signal lights
Bulb capacity
.................................
9-27
Replacement
..................................
9-32
Rearview mirror
Inside rearview mirror
.....................
5-32
Outside rearview mirrors
.................
5-33
Replacement of light bulbs
...................
9-26
Replacing tires and wheels
...................
9-16
Reporting Safety Defects
.....................
10-2
S
Safe driving techniques
.........................
6-4
Seat belts
.............................................
4-8
Adjustable seat be
lt shoulder anchor
.4-12
Child restraint systems
.....................
4-14
Front passenger seat belt warning light
.....
4-11 Maintenance and inspection
.............
4-21
Seat belt extender
............................
4-12
Seat belt force limitter system
..........
4-14
Seat belt instructions
........................
4-9
Seat belt pre-tensioners
....................
4-13
Seat belt use
during pregnancy
.........
4-13
Seats
...................................................
4-2
Front seats
.......................................
4-3
Head restraints
.................................
4-7
Heated seats
.....................................
4-4
Seats and restraint systems
................
4-2
Service brake
......................................
5-44
Service precautions
..............................
9-2
Side turn signal lights
Bulb capacity
..................................
9-27
Snow tires
..........................................
9-18
Spark plugs
........................................
9-20
Starting the engine
..............................
5-36
Steering
Electric power steeri
ng system (EPS) 5-49
Steering wheel he
ight adjustment
.....
5-32
Stop lights
Bulb capacity
.................................
9-27
Replacement
..................................
9-32
Storage spaces
..................................
5-108
Sun visors
........................................
5-106
Supplemental Restraint System
............
4-21
How the Supplementa
l Restraint System
works
..........................................
4-24
Maintenance service
.......................
4-36
T
Tail lights
Bulb capacity
.................................
9-27
Replacement
..................................
9-32
Tank capacity
.....................................
11-7
Tire pressure monitoring system
...........
5-56
Tires
..................................................
9-12
Inflation pressures
..........................
9-15
Maintenance
...................................
9-16
Quality grading
..............................
10-2
Replacing tires and wheels
..............
9-16
Rotation
.........................................
9-17
Size (tire and wheel)
11-6
Snow tires
......................................
9-18
BK0235100US.book 4 ページ ２０１５年１１月２０日\b 5 Y
