brake MITSUBISHI MIRAGE 2017 6.G Owners Manual

Instruments and controls
Overview 1-2
1
Center vents P.7-2
Supplemental restraint system (SRS)-air- bag (for front passenger) P.4-21, 4-27
Heater (if so equipped) P.7-4 Manual air conditioning
(if so equipped)
P. 7 - 7
Audio (if so equipped) P.7-19 Clock (if so equipped) P.7-26
Electric rear window defogger switch P.5-80 Automatic air conditioning (if so equipped) P.7-12
Side vents P.7-2
Glove compartment P.5-109
Engine hood release lever P.9-4
Cup holder (for the front seat) P.5-109
12 V power outlets P.5-107
Electric rear window defogger switch P.5-80
Key slot (if so equipped) P.5-20
Gearshift lever (if so equipped) P.5-37 Selector lever (if so equipped) P.5-39
Fuel tank filler do
or release lever
P. 3 - 3
Parking brake lever P.5-31
Cup holder (for the rear seat)
BK0235100US.book 2 ページ ２０１５年１１月２０日\b 5 Y

If this warning light comes on or flashes while you’re driving... 2-2 Quick index
2
or
Brake warning light
 If this light comes on while driving, chec
k to see that the parking brake is fully
released. If this light stays on after releasing the
parking brake, immediately stop and check
the brake fluid level.  If the brake fluid level is correct, there
may be a system malfunction. Avoid hard
braking and high speed, and contact an au
thorized Mitsubishi Motors dealer or a
repair facility of your
choice for assistance.
P. 5-71
Selector lever position indicator in the instrument cluster flashes rapidly
(once per second)
 Park your vehicle in a safe place. Idle the engine until the selector le
ver position indicato
r stops flashing.
If the indicator does not go off, have
the system checked at an authorized
Mitsubishi Motors dealer or a repair facili
ty of your choice as soon as possible.
P. 5-42
or
Engine malfunction indicator (“SERVICE ENGINE SOON” or
“Check engine light”)
 Although your vehicle will usually be dr
ivable and not need towing, have the
engine system checked at an authorized M
itsubishi Motors dealer
or a repair facility
of your choice as soon as possible. If the
vehicle is not drivab
le, contact emergency
roadside assistance at 1-888-648-7820 (for
vehicles sold in U.S.A.) or 1-888-576-
4878 (for vehicles sold in Canada), an auth
orized Mitsubishi Moto
rs dealer, or local
towing company for assistance.
P. 5-72
Electric power stee
ring system (EPS)
warning light
 If this light comes on while the engine is
running, it may become harder to turn the
steering wheel. Have your ve
hicle inspected at an aut
horized Mitsubishi Motors
dealer or a repair facility of
your choice as soon as possible.
P. 5-49
Warning lights
Do this
Ref. Page
BK0235100US.book 2 ページ ２０１５年１１月２０日\b 5 Y

If this problem occurs...
Quick index 2-5
2
N00200901981
If this problem occurs...
Problem
Do this
Ref. Page
Unable to turn the key. (except for vehicles equipped with the F.A.S.T.-key)
From “ACC” to “OFF” Vehicles with cont
inuously variable
transmission (CVT):
Check the position of the selector lever. The key cannot be removed unless the selector
lever is set to the “P” (PARK) position.
P. 5-35
The engine does not start when the engine switch is pressed. (for vehicles equipped with the F. A . S . T. - k e y )
Vehicles with ma
nual transaxle:
Press and hold the clutch pedal all the way dow
n, and then press the
engine switch while
depressing the brake pedal. Vehicles with cont
inuously variable
transmission (CVT):
Make sure the selector lever is in the “P” (P
ARK) position, and then press the engine switch
while depressing the brake pedal.
P. 5-16
The F.A.S.T.-key does not oper- ate. (for vehicles equipped with the F. A . S . T. - k e y )
Insert the F.A.S.T.-key into the key slot of th
e floor console, and then start the engine or
change the operation mode.
P. 5-18, 5-19
BK0235100US.book 5 ページ ２０１５年１１月２０日\b 5 Y

If this problem occurs... 2-6 Quick index
2
Cannot shift the selector lever from the “P” (PARK) position.(for vehicles with continuously variable transmission (CVT))
Shift the selector lever while pressing the brake pedal. Check that the ignition switch
or the operation mode is in ON.
P. 5-39
The windows are fogged up.
Vehicles equipped with the he
ater without air conditioning
function or th
e manual air
conditioning
:
1. Set the mode selection dial
to the “ ” or “ ” position.
2. Turn on the blower. Vehicles equipped with th
e automatic air conditioning
:
Push the defogger switch
to change the “ ” mode.
P. 7-6, 7-10,
7-14
The engine does not start. The lights do not come on. The lights are dim. The horn does not honk.The horn sound is weak.
Have the battery checked. Rech
arge or replace as needed.
P. 8-2, P. 9-10
The high coolant temperature warning light is illuminated. Steam comes out of the engine compartment.
The engine is overheated. Carefully stop the vehicle in a safe place.
P. 8-4
Problem
Do this
Ref. Page
BK0235100US.book 6 ページ ２０１５年１１月２０日\b 5 Y

If this problem occurs...
Quick index 2-7
2
The vehicle is
stuck in sand,
mud or snow
Rock your vehicle back and forth to free it. P. 8-13
WA R N I N G When attempting to rock your vehicle out of
a stuck position, be sure that
no one is near the vehicl
e. The rocking motion may c
ause the vehicle to
suddenly lurch forward or backward, possibly injuring bystanders. Avoid revving the engine or spin
ning the wheels. Prolonged efforts to free a st
uck vehicle may result in
overheating and transa
xle failure.
If the vehicle remains stuck after several rocking attempts, have a towing service pull the vehicle out.
Problem
Do this
Ref. Page
The brakes are not functioning properly after crossing a puddle or stream.
Dry out the brakes by driving slowly while
lightly pressing the brake pedal. P. 6-5
The continuously variable trans- mission (CVT) makes no shift change when accelerating. The initial movement of the vehicle is slow when the vehicle starts moving.(for vehicles with CVT)
There may be a problem in the CVT. Have the vehicle inspected by an
authorized Mitsubishi Motors dealer or a repair facility of
your choice.
P. 5-42
A tire is punctured.
1. Park the vehicle in a safe place where the surface is flat and level. 2. Replace the flat tire with the compact spare tire.
P. 8 - 6
Problem
Do this
Ref. Page
BK0235100US.book 7 ページ ２０１５年１１月２０日\b 5 Y

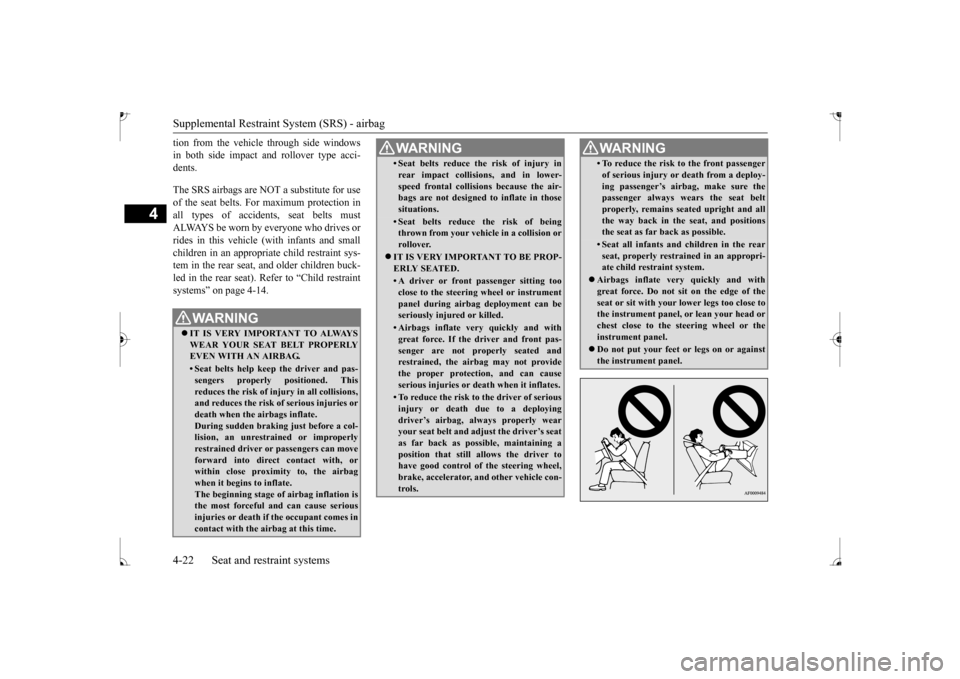

Supplemental Restraint System (SRS) - airbag 4-22 Seat and restraint systems
4
tion from the vehicle through side windows in both side impact an
d rollover type acci-
dents. The SRS airbags are NOT a substitute for use of the seat belts. For maximum protection in all types of accident
s, seat belts must
ALWAYS be worn by everyone who drives or rides in this vehicle (with infants and small children in an appropriate child restraint sys-tem in the rear seat, and older children buck- led in the rear seat). Refer to “Child restraint systems” on page 4-14.
WA R N I N G IT IS VERY IMPORTANT TO ALWAYS WEAR YOUR SEAT BELT PROPERLY EVEN WITH AN AIRBAG.• Seat belts help keep the driver and pas-sengers properly positioned. This reduces the risk of injury in all collisions,and reduces the risk of serious injuries or death when the airbags inflate. During sudden brakin
g just before a col-
lision, an unrestra
ined or improperly
restrained driver or passengers can move forward into direct contact with, orwithin close proximity to, the airbag when it begins to inflate. The beginning stage of
airbag inflation is
the most forceful and can cause serious injuries or death if the occupant comes in contact with the ai
rbag at this time.
• Seat belts reduce the risk of injury in rear impact collisions, and in lower-speed frontal collisions because the air-bags are not designed to inflate in those situations.• Seat belts reduce the risk of beingthrown from your vehi
cle in a collision or
rollover.
 IT IS VERY IMPORTANT TO BE PROP- ERLY SEATED.• A driver or front passenger sitting tooclose to the steering wheel or instrumentpanel during airbag deployment can be seriously injure
d or killed.
• Airbags inflate ve
ry quickly and with
great force. If the driver and front pas- senger are not properly seated andrestrained, the airbag may not provide the proper protection, and can cause serious injuries or death when it inflates.• To reduce the risk to the driver of seriousinjury or death due to a deployingdriver’s airbag, al
ways properly wear
your seat belt and ad
just the driver’s seat
as far back as possible, maintaining aposition that still
allows the driver to
have good control of the steering wheel, brake, accelerator,
and other vehicle con-
trols.WA R N I N G
• To reduce the risk to the front passengerof serious injury or
death from a deploy-
ing passenger’s airbag, make sure thepassenger always wears the seat belt properly, remains seat
ed upright and all
the way back in the
seat, and positions
the seat as far back as possible.• Seat all infants and children in the rearseat, properly restrain
ed in an appropri-
ate child restraint system.
 Airbags inflate very
quickly and with
great force. Do not sit on the edge of the seat or sit with your
lower legs too close to
the instrument panel,
or lean your head or
chest close to the steering wheel or the instrument panel. Do not put your feet or
legs on or against
the instrument panel.WA R N I N G
BK0235100US.book 22 ページ ２０１５年１１月２０日　金曜日　午後３時１２分

Supplemental Restraint System (SRS) - airbag
Seat and restraint systems 4-25
4
The main purpose of an EDR is to record, in certain crash or near
crash-like situations,
such as an airbag deployment or hitting a road obstacle, data that
will assist in under-
standing how a vehicl
e’s systems performed.
The EDR is designed to record data related to vehicle dynamics and safety systems for a short period of time,
typically 30 seconds or
less. The EDR in this vehicle is designed to record such data as:  How various systems
in your vehicle were
operating;  Whether or not the driver and front pas- senger safety belts we
re buckled/fastened;
 How far (if at all) the driver was depress- ing the accelerator and/or brake pedal; and, How fast the vehicle was traveling.
These data can help provide a better under- standing of the circumstances in which crashes and injuries occur.
To read data recorded by an EDR, special equipment is required, and access to the vehi-cle or the EDR is needed. In addition to the vehicle manufacturer, ot
her parties, such as
law enforcement, that have the special equip-ment, can read the information if they have access to the vehicle or the EDR.
N00417900223
The driver’s seat position sensor is attachedto the seat rail and provides the airbag control unit with information on the seat’s fore-aftposition. The airbag control unit controls deployment of the driver’s front airbag in accordance with the information it receivesfrom this sensor. If there is a problem involving the driver’s seat position sensor, the SRS warning light inthe instrument panel will come on. Refer to
“SRS warning light” on page 4-27.
N00418000364
The passenger’s seat oc
cupant classification
sensor system is attach
ed to the front passen-
ger seat cushion and provides the airbag con- trol unit with information regarding theoccupant on the front passenger seat. The air- bag control unit controls deployment of the
NOTE
 EDR data are recorded by your vehicle only if a non-trivial crash si
tuation occurs; no data
are recorded by the EDR under normal driv-ing conditions and no personal data (e.g., name, gender, age, a
nd crash location) are
recorded. However, ot
her parties, such as
law enforcement, could combine the EDR data with the type of
personally identifying
data routinely acquire
d during a crash inves-
tigation.
Driver’s seat position sensor
WA R N I N G If the SRS warning
light comes on, have
the vehicle inspected by an authorized Mitsubishi Motors dealer as soon as possi-ble. Please observe the following instructions to ensure that the driver’s seat position sensor can operate correctly.• Adjust the seat to the correct position,and sit well back
against the seatback.
Refer to “Front seats” on page 4-3.• Do not recline the seatback more thannecessary when driving.• Do not place metallic objects or luggageunder the front seat.
 If the vehicle is involved in a severe impact, have the SRS sensor inspected byan authorized
Mitsubishi Motors dealer as
soon as possible.
Passenger’s seat occupant clas- sification sensor system
BK0235100US.book 25 ページ ２０１５年１１月２０日　金曜日　午後３時１２分

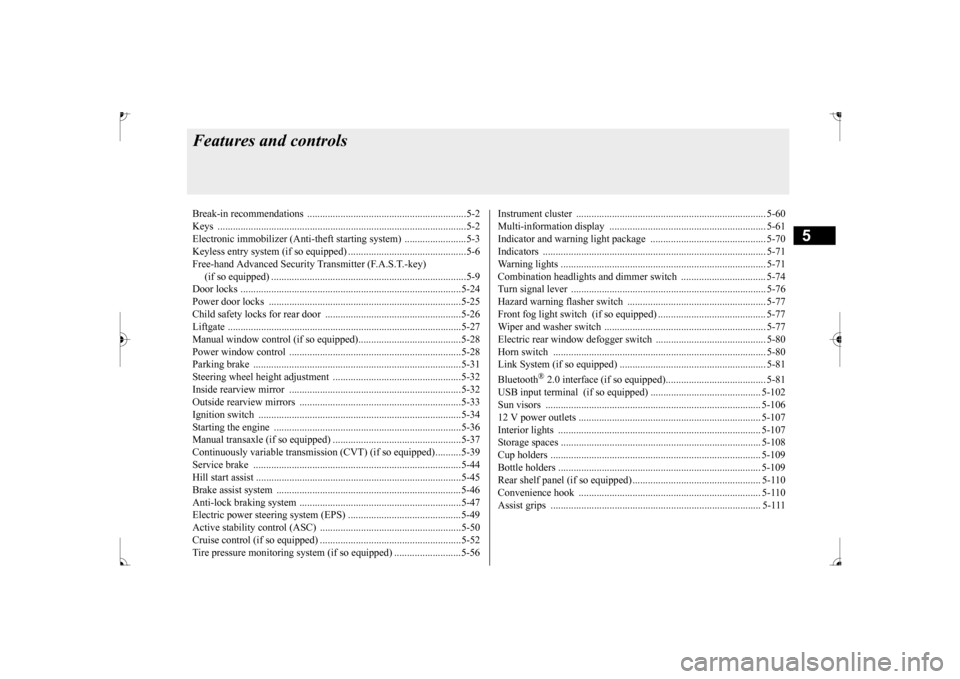

5
Features and controlsBreak-in recommendations ..............................................................5-2 Keys .................................................................................................5-2 Electronic immobilizer (Anti-theft starting system) ........................5-3Keyless entry system (if so equipped) ..............................................5-6 Free-hand Advanced Security
Transmitter (F.A.S.T.-key)
(if so equipped) ............................................................................5-9Door locks ......................................................................................5-24 Power door locks ......
...........
...........
...........
...........
...........
.........
.....5-25
Child safety locks for rear door ..........
...........
.........
.........
.........
.....5-26
Liftgate ...........................................................................................5-27 Manual window control (if so equipped)........................................5-28 Power window control ...................................................................5-28Parking brake .................................................................................5-31 Steering wheel height adjustment ..................................................5-32 Inside rearview mirror ...................................................................5-32Outside rearview mirrors ...............................................................5-33 Ignition switch ...............................................................................5-34 Starting the engine .........................................................................5-36Manual transaxle (if so equipped) ..................................................5-37 Continuously variable transmission
(CVT) (if so equipped)..........5-39
Service brake .................................................................................5-44Hill start assist ................................................................................5-45 Brake assist system ........................................................................5-46 Anti-lock braking system ...............................................................5-47Electric power steering system (EPS) ............................................5-49 Active stability control (ASC) .......................................................5-50 Cruise control (if so equipped) .......................................................5-52Tire pressure monitoring system (if so equipped) ..........................5-56
Instrument cluster .......................................................................... 5-60 Multi-information display ............................................................. 5-61 Indicator and warning light package ............................................. 5-70Indicators ....................................................................................... 5-71 Warning lights ................................................................................ 5-71 Combination headlights and dimmer switch ................................. 5-74Turn signal lever ............................................................................ 5-76 Hazard warning flasher switch ...................................................... 5-77 Front fog light switch (if so equipped) .......................................... 5-77Wiper and washer switch ............................................................... 5-77 Electric rear window defogger switch ....
...........
...........
...........
...... 5-80
Horn switch ................................................................................... 5-80Link System (if so equipped) ......................................................... 5-81 Bluetooth
® 2.0 interface (if so equipped)....................................... 5-81
USB input terminal (if so
equipped) ....
...........
.........
........
........... 5-102
Sun visors .................................................................................... 5-106 12 V power outlets ....................................................................... 5-107 Interior lights ............................................................................... 5-107Storage spaces .............................................................................. 5-108 Cup holders .................................................................................. 5-109 Bottle holders ............................................................................... 5-109Rear shelf panel (if so equipped) .................................................. 5-110 Convenience hook ............
...........
...........
...........
...........
...........
.... 5-110
Assist grips .................................................................................. 5-111
BK0235100US.book 1 ページ ２０１５年１１月２０日\b 5 Y

Free-hand Advanced
Security Transmitter (F.A.S
.T.-key) (if so equipped)
5

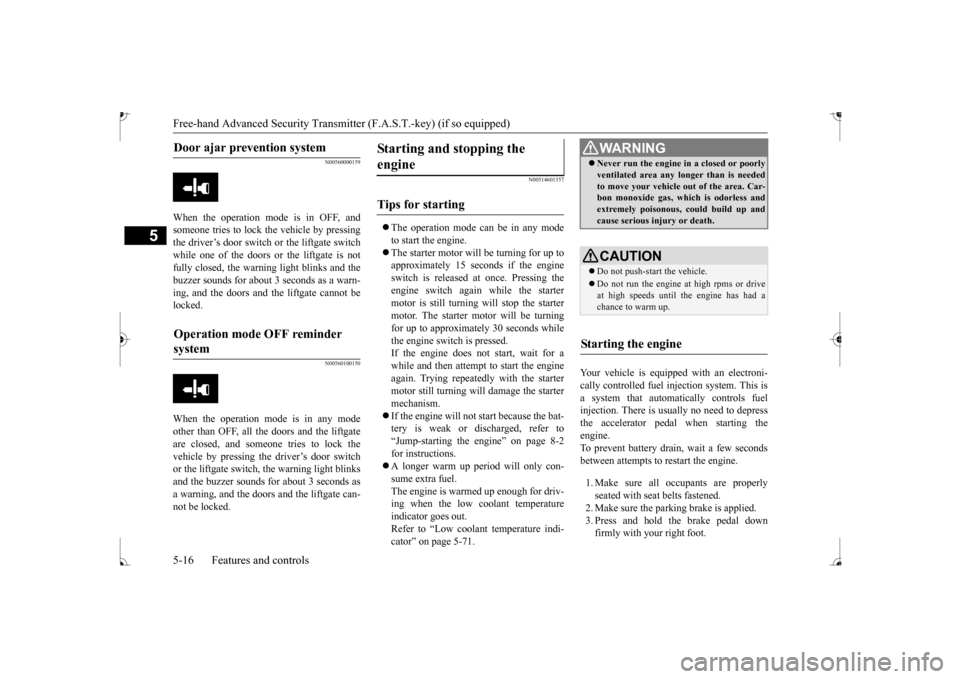

N00568000025

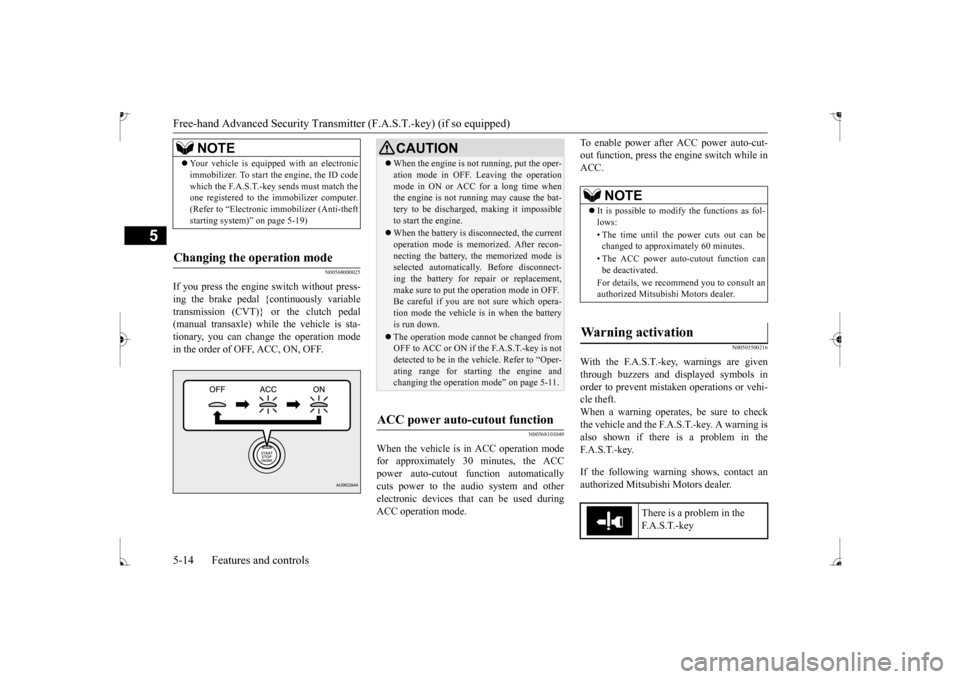

If you press the engine
switch without press-
ing the brake pedal {continuously variable transmission (CVT)} or the clutch pedal(manual transaxle) while the vehicle is sta- tionary, you can change the operation mode in the order of OFF, ACC, ON, OFF.
N00568101049
When the vehicle is in ACC operation modefor approximately 30 minutes, the ACC power auto-cutout f
unction automatically
cuts power to the audio system and otherelectronic devices that
can be used during
ACC operation mode.
To enable power after ACC power auto-cut- out function, press the
engine switch while in
ACC.
N00503500216
With the F.A.S.T.-key, warnings are given through buzzers and displayed symbols in order to prevent mistake
n operations or vehi-
cle theft. When a warning operates, be sure to check the vehicle and the F.A.S.T.-key. A warning isalso shown if there is a problem in the F. A . S . T. - k e y. If the following warning shows, contact an authorized Mitsubishi Motors dealer.
NOTE
 Your vehicle is equippe
d with an electronic
immobilizer. To start
the engine, the ID code
which the F.A.S.T.-key sends must match theone registered to the immobilizer computer. (Refer to

Free-hand Advanced
Security Transmitter (F.A.S
.T.-key) (if so equipped)
5
N00560000159
When the operation mode is in OFF, and someone tries to lock the vehicle by pressingthe driver’s door switch or the liftgate switch while one of the doors or the liftgate is not fully closed, the warni
ng light blinks and the
buzzer sounds for about
3 seconds as a warn-
ing, and the doors and the liftgate cannot be locked.
N00560100150
When the operation mode is in any modeother than OFF, all the doors and the liftgateare closed, and someone tries to lock the vehicle by pressing the driver’s door switch or the liftgate switch,
the warning light blinks
and the buzzer sounds
for about 3 seconds as
a warning, and the doors and the liftgate can- not be locked.
N00514601357
 The operation mode can be in any mode to start the engine.  The starter motor will be turning for up to approximately 15 seconds if the engine switch is released at once. Pressing the engine switch again while the starter motor is still turning will stop the starter motor. The starter motor will be turningfor up to approximate
ly 30 seconds while
the engine switch is pressed. If the engine does not start, wait for awhile and then attempt to start the engine again. Trying repeatedly with the starter motor still turning will damage the startermechanism.  If the engine will not
start because the bat-
tery is weak or discharged, refer to“Jump-starting the engine” on page 8-2 for instructions.  A longer warm up period will only con- sume extra fuel. The engine is warmed up enough for driv- ing when the low coolant temperatureindicator goes out. Refer to “Low coolant temperature indi- cator” on page 5-71.
Your vehicle is equipped with an electroni- cally controlled fuel injection system. This is a system that automatically controls fuelinjection. There is usually no need to depress the accelerator pedal when starting the engine.To prevent battery drain, wait a few seconds between attempts to restart the engine. 1. Make sure all occupants are properly seated with seat belts fastened.2. Make sure the parking brake is applied. 3. Press and hold the brake pedal down firmly with your right foot.
Door ajar prevention system

Operation mode OFF reminder system

Starting and stopping the engine

Tips for starting

WA R N I N G Never run the engine in
a closed or poorly
ventilated area any longer than is neededto move your vehicle
out of the area. Car-
bon monoxide gas, wh
ich is odorless and
extremely poisonous, could build up and cause serious injury or death.CAUTION Do not push-start the vehicle.Do not run the engine at high rpms or drive at high speeds until
the engine has had a
chance to warm up.
Starting the engine

BK0235100US.book 16 ページ ２０１５年１１月２０日　金曜日　午後３時１２分
