Fig. 33: Flow Chart DR-4 (1.5L)
DR-5: CODE 14 THROTTLE POSITION SENSOR CIRCUIT - 1.5L

Fig. 34: Circuit Diagram DR-5 (1.5L)

Fig. 35: Flow Chart DR-5 (1.5L) (1 of 2)

Fig. 36: Flow Chart DR-5 (1.5L) (2 of 2)
DR-6: CODE 15 MOTOR POSITION SENSOR CIRCUIT - 1.5L

Fig. 37: Circuit Diagram DR-6 (1.5L)
Fig. 38: Flow Chart DR-6 (1.5L) (1 of 2)

Fig. 39: Flow Chart DR-6 (1.5L) (2 of 2)
DR-7: CODE 21 COOLANT TEMP. SENSOR CIRCUIT - 1.5L

Fig. 40: Circuit Diagram DR-7 (1.5L)

Fig. 41: Flow Chart DR-7 (1.5L) (1 of 2)

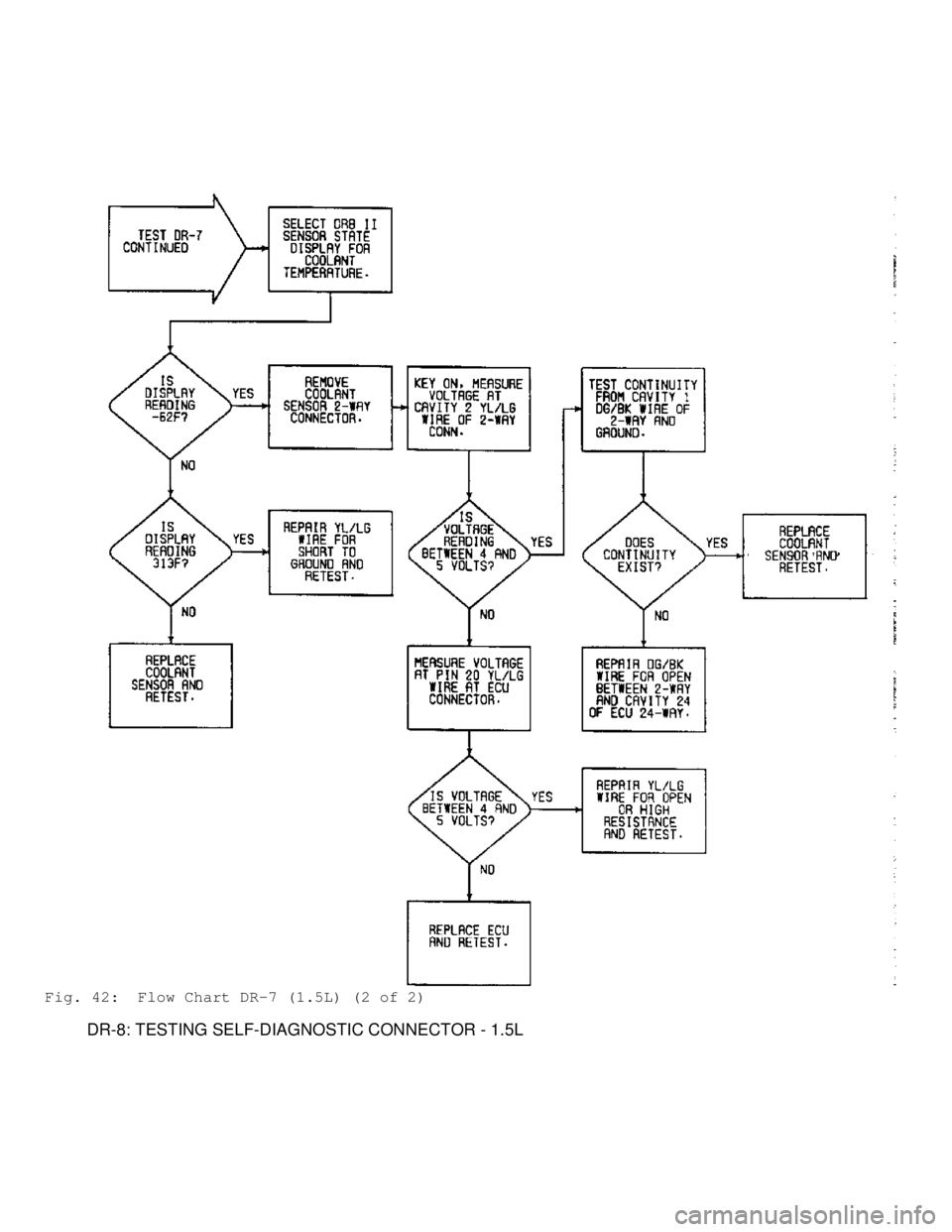

Fig. 42: Flow Chart DR-7 (1.5L) (2 of 2)
DR-8: TESTING SELF-DIAGNOSTIC CONNECTOR - 1.5L

Fig. 43: Circuit Diagram DR-8 (1.5L)
Fig. 44: Flow Chart DR-8 (1.5L)
DR-9: CODE 23 TOP DEAD CENTER SENSOR CIRCUIT - 1.5L
