MITSUBISHI MONTERO 1991 Service Manual

Fig. 45: Circuit Diagram DR-9 (1.5L)

Fig. 46: Flow Chart DR-9 (1.5L)
DR-10: CODE 24 VEHICLE SPEED SENSOR CIRCUIT - 1.5L

Fig. 47: Circuit Diagram DR-10 (1.5L)
Fig. 48: Flow Chart DR-10 (1.5L) (1 of 2)

Fig. 49: Flow Chart DR-10 (1.5L) (2 of 2)
DR-11: CODE 25 BAROMETRIC PRESSURE SENSOR CIRCUIT - 1.5L

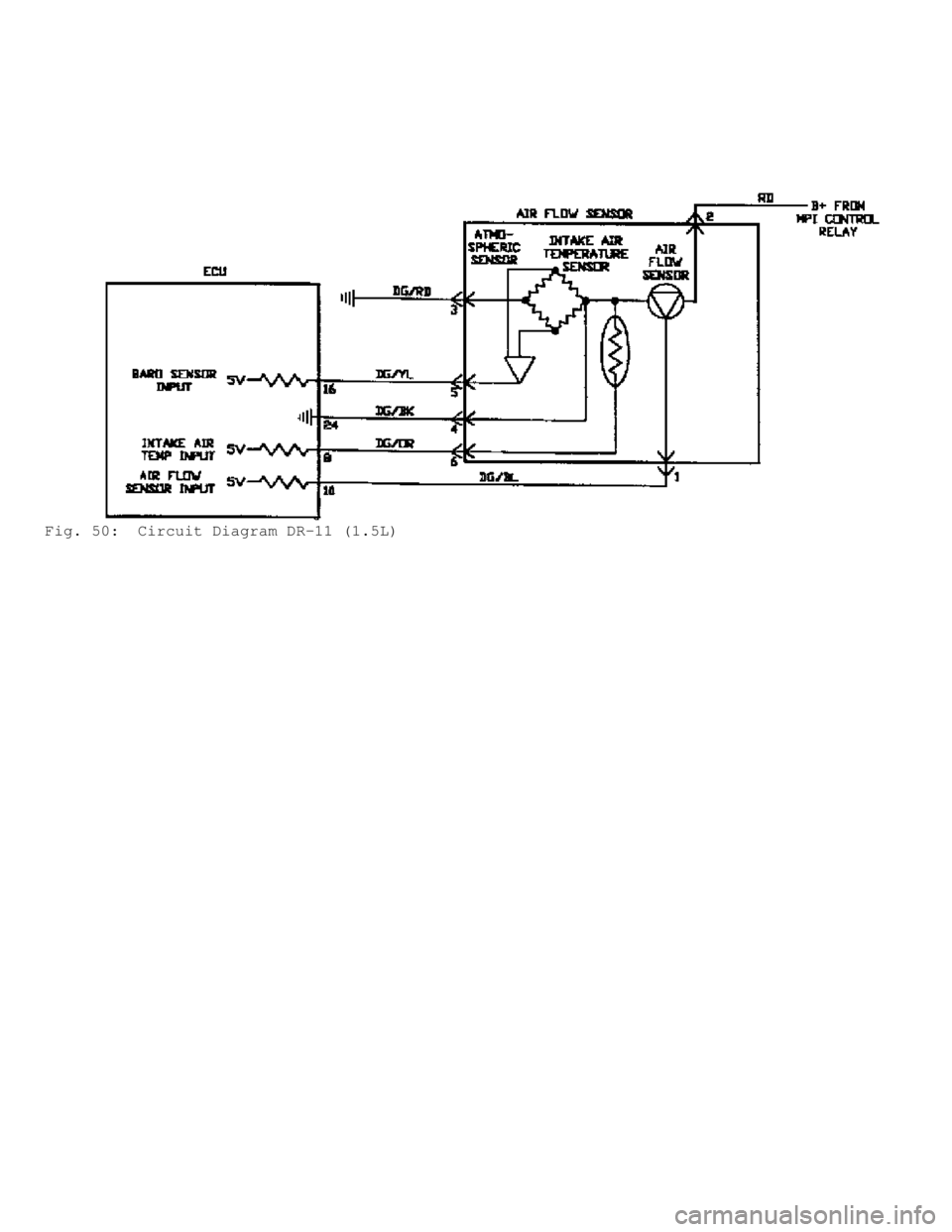

Fig. 50: Circuit Diagram DR-11 (1.5L)

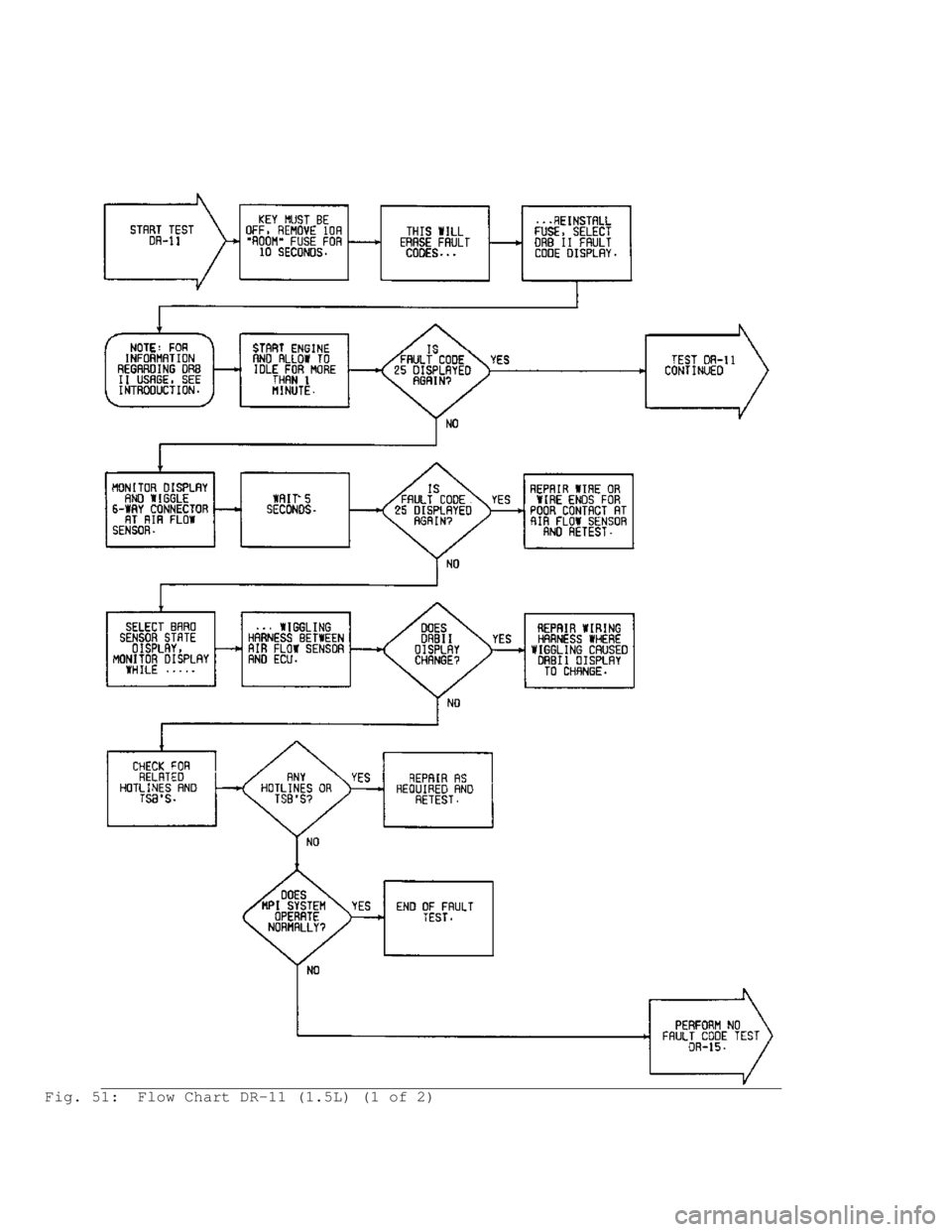

Fig. 51: Flow Chart DR-11 (1.5L) (1 of 2)

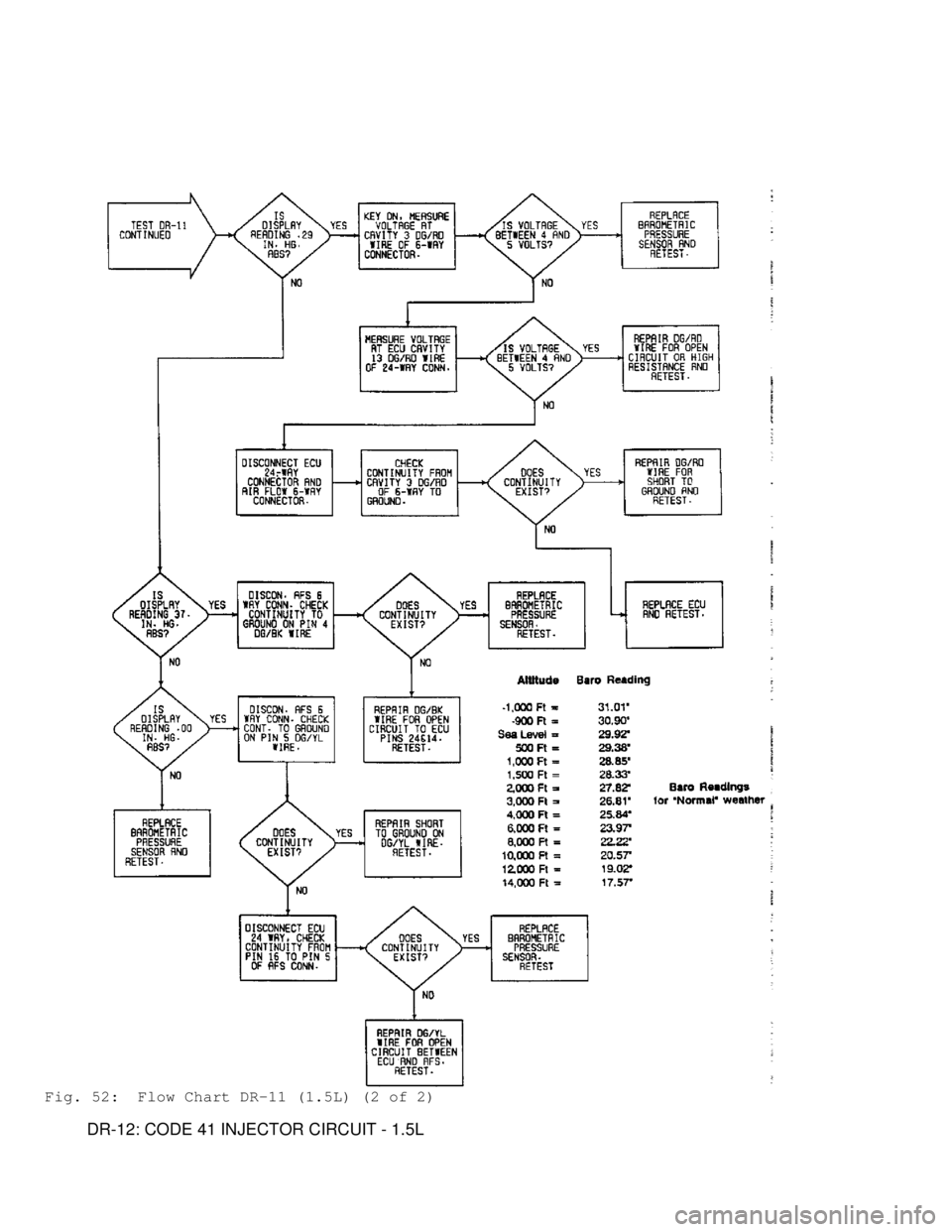

Fig. 52: Flow Chart DR-11 (1.5L) (2 of 2)
DR-12: CODE 41 INJECTOR CIRCUIT - 1.5L

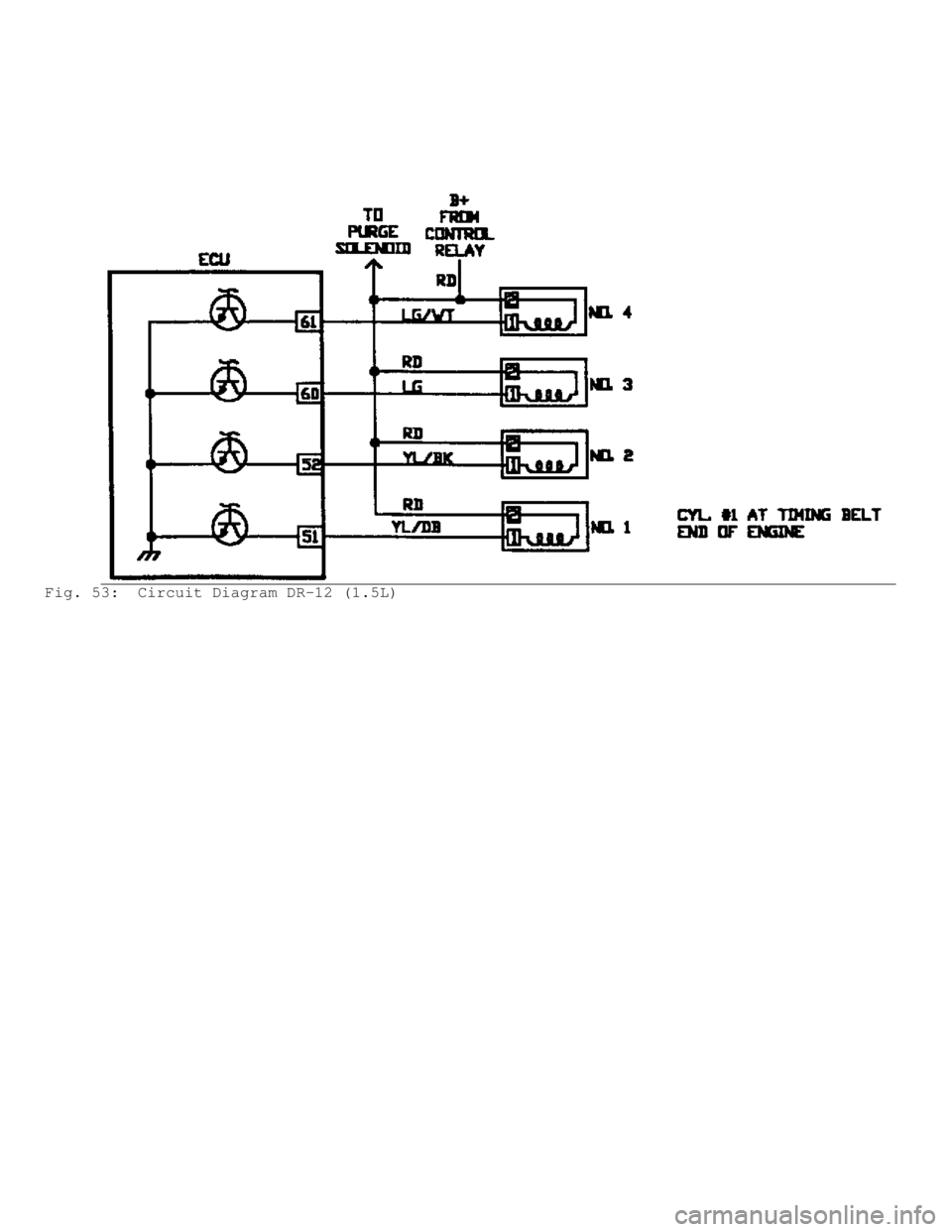

Fig. 53: Circuit Diagram DR-12 (1.5L)

Fig. 54: Flow Chart DR-12 (1.5L) (1 of 2)

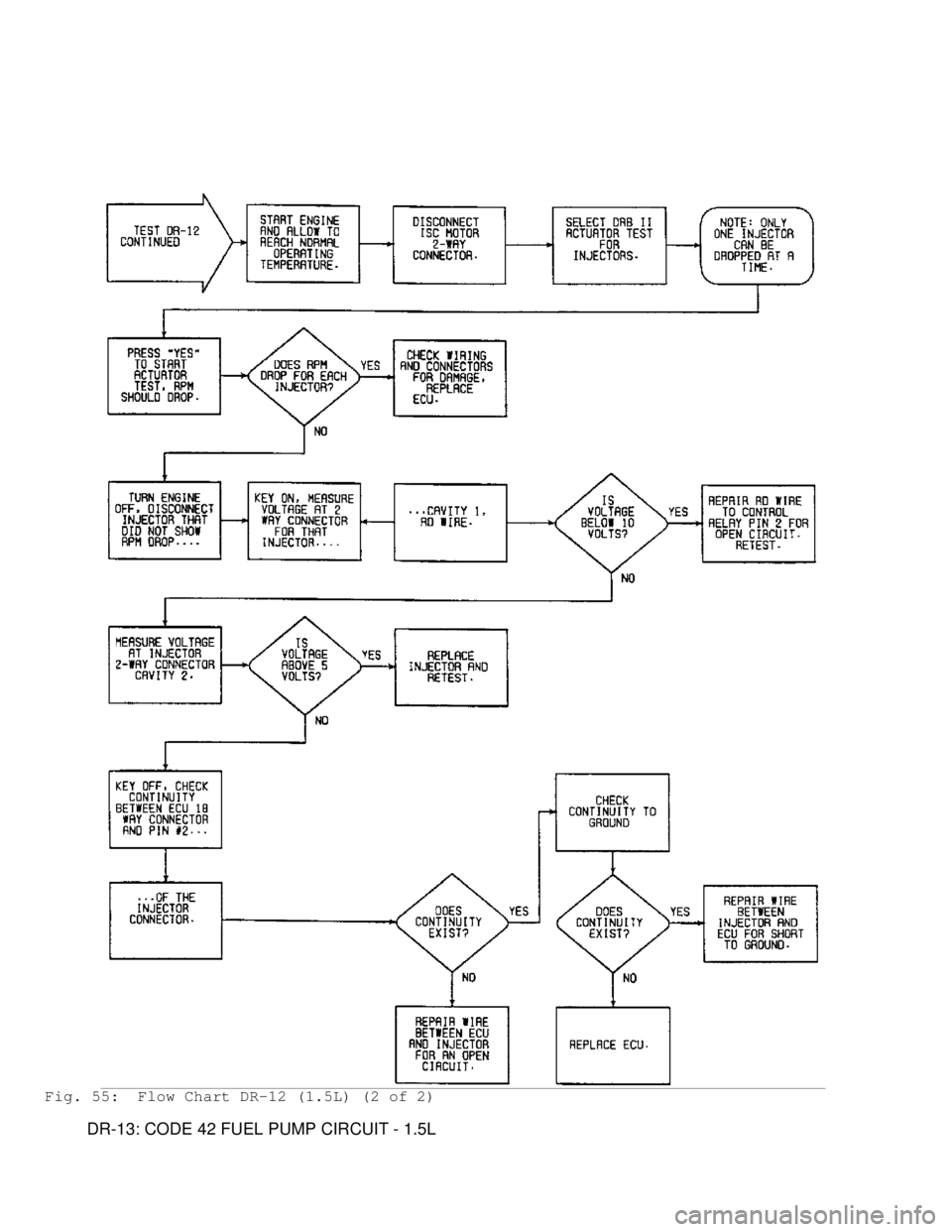

Fig. 55: Flow Chart DR-12 (1.5L) (2 of 2)
DR-13: CODE 42 FUEL PUMP CIRCUIT - 1.5L
