MITSUBISHI MONTERO 1991 Service Manual

Fig. 56: Circuit Diagram DR-13 (1.5L)

Fig. 57: Flow Chart DR-13 (1.5L)
DR-14: CODE 43 EGR TEMPERATURE SENSOR CIRCUIT - 1.5L

Fig. 58: Circuit Diagram DR-14 (1.5L) Circuit

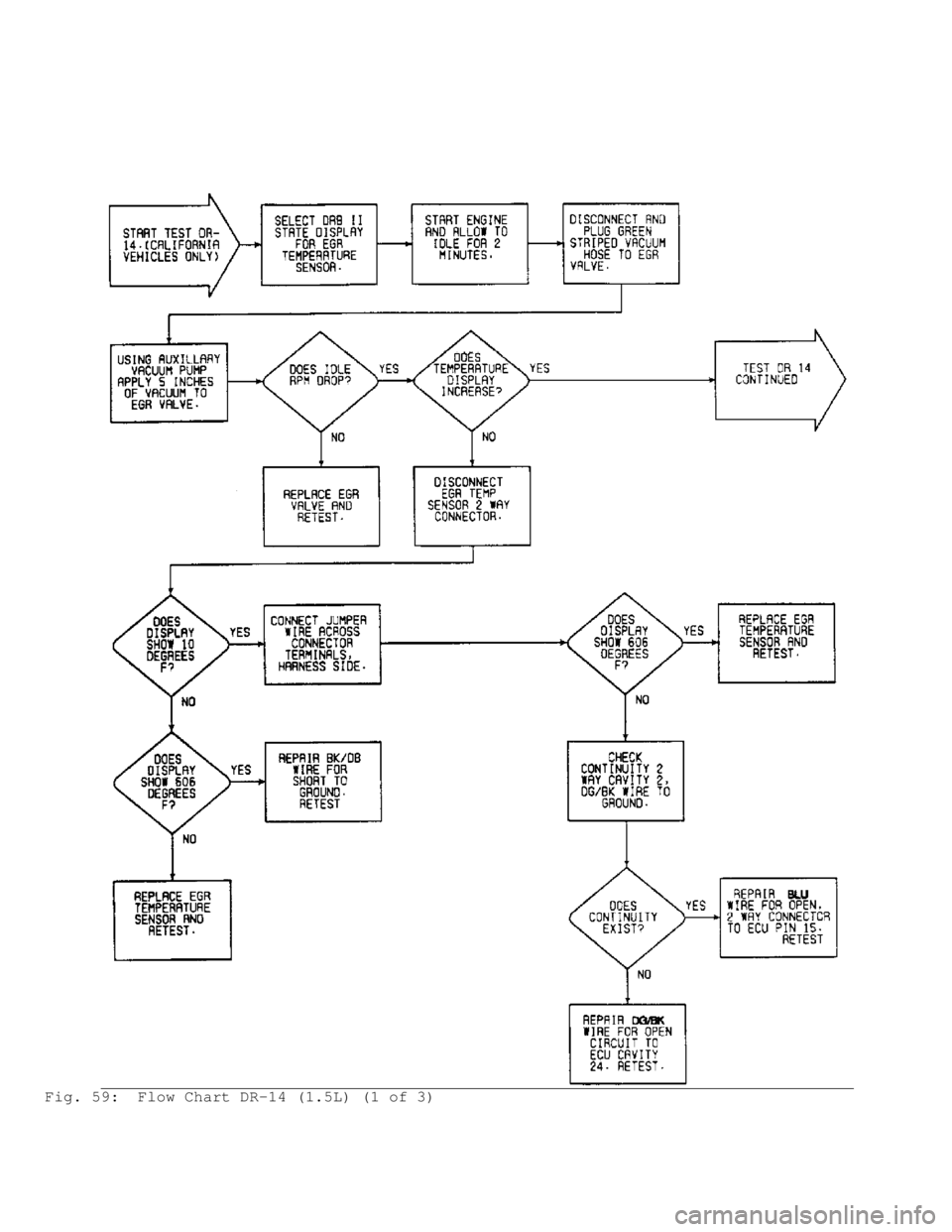

Fig. 59: Flow Chart DR-14 (1.5L) (1 of 3)

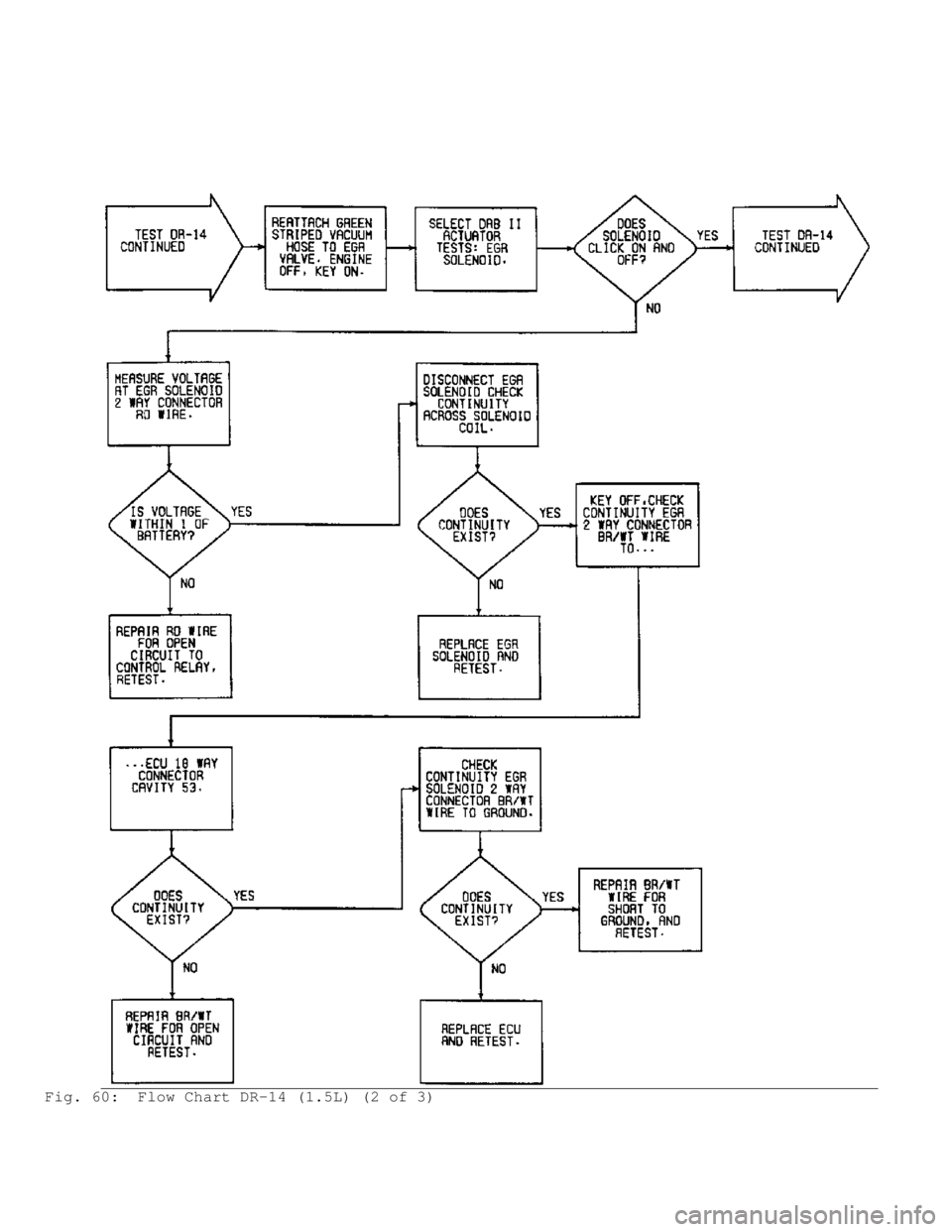

Fig. 60: Flow Chart DR-14 (1.5L) (2 of 3)

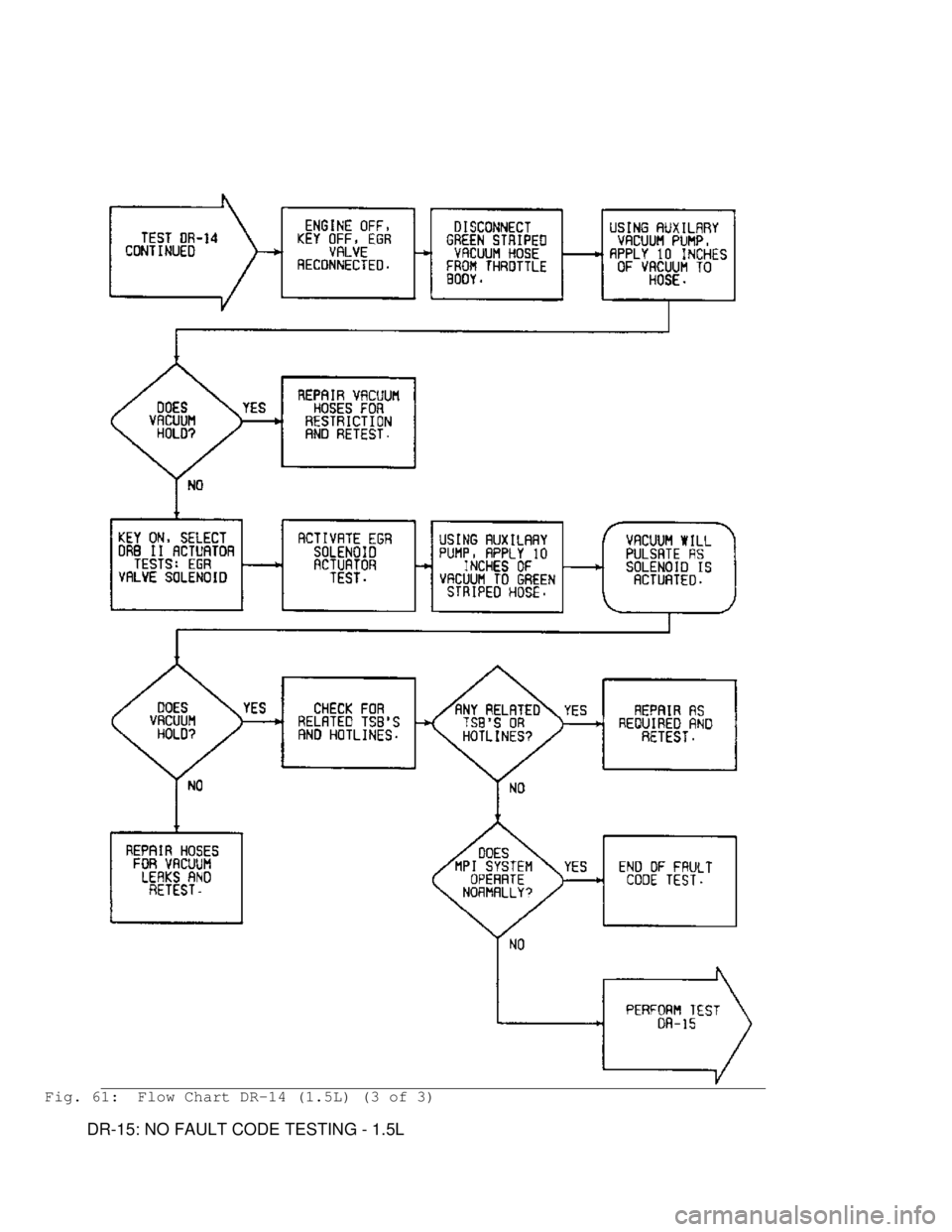

Fig. 61: Flow Chart DR-14 (1.5L) (3 of 3)
DR-15: NO FAULT CODE TESTING - 1.5L

Fig. 62: Circuit Diagram DR-15 (1.5L)
Fig. 63: Flow Chart DR-15 (1.5L)

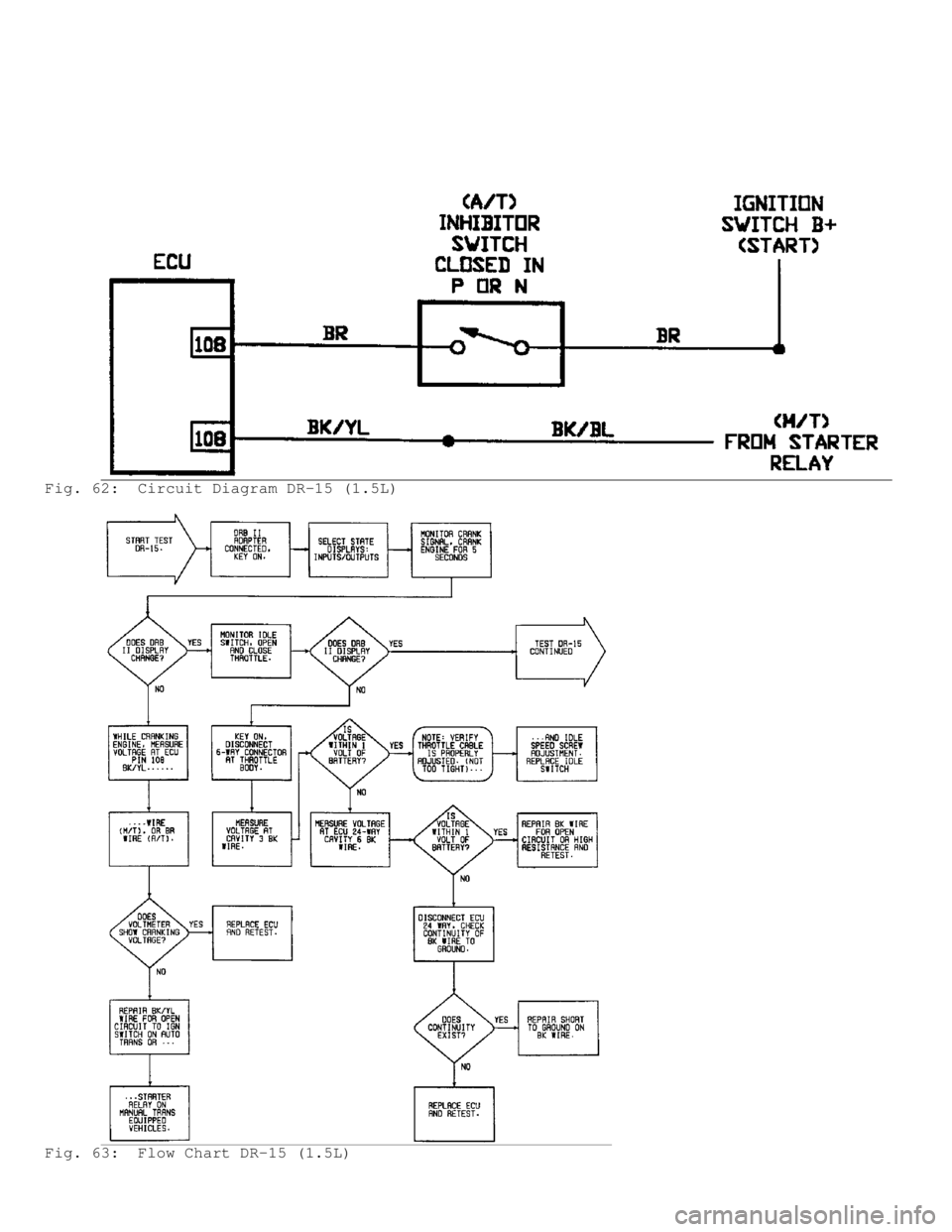

Fig. 64: Circuit Diagram DR-15 (1.5L)

Fig. 65: Flow Chart DR-15 (1.5L)
DR-16: NO FAULT CODE SENSOR TEST - 1.5L
DR-16 NO FAULT CODE SYSTEM TEST TABLE










\









\









\









\









\









\






DRBII
EGR Temp. Display Engine Conditions
160
F ........................................... Hot Idle
350F ................................ 25 MPH at 3,500 RPM
311F ................................ 55 MPH at 3,500 RPM








\









\









\









\









\









\






Fig. 66: Circuit Diagram DR-16 (1.5L) (1 of 2)
Fig. 67: Circuit Diagram DR-16 (1.5L) (2 of 2)
