Page 1331 of 1501

MITSUBISHI MONTERO 1998  Service Manual Instrument Cluster Circuit (3 of 3)
         INTERIOR LIGHTS

Page 1332 of 1501

MITSUBISHI MONTERO 1998  Service Manual Courtesy Lamps Circuit

Page 1333 of 1501

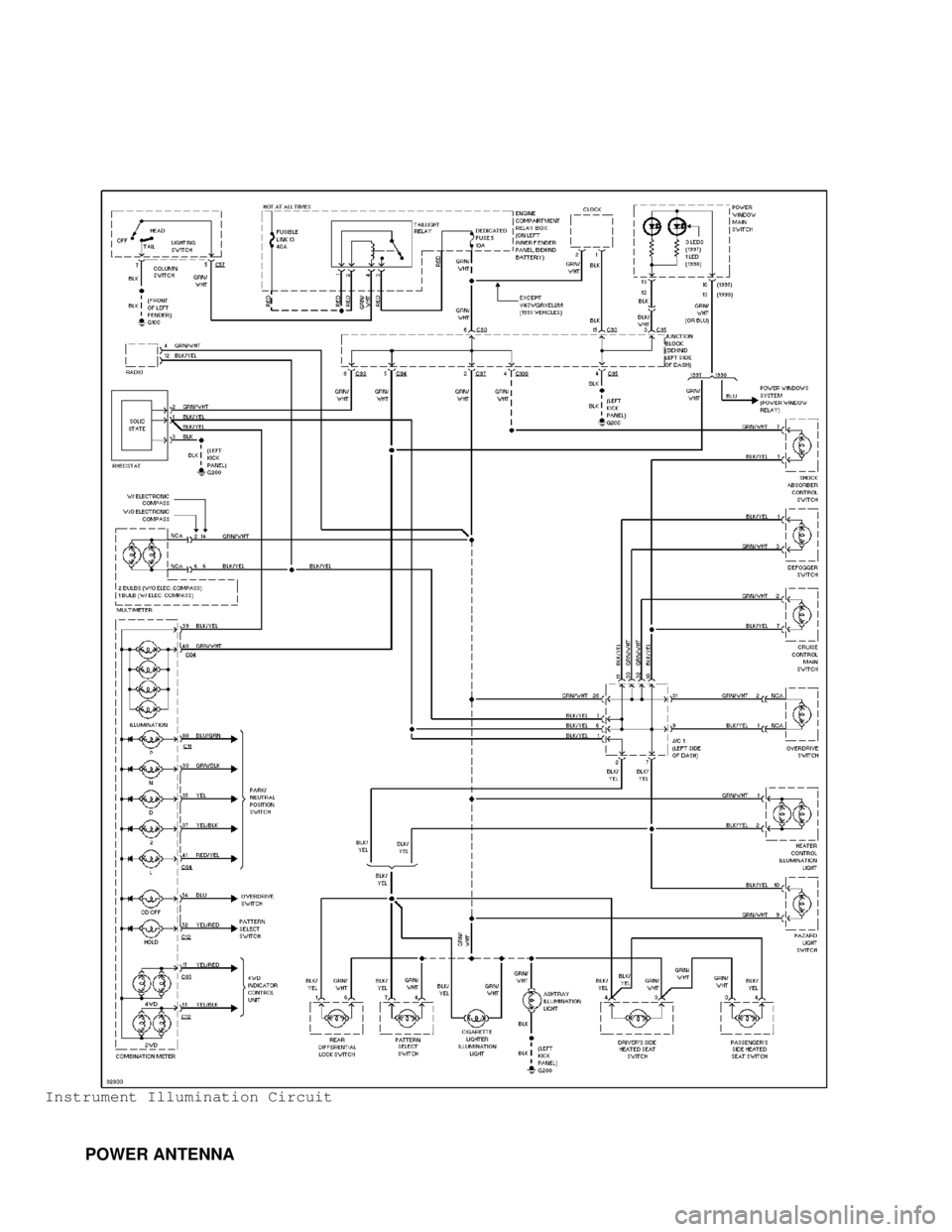

MITSUBISHI MONTERO 1998  Service Manual Instrument Illumination Circuit
         POWER ANTENNA

Page 1334 of 1501

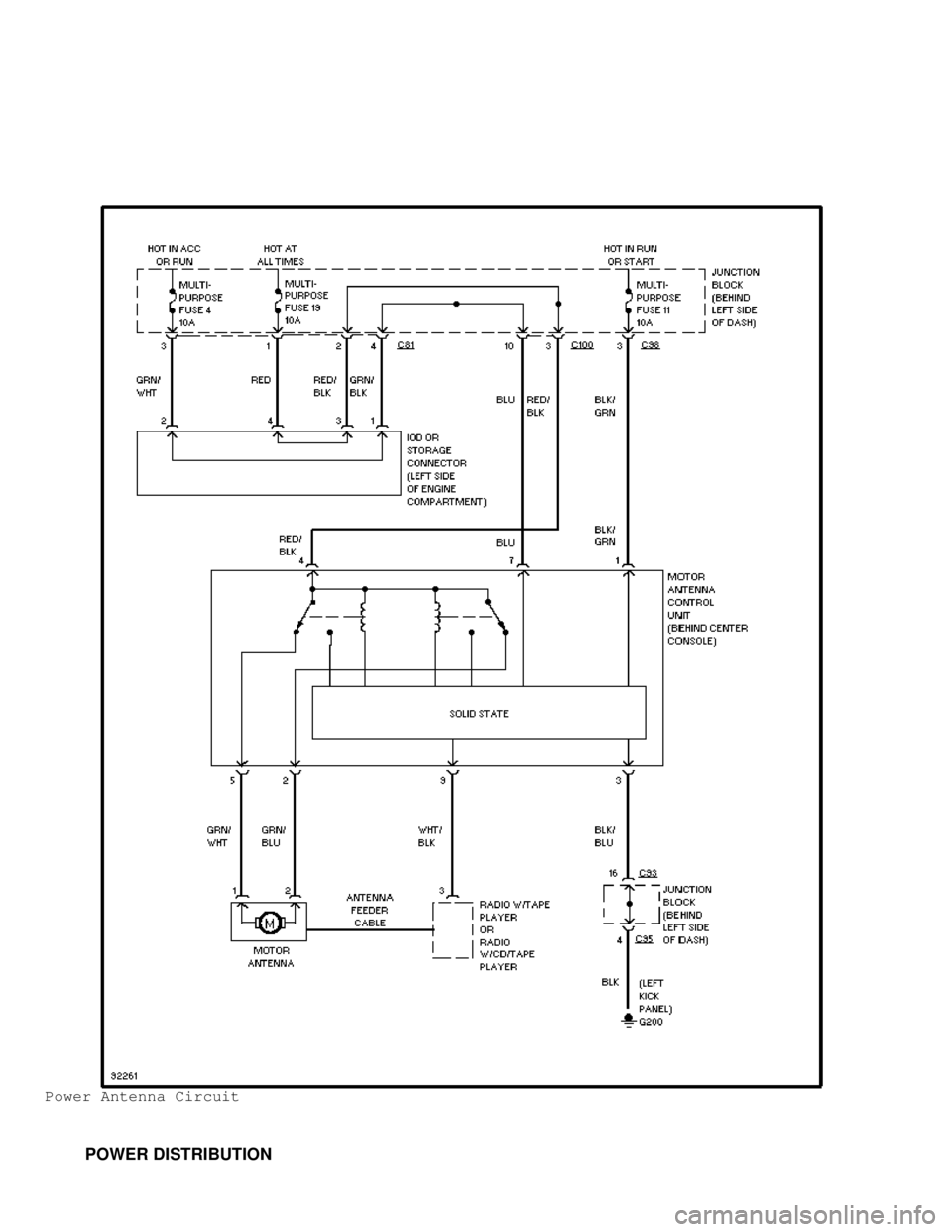

MITSUBISHI MONTERO 1998  Service Manual Power Antenna Circuit
         POWER DISTRIBUTION

Page 1335 of 1501

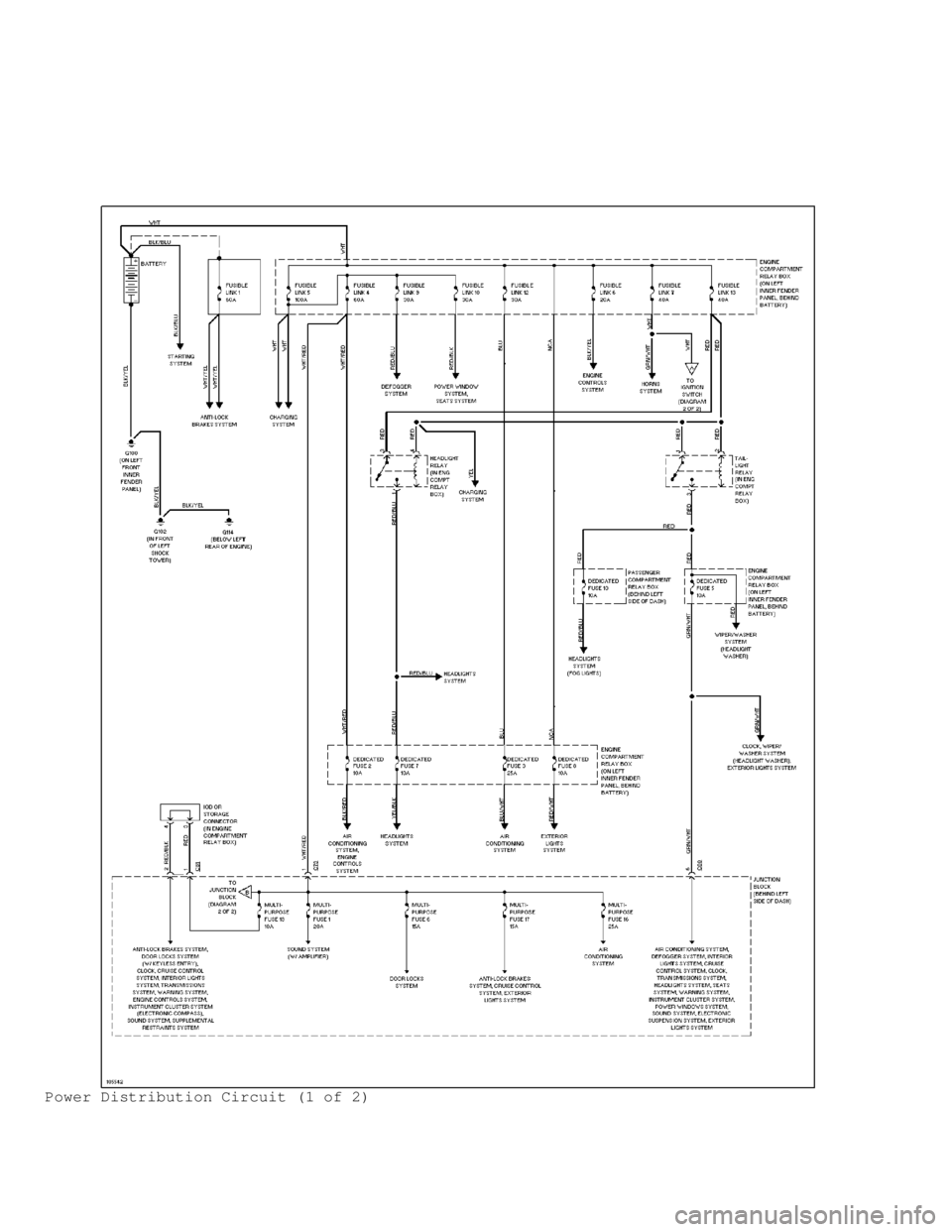

MITSUBISHI MONTERO 1998  Service Manual Power Distribution Circuit (1 of 2)

Page 1336 of 1501

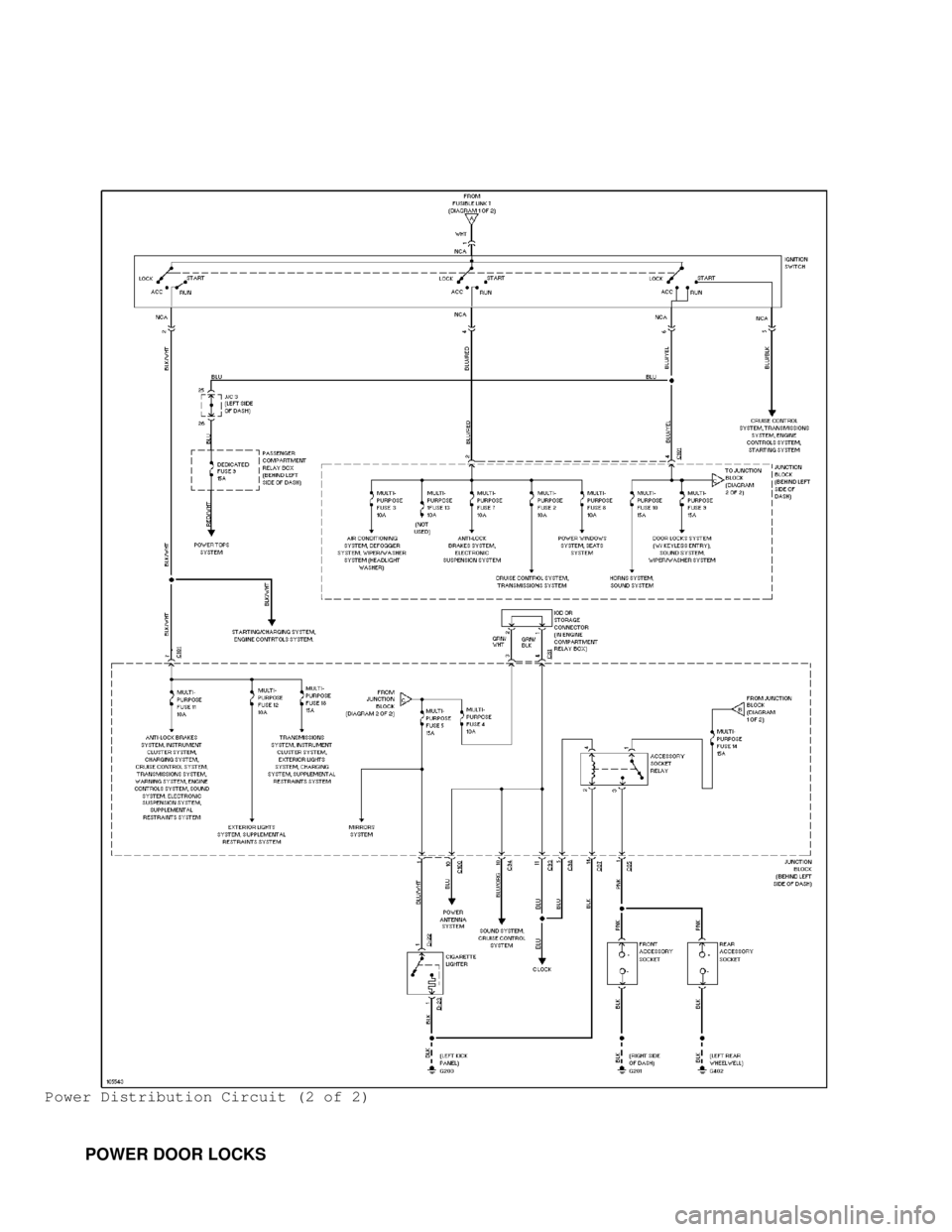

MITSUBISHI MONTERO 1998  Service Manual Power Distribution Circuit (2 of 2)
         POWER DOOR LOCKS

Page 1337 of 1501

MITSUBISHI MONTERO 1998  Service Manual Power Door Lock Circuit, W/ Keyless Entry

Page 1338 of 1501

MITSUBISHI MONTERO 1998  Service Manual Power Door Lock Circuit, W/O Keyless Entry
         POWER MIRRORS

Page 1339 of 1501

MITSUBISHI MONTERO 1998  Service Manual Power Mirror Circuit
         POWER SEATS

Page 1340 of 1501

MITSUBISHI MONTERO 1998  Service Manual Heated Seats Circuit
