be caused by
faulty alignment ....... A ............. Require alignment.
Part has been changed,
affecting alignment .... A ....... Require alignment check.
Pull, shown to be caused
by faulty alignment .... A ............. Require alignment.
Steering wheel
off-center ............. 2 ............. Suggest alignment.
Tire wear, shown
to be caused by
faulty alignment ....... A ............. Require alignment.
Wander, shown
to be caused by
faulty alignment ....... A ............. Require alignment.
\
\
\
\
\
\
\
WHEELS AND TIRES
TIRES
These guidelines do not apply to split rims. Some vehicle
manufacturers restrict replacement of tires to specific brands, types,
or sizes.
WARNING: High pressure temporary compact spare tires should not be
used with any other rims or wheels, nor should standard
tires, snow tires, wheel covers, or trim rings be used
with high pressure compact spare rims or wheels.
Attempting to mount a tire of one diameter on a wheel of
a different diameter or flange type may result in serious
injury or death.
WARNING: Only specially trained persons should dismount or mount
tires. Explosions of tire and wheel assembly can result
from improper mounting, possibly causing serious injury
or death.
WARNING: Consult the vehicle owner's manual or vehicle placard for
correct size, speed rating, designation, and cold
inflation pressure of the original tires. DO NOT exceed
the maximum load or inflation capacity of the tire
specified by the Tire and Rim Association
WARNING: When replacing tires, it is suggested that the
replacement tires match or exceed the OEM speed rating
designation. If tires of different speed rating
designations are mixed on the same vehicle, the tires may
vary in handling characteristics. DO NOT mix different
speed rating designations on the same axle.
WARNING: DO NOT mix radials with non-radial tires on the same
axle, as this may affect vehicle handling and stability.
If radial tires and bias or bias-belted ply tires are
mixed on the same vehicle, the radials must be on the
rear. High-pressure temporary compact spare tires are
exempt from this rule.
WARNING: DO NOT mix size or type (all season, performance, mud and
snow) of tires on the same axle.
TIRE INSPECTION
\
\
\
\
\
\
\
Page 1292 of 1501
Condition Code Procedure
Air pressure incorrect .. B .................. Require repair
Bead broken ............. A ............ Require replacement.
Bead leaking, caused
by tire ................ A .. Require repair or replacement.
Bead wire/cord exposed .. A ............ Require replacement.
Cord or belt material
exposed ................ A ............ Require replacement.
Cord ply separations .... A ............ Require replacement.
Directional/asymmetrical
tires mounted
incorrectly ............ B ....... Require remounting and/or
repositioning.
Irregular tread wear,
affecting performance .. 2 ........ (1) Suggest replacement.
Load ratings less
than OEM
specifications ......... B ............ Require replacement.
Mixed tread types (all
season, performance, mud
and snow) on same axle . A ............ Require replacement.
Number of punctures
exceeds manufacturer's
limit .................. B ............ Require replacement.
Out of balance .......... B . Require rebalance of tire/wheel
assembly.
Ply separation .......... A ............ Require replacement.
Pull or lead, caused
by tire ................ A .. Require repair or replacement.
Radial and bias or
bias-belted ply tires
on same axle ........... B .. Require repair or replacement.
Radials are on the front
and not on the rear .... B ........... ( 2) Require repair or
replacement.
Run flat damage ......... A ............ Require replacement.
Shoulder cut ............ A ............ Require replacement.
Shoulder puncture ....... A ............ Require replacement.
Shoulder with plug ...... A ............ Require replacement.
Sidewall bulge .......... A ............ Require replacement.
Sidewall cut ............ A ............ Require replacement.
Sidewall indentation .... .. ......... No service required or
suggested.
Sidewall puncture ....... A ............ Require replacement.
Sidewall with plug ...... A ............ Require replacement.
Speed rating
designations
different
on same axle ........... 2 .. Suggest repair or replacement.
Tire and wheel assembly
has excessive run-out .. B ........... ( 3) Require repair or
replacement of appropriate
part.
Tires with more than
1/4" diameter difference
on a four-wheel drive
vehicle ................ B ............ Require replacement.
Tread area puncture larger
in diameter than
manufacturer's
specifications ......... B ............ Require replacement.
Tread missing pieces
Page 1293 of 1501
(chunking),
exposing cord .......... A ............ Require replacement.
Tread missing pieces
(chunking), not
exposing cord .......... 1 ............ Suggest replacement.
Tread separations A ............ Require replacement.
Tube in tubeless tire 3 .... (4) Suggest removal of tube.
Weather-checking ........ .. ......... No service required or
suggested.
Worn to tread wear
indicators ............. B ............ Require replacement.
( 1) - Determine and correct cause of irregular tire wear.
( 2) - If radials and bias or bias-belted ply tires are on the
same vehicle, the radials must be on the rear axle,
except for high-pressure temporary spares.
( 3) - Excessive is defined as enough to contribute to
performance problems. Match mounting may correct
run-out. If not, require replacement of appropriate
part. Refer to manufacturer's specifications.
( 4) - Most manufacturers do not recommend tubes in tubeless
tires. Inspect tire and wheel assembly to determine
the reason for a tube in tubeless tire. Recommendation
for repair or replacement should be based upon condition
of tires and/or wheel listed in these guidelines.
\
\
\
\
\
\
\
VALVE STEMS
VALVE STEM INSPECTION \
\
\
\
\
\
\
Condition Code Procedure
Bent .................... 1 ........... Suggest replacement.
Broken .................. A ........... Require replacement.
Cut, but not leaking .... 1 ........... Suggest replacement.
Deteriorated
(cracking, dry rot) .... 1 ........... Suggest replacement.
Leaking ................. A . Require repair or replacement.
Missing ................. C ........... Require replacement.
Threads damaged ......... A . Require repair or replacement.
Threads stripped ........ A ........... Require replacement.
Valve cap missing ....... C .... Require replacement of cap.
Weather-checking ........ 1 ........... Suggest replacement.
Won't take air .......... A . Require repair or replacement.
\
\
\
\
\
\
\
WHEEL ATTACHMENT HARDWARE
For conditions noted below, also check conditions of wheel
stud holes.
CAUTION: Proper lug nut torque is essential. Follow recommended
torque specifications and tightening sequence. DO NOT
lubricate threads unless specified by the vehicle
manufacturer.
WHEEL ATTACHMENT HARDWARE INSPECTION
\
\
\
\
\
\
\
Condition Code Procedure
Bent .................... A ............ Require replacement.
Broken .................. A ........ ( 1) Require replacement.
Page 1294 of 1501
Loose ................... B ... Require repair or replacement
of affected component.
Lug nut installed
backward ............... B .. Require repair or replacement.
Lug nut mating type
incorrect .............. B ..... Require replacement of nut.
Lug nut mating surface
dished ................. A ..... Require replacement of nut.
Lug nut rounded ......... A . (2) Require replacement of nut.
Lug nut seized .......... A . ( 2) Require replacement of nut.
Stud incorrect .......... B .... Require replacement of stud.
Threads damaged ......... A ... Require repair or replacement
of component with damaged
threads.
Threads stripped ........ A .......... Require replacement of
component with stripped
threads.
( 1) - Some manufacturers require replacement of all studs on
that wheel if two or more studs or nuts on the same
wheel are broken or missing.
( 2) - Only required if removing wheel.
\
\
\
\
\
\
\
WHEELS (RIMS)
WARNING: Mounting a regular tire on a high-pressure compact spare
wheel is not permitted. Attempting to mount a tire of one
diameter on a wheel of a different diameter or flange
type may result in serious injury or death. If the wheel
identification stamp is not legible, or cannot be found,
do not use the wheel until the size and type have been
properly identified. Wheels of different diameter,
offset, or width cannot be mixed on the same axle. Bead
seat tapers cannot be interchanged.
WHEEL (RIM) INSPECTION
\
\
\
\
\
\
\
Condition Code Procedure
Bead leaking, caused
by wheel ............... A ........... ( 1) Require repair or
replacement.
Bent hub mounting
surface ................ A ............ Require replacement.
Bent rim, causing
vibration .............. 2 ........ ( 1) Suggest replacement.
Broken .................. A ............ Require replacement.
Cast wheel porous,
causing a leak ......... A .. Require repair or replacement.
Clip-on balance weight is
incorrect type
for rim flange ......... 2 ............ Suggest replacement.
Corrosion, affecting
structural integrity ... A ............ Require replacement.
Corrosion build-up on
wheel mounting
surface ................ A ................. Require repair.
Cracked ................. A ............ Require replacement.
Directional/asymmetrical
wheels mounted
incorrectly ............ B ....... Require remounting and/or
repositioning.
Page 1295 of 1501
Load capacity less than
OEM specifications ..... B ............ Require replacement.
Offset mismatched
on same axle ........... B ............ Require replacement.
Rivets leaking .......... A ............ Require replacement.
Run-out beyond
OEM specs .............. B ............ Require replacement.
Stud holes elongated .... A ........ (2) Require replacement.
Welded or brazed
repair ................. 2 ............ Suggest replacement.
Welds leaking ........... A ............ Require replacement.
Wheel centering (pilot)
hole incorrect ......... B ............ Require replacement.
( 1) - CAUTION: DO NOT attempt to correct a bent rim.
( 2) - Inspect wheel attaching hardware for damage.
\
\
\
\
\
\
\
Page 1296 of 1501
* SYMPTOM CHECK LIST *
1998 Mitsubishi Montero

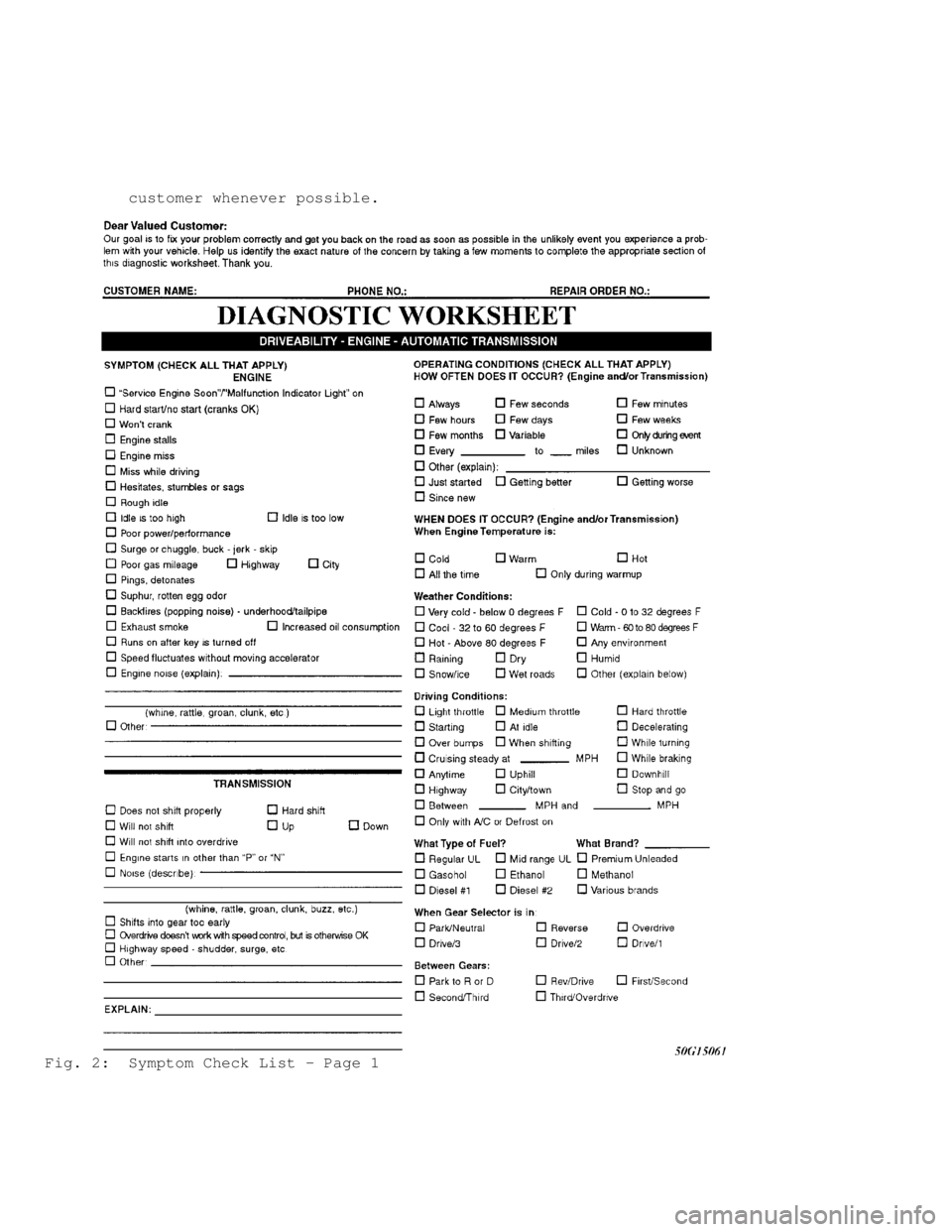

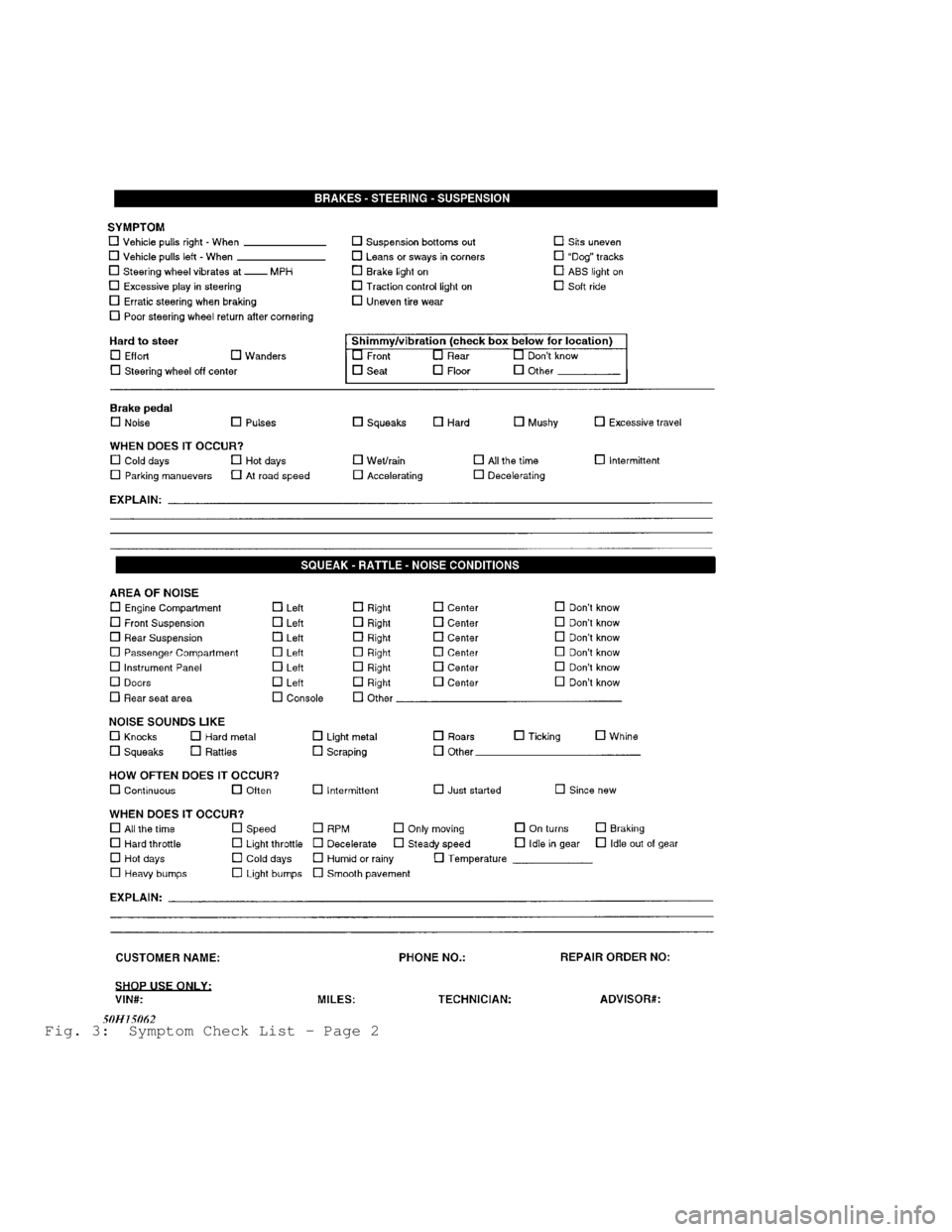

SYMPTOM CHECK LIST WORKSHEETS
* PLEASE READ THIS FIRST *
NOTE: This article is intended for general information purposes
only. It does not apply specifically to one make or model.
PURPOSE
Why Use the Symptom Check List Worksheets?
One of the most difficult and critical lines of communication
is between the service customer and the technician. The clearer the
technician understands the customer's concerns, the more likely the
problem will be "fixed right the first time".
The Symptom Check List Worksheets in this article are
designed to improve this communication. When used consistently, they
can be helpful in reducing shop comebacks, increasing technician
productivity, and producing satisfied customers. They also provide
other benefits:
* Reduce "No Trouble Found" problems
* Increase customer involvement
* Customer perceive that "they really care and listen"
* Save time during peak write-up periods
* Reduce recontacting customers for additional information
* Improve night drop information
* Insure all the right questions are asked at write-up
Making the Worksheets a Part of Your Normal Routine
The following information contains ideas that may be helpful
in forming habits that promote daily use of the Symptom Check Lists:
* HAVE THE SERVICE ADVISER FILL OUT THE FORM(S) WITH THE
CUSTOMER WHENEVER POSSIBLE.
* Place them in your night drop for the customer to fill out,
along with an instruction sheet to help them understand what
to do.
* Hand out the worksheets to customers while they wait in line
during the peak morning rush and ask them to fill it out. It
will save time for all concerned and improve the quality of
information received from the customer.
* Make sure it is attached to the hard copy when it goes to the
technician.
* Place a copy with the final repair papers and review it with
the customer at delivery.
* Put a new worksheet in the glovebox of all departing
customers.
* Require that you personally see a copy of all worksheets
filled out for shop comebacks.
* Hold a shop meeting to get employee buy-in and their ideas on
how to make it effective in your shop.
There are many other ways to utilize the concept, but as with
every other idea, successful implementation depends on employee
involvement and buy-in.
SYMPTOM CHECK LIST WORKSHEETS
Page 1297 of 1501
CONDENSED VERSION - ALL ON ONE PAGE
NOTE: Have the service adviser fill out this form with the customer
whenever possible.
Fig. 1: Entire Vehicle - Symptom Check List For Customer
FULL VERSION - ALL ON FOUR PAGES
NOTE: Have the service adviser fill out these forms with the
Page 1298 of 1501
customer whenever possible.
Fig. 2: Symptom Check List - Page 1
Page 1299 of 1501
Fig. 3: Symptom Check List - Page 2
Page 1300 of 1501
Fig. 4: Symptom Check List - Page 3
