MITSUBISHI MONTERO 1998 Service Manual Fig. 9: Wiring Diagram (Eclipse 2.4L - 1 Of 2)

Page 909 of 1501

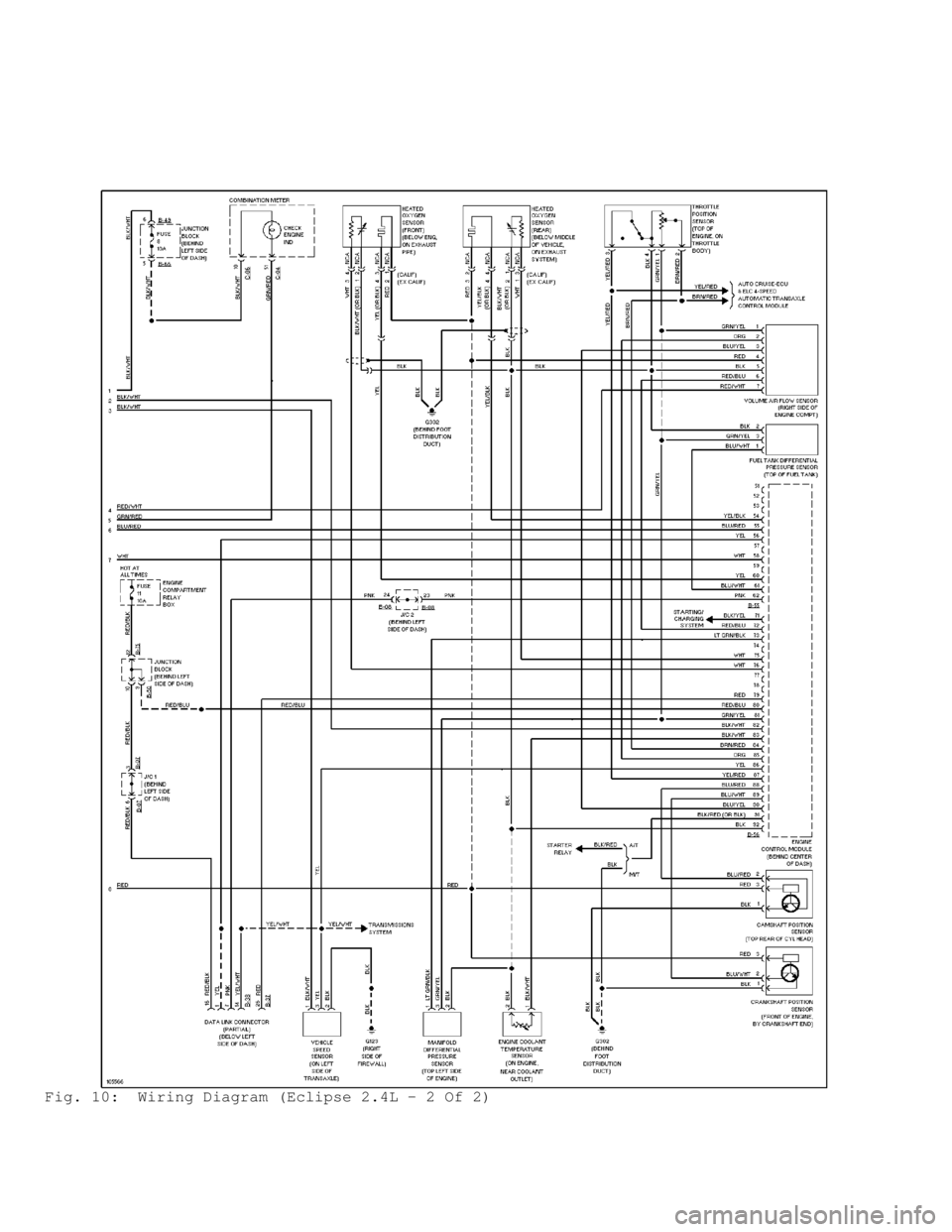

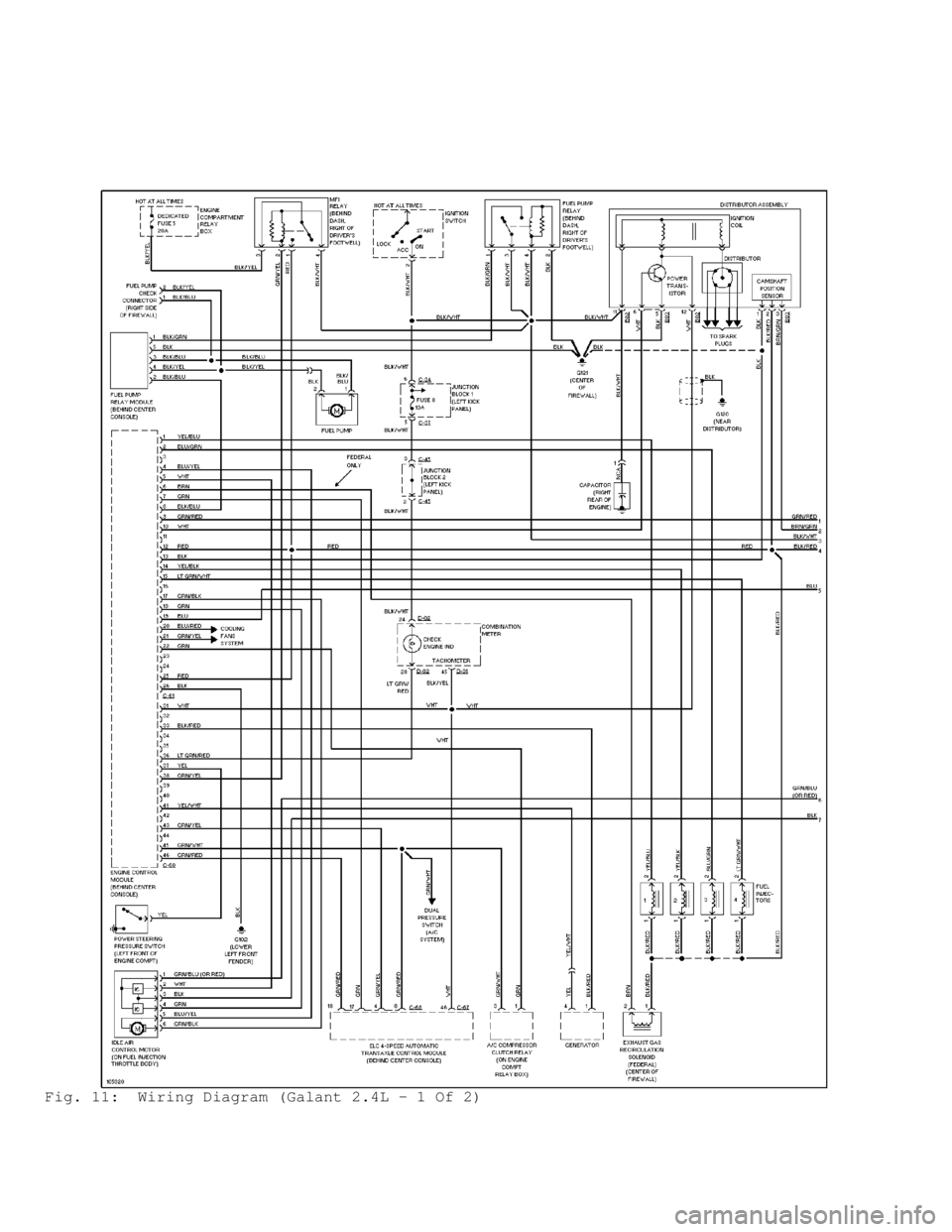

MITSUBISHI MONTERO 1998 Service Manual Fig. 10: Wiring Diagram (Eclipse 2.4L - 2 Of 2)

Page 910 of 1501

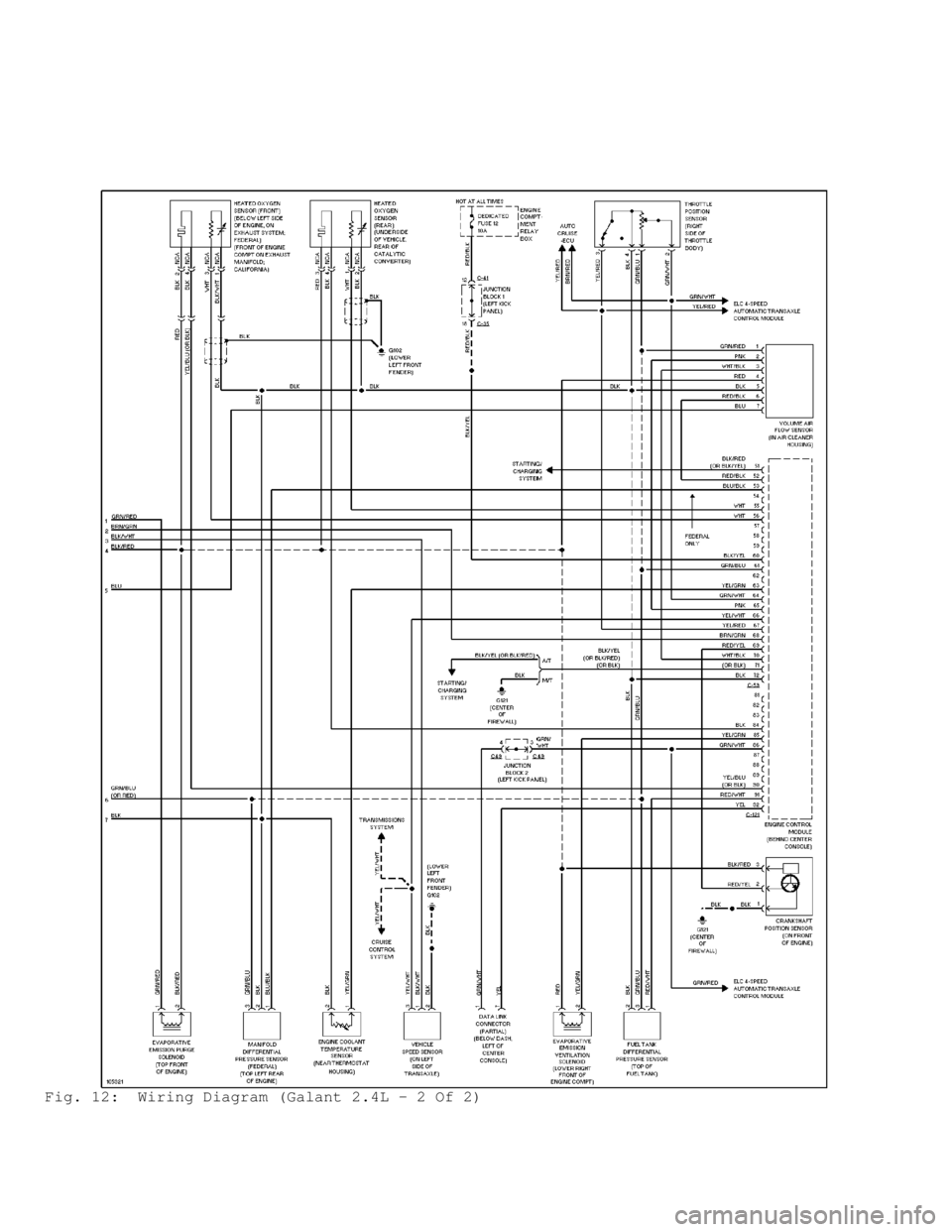

MITSUBISHI MONTERO 1998 Service Manual Fig. 11: Wiring Diagram (Galant 2.4L - 1 Of 2)

Page 911 of 1501

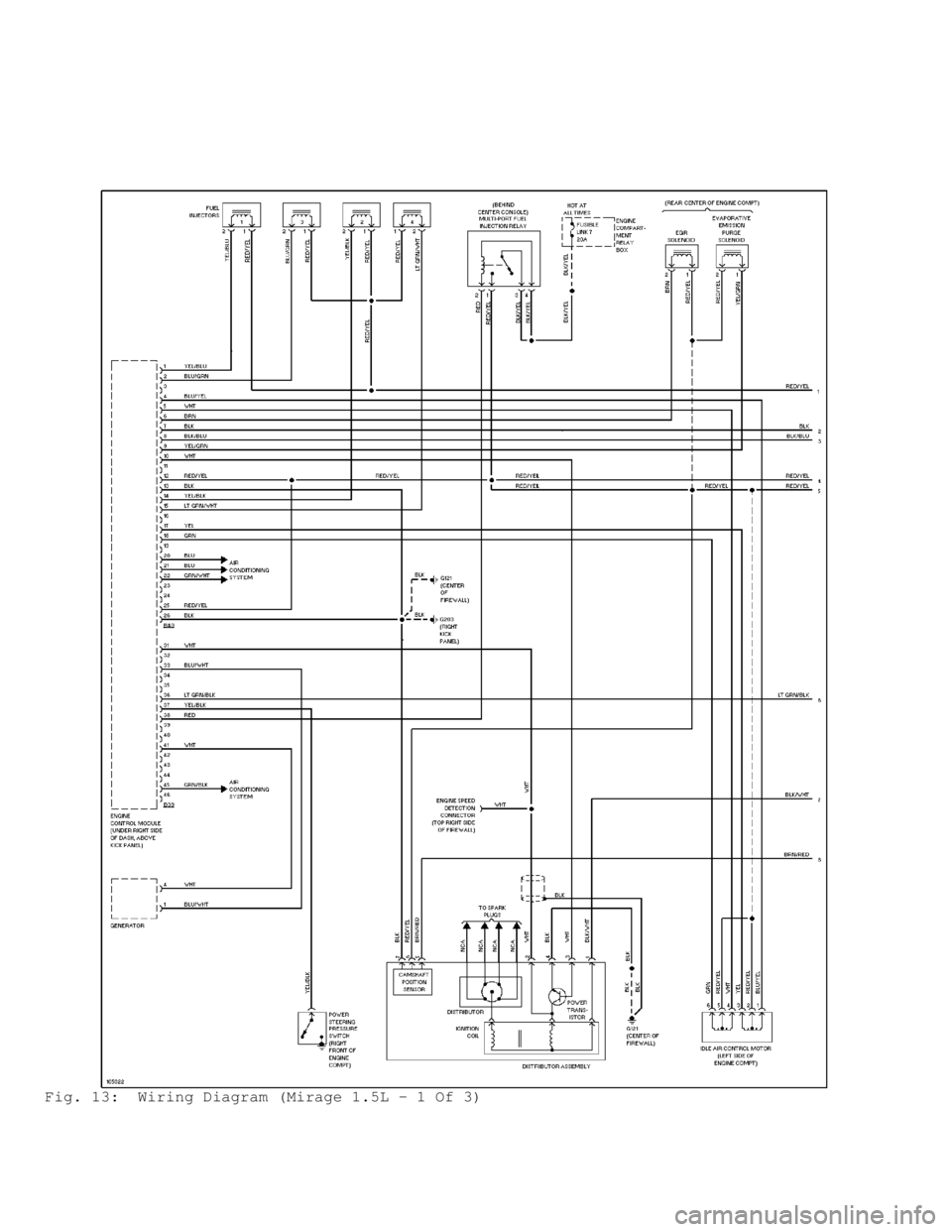

MITSUBISHI MONTERO 1998 Service Manual Fig. 12: Wiring Diagram (Galant 2.4L - 2 Of 2)

Page 912 of 1501

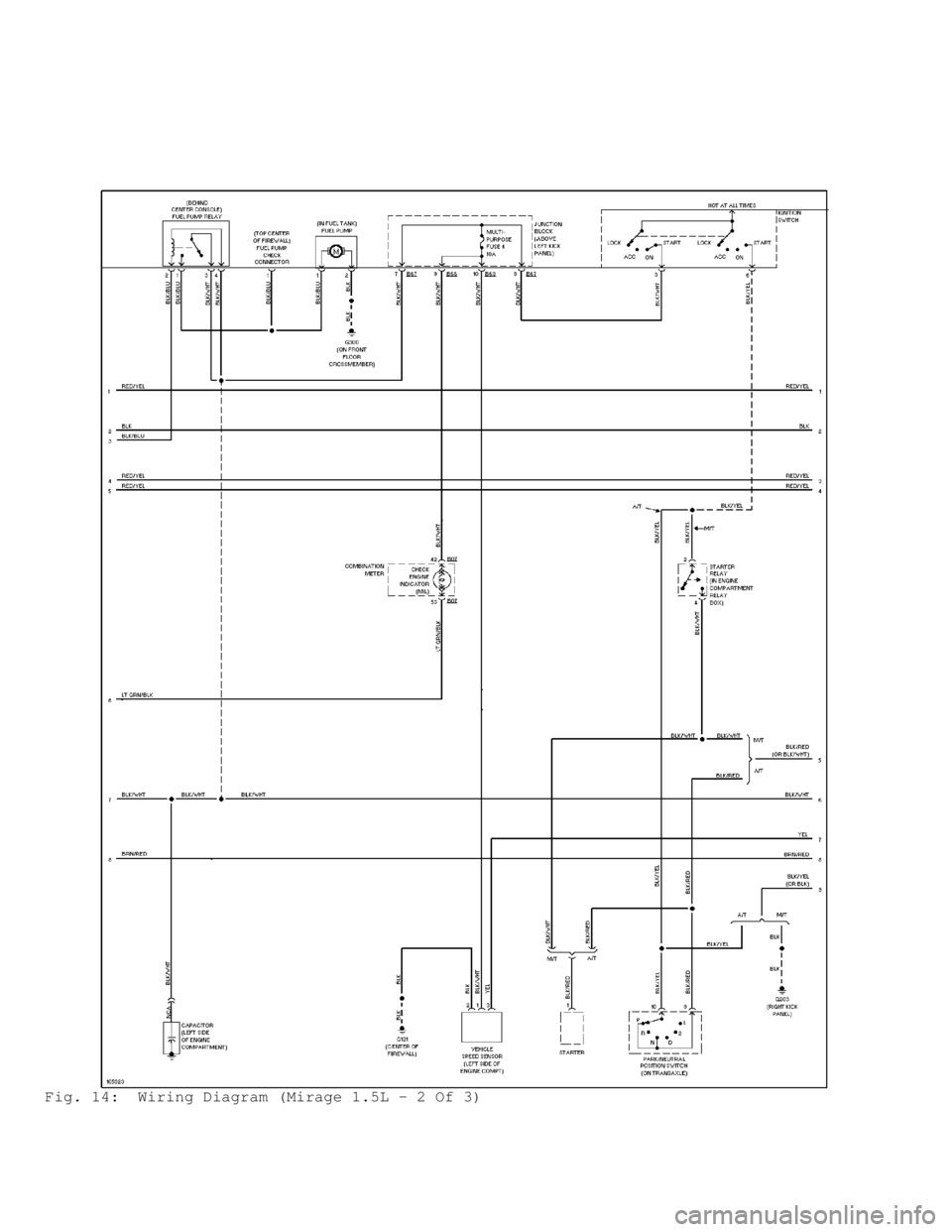

MITSUBISHI MONTERO 1998 Service Manual Fig. 13: Wiring Diagram (Mirage 1.5L - 1 Of 3)

Page 913 of 1501

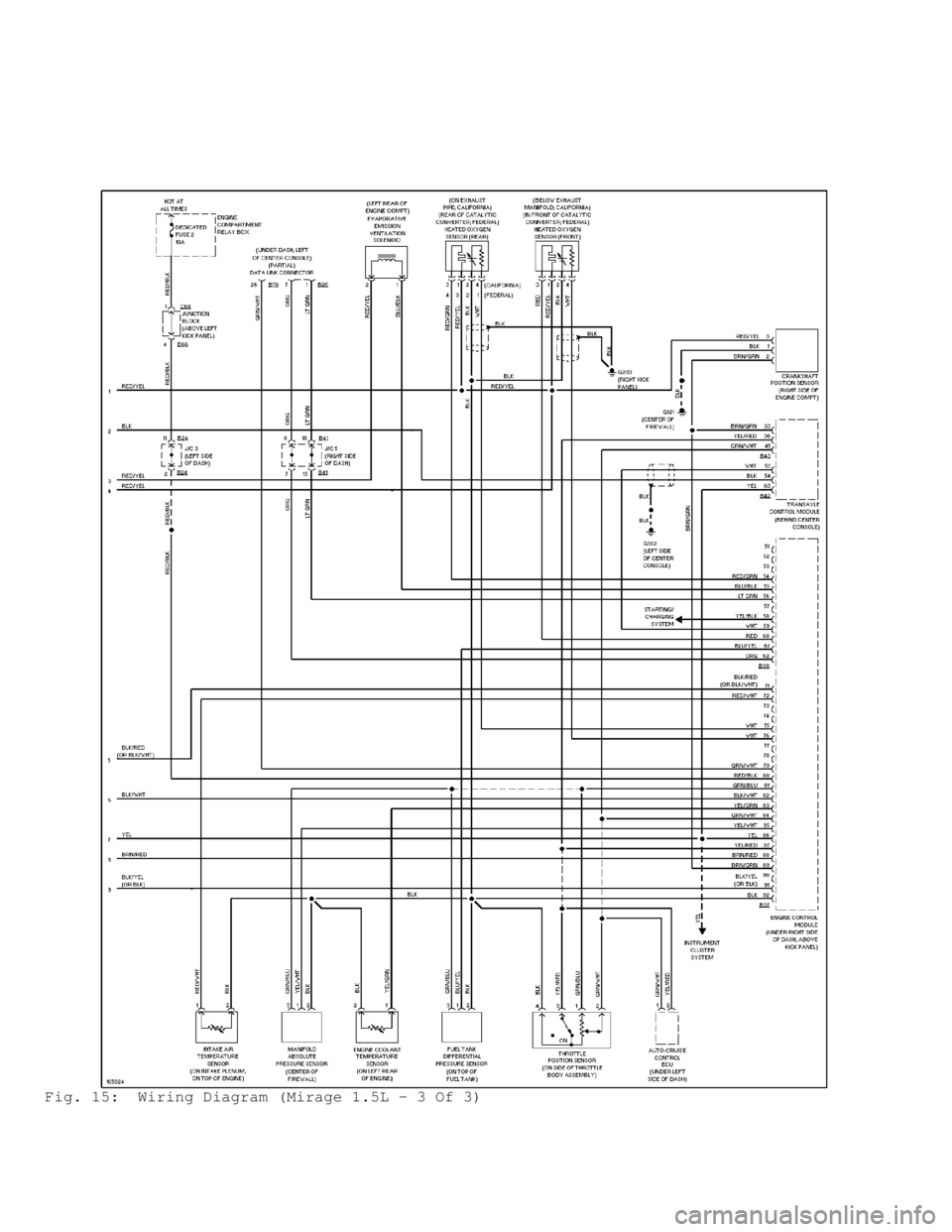

MITSUBISHI MONTERO 1998 Service Manual Fig. 14: Wiring Diagram (Mirage 1.5L - 2 Of 3)

Page 914 of 1501

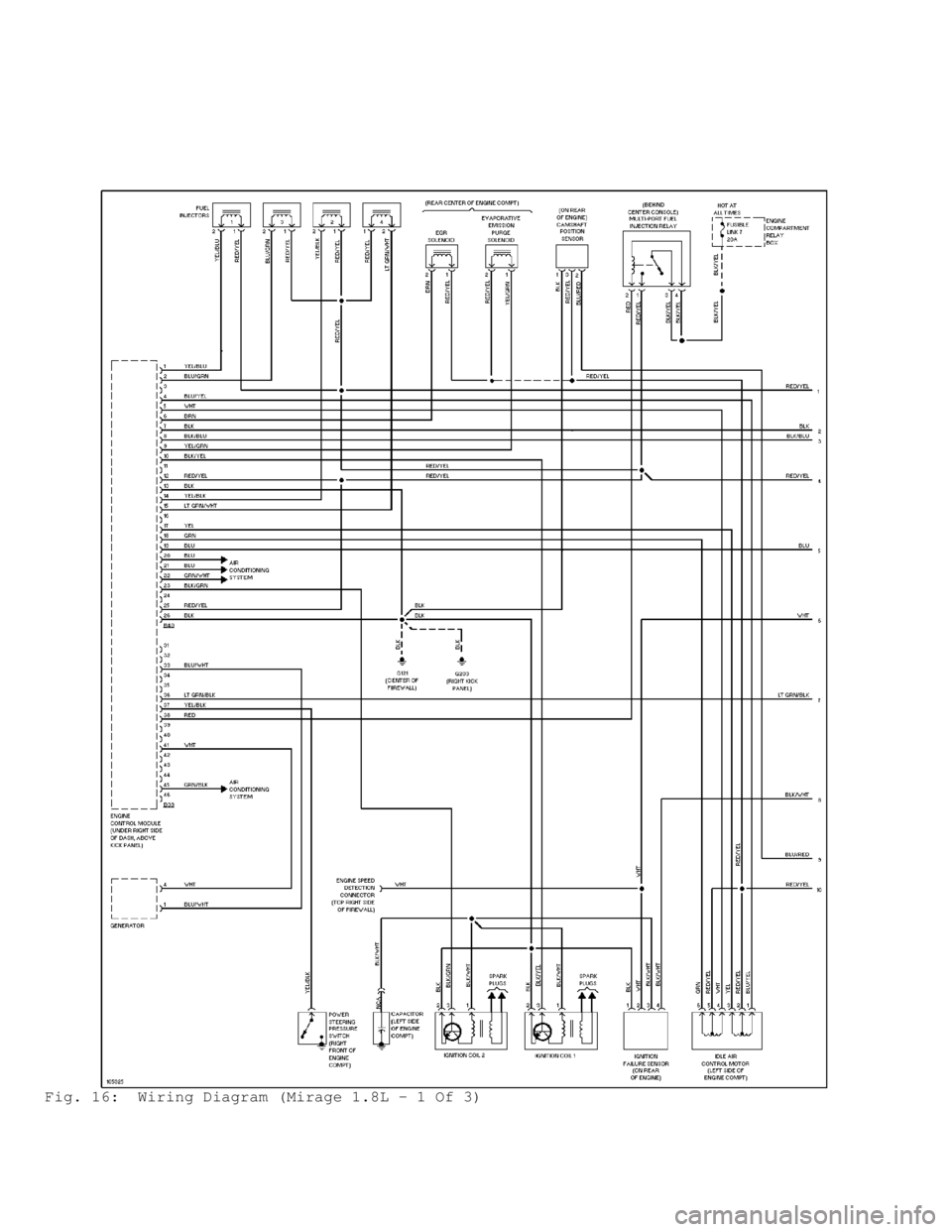

MITSUBISHI MONTERO 1998 Service Manual Fig. 15: Wiring Diagram (Mirage 1.5L - 3 Of 3)

Page 915 of 1501

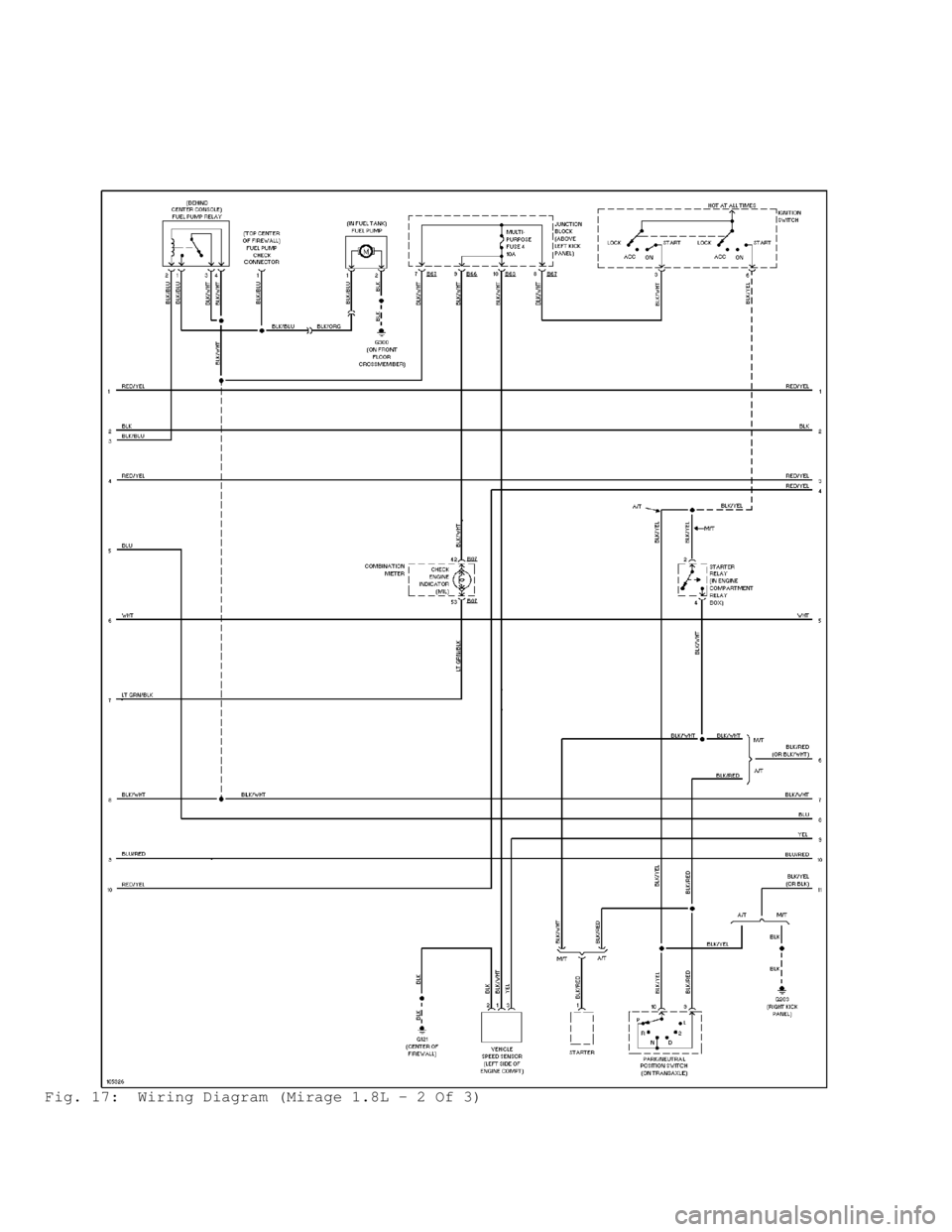

MITSUBISHI MONTERO 1998 Service Manual Fig. 16: Wiring Diagram (Mirage 1.8L - 1 Of 3)

Page 916 of 1501

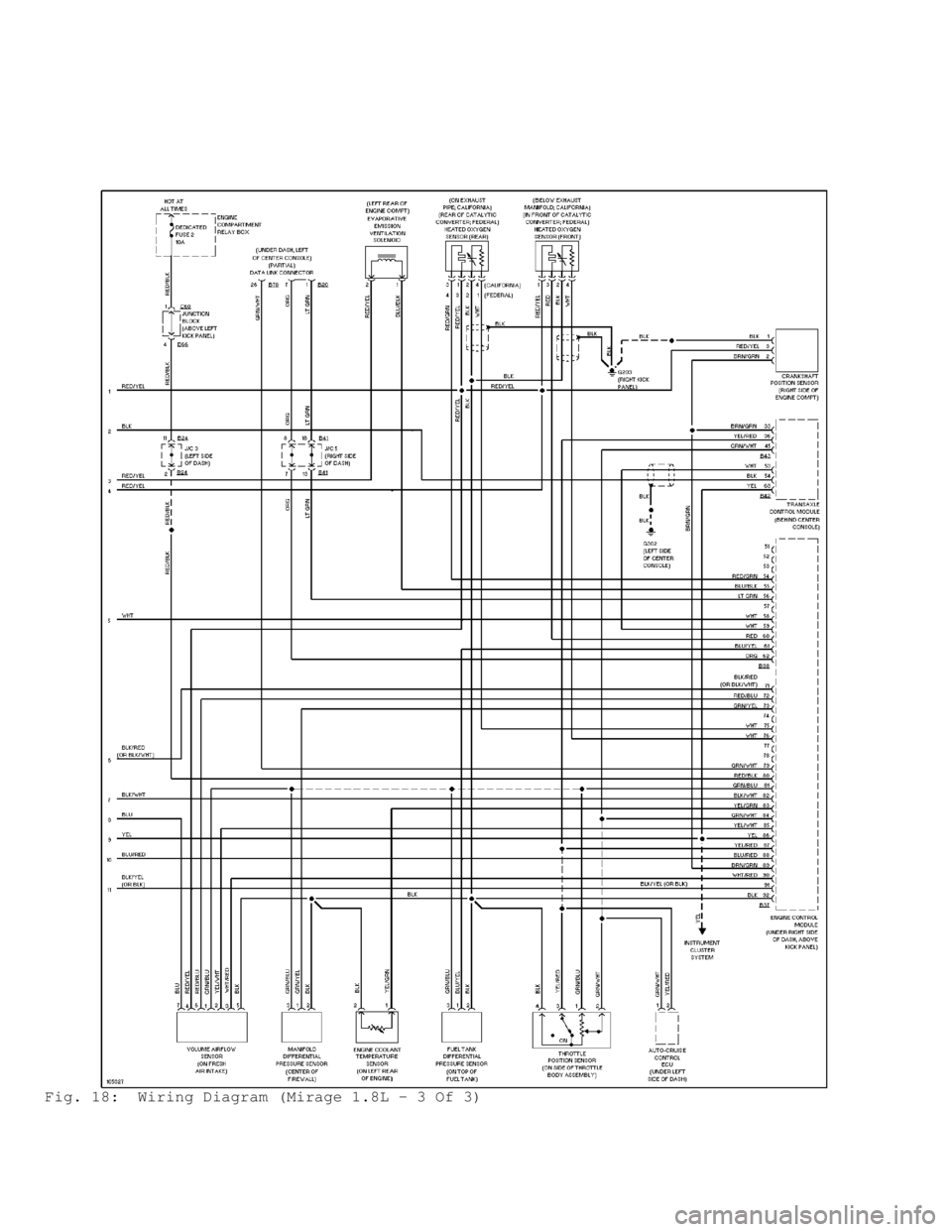

MITSUBISHI MONTERO 1998 Service Manual Fig. 17: Wiring Diagram (Mirage 1.8L - 2 Of 3)

Page 917 of 1501

MITSUBISHI MONTERO 1998 Service Manual Fig. 18: Wiring Diagram (Mirage 1.8L - 3 Of 3)
