diagram MITSUBISHI MONTERO 1998 Service Manual

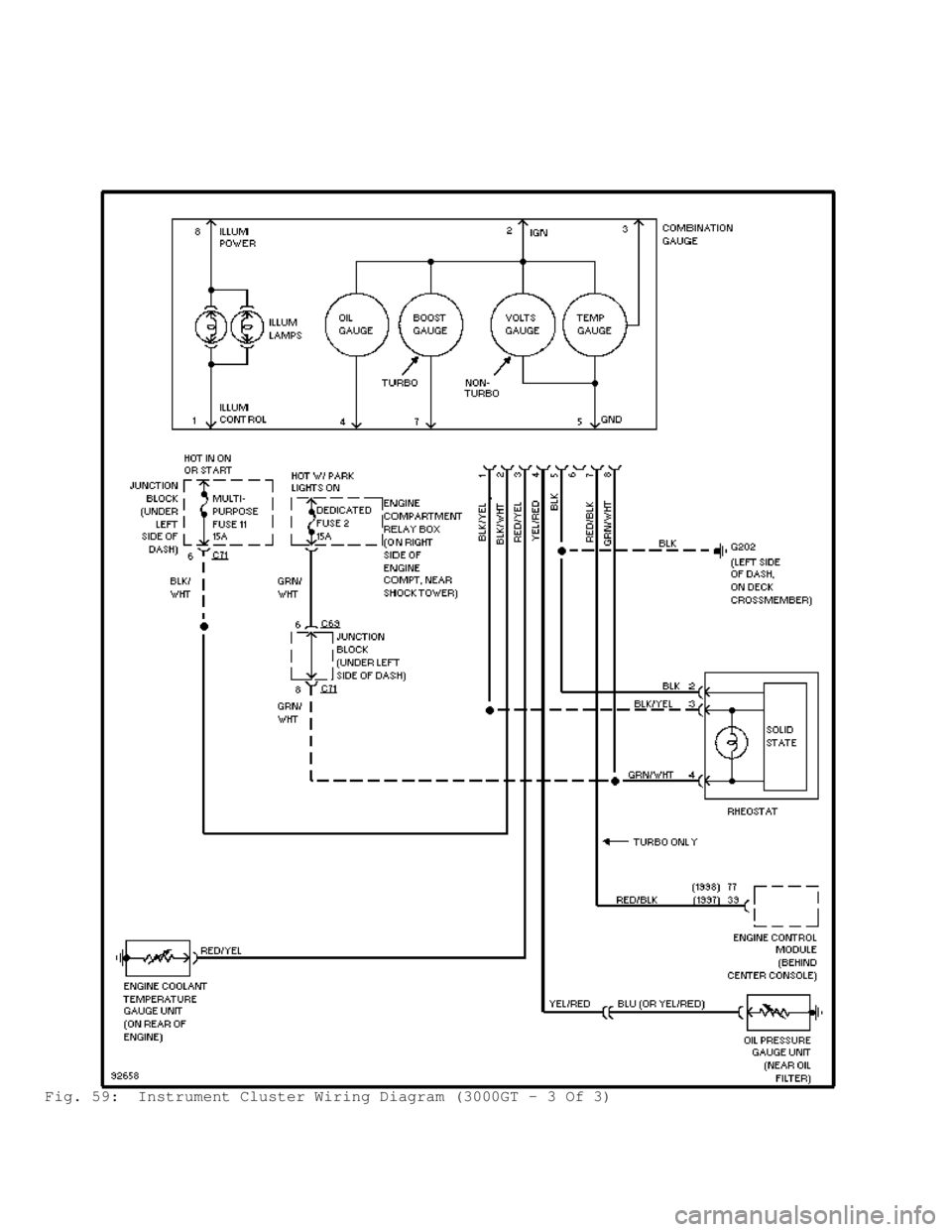

Fig. 58: Instrument Cluster Wiring Diagram (3000GT - 2 Of 3)

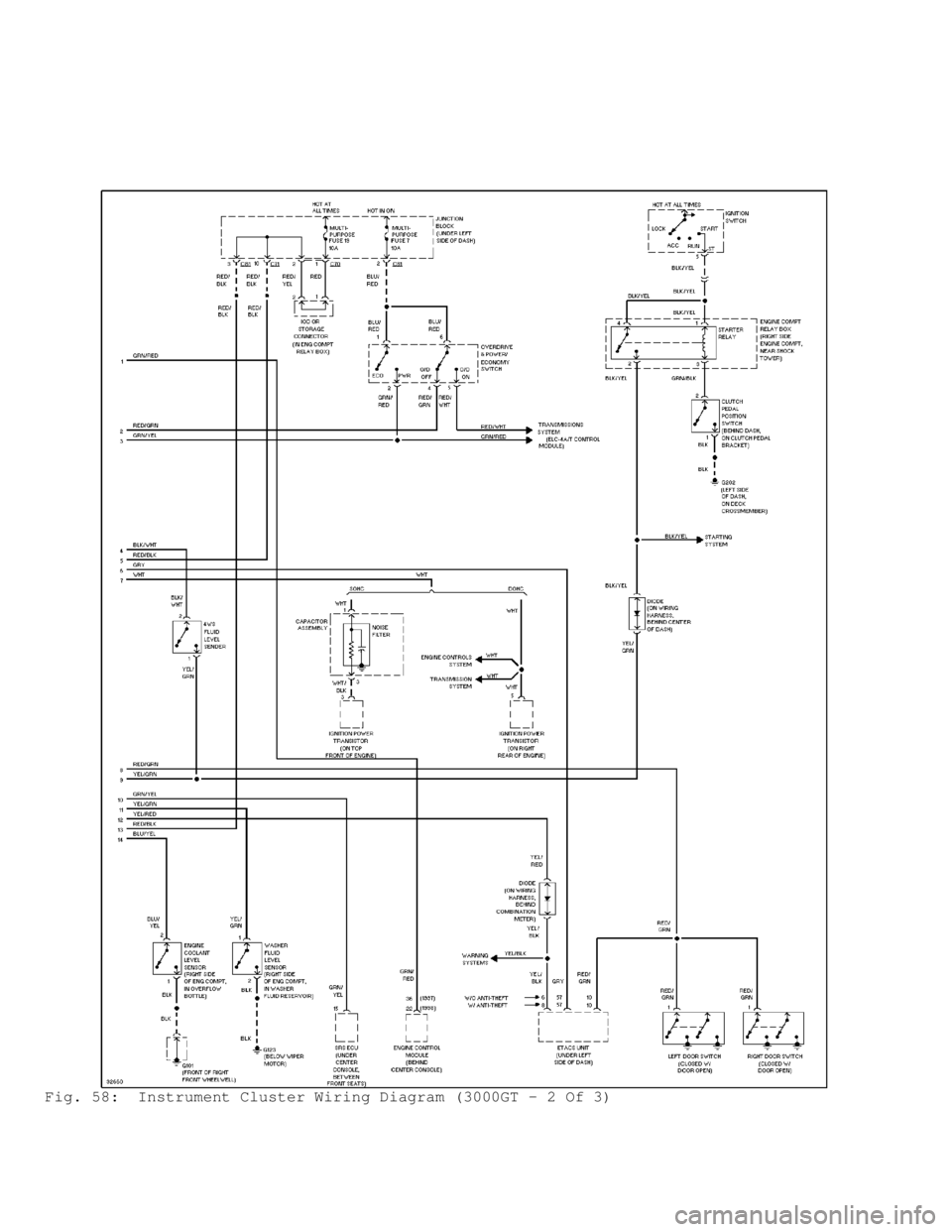

Fig. 59: Instrument Cluster Wiring Diagram (3000GT - 3 Of 3)

L - WIRING DIAGRAMS
1998 Mitsubishi Montero
1998 ENGINE PERFORMANCE
Mitsubishi - Wiring Diagrams
Diamante, Eclipse, Galant, Mirage, Montero, Montero Sport
& 3000GT

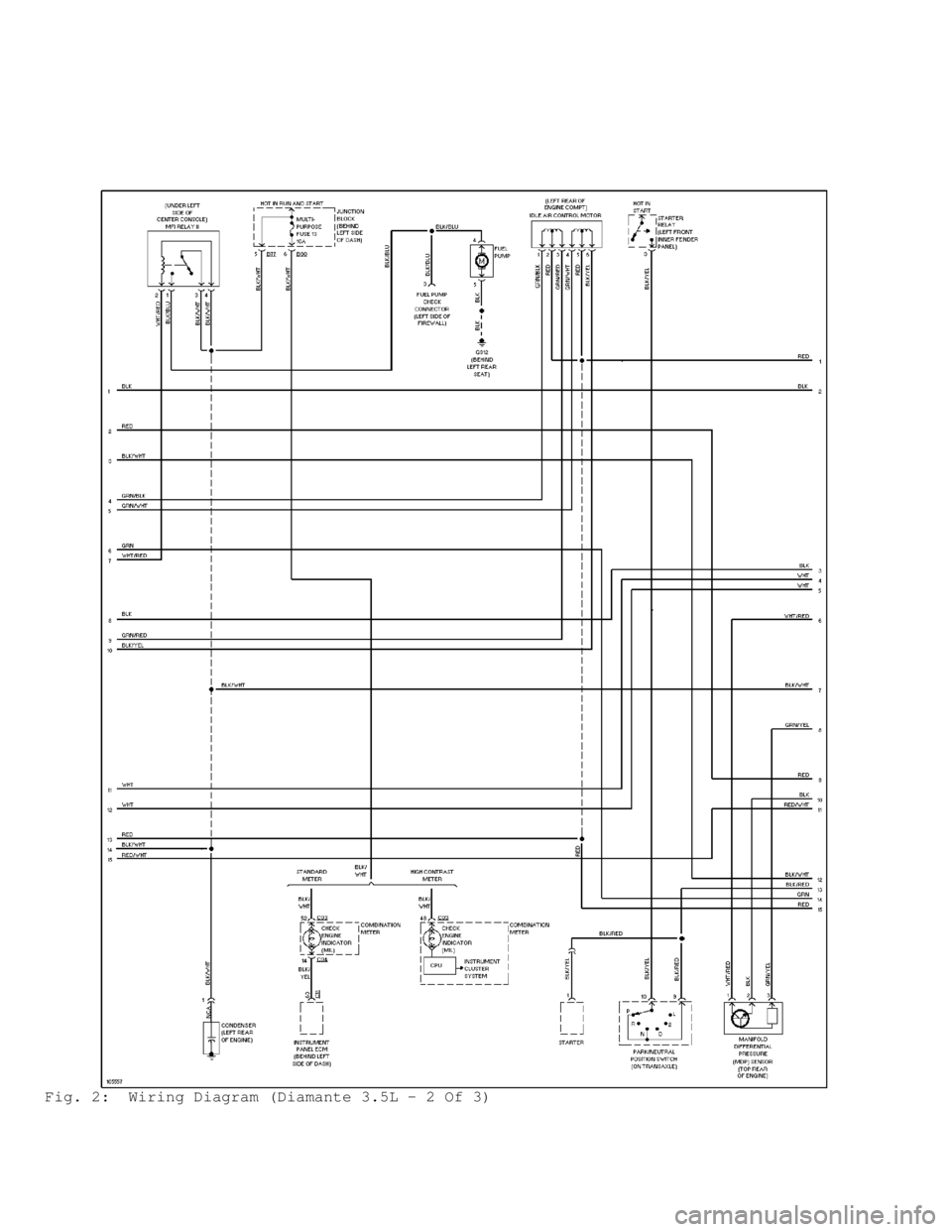

Fig. 1: Wiring Diagram (Diamante 3.5L - 1 Of 3)

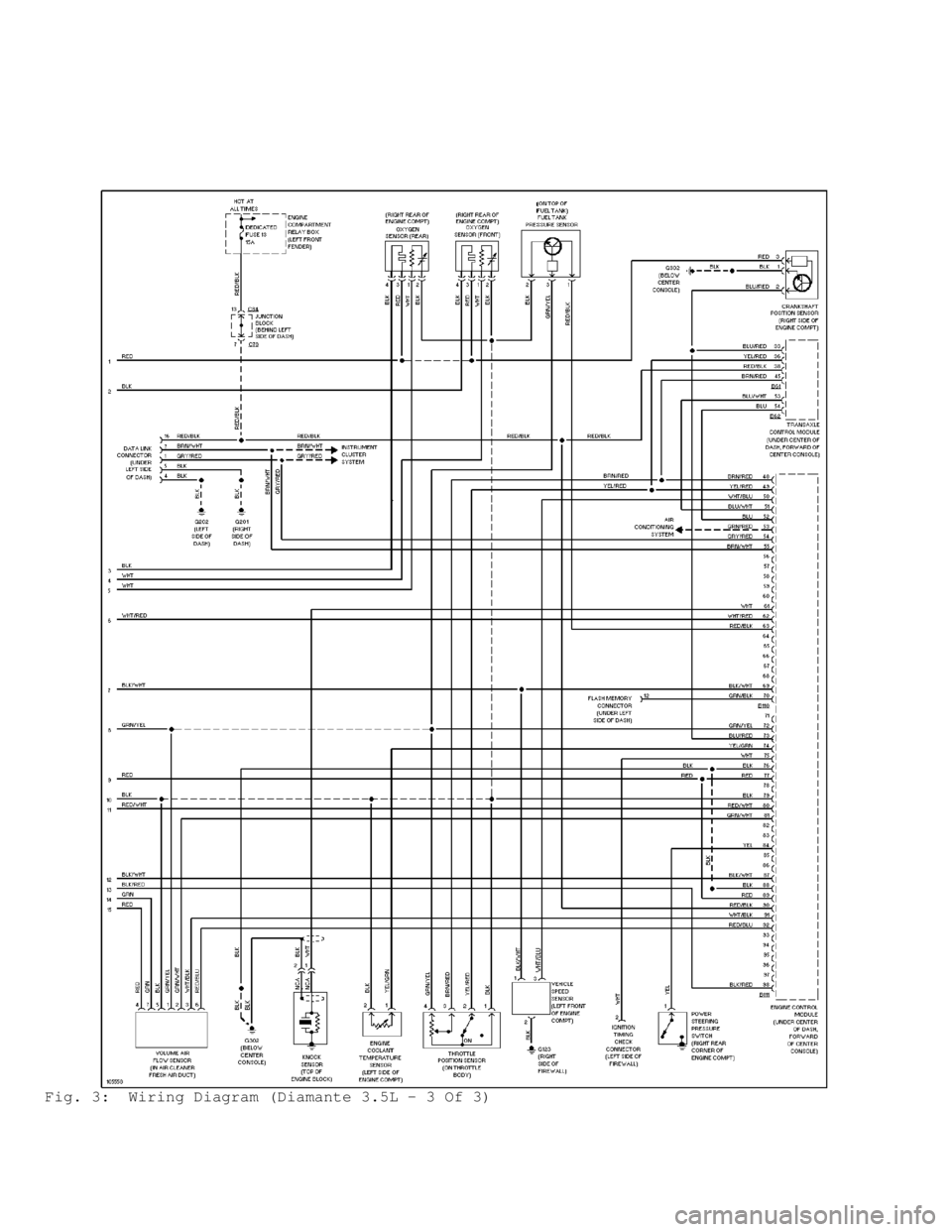

Fig. 2: Wiring Diagram (Diamante 3.5L - 2 Of 3)

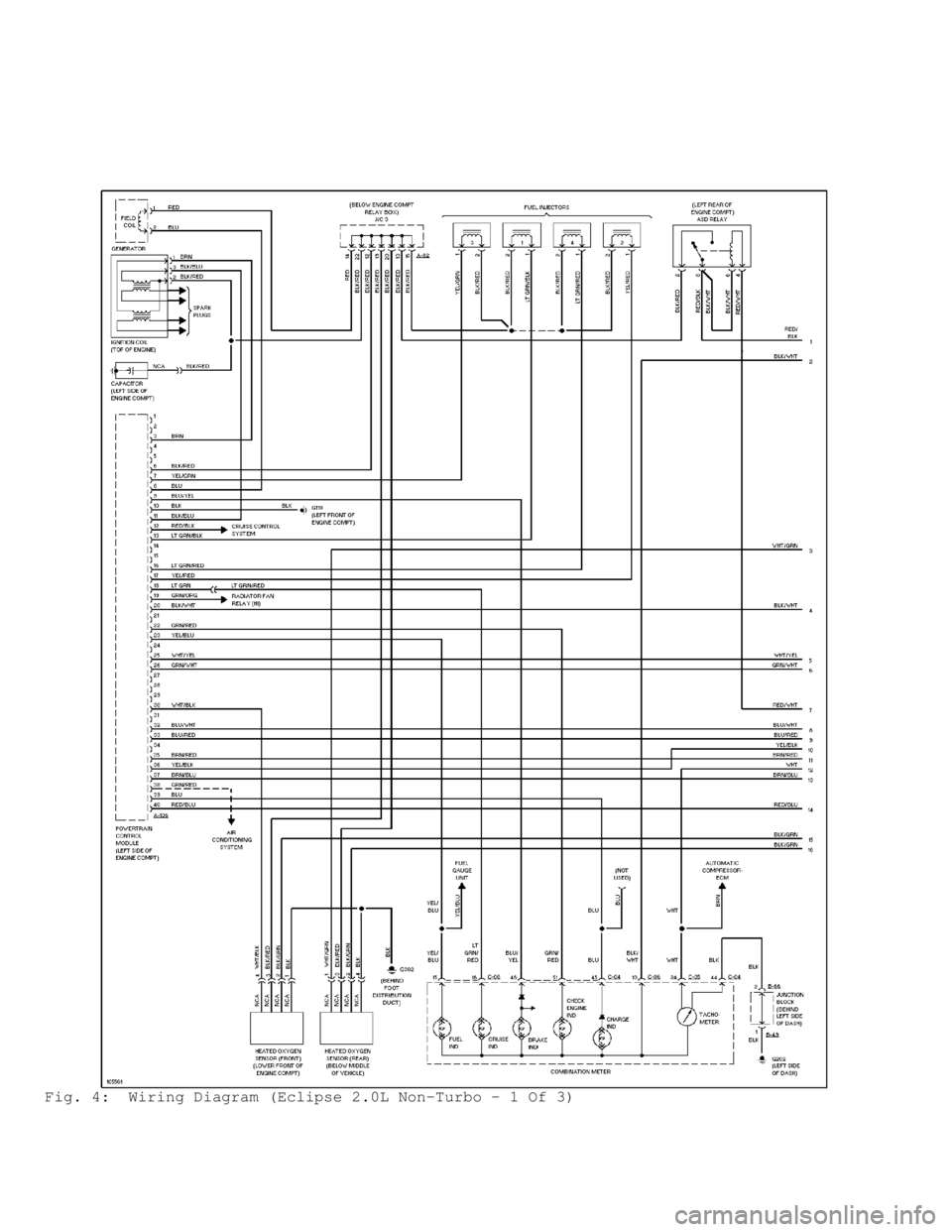

Fig. 3: Wiring Diagram (Diamante 3.5L - 3 Of 3)

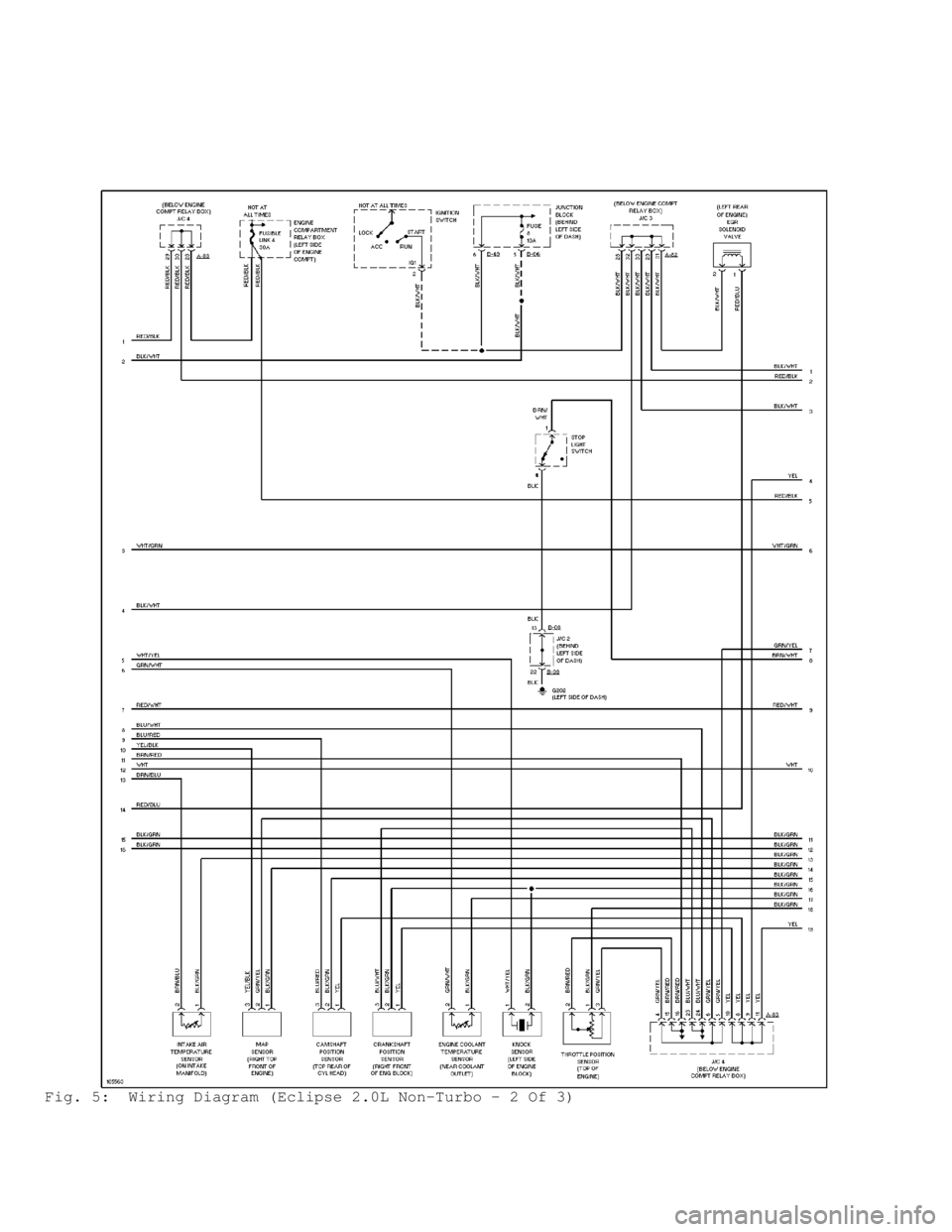

Fig. 4: Wiring Diagram (Eclipse 2.0L Non-Turbo - 1 Of 3)

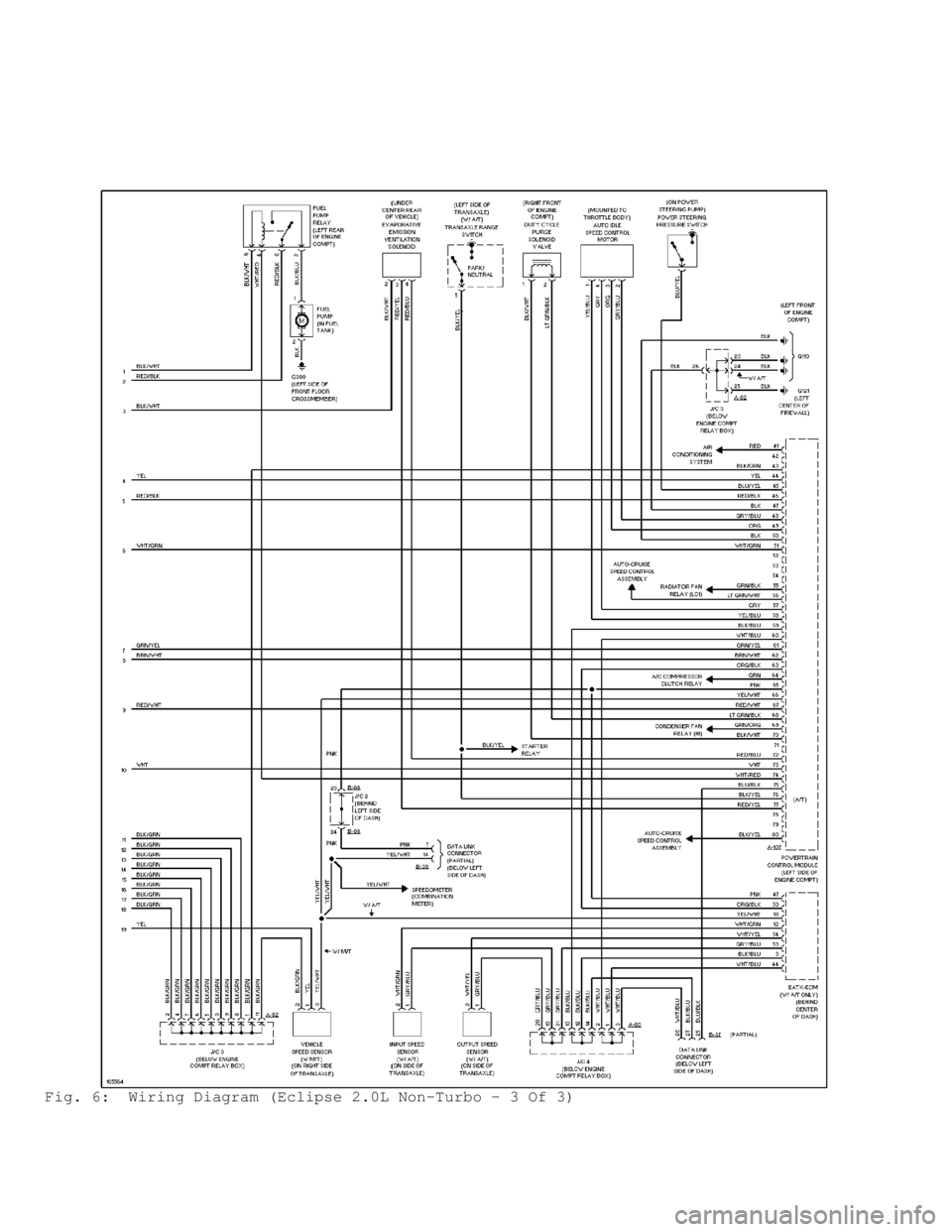

Fig. 5: Wiring Diagram (Eclipse 2.0L Non-Turbo - 2 Of 3)

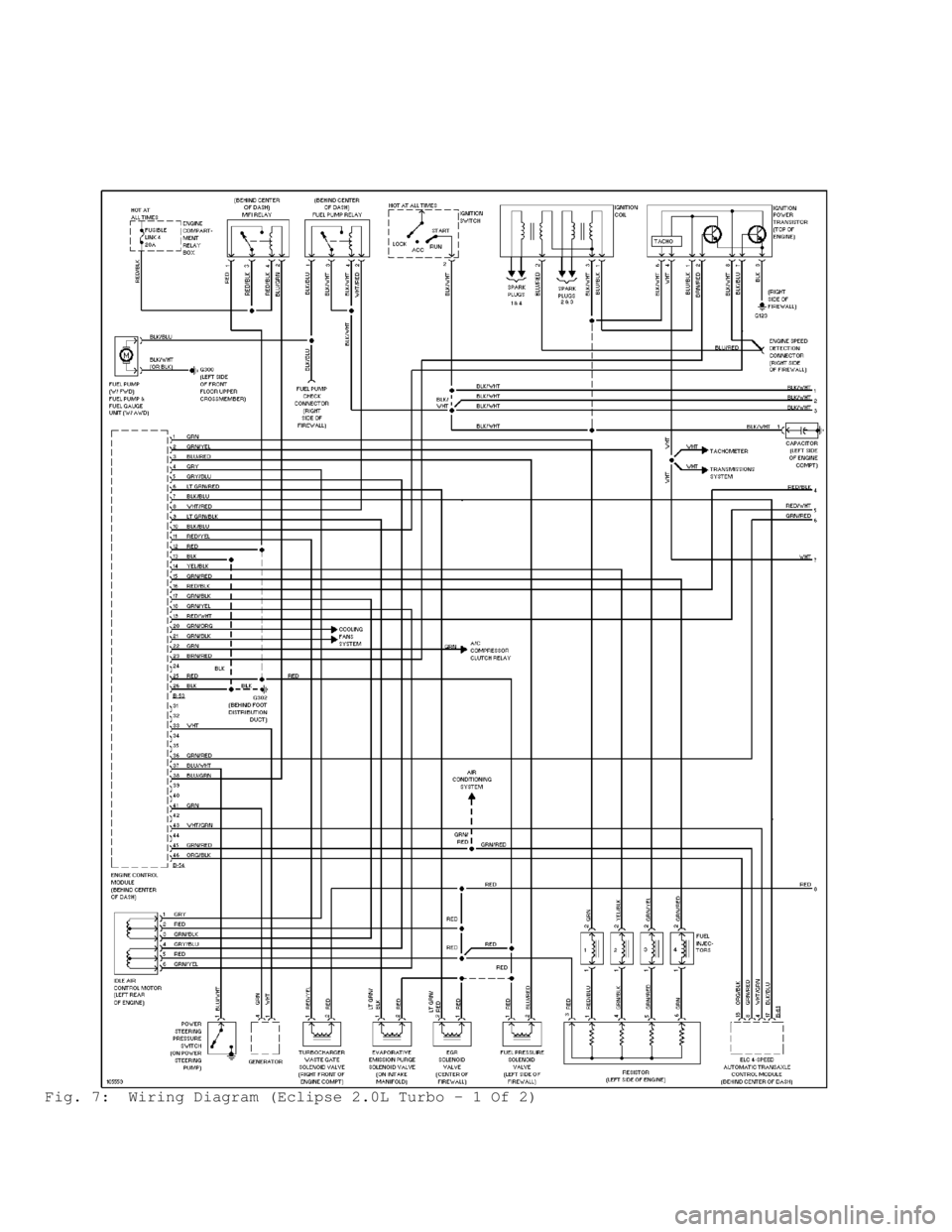

Fig. 6: Wiring Diagram (Eclipse 2.0L Non-Turbo - 3 Of 3)

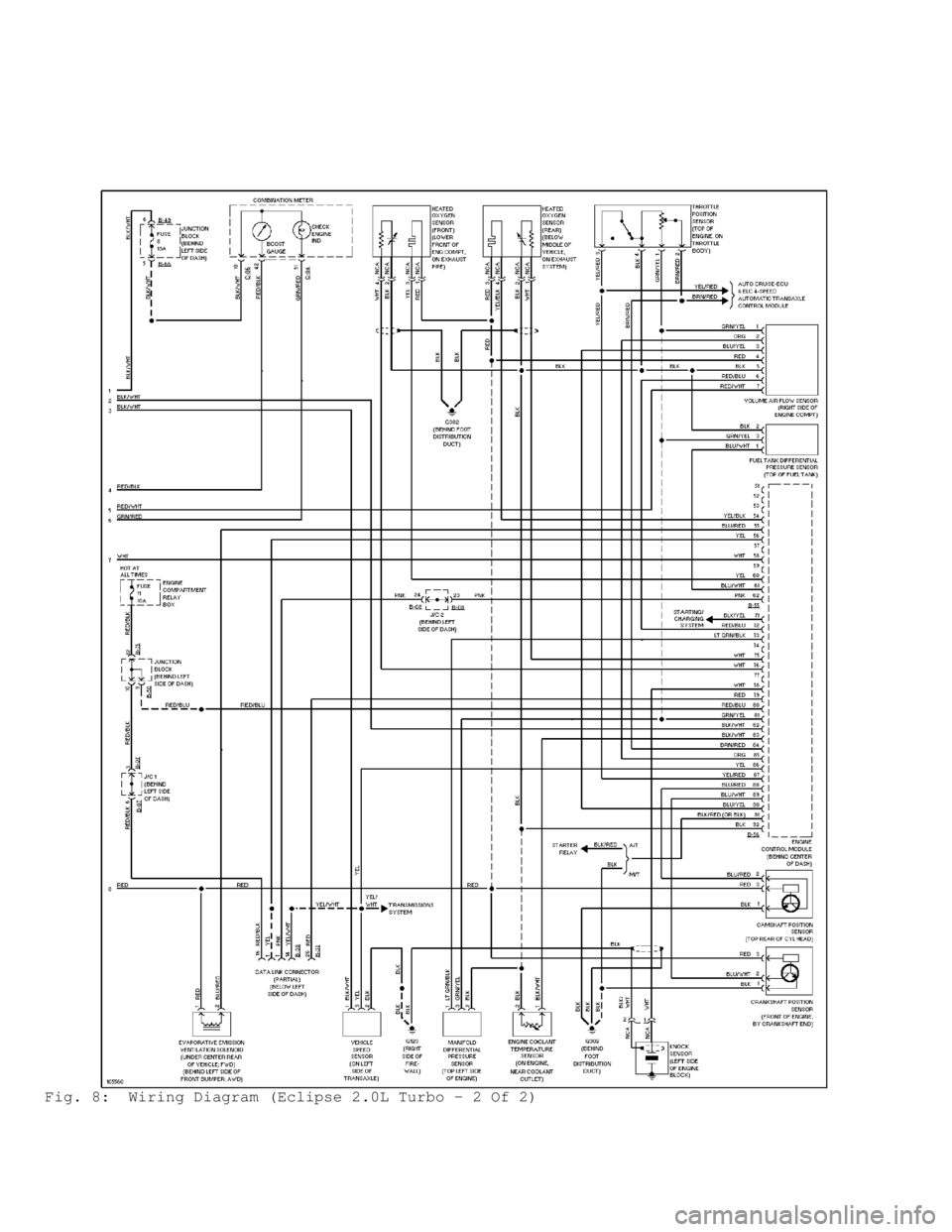

Fig. 7: Wiring Diagram (Eclipse 2.0L Turbo - 1 Of 2)

Fig. 8: Wiring Diagram (Eclipse 2.0L Turbo - 2 Of 2)
