Fig. 39: Wiring Diagram (3000GT 3.0L DOHC - 3 Of 3)

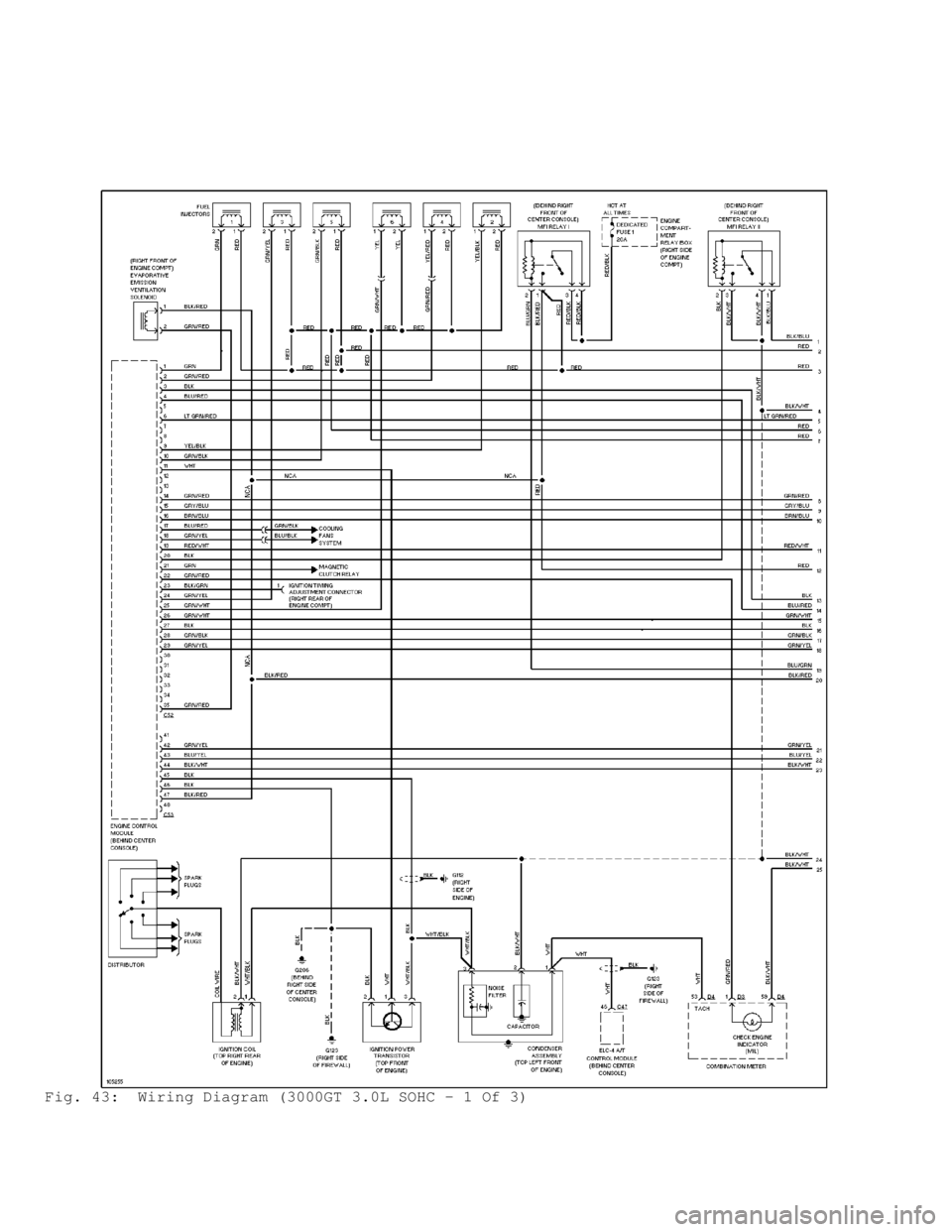

Fig. 40: Wiring Diagram (3000GT 3.0L DOHC Turbo - 1 Of 3)

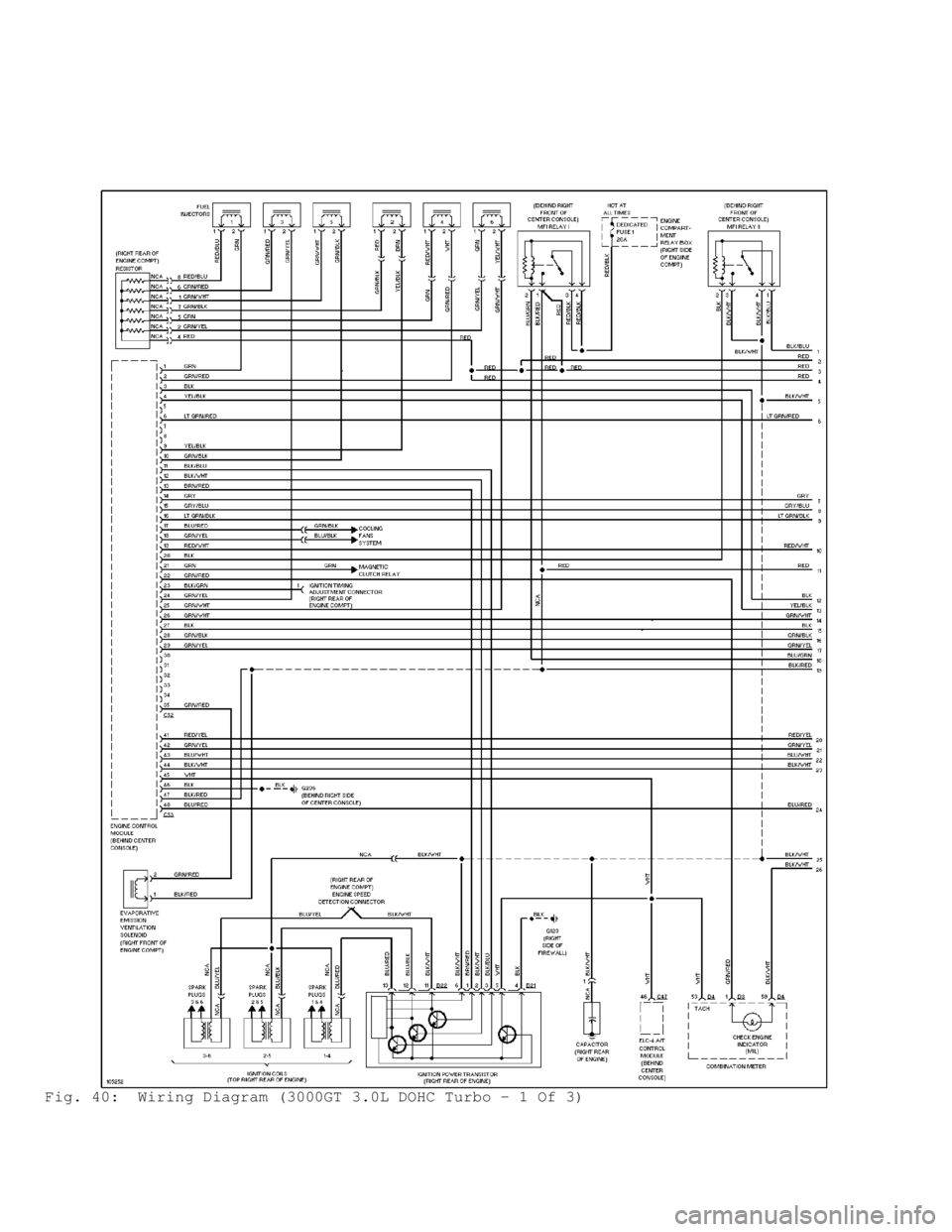

Fig. 41: Wiring Diagram (3000GT 3.0L DOHC Turbo - 2 Of 3)

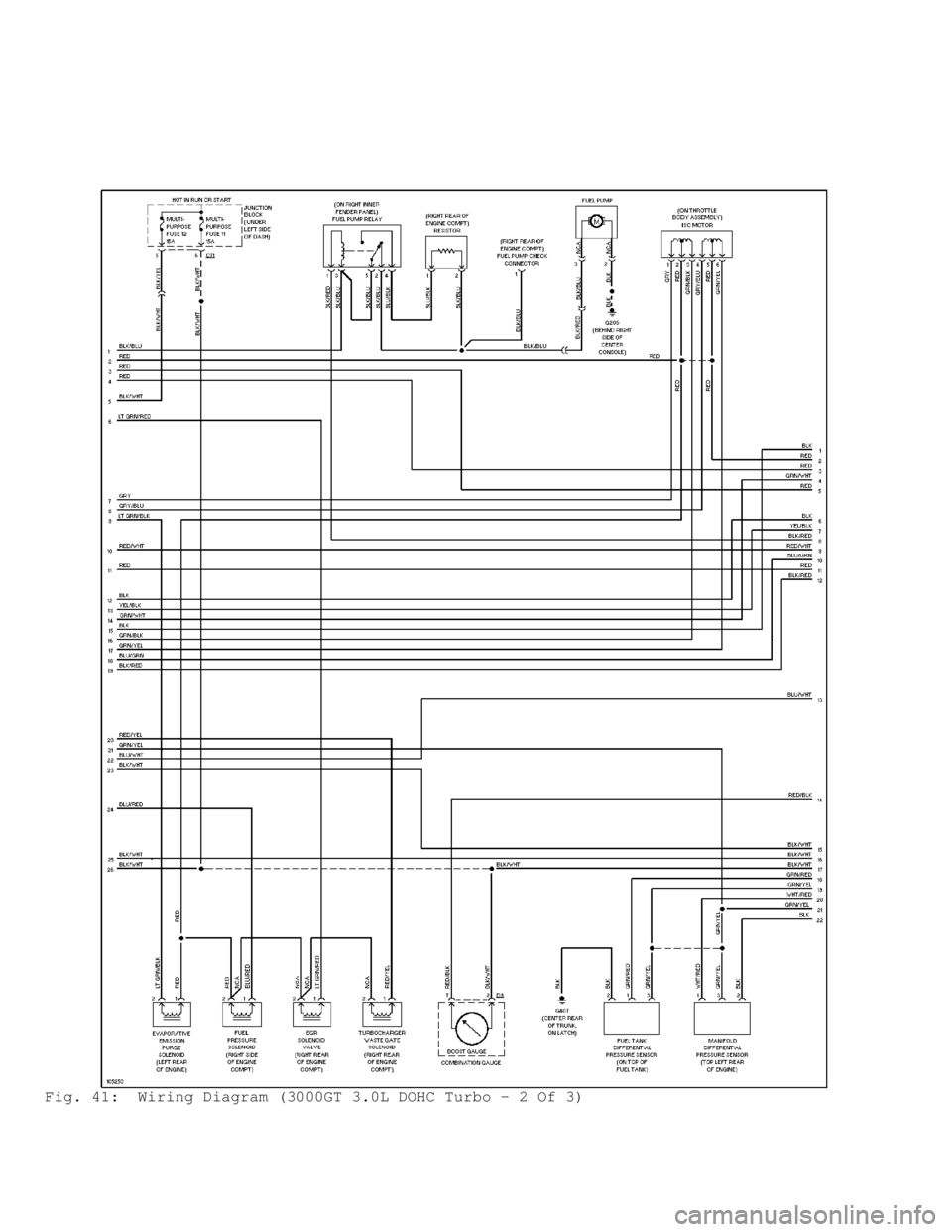

Fig. 42: Wiring Diagram (3000GT 3.0L DOHC Turbo - 3 Of 3)

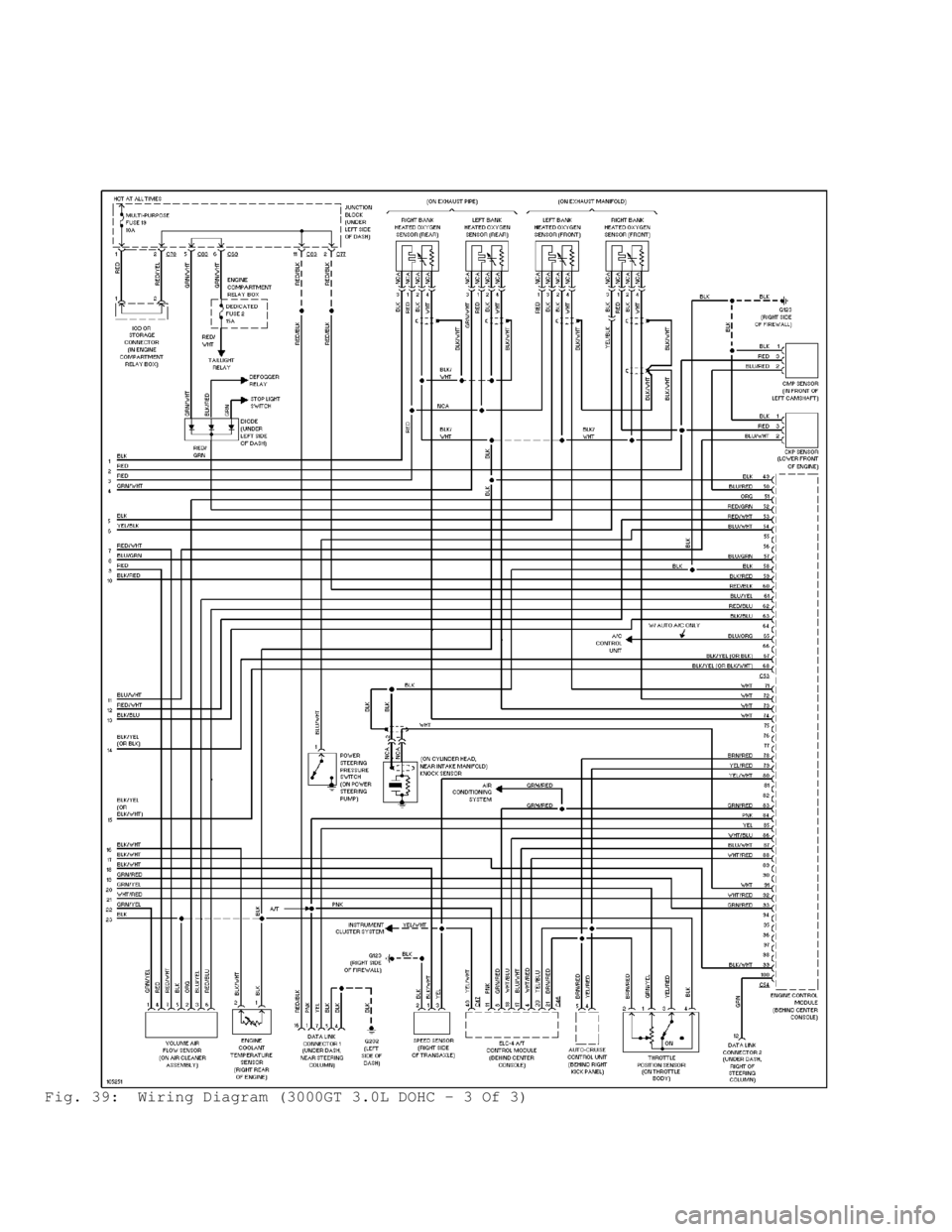

Fig. 43: Wiring Diagram (3000GT 3.0L SOHC - 1 Of 3)

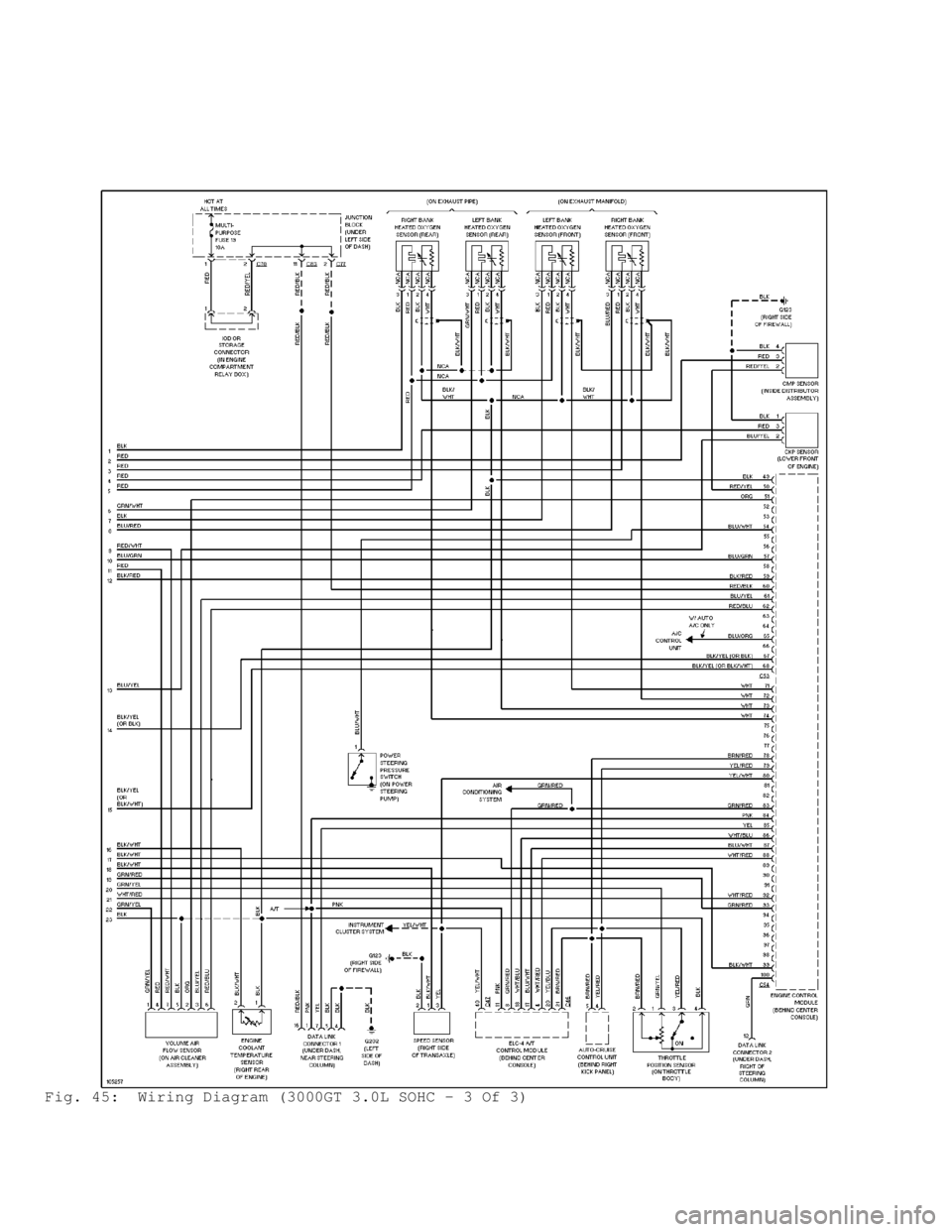

Fig. 44: Wiring Diagram (3000GT 3.0L SOHC - 2 Of 3)

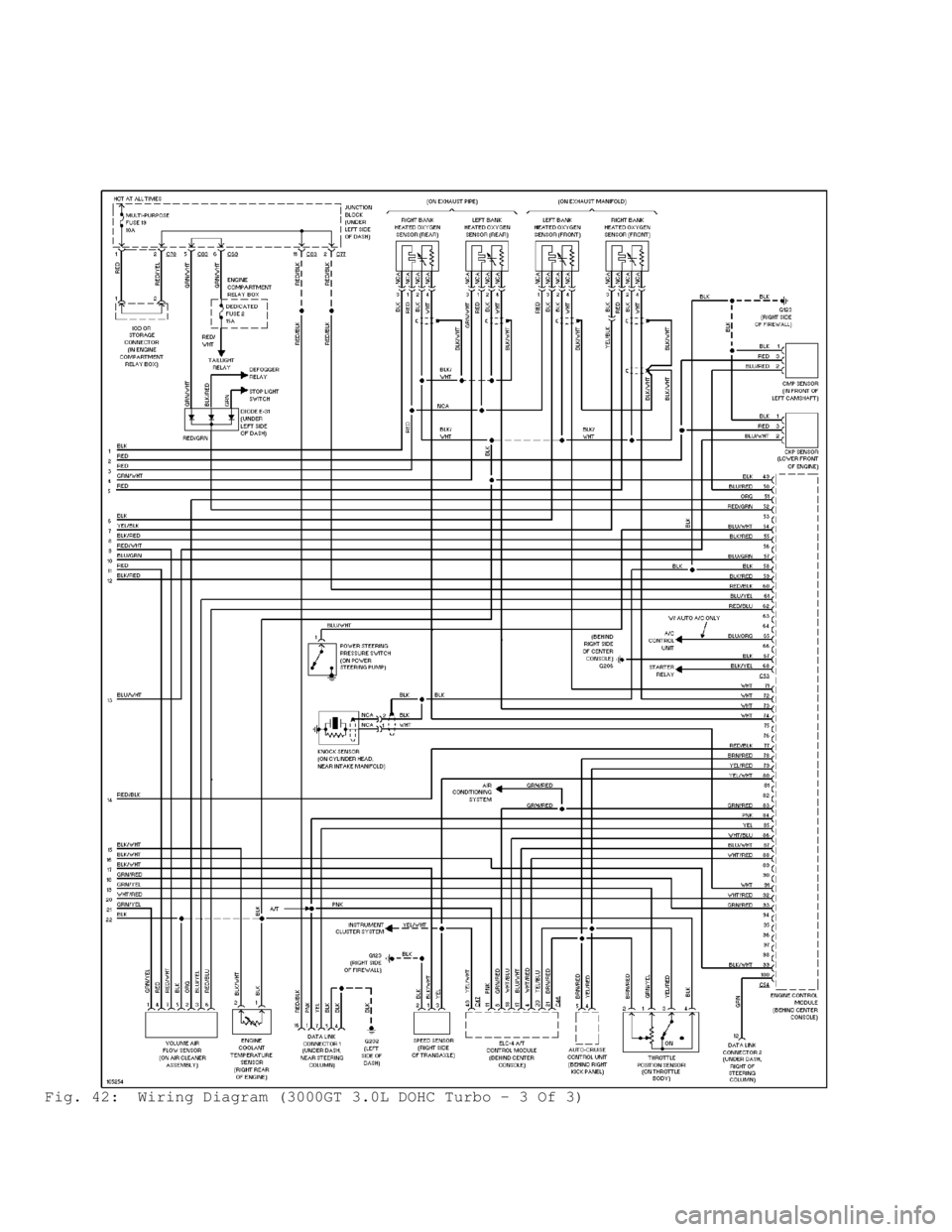

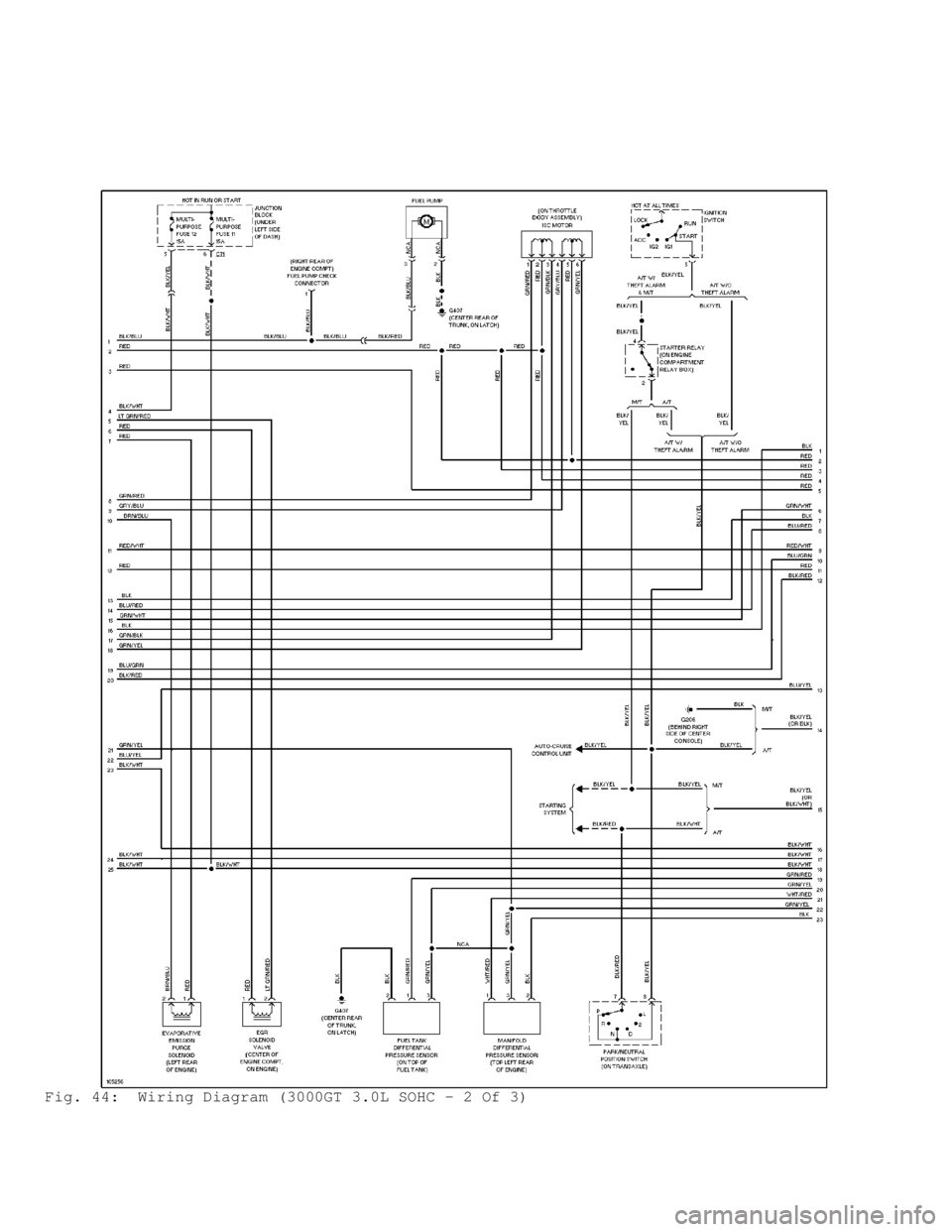

Fig. 45: Wiring Diagram (3000GT 3.0L SOHC - 3 Of 3)

M - VACUUM DIAGRAMS
1998 Mitsubishi Montero
1998 ENGINE PERFORMANCE
Mitsubishi - Vacuum Diagrams
Diamante, Eclipse, Galant, Mirage, Montero, Montero Sport,
3000GT
INTRODUCTION
This article contains underhood views or schematics of vacuum
hose routing. Use these vacuum diagrams during the visual inspection
in F - BASIC TESTING article. This will assist in identifying
improperly routed vacuum hoses, which cause driveability and/or
computer-indicated malfunctions.
NOTE: California and Federal applies to installed emission
equipment, which may be verified by underhood Emission
Control label. California emissions may be available in
other states.
NOTE: Always refer to Emission Control label in engine compartment
before attempting service. If manual and label differ,
always use emission label specifications.

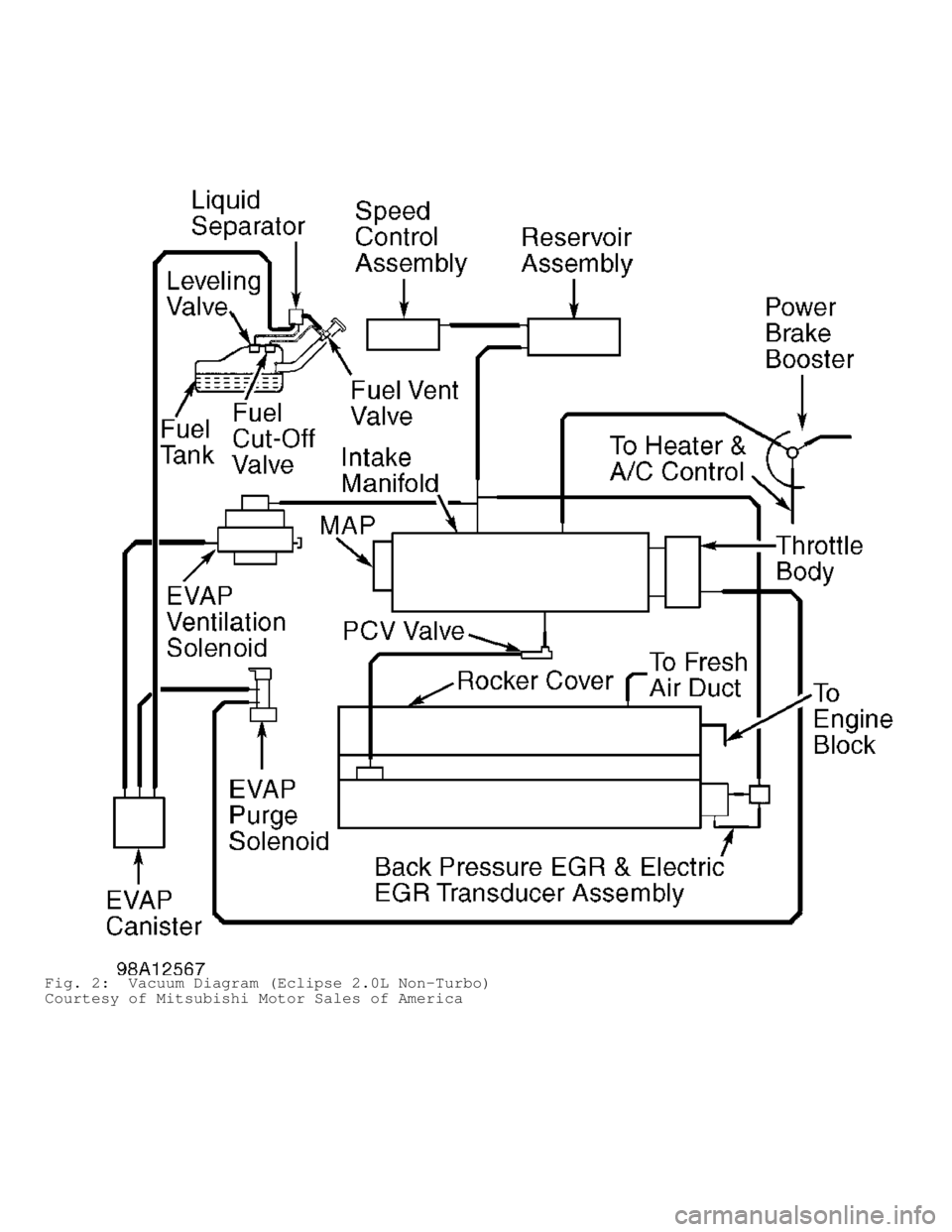

Fig. 1: Vacuum Diagram (Diamante)
Courtesy of Mitsubishi Motor Sales of America

Fig. 2: Vacuum Diagram (Eclipse 2.0L Non-Turbo)
Courtesy of Mitsubishi Motor Sales of America

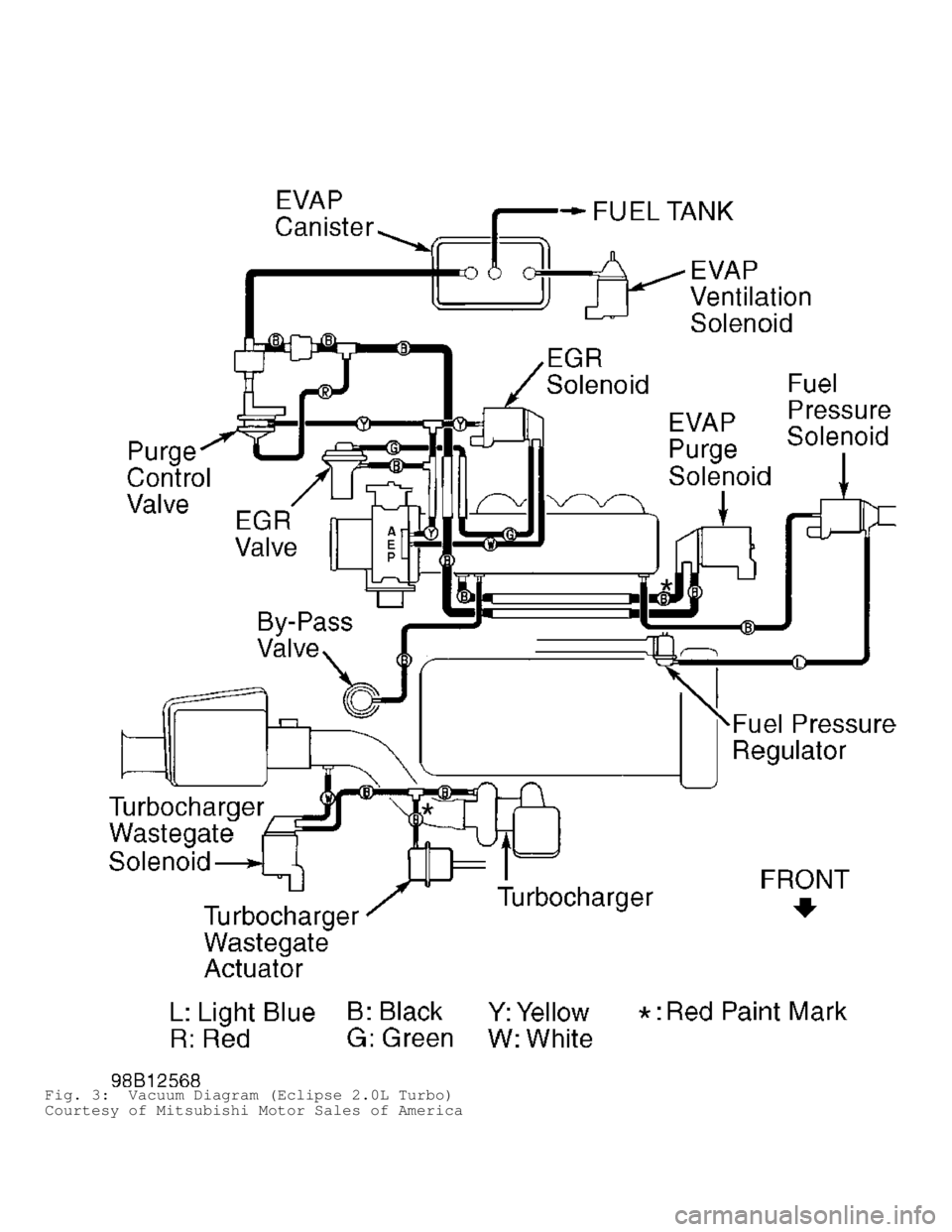

Fig. 3: Vacuum Diagram (Eclipse 2.0L Turbo)
Courtesy of Mitsubishi Motor Sales of America
