Page 1013 of 1501
![MITSUBISHI MONTERO 1998 Service Manual Deployment
\
\
\b \
\
\
\](/img/19/57333/w960_57333-1012.png "MITSUBISHI MONTERO 1998 Service Manual Deployment
\
\
\b \
\
\
\")
Deployment
\
\
\b \
\
\
\
\
Inspect & If
* Arming Sensor
Damaged, Replace
* Coil Assembly
Component
* Diagnostic Energy Reserve Module (DERM)
(Even If Air
* Forward Sensor
Bag Did Not
* Instrument Panel-To-Steering Column
Deploy) Reinforcement
* Knee Pad
* Passenger Compartment Sensor
* Steering Column
* Wiring Harness & Brackets
\
\
\b \
\
\
\
\
Comments
* If any components are damaged or bent, they
must be replaced.
\
\
\
\
\
\
\
\f
KIA (1995-98)
AIR BAG APPLICATION
AIR BAG APPLICATION TABLE - KIA (1995-98) \
\
\
\
\
\
Model Year (1) Location
Sephia .............. 1996-98 ...................... D/P
1995 1/2 ..................... D/P
Sportage ............ 1996-98 ...................... D/P
( 1) - Location Definitions: D/P = Driver's & Passenger's
Side, DS = Driver's Side Only, SI = Side Impact.
\
\
\
\
\
\
INSPECTION PROCEDURES
INSPECTION PROCEDURES TABLE - KIA (1995-98) \
\
\
\
\
\
\
Action Component or System
\
\
\b \
\
\
\
\
Replace After
* Air Bag Module(s)
Deployment
\
\
\b \
\
\
\
\
Inspect & If
* Air Bag Diagnosis Control Unit
Damaged, Replace
* Clockspring
Component
* Impact Sensors Sensor Mountings ( 1)
(Even If Air
* Steering Column
Bag Did Not
* Steering Wheel
Deploy)
* Wiring Harness
\
\
\b \
\
\
\
\
Comments
* After repairs a completed, ensure Warning
Light is functioning properly.
\
\
\
\
\
\
\
(
1) - 1995 1/2 Sephia only.
\
\
\
\
\
\
\
\f
LEXUS (1990-98)
AIR BAG APPLICATION
AIR BAG APPLICATION TABLE - LEXUS (1990-98) \
\
\
\
\
\
\
Page 1023 of 1501
![MITSUBISHI MONTERO 1998 Service Manual \
\
\b \
\
\
\
\
Comments
* DO NOT attempt SRS w](/img/19/57333/w960_57333-1022.png "MITSUBISHI MONTERO 1998 Service Manual \
\
\b \
\
\
\
\
Comments
* DO NOT attempt SRS w")
\
\
\b \
\
\
\
\
Comments
* DO NOT attempt SRS wiring repairs.
* If any components are damaged or bent, they
must be replaced.
\
\
\
\
\
\
\
(
1) - If Equipped.
(
2) - 1998 Legacy, on side of deployment.
\
\
\
\
\
\
\
\f
SUZUKI (1995-98)
AIR BAG APPLICATION
AIR BAG APPLICATION TABLE - SUZUKI (1995-98) \
\
\
\
\
\
Model Year (1) Location
Esteem .............. 1995-98 ...................... D/P
Sidekick ............ 1996-98 ...................... D/P
Swift ............... 1995-98 ...................... D/P
X90 ................. 1996-98 ...................... D/P
( 1) - Location Definitions: D/P = Driver's & Passenger's
Side, DS = Driver's Side Only, SI = Side Impact.
\
\
\
\
\
\
INSPECTION PROCEDURES
INSPECTION PROCEDURES TABLE - SUZUKI (1995-98) \
\
\
\
\
\
\
Action Component or System
\
\
\b \
\
\
\
\
Replace After
* Air BagModule(s)
Deployment
* Sensing & Diagnostic Module (SDM)
\
\
\b \
\
\
\
\
Inspect & If
* Air Bag Warning Light
Damaged, Replace
* Combination Switch Assembly
Component
* Contact Coil
(Even If Air
* Forward Discriminating Sensor ( 1)
Bag Did Not
* Instrument Panel Reinforcement
Deploy)
* Knee Bolsters
* Seat Belts & Mounting Points
* SDM Bracket
* Steering Column Bracket
* Steering Column & Shaft Joints
* Steering Wheel
* Wiring Harness
\
\
\b \
\
\
\
\
Comments
* If any components are damaged or bent, they
must be replaced.
\
\
\
\
\
\
\
(
1) - Swift Only
\
\
\
\
\
\
\
\f
TOYOTA (1990-98)
Page 1105 of 1501
STEERING COLUMN SWITCHES
1998 Mitsubishi Montero
1998 ACCESSORIES & EQUIPMENT
Mitsubishi - Steering Column Switches
Diamante, Eclipse, Galant, Mirage, Montero, Montero Sport,
3000GT
* PLEASE READ THIS FIRST *
WARNING: Deactivate air bag system before performing any service
operation. See AIR BAG RESTRAINT SYSTEMS article. DO NOT
apply electrical power to any component on steering column
without first deactivating air bag system. Air bag may
deploy.
DESCRIPTION
Headlight and turn signal switch and wiper/washer switch are
part of combination switch. For information on cruise control switch
(right side of column), see appropriate CRUISE CONTROL SYSTEMS
article.
COMPONENT LOCATIONS
COMPONENT LOCATIONS TABLE \
\
\
\
\
\
Component Location
Headlight Relay .................... In Engine Compartment
Fuse/Relay Block
Foglight Relay
Except Montero & Montero Sport ... In Engine Compartment
Fuse/Relay Block
Taillight Relay
Except Montero Sport ............. In Engine Compartment
Fuse/Relay Block
Turn Signal/Hazard Flasher Unit
Diamante ............................ At Left Kick Panel
Eclipse .......................... Behind Center Of Dash
Except Diamante & Eclipse ..... Behind Left Side Of Dash
Wiper Relay
Front
Except Diamante & 3000GT .......... On Steering Column
Rear
Eclipse ........................ Behind Center Of Dash
Montero & Montero Sport .............. On Relay Block,
Behind Left Side Of Dash
3000GT ................ Behind Left Rear Quarter Panel
\
\
\
\
\
\
COMPONENT TESTS
DIAMANTE
Turn Signal, Lighting & Dimmer/Passing Switch Tests
Disconnect steering column combination switch connector. See
Fig. 1 . Check continuity between specified terminals. See
STEERING COLUMN COMBINATION SWITCH CONTINUITY CHECK TABLE (DIAMANTE) .
Page 1106 of 1501
![MITSUBISHI MONTERO 1998 Service Manual If continuity is not as specified, replace steering column combination
switch.
STEERING COLUMN COMBINATION SWITCH CONTINUITY CHECK TABLE (DIAMANTE)
\
\](/img/19/57333/w960_57333-1105.png "MITSUBISHI MONTERO 1998 Service Manual If continuity is not as specified, replace steering column combination
switch.
STEERING COLUMN COMBINATION SWITCH CONTINUITY CHECK TABLE (DIAMANTE)
\
\")
If continuity is not as specified, replace steering column combination
switch.
STEERING COLUMN COMBINATION SWITCH CONTINUITY CHECK TABLE (DIAMANTE)
\
\
\
\
\
\
Switch Check Continuity
& Position Between Terminals No.
Lights Switch (1)
Foglight ON ...................................... 3 & 7
Headlight ON .................................. 2, 5 & 8
Taillight ON ..................................... 5 & 8
Dimmer Switch ( 2)
Low Beam ......................................... 3 & 4
High Beam ........................................ 4 & 6
Passing
Low Beam ............................. 1, 2 & 6; 3 & 4
High Beam ............................ 1, 2 & 6; 4 & 6
Turn Signal Switch ( 3)
Left Turn ........................................ 5 & 8
Right Turn ....................................... 7 & 8
( 1) - Check at connector "A". See Fig. 2.
( 2) - Check at connector "B". See Fig. 2.
( 3) - Check at connector "C". See Fig. 2.
\
\
\
\
\
\
Fig. 1: Exploded View Of Steering Column (Diamante)
Courtesy of Mitsubishi Motor Sales of America
Page 1110 of 1501
Fig. 5: Testing Wiper/Washer Switch (Diamante)
Courtesy of Mitsubishi Motor Sales of America
ECLIPSE
Lighting & Turn Signal Switch Tests
Disconnect steering column combination switch connector.
Check continuity between specified terminals. See Figs. 6 and 7. If
continuity is not as specified, replace steering column combination
switch.
Page 1112 of 1501
Fig. 7: Testing Lighting & Turn Signal Switches (Eclipse)
Courtesy of Mitsubishi Motor Sales of America
Ignition Switch Test
Disconnect ignition switch connector. Check continuity
Page 1118 of 1501
between specified terminals. See Fig. 12. If continuity is not as
specified, replace key reminder switch.
Lighting & Turn Signal Switch Tests
Disconnect steering column combination switch connector.
Check continuity between specified terminals. See
STEERING COLUMN COMBINATION SWITCH CONTINUITY CHECK TABLE (GALANT) .
See Figs. 11 and 13. If continuity is not as specified, replace
steering column combination switch.
STEERING COLUMN COMBINATION SWITCH CONTINUITY CHECK TABLE (GALANT)
\
\
\
\
\
\
Switch Check Continuity
& Position Between Terminals No.
Lights Switch
Headlight ON .............. ( 1) 1 & ( 2) 6; ( 2) 5 & ( 2) 7
Taillight ON ( 2) ................................. 5 & 7
Dimmer Switch ( 1)
Low Beam ......................................... 4 & 6
High Beam ........................................ 3 & 4
Passing
Low Beam ............................. 1, 2 & 6; 3 & 4
High Beam ............................ 1, 2 & 6; 4 & 6
Turn Signal Switch ( 2)
Left Turn ........................................ 3 & 8
Right Turn ....................................... 8 & 9
( 1) - Check at connector "A". See Fig. 13.
( 2) - Check at connector "B". See Fig. 13.
\
\
\
\
\
\

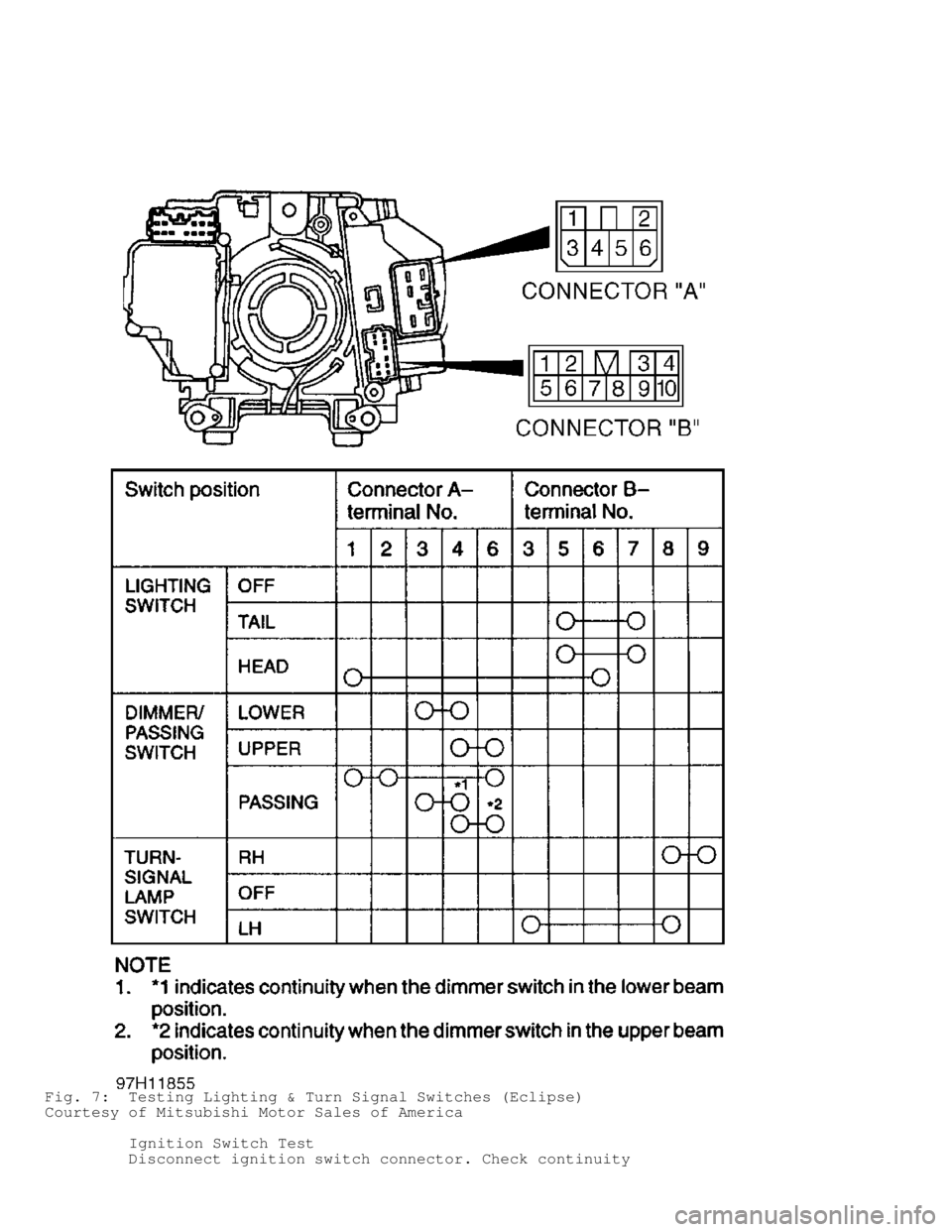

Fig. 13: Identifying Lighting & Turn Signal Switches (Galant)
Courtesy of Mitsubishi Motor Sales of America
Wiper/Washer Switch Tests
Disconnect steering column combination switch connector.
Page 1122 of 1501
specified, replace key reminder switch.
Fig. 17: Testing Key Reminder Switch (Mirage)
Courtesy of Mitsubishi Motor Sales of America
Lighting & Turn Signal Switch Tests
Disconnect steering column combination switch connector.
Check continuity between specified terminals. See Figs. 15 and 18. If
continuity is not as specified, replace steering column combination
switch.
Page 1123 of 1501
Fig. 18: Testing Lighting & Turn Signal Switches (Mirage)
Courtesy of Mitsubishi Motor Sales of America
Wiper/Washer Switch Tests
Disconnect steering column combination switch connector.
Page 1125 of 1501
Fig. 20: Testing Ignition Switch & Key Reminder Switch (Montero)
Courtesy of Mitsubishi Motor Sales of America
Lighting & Turn Signal Switch Tests
Disconnect steering column combination switch connector.
