2) Disconnect air intake hose and vacuum hoses. Remove air
hose and air outlet housing. Remove heat protectors. Disconnect
exhaust pipe. Remove power steering oil pump and bracket. Remove
engine hanger bracket. Disconnect oil inlet pipe.
3) Disconnect engine coolant hoses and tubes from
turbocharger. Remove exhaust manifold nuts and bolts. Remove exhaust
manifold and gaskets. Disconnect oil pressure and return pipes. Remove
turbocharger and exhaust manifold assembly. Separate turbocharger from
exhaust manifold.
Removal (3000GT - Front)
1) Disconnect negative battery cable. Drain engine oil and
coolant. Remove radiator. Disconnect exhaust pipe. Remove air intake
hose, air hoses and air pipe. Remove generator and belt. Remove oil
dipstick guide.
2) Remove heat protector. Disconnect front heated oxygen
sensor connector. Remove oil return pipe. Remove turbocharger support
bracket, and remove turbocharger from exhaust manifold.
Removal (3000GT - Rear)
1) Disconnect battery cables, and remove battery. Drain
engine oil and cooling system. Remove accelerator cable. Remove air
hose, air pipe and heat protectors. Disconnect clutch booster vacuum
hose. Remove air intake hoses and EGR pipe. Disconnect heated oxygen
sensor connectors.
2) Remove oil pipe and EGR valve. Disconnect exhaust fitting,
and remove rear heat protector. Remove oil return pipe. Remove
turbocharger assembly.
Inspection (All Models)
Check turbine and compressor wheels for cracking and other
damage. Ensure turbine and compressor wheels turn smoothly. Check for
oil leakage from turbocharger assembly. Check for proper wastegate
valve operation. See I - SYSTEM/COMPONENT TESTS article.
CAUTION: Apply light coat of oil to inner surface of flared area on
water pipe (flare nut fitting) before connecting to engine.
Installation (All Models)
1) To install, reverse removal procedure. Before oil pipe
flare nut (above turbocharger) is installed, pour clean engine oil
into turbocharger oil pipe installation hole. Ensure oil and air hoses
are properly installed and securely clamped.
2) Use NEW gaskets. Adjust accelerator cable (if necessary).\
Refill engine oil and coolant. Check for oil and coolant leaks.
Tighten all bolts to specification. See TORQUE SPECIFICATIONS.
TORQUE SPECIFICATIONS
TORQUE SPECIFICATIONS TABLE\
\
\
\
\
\
Applications Ft. Lbs. (N.m)
Coolant Pipe-To-Turbocharger Banjo Bolt .......... 31 (42)
EGR Valve ........................................ 16 (22)
Engine Coolant Temperature Sensor ................ 22 (30)
Exhaust Manifold-To-Engine Nuts ............ 18-21 (24-29)
Exhaust Manifold-To-Turbocharger Bolts ..... 40-47 (54-64)
Exhaust Pipe Bolts ......................... 21-36 (29-49)
Fuel Filter Line ................................. 27 (36)
Fuel Tank Drain Plug ....................... 11-18 (15-24)
Fuel Tank Nuts ............................. 15-21 (20-29)
Page 1067 of 1501
SEATS - POWER
1998 Mitsubishi Montero
1998 ACCESSORIES & EQUIPMENT
Mitsubishi - Power Seats
Eclipse, Galant, Montero, 3000GT
DESCRIPTION & OPERATION
Power seat system consists of reversible motors, a control
switch assembly and a wiring harness. Circuit is protected by a
fusible link, located in main relay box in engine compartment.
Power assist adjustments offered are: forward and backward
movement, height adjustment and separately adjusted front or rear seat
tilt. Controls are located on side of seat cushion or on center
console.
COMPONENT LOCATIONS
COMPONENT LOCATIONS TABLE \
\
\
\
\
\
Component Location
Data Link Connector (DLC) ............ Under Left Of Dash,
Below Steering Column
ETACS-ECU
3000GT ......................... Left Of Steering Column
Seat Adjusting Motors .............. Under Each Front Seat
\
\
\
\
\
\
COMPONENT TESTS
LIMIT SWITCH/SENSOR
Galant (Driver's Seat)
Disconnect each limit switch harness connector. Operate each
switch to check continuity between specified pins using ohmmeter. See
LIMIT SWITCH CONTINUITY TABLE (GALANT) . See Fig. 1. Replace power seat
adjuster assembly if any switch fails testing.
LIMIT SWITCH CONTINUITY TABLE (GALANT)
\
\
\
\
\
\
Switch Check Continuity
Position Between Pins No.
Slide Limit Switch
Forward .......................................... 1 & 2
Backward ......................................... 1 & 3
Middle (ON) ................................... 1, 2 & 3
Front & Rear Height Limit Switch
Front Up ......................................... 1 & 3
Front Down ....................................... 1 & 2
Front Middle (ON) ............................. 1, 2 & 3
Rear Up .......................................... 1 & 3
Rear Down ........................................ 1 & 2
Rear Middle (ON) .............................. 1, 2 & 3
\
\
\
\
\
\
Page 1105 of 1501
STEERING COLUMN SWITCHES
1998 Mitsubishi Montero
1998 ACCESSORIES & EQUIPMENT
Mitsubishi - Steering Column Switches
Diamante, Eclipse, Galant, Mirage, Montero, Montero Sport,
3000GT
* PLEASE READ THIS FIRST *
WARNING: Deactivate air bag system before performing any service
operation. See AIR BAG RESTRAINT SYSTEMS article. DO NOT
apply electrical power to any component on steering column
without first deactivating air bag system. Air bag may
deploy.
DESCRIPTION
Headlight and turn signal switch and wiper/washer switch are
part of combination switch. For information on cruise control switch
(right side of column), see appropriate CRUISE CONTROL SYSTEMS
article.
COMPONENT LOCATIONS
COMPONENT LOCATIONS TABLE \
\
\
\
\
\
Component Location
Headlight Relay .................... In Engine Compartment
Fuse/Relay Block
Foglight Relay
Except Montero & Montero Sport ... In Engine Compartment
Fuse/Relay Block
Taillight Relay
Except Montero Sport ............. In Engine Compartment
Fuse/Relay Block
Turn Signal/Hazard Flasher Unit
Diamante ............................ At Left Kick Panel
Eclipse .......................... Behind Center Of Dash
Except Diamante & Eclipse ..... Behind Left Side Of Dash
Wiper Relay
Front
Except Diamante & 3000GT .......... On Steering Column
Rear
Eclipse ........................ Behind Center Of Dash
Montero & Montero Sport .............. On Relay Block,
Behind Left Side Of Dash
3000GT ................ Behind Left Rear Quarter Panel
\
\
\
\
\
\
COMPONENT TESTS
DIAMANTE
Turn Signal, Lighting & Dimmer/Passing Switch Tests
Disconnect steering column combination switch connector. See
Fig. 1 . Check continuity between specified terminals. See
STEERING COLUMN COMBINATION SWITCH CONTINUITY CHECK TABLE (DIAMANTE) .
Page 1155 of 1501
STEERING SYSTEM - POWER RECIRCULATING BALL
1998 Mitsubishi Montero
1997-98 STEERING
Mitsubishi - Power Recirculating Ball
Montero, Montero Sport
DESCRIPTION & OPERATION
STEERING GEAR
The power steering gear displaces fluid to provide hydraulic
pressure assist while turning. A one-piece rack piston nut is geared
to cross shaft. Backlash is adjusted with an adjusting screw.
STEERING LINKAGE
Linkage consists of an idler arm, relay rod, steering
knuckles and adjustable tie rods. Components are connected by ball
joints. Linkage assembly is connected to steering gear by pitman arm.
LUBRICATION
FLUID TYPE
Recommended fluid type is Dexron-II ATF.
FLUID LEVEL CHECK
Place vehicle in level position. Start engine and let idle.
Turn steering wheel left and right. Replace fluid if it has bubbles or
has become White. Fluid level should be between MIN and MAX marks on
dipstick. Fill to proper level.
FLUID REPLACEMENT
CAUTION: DO NOT crank engine for more than 15-20 seconds at a time.
1) Remove reservoir cap. Disconnect return hose at reservoir.
Drain fluid. Disconnect coil high tension wire. Raise and support
vehicle.
2) Turn steering wheel lock-to-lock several times while
cranking engine to drain fluid from steering gear. Reconnect hose.
Fill power steering system with fluid. Bleed system. See
HYDRAULIC SYSTEM BLEEDING .
HYDRAULIC SYSTEM BLEEDING
CAUTION: DO NOT crank engine for more than 15-20 seconds at a time.
Add fluid as needed during procedure to prevent reservoir
level from dropping.
1) Ensure reservoir is filled before bleeding. Add fluid (if
necessary) during bleeding. Raise and support front of vehicle.
Disconnect coil high tension wire.
2) While cranking engine, turn steering wheel lock-to-lock 5
or 6 times. Lower vehicle. Connect coil wire. Start engine and let
idle. Turn steering wheel lock-to-lock until no more bubbles appear in
oil reservoir.
Page 1156 of 1501
3) Turn steering wheel lock-to-lock. Fluid level should not
change more than .2" (5 mm). If pump is noisy, fluid rises after
engine is turned off, or fluid level changes more than specified,
repeat bleeding procedure.
ADJUSTMENTS
BELT TENSION ADJUSTMENT SPECIFICATIONS
BELT ADJUSTMENT \
\
\
\
\
\
\
Application ( 1) Deflection: In. (mm)
Montero
New Belt ......................................... .42-.54 (11-14)\
Used Belt ........................................ .58-.66 (15-17)\
Montero Sport
2.4L
New Belt ......................................... .16-.24 (4-6)\
Used Belt ........................................ .24-.28 (6-7)\
3.0L
New Belt ....................................... .44-.52 (11-13)\
Used Belt ...................................... .56-.64 (14-16)\
( 1) - With 22 lbs. (10 kg) pressure applied midway on longest belt
run.
\
\
\
\
\
\
\
STEERING WHEEL PLAY
Raise and support vehicle. Start engine and let idle. With
steering wheel in center position, ensure free play is 1.1" (27 mm) or\
less. If measured value exceeds specification, check steering gear
backlash and linkage ball joint end play. See STEERING GEAR BACKLASH
and LINKAGE BALL JOINT END PLAY.
STEERING GEAR BACKLASH
1) Set steering wheel in straight-ahead position. Raise and
support vehicle. Disconnect relay rod from pitman arm. Using a dial
indicator, measure steering gear backlash at top end of pitman arm.
2) Steering gear backlash should not exceed .02" (.5 mm). If\
measured value exceeds limit, turn steering gearbox adjusting bolt
until steering wheel free play is within specification. See Fig. 1.
Fig. 1: Measuring Steering Gear Backlash
Courtesy of Mitsubishi Motor Sales of America.
TESTING
Page 1157 of 1501
HYDRAULIC SYSTEM PRESSURE TEST
1) Disconnect pressure hose from power steering pump. Attach
Pressure Gauge (MB990662-01) and Adapters (MB990993-01 and MB990994-
01). See Fig. 2. Tighten fittings to 22-29 ft. lbs. (30-39 N.m).
2) Bleed system. See HYDRAULIC SYSTEM BLEEDING under
LUBRICATION . Turn wheel several times to bleed air from gauge. Start
engine and let idle. Place thermometer in reservoir. Check fluid
level. Add fluid as necessary.
3) When fluid temperature reaches 122-140
F (50-60C), check
pressure. See POWER STEERING PUMP PRESSURE SPECIFICATIONS table.
Reinstall pressure hose. Do not twist hose or let hose interfere with
adjacent parts. Replace power steering pump if pressure is not within
specification. Bleed system.
CAUTION: DO NOT keep shutoff valve closed more than 3 seconds at a
time. DO NOT keep steering wheel turned to full lock
position for more than 10 seconds at a time.
POWER STEERING PUMP PRESSURE SPECIFICATIONS
\
\
\
\
\
\
\
Application psi (kg/cm)
Valve Closed Or Wheel At Full Lock ............... 1204-1305 (83-90)\
Valve Open (Standard) ............................... 114-142 (8-10\
)
\
\
\
\
\
\
\
Fig. 2: Connecting Pressure Gauge & Shutoff Valve
Courtesy of Mitsubishi Motor Sales of America.
P/S PRESSURE SWITCH
Page 1158 of 1501
1) Disconnect pressure hose from power steering pump. Attach
Pressure Gauge (MB990662-01) and Adapters (MB990993-01 and MB990994-
01). See Fig. 2. Tighten fittings to 22-29 ft. lbs. (30-39 N.m).
2) Bleed system. See HYDRAULIC SYSTEM BLEEDING under
LUBRICATION . Turn wheel several times to bleed air from gauge. Start
engine and let idle. Place thermometer in reservoir. Check fluid
level. Add fluid as necessary.
3) When fluid temperature reaches 122-140
F (50-60C),
disconnect connector from P/S pressure switch. Connect ohmmeter across
switch terminals. Slowly close shut-off valve. Check pressure when
ohmmeter indicates switch has closed (continuity). Pressure should be
218-290 (15-20 N.m). Slowly open shut-off valve. Check pressure when
ohmmeter indicates switch has opened (no continuity). Pressure should
be 102-174 (7-12 N.m). Reinstall pressure hose. Do not twist hose or
let hose interfere with adjacent parts. Replace P/S pressure switch if
pressure is not within specification. Bleed system.
CAUTION: DO NOT keep shutoff valve closed more than 3 seconds at a
time. DO NOT keep steering wheel turned to full lock
position for more than 10 seconds at a time.
STEERING WHEEL TURNING FORCE
Stationary Test
1) Position vehicle on level surface. Place steering wheel in
straight-ahead position. Start engine and let idle. Using a spring
scale, measure steering wheel turning force clockwise and
counterclockwise.
2) On Montero, turning force should be 8.2 lbs. (3.7 kg) or
less. On Montero Sport, turning force should be 8.8 lbs. (3.9 kg) or
less. If turning force exceeds specification, check for loose or
damaged belt, insufficient fluid, air in power steering fluid, and
collapsed or twisted hoses. Repair or replace as necessary.
REMOVAL & INSTALLATION
IDLER ARM
Removal
Loosen relay rod-to-idler arm lock nut. Using Steering
Linkage Puller (MB991113 or MB990635), separate idler arm from relay
rod and remove relay rod-to-idler arm lock nut. Remove idler arm bolts
and nuts. Remove idler arm. On Montero, loosen, but DO NOT remove
idler arm-to-bracket nut. Press arm from bracket and remove nut and
arm.
Inspection
Check idler arm bushings for damage or wear. Check idler arm
ball stud for looseness.
Installation
1) Apply multipurpose grease to inside surface of bushing and
idler arm support shaft. Insert bushing in idler arm. Insert idler arm
support in idler arm.
2) Install washer (knurled side toward bushing) and NEW lock\
nut. Tighten lock nut to specification. See TORQUE SPECIFICATIONS.
Place idler arm assembly in vise. Using a spring gauge, measure
turning resistance.
3) On all models, turning resistance should be 3-18 INCH lbs.
(.3-2.0 N.m). On Montero, if turning resistance is not within
specification, loosen or tighten lock nut to obtain proper resistance.
4) Install idler arm bolts and nuts. Install relay rod-to-
Page 1159 of 1501
idler arm. See TORQUE SPECIFICATIONS .
POWER STEERING GEAR
Removal & Installation
1) Drain power steering fluid. See FLUID REPLACEMENT under
LUBRICATION . Remove steering shaft-to-steering gear clamp bolt.
Disconnect pressure and return hoses from steering gear.
2) Remove cotter pin and castle nut from pitman arm. Using
Puller (C-3894-A), separate pitman arm from relay rod.
3) Remove steering gear mounting nuts. Disconnect steering
shaft from steering gear. Remove steering gear. To install, reverse
removal procedure.
POWER STEERING PUMP & RESERVOIR
Removal
Drain power steering fluid. See FLUID REPLACEMENT under
LUBRICATION . Disconnect hoses from reservoir. Remove reservoir.
Disconnect hoses from pump. Loosen pump retaining bolts. Remove belt.
Remove pump and mounting bracket(s).
Installation
To install, reverse removal procedure. Check power steering
pump bracket for slack. Tighten bracket (if necessary). Fill and bleed\
reservoir. See FLUID REPLACEMENT and HYDRAULIC SYSTEM BLEEDING under
LUBRICATION . Start engine and turn steering wheel lock-to-lock to
check for fluid leaks.
RELAY ROD
Removal
Remove inner tie rod end cotter pins and lock nuts. Separate
tie rod ends from relay rod. Remove cotter pins and castle nuts from
idler arm and pitman arm. Using a puller, separate relay rod from
idler arm and pitman arm.
Installation
To install relay rod, reverse removal procedure. Ensure dust
covers are well greased and lower edge of covers are coated with
packing sealer. Tighten relay rod-to-idler arm and relay rod-to-pitman
arm castle nuts to specification. See TORQUE SPECIFICATIONS.
TIE ROD ASSEMBLY
Removal
1) Remove skid plate (if necessary). Remove cotter pins and
loosen lock nuts from tie rod ball studs at steering knuckle and relay
rod end.
2) Using Steering Linkage Puller (MB991113 or MB990635),
separate tie rod ends from knuckle and relay rod end and remove lock
nuts. Loosen tie rod adjusting sleeve lock nuts, and unscrew tie rod
ends.
Inspection
Check tie rod ends for damage and ball studs for looseness.
On Montero, measure ball stud starting torque. Torque should be 9-27
INCH lbs. (1.0-3.0 N.m). If ball stud starting torque exceeds
specification, replace tie rod.
Installation
1) Install "O" ring on ball socket. Grease inside of tie rod
Page 1357 of 1501
TRANSMISSION SERVICING - A/T
1998 Mitsubishi Montero
1997-98 TRANSMISSION SERVICING
Mitsubishi Automatic Transmission
Diamante, Eclipse, Galant, Mirage, Montero, 3000GT
IDENTIFICATION
AUTOMATIC TRANSMISSION APPLICATIONS \
\
\
\
\
\
\
Model Transmission/Transaxle
Diamante ..................................... Model F4A51 Transaxle
Eclipse
AWD ........................................ Model W4A33 Transaxle
FWD
2.0L Non-Turbo ........................... Model F4AC1 Transaxle
2.0L Turbo ............................... Model F4A33 Transaxle
2.4L ....................................... Model F4A23 Transaxle
Galant ....................................... Model F4A23 Transaxle
Mirage
1.5L ....................................... Model F4A41 Transaxle
1.8L ....................................... Model F4A42 Transaxle
Montero
2WD ..................................... Model R4AW3 Transmission
4WD ..................................... Model V4AW3 Transmission
3000GT ....................................... Model F4A33 Transaxle
\
\
\
\
\
\
\
LUBRICATION
SERVICE INTERVALS
Transaxle/Transmission
Check fluid level every 12 months or 15,000 miles. Change
fluid and filter every 30,000 miles. If vehicle is operated under
severe conditions, change fluid more often. If severe darkening of
fluid and strong odor are noted, bands should also be adjusted.
Transfer Case
On 4WD and AWD models, change transfer case fluid every 30,
000 miles.
CHECKING FLUID LEVEL
Transaxle/Transmission
1) Park vehicle on level area. Ensure oil is at normal
operating temperature, parking brake is engaged, and engine is at
idle. Move gear selector through each position, stopping briefly at
each selection.
2) Place gear selector in Neutral, and clean area around
dipstick tube. Ensure fluid level is between lower and upper marks,
but never over upper mark, in HOT range. Add or drain fluid if
necessary.
CAUTION: If severe darkening of fluid and strong odor are noted,
change fluid and filter, and adjust bands.
Transfer Case (All Others)
Page 1359 of 1501
removed to drain fluid. Remove oil filter/screen if necessary.
2) If oil filter/screen is replaced, tighten bolts to
specification. See TORQUE SPECIFICATIONS . Clean oil pan, replace
gasket, and install oil pan. Tighten oil pan bolts and drain plug to
specification. See TORQUE SPECIFICATIONS . Ensure dipstick hole area is
clean. Fill transmission with Dexron-II ATF, through filler tube,
until COLD level is reached on dipstick. Start engine, and allow to
idle for 2 minutes.
3) Shift transmission into each position, ending in Neutral.
Check fluid level with engine running at idle. If necessary, add
sufficient fluid to bring level to lower mark of dipstick. Recheck
fluid level after transmission is at normal operating temperature.
Transfer Case
Drain plug is located on bottom of transfer case. Change
drain plug gasket whenever fluid is changed. Lubricant level should be
at bottom of fill hole on side of transfer case.
ADJUSTMENTS
KICKDOWN SERVO
Eclipse, Galant & 3000 GT
1) Remove all dirt and grease around kickdown servo switch.
Remove snap ring and kickdown servo switch.
2) To prevent servo piston from turning, install Adapter
(MD998915) and Kickdown Servo Wrench (MD998918) so tab of wrench
engages with notch of piston. See Fig. 1.
CAUTION: DO NOT push servo piston inward while installing adapter and
servo wrench. Install adapter in brake pressure port by hand
ONLY. DO NOT use wrench to tighten adapter.

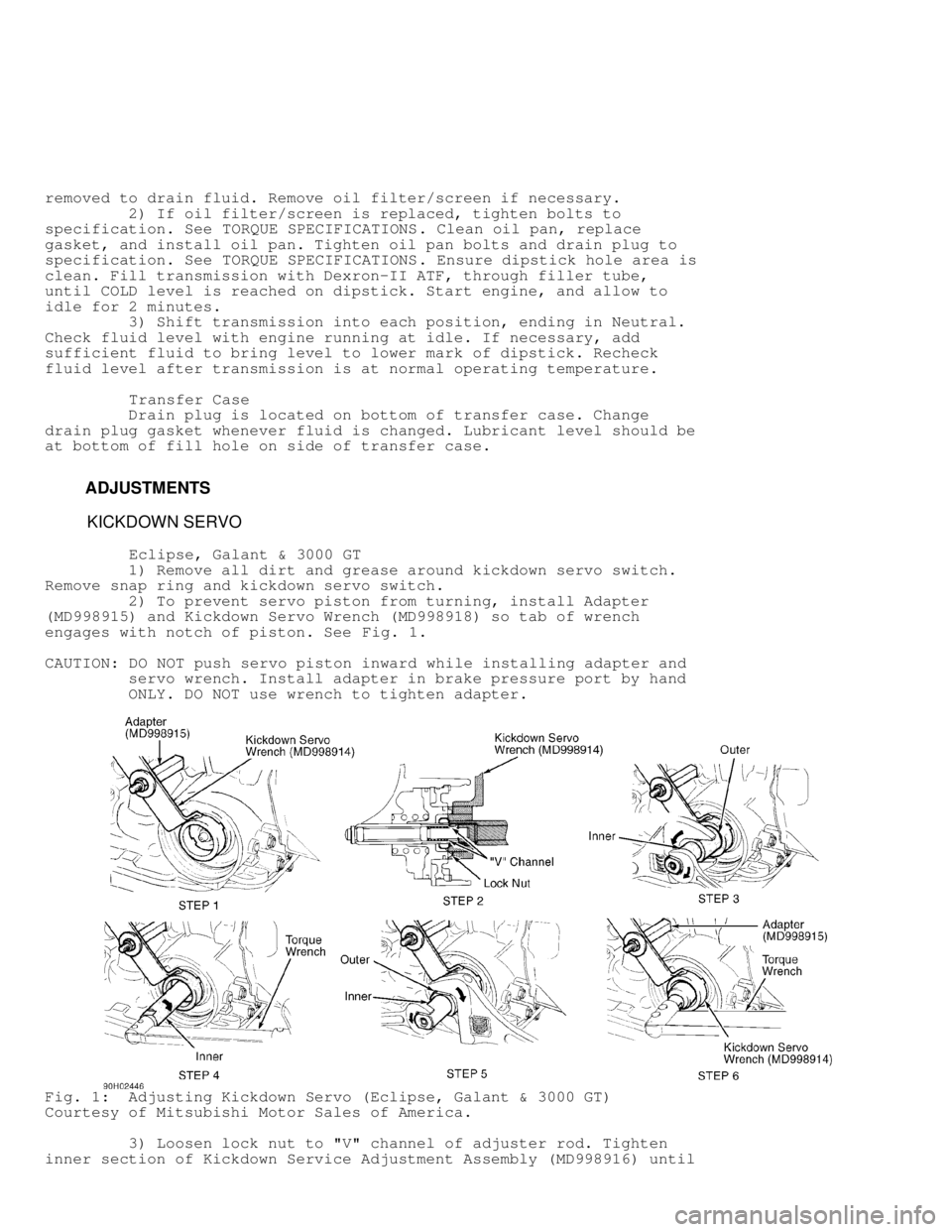

Fig. 1: Adjusting Kickdown Servo (Eclipse, Galant & 3000 GT)
Courtesy of Mitsubishi Motor Sales of America.
3) Loosen lock nut to "V" channel of adjuster rod. Tighten
inner section of Kickdown Service Adjustment Assembly (MD998916) until\
