Page 2 of 1501

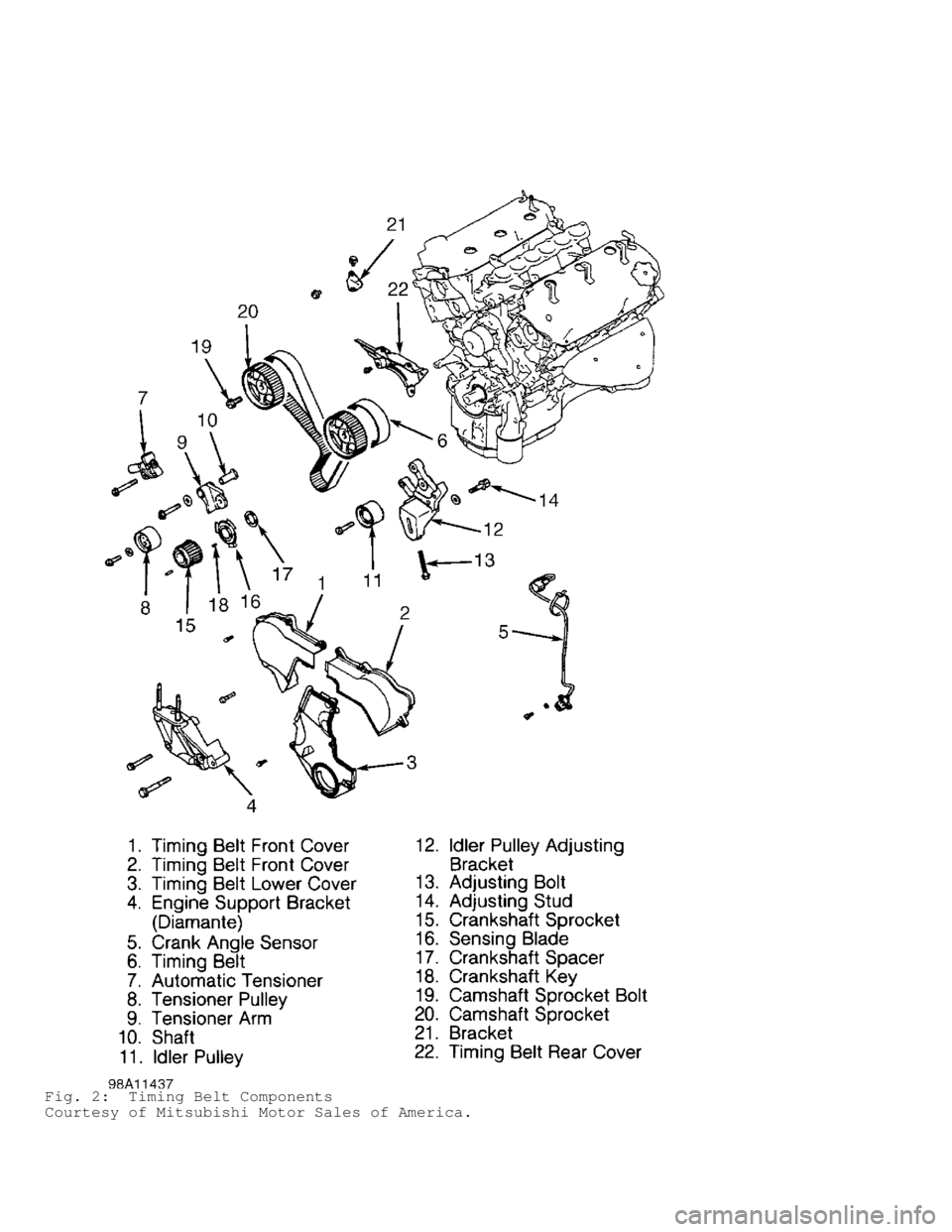

Fig. 2: Timing Belt Components
Courtesy of Mitsubishi Motor Sales of America.

Page 3 of 1501

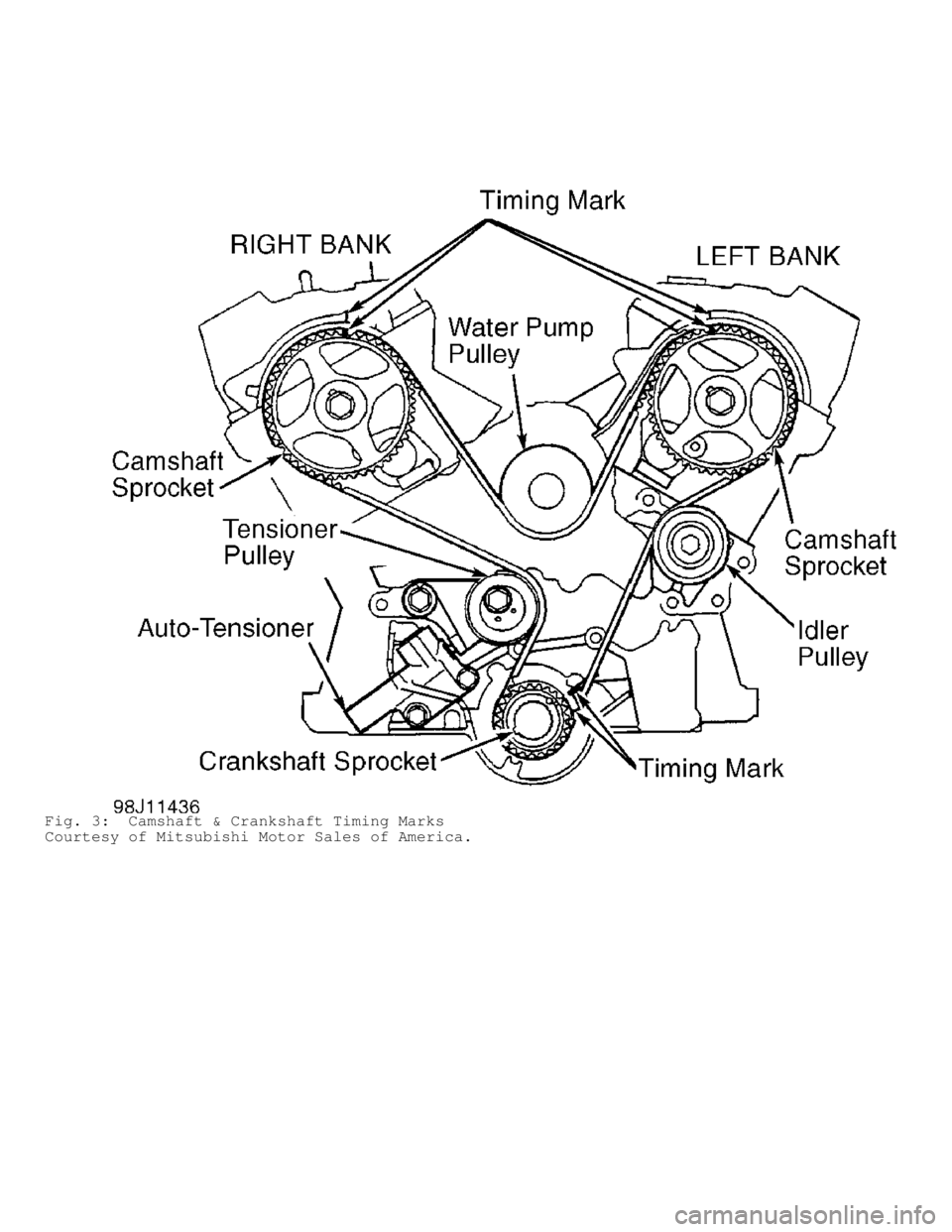

Fig. 3: Camshaft & Crankshaft Timing Marks
Courtesy of Mitsubishi Motor Sales of America.

Page 14 of 1501

$MITSUBISHI MONTERO 1998 Service Manual Accessory Mount Stay Bolt (Montero) 8 mm Bolt .............................................. 17 (23)\ 10 mm Bolt ............................................. 36 (49)\ Cooling Fan Br$

Accessory Mount Stay Bolt (Montero)
8 mm Bolt .............................................. 17 (23)\
10 mm Bolt ............................................. 36 (49)\
Cooling Fan Bracket (Montero) ............................ 30 (41\
)
Engine Hanger (Montero) .................................. 13 (17\
)
Generator Bolt (Diamante) ................................ 15 (21\
)
Generator Bolt (Montero)
8 mm Bolt .............................................. 15 (21)\
10 mm Bolt ............................................. 38 (51)\
Generator Bracket (Diamante)
8 mm Bolt .............................................. 35 (48)\
10 mm Bolt ............................................. 17 (23)\
Generator Pivot Nut (Diamante) ........................... 32 (44\
)
Tensioner Pulley Nut ..................................... 37 (50)\
Tensioner Bracket Stay Bolt (Montero) .................... 18 (24\
)
Intake Manifold & Fuel
Bracket (Montero) ........................................ 18 (24\
)
ECT Sensor ............................................... 22 (30)\
Intake Manifold Nut ...................................... 15 (21)\
Thermostat Case .......................................... 14 (19)\
Water Inlet Fitting Bolt ................................. 14 (19)\
Water Outlet Fitting Bolt ................................ 14 (19)\
Water Passage (Montero) .................................. 14 (19\
)
Heater Pipe Bolt (Diamante) .............................. 13 (18\
)
Intake Plenum & Throttle Body
Air Intake Fitting Bolt & Nut (Montero) .................. 13 (18\
)
EGR Pipe Bolt ............................................ 13 (18)\
EGR Pipe Flair Nut ....................................... 44 (59)\
EGR Valve Bolt ........................................... 16 (22)\
Intake Manifold Plenum (Diamante) ........................ 13 (18\
)
Intake Manifold Plenum Stay Bolt
8 mm Bolt .............................................. 13 (18)\
10 mm Bolt ............................................. 27 (36)\
Water Outlet Fitting Bracket Bolt ........................ 14 (19)\
Bracket (Diamante) ....................................... 18 (24\
)
Motor Mount Brackets
Bracket
8 mm Bolt .............................................. 16 (22)\
10 mm Bolt ............................................. 30 (41)\
12 mm Bolt ............................................. 55 (75)\
Oil Pan & Oil Pump
Drain Plug ............................................... 30 (40)\
Oil Cooler By-Pass Valve (Montero) ....................... 41 (55\
)
Oil Filter Bolt (Montero) ................................ 15 (21\
)
Oil Filter Bracket
8 mm Bolt .............................................. 18 (24)\
10 mm Bolt ............................................. 30 (40)\
Oil Screen
8 mm Bolt ............................................... 14 (19)\
Plug .................................................... 33 (45)\
Piston & Connection Rod
Connecting Rod Cap Nut ................................... 38 (52)\
Rocker Arms & Camshafts
Distributor Adapter Bolt (Diamante) ...................... 17 (23\
)
Rocker Arm Shaft Bolt .................................... 23 (31)\
Spark Plug ................................................. 18 (25)\
Timing Belt
Auto Tensioner Bolt ...................................... 18 (24)\
Camshaft Sprocket Bolt ................................... 65 (88)\
Idler Pulley Bolt ........................................ 32 (44)\
Tensioner Arm Bolt ....................................... 32 (44)\
Tensioner Pulley Bolt .................................... 36 (49)\
Water Pump Bolt (Montero) ................................ 18 (24\
)

Page 15 of 1501

$MITSUBISHI MONTERO 1998 Service Manual Water Pump Bolt (Diamante) 8 mm Bolt .............................................. 18 (24)\ 10 mm Bolt ............................................. 30 (41)\$

Water Pump Bolt (Diamante)
8 mm Bolt .............................................. 18 (24)\
10 mm Bolt ............................................. 30 (41)\
INCH Lbs. (N.m)
Crankshaft & Drive Plate
Bell Housing ............................................ 79.7 (9)\
Oil Seal Case .......................................... 97.3 (11)\
Rear Plate (Montero) ................................... 97.3 (11\
)
Exhaust Manifold
Heat Shield ........................................... 123.9 (14)\
Oil Level Gauge Guide Bolt ............................ 123.9 (14)\
Generator & Drive Belt
Cooling Fan Bolt (Montero) ............................. 97.3 (11\
)
Cooling Fan Nut (Montero) .............................. 97.3 (11\
)
Timing Indicator Bolt (Montero) ........................ 97.3 (11\
)
Intake Manifold & Fuel
ECT Gauge Sender ....................................... 97.4 (11)\
Fuel Pressure Regulator Bolt ............................ 79.6 (9)\
Fuel Pipe Banjo Bolt .................................... 79.6 (9)\
Injector & Fuel Rail Bolt ............................. 106.2 (12)\
Water Outlet Pipe ..................................... 123.9 (14)\
Intake Plenum & Throttle Body
Ignition Coil Bolt (Montero) ............................ 115 (13\
)
Manifold Differential Pressure (MDP) Sensor ............. 44 (4.9\
)
Throttle Body Bolt ...................................... 106 (12)\
Vacuum Hose Assembly (Diamante) ......................... 88 (9.8\
)
Oil Pan & Oil Pump
Baffle Plate (Montero) ................................. 97.3 (11\
)
Baffle Plate (Diamante) ................................ 97.3 (11\
)
6 mm Bolt ............................................... 53.1 (6)\
8 mm Bolt ............................................... 79.6 (9)\
Oil Pump Cover Bolt (Diamante) ......................... 88.5 (10\
)
Oil Pump Cover Bolt (Montero)
6 mm x 10 mm Bolt .................................... 97.3 (11)\
6 mm x 18 mm Bolt ..................................... 53.1 (6)\
Oil Pressure Gauge Sender .............................. 88.5 (10)\
Oil Pan (Upper) ......................................... 53.1 (6\
)
Oil Pan (Lower) ........................................ 97.3 (11\
)
Oil Pump Case ......................................... 123.9 (14)\
Oil Screen (Montero)
6 mm Bolt ............................................. 53.1 (9)\
Rocker Arms & Camshafts
Rocker Cover Bolt ....................................... 31 (3.5)\
Thrust Case Bolt ...................................... 115.1 (13)\
Timing Belt
Camshaft Position (CMP) Sensor (Montero) ................ 79.6 (\
9)
Crankshaft Position (CKP) Sensor ........................ 79.6 (9\
)
( 1) - Tighten cylinder head bolts in 2 or 3 steps with engine cold.
\
\
\
\
\
\
\

ENGINE SPECIFICATIONS
GENERAL SPECIFICATIONS
GENERAL SPECIFICATIONS\
\
\
\
\
\
\

Application Specification
Displacement .................................. 213.4 Cu. In. (3.5L)\
Bore ............................................... 3.6614" (93 mm)\

Page 20 of 1501

MITSUBISHI MONTERO 1998 Service Manual instrument panel.

(
2) - See Figs. 1 and 2.

(
3) - Engine ID is eighth character of VIN.

instrument panel.

(
2) - See Figs. 1 and 2.

(
3) - Engine ID is eighth character of VIN.

(
4) - Fuel system is a Sequential Fuel Injection (SFI) system.

(
5) - Ignition timing is computer-controlled.

(
6) - This system may also be referred to as distributor ignition.

(
7) - This system may also be referred to as distributorless

ignition.

\
\
\
\
\
\
\
\f

VIN DEFINITION
J A 3 A Y 3 6 A 1 W U 0 0 0 0 0 1
1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17
1 - Indicates Nation of Origin.
2 - Indicates Manufacturer.
3 - Indicates Vehicle Type.
4 - Indicates Restraint System. ( 1)
5 - Indicates Model.
6 - Indicates Vehicle Series.
7 - Indicates Body Type.
8 - Indicates Engine Type and Make.
9 - Indicates Check Digit.
10 - Indicates Model Year.
11 - Indicates Assembly Plant.
12-17 - Indicates Serial Number.
( 1) - On Montero & Montero Sport, fourth character of VIN indicates
GVWR.
VIN CODE/YEAR APPLICATIONS
VIN CODE/YEAR APPLICATION TABLE\
\
\
\
\
\

VIN Code Model Year
T ................................................... 1996
V ................................................... 1997
W ................................................... 1998
\
\
\
\
\
\

ENGINE CODE LOCATIONS
Fig. 1: Engine Code Locations (Diamante)
Courtesy of Chrysler Corp.

Page 28 of 1501

$MITSUBISHI MONTERO 1998 Service Manual \ \b\ \ \ \ \ \ EAC Electric Assist Choke$

\
\b\
\
\
\
\
\

EAC Electric Assist Choke

EACV Electric Air Control Valve

EBCM Electronic Brake Control Module

ECA Electronic Control Assembly

ECAT Electronically Controlled Automatic Transaxle

ECM Electronic Control Module

ECT Engine Coolant Temperature Sensor

ECU Electronic Control Unit or Engine Control Unit

EDF Electric Drive Fan relay assembly

EDIS Electronic Distributorless Ignition System

EEC Electronic Engine Control

EECS Evaporative Emission Control System

EEPROM Electronically Erasable PROM

EFE Early Fuel Evaporation

EFI Electronic Fuel Injection

EGO Exhaust Gas Oxygen sensor (see HEGO)

EGR Exhaust Gas Recirculation system

EGRC EGR Control solenoid or system

EGRV EGR Vent solenoid or system

EMR Emission Maintenance Reminder Module

ESA Electronic Spark Advance

ESC Electronic Spark Control

EST Electronic Spark Timing

ETR Emergency Tensioning Retractor

EVAP Fuel Evaporative System

EVIC Electronic Vehicle Information Center

EVO Electronic Variable Orifice

EVP EGR Valve Position Sensor

EVR EGR Valve Regulator

EVRV Electronic Vacuum Regulator Valve

Elect. Electronic

Eng. Engine

Evap. Evaporative

Exc. Except

\
\
\
\
\
\
\
\f

"F" ABBREVIATION TABLE
"F" ABBREVIATION TABLE\
\
\
\
\
\
\

ABBREVIATION DEFINITION

\
\b\
\
\
\
\
\

F Fahrenheit (Degrees)

F/B Fuse Block

FBC Feedback Carburetor

FI Fuel Injector or Fuel Injection

FICD Fast Idle Control Device

FIPL Fuel Injector Pump Lever

FP Fuel Pump

FPM Fuel Pump Monitor

FPR-VSV Fuel Pressure Regulator Vacuum Switching Valve

FWD Front Wheel Drive

Fed. Federal

Ft. Lbs. Foot Pounds

\
\
\
\
\
\
\
\f

"G" ABBREVIATION TABLE
"G" ABBREVIATION TABLE\
\
\
\
\
\
\

ABBREVIATION DEFINITION

Page 248 of 1501

$MITSUBISHI MONTERO 1998 Service Manual (2) - Use Texaco MTX FM fluid.��\ ��\ ��\ ��\ ��\ ��\ �� QUICK-SERVICE SERV$

(2) - Use Texaco MTX FM fluid.\
\
\
\
\
\

QUICK-SERVICE
SERVICE INTERVALS & SPECIFICATIONS
REPLACEMENT INTERVALS TABLE (DIAMANTE)\
\
\
\
\
\

Component Miles
Air Filter ........................................ 30,000
Automatic Transaxle Fluid ............................ ( 1)
Coolant ........................................... 30,000
Oil ................................................. 7500
Oil Filter .................................... ( 2) 15,000
Spark Plugs ....................................... 60,000
Spark Plug Wires .................................. 60,000
Timing Belt ....................................... 60,000
( 1) - Inspect fluid every 15,000 miles. Replace fluid if
evidence of contamination appears, after repairing
reason for contamination.
( 2) - Replace oil filter at oil change if annual mileage is
less than 7500 miles.
\
\
\
\
\
\

REPLACEMENT INTERVALS TABLE (ECLIPSE)\
\
\
\
\
\

Component Miles
Air Filter ........................................ 30,000
Automatic Transaxle Fluid ............................ ( 1)
Coolant ........................................... 30,000
Oil
Non-Turbo ......................................... 7500
Turbo ............................................. 5000
Oil Filter
Non-Turbo ................................... ( 2) 15,000
Turbo ....................................... ( 2) 10,000
Spark Plugs ....................................... 30,000
Spark Plug Wires .................................. 60,000
Transfer Case Fluid .................................. ( 3)
Timing Belt ....................................... 60,000
( 1) - Inspect fluid every 15,000 miles. Replace fluid if
evidence of contamination appears, after repairing
reason for contamination.
( 2) - Replace oil filter at oil change if annual mileage is
less than 7500 miles.
( 3) - Inspect fluid every 30,000 miles. Replace fluid if
evidence of contamination appears, after repairing
reason for contamination.
\
\
\
\
\
\

REPLACEMENT INTERVALS TABLE (GALANT)\
\
\
\
\
\

Component Miles
Air Filter ........................................ 30,000
Automatic Transaxle Fluid ............................ ( 1)
Coolant .............................................. ( 2)

Page 249 of 1501

MITSUBISHI MONTERO 1998 Service Manual Oil ................................................. 7500
Oil Filter .................................... (3) 15,000
Spark Plugs ....................................... 30,000
Spark Plug Wires

Oil ................................................. 7500
Oil Filter .................................... (3) 15,000
Spark Plugs ....................................... 30,000
Spark Plug Wires .................................. 60,000
Timing & Balance Shaft Belts ...................... 60,000
( 1) - Inspect fluid every 15,000 miles. Replace fluid if
evidence of contamination appears, after repairing
reason for contamination.
( 2) - Inspect fluid every 30,000 miles. Replace fluid if
evidence of contamination appears, after repairing
reason for contamination.
( 3) - Replace oil filter at oil change if annual mileage is
less than 7500 miles.
\
\
\
\
\
\

REPLACEMENT INTERVALS TABLE (MIRAGE)\
\
\
\
\
\

Component Miles
Air Filter ........................................ 30,000
Automatic Transaxle Fluid ............................ ( 1)
Coolant .............................................. ( 2)
Oil ................................................. 7500
Oil Filter .................................... ( 3) 15,000
Spark Plugs ....................................... 30,000
Spark Plug Wires .................................. 60,000
Timing Belt ....................................... 60,000
( 1) - Inspect fluid every 15,000 miles. Replace fluid if
evidence of contamination appears, after repairing
reason for contamination.
( 2) - Inspect fluid every 30,000 miles. Replace fluid if
evidence of contamination appears, after repairing
reason for contamination.
( 3) - Replace oil filter at oil change if annual mileage is
less than 7500 miles.
\
\
\
\
\
\

REPLACEMENT INTERVALS TABLE (MONTERO)\
\
\
\
\
\

Component Miles
Air Filter ........................................ 30,000
Automatic Transmission Fluid ......................... ( 1)
Coolant ........................................... 30,000
Front & Rear Axle Fluid ( 2) ....................... 30,000
Oil ................................................. 7500
Oil Filter .................................... ( 3) 15,000
Manual Transmission .................................. ( 4)
Spark Plugs ( 5) ................................... 60,000
Spark Plug Wires .................................. 60,000
Timing Belt ....................................... 60,000
( 1) - Inspect fluid every 15,000 miles. Replace fluid if
evidence of contamination appears, after repairing
reason for contamination.
( 2) - Limited-slip differential.
( 3) - Replace oil filter at oil change if annual mileage is
less than 7500 miles.
( 4) - Inspect fluid every 30,000 miles. Replace fluid if
evidence of contamination appears, after repairing
reason for contamination.

Page 250 of 1501

$MITSUBISHI MONTERO 1998 Service Manual (5) - Use Platinum spark plugs only.��\ ��\ ��\ ��\ ��\ ��\ �� REPLACEMENT INTERVALS TABLE (MON$

(5) - Use Platinum spark plugs only.\
\
\
\
\
\

REPLACEMENT INTERVALS TABLE (MONTERO SPORT)\
\
\
\
\
\

Component Miles
Air Filter ........................................ 30,000
Automatic Transmission
Except 4WD ......................................... ( 1)
4WD ............................................. 30,000
Axle Fluid ( 2) .................................... 30,000
Coolant ........................................... 30,000
Oil ................................................. 7500
Oil Filter .................................... ( 3) 15,000
Spark Plugs ( 4) ................................... 60,000
Spark Plug Wires .................................. 60,000
Timing Belt ....................................... 60,000
( 1) - Inspect fluid every 15,000 miles. Replace fluid if
evidence of contamination appears, after repairing
reason for contamination.
( 2) - Limited-slip differential.
( 3) - Replace oil filter at oil change if annual mileage is
less than 7500 miles.
( 4) - Use Platinum spark plugs only.
\
\
\
\
\
\

REPLACEMENT INTERVALS TABLE (3000GT)\
\
\
\
\
\

Component Miles
Air Filter ........................................ 30,000
Automatic Transaxle Fluid ............................ ( 1)
Coolant ........................................... 30,000
Oil
Non-Turbo ......................................... 7500
Turbo ............................................. 5000
Oil Filter
Non-Turbo ....................................... 15,000
Turbo ........................................... 10,000
Spark Plugs
Except Platinum ................................. 30,000
Platinum ........................................ 60,000
Spark Plug Wires ( 2) .............................. 60,000
Timing Belt ....................................... 60,000
( 1) - Inspect fluid every 15,000 miles. Replace fluid if
evidence of contamination appears, after repairing
reason for contamination.
( 2) - Except vehicles equipped with Federal Emissions.
\
\
\
\
\
\

BELT ADJUSTMENT TABLE\
\
\
\
\
\
\

( 1) Deflection ( 1) Deflection
Application New Belt - In. (mm) Used Belt - In. (mm\
)
Diamante
Generator & A/C .... .24-.28 (6.0-7.2) ....... .32-.37 (8.2-9.3\
)
P/S ................ .33-.37 (8.4-9.3) ..... .46-.52 (11.7-13.4\
)
Eclipse
2.0L Non-Turbo

Page 254 of 1501

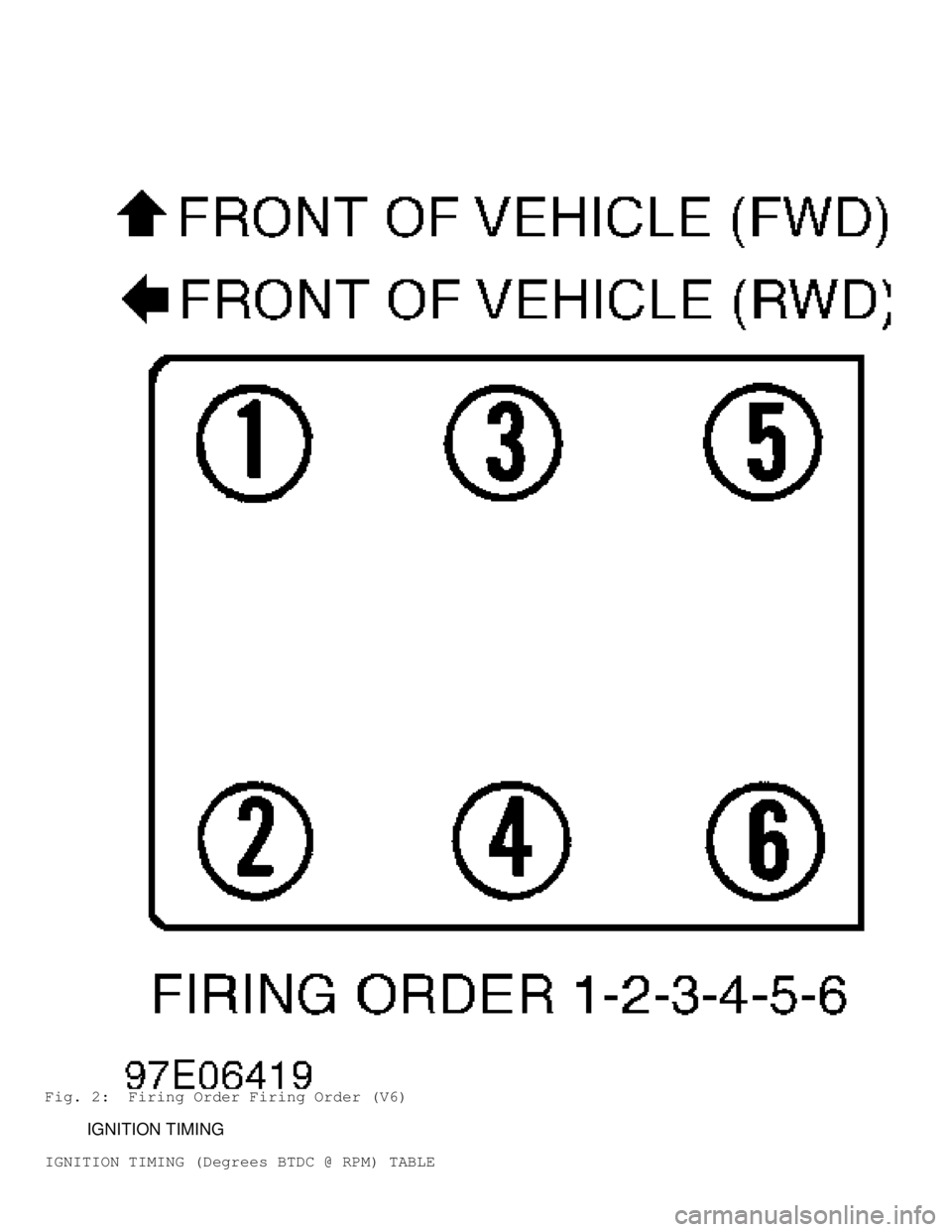

Fig. 2: Firing Order Firing Order (V6)
IGNITION TIMING
IGNITION TIMING (Degrees BTDC @ RPM) TABLE

Load next 10 pages

Page: 1-10 11-20 21-30 31-40 41-50 ... 80 next >

Search: (catalytic converter, air filter, reset sun roof, oil pressure, wiring, auxiliary battery location)
