SWS -General InformationSWS -General Information54B-5
HEADLAMP WASHER
If the headlamp washer switch at the steering
column is placed in the ON position when the ignition
switch is in the ACC or ON position and theheadlamp switch is in the ON position, the headlamp
washer drive signal is turned ON for 0.5 second.
IGNITION KEY HOLE ILLUMINATION LAMP
When the ignition switch is turned to LOCK (OFF) or
ACC position with the driver’s door opened, the
ignition key hole illumination lamp is illuminated.
If the door is closed in that state, the lamp goes out
after 30 seconds. Vehicles with keyless entrysystem, it illuminates for 30 seconds after the
ignition key is removed. In either case the lamp goes
out when the ignition switch is turned to ON position.
HEADLAMP
Headlamp Automatic Shutdown Function
If the ignition switch is turned to LOCK (OFF) or
ACC position, when the headlamps are on, the
headlamps will be switched off in three minutes.
If the driver’s door is opened within that three-minute
period, the headlamps will be switched off
automatically. This prevents the battery from
discharged.
In addition, if the headlamps are turned on when
the ignition switch is at LOCK (OFF) or ACC position,
the headlamps will not be switched off.Headlamp Dimmer Switch Automatic Reset
Function
This function allows the dimmer switch to be reset
to the low-beam position whenever the headlamp
switch is turned ON.
Daytime Running Lamp (DRL) Function
If the ignition switch is turned to ON when the
headlamps and tail lamps are off, the headlamps
(low-beam) and tail lamps turn on.
FLASHER TIMER
Turn-signal Lamp
When the ignition switch is turned to ON position
and turn-signal lamp switch is placed in the ON
position for right or left turn signaling, the system
generates turn-signal lamp drive signals (flashing
signals).
The system also notifies of a blown turn-signal lamp
bulb by shortening the flashing intervals of the
corresponding indicator lamp.Hazard Warning Lamp
The system detects a change from ON to OFF
of the hazard lamp input signal and activates the
hazard lamps if they are not in operation or
deactivates the lamps if they are operating (reversal
of state between activation and deactivation).
FRONT FOG LAMP
If the front fog lamp switch is turned ON at the
condition that the headlamp or the tail lamp is turned
ON (including the illumination by the automatic
lighting function), the front fog lamp is turned ON.Whenever the tail lamps are turned on at the next
time, the front fog lamps will always be off regardless
of the switch positions. In addition, if the tail lamp
is switched off by the automatic lighting system,
the front fog lamp will also be switched off. However,
the front fog lamp will be illuminated when the tail
lamp is switched on.
www.WorkshopManuals.co.uk
Purchased from www.WorkshopManuals.co.uk
Page 1692 of 1839
SWS -General Information54B-6
REAR FOG LAMP
If the fog lamp switch is turned ON when the
headlamp or the front fog lamp is turned On, the
rear fog lamp is switched ON and OFF alternatively.If the headlamp and the front fog lamp are turned
OFF during lighting of the rear fog lamp, the rear
fog lamp is turned OFF at the same time.
ROOM LAMP
With the room lamp switch in the DOOR position,
the ETACS-ECU controls the room lamp operation
as follows:
DWhen a door is opened from outside or inside
[with the ignition switch turned to LOCK (OFF)
position]:
When a door is opened, the ETACS-ECU
causes the room lamp to be illuminated at the
100% intensity. When the door is closed, it
dims out the room lamp to 65% intensity and
approx. 30 seconds later, turns out the lamp
completely. During this period (timer controlled
period), the room lamp goes out if the ignition
switch is turned to ON position or the doors
are locked.
DWhen a door is opened or closed with the
ignition switch in the ON position:
The room lamp illuminates at 100% intensity
when a door is opened and turned out when
it is closed.
DWhen no door is opened and the ignition key
is removed:When the ignition key is removed with all the
doors closed, the room lamp is illuminated at
an intensity of 100% and turned out approx.
30 seconds later. During that time
(timer-controlled period), the room lamp goes
out if the ignition key is inserted and turned
to ON position or the door locking system is
activated.
DRoom lamp’s answerback operation in
response to door lock control by keyless entry
system:
To allow the driver to ascertain the result of
the door locking/unlocking control action by
the use of the keyless entry system, the
ETACS-ECU causes the room lamp to blink
twice when the doors are locked through the
system and to illuminate for approx. 15 seconds
when the doors are locked.
The room lamp’s answerback operation in
response to a keyless entry system control
action is accompanied by operation of the
hazard warning lamps.
www.WorkshopManuals.co.uk
Purchased from www.WorkshopManuals.co.uk
Page 1693 of 1839
S
PEC IA L TO OLS
T o ol N
um ber N
am e U
se M
B991502 M
UT-II su b
a sse m bly C
heckin g of th e SW S
( D ia gnosis co de dis p la y and in put ch eck
w it h th e MUT-II ) M
B991529 D
ia gnosis co de
c h eck harn ess S
im ple dia gnosis H
arn ess se t
A : Te st harn ess
B : LE D harn ess
C :LE D harn ess
a dapte r
D :Pro be M
easu re m ento fte rm in alv o lt a ge atE C Us
A : Connecto rp in co nta ctp re ssu re in sp ec-
t io n
B : Pow er cir c u it in sp ectio n
C :Pow er cir c u it in sp ectio n
D :C om merc ia lte ste r co nnectio n
Page 1694 of 1839
SWS -Troubleshooting54B-8
TROUBLESHOOTING
STANDARD FLOW OF DIAGNOSTIC TROUBLESHOOTING
Refer to GROUP 00 – How to Use Troubleshooting/Inspection Service Points.
DIAGNOSTIC FUNCTION
DIAGNOSIS CODES CHECK
Use the MUT-II
to check a diagnosis code.
(Refer to GROUP 00 – How to Use Troubleshooting/Inspection Service Points.)
NOTE
Connect the MUT-II
to the 16-pin diagnosis connector (black).
INPUT SIGNAL CHECK
1. Use the MUT-II
to check a input signal.
(Refer to GROUP 00 – How to Use Troubleshooting/Inspection Service Points.)
2. In this condition, the following input switches can be checked.
3. If an abnormality is found during the input signal check, carry out troubleshooting while referring
to the Trouble Symptom Check page.
Input Signal Check Function
Input signalBuzzer operation condition
Ignition switch (ACC)Turned from LOCK(OFF) to ACC
Ignition switch (IG1)Turned from ACC to ON
Key reminder switch
(from inserted position)
Hazard warning lamp switchTurned from OFF to ON
Front fog lamp switch
Rear fog lamp switch
Back-up lamp switch
Inhibitor switch (reverse)
washer>Selector lever moved to R position
Rear wiper motor auto-stop signal
is sent before the rear wiper begins to operate)
Driver’s door switchDriver’s door opened from closed condition
Door switchesAll doors closed to any door opened
Front passenger’s or back door lock key cylinder switch
Driver’s door lock actuator switch
position to unlock position or vice versa
www.WorkshopManuals.co.uk
Purchased from www.WorkshopManuals.co.uk
Page 1695 of 1839
SWS -Troubleshooting54B-9
Input signalBuzzer operation condition
Column switchTail lamp switchTurned the lighting switch from OFF to tail lamp
position
Headlamp switchTurn the lighting switch from tail lamp position to
headlamp position
Dimmer switchTurned from OFF to ON
Passing switch
Turn-signal lamp switch
Windshield mist wiper switch
Windshield intermittent wiper switch
Windshield low-speed wiper switch
Windshield high-speed wiper switch
Windshield intermittent wiper interval adjusting
knobRotate the windshield intermittent wiper interval
adjusting knob from FAST to SLOW when the
ignition switch is in ON position (The
ETACS-ECU sends a signal around the medium
knob position)
Windshield washer switchTurned from OFF to ON
Rear wiper switch
Rear washer switch
Headlamp washer switch
Power window
main switchAny switch
TransmitterAny switch
Sunroof switchAny switch
Center displayAny switch
DIAGNOSIS CODE CHART
Code No.Diagnosis itemReference page
11Failure concerning the ETACS-ECU54B-10
12Failure concerning the column switch or improper connecting with the ETACS-ECU54B-10
13Failure concerning the front-ECU54B-11
21Short circuit in communication line54B-12
www.WorkshopManuals.co.uk
Purchased from www.WorkshopManuals.co.uk
Page 1696 of 1839
SWS -Troubleshooting54B-10
DIAGNOSIS CODE INSPECTION PROCEDURES
Code No.11 Failure concerning the ETACS-ECUProbable cause
The ETACS-ECU monitors its own communication data, and sends a diagnosis
code when an error takes place consecutive fifteen times in 0.6 second.
The diagnosis code will be erased when the ETACS-ECU determines that its
own communication data is sent consecutive 15 times in 0.6 second.DMalfunction of ETACS-ECU
Replace the ETACS-ECU.

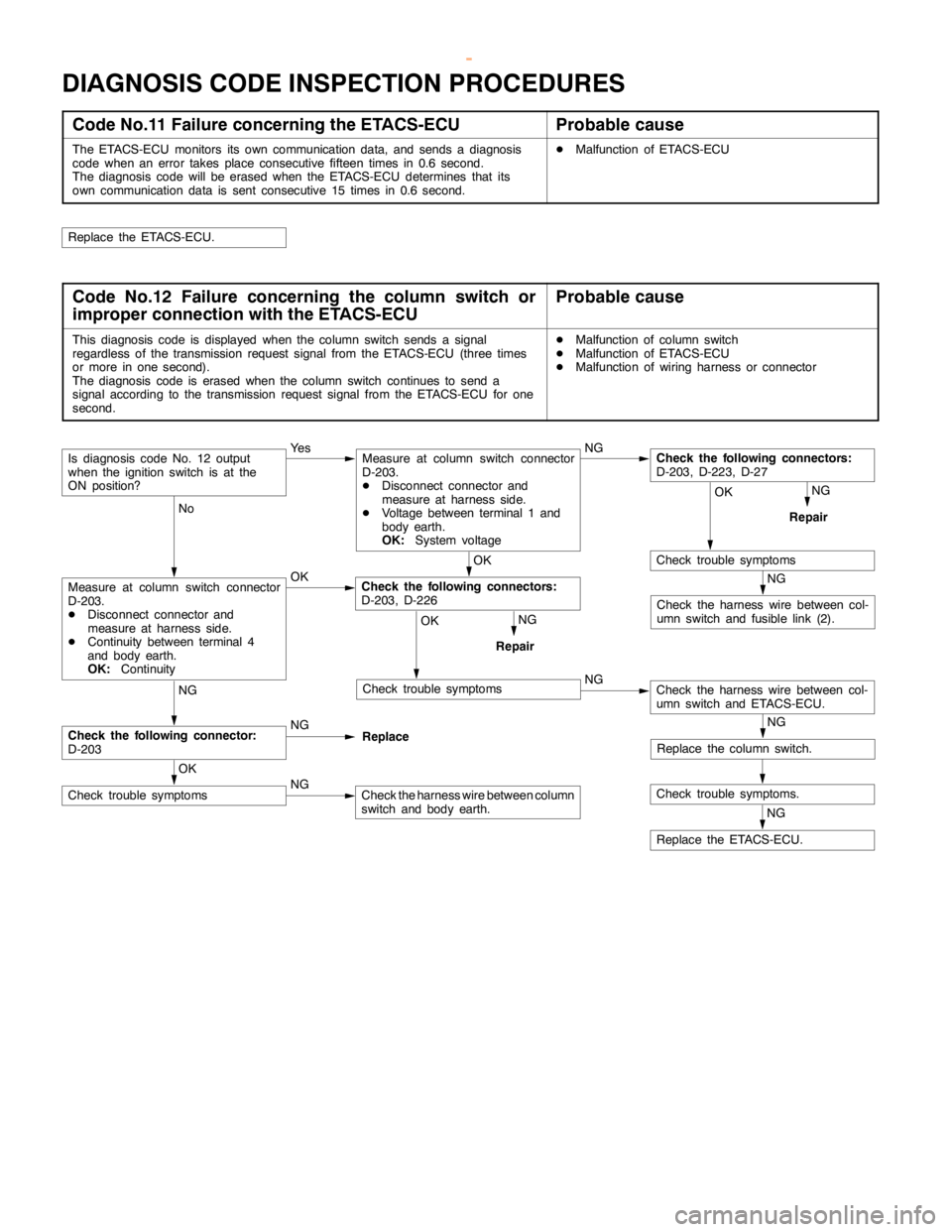

Code No.12 Failure concerning the column switch or
improper connection with the ETACS-ECUProbable cause
This diagnosis code is displayed when the column switch sends a signal
regardless of the transmission request signal from the ETACS-ECU (three times
or more in one second).
The diagnosis code is erased when the column switch continues to send a
signal according to the transmission request signal from the ETACS-ECU for one
second.DMalfunction of column switch
DMalfunction of ETACS-ECU
DMalfunction of wiring harness or connector
Ye s N G
NG
Check the harness wire between col-
umn switch and fusible link (2).
NG
Repair
No
OK
OK
NG
Repair
NG
OK
Check trouble symptomsNG
NG
Replace
OK
Check trouble symptomsNGCheck the harness wire between column
switch and body earth.
NG
Replace the ETACS-ECU.
Check trouble symptoms.
NG
Replace the column switch.
Check the harness wire between col-
umn switch and ETACS-ECU.
OK
Check trouble symptoms
Check the following connectors:
D-203, D-223, D-27
Check the following connectors:
D-203, D-226
Measure at column switch connector
D-203.
DDisconnect connector and
measure at harness side.
DVoltage between terminal 1 and
body earth.
OK:System voltage
Check the following connector:
D-203
Measure at column switch connector
D-203.
DDisconnect connector and
measure at harness side.
DContinuity between terminal 4
and body earth.
OK:Continuity
Is diagnosis code No. 12 output
when the ignition switch is at the
ON position?
www.WorkshopManuals.co.uk
Purchased from www.WorkshopManuals.co.uk
Page 1697 of 1839
SWS -Troubleshooting54B-11

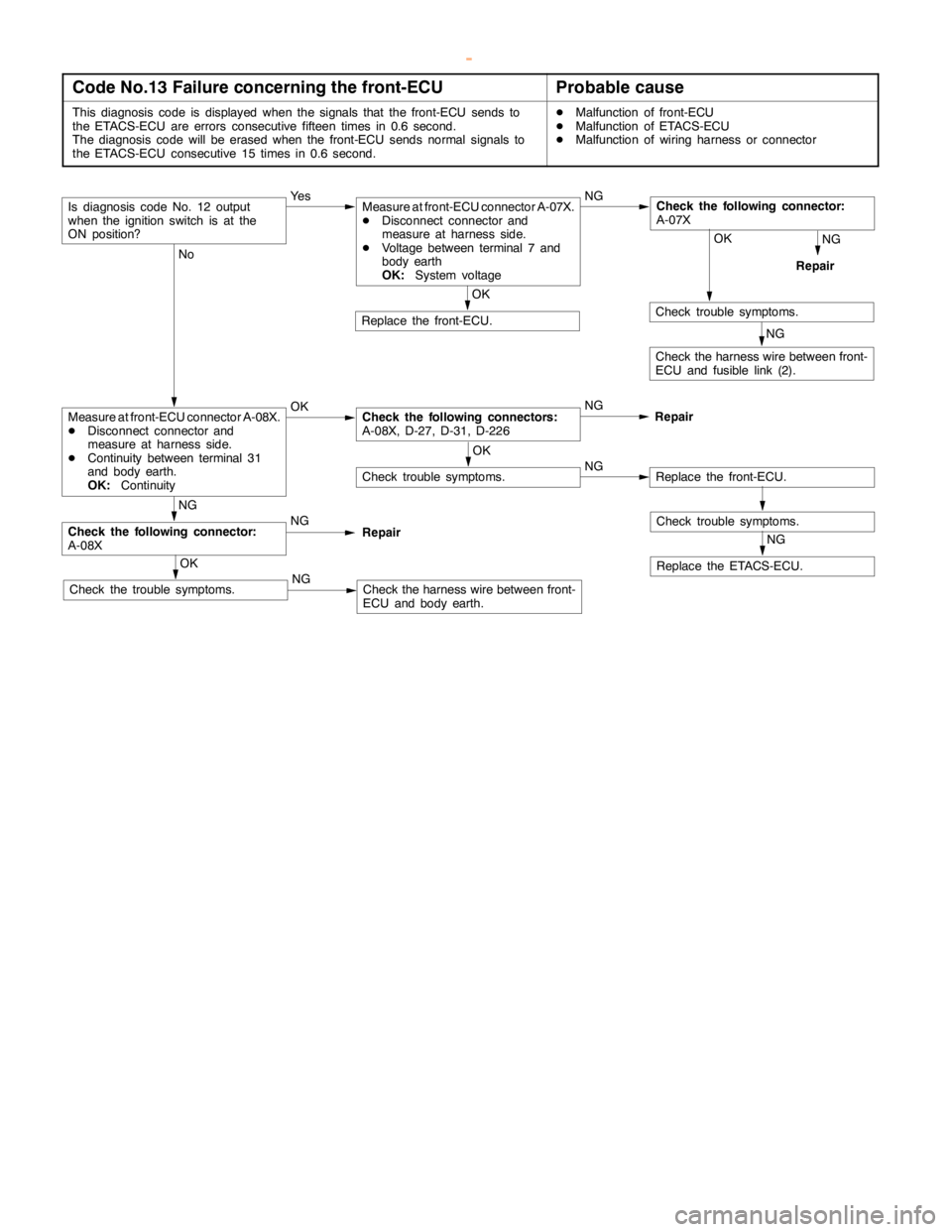

Code No.13 Failure concerning the front-ECUProbable cause
This diagnosis code is displayed when the signals that the front-ECU sends to
the ETACS-ECU are errors consecutive fifteen times in 0.6 second.
The diagnosis code will be erased when the front-ECU sends normal signals to
the ETACS-ECU consecutive 15 times in 0.6 second.DMalfunction of front-ECU
DMalfunction of ETACS-ECU
DMalfunction of wiring harness or connector
OK
Is diagnosis code No. 12 output
when the ignition switch is at the
ON position?Ye sMeasure at front-ECU connector A-07X.
DDisconnect connector and
measure at harness side.
DVoltage between terminal 7 and
body earth
OK:System voltageNGCheck the following connector:
A-07X
NG
Check the harness wire between front-
ECU and fusible link (2).
No
Measure at front-ECU connector A-08X.
DDisconnect connector and
measure at harness side.
DContinuity between terminal 31
and body earth.
OK:ContinuityCheck the following connectors:
A-08X, D-27, D-31, D-226NG
Repair
OK
Replace the front-ECU.
OK
Check trouble symptoms.NGReplace the front-ECU.
NG
Check the following connector:
A-08XNG
Repair
NG
RepairOK
Check trouble symptoms.
OK
Check the trouble symptoms.NGCheck the harness wire between front-
ECU and body earth.
Check trouble symptoms.
NG
Replace the ETACS-ECU.
www.WorkshopManuals.co.uk
Purchased from www.WorkshopManuals.co.uk
Page 1698 of 1839
SWS -Troubleshooting54B-12

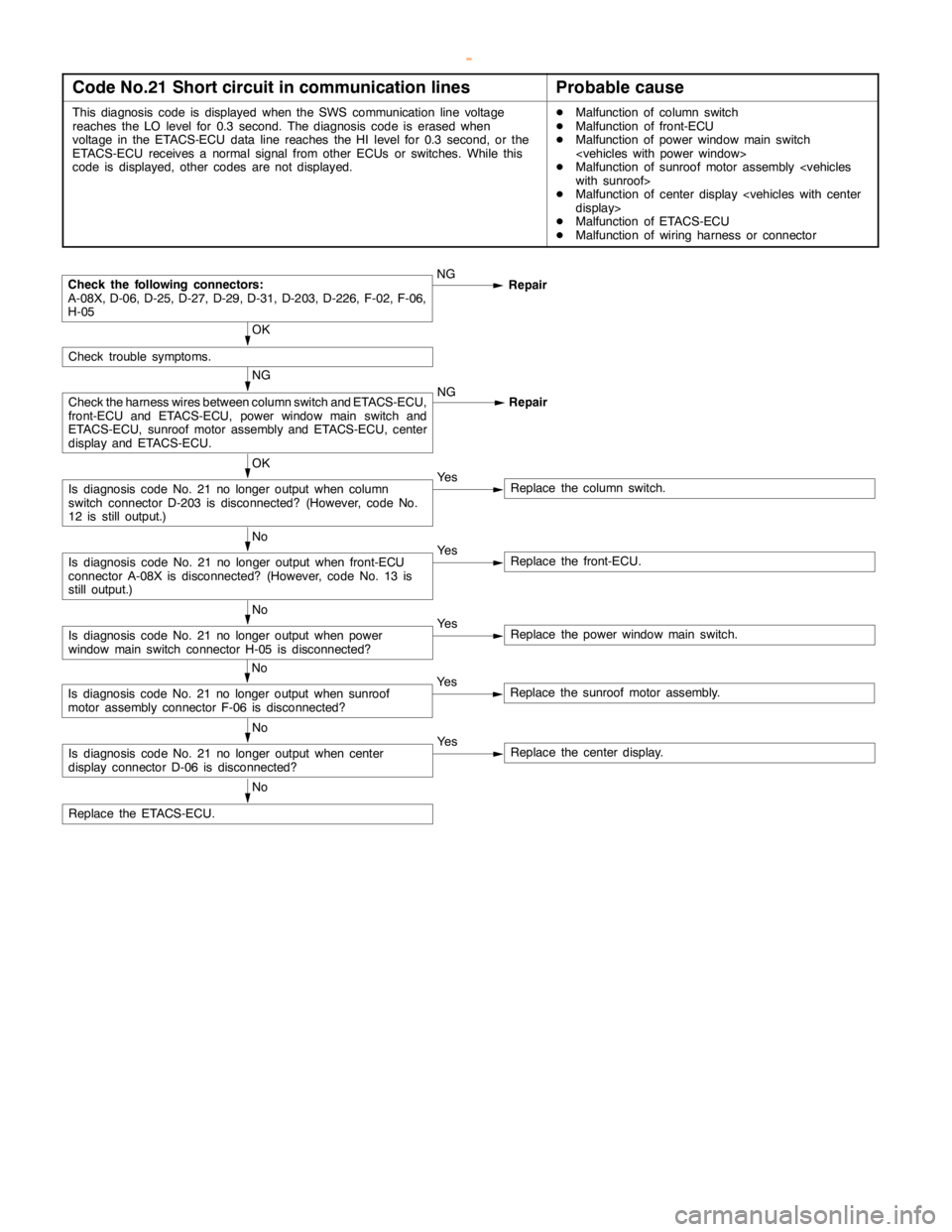

Code No.21 Short circuit in communication linesProbable cause
This diagnosis code is displayed when the SWS communication line voltage
reaches the LO level for 0.3 second. The diagnosis code is erased when
voltage in the ETACS-ECU data line reaches the HI level for 0.3 second, or the
ETACS-ECU receives a normal signal from other ECUs or switches. While this
code is displayed, other codes are not displayed.DMalfunction of column switch
DMalfunction of front-ECU
DMalfunction of power windowmainswitch
DMalfunction of sunroof motor assembly
DMalfunction of center display
DMalfunction of ETACS-ECU
DMalfunction of wiring harness or connector
NG
Repair
OK
Ye s
Replace the column switch.
No
Ye s
Replace the front-ECU.
No
Ye s
Replace the power windowmainswitch.
No
Ye s
Replace the center display.
No
Replace the ETACS-ECU.
No
Ye s
Replace the sunroof motor assembly.
Is diagnosis code No. 21 no longer output when center
display connector D-06 is disconnected?
Is diagnosis code No. 21 no longer output when sunroof
motor assembly connector F-06 is disconnected?
Is diagnosis code No. 21 no longer output when power
window mainswitch connector H-05 is disconnected?
Is diagnosis code No. 21 no longer output when front-ECU
connector A-08X is disconnected? (However, code No. 13 is
still output.)
Is diagnosis code No. 21 no longer output when column
switch connector D-203 is disconnected? (However, code No.
12 is still output.)
NG
Check the harness wires between column switch and ETACS-ECU,
front-ECU and ETACS-ECU, power windowmainswitch and
ETACS-ECU, sunroof motor assembly and ETACS-ECU, center
display and ETACS-ECU.NG
Repair
OK
Check trouble symptoms.
Check the following connectors:
A-08X, D-06, D-25, D-27, D-29, D-31, D-203, D-226, F-02, F-06,
H-05
www.WorkshopManuals.co.uk
Purchased from www.WorkshopManuals.co.uk
Page 1699 of 1839
SWS -Troubleshooting54B-13
TROUBLE SYMPTOM CHART
Trouble symptomInspection
procedureReference
page
Communication with the MUT-IIis impossible.A-154B-17
BuzzerLight reminder warning buzzer function does not work
normally.B-154B-17
Center display operation annunciation function does not work
normally.B-254B-18
Central door lock-Central door locking system does not work normally.C-154B-18
ing system
Some doors does not lock or unlock.C-254B-19
Some functions of central locking system do not work.C-354B-19
Forgotten key prevention function does not work.C-454B-20
Power windowPower window does not work at all.D-154B-20
Power window main switch can not operate driver’s window.D-254B-21
Power window sub switch can not operate front passenger’s or
rear window.D-354B-22
Power window main switch can not operate front passenger’s
or rear window.D-454B-23
Power window timer function does not work normally.D-554B-23
When the glass is raised, it then lowers automatically.D-654B-24
The glass is not lowered when something is jammed in the
window.D-754B-24
When the glass is fully raised, it then lowers automatically.D-854B-24
Keyless entry sys-Keyless entry system does not operate.E-154B-24
tem
The room lamp and hazard warning lamps do not operate
through the answerback function.E-254B-25
The encrypted code cannot be registered.E-354B-25
SunroofSunroof does not work at all.F-154B-26
Sunroof timer function does not work normally.F-254B-27
Safety mechanism does not function.F-354B-27
www.WorkshopManuals.co.uk
Purchased from www.WorkshopManuals.co.uk
Page 1700 of 1839
SWS -TroubleshootingSWS -Troubleshooting54B-14
Trouble symptomInspection
procedureReference
page
Windshield wiperWindshield wiper does not operate.G-154B-28
and washer
Windshield wiper does not stop at the predetermined park
position.G-254B-29
Any of the windshield wiper switch positions is defective.G-354B-29
Windshield intermittent wiper interval cannot be adjusted.G-454B-30
Windshield washer does not work.G-554B-30
Rear wiper andRear wiper does not work at all.H-154B-31
washer
Rear wiper does not stop at the predetermined park position.H-254B-31
When the shift lever
to R position during the rear wiper operation, the rear wiper
does not operate at the continuous mode.H-354B-32
Rear washer does not work.H-454B-32
Headlamp washerHeadlamp washer does not work.I-154B-33
Ignition key hole
illumination lampIgnition key hole illumination lamp does not work normally.J-154B-34
Headlamp, tailTail lamp do not illuminate.K-154B-34
lamp
Headlamps (low-beam) do not illuminate.K-254B-35
Headlamps (high-beam) do not illuminate.K-354B-35
Headlamps do not illuminate when the passing switch is
operated.K-454B-36
The headlamp automatic shutdown function does not work
normally.K-554B-36
Headlamp dimmer switch automatic reset function does not
work normally.K-654B-37
Daytime running lamp (DRL) function does not work.K-754B-37
Flasher timerTurn-signal lamp do not flash when the turn-signal lamp switch
is turned on.L-154B-37
Hazard warning lamps do not flash when the hazard warning
lamp switch is turned on.L-254B-38
Front fog lampFront fog lamps do not illuminate when the front fog lamp
switch is turned on.M-154B-39
Front fog lamp do not go out when the tail lamps are turned off
while the front fog lamps are on.M-254B-39
www.WorkshopManuals.co.uk
Purchased from www.WorkshopManuals.co.uk
