Thank you for buying a MITSUBISHI OUTLANDER. We are confident you will enjoy your
vehicle. It has
been engineered
for optimum performance, durability and comfort. By thoroughlyreading this Owner’s Manual, you w
ill gain an understanding of the
many features that are included in the OUTLANDER. The Owner’s Manual contains descripti
ons and illustrations that will assist in the
operation and maintenance of your vehicle. Your Authorized Mitsubishi Motors
Dealer will be
happy to assist you
with any further questions you ma
y have regarding the operation of
your vehicle.Please note that this manual appl
ies to all OUTLANDER models and
explains all features in
cluding options. Some feat
ures explained in this
manual may not be inst
alled on your vehicle.
Please leave this Owner’s Manual in the vehicle at the time of resale. The next owner will appreciate ha
ving access to the information con-
tained here. This manual includes instructions fo
r standard and optional equipment
available at the time of printing. Mitsubishi Motors Corporationreserves the right to make changes
in design and specifications and to
make additions or improvements in
its product without assuming any
obligation to install these on pr
eviously manufac
tured products.
Introduction
Throughout this manual the words
WARNING
and
CAUTION
appear.These are reminders to be especially careful. Failure to follow the instructions could result in persona
l injury or damage to your vehi-
cle. Indicates a strong possibility of se
vere personal injury or death if
instructions are not followed. Points out hazards or unsafe pr
actices that could cause minor
personal injury
or damage to your vehicle.
You will see another important symbol: NOTE Gives helpful information. As with other vehicles of
this type, failure to
operate this vehicle cor-
rectly may result in loss of contro
l or an accident. Be sure to read
“on-pavement” and “off-road” driv
ing guidelines in the “Driving
safety” and “Features an
d controls” sections.
WA R N I N GEngine exhaust, some of its constituents, and certain vehicle compo- nents contain or emit chemicals kn
own to the State of California to
cause cancer and birth defects and reproductive harm. In addition, certain fluids contained in vehicles and certain products of compo- nent wear contain or emit chemic
als known to the State of Califor-
nia to cause cancer and birth defects or other reproductive harm.
©2013 Mitsubishi Motors Corp
oration Printed in Japan
BK0200500US.book 1 ページ 2013年2月12日 火曜日 午前9時46分
Page 2 of 451
Table of contents

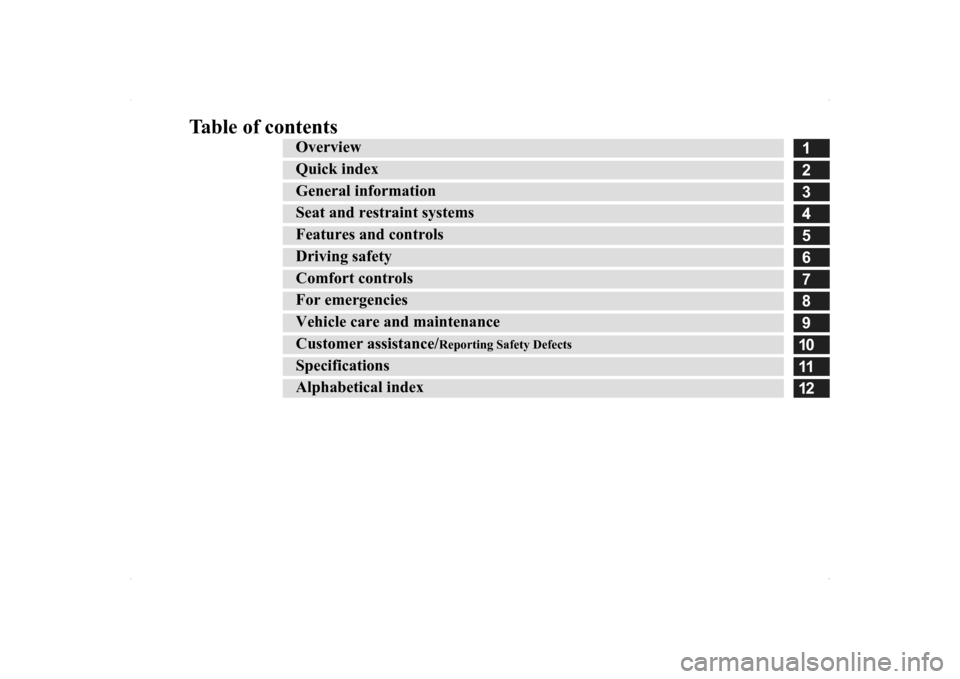

123456789101112
Overview Quick indexGeneral information Seat and restraint systems Features and controlsDriving safetyComfort controlsFor emergenciesVehicle care a
nd maintenance
Customer assistance/
Reporting Safety Defects
SpecificationsAlphabetical index
BK0200500US.book 1 ページ 2013年2月12日 火曜日 午前9時46分
Page 3 of 451
Instruments and controls 1-1
1
Overview
N00100202557

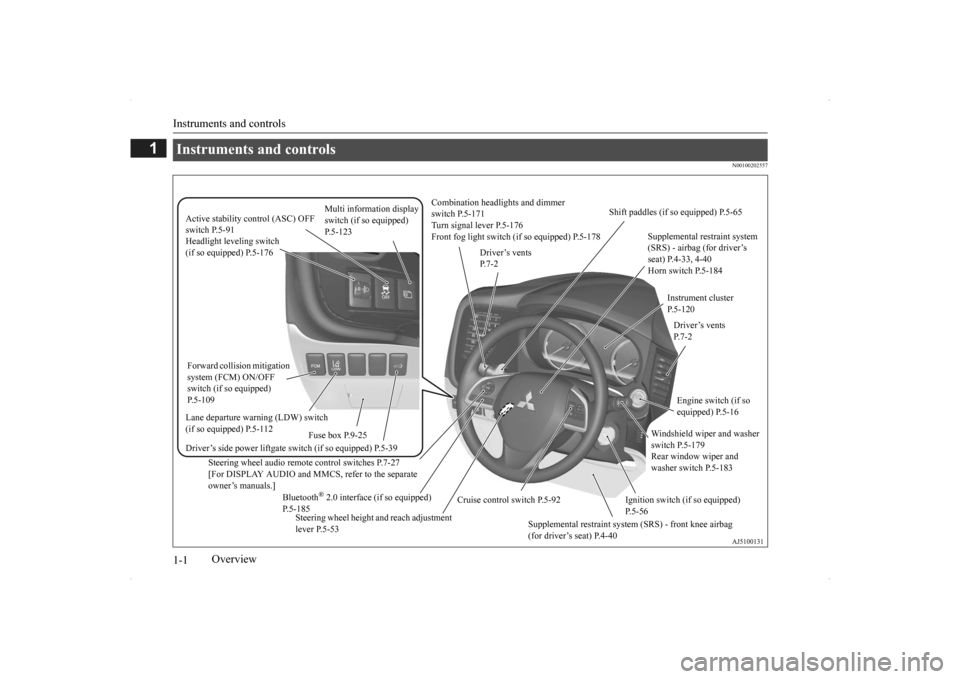

Instruments and controls
Combination headlights and dimmer switch P.5-171 Turn signal lever P.5-176 Front fog light switch (if so equipped) P.5-178
Steering wheel audio remote control switches P.7-27 [For DISPLAY AUDIO and MMCS, refer to the separateowner’s manuals.]
Active stability control (ASC) OFF switch P.5-91
Supplemental restraint system (SRS) - airbag (for driver’s seat) P.4-33, 4-40 Horn switch P.5-184
Instrument cluster P.5-120
Windshield wiper and washer switch P.5-179 Rear window wiper and washer switch P.5-183
Cruise control switch P.5-92
Steering wheel height and reach adjustment lever P.5-53
Engine switch (if so equipped) P.5-16
Bluetooth
® 2.0 interface (if so equipped)
P.5-185
Driver’s vents P. 7 - 2
Shift paddles (if so equipped) P.5-65
Driver’s vents P. 7 - 2
Multi information display switch (if so equipped) P.5-123
Headlight leveling switch (if so equipped) P.5-176 Driver’s side power liftgate switch (if so equipped) P.5-39
Fuse box P.9-25
Lane departure warning (LDW) switch (if so equipped) P.5-112 Forward collision mitigation system (FCM) ON/OFF switch (if so equipped) P.5-109
Supplemental restraint system (SRS) - front knee airbag (for driver’s seat) P.4-40
Ignition switch (if so equipped) P.5-56
BK0200500US.book 1 ページ 2013年2月12日 火曜日 午前9時46分
Page 4 of 451
Instruments and controls
Overview 1-2
1

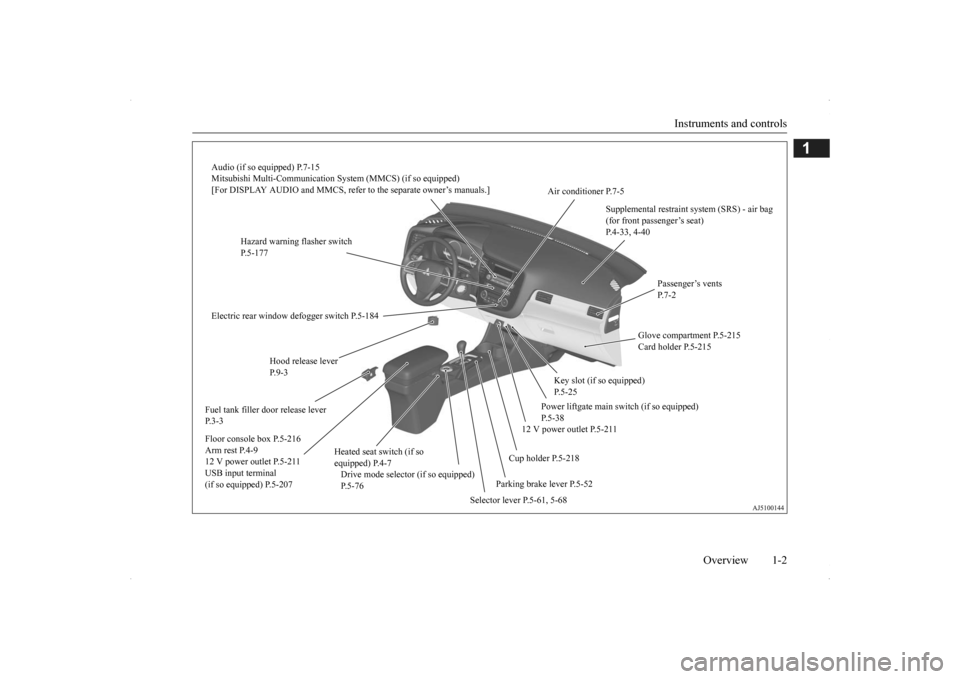

Audio (if so equipped) P.7-15 Mitsubishi Multi-Communication Syst
em (MMCS) (if so equipped)
[For DISPLAY AUDIO and MMCS, refer to the separate owner’s manuals.]
Hazard warning flasher switch P.5-177
Electric rear window defogger switch P.5-184 Fuel tank filler door release lever P. 3 - 3
Drive mode selector (if so equipped) P.5-76
Selector lever P.5-61, 5-68
Parking brake lever P.5-52
Supplemental restraint system (SRS) - air bag (for front passenger’s seat) P.4-33, 4-40
Air conditioner P.7-5
Hood release lever P. 9 - 3
Floor console box P.5-216 Arm rest P.4-912 V power outlet P.5-211 USB input terminal (if so equipped) P.5-207
Heated seat switch (if so equipped) P.4-7
Cup holder P.5-218
12 V power outlet P.5-211
Power liftgate main sw
itch (if so equipped)
P.5-38
Key slot (if so equipped) P.5-25
Glove compartment P.5-215 Card holder P.5-215
Passenger’s vents P. 7 - 2
BK0200500US.book 2 ページ 2013年2月12日 火曜日 午前9時46分
Page 5 of 451
Interior 1-3 Overview
1
N00100302284

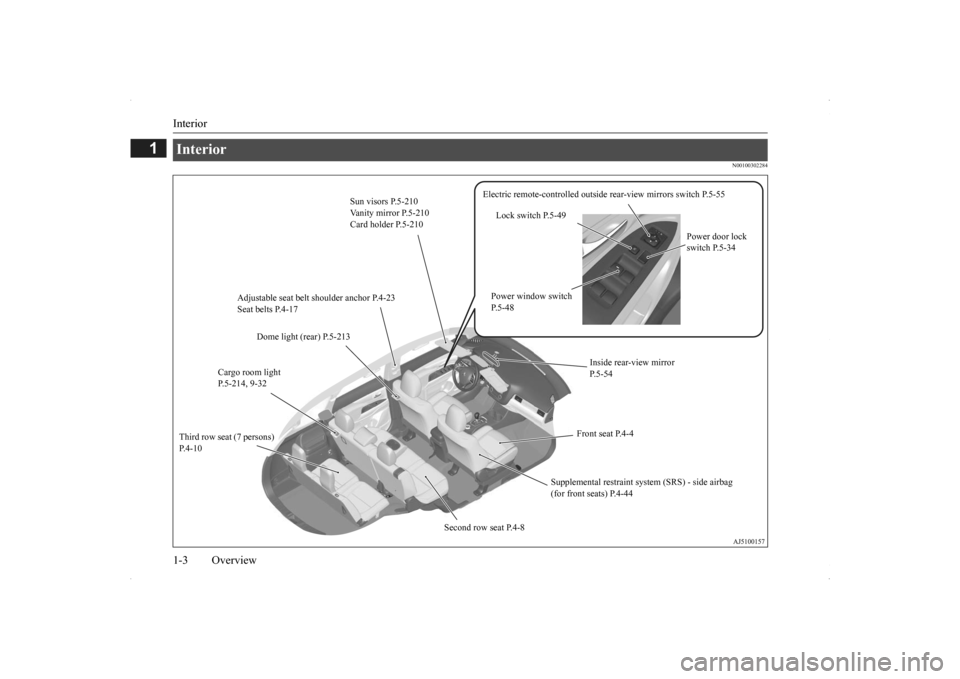

Interior
Sun visors P.5-210 Vanity mirror P.5-210Card holder P.5-210
Supplemental restraint system (SRS) - side airbag (for front seats) P.4-44
Front seat P.4-4
Adjustable seat belt shoulder anchor P.4-23 Seat belts P.4-17
Cargo room light P.5-214, 9-32
Electric remote-controlled outside rear-view mirrors switch P.5-55
Lock switch P.5-49
Power door lock switch P.5-34
Power window switch P.5-48
Second row seat P.4-8
Third row seat (7 persons) P. 4 - 1 0
Dome light (rear) P.5-213
Inside rear-view mirror P.5-54
BK0200500US.book 3 ページ 2013年2月12日 火曜日 午前9時46分
Page 6 of 451
Interior
Overview 1-4
1

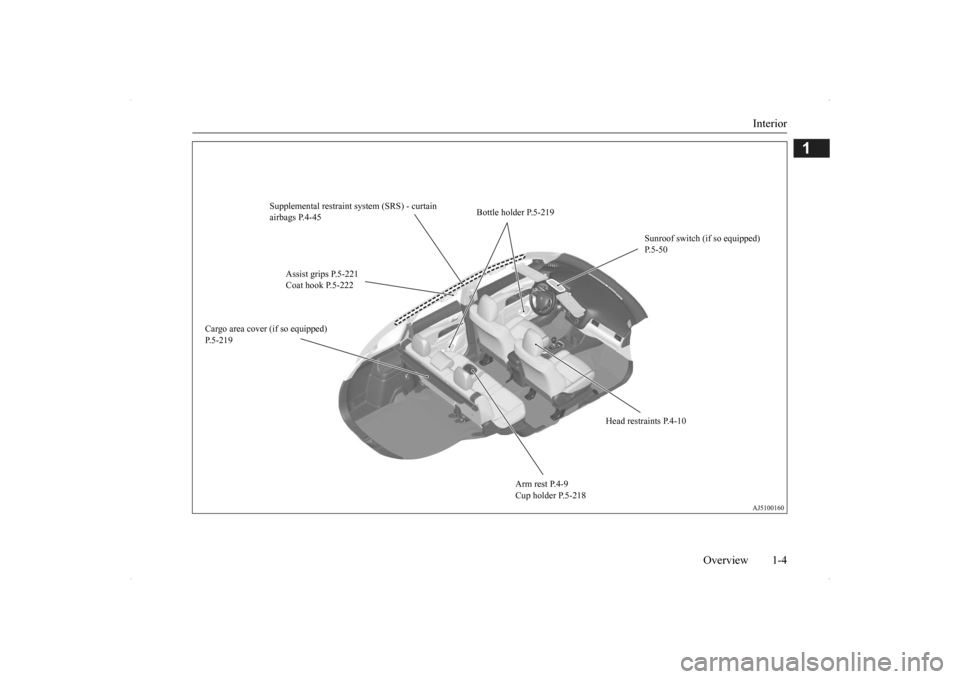

Assist grips P.5-221 Coat hook P.5-222
Bottle holder P.5-219
Sunroof switch (if so equipped) P.5-50
Head restraints P.4-10
Arm rest P.4-9 Cup holder P.5-218
Cargo area cover (if so equipped) P.5-219
Supplemental restraint system (SRS) - curtain airbags P.4-45
BK0200500US.book 4 ページ 2013年2月12日 火曜日 午前9時46分
Page 7 of 451
Luggage area 1-5 Overview
1
N00100501452

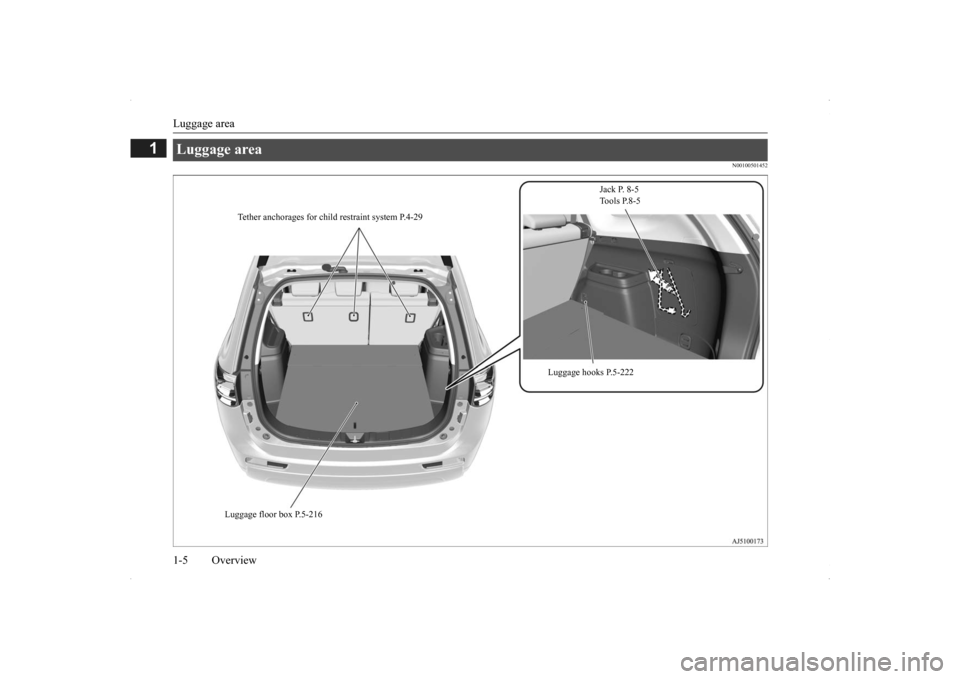

Luggage area
Jack P. 8-5 Tools P.8-5
Luggage hooks P.5-222
Luggage floor box P.5-216
Tether anchorages for child
restraint system P.4-29
BK0200500US.book 5 ページ 2013年2月12日 火曜日 午前9時46分
Page 8 of 451
Outside (Front)
Overview 1-6
1
N00100602388

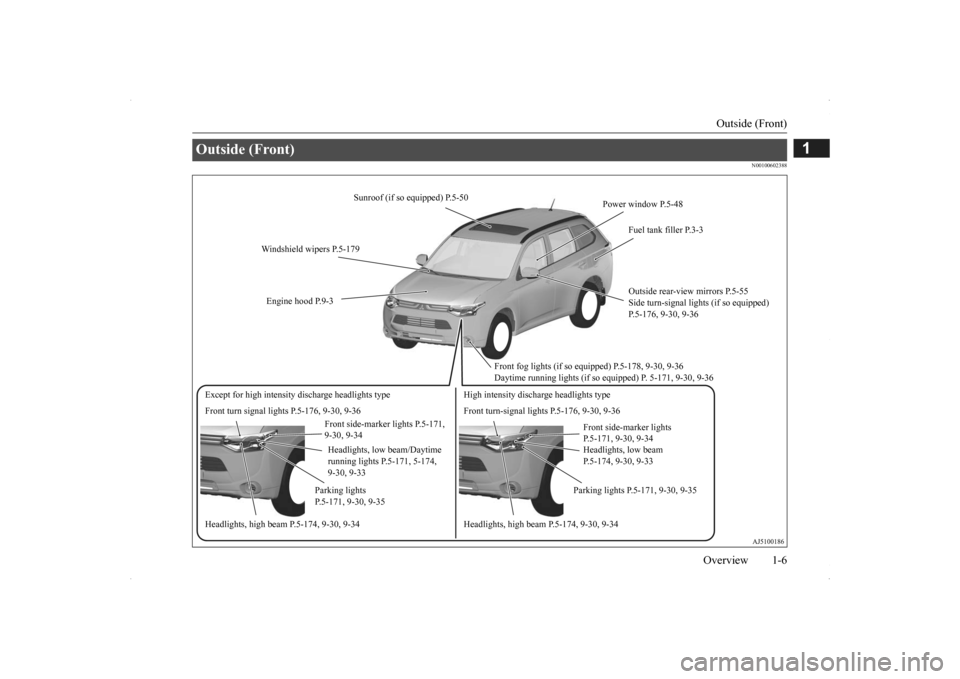

Outside (Front)
Sunroof (if so equipped) P.5-50
Windshield wipers P.5-179 Engine hood P.9-3
Front fog lights (if so equipped) P.5-178, 9-30, 9-36 Daytime running lights (if so equipped) P. 5-171, 9-30, 9-36
Outside rear-view mirrors P.5-55 Side turn-signal lights (if so equipped) P.5-176, 9-30, 9-36 Fuel tank filler P.3-3
Power window P.5-48
Front turn-signal lights P.5-176, 9-30, 9-36
Front turn signal lights P.5-176, 9-30, 9-36
Headlights, low beam P.5-174, 9-30, 9-33 Parking lights P.5-171, 9-30, 9-35
Headlights, low beam/Daytime running lights P.5-171, 5-174,9-30, 9-33
Parking lights P.5-171, 9-30, 9-35
Headlights, high beam P.5-174, 9-30, 9-34 Headlights, high beam P.5-174, 9-30, 9-34 Except for high intensity discharge headlights
type High intensity discharge headlights type
Front side-marker lights P.5-171, 9-30, 9-34
Front side-marker lights P.5-171, 9-30, 9-34
BK0200500US.book 6 ページ 2013年2月12日 火曜日 午前9時46分
Page 9 of 451
Outside (Rear) 1-7 Overview
1
N00100602405

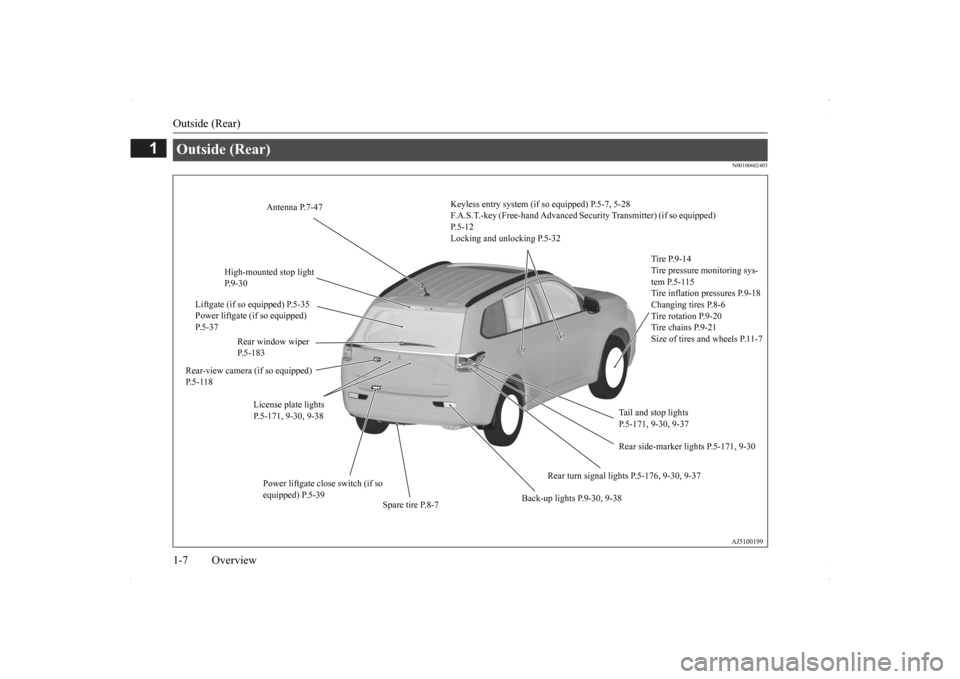

Outside (Rear)
Keyless entry system (if so equipped) P.5-7, 5-28 F.A.S.T.-key (Free-hand Advanced Se
curity Transmitter)
(if so equipped)
P.5-12Locking and unlocking P.5-32
Tire P.9-14 Tire pressure monitoring sys- tem P.5-115Tire inflation pressures P.9-18Changing tires P.8-6 Tire rotation P.9-20 Tire chains P.9-21Size of tires and wheels P.11-7
Tail and stop lights P.5-171, 9-30, 9-37
Rear turn signal lights P.5-176, 9-30, 9-37
Spare tire P.8-7
Back-up lights P.9-30, 9-38
License plate lights P.5-171, 9-30, 9-38
Rear-view camera (if so equipped) P. 5 - 1 1 8
Rear window wiper P.5-183
High-mounted stop light P.9-30
Antenna P.7-47
Liftgate (if so equipped) P.5-35 Power liftgate (if so equipped) P.5-37
Power liftgate close switch (if so equipped) P.5-39
Rear side-marker lights P.5-171, 9-30
BK0200500US.book 7 ページ 2013年2月12日 火曜日 午前9時46分
Page 10 of 451
2-1
2
If this warning light comes on or
flashes while you’re driving...
Quick index
N00200702159
If this warning light comes on
or flashes while you’re driving...
NOTE
For information regarding warning
displays in the multi-information display (Color
liquid crystal display
type), refer to “Mult
i-information display” on
page 5-121. These warning lights will co
me on for a few seconds for a bulb check when the i
gnition switch is
first turned to “ON” or the op
eration mode is put in ON.

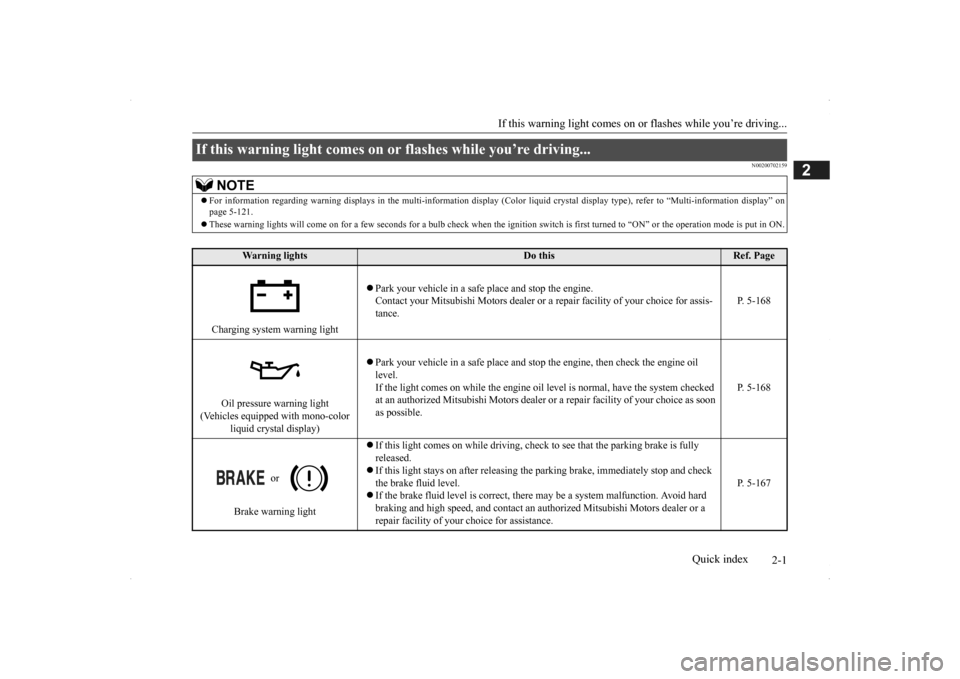

Wa rn in g l ig h t s
Do this
Ref. Page
Charging system warning light
Park your vehicle in a safe
place and stop the engine.
Contact your Mitsubishi Motors dealer or a re
pair facility of your choice for assis-
tance.
P. 5-168
Oil pressure warning light
(Vehicles equipped with mono-color
liquid crystal display)
Park your vehicle in a safe
place and stop the engine, then check the engine oil
level. If the light comes on while the engine oil le
vel is normal, have the system checked
at an authorized Mitsubishi
Motors dealer or a repair fa
cility of your choice as soon
as possible.
P. 5-168
or
Brake warning light
If this light comes on while driving, check to see that the parking brake is fully released. If this light stays on after
releasing the parking brake,
immediately stop and check
the brake fluid level. If the brake fluid level is correct, there
may be a system malfunction. Avoid hard
braking and high speed, and contact an au
thorized Mitsubishi Mo
tors dealer or a
repair facility of your
choice for assistance.
P. 5-167
BK0200500US.book 1 ページ 2013年2月12日 火曜日 午前9時46分
