MITSUBISHI OUTLANDER 2020 Owner's Manual (in English)

Forward Collision Mitigation System (FCM) (if so equipped) 5-120 Features and controls
5
N00577400041
If the system judges that there is a risk of your vehicle colliding with a vehicle or thepedestrian in front, this function warns you of the potential hazard wi
th visual and audible
alarms.When this function is triggered, a buzzer sounds and, at the sa
me time, a “BRAKE”
message appears on the
information screen of
the multi-information display. The FCM will also prepare to provide quickbrake response and greater brake force when you apply the brakes. The forward collision warning function oper- ates when the following vehicle speed:  Against a vehicle: Approximately 10 mph (15 km/h) to 87 mph (140 km/h).  Against a pedestrian: Approximately 5 mph (7 km/h) to 40 mph (65 km/h).
N00577700073
When the FCM judges that a collision with the vehicle or the pedest
rian straight-ahead is
imminent, the FCM will automatically applymoderate braking to warn the driver to apply the brakes immediately. If the FCM judges that
the collision is highly
unavoidable, it will automatically apply emergency braking to reduce the severity of the collision and, if possible, to avoid the col- lision. When the FCM applies emergency braking, abuzzer sounds and a wa
rning message is dis-
played in the information screen of the multi- information display. The FCM braking function operates when the following vehicle speed:  Against a vehicle:
Approximately 3 mph
(5 km/h) to 50 mph (80 km/h) Against a pedestrian: Approximately 3 mph (5 km/h) to 40 mph (65 km/h)
Forward collision warning function

FCM braking function

WA R N I N G If the ASC is turned off, the FCM braking function will not operate. Refer to “Activestability control” on page 5-100. If the brake pedal is not depressed within 2 seconds after your vehicle has beenstopped by the FCM,
a warning buzzer
will sound and the brakes activated by the FCM will automatically be released.Apply the brakes as necessary to keep your vehicle stationary. The FCM will not activate and will not provide either warnin
g or braking in cer-
tain situations. Some of these include:• When the selector le
ver is in the “P”
(PARK) or “R” (REVERSE) position.• When an object other
than a vehicle or a
pedestrian is in front.• When the FCM has detected a problemin the system.• When a vehicle or a pedestrian suddenlycuts in front
of your vehicle.
The FCM may or may not detect a motor- cycle, bicycle or wall depending on the sit-uation. The FCM is not designed to detect these objects. The forward collision warning function and/or the FCM brakin
g function may not
activate in certain situations. Some ofthese include:• When a vehicle sudden
ly appears just in
front of your vehicle.• When a vehicle cuts
into your path at a
close distance.
BK0278200US.book 120 ページ ２０１９年４月１０日　水曜日　午前１０時５９分

Forward Collision Mitigation System (FCM) (if so equipped)
Features and controls 5-121
5
• When a vehicle ahead is not completely in your path.• When your vehicle changed lanes, and your vehicle approac
hed immediately
behind the vehicle ahead.• When a vehicle ahead
is towing a trailer.
• When a vehicle ahea
d is a truck loaded
with freight that protrudes rearward from the cargo bed.• When the height of a vehicle ahead isextremely low or its road clearance isextremely high.• When a vehicle ahead is extremely dirty.• When a vehicle ahea
d is covered with
snow.• When a vehicle ahea
d has a large glass
surface.• When a vehicle ahead does not havereflectors (light refl
ector) or the position
of the reflector is low.• When a vehicle ahead is a car carrier ora similar shaped vehicle.• When accelerating and deceleratingquickly.• When driving on a sl
ippery road covered
by rain water, snow, ice, etc.• When driving on a r
oad with alternating
up and down steep slopes.• When driving on a curve.• When driving on a bumpy or rough road.• When driving in dark areas, such as in a tunnel or at night.WA R N I N G
• When the system recognizes driver’s steering, accelerati
ng, braking or gear
shifting actions as evasive actions toavoid collision.• When the rear of you
r vehicle is weighed
down with the weight of passengers and luggage.• Up to several seconds after starting driv-ing.• In adverse weather
conditions, such as
rain, snow, fog or sand-storm.• When the windshield of the sensor por-tion is covered with
dirt, water droplets,
snow and ice, etc.• When a vehicle ahea
d or an oncoming
vehicle is splashing wa
ter, snow or dirt.
• When using a windshield washer.• If windshield wipers are not Mitsubishi Motors Genuine parts or equivalent. • When the sensor becomes extremely hotor cold.• If the battery becomes weak or runsdown.• When the sensor is affected by stronglight, such as direct
sunlight or the head-
lights of an oncoming vehicle.
 The FCM may not detect a pedestrian in certain situations. Some of these include:• If the pedestrian is
shorter than approxi-
mately 3.2 feet (1 m) or taller thanapproximately 6.5 feet (2 m).WA R N I N G
• If the pedestrian is
wearing loose-fitting
clothes.• If part of a pedestrian’s body is hidden, such as when holding an umbrella, large bag, etc.• If a pedestrian bends forward, sits or lieson the road.• When a pedestrian is pushing/pullingsomething, such as a stroller, bicycle orwheelchair.• When pedestrians gather in a group.• When a pedestrian clothing appears tobe nearly the same color or brightness asits surroundings.• When a pedestrian is very close to anobject, such
as a vehicle.
• When a pedestrian is in a dark area, such as at night or in a tunnel.• When a pedestrian is walking fast orrunning.• When a pedestrian suddenly rushes infront of the vehicle.• When the position of a pedestrian is closeto the edge of the vehicle.
 When the system recognizes driver’s steering or accelerating
actions as evasive
actions to avoid a collision, FCM control and alarm functions
may be canceled.
In certain situations,
though there is little
or no risk of a collision, the FCM mayactivate. Examples include: • When overtaking a vehicle.WA R N I N G
BK0278200US.book 121 ページ ２０１９年４月１０日　水曜日　午前１０時５９分

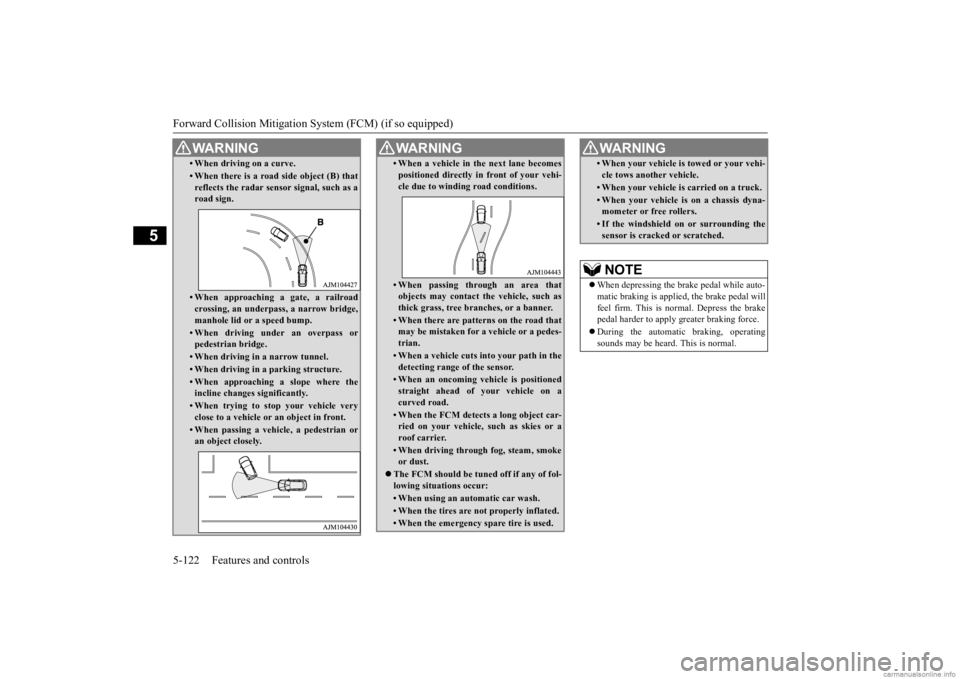

Forward Collision Mitigation System (FCM) (if so equipped) 5-122 Features and controls
5
• When driving on a curve.• When there is a road side object (B) that reflects the radar sensor signal, such as a road sign.• When approaching
a gate, a railroad
crossing, an underpas
s, a narrow bridge,
manhole lid or
a speed bump.
• When driving under an overpass or pedestrian bridge.• When driving in a narrow tunnel.• When driving in a parking structure.• When approaching a slope where the incline changes
significantly.
• When trying to st
op your vehicle very
close to a vehicle or
an object in front.
• When passing a vehicle, a pedestrian or an object closely.WA R N I N G
• When a vehicle in the next lane becomespositioned directly in
front of your vehi-
cle due to winding road conditions.• When passing through an area that objects may contact the vehicle, such as thick grass, tree branches, or a banner.• When there are patterns on the road thatmay be mistaken for a vehicle or a pedes-trian.• When a vehicle cuts into your path in thedetecting range of the sensor.• When an oncoming ve
hicle is positioned
straight ahead of your vehicle on a curved road.• When the FCM detects a long object car-ried on your vehicle,
such as skies or a
roof carrier.• When driving through fog, steam, smokeor dust.
 The FCM should be tune
d off if any of fol-
lowing situations occur:• When using an automatic car wash.• When the tires are not properly inflated. • When the emergency spare tire is used.WA R N I N G
• When your vehicle is
towed or your vehi-
cle tows another vehicle.• When your vehicle is carried on a truck.• When your vehicle is on a chassis dyna-mometer or free rollers.•If the windshield on
or surrounding the
sensor is cracke
d or scratched.
NOTE
When depressing the brake pedal while auto- matic braking is applied, the brake pedal will feel firm. This is normal. Depress the brake pedal harder to apply
greater braking force.
 During the automatic
braking, operating
sounds may be heard. This is normal. WA R N I N G
BK0278200US.book 122 ページ ２０１９年４月１０日　水曜日　午前１０時５９分

Forward Collision Mitigation System (FCM) (if so equipped)
Features and controls 5-123
5
N00577800117
This switch is used to turn on or off the FCM, and also to select the distance which will trig- ger the forward collision warning function.
Every time the operation mode is put in “ON”, the FCM will automatically be turned on. To turn off the FCM, press and hold the FCMON/OFF switch. The following message will appear in the multi-information display and the indicator will come on in the instru- ment cluster. To turn on the FCM again, press and hold the FCM ON/OFF switch. The indicator on the instrument cluster will go off, and a cur- rent distance mode for the forward collisionwarning will be shown
in the multi-informa-
tion display.
The distance to the vehicle ahead which trig- gers the forward collision warnings can be selected from three levels, “FAR”, “MID- DLE” or “NEAR”.To change the distance mode, press the FCM ON/OFF switch. Every time the switch is pressed, the distance
mode will be switched.
The selected distance
mode is shown on the
information screen of
the multi-information
display. When “FAR” is selected When “MIDDLE” is selected
FCM ON/OFF switch

To turn on/off the FCM

To change forward collision warn- ing distance

BK0278200US.book 123 ページ ２０１９年４月１０日　水曜日　午前１０時５９分

Forward Collision Mitigation System (FCM) (if so equipped) 5-124 Features and controls
5
When “NEAR” is selected
N00594800037
If there is a malfunction in the system, a warning will appear on the information screen of the multi-information display depending on the situation.
N00594900041
When the FCM system determines that its performance has been degraded, the FCM will become inoperative.This can occur when
 Foreign objects, such
as dirt, snow, ice,
mist or dew condensat
ion adhere to the
windshield of the sensor portion.  In adverse weather conditions, such as rain, snow, sand storms, etc. A front vehicle or an oncoming vehicle is splashing water, snow or dirt.
The following message will appear on the information screen of
the multi-information
display and the indicator will come on in the instrument cluster. When the sensor performance returns, the FCM functions will resume operation. If the message continues showing, there is apossibility that the se
nsor has a malfunction.
Contact an authorized Mitsubishi Motors dealer for inspection of the sensor.
NOTE
 Actual distance which
triggers the forward
collision warnings wi
ll vary depending on
your vehicle speed a
nd the front vehicle
speed. The distance
will become longer
when the vehicle speeds are higher.  The distance which will trigger the FCM braking function cannot be adjusted.
System problem warning

When the sensor cannot detect accurately

NOTE
 The “DRIVER ASSISTANCE CAMERA BLOCKED” message may temporarilyappear on the information screen when thesensor cannot detect a
vehicle, a pedestrian
or an object within ra
nge. This is not a mal-
function. When a vehicle or an object comeswithin range, the FCM function will resume and the message will go off.  The “DRIVER ASSISTANCE CAMERA BLOCKED” message
may appear on the
information screen when driving on a non-busy road with a few vehicles and obstacles in front.
BK0278200US.book 124 ページ ２０１９年４月１０日　水曜日　午前１０時５９分

Forward Collision Mitigation System (FCM) (if so equipped)
Features and controls 5-125
5
N00595100040
If the system becomes temporarily unavail- able for some reason, the following message will appear on the inform
ation screen of the
multi-information display, the indicator will come on in the instrument cluster, and the FCM will automatically be turned off. If the message continue
s showing, there is a
possibility that the FCM has a malfunction. Contact an authorized Mitsubishi Motors dealer for inspection of the system.
N00595200038
If the system becomes temporarily unavail- able due to the high or low temperature of the sensor, the following me
ssage will appear on
the information screen of the multi-informa- tion display, the indi
cator will come on in
the instrument cluster, and the FCM will automatically be turned off.After the temperature of the sensor has been in range, the system will automatically return to operation. If the message continues
showing, there is a
possibility that the FCM has a malfunction. Contact an authoriz
ed Mitsubishi Motors
dealer for inspection of the sensor.
N00595300042
If the FCM detects a malfunction in the sys- tem, either of the following messages will appear on the informati
on screen of the multi-
information display, the indicator will come on in the instrument cluster, and the FCM will automatically be turned off. If the message remains even after the opera- tion mode is put in “OFF” and then turned back to “ON”, please contact your authorized Mitsubishi Motors dealer.
When the system cannot operate temporarily

Sensor is too hot or cold

FCM deactivation due to fault

BK0278200US.book 125 ページ ２０１９年４月１０日　水曜日　午前１０時５９分

Forward Collision Mitigation System (FCM) (if so equipped) 5-126 Features and controls
5
N00593400094
The sensor (A) is lo
cated inside the wind-
shield as shown in the illustration. The sensor is shared in the following sys-tems:  FCM  Lane Departure Warning (LDW)  Automatic high beam system
NOTE
If the sensor or its surrounding area becomes extremely high temperature when parkingthe vehicle under a blazing sun, the “FCMSERVICE REQUIRED” message may appear. After the temperature of the sensor or its sur-rounding area has been in range, if the mes- sage remains even afte
r restarting the engine,
please contact an au
thorized Mitsubishi
Motors dealer.
Handling of the sensor

CAUTION To maintain proper performance of the FCM, LDW and Automatic high beam system;• Always keep clea
n the windshield.
If the inside of the windshield where the sensor is installed be
comes dirty or fogged,
contact an authorized Mitsubishi Motors dealer.• Do not apply an impact or load on the sen-sor or its surrounding area.
• Do not put anything including a sticker or film to the outer side of the windshield infront of or surrounding area of the sensor.Also, do not put anything including a sticker or film to the inner side of the wind- shield under the sensor.• Do not attempt to deta
ch or disassemble the
sensor.• If the windshield is misted, remove the mistfrom the windshield by
using the defogger
switch.• Maintain the wiper blades in good condi-tion. Refer to “Wiper blades” on page 9-46.When replacing the wiper blades, use only Mitsubishi Motors Genui
ne parts or equiva-
lent.• Do not dirty or damage the sensor.• Do not spray glass cleaner on the sensor. Also, do not spill liquid, such as a bever- age, to the sensor.• Do not install an elec
tronic device, such as
antenna, or a device that emits strong elec- tric waves, near the sensor.CAUTION
BK0278200US.book 126 ページ ２０１９年４月１０日　水曜日　午前１０時５９分

Blind Spot Warning (BSW) (with Lane Change Assist) (if so equipped)
Features and controls 5-127
5
FDA Assertion number: 1520863-000
For vehicles sold in U.S.A. For vehicles sold in Canada
N00592200040
The Blind Spot Warning (BSW) is a driving aid system that alerts the driver when anothervehicle which may not be visible through the outside rearview mirror is traveling in the next lane behind your vehicle. When a vehicle in the next lane is traveling at same speed or faster in the detection areas,the Blind Spot Warning light in the corre- sponding outside rearview
mirror will illumi-
nate. If the turn signal le
ver is operated to the
side where the Blind Spot Warning light is illuminated, the Blind
Spot Warning light will
blink and the system will beep three times toalert the driver. Depending on the relative speed between your vehicle and a vehi
cle in the next lane,
the Blind Spot Warning system will detect up to approximately 230 feet (70 m) from your vehicle. (Lane Change Assist)
• Always use tires of the same size, same type and same brand, and which have nosignificant wear differences.• Do not modify the vehicle’s suspensions. If the windshield on the sensor or in the sur- rounding area of the sensor is cracked or scratched, the sensor
may not detect an
object properly. This
could cause a serious
accident. Turn off the FCM and have your vehicle inspected as
soon as possible at an
authorized Mitsubish
i Motors dealer.
If you need to replace the windshield, con- tact an authorized Mitsubishi Motors dealer. The sensor emits infrared rays when the operation mode is in
ON. Do not look into
the sensor by using optical goods such as a magnifying glass. The infrared ray might injure your eyes.
Laser radar specifications

Laser classificationMax average power 45 mWPulse duration 33 nsWavelength 905 nmDivergent angle (horizon x vertical)
28° x 12°
CAUTION
Laser classification label Laser explanatory label
Blind Spot Warning (BSW) (with Lane Change Assist)
(if
so equipped)
BK0278200US.book 127 ページ ２０１９年４月１０日　水曜日　午前１０時５９分

Blind Spot Warning (BSW) (with Lane Change Assist) (if so equipped) 5-128 Features and controls
5
N00592300070
The BSW uses two sensors (A) located inside the rear bumper. The detection areas are
shown as illustrated.
WA R N I N GBefore using the BSW, read this entire sec- tion to fully understand the limitations ofthis system. Failure to follow instructions could result in an accident. Never rely solely on the BSW system when changing lanes. BSW is
an aid only. It is
not a substitute for your safe and carefuldriving. Always check
visually behind and
all around your vehicl
e for other vehicles.
The performance of
the BSW may vary
depending on driving,
traffic and/or road
conditions.
Detection areas

WA R N I N G In certain situations, the BSW may not detect a vehicle in the detection areas or the detection may be delayed. Some ofthese include;• When a small motorcycle or a bicycle isbehind your vehicle.• When a vehicle is
traveling alongside of
your vehicle at nearly
the same speed for
prolonged periods of time.
BK0278200US.book 128 ページ ２０１９年４月１０日　水曜日　午前１０時５９分

Blind Spot Warning (BSW) (with Lane Change Assist) (if so equipped)
Features and controls 5-129
5
N00593500138
When the BSW switch is pressed while the operation mode is ON, the BSW indicator light in the instrument cluster comes on andthe BSW becomes in stand by state. When the BSW switch is pressed again, the BSW indi- cator light in the instrument cluster goes offand the BSW turns off. Indicator light If you turn the BSW ON/OFF, the Rear Cross Traffic Alert (RCTA) also turns ON/OFF atthe same time.
• When the heights of the next lane and your lane are different.• Immediately after the BSW has been turned on.• Immediately after the engine switch isturned on.• Under adverse weather conditions, suchas rain, snow, strong winds or sand storms.• When your vehicle becomes too close toanother vehicle.• While multiple ve
hicle are overtaking
your vehicle.• When driving near a pot hole and tram-line.• When a surroundin
g vehicle or an
oncoming vehicle is splashing water,snow or dirt.• When driving on a
curve including the
beginning and the end of the curve.• When driving on a r
oad with alternating
up and down steep slopes.• When driving on a bumpy or rough road.• When the rear of your vehicle is weigheddown or your vehicle
is leaning to the
right or left due to the weight of passen- gers and luggage or th
e improper adjust-
ment of tire pressure. • When the bumper su
rface around the
radar sensor is covered with dirt, snowand ice, etc.WA R N I N G
• When the sensor is extremely hot or cold(while the vehicle is parked for a longperiod of time unde
r a blazing sun or in
cold weather).• When a bicycle carrier or accessory isinstalled to the rear of the vehicle.CAUTION To maintain proper performance of the BSW, follow the instructions below.• Always keep the bumper surface around thesensor clean.• Avoid impacting the sensor or its surround-ing area.• Do not put a sticker on the sensor or its sur-rounding bumper surface.• Do not paint the sensor or its surroundingbumper surface.• Do not modify the sensor or its surroundingarea.
 If the bumper has experienced an impact, the sensor may have been
damaged and the BSW
may not function properl
y. Have the vehicle
inspected at an authorized Mitsubishi Motorsdealer.WA R N I N G
To operate

BK0278200US.book 129 ページ ２０１９年４月１０日　水曜日　午前１０時５９分
