MITSUBISHI OUTLANDER III 2018 Owners Manual

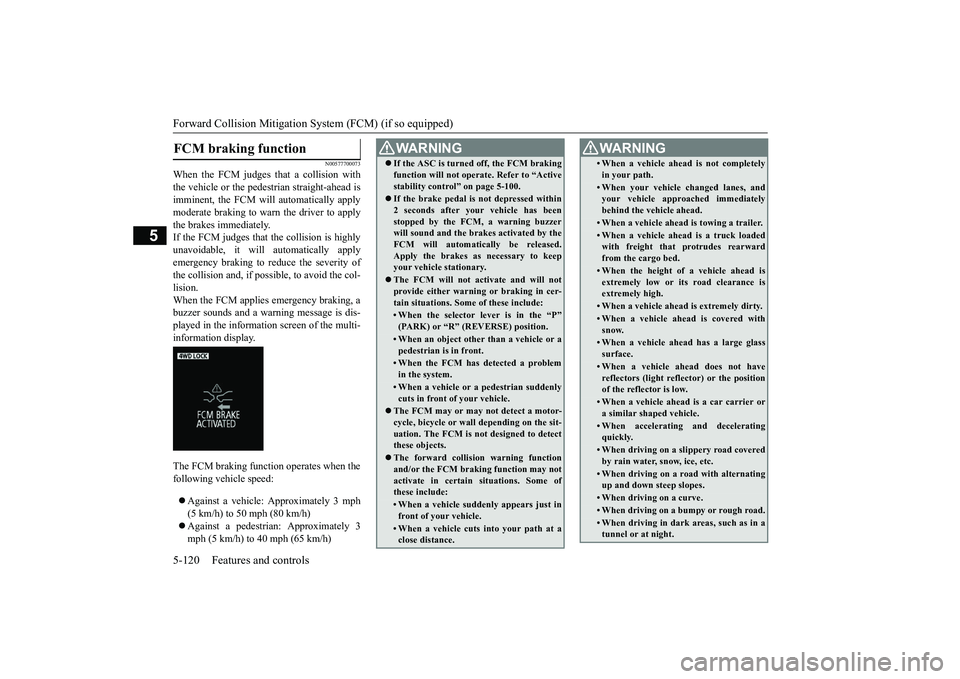

Forward Collision Mitigation System (FCM) (if so equipped)5-120 Features and controls
5
N00577700073
When the FCM judges that a collision withthe vehicle or the pedest
rian straight-ahead is
imminent, the FCM will automatically applymoderate braking to warn the driver to applythe brakes immediately.If the FCM judges that the collision is highlyunavoidable, it will automatically applyemergency braking to reduce the severity ofthe collision and, if possible, to avoid the col-lision.When the FCM applies
emergency braking, a
buzzer sounds and a warn
ing message is dis-
played in the information screen of the multi-information display.The FCM braking function operates when thefollowing ve
hicle speed:
Against a vehicle:
Approximately 3 mph
(5 km/h) to 50 mph (80 km/h)mph (5 km/h) to 40 mph (65 km/h)
FCM braking function

WA R N I N GIf the ASC is turned off, the FCM brakingfunction will not operat
e. Refer to “Active
stability control” on page 5-100.If the brake pedal is not depressed within2 seconds after your vehicle has beenstopped by the FCM, a warning buzzerwill sound and the brak
es activated by the
FCM will automatically be released.Apply the brakes as
necessary to keep
your vehicle stationary.The FCM will not ac
tivate and will not
provide either warnin
g or braking in cer-
tain situations. Some of these include:• When the selector lever is in the “P”(PARK) or

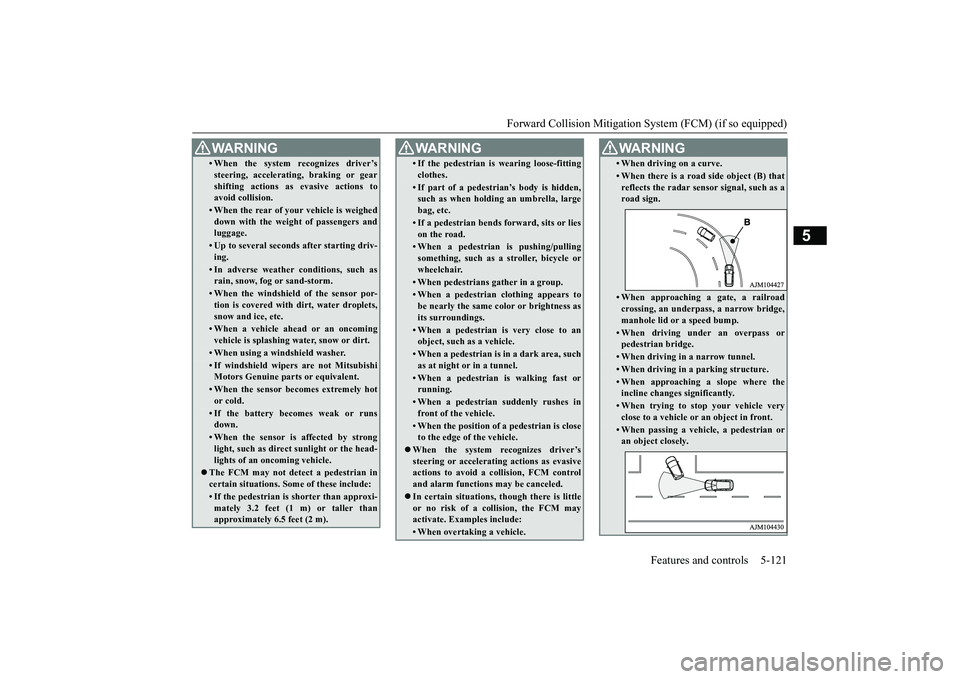

Forward Collision Mitigation System (FCM) (if so equipped)
Features and controls 5-121
5
• When the system recognizes driver’ssteering, accelerati
ng, braking or gear
shifting actions as
evasive actions to
avoid collision.• When the rear of your vehicle is weigheddown with the weight of passengers andluggage.• Up to several seconds after starting driv-ing.• In adverse weather conditions, such asrain, snow, fog or sand-storm.• When the windshield of the sensor por-tion is covered with dirt, water droplets,snow and ice, etc.• When a vehicle ahea
d or an oncoming
vehicle is splashing wa
ter, snow or dirt.
• When using a windshield washer.• If windshield wipers are not MitsubishiMotors Genuine parts or equivalent. • When the sensor becomes extremely hotor cold.• If the battery becomes weak or runsdown.• When the sensor is affected by stronglight, such as direct
sunlight or the head-
lights of an oncoming vehicle.
The FCM may not detect a pedestrian incertain situations. Some of these include:• If the pedestrian is
shorter than approxi-
mately 3.2 feet (1 m) or taller thanapproximately 6.5 feet (2 m).WA R N I N G
• If the pedestrian is wearing loose-fittingclothes.• If part of a pedestrian’s body is hidden,such as when holding an umbrella, largebag, etc.• If a pedestrian bends forward, sits or lieson the road.• When a pedestrian is pushing/pullingsomething, such as a stroller, bicycle orwheelchair.• When pedestrians gather in a group.• When a pedestrian
clothing appears to
be nearly the same color or brightness asits surroundings.• When a pedestrian is very close to anobject, such as a vehicle.• When a pedestrian is in a dark area, suchas at night or in a tunnel.• When a pedestrian is walking fast orrunning.• When a pedestrian suddenly rushes infront of the vehicle.• When the position of
a pedestrian is close
to the edge of the vehicle.
When the system recognizes driver’ssteering or accelerati
ng actions as evasive
actions to avoid a collision, FCM controland alarm functions
may be canceled.
In certain situations, though there is littleor no risk of a collision, the FCM mayactivate. Examples include: • When overtaking a vehicle.WA R N I N G
• When driving on a curve.

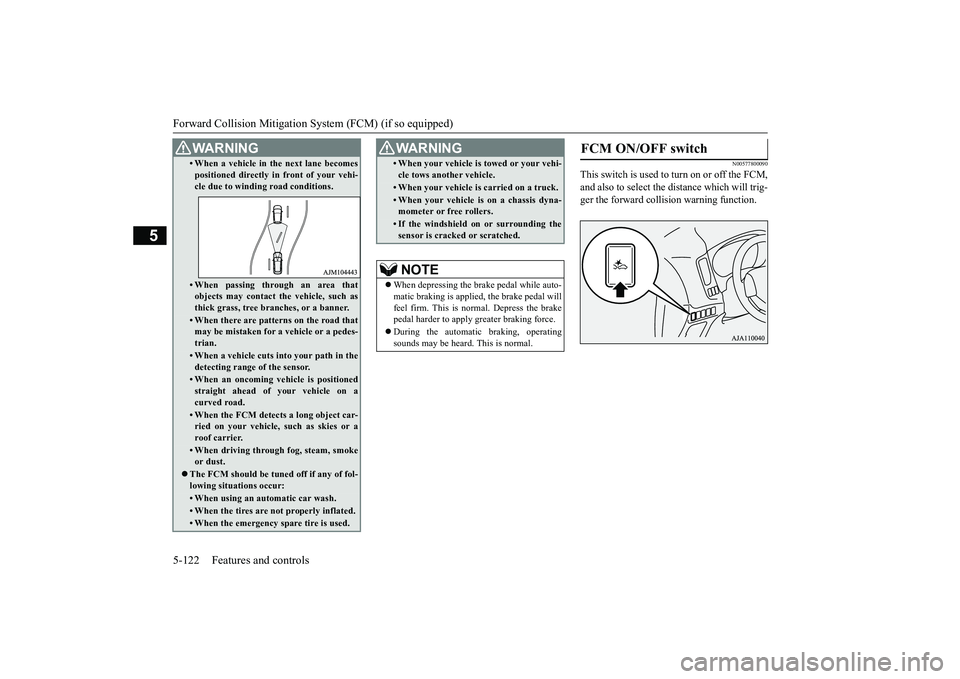

Forward Collision Mitigation System (FCM) (if so equipped)5-122 Features and controls
5
N00577800090
This switch is used to turn on or off the FCM,and also to select the distance which will trig-ger the forward colli
sion warning function.
• When a vehicle in the next lane becomespositioned directly in
front of your vehi-
cle due to winding road conditions.• When passing through an area thatobjects may contact th
e vehicle, such as
thick grass, tree br
anches, or a banner.
• When there are patterns on the road thatmay be mistaken for
a vehicle or a pedes-
trian.• When a vehicle cuts into your path in thedetecting range of the sensor.• When an oncoming vehicle is positionedstraight ahead of your vehicle on acurved road.• When the FCM detects a long object car-ried on your vehicle,
such as skies or a
roof carrier.• When driving through fog, steam, smokeor dust.
The FCM should be tuned off if any of fol-lowing situations occur:• When using an automatic car wash.• When the tires are not properly inflated. • When the emergency spare tire is used.WA R N I N G
• When your vehicle is
towed or
your vehi-
cle tows another vehicle.• When your vehicle is
carried on a truck.
• When your vehicle is on a chassis dyna-mometer or free rollers.• If the windshield on or surrounding thesensor is cracked or scratched.NOTE
When depressing the brake pedal while auto-matic braking is applie
d, the brake pedal will
feel firm. This is normal. Depress the brakepedal harder to apply
greater braking force.
During the automatic
braking, operating
sounds may be heard.
This is normal.
WA R N I N G
FCM ON/OFF switch

BK0249100US.book 122 ページ ２０１７年５月１０日　水曜日　午前８時４９分

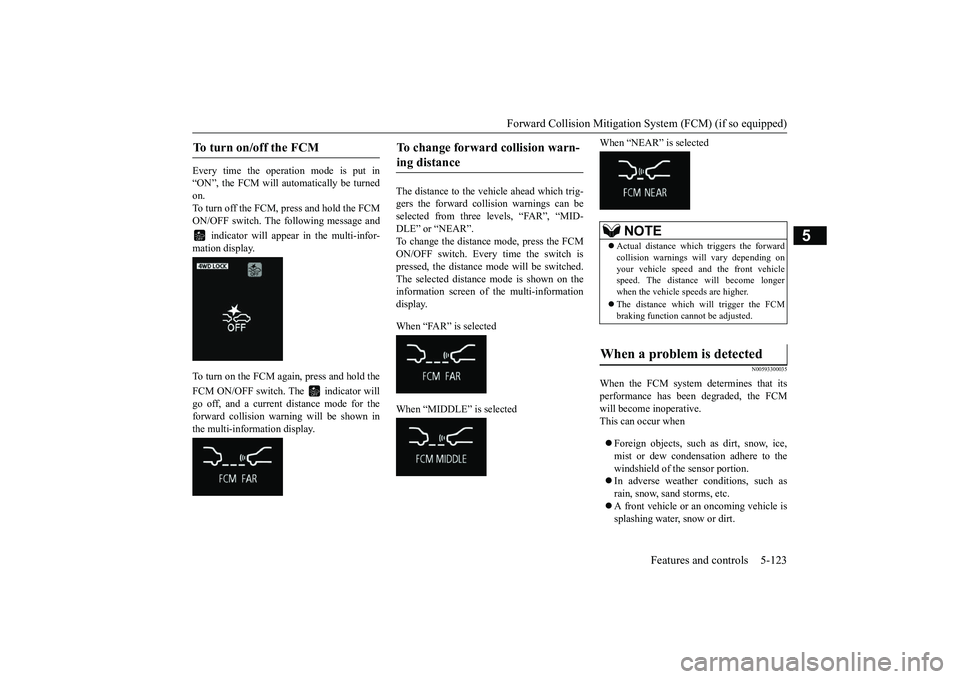

Forward Collision Mitigation System (FCM) (if so equipped)
Features and controls 5-123
5
Every time the opera
tion mode is put in
“ON”, the FCM will automatically be turnedon.To turn off the FCM, press and hold the FCMON/OFF switch. The following message and
indicator will appear in the multi-infor-
mation display.To turn on the FCM again, press and hold theFCM ON/OFF switch. The indicator willgo off, and a current
distance mode for the
forward collision warning will be shown inthe multi-information display.
The distance to the vehicle ahead which trig-gers the forward collision warnings can beselected from three levels, “FAR”, “MID-DLE” or “NEAR”.To change the distance mode, press the FCMON/OFF switch. Every time the switch ispressed, the distance mode will be switched.The selected distance mode is shown on theinformation screen of the multi-informationdisplay. When “FAR” is selectedWhen “MIDDLE” is selected
When “NEAR” is selected
N00593300035
When the FCM system determines that itsperformance has been degraded, the FCMwill become inoperative.This can occur whenForeign objects, such
as dirt, snow, ice,
mist or dew condensat
ion adhere to the
windshield of the sensor portion.In adverse weather conditions, such asrain, snow, sand storms, etc.A front vehicle or an oncoming vehicle issplashing water, snow or dirt.
To turn on/off the FCM

To change forward collision warn-ing distance

NOTE
Actual distance which triggers the forwardcollision warnings w
ill vary depending on
your vehicle speed a
nd the front vehicle
speed. The distance will become longerwhen the vehicle speeds are higher.The distance which will trigger the FCMbraking function cannot be adjusted.
When a problem is detected

BK0249100US.book 123 ページ ２０１７年５月１０日　水曜日　午前８時４９分

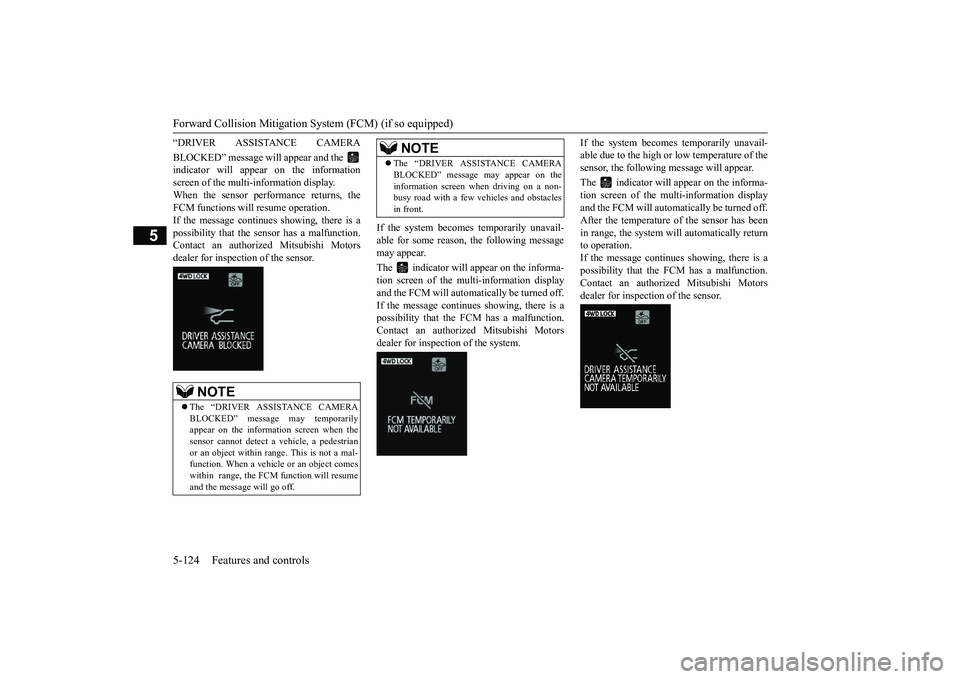

Forward Collision Mitigation System (FCM) (if so equipped)5-124 Features and controls
5
“DRIVER ASSISTANCE CAMERABLOCKED” message will appear and the indicator will appear on the informationscreen of the multi-information display.When the sensor performance returns, theFCM functions will resume operation.If the message continues
showing, there is a
possibility that the se
nsor has a malfunction.
Contact an authoriz
ed Mitsubishi Motors
dealer for inspection of the sensor.
If the system becomes temporarily unavail-able for some reason, the following messagemay appear.The indicator will appear on the informa-tion screen of the multi-information displayand the FCM will automatically be turned off.If the message continues showing, there is apossibility that the
FCM has a malfunction.
Contact an authorized Mitsubishi Motorsdealer for inspection of the system.
If the system becomes temporarily unavail-able due to the high or low temperature of thesensor, the following
message will appear.
The indicator will appear on the informa-tion screen of the mu
lti-information display
and the FCM will automa
tically be turned off.
After the temperature of
the sensor has been
in range, the system will automatically returnto operation.If the message continues
showing, there is a
possibility that the FCM has a malfunction.Contact an authoriz
ed Mitsubishi Motors
dealer for inspection of the sensor.
NOTE
The “DRIVER ASSI
STANCE CAMERA
BLOCKED” message may temporarilyappear on the information screen when thesensor cannot detect a
vehicle, a pedestrian
or an object within ra
nge. This is not a mal-
function. When a vehicle or an object comeswithin range, the FCM function will resumeand the message will go off.
The “DRIVER ASSISTANCE CAMERABLOCKED” message may appear on theinformation screen when driving on a non-busy road with a few
vehicles and obstacles
in front.NOTE
BK0249100US.book 124 ページ ２０１７年５月１０日　水曜日　午前８時４９分

Forward Collision Mitigation System (FCM) (if so equipped)
Features and controls 5-125
5
If the FCM detects a malfunction in the sys-tem, either of the following messages willappear, the indicator
will appear on the
information screen of
the multi-information
display and the FCM will automatically beturned off.If the message remains even after the opera-tion mode is put in “OFF” and then turnedback to “ON”, please contact your authorizedMitsubishi Motors dealer.
N00593400049
The sensor (A) is lo
cated inside the wind-
shield as shown in the illustration.The sensor is shared in the following sys-tems:FCMLane Departure Warning (LDW)Automatic high beam system
NOTE
If the sensor or its surrounding area becomesextremely high temperature when parkingthe vehicle under a blazing sun, the “FCMSERVICE REQUIRED” message mayappear.After the temperature of the sensor or its sur-rounding area has been in range, if the mes-sage remains even afte
r restarting the engine,
please contact an au
thorized Mitsubishi
Motors dealer.
Handling of the sensor

CAUTIONTo maintain proper performance of the FCM,LDW and Automatic high beam system;• Always keep clea
n the windshield.
If the inside of the windshield where thesensor is installed be
comes dirty or fogged,
contact an authorized Mitsubishi Motorsdealer.• Do not apply an impact or load on the sen-sor or its surrounding area.
BK0249100US.book 125 ページ ２０１７年５月１０日　水曜日　午前８時４９分

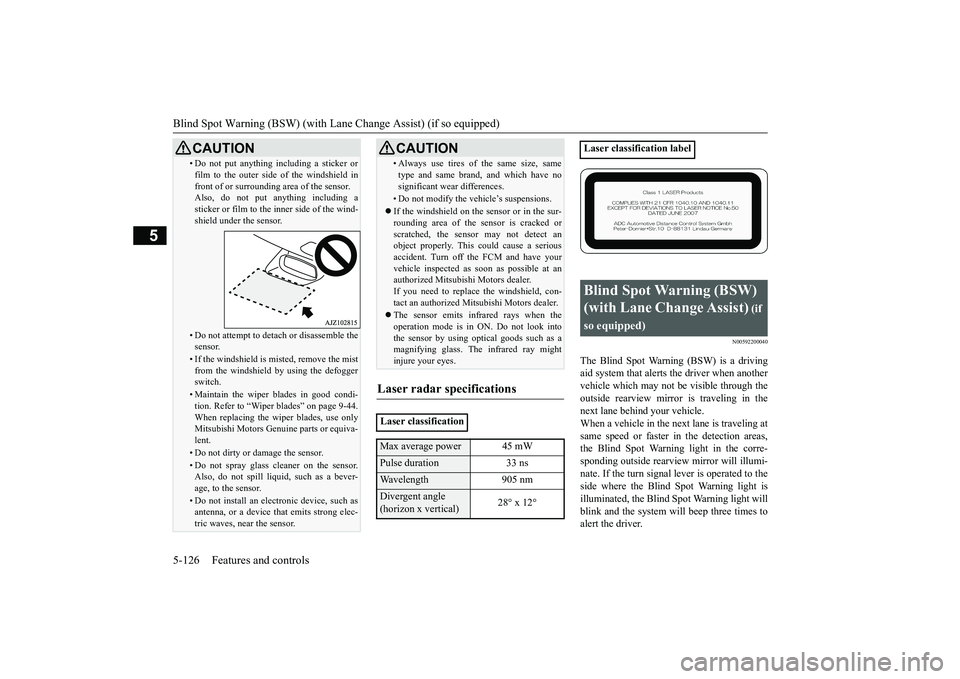

Blind Spot Warning (BSW) (with Lane Change Assist) (if so equipped)
5-126 Features and controls
5
N00592200040
The Blind Spot Warning (BSW) is a driving
aid system that alerts the driver when another
vehicle which may not be visible through the
outside rearview mirror is traveling in the
next lane behind your vehicle.
When a vehicle in the next lane is traveling at
same speed or faster in the detection areas,
the Blind Spot Warning light in the corre-
sponding outside rearview mirror will illumi-
nate. If the turn signal lever is operated to the
side where the Blind Spot Warning light is
illuminated, the Blind Spot Warning light will
blink and the system will beep three times to
alert the driver.
• Do not put anything including a sticker or
film to the outer side of the windshield in
front of or surrounding area of the sensor.
Also, do not put anything including a
sticker or film to the inner side of the wind-
shield under the sensor.• Do not attempt to deta ch or disassemble the
sensor.• If the windshield is misted, remove the mist from the windshield by using the defogger
switch.• Maintain the wiper blades in good condi- tion. Refer to “Wiper blades” on page 9-44.
When replacing the wiper blades, use only
Mitsubishi Motors Genuine parts or equiva-
lent.• Do not dirty or damage the sensor.• Do not spray glass cleaner on the sensor.Also, do not spill liquid, such as a bever-
age, to the sensor.• Do not install an elec tronic device, such as
antenna, or a device that emits strong elec-
tric waves, near the sensor.CAUTION
• Always use tires of the same size, same
type and same brand, and which have no
significant wear differences.• Do not modify the vehicle’s suspensions. If the windshield on the sensor or in the sur-
rounding area of the sensor is cracked or
scratched, the sensor may not detect an
object properly. This could cause a serious
accident. Turn off the FCM and have your
vehicle inspected as soon as possible at an
authorized Mitsubishi Motors dealer.
If you need to replace the windshield, con-
tact an authorized Mitsubishi Motors dealer. The sensor emits infrared rays when the
operation mode is in ON. Do not look into
the sensor by using optical goods such as a
magnifying glass. The infrared ray might
injure your eyes.Laser radar specifications

Laser classificationMax average power 45 mWPulse duration 33 nsWavelength905 nmDivergent angle
(horizon x vertical)28° x 12°
CAUTION
Laser classification labelBlind Spot Warning (BSW)
(with Lane Change Assist)
(if
so equipped)
BK0249100US.book 126 ページ ２０１７年５月１０日　水曜日　午前８時４９分

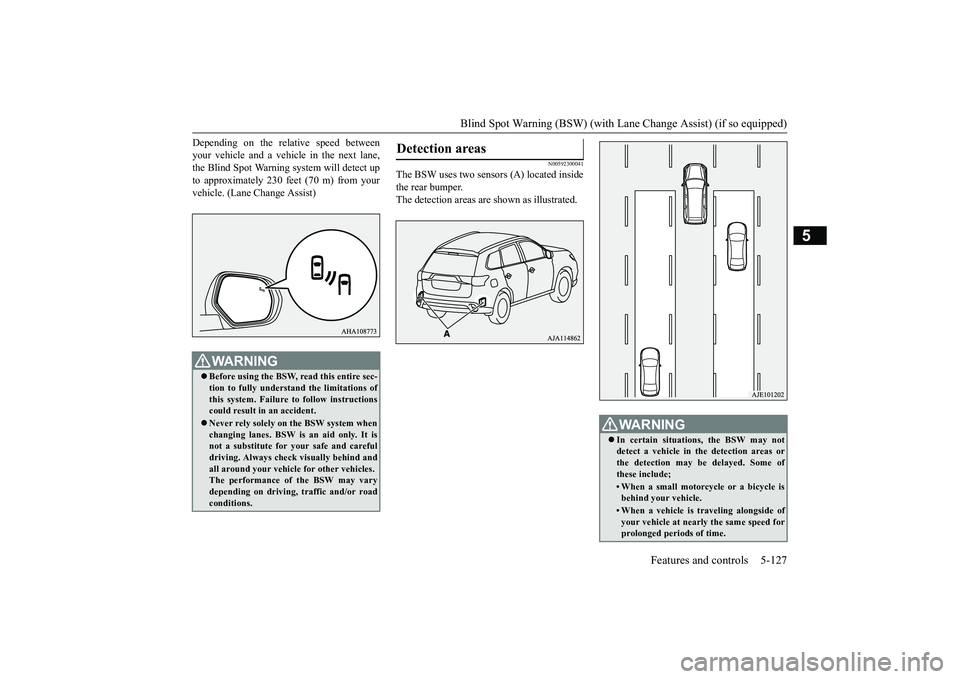

Blind Spot Warning (BSW) (with Lane Change Assist) (if so equipped)
Features and controls 5-127
5
Depending on the relative speed betweenyour vehicle and a vehi
cle in the next lane,
the Blind Spot Warning system will detect upto approximately 230 feet (70 m) from yourvehicle. (Lane Change Assist)
N00592300041
The BSW uses two sensors (A) located insidethe rear bumper.The detection areas are shown as illustrated.
WA R N I N GBefore using the BSW, read this entire sec-tion to fully understand the limitations ofthis system. Failure to follow instructionscould result in an accident.Never rely solely on the BSW system whenchanging lanes. BSW is an aid only. It isnot a substitute for your safe and carefuldriving. Always check
visually behind and
all around your vehicl
e for other vehicles.
The performance of
the BSW may vary
depending on driving,
traffic and/or road
conditions.
Detection areas

WA R N I N GIn certain situations, the BSW may notdetect a vehicle in the detection areas orthe detection may be delayed. Some ofthese include;• When a small motorcycle or a bicycle isbehind your vehicle.• When a vehicle is tr
aveling alongside of
your vehicle at nearly the same speed forprolonged periods of time.
BK0249100US.book 127 ページ ２０１７年５月１０日　水曜日　午前８時４９分

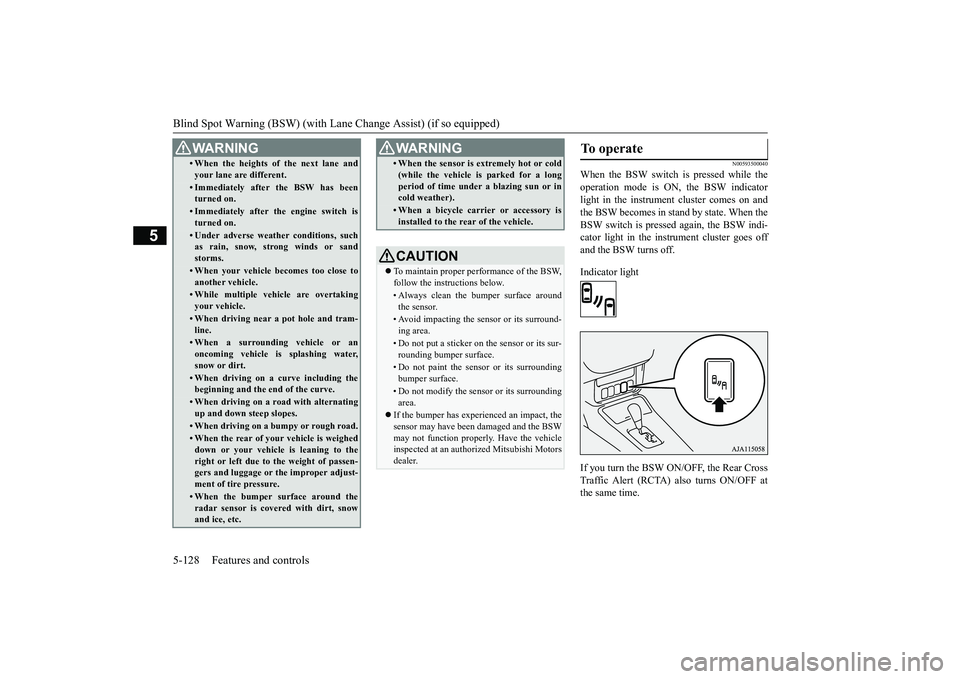

Blind Spot Warning (BSW) (with Lane Change Assist) (if so equipped)
5
N00593500040
When the BSW switch is pressed while theoperation mode is ON,
the BSW indicator
light in the instrument cluster comes on andthe BSW becomes in stand by state. When theBSW switch is pressed again, the BSW indi-cator light in the instrument cluster goes offand the BSW turns off.Indicator lightIf you turn the BSW ON/OFF, the Rear CrossTraffic Alert (RCTA) also turns ON/OFF atthe same time.
• When the heights of the next lane andyour lane are different.• Immediately after the BSW has beenturned on.• Immediately after the engine switch isturned on.• Under adverse weather conditions, suchas rain, snow, strong winds or sandstorms.• When your vehicle becomes too close toanother vehicle.• While multiple ve
hicle are overtaking
your vehicle.• When driving near a pot hole and tram-line.• When a surroundin
g vehicle or an
oncoming vehicle is splashing water,snow or dirt.• When driving on a curve including thebeginning and the end of the curve.• When driving on a r
oad with alternating
up and down steep slopes.• When driving on a bumpy or rough road.• When the rear of your vehicle is weigheddown or your vehicl
e is leaning to the
right or left due to the weight of passen-gers and luggage or th
e improper adjust-
ment of tire pressure. • When the bumper surface around theradar sensor is covered with dirt, snowand ice, etc.WA R N I N G
• When the sensor is extremely hot or cold(while the vehicle is parked for a longperiod of time unde
r a blazing sun or in
cold weather).• When a bicycle carrier or accessory isinstalled to the re
ar of the vehicle.
CAUTIONTo maintain proper performance of the BSW,follow the instructions below.• Always clean the bumper surface aroundthe sensor.• Avoid impacting the sensor or its surround-ing area.• Do not put a sticker on
the sensor or its sur-
rounding bumper surface.• Do not paint the sensor or its surroundingbumper surface.• Do not modify the sensor or its surroundingarea.
If the bumper has experienced an impact, thesensor may have been
damaged and the BSW
may not function properl
y. Have the vehicle
inspected at an authorized Mitsubishi Motorsdealer.WA R N I N G
To operate

BK0249100US.book 128 ページ ２０１７年５月１０日　水曜日　午前８時４９分

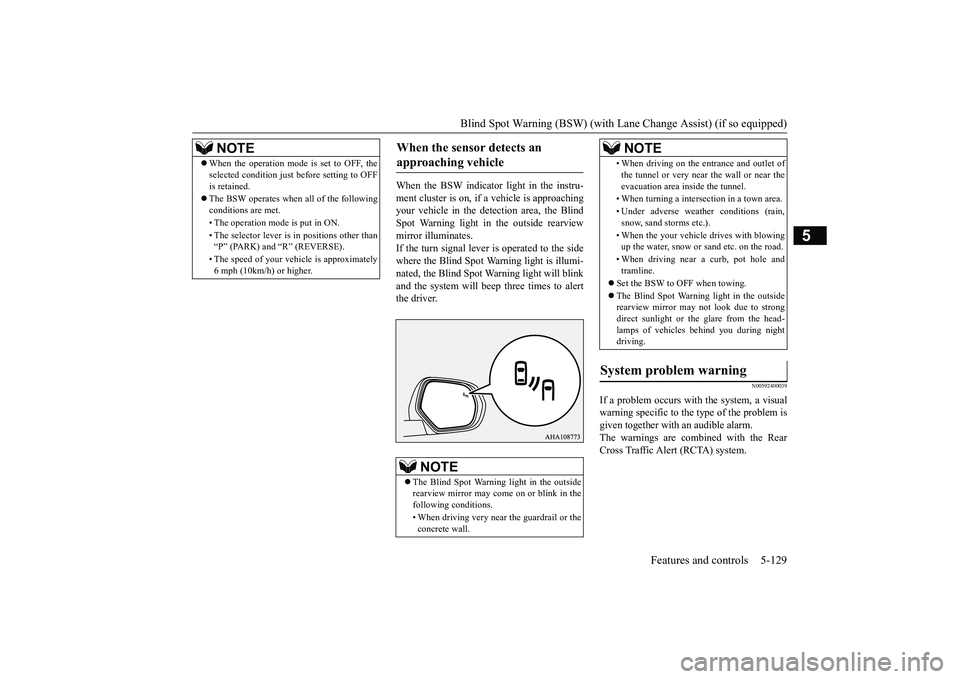

Blind Spot Warning (BSW) (with Lane Change Assist) (if so equipped)
Features and controls 5-129
5
When the BSW indicator light in the instru-ment cluster is on, if a vehicle is approachingyour vehicle in the dete
ction area, the Blind
Spot Warning light in the outside rearviewmirror illuminates.If the turn signal lever is operated to the sidewhere the Blind Spot Warning light is illumi-nated, the Blind Spot Warning light will blinkand the system will beep three times to alertthe driver.
N00592400039
If a problem occurs with the system, a visualwarning specific to the type of the problem isgiven together with an audible alarm.The warnings are combined with the RearCross Traffic Alert (RCTA) system.
NOTE
When the operation mode is set to OFF, theselected condition just
before setting to OFF
is retained.The BSW operates when all of the followingconditions are met.• The operation mode is put in ON.• The selector lever is
in positions other than
“P” (PARK) and “R” (REVERSE).• The speed of your vehi
cle is approximately
6 mph (10km/h) or higher.
When the sensor detects an approaching vehicle

NOTE
The Blind Spot Warni
ng light in the outside
rearview mirror may come
on or blink in the
following conditions.• When driving very near the guardrail or theconcrete wall.
• When driving on the entrance and outlet ofthe tunnel or very near
the wall or near the
evacuation area inside the tunnel.• When turning a intersection in a town area.• Under adverse
weather condi
tions (rain,
snow, sand storms etc.).• When the your vehicle
drives with blowing
up the water, snow or sand etc. on the road.• When driving near a curb, pot hole andtramline.
Set the BSW to OFF when towing.The Blind Spot Warning light in the outsiderearview mirror may
not look due to strong
direct sunlight or th
e glare from the head-
lamps of vehicles
behind you during night
driving.
System problem warning

NOTE
BK0249100US.book 129 ページ ２０１７年５月１０日　水曜日　午前８時４９分
