MITSUBISHI OUTLANDER III 2018 Owners Manual

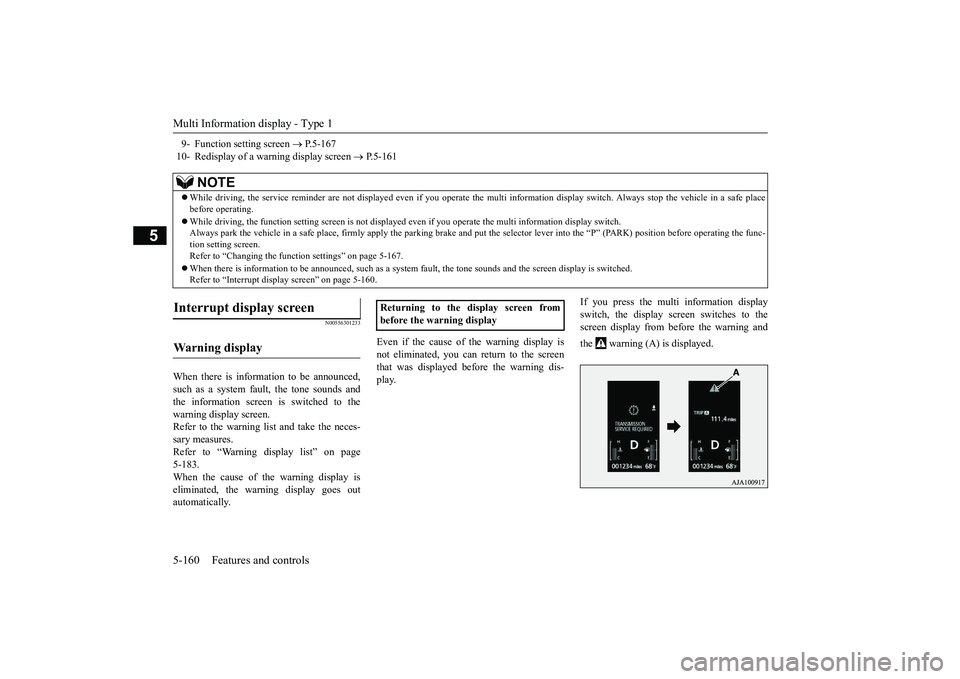

Multi Information display - Type 15-160 Features and controls
5
N00556301233
When there is information to be announced,such as a system fault, the tone sounds andthe information screen is switched to thewarning display screen.Refer to the warning li
st and take the neces-
sary measures. Refer to “Warning di
splay list” on page
5-183.When the cause of the warning display iseliminated, the warn
ing display goes out
automatically.
Even if the cause of the warning display isnot eliminated, you can return to the screenthat was displayed be
fore the warning dis-
play.
If you press the multi information displayswitch, the display screen switches to thescreen display from before the warning andthe warning (A) is displayed.
9- Function setting screen
 P.5-167
10- Redisplay of a warning display screen
 P.5-161
NOTE
While driving, the service reminder are not
displayed even if you operate the multi in
formation display switch. Always stop the
vehicle in a safe place
before operating.While driving, the function se
tting screen is not displayed even if you ope
rate the multi inform
ation display switch.
Always park the vehicle in a sa
fe place, firmly apply the park
ing brake and put the selector le
ver into the

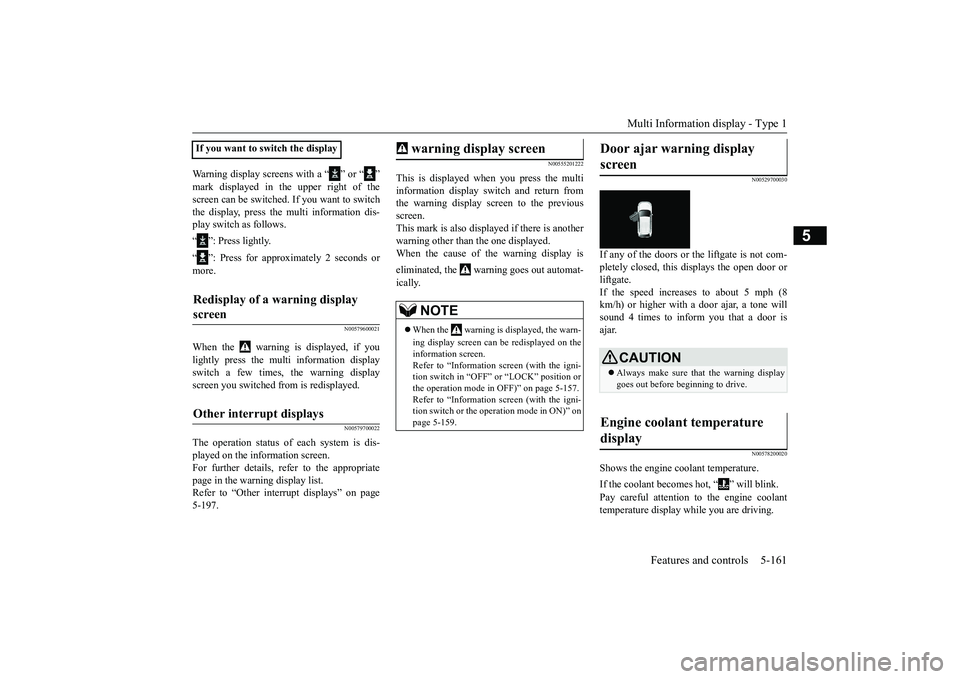

Multi Information display - Type 1
Features and controls 5-161
5
Warning display screens with a “ ” or “ ”screen can be switched. If you want to switchthe display, press the multi information dis-play switch as follows.“ ”: Press lightly.“ ”: Press for approximately 2 seconds ormore.
N00579600021
When the warning is displayed, if youlightly press the multi information displayswitch a few times, the warning displayscreen you switched
from is redisplayed.
N00579700022
The operation status of each system is dis-played on the information screen.For further details, re
fer to the appropriate
page in the warn
ing display list.
Refer to “Other interrupt displays” on page5-197.
N00555201222
This is displayed when you press the multiinformation display switch and return fromthe warning display screen to the previousscreen.This mark is also displa
yed if there is another
warning other than the one displayed.When the cause of the warning display iseliminated, the warning goes out automat-ically.
N00529700030
If any of the doors or the liftgate is not com-pletely closed, this displays the open door orliftgate.If the speed increases to about 5 mph (8km/h) or higher with a door ajar, a tone willsound 4 times to inform you that a door isajar.
N00578200020
Shows the engine coolant temperature.If the coolant becomes hot, “ ” will blink.Pay careful attention to the engine coolanttemperature display while you are driving.
If you want to switch the displayRedisplay of a warning display screen Other interrupt displays
warning display screen
NOTE
When the warning is displayed, the warn-ing display screen can be redisplayed on theinformation screen.Refer to “Information sc
reen (with the igni-
tion switch in “OFF” or
“LOCK” position or
the operation mode in
OFF)” on page 5-157.
Refer to “Information sc
reen (with the igni-
tion switch or the operation mode in ON)” onpage 5-159.
Door ajar warning display screen
CAUTIONAlways make sure that
the warning display
goes out before beginning to drive.
Engine coolant temperature display
BK0249100US.book 161 ページ ２０１７年５月１０日　水曜日　午前８時４９分

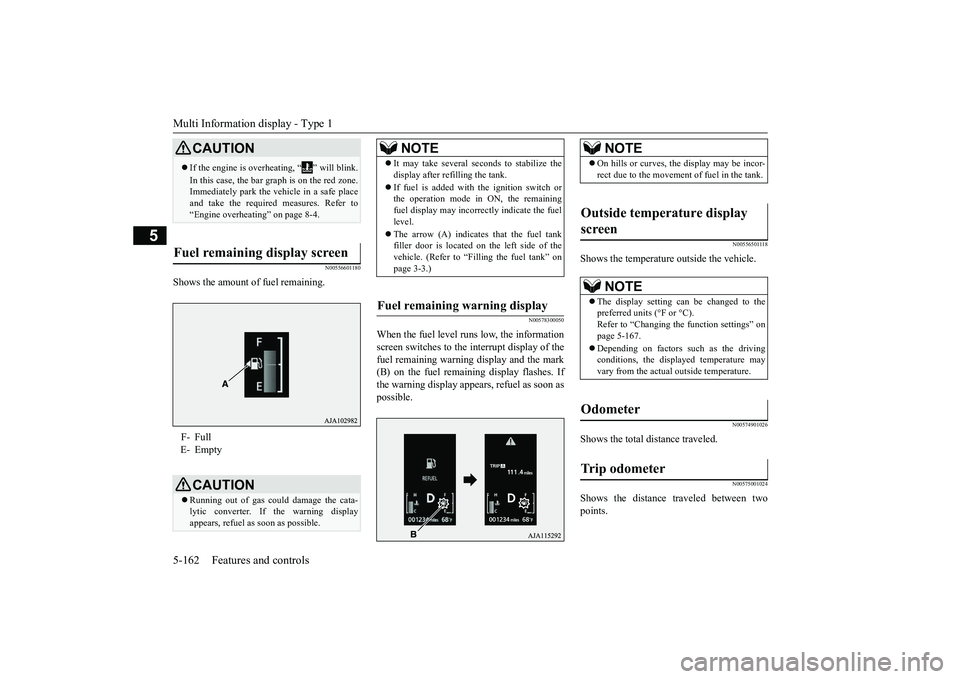

Multi Information display - Type 15-162 Features and controls
5
N00556601180
Shows the amount of fuel remaining.
N00578300050
When the fuel level runs low, the informationscreen switches to the interrupt display of thefuel remaining warning display and the mark(B) on the fuel remaini
ng display flashes. If
the warning display appear
s, refuel as soon as
possible.
N00556501118
Shows the temperature outside the vehicle.
N00574901026
Shows the total distance traveled.
N00575001024
Shows the distance traveled between twopoints.
CAUTIONIf the engine is overheating, “ ” will blink.In this case, the bar graph is on the red zone.Immediately park the vehicle in a safe placeand take the require
d measures. Refer to
“Engine overheating” on page 8-4.
Fuel remaining display screen F- FullE- Empty
CAUTIONRunning out of gas coul
d damage the cata-
lytic converter. If the warning displayappears, refuel as soon as possible.
NOTE
It may take several se
conds to stabilize the
display after re
filling the tank.
If fuel is added with
the ignition switch or
the operation mode in ON, the remainingfuel display may incorre
ctly indicate the fuel
level.The arrow (A) indicates that the fuel tankfiller door is located on
the left side of the
vehicle. (Refer to “F
illing the fuel tank” on
page 3-3.)
Fuel remaining warning display
NOTE
On hills or curves, the display may be incor-rect due to the movement
of fuel in the tank.
Outside temperature display screen
NOTE
The display setting ca
n be changed to the
preferred units (°F or °C).
e function settings” on
page 5-167.Depending on factors such as the drivingconditions, the displa
yed temperature may
vary from the actual outside temperature.
Odometer Trip odometer
BK0249100US.book 162 ページ ２０１７年５月１０日　水曜日　午前８時４９分

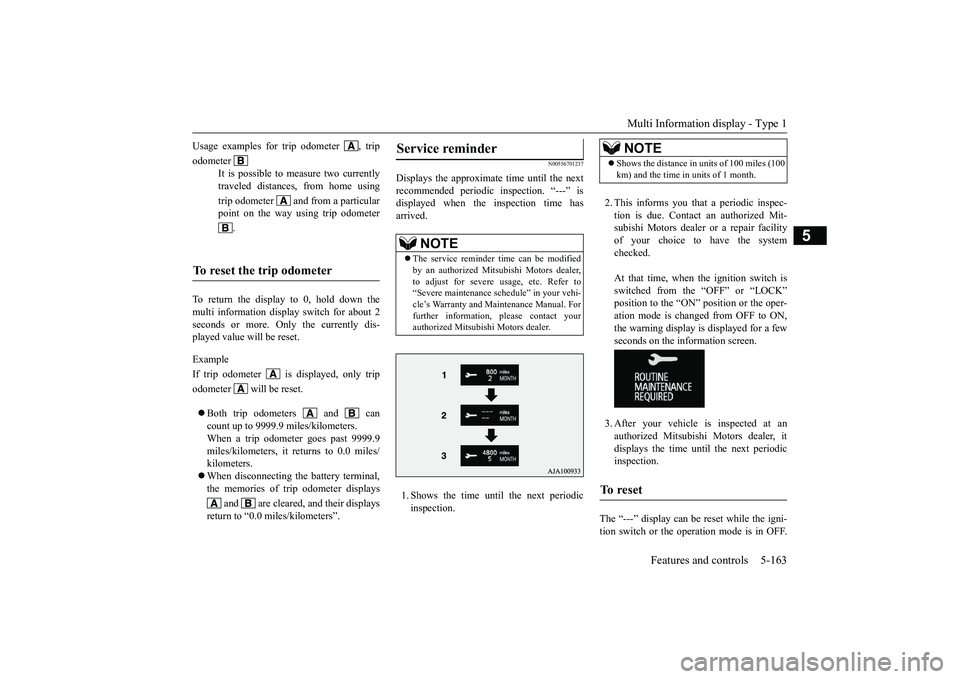

Multi Information display - Type 1
Features and controls 5-163
5
To return the display to 0, hold down themulti information display switch for about 2seconds or more. Only the currently dis-played value wi
ll be reset.
ExampleIf trip odometer is displayed, only tripodometer will be reset.Both trip odometers and cancount up to 9999.9 miles/kilometers.When a trip odometer goes past 9999.9miles/kilometers, it returns to 0.0 miles/kilometers.When disconnecting th
e battery terminal,
the memories of trip odometer displays
and are cleared, and their displays
return to “0.0 miles/kilometers”.
N00556701237
Displays the approximate time until the nextrecommended periodic
inspection. “---” is
displayed when the inspection time hasarrived.1. Shows the time until
the next periodic
inspection.
2. This informs you that a periodic inspec-tion is due. Contact
an authorized Mit-
subishi Motors dealer or a repair facilityof your choice to have the systemchecked.At that time, when the ignition switch isswitched from the “OFF” or “LOCK”position to the “ON” position or the oper-ation mode is changed from OFF to ON,the warning display is displayed for a fewseconds on the information screen.3. After your vehicle
is inspected at an
authorized Mitsubishi Motors dealer, itdisplays the time unt
il the next periodic
inspection.
The “---” display can be
reset while the igni-
tion switch or the operation mode is in OFF.
Usage examples for trip odometer , tripodometer
It is possible to
measure two currently
traveled distances, from home usingtrip odometer and from a particularpoint on the way using trip odometer
.
To reset the trip odometer
Service reminder
NOTE
The service reminder time can be modifiedby an authorized Mitsubishi Motors dealer,to adjust for severe usage, etc. Refer to“Severe maintenance sc
hedule” in your vehi-
cle’s Warranty and Ma
intenance Manual. For
further information,
please contact your
authorized Mitsubishi Motors dealer.
NOTE
Shows the distance in units of 100 miles (100km) and the time in units of 1 month.
To reset
BK0249100US.book 163 ページ ２０１７年５月１０日　水曜日　午前８時４９分

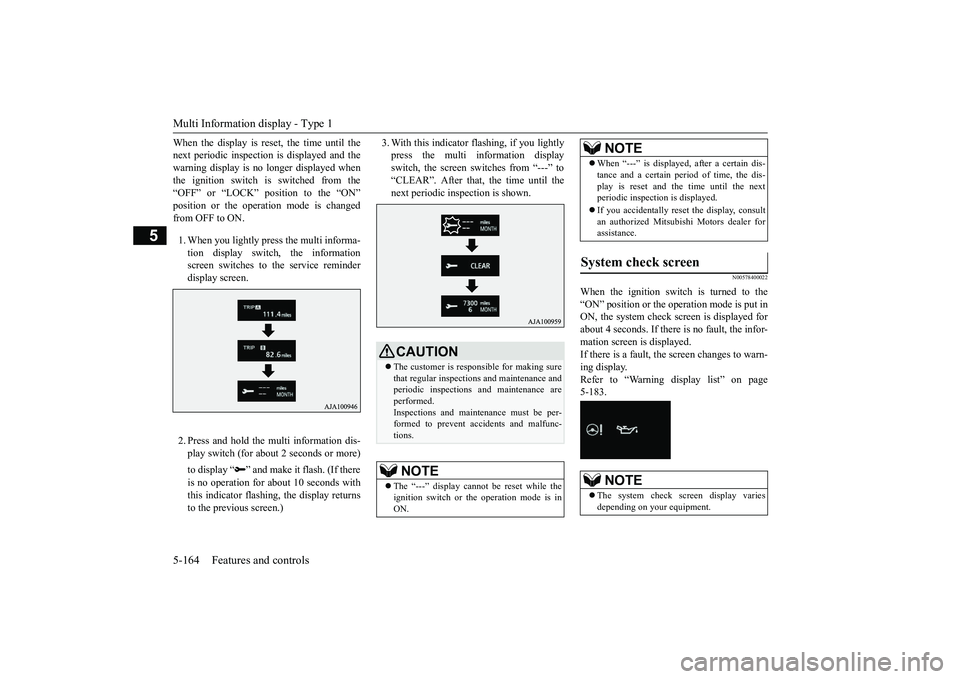

Multi Information display - Type 15-164 Features and controls
5
When the display is reset, the time until thenext periodic inspection
is displayed and the
warning display is no longer displayed whenthe ignition switch is switched from the“OFF” or “LOCK” position to the “ON”from OFF to ON.1. When you lightly press the multi informa-tion display switch, the informationscreen switches to the service reminderdisplay screen.2. Press and hold the multi information dis-play switch (for about 2 seconds or more)to display “ ” and make it flash. (If thereis no operation for
about 10 seconds with
this indicator flashing, the display returnsto the previous screen.)
3. With this indicator
flashing, if you lightly
press the multi information displayswitch, the screen switches from “---” to“CLEAR”. After that, the time until thenext periodic inspection is shown.
N00578400022
When the ignition switch is turned to the“ON” position or the ope
ration mode is put in
ON, the system check sc
reen is displayed for
about 4 seconds. If there is no fault, the infor-mation screen is displayed.If there is a fault, the screen changes to warn-ing display.Refer to “Warning di
splay list” on page
5-183.
CAUTIONThe customer is responsible for making surethat regular inspections and maintenance andperiodic inspections
and maintenance are
performed.Inspections and mainte
nance must be per-
formed to prevent accidents and malfunc-tions.NOTE
The “---” display cannot
be reset while the
ignition switch or the operation mode is inON.
When “---” is displayed, after a certain dis-tance and a certain pe
riod of time, the dis-
play is reset and th
e time until the next
periodic inspection is displayed.If you accidentally reset
the display, consult
an authorized Mitsubishi Motors dealer forassistance.
System check screen
NOTE
The system check screen display variesdepending on your equipment.NOTE
BK0249100US.book 164 ページ ２０１７年５月１０日　水曜日　午前８時４９分

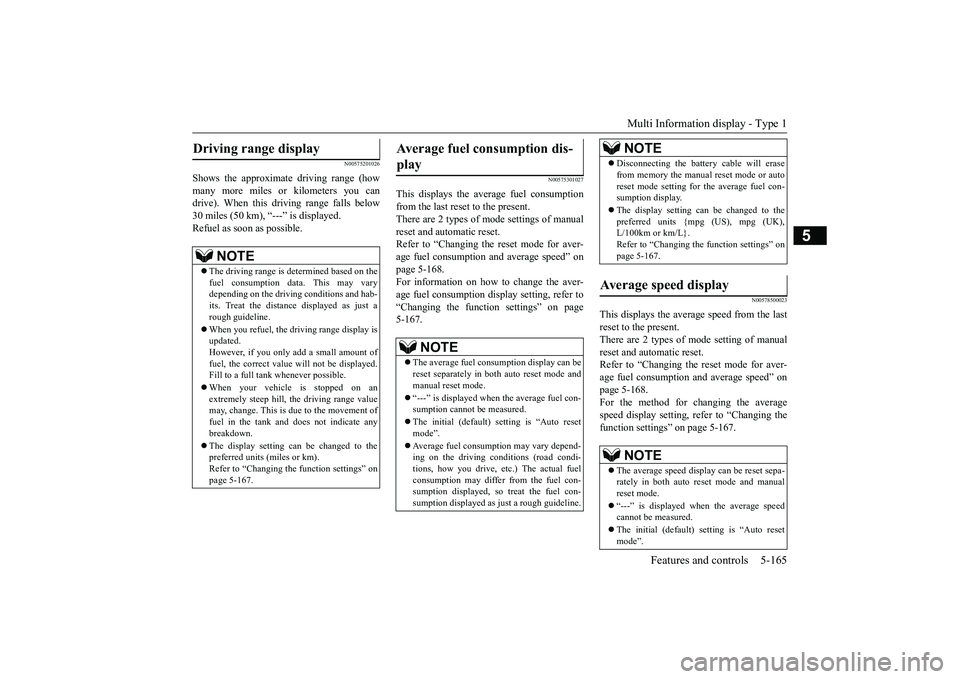

Multi Information display - Type 1
Features and controls 5-165
5
N00575201026
Shows the approximate driving range (howmany more miles or
kilometers you can
drive). When this driving range falls below30 miles (50 km),
“---” is displayed.
Refuel as soon as possible.
N00575301027
This displays the average fuel consumptionfrom the last reset to the present.There are 2 types of mode settings of manualreset and automatic reset.Refer to “Changing the reset mode for aver-age fuel consumption and average speed” onpage 5-168.For information on how to change the aver-age fuel consumption di
splay setting, refer to
“Changing the function settings” on page5-167.
N00578500023
This displays the average speed from the lastreset to the present.There are 2 types of mode setting of manualreset and automatic reset.Refer to “Changing the
reset mode for aver-
age fuel consumption
and average speed” on
page 5-168.For the method for changing the averagespeed display setting, refer to “Changing thefunction settings
” on page 5-167.
Driving range display
NOTE
The driving range is determined based on thefuel consumption da
ta. This may vary
depending on the drivi
ng conditions and hab-
its. Treat the distance displayed as just arough guideline.When you refuel, the driving range display isupdated.However, if you only add a small amount offuel, the correct value
will not be displayed.
Fill to a full tank whenever possible.When your vehicle is stopped on anextremely steep hill, the driving range valuemay, change. This is due to the movement offuel in the tank and does not indicate anybreakdown.The display setting ca
n be changed to the
preferred units (miles or km).Refer to “Changing the
function settings” on
page 5-167.
Average fuel consumption dis-play
NOTE
The average fuel cons
umption display can be
reset separately in both auto reset mode andmanual reset mode.“---” is displayed when the average fuel con-sumption cannot be measured.The initial (default) setting is “Auto resetmode”.Average fuel consumption may vary depend-ing on the driving conditions (road condi-tions, how you drive, etc.) The actual fuelconsumption may differ from the fuel con-sumption displayed, so
treat the fuel con-
sumption displayed as
just a rough guideline.
Disconnecting the batter
y cable wi
ll erase
from memory the manual reset mode or autoreset mode setting for the average fuel con-sumption display.The display setting ca
n be changed to the
preferred units {mpg (US), mpg (UK),L/100km or km/L}.Refer to “Changing the function settings” onpage 5-167.
Average speed display
NOTE
The average speed display can be reset sepa-rately in both auto reset mode and manualreset mode.“---” is displayed when the average speedcannot be measured.The initial (default) setting is “Auto resetmode”.NOTE
BK0249100US.book 165 ページ ２０１７年５月１０日　水曜日　午前８時４９分

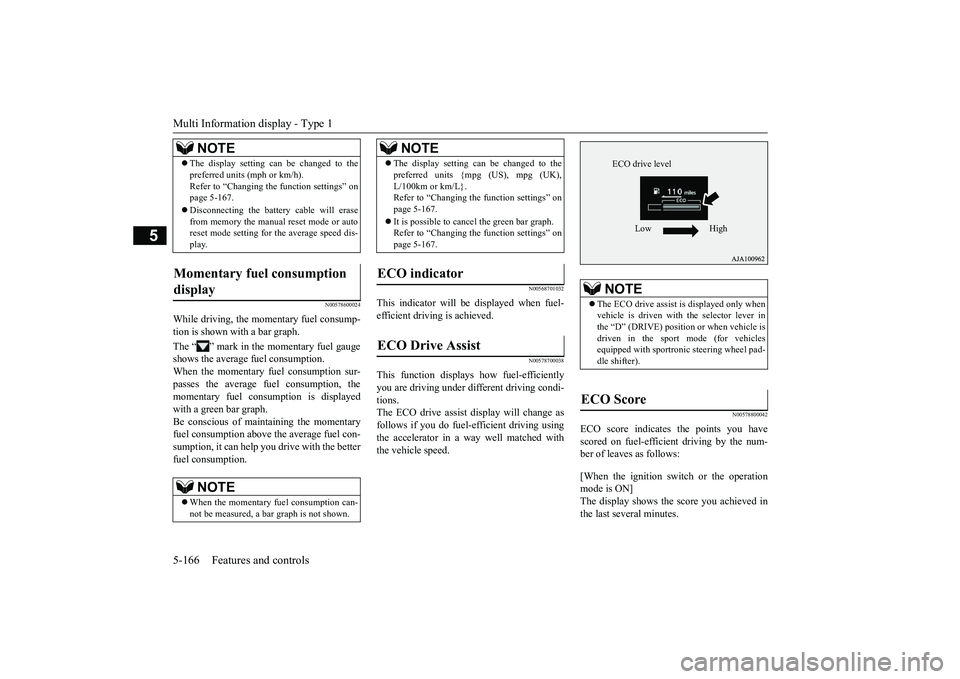

Multi Information display - Type 15-166 Features and controls
5
N00578600024
While driving, the momentary fuel consump-tion is shown with a bar graph.The “ ” mark in the momentary fuel gaugeshows the average fuel consumption.When the momentary fuel consumption sur-passes the average fuel consumption, themomentary fuel consumption is displayedwith a green bar graph.Be conscious of maintaining the momentaryfuel consumption above the average fuel con-sumption, it can help you drive with the betterfuel consumption.
N00568701032
This indicator will be displayed when fuel-efficient driving is achieved.
N00578700038
This function displays
how fuel-efficiently
you are driving under different driving condi-tions.The ECO drive assist display will change asfollows if you do fuel-efficient driving usingthe accelerator in a way well matched withthe vehicle speed.
N00578800042
ECO score indicates the points you havescored on fuel-efficient driving by the num-ber of leaves as follows:[When the ignition switch or the operationmode is ON]The display shows the score you achieved inthe last several minutes.
The display setting can be changed to thepreferred units (mph or km/h).Refer to “Changing th
e function settings” on
page 5-167.Disconnecting the batt
ery cable will erase
from memory the manual reset mode or autoreset mode setting for the average speed dis-play.
Momentary fuel consumption display
NOTE
When the momentary fuel consumption can-not be measured, a ba
r graph is not shown.
NOTE
The display setting can be changed to thepreferred units {mpg (US), mpg (UK),L/100km or km/L}.Refer to “Changing the
function settings” on
page 5-167.It is possible to cancel the green bar graph.Refer to “Changing the
function settings” on
page 5-167.
ECO indicator ECO Drive Assist
NOTE
NOTE
The ECO drive assist is displayed only whenvehicle is driven with
the selector lever in
the “D” (DRIVE) positi
on or when vehicle is
driven in the sport mode (for vehiclesequipped with sportroni
c steering wheel pad-
dle shifter).
ECO Score
ECO drive level
Low High
BK0249100US.book 166 ページ ２０１７年５月１０日　水曜日　午前８時４９分

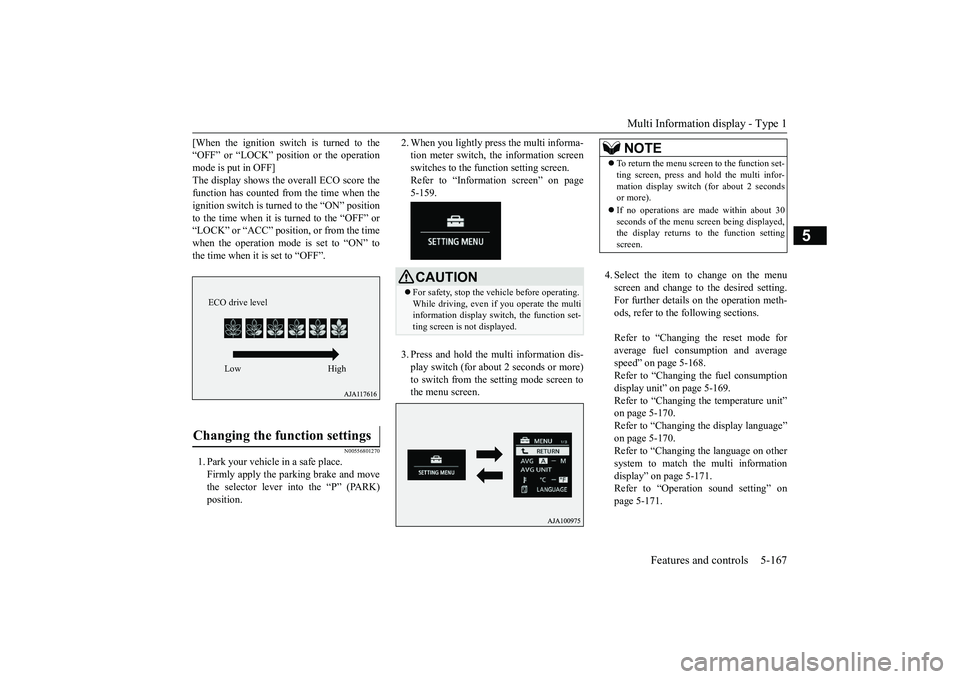

Multi Information display - Type 1
Features and controls 5-167
5
[When the ignition switch is turned to the“OFF” or “LOCK” position or the operationmode is put in OFF]The display shows the overall ECO score thefunction has counted from the time when theignition switch is turn
ed to the “ON” position
to the time when it is turned to the “OFF” or“LOCK” or “ACC” position, or from the timewhen the operation mode is set to “ON” tothe time when it is set to “OFF”.
N00556801270
1. Park your vehicle in a safe place.Firmly apply the parking brake and movethe selector lever into the “P” (PARK)position.
2. When you lightly press the multi informa-tion meter switch, the information screenswitches to the function setting screen.Refer to “Information screen” on page5-159.3. Press and hold the multi information dis-play switch (for about 2 seconds or more)to switch from the setting mode screen tothe menu screen.
4. Select the item to change on the menuscreen and change to
the desired setting.
For further details on the operation meth-ods, refer to the following sections.Refer to “Changing the reset mode foraverage fuel consumption and averagespeed” on page 5-168.Refer to “Changing the fuel consumptiondisplay unit” on page 5-169.Refer to “Changing the temperature unit”on page 5-170.Refer to “Changing the display language”on page 5-170.Refer to “Changing the language on othersystem to match the multi informationdisplay” on page 5-171.Refer to “Operation
sound setting” on
page 5-171.
Changing the function settings
ECO drive level
Low High
CAUTIONFor safety, stop the vehicle before operating.While driving, even if you operate the multiinformation display switch, the function set-ting screen is not displayed.
NOTE
To return the menu screen to the function set-ting screen, press and hold the multi infor-mation display switch
(for about 2 seconds
or more).If no operations are made within about 30seconds of the menu screen being displayed,the display returns to the function settingscreen.
BK0249100US.book 167 ページ ２０１７年５月１０日　水曜日　午前８時４９分

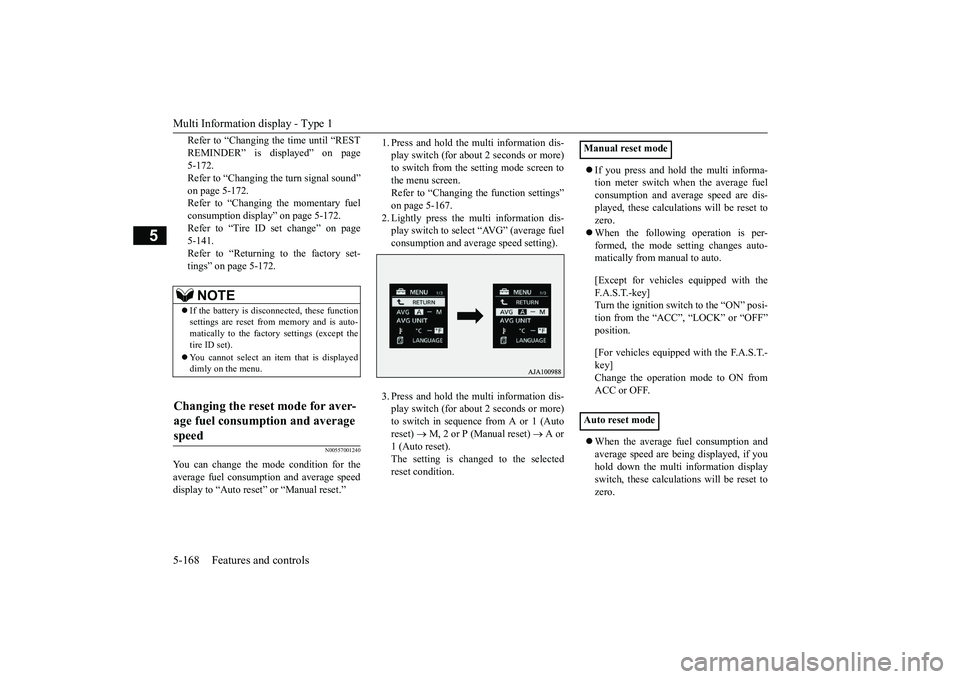

Multi Information display - Type 15-168 Features and controls
5
Refer to “Changing the time until “RESTREMINDER” is displayed” on page5-172.Refer to “Changing the turn signal sound”on page 5-172.Refer to “Changing the momentary fuelconsumption display” on page 5-172.Refer to “Tire ID set change” on page5-141.Refer to “Returning to the factory set-tings” on page 5-172.
N00557001240
You can change the mode condition for theaverage fuel consumption and average speeddisplay to “Auto reset”
or “Manual reset.”
1. Press and hold the mu
lti information dis-
play switch (for about 2 seconds or more)to switch from the setting mode screen tothe menu screen.Refer to “Changing th
e function settings”
on page 5-167.2. Lightly press the multi information dis-play switch to select “AVG” (average fuelconsumption and average speed setting).3. Press and hold the mu
lti information dis-
play switch (for about 2 seconds or more)to switch in sequence from A or 1 (Autoreset)
 M, 2 or P (Manual reset)
 A or
1 (Auto reset).The setting is changed to the selectedreset condition.
If you press and hold the multi informa-tion meter switch when the average fuelconsumption and average speed are dis-played, these calculati
ons will be reset to
zero.When the following operation is per-formed, the mode setting changes auto-matically from manual to auto.[Except for vehicles
equipped with the
F. A . S . T. - k e y ]Turn the ignition switch to the “ON” posi-tion from the “ACC”, “LOCK” or “OFF”position.[For vehicles equipped
with the F.A.S.T.-
key]Change the operation mode to ON fromACC or OFF.When the average fuel consumption andaverage speed are being displayed, if youhold down the multi in
formation display
switch, these calculations will be reset tozero.
NOTE
If the battery is disc
onnected, these function
settings are reset from
memory and is auto-
matically to the factory settings (except thetire ID set).You cannot select an it
em that is displayed
dimly on the menu.
Changing the reset mode for aver-age fuel consumption and average speed
Manual reset modeAuto reset mode
BK0249100US.book 168 ページ ２０１７年５月１０日　水曜日　午前８時４９分

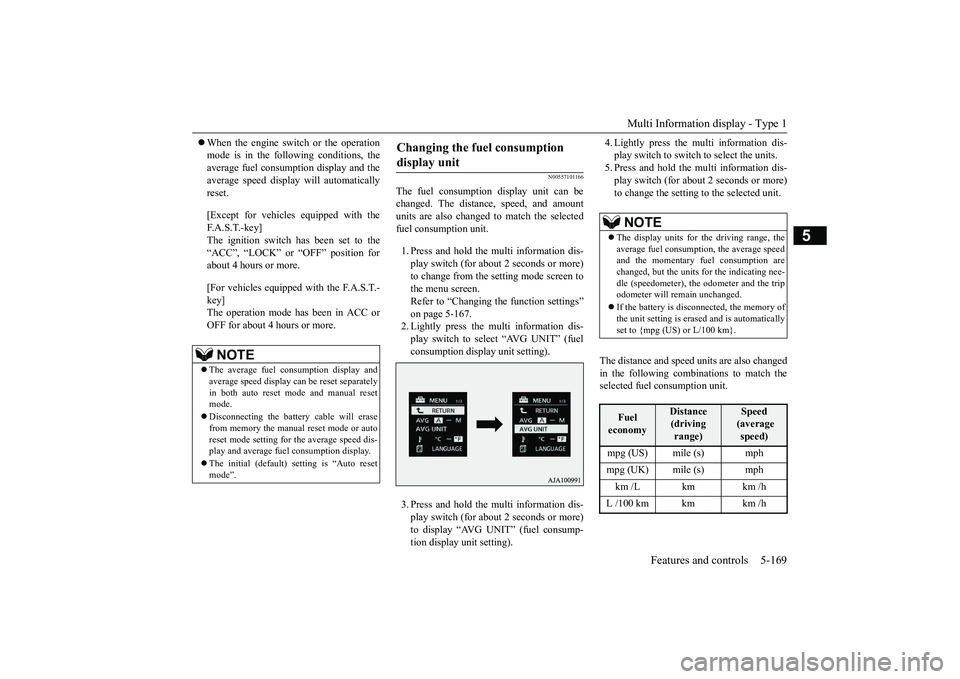

Multi Information display - Type 1
Features and controls 5-169
5
When the engine switch or the operationmode is in the following conditions, theaverage fuel consumption display and theaverage speed display will automaticallyreset.[Except for vehicles equipped with theF. A . S . T. - k e y ]The ignition switch has been set to the“ACC”, “LOCK” or
“OFF” position for
about 4 hours or more.[For vehicles equipped with the F.A.S.T.-key]The operation mode has been in ACC orOFF for about 4 hours or more.
N00557101166
The fuel consumption display unit can bechanged. The distan
ce, speed, and amount
units are also changed to match the selectedfuel consumption unit.1. Press and hold the multi information dis-play switch (for about 2 seconds or more)to change from the setting mode screen tothe menu screen.Refer to “Changing the function settings”on page 5-167.2. Lightly press the multi information dis-play switch to select “AVG UNIT” (fuelconsumption display unit setting).3. Press and hold the multi information dis-play switch (for about 2 seconds or more)to display “AVG UNIT” (fuel consump-tion display unit setting).
4. Lightly press the multi information dis-play switch to switch to select the units.5. Press and hold the multi information dis-play switch (for about 2 seconds or more)to change the setting to the selected unit.
The distance and speed units are also changedin the following combinations to match theselected fuel consumption unit.
NOTE
The average fuel consumption display andaverage speed display ca
n be reset separately
in both auto reset mode and manual resetmode.Disconnecting the batter
y cable wi
ll erase
from memory the manual reset mode or autoreset mode setting for
the average speed dis-
play and average fuel consumption display.The initial (default) setting is “Auto resetmode”.
Changing the fuel consumption display unit
NOTE
The display units for the driving range, theaverage fuel consumption, the average speedand the momentary fuel consumption arechanged, but the units
for the indicating nee-
dle (speedometer), the odometer and the tripodometer will remain unchanged.If the battery is disconnected, the memory ofthe unit setting is erased and is automaticallyset to {mpg (US) or L/100 km}.Fuel economy
Distance (driving range)
Speed (average speed)
mpg (UK) mile (s) mphkm /L km km /hL /100 km km km /h
BK0249100US.book 169 ページ ２０１７年５月１０日　水曜日　午前８時４９分
