MITSUBISHI OUTLANDER III 2018 Owners Manual

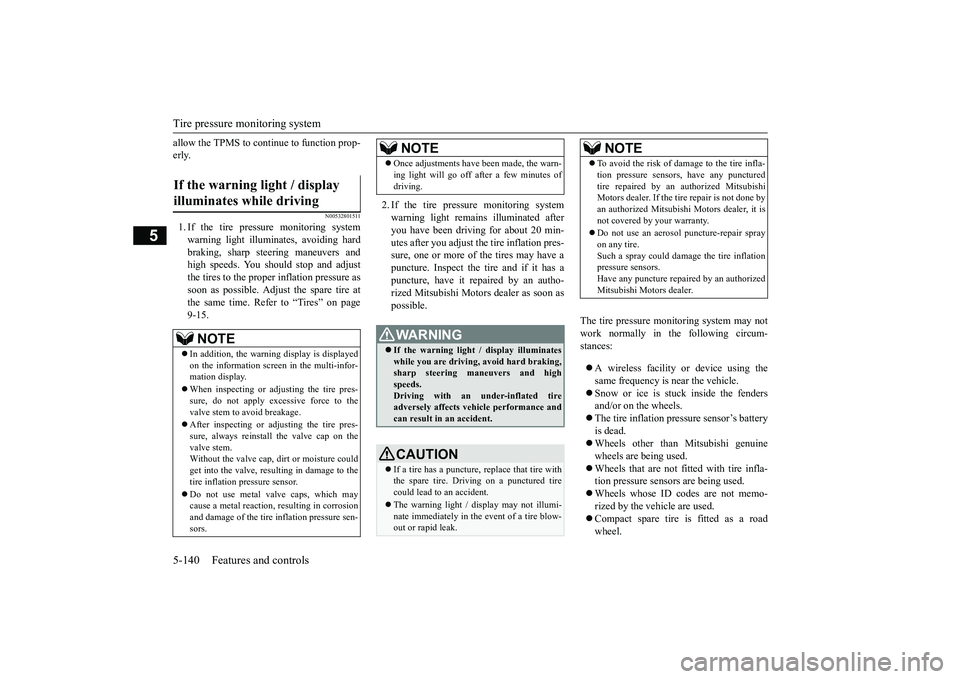

Tire pressure monitoring system5-140 Features and controls
5
allow the TPMS to cont
inue to function prop-
erly.
N00532801511
1. If the tire pressure monitoring systemwarning light illuminates, avoiding hardbraking, sharp steering maneuvers andhigh speeds. You should stop and adjustthe tires to the proper inflation pressure assoon as possible. Adjust the spare tire atthe same time. Refer to “Tires” on page9-15.
2. If the tire pressure monitoring systemwarning light remain
s illuminated after
you have been driving for about 20 min-utes after you adjust the tire inflation pres-sure, one or more of the tires may have apuncture. Inspect the tire and if it has apuncture, have it repaired by an autho-rized Mitsubishi Motors dealer as soon aspossible.
The tire pressure monitoring system may notwork normally in the following circum-stances:A wireless facility
or device using the
same frequency is near the vehicle.Snow or ice is stuck inside the fendersand/or on the wheels.The tire inflation pressure sensor’s batteryis dead.Wheels other than Mitsubishi genuinewheels are being used.Wheels that are not fitted with tire infla-tion pressure sensors are being used.Wheels whose ID codes are not memo-rized by the vehicle are used.Compact spare tire is fitted as a roadwheel.
If the warning light / display illuminates while driving
NOTE
In addition, the warni
ng display is displayed
on the information screen in the multi-infor-mation display.When inspecting or adjusting the tire pres-sure, do not apply excessive force to thevalve stem to
avoid breakage.
After inspecting or adjusting the tire pres-sure, always reinstall the valve cap on thevalve stem.Without the valve cap, di
rt or moisture could
get into the valve, resulting in damage to thetire inflation pressure sensor.Do not use metal valve caps, which maycause a metal reaction,
resulting in corrosion
and damage of the tire
inflation pressure sen-
sors.
Once adjustments have
been made, the warn-
ing light will go off after a few minutes ofdriving.WA R N I N GIf the warning light
/ display illuminates
while you are driving, avoid hard braking,sharp steering maneuvers and highspeeds.Driving with an under-inflated tireadversely affects vehi
cle performance and
can result in an accident.CAUTIONIf a tire has a puncture, replace that tire withthe spare tire. Driving on a punctured tirecould lead to an accident.The warning light / di
splay may not illumi-
nate immediately in the
event of a tire blow-
out or rapid leak.NOTE
NOTE
To avoid the risk of damage to the tire infla-tion pressure sensors, have any puncturedtire repaired by an authorized MitsubishiMotors dealer. If the tire repair is not done byan authorized Mitsubishi Motors dealer, it isnot covered by your warranty.Do not use an aerosol puncture-repair sprayon any tire.Such a spray could dama
ge the tire inflation
pressure sensors.Have any puncture repa
ired by an authorized
Mitsubishi Motors dealer.
BK0249100US.book 140 ページ ２０１７年５月１０日　水曜日　午前８時４９分

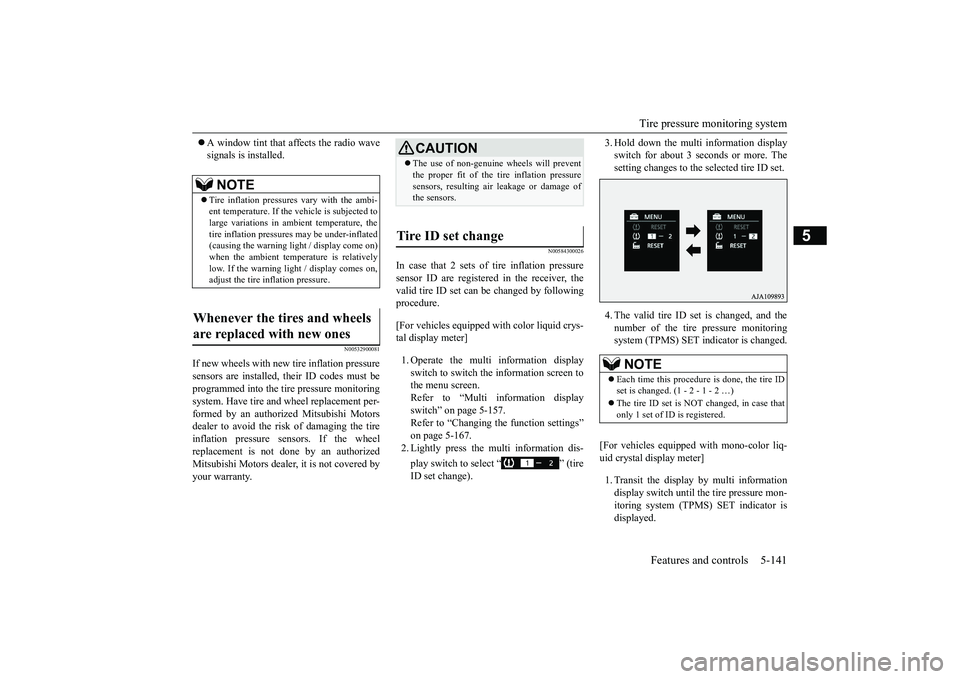

Tire pressure monitoring system
Features and controls 5-141
5
A window tint that affects the radio wavesignals is installed.
N00532900081
If new wheels with new tire inflation pressuresensors are installed,
their ID codes must be
programmed into the tire pressure monitoringsystem. Have tire and
wheel replacement per-
formed by an authorized Mitsubishi Motorsdealer to avoid the ri
sk of damaging the tire
inflation pressure sensors. If the wheelreplacement is not done by an authorizedMitsubishi Motors dealer
, it is not covered by
your warranty.
N00584300026
In case that 2 sets of tire inflation pressuresensor ID are registered in the receiver, thevalid tire ID set can be changed by followingprocedure.[For vehicles equipped with color liquid crys-tal display meter]1. Operate the multi information displayswitch to switch the information screen tothe menu screen.Refer to “Multi information displayswitch” on page 5-157.Refer to “Changing the function settings”on page 5-167.2. Lightly press the multi information dis-play switch to select “ ” (tireID set change).
3. Hold down the multi information displayswitch for about 3 seconds or more. Thesetting changes to the selected tire ID set.4. The valid tire ID se
t is changed, and the
number of the tire pressure monitoringsystem (TPMS) SET indicator is changed.
[For vehicles equipped
with mono-color liq-
uid crystal display meter]1. Transit the display by multi informationdisplay switch until th
e tire pressure mon-
itoring system (TPMS) SET indicator isdisplayed.
NOTE
Tire inflation pressures vary with the ambi-ent temperature. If the
vehicle is subjected to
large variations in ambient temperature, thetire inflation pressures may be under-inflated(causing the warning light / display come on)when the ambient temperature is relativelylow. If the warning light / display comes on,adjust the tire inflation pressure.
Whenever the tires and wheels are replaced with new ones
CAUTIONThe use of non-genuine wheels will preventthe proper fit of the tire inflation pressuresensors, resulting air
leakage or damage of
the sensors.
Tire ID set change
NOTE
Each time this procedure is done, the tire IDset is changed. (1 - 2 - 1 - 2 …)only 1 set of ID is registered.
BK0249100US.book 141 ページ ２０１７年５月１０日　水曜日　午前８時４９分

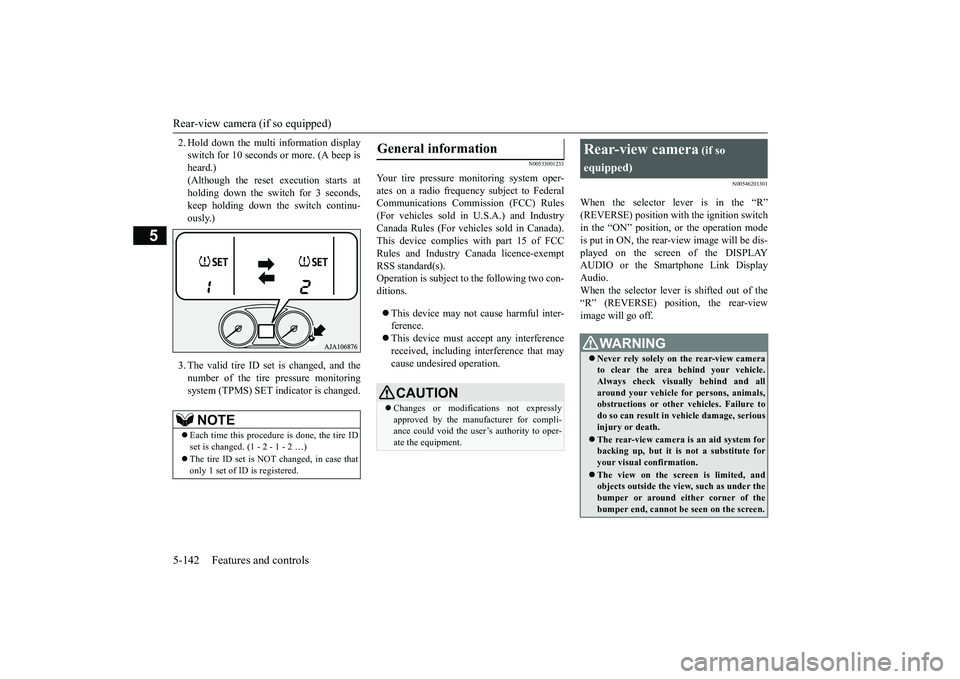

Rear-view camera (if so equipped)5-142 Features and controls
5
2. Hold down the multi information displayswitch for 10 seconds or more. (A beep isheard.)(Although the reset execution starts atholding down the switch for 3 seconds,keep holding down the switch continu-ously.)3. The valid tire ID set is changed, and thenumber of the tire
pressure monitoring
system (TPMS) SET i
ndicator is changed.
N00533001233
Your tire pressure monitoring system oper-ates on a radio frequency subject to FederalCommunications Comm
ission (FCC) Rules
(For vehicles sold in U.S.A.) and IndustryCanada Rules (For vehicles sold in Canada).This device complies with part 15 of FCCRules and Industry Ca
nada licence-exempt
RSS standard(s).Operation is subject to the following two con-ditions.This device may not
cause harmful inter-
ference.This device must ac
cept any interference
received, including interference that maycause undesired operation.
N00546201301
When the selector lever is in the “R”in the “ON” position,
or the operation mode
is put in ON, the rear-view image will be dis-played on the screen of the DISPLAYAUDIO or the Smartphone Link DisplayAudio.When the selector lever is shifted out of the“R” (REVERSE) position, the rear-viewimage will go off.
NOTE
Each time this procedure is done, the tire IDset is changed. (1 - 2 - 1 - 2 …)only 1 set of ID is registered.
General information
CAUTIONChanges or modifica
tions not expressly
approved by the manufacturer for compli-ance could void the user’s authority to oper-ate the equipment.
Rear-view camera
(if so
equipped)Never rely solely on the rear-view camerato clear the area behind your vehicle.Always check visua
lly behind and all
around your vehicle fo
r persons, animals,
obstructions or other vehicles. Failure todo so can result in
vehicle damage, serious
injury or death.The rear-view camera is an aid system forbacking up, but it is not a substitute foryour visual confirmation.The view on the scre
en is limited, and
objects outside the view, such as under thebumper or around either corner of thebumper end, cannot be seen on the screen.
BK0249100US.book 142 ページ ２０１７年５月１０日　水曜日　午前８時４９分

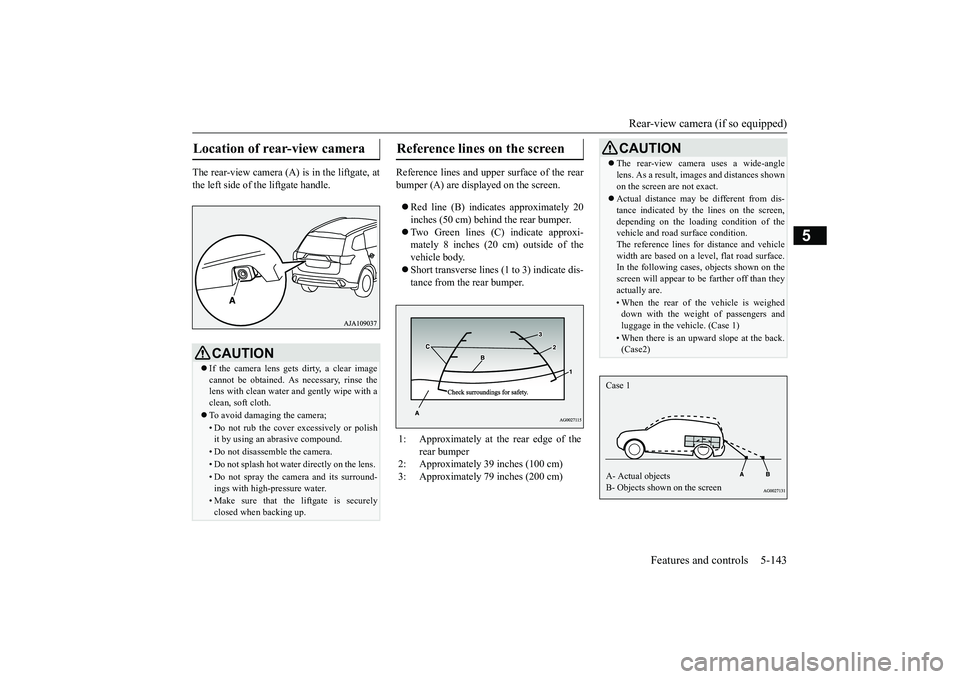

Rear-view camera (if so equipped)
Features and controls 5-143
5
The rear-view camera (A) is in the liftgate, atthe left side of
the liftgate handle.
Reference lines and uppe
r surface of the rear
bumper (A) are displayed on the screen. Red line (B) indicates approximately 20inches (50 cm) behind the rear bumper.Two Green lines (C) indicate approxi-mately 8 inches (20 cm) outside of thevehicle body.Short transverse lines (1
to 3) indicate dis-
tance from the rear bumper.
Location of rear-view camera

CAUTIONIf the camera lens gets
dirty, a clear image
cannot be obtained. As
necessary, rinse the
lens with clean water a
nd gently wipe with a
clean, soft cloth.To avoid damaging the camera;• Do not rub the cover excessively or polishit by using an abrasive compound. • Do not disassemble the camera.• Do not splash hot wate
r directly on the lens.
• Do not spray the camera and its surround-ings with high-
pressure water.
• Make sure that the liftgate is securelyclosed when backing up.
Reference lines on the screen

1: Approximately at the rear edge of the
rear bumper
2: Approximately 39 inches (100 cm) 3: Approximately 79 inches (200 cm)
CAUTIONThe rear-view camera uses a wide-anglelens. As a result, images and distances shownon the screen are not exact.Actual distance may be different from dis-tance indicated by the
lines on the screen,
depending on the loadi
ng condition of the
vehicle and road surface condition.The reference lines for distance and vehiclewidth are based on a level, flat road surface.In the following cases, objects shown on thescreen will appear to
be farther off than they
actually are.• When the rear of th
e vehicle is weighed
down with the weight of passengers andluggage in the vehicle. (Case 1)• When there is an upward slope at the back.(Case2)
Case 1A- Actual objectsB- Objects shown on the screen
BK0249100US.book 143 ページ ２０１７年５月１０日　水曜日　午前８時４９分

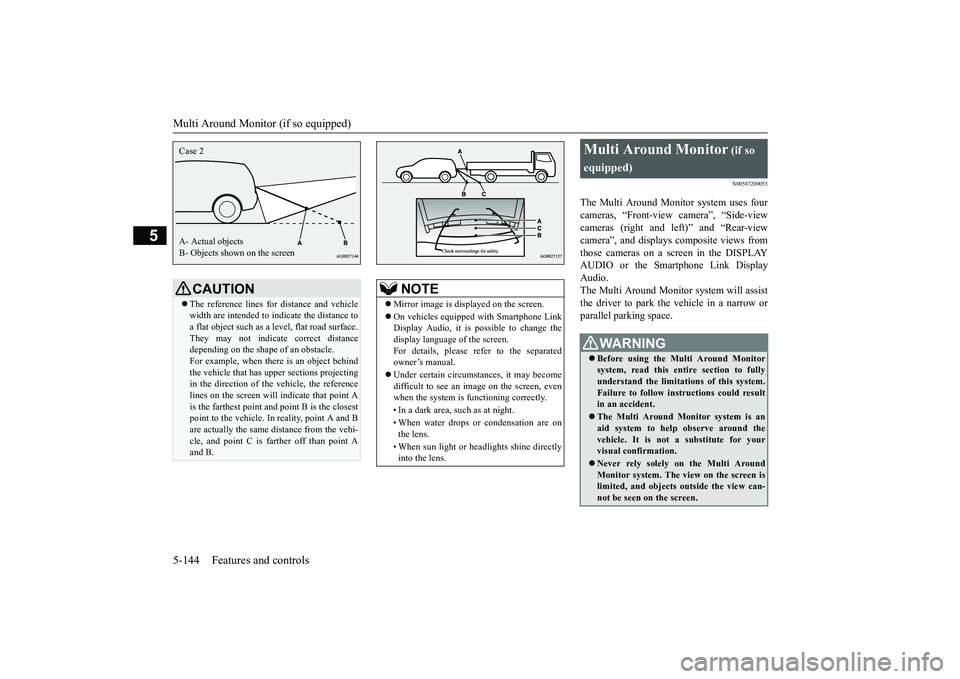

Multi Around Monitor (if so equipped)
5
N00587200055
The Multi Around Monitor system uses fourcameras, “Front-view camera”, “Side-viewcameras (right and le
ft)” and “Rear-view
camera”, and displays
composite views from
those cameras on a screen in the DISPLAYAUDIO or the Smartphone Link DisplayAudio.The Multi Around Monitor
system wi
ll assist
the driver to park the vehicle in a narrow orparallel parking space.
CAUTIONThe reference lines for
distance and vehicle
width are intended to i
ndicate the distance to
a flat object such as a level, flat road surface.They may not indicate correct distancedepending on the shape of an obstacle.For example, when there is an object behindthe vehicle that has u
pper sections projecting
in the direction of the
vehicle, the reference
lines on the screen will
indicate that point A
is the farthest point an
d point B is the closest
point to the vehicle. In
reality, point A and B
are actually the same distance from the vehi-cle, and point C is fa
rther off than point A
and B.Case 2A- Actual objectsB- Objects shown on the screen
NOTE
Mirror image is displayed on the screen.On vehicles equipped with Smartphone LinkDisplay Audio, it is possible to change thedisplay language of the screen.For details, please refer to the separatedowner’s manual.Under certain circumst
ances, it may become
difficult to see an image on the screen, evenwhen the system is functioning correctly. • In a dark area, such as at night. • When water drops or
condensation are on
the lens. • When sun light or he
adlights shine directly
into the lens.
Multi Around Monitor
(if so
equipped)Before using the Multi Around Monitorsystem, read this entire section to fullyunderstand the limitations of this system.Failure to follow instructions could resultin an accident.The Multi Around Monitor system is anaid system to help observe around thevehicle. It is not a substitute for yourvisual confirmation.Never rely solely on the Multi AroundMonitor system. The view on the screen islimited, and objects
outside the view can-
not be seen on the screen.
BK0249100US.book 144 ページ ２０１７年５月１７日　水曜日　午後２時３１分

Multi Around Monitor (if so equipped)
Features and controls 5-145
5
CAUTIONBefore using the Multi Around Monitor,make sure that all doors and the liftgate areclosed and the outside
mirrors are unfolded.
If an outside mirror is folded and/or if a frontdoor and/or the liftgate
is open, the areas dis-
played on the Multi Around Monitor will notbe appropriate.
Location of each camera

A- Rear-view cameraB- Front-view cameraC- Side-view cameraCAUTIONIf the camera lens gets
dirty, a clear image
cannot be obtained. As
necessary, rinse the
lens with clean water a
nd gently wipe with a
clean, soft cloth.
To avoid damaging the camera;• Do not rub the cover excessively or polishit by using an abrasive compound.• Do not disassemble the camera.• Do not splash hot wate
r directly on the lens.
• Do not spray the camera and its surround-ings with high-pressure water.• Make sure that the liftgate is securelyclosed when backing up.
Do not attach anythi
ng on the camera and/or
surrounding areas. Doing
so will disturb the
camera.CAUTION
BK0249100US.book 145 ページ ２０１７年５月１０日　水曜日　午前８時４９分

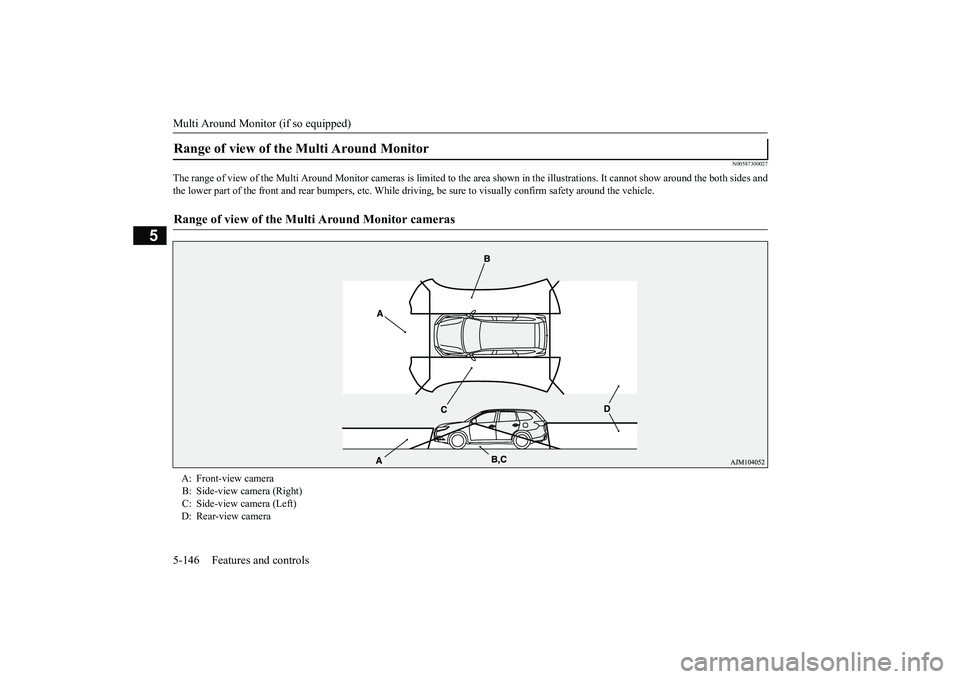

Multi Around Monitor (if so equipped)
5
N00587300027
The range of view of the Multi Around Monito
r cameras is limited to the area shown in
the illustrations. It
cannot show around
the both sides and
the lower part of the front and rear bumpe
rs, etc. While driving, be sure to vi
sually confirm safety around the vehicle.
Range of view of the Multi Around Monitor

Range of view of the Mult
i Around Monitor cameras

A: Front-view cameraB: Side-view camera (Right)C: Side-view camera (Left)D: Rear-view camera
BK0249100US.book 146 ページ ２０１７年５月１０日　水曜日　午前８時４９分

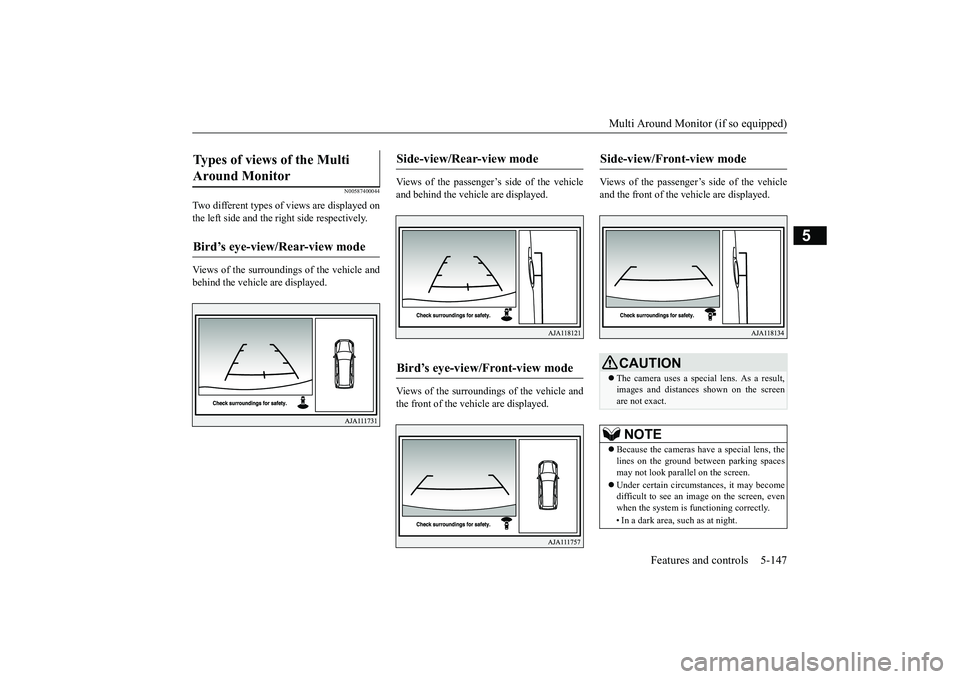

Multi Around Monitor (if so equipped)
Features and controls 5-147
5
N00587400044
Two different types of views are displayed onthe left side and the ri
ght side respectively.
Views of the surroundings of the vehicle andbehind the vehicl
e are displayed.
Views of the passenger’s side of the vehicleand behind the vehicle are displayed.Views of the surroundings of the vehicle andthe front of the vehicle are displayed.
Views of the passenger’s side of the vehicleand the front of the vehicle are displayed.
Types of views of the Multi Around Monitor

Bird’s eye-view/Rear-view mode

Side-view/Rear-view mode

Bird’s eye-view/Front-view mode

Side-view/Front-view mode

CAUTIONThe camera uses a special lens. As a result,images and distances shown on the screenare not exact.NOTE
Because the cameras have a special lens, thelines on the ground between parking spacesmay not look parall
el on the screen.
Under certain circumst
ances, it may become
difficult to see an image on the screen, evenwhen the system is functioning correctly.• In a dark area, such as at night.
BK0249100US.book 147 ページ ２０１７年５月１９日\b 5 Y

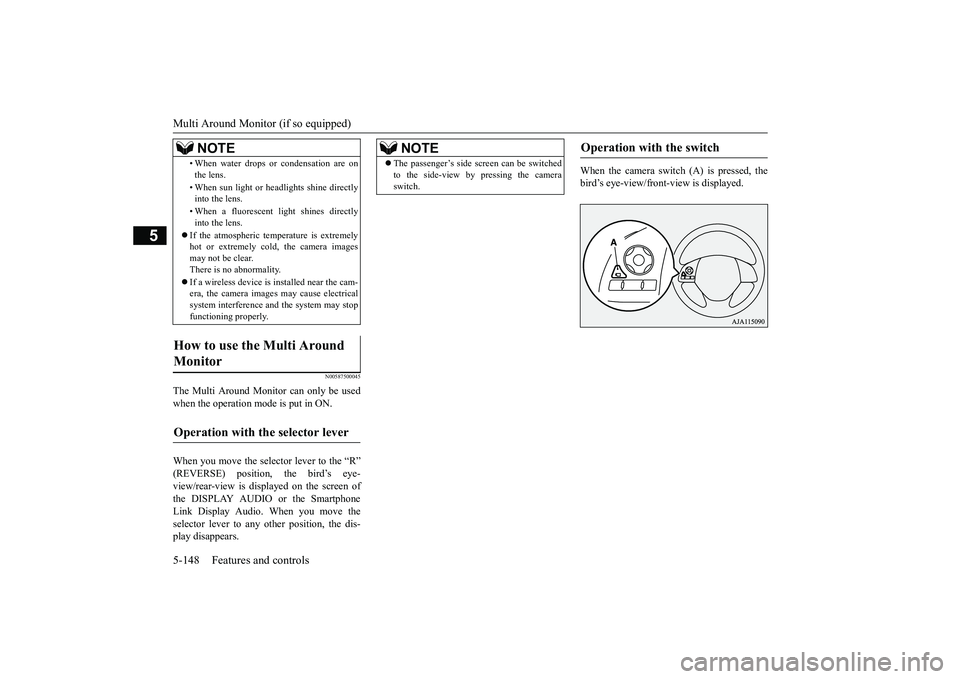

Multi Around Monitor (if so equipped)
5
N00587500045
The Multi Around Monitor can only be usedwhen the operation mode is put in ON.When you move the selector lever to the “R”(REVERSE) position, the bird’s eye-view/rear-view is displayed on the screen ofthe DISPLAY AUDIO or the SmartphoneLink Display Audio. When you move theselector lever to any
other position, the dis-
play disappears.
When the camera switch (A) is pressed, thebird’s eye-view/front-view is displayed.
• When water drops or condensation are onthe lens.• When sun light or he
adlights shine directly
into the lens.• When a fluorescent light shines directlyinto the lens.
If the atmospheric temperature is extremelyhot or extremely cold, the camera imagesmay not be clear.There is no abnormality.If a wireless device is installed near the cam-era, the camera images may cause electricalsystem interference and the system may stopfunctioning properly.
How to use the Multi Around Monitor

Operation with the selector lever

NOTE
NOTE
The passenger’s side sc
reen can be switched
to the side-view by pressing the cameraswitch.
Operation with the switch

SC00000500-3.fm 148 ページ ２０１７年５月２２日　月曜日　午前１０時４６分

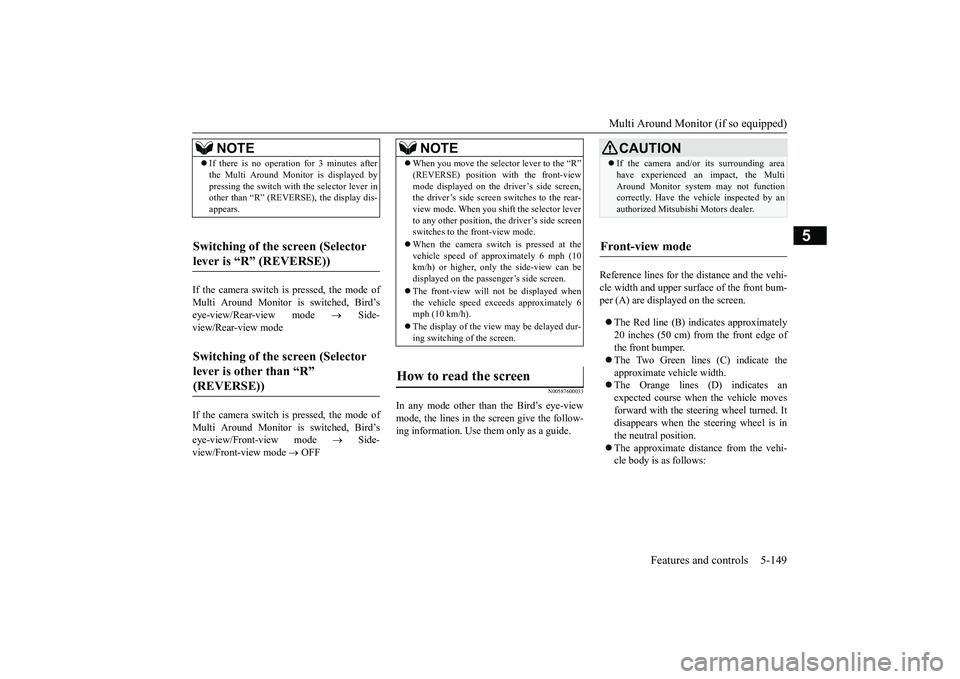

Multi Around Monitor (if so equipped)
Features and controls 5-149
5
If the camera switch is pressed, the mode ofMulti Around Monitor is switched, Bird’seye-view/Rear-view mode
 Side-
view/Rear-view modeIf the camera switch is pressed, the mode ofMulti Around Monitor is switched, Bird’seye-view/Front-view mode
 Side-
view/Front-view mode
 OFF
N00587600033
In any mode other than the Bird’s eye-viewmode, the lines in the screen give the follow-ing information. Use them only as a guide.
Reference lines for the
distance and the vehi-
cle width and upper surface of the front bum-per (A) are displayed on the screen.The Red line (B) i
ndicates approximately
20 inches (50 cm) from the front edge ofthe front bumper.The Two Green lines (C) indicate theapproximate vehicle width.The Orange lines (D) indicates anexpected course when the vehicle movesforward with the steering wheel turned. Itdisappears when the steering wheel is inthe neutral position.The approximate distance from the vehi-cle body is as follows:
NOTE
If there is no operation for 3 minutes afterthe Multi Around Monitor is displayed bypressing the switch with the selector lever inother than “R” (REVERSE), the display dis-appears.
Switching of the screen (Selector lever is “R” (REVERSE))

Switching of the screen (Selector lever is other than “R”

NOTE
When you move the selector lever to the “R”mode displayed on the driver’s side screen,the driver’s side screen switches to the rear-view mode. When you shift the selector leverto any other position, the driver’s side screenswitches to the front-view mode.When the camera switch is pressed at thevehicle speed of appr
oximately 6 mph (10
km/h) or higher, only
the side-view can be
displayed on the passenger’s side screen.The front-view will not
be displayed when
the vehicle speed exce
eds approximately 6
mph (10 km/h).The display of the view
may be delayed dur-
ing switching of the screen.
How to read the screen

CAUTIONIf the camera and/or its surrounding areahave experienced an impact, the MultiAround Monitor system may not functioncorrectly. Have the vehicle inspected by anauthorized Mitsubish
i Motors dealer.
Front-view mode
