Multi Around Monitor (if so equipped)
5
N00587700021

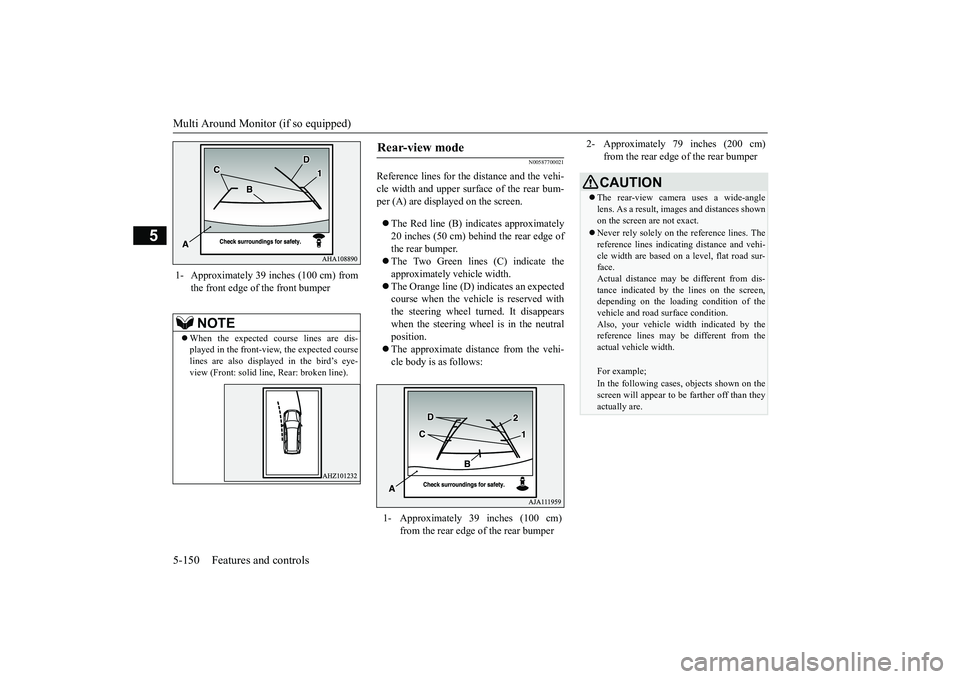

Reference lines for the
distance and the vehi-
cle width and upper surface of the rear bum-per (A) are displayed on the screen.The Red line (B) i
ndicates approximately
20 inches (50 cm) behind the rear edge ofthe rear bumper.The Two Green lines (C) indicate theapproximately vehicle width.The Orange line (D) indicates an expectedcourse when the vehicle is reserved withthe steering wheel turned. It disappearswhen the steering wheel is in the neutralposition.The approximate distance from the vehi-cle body is as follows:
1- Approximately 39 inches (100 cm) from
the front edge of the front bumperNOTE
When the expected course lines are dis-played in the front-view, the expected courselines are also displayed in the bird’s eye-view (Front: solid li
ne, Rear: broken line).
Rear-view mode

1- Approximately 39 inches (100 cm)
from the rear edge of the rear bumper
2- Approximately 79 inches (200 cm)
from the rear edge of the rear bumperCAUTIONThe rear-view camera uses a wide-anglelens. As a result, imag
es and distances shown
on the screen are not exact.Never rely solely on the reference lines. Thereference lines indicati
ng distance and vehi-
cle width are based on a
level, flat road sur-
face.Actual distance may be
different from dis-
tance indica
ted by the lines on the screen,
depending on the loading condition of thevehicle and road
surface condition.
Also, your vehicle wi
dth indicated by the
reference lines may be different from theactual vehicle width.For example;In the following cases, objects shown on thescreen will appear to be farther off than theyactually are.
BK0249100US.book 150 ページ ２０１７年５月１０日　水曜日　午前８時４９分

Multi Around Monitor (if so equipped)
Features and controls 5-151
5

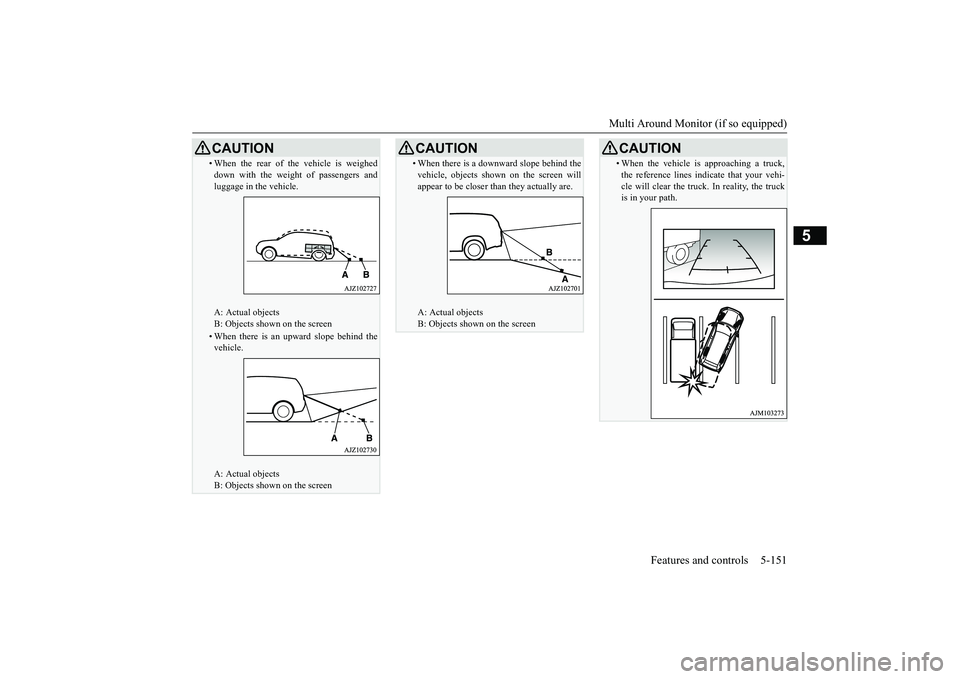

• When the rear of th
e vehicle is weighed
down with the weight of passengers andluggage in the vehicle.A: Actual objectsB: Objects shown on the screen• When there is an upward slope behind thevehicle.A: Actual objectsB: Objects shown on the screenCAUTION
• When there is a downward slope behind thevehicle, objects shown on the screen willappear to be closer than they actually are.A: Actual objectsB: Objects show
n on the screen
CAUTION
• When the vehicle is
approaching a truck,
the reference lines indi
cate that your vehi-
cle will clear the truck. In reality, the truckis in your path.CAUTION
BK0249100US.book 151 ページ ２０１７年５月１０日　水曜日　午前８時４９分

Multi Around Monitor (if so equipped)
5
N00587900023
Reference lines for the
vehicle width and the
front end of the vehicle are displayed on thescreen.

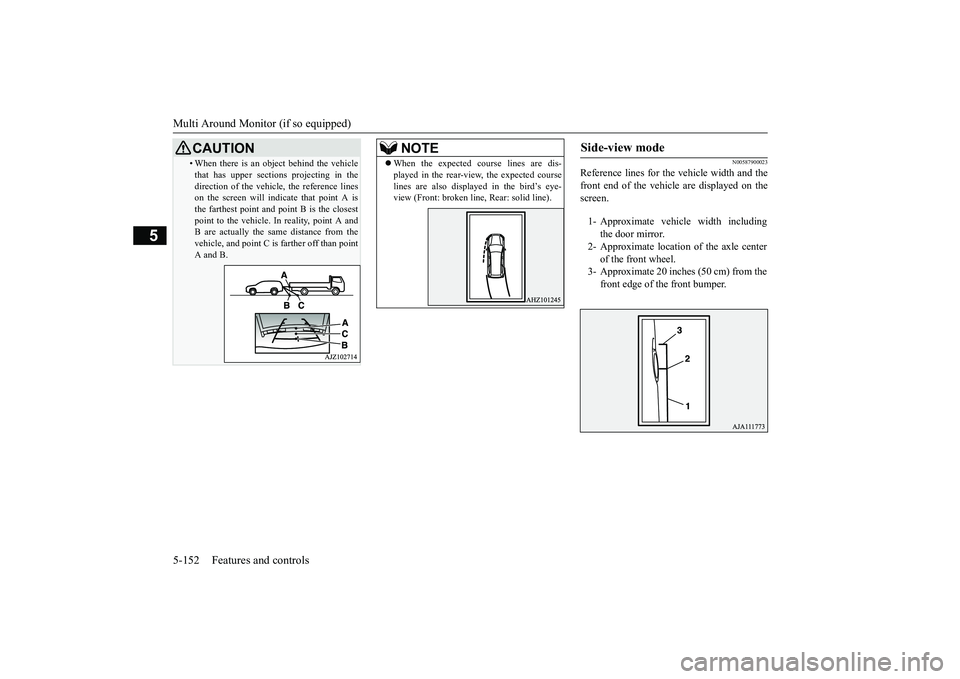

• When there is an obj
ect behind the vehicle
that has upper sections
projecting in the
direction of the vehicle, the reference lineson the screen will indi
cate that point A is
the farthest point and point B is the closestpoint to the vehicle. In
reality, point A and
B are actually the same distance from thevehicle, and point C is farther off than pointA and B.CAUTION
NOTE
When the expected course lines are dis-played in the rear-view, the expected courselines are also displayed in the bird’s eye-view (Front: broken line, Rear: solid line).
Side-view mode

1- Approximate vehicle width including
the door mirror.
2- Approximate location of the axle center
of the front wheel.
3- Approximate 20 inches (50 cm) from the
front edge of the front bumper.
BK0249100US.book 152 ページ ２０１７年５月１０日　水曜日　午前８時４９分

Multi Around Monitor (if so equipped)
Features and controls 5-153
5
N00588000021

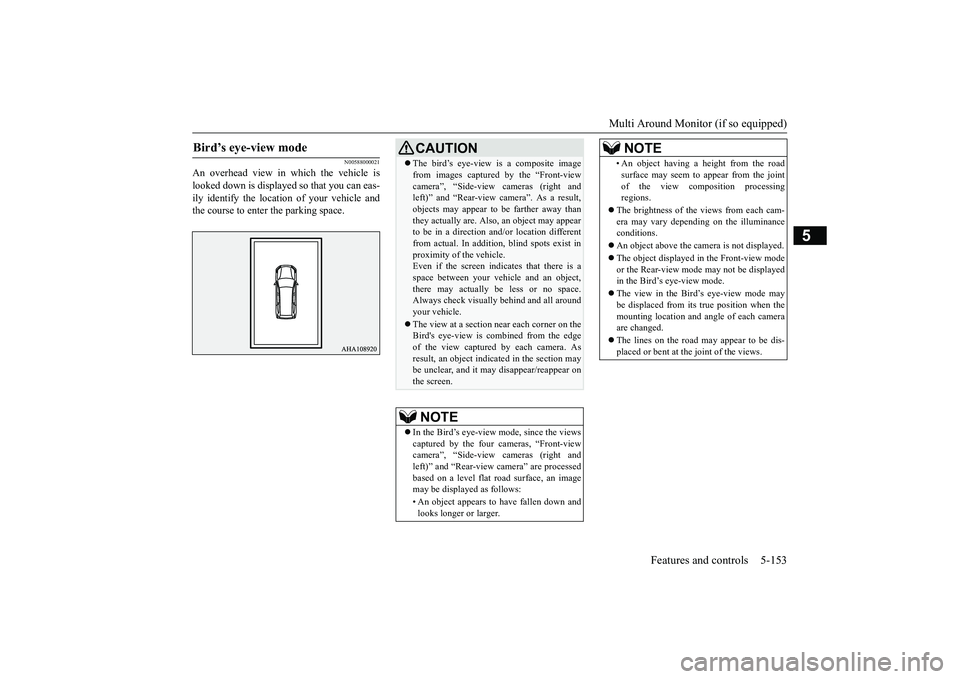

An overhead view in which the vehicle islooked down is displayed so that you can eas-ily identify the location of your vehicle andthe course to enter the parking space.Bird’s eye-view mode

CAUTIONThe bird’s eye-view is a composite imagefrom images captured by the “Front-viewcamera”, “Side-view cameras (right andleft)

Instrument cluster5-154 Features and controls
5
N00519001402
N00519101272

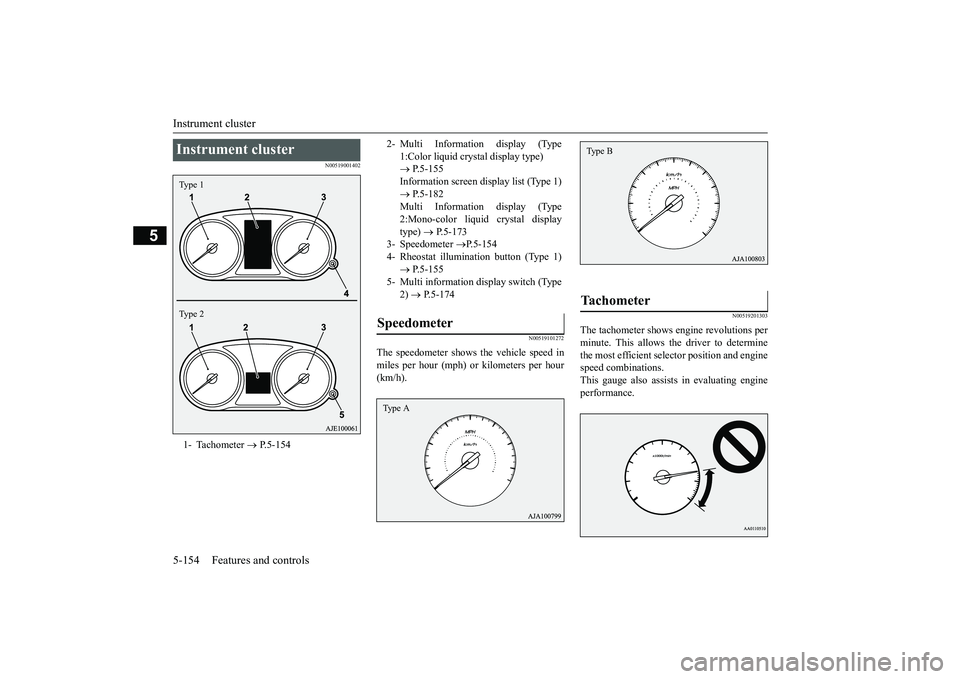

The speedometer shows the vehicle speed inmiles per hour (mph) or kilometers per hour(km/h).
N00519201303
The tachometer shows e
ngine revolutions per
minute. This allows the driver to determinethe most efficient selector position and enginespeed combinations.This gauge also assists in evaluating engineperformance.
Instrument cluster 1- Tachometer
 P.5-154
Type 1Type 2
2- Multi Information display (Type
1:Color liquid crystal display type) P.5-155Information screen display list (Type 1) P.5-182Multi Information display (Type2:Mono-color liquid crystal displaytype)
 P.5-173
3- Speedometer
P.5-154
4- Rheostat illumina
tion button (Type 1)
 P.5-155
5- Multi information display switch (Type
2)  P.5-174
Speedometer Type A
Tachometer Type B
BK0249100US.book 154 ページ ２０１７年５月１０日　水曜日　午前８時４９分

Multi Information display - Type 1
Features and controls 5-155
5
N00554901280

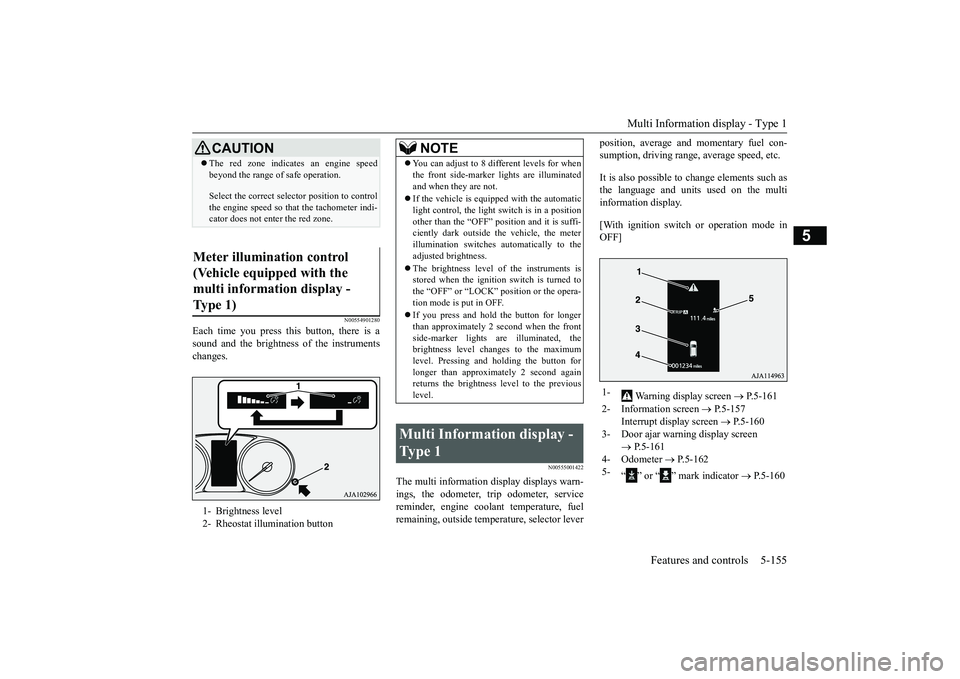

Each time you press this button, there is asound and the brightness
of the instruments
changes.
N00555001422
The multi information display displays warn-ings, the odometer, trip odometer, servicereminder, engine cool
ant temperature, fuel
remaining, outside temper
ature, selector lever
position, average and momentary fuel con-sumption, driving range
, average speed, etc.
It is also possible to change elements such asthe language and units used on the multiinformation display.[With ignition switch
or operation mode in
OFF]
CAUTIONThe red zone indicates an engine speedbeyond the range of safe operation.Select the correct select
or position to control
the engine speed so that
the tachometer indi-
cator does not enter the red zone.
Meter illumination control (Vehicle equipped with the multi information display - Type 1) 1- Brightness level2- Rheostat illumination button
NOTE
You can adjust to 8 different levels for whenthe front side-marker
lights are illuminated
and when they are not.If the vehicle is equippe
d with the automatic
light control, the light
switch is in a position
other than the “OFF” pos
ition and it is suffi-
ciently dark outside th
e vehicle, the meter
illumination switches automatically to theadjusted brightness.The brightness level
of the instruments is
stored when the ignition switch is turned tothe “OFF” or “LOCK” tion mode is put in OFF.If you press and hold the button for longerthan approximately 2 second when the frontside-marker lights ar
e illuminated, the
brightness level changes to the maximumlevel. Pressing and holding the button forlonger than approximately 2 second againreturns the brightness
level to the previous
level.
Multi Information display - Type 1
1-
Warning display screen
 P.5-161
2- Information screen
 P.5-157
Interrupt display screen
 P.5-160
3- Door ajar warning display screen
 P.5-161
4- Odometer
 P.5-162
5-
“ ” or “ ” mark indicator
 P.5-160
BK0249100US.book 155 ページ ２０１７年５月１０日　水曜日　午前８時４９分

Multi Information display - Type 15-156 Features and controls
5

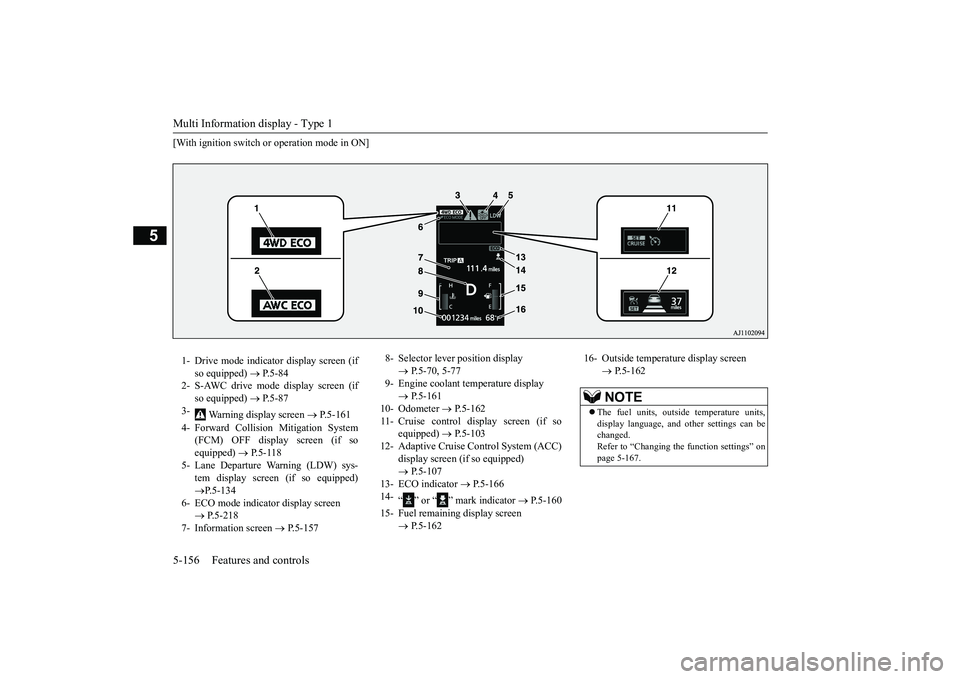

[With ignition switch or operation mode in ON]1- Drive mode indicator display screen (if
so equipped)
 P.5-84
2- S-AWC drive mode display screen (if
so equipped)
 P.5-87
3-
Warning display screen
 P.5-161
4- Forward Collision Mitigation System
(FCM) OFF display screen (if soequipped)
 P.5-118
5- Lane Departure Warning (LDW) sys-
tem display screen (if so equipped)P.5-134
6- ECO mode indicator display screen
 P.5-218
7- Information screen
 P.5-157
8- Selector lever
position display
 P.5-70, 5-77
9- Engine coolant temperature display
 P.5-161
10- Odometer
 P.5-162
11- Cruise control display screen (if so
equipped)
 P.5-103
12- Adaptive Cruise Control System (ACC)
display screen (if so equipped) P.5-107
13- ECO indicator
 P.5-166
14-
“ ” or “ ” mark indicator
 P.5-160
15- Fuel remaining display screen
 P.5-162
16- Outside temperature display screen
 P.5-162NOTE
The fuel units, outside temperature units,display language, and ot
her settings can be
changed.Refer to “Changing th
e function settings” on
page 5-167.
BK0249100US.book 156 ページ ２０１７年５月１０日　水曜日　午前８時４９分

Multi Information display - Type 1
Features and controls 5-157
5
N00555101205
Each time the multi information displayswitch is operated, th
e buzzer sounds and the
multi information disp
lay changes between
information such as wa
rnings, trip odometer,
average and momentary fuel consumption,distance range, etc.
It is also possible to change elements such asthe language and units used on the multiinformation display by operating the multiinformation display switch.
N00555301177

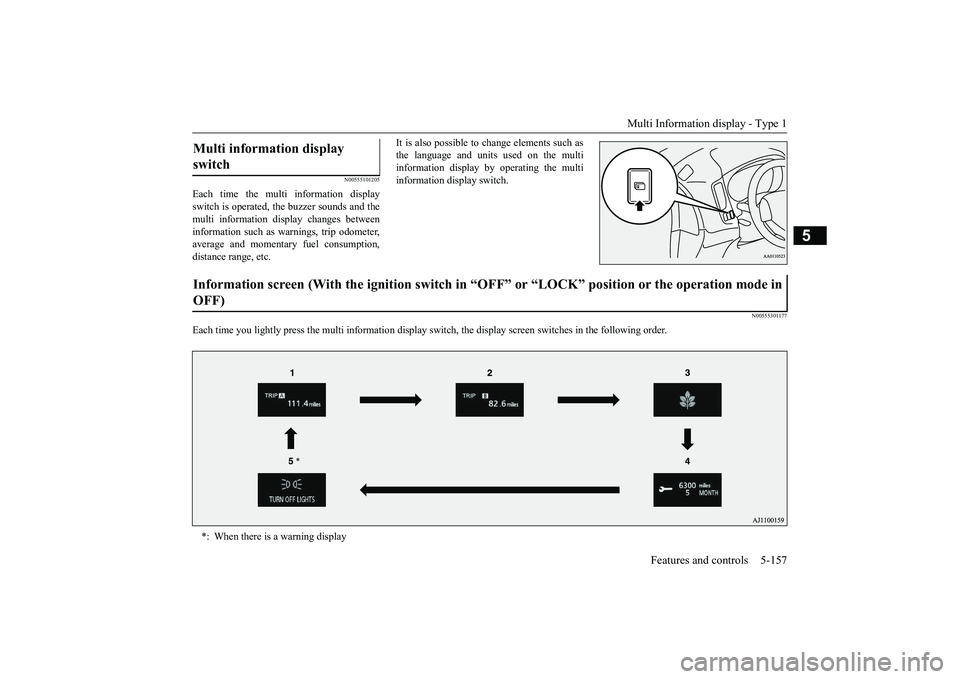

Each time you lightly press the multi in
formation display switch, th
e display screen switches
in the following order.
Multi information display switch Information screen (With the igniti
on switch in “OFF” or “LOCK” po
sition or the operation mode in
OFF) *: When there is a warning display
BK0249100US.book 157 ページ ２０１７年５月１０日　水曜日　午前８時４９分

Multi Information display - Type 15-158 Features and controls
5
N00555801244
When the ignition switch is turned to the “ON” position or the
operation mode is put in ON, the
display screen switches in the
following order.
1-
Trip odometer
 P.5-162
2-
Trip odometer
 P.5-162
3- ECO score display
 P.5-166
4- Service reminder
 P.5-163
5- Redisplay of a warning display screen
 P.5-161

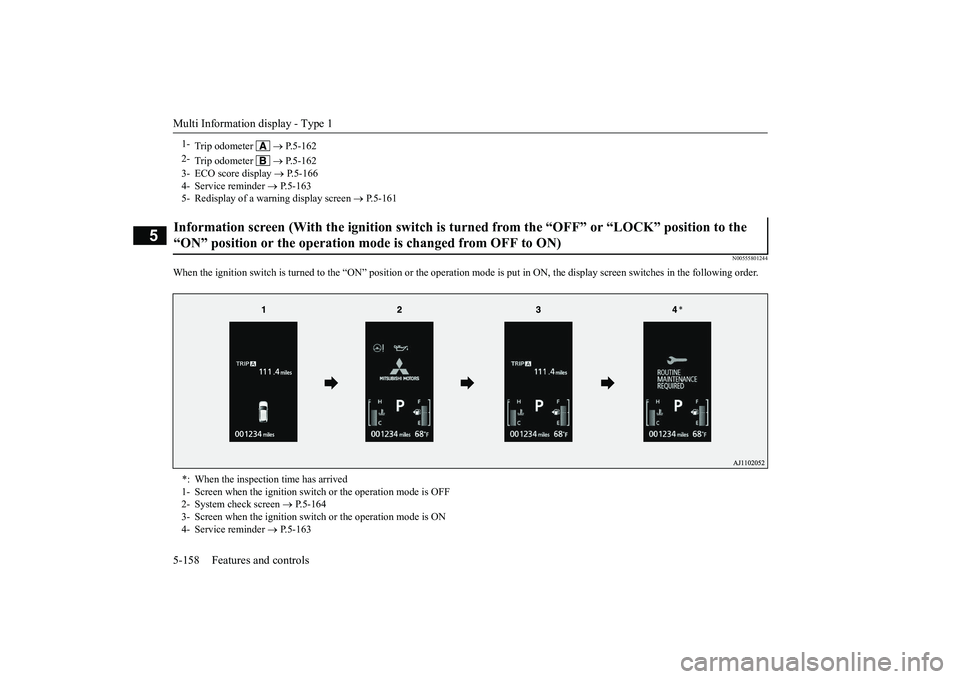

Information screen (With the ignition switch is tu
rned from the “OFF” or
“LOCK” position to the
“ON” position or the operation mode is changed from OFF to ON) *: When the inspection time has arrived1- Screen when the ignition switc
h or the operation mode is OFF
2- System check screen
 P.5-164
3- Screen when the ignition switch or the operation mode is ON4- Service reminder
 P.5-163
BK0249100US.book 158 ページ ２０１７年５月１０日　水曜日　午前８時４９分

Multi Information display - Type 1
Features and controls 5-159
5
N00556201232

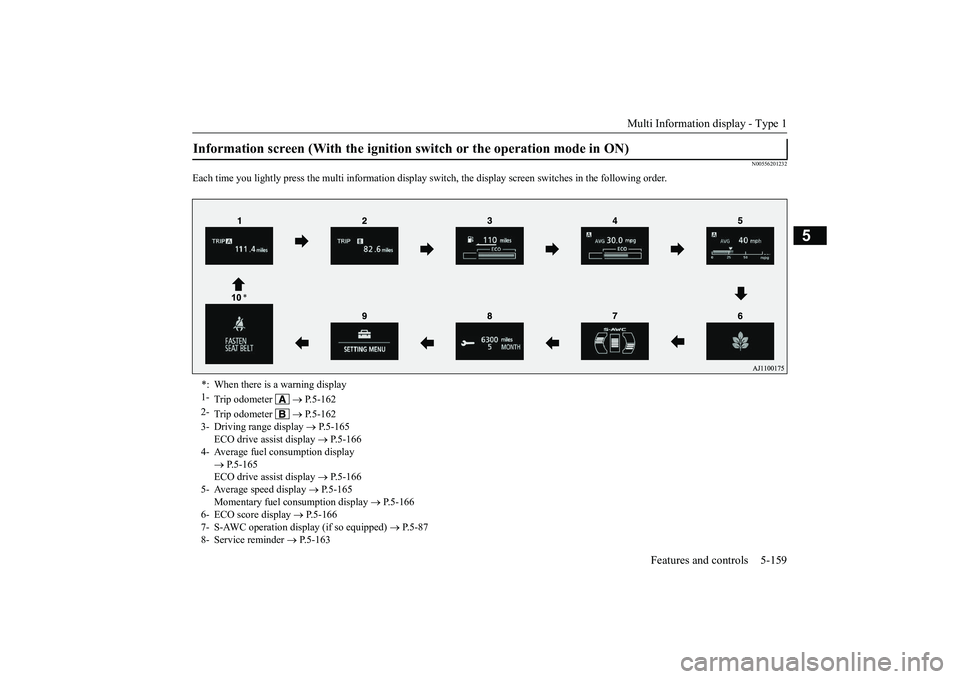

Each time you lightly press the multi in
