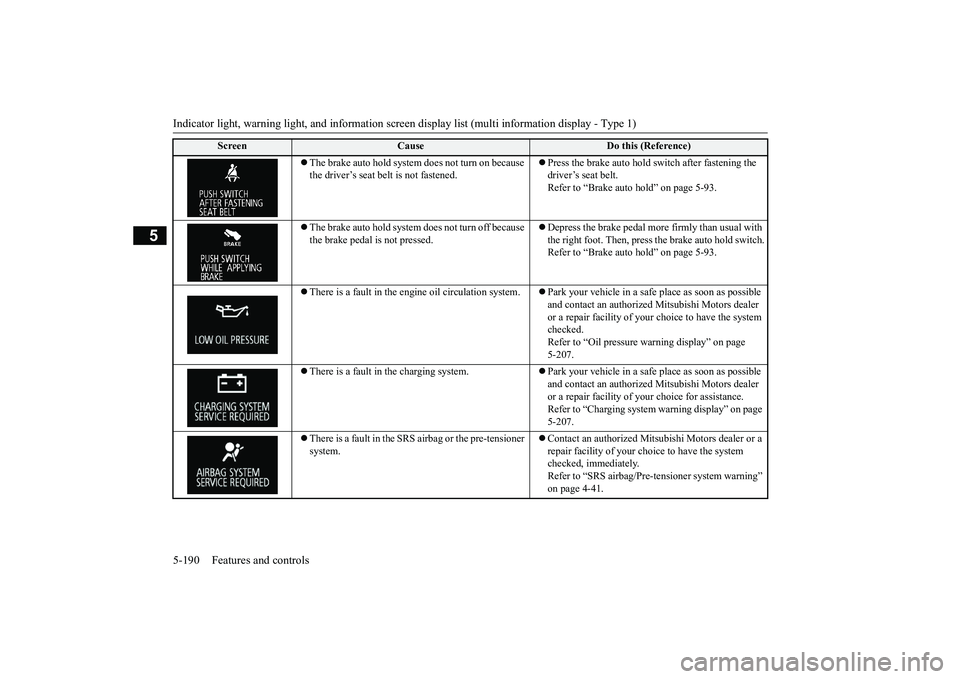

Indicator light, warning light, and information screen display list (multi information display - Type 1)
5
The brake auto hold system does not turn on because the driver’s seat belt is not fastened.
Press the brake auto hold switch after fastening the driver’s seat belt.Refer to “Brake auto hold” on page 5-93.
The brake auto hold system does not turn off because the brake pedal is not pressed.
Depress the brake pedal more firmly than usual with the right foot. Then, press
the brake auto hold switch.
Refer to “Brake auto hold” on page 5-93.
There is a fault in the engi
ne oil circulation system.
Park your vehicle in a safe place as soon as possible and contact an authorized
Mitsubishi Motors dealer
or a repair facility of your
choice to have the system
checked.Refer to “Oil pressure wa
rning display” on page
5-207.
There is a fault in the charging system.
Park your vehicle in a safe place as soon as possible and contact an authorized
Mitsubishi Motors dealer
or a repair facility of
your choice for assistance.
Refer to “Charging system
warning display” on page
5-207.
There is a fault in the SRS airbag or the pre-tensioner system.
Contact an authorized Mits
ubishi Motors dealer or a
repair facility of your c
hoice to have the system
checked, immediately.Refer to “SRS airbag/Pre-t
ensioner system warning”
on page 4-41.
Screen
Cause
Do this (Reference)
BK0249100US.book 190 ページ ２０１７年５月１０日　水曜日　午前８時４９分

Indicator light, warning light, and information screen display list (multi information display - Type 1)
Features and controls 5-191
5
There is a fault in the Active stability control (ASC).
Contact an authorized Mitsubishi Motors dealer or a repair facility of your choi
ce to have the system
checked.Refer to “Active stability control (ASC)” on page 5-100.
There is a fault in the Hill start assist.
Have the vehicle checked at
an authorized Mitsubi-
shi Motors dealer or a repa
ir facility of your choice.
Refer to “Hill start
assist” on page 5-95.
There is a fault in the electronically controlled 4WD system.
Contact an authorized Mitsubishi Motors dealer or a repair facility of your choi
ce to have the system
checked.Refer to “Electronically
controlled 4WD system” on
page 5-82.
There is a fault in the S-AWC system.
Contact an authorized Mitsubishi Motors dealer or a repair facility of your choi
ce to have the system
checked.Refer to “S-AWC (Super-All Wheel Control)” on page 5-85.
There is a fault in the automatic transaxle or CVT.
Contact an authorized Mitsubishi Motors dealer or a repair facility of your choi
ce to have the system
checked.Refer to “Automatic tr
ansaxle” on page 5-68.
Refer to “Continuously variable transmission (CVT)” on page 5-75.
Screen
Cause
Do this (Reference)
BK0249100US.book 191 ページ ２０１７年５月１０日　水曜日　午前８時４９分

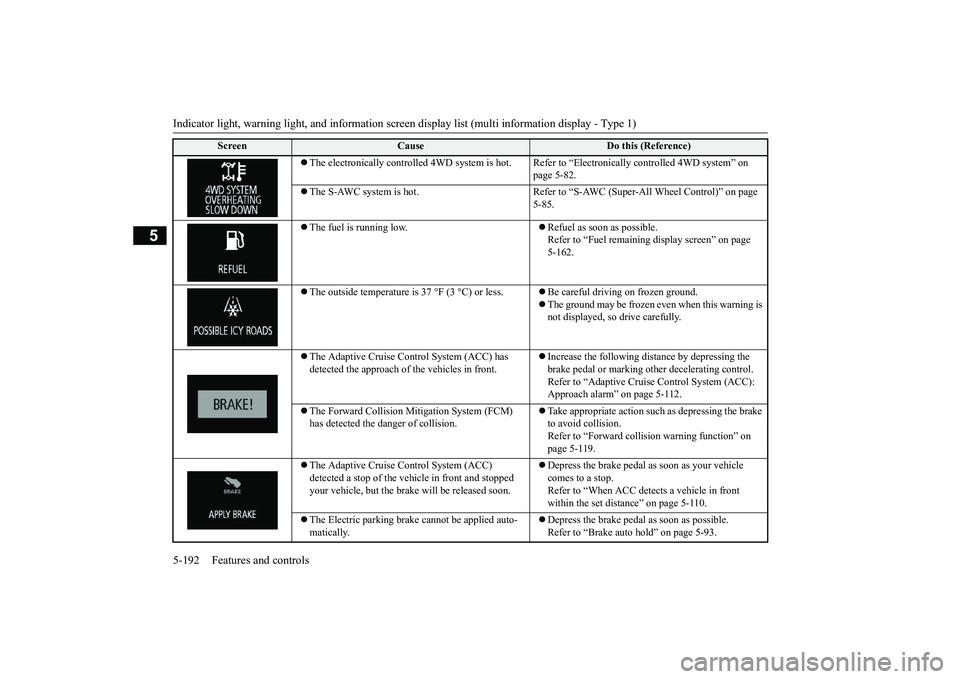

Indicator light, warning light, and information screen display list (multi information display - Type 1)
5
The electronically controlled 4WD
system is hot. Refer to “Electr
onically controlled
4WD system” on
page 5-82.
The S-AWC system is hot. Refer to “S-A
WC (Super-All Wheel Control)” on page
5-85.
The fuel is running low.
Refuel as soon as possible. Refer to “Fuel remaining
display screen” on page
5-162.
The outside temperature is
37 °F (3 °C) or less.
Be careful driving on frozen ground.The ground may be frozen even when this warning is not displayed, so drive carefully.
The Adaptive Cruise Control System (ACC) has detected the approach of
the vehicles in front.
Increase the following di
stance by depressing the
brake pedal or marking ot
her decelerating control.
Refer to “Adaptive Cruise
Control System (ACC):
Approach alarm” on page 5-112.
The Forward Collision Mitigation System (FCM) has detected the da
nger of collision.
Take appropriate action such
as depressing the brake
to avoid collision.Refer to “Forward colli
sion warning function” on
page 5-119.
The Adaptive Cruise Control System (ACC) detected a stop of the vehi
cle in front and stopped
your vehicle, but the brake
will be released soon.
Depress the brake pedal as soon as your vehicle comes to a stop.Refer to “When ACC dete
cts a vehicle in front
within the set distance” on page 5-110.
The Electric parking brake
cannot be applied auto-
matically.
Depress the brake pedal as soon as possible.Refer to “Brake auto hold” on page 5-93.
Screen
Cause
Do this (Reference)
BK0249100US.book 192 ページ ２０１７年５月１０日　水曜日　午前８時４９分

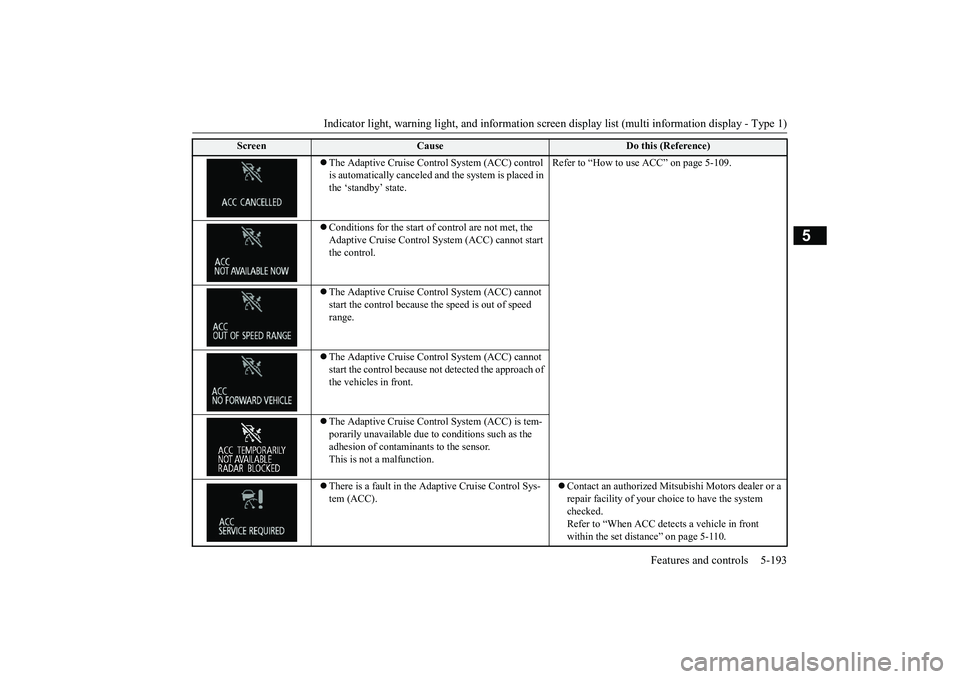

Indicator light, warning light, and information screen display list (multi information display - Type 1)
Features and controls 5-193
5
The Adaptive Cruise Control System (ACC) control is automatically canceled and the system is placed in the ‘standby’ state.
Refer to “How to use ACC” on page 5-109.
Conditions for the start of control are not met, the Adaptive Cruise Control
System (ACC) cannot start
the control.The Adaptive Cruise Control System (ACC) cannot start the control because the speed is out of speed range.The Adaptive Cruise Control System (ACC) cannot start the control because not detected the approach of the vehicles in front.The Adaptive Cruise Control System (ACC) is tem-porarily unavailable due to
conditions such as the
adhesion of contaminants to the sensor.This is not a malfunction.There is a fault in the Adaptive Cruise Control Sys-tem (ACC).
Contact an authorized Mitsubishi Motors dealer or a repair facility of your choi
ce to have the system
checked.Refer to “When ACC dete
cts a vehicle in front
within the set dist
ance” on page 5-110.
Screen
Cause
Do this (Reference)
BK0249100US.book 193 ページ ２０１７年５月１０日　水曜日　午前８時４９分

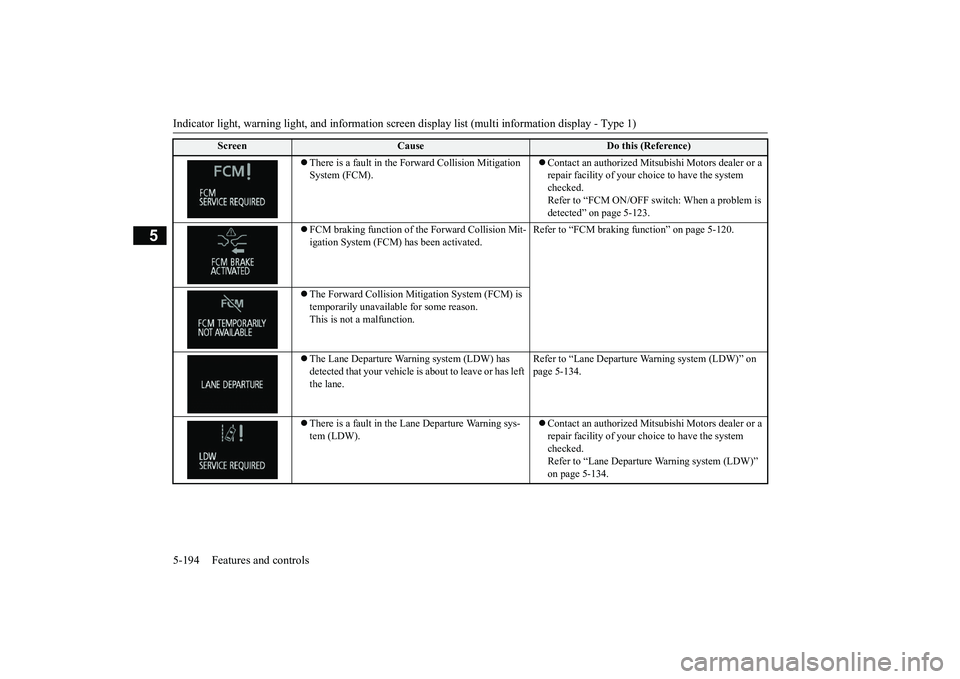

Indicator light, warning light, and information screen display list (multi information display - Type 1)
5
There is a fault in the Forward Collision Mitigation System (FCM).
Contact an authorized Mits
ubishi Motors dealer or a
repair facility of your c
hoice to have the system
checked.Refer to “FCM ON/OFF switch: When a problem is detected” on page 5-123.
FCM braking function of the Forward Collision Mit-igation System (FCM)
has been activated.
Refer to “FCM braking function” on page 5-120.
The Forward Collision Miti
gation System (FCM) is
temporarily unavailable for some reason.This is not a malfunction.The Lane Departure Warn
ing system (LDW) has
detected that your vehicle is
about to leave or has left
the lane.
Refer to “Lane Departure
Warning system (LDW)” on
page 5-134.
There is a fault in the La
ne Departure Warning sys-
tem (LDW).
Contact an authorized Mits
ubishi Motors dealer or a
repair facility of your c
hoice to have the system
checked.Refer to “Lane Departure Warning system (LDW)” on page 5-134.
Screen
Cause
Do this (Reference)
BK0249100US.book 194 ページ ２０１７年５月１０日　水曜日　午前８時４９分

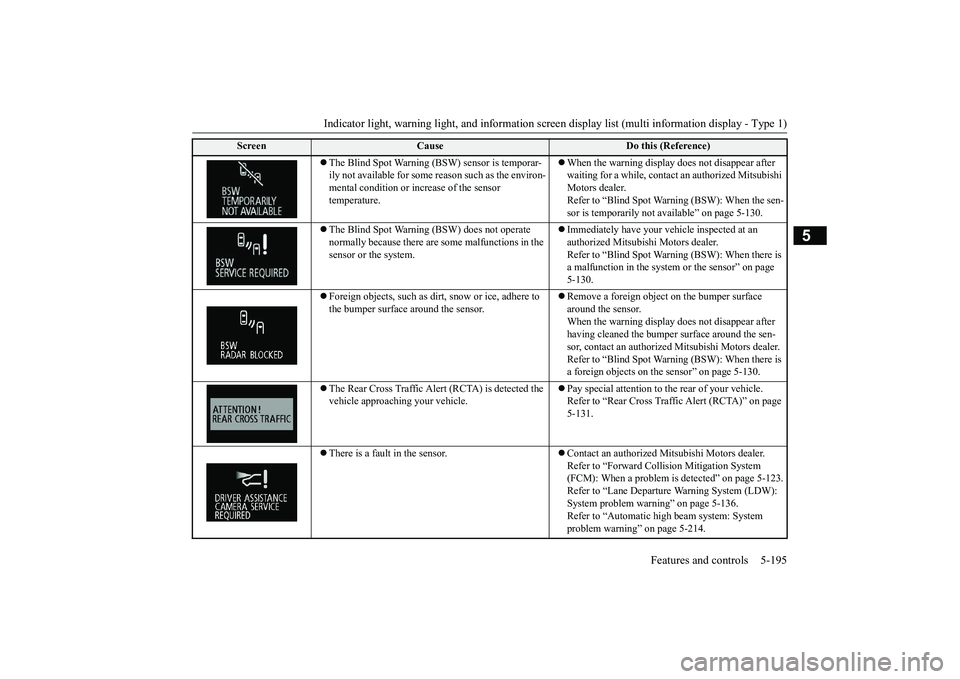

Indicator light, warning light, and information screen display list (multi information display - Type 1)
Features and controls 5-195
5
The Blind Spot Warning (BSW) sensor is temporar-ily not available for some
reason such as the environ-
mental condition or incr
ease of the sensor
temperature.
When the warning display does not disappear after waiting for a while, contact an authorized Mitsubishi Motors dealer.Refer to “Blind Spot Warning (BSW): When the sen-sor is temporarily not available” on page 5-130.
The Blind Spot Warning (BSW) does not operate normally because there are
some malfunctions in the
sensor or the system.
Immediately have your ve
hicle inspected at an
authorized Mitsubishi Motors dealer.Refer to “Blind Spot Warni
ng (BSW): When there is
a malfunction in the system
or the sensor” on page
5-130.
Foreign objects, such as dirt
, snow or ice, adhere to
the bumper surface around the sensor.
Remove a foreign object on the bumper surface around the sensor.When the warning display does not disappear after having cleaned the bumper
surface around the sen-
sor, contact an authorized
Mitsubishi Motors dealer.
Refer to “Blind Spot Warni
ng (BSW): When there is
a foreign objects on the
sensor” on page 5-130.
The Rear Cross Traffic Alert (RCTA) is detected the vehicle approaching your vehicle.
Pay special attention to
the rear of your vehicle.
Refer to

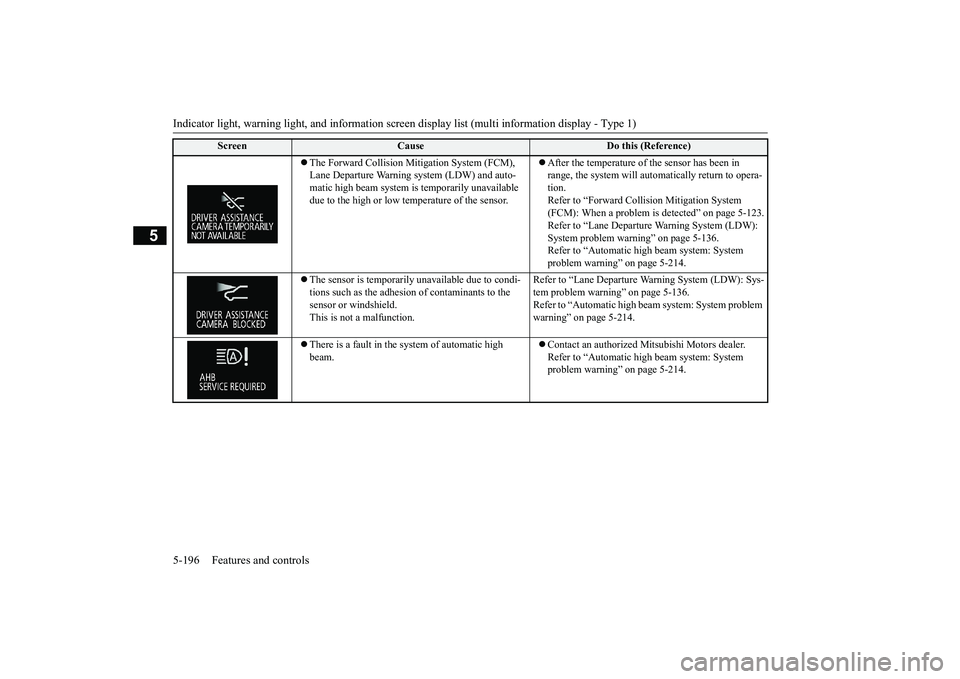

Indicator light, warning light, and information screen display list (multi information display - Type 1)
5
The Forward Collision Mi
tigation System (FCM),
Lane Departure Warning system (LDW) and auto-matic high beam system is
temporarily unavailable
due to the high or low temperature of the sensor.
After the temperature of the sensor has been in range, the system will automatically return to opera-tion.Refer to “Forward Coll
ision Mitigation System
(FCM): When a problem is detected” on page 5-123.Refer to “Lane Departure Warning System (LDW): System problem warning” on page 5-136.Refer to “Automatic high
beam system: System
problem warning” on page 5-214.
The sensor is temporarily
unavailable due to condi-
tions such as the adhesion of contaminants to the sensor or windshield.This is not a malfunction.
Refer to “Lane Departure Wa
rning System (LDW): Sys-
tem problem warning”
on page 5-136.
Refer to “Automatic high be
am system: System problem
warning” on page 5-214.
There is a fault in the system of automatic high beam.
Contact an authorized Mitsubishi Motors dealer.Refer to “Automatic high
beam system: System
problem warning” on page 5-214.
Screen
Cause
Do this (Reference)
BK0249100US.book 196 ページ ２０１７年５月１０日　水曜日　午前８時４９分

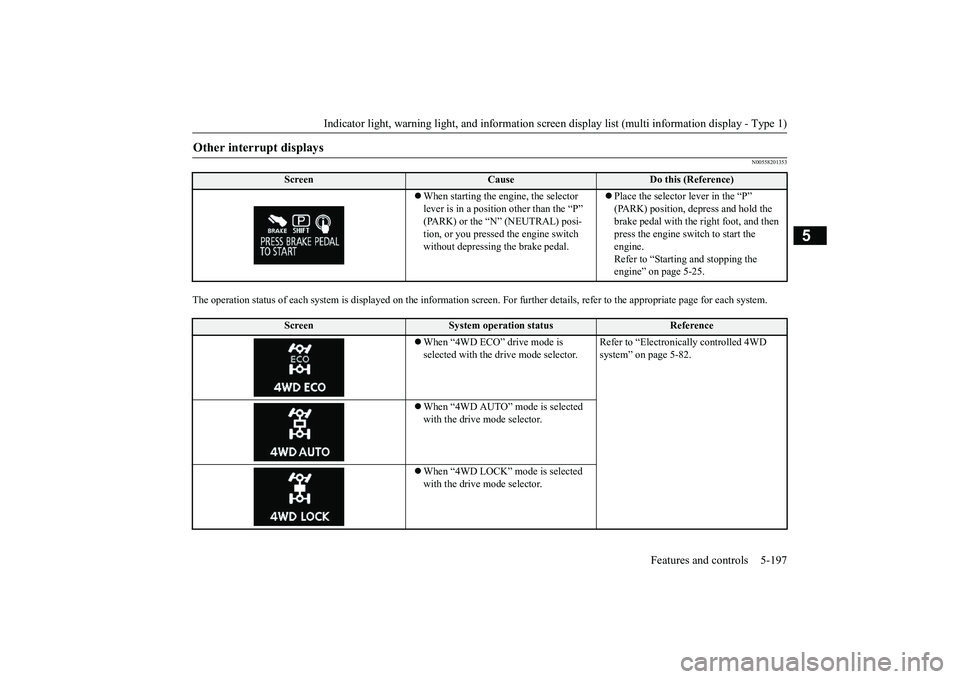

Indicator light, warning light, and information screen display list (multi information display - Type 1)
Features and controls 5-197
5
N00558201353
The operation status of each syst
em is displayed on the informat
ion screen. For furthe
r details, refer to
the appropriate page
for each system.
Other interrupt displays
Screen
Cause
Do this (Reference)
When starting the engine, the selector lever is in a positi
on other than the “P”
tion, or you pressed the engine switch without depressing the brake pedal.
Place the selector lever in the “P” (PARK) position, depress and hold the brake pedal with the right foot, and then press the engine switch to start the engine.Refer to “Starting and stopping the engine” on page 5-25.
Screen
System operation status
Reference
When “4WD ECO” drive mode is selected with the drive mode selector.
Refer to “Electronica
lly controlled 4WD
system” on page 5-82.
When “4WD AUTO” mode is selected with the drive mode selector.When “4WD LOCK” mode is selected with the drive mode selector.
BK0249100US.book 197 ページ ２０１７年５月１０日　水曜日　午前８時４９分

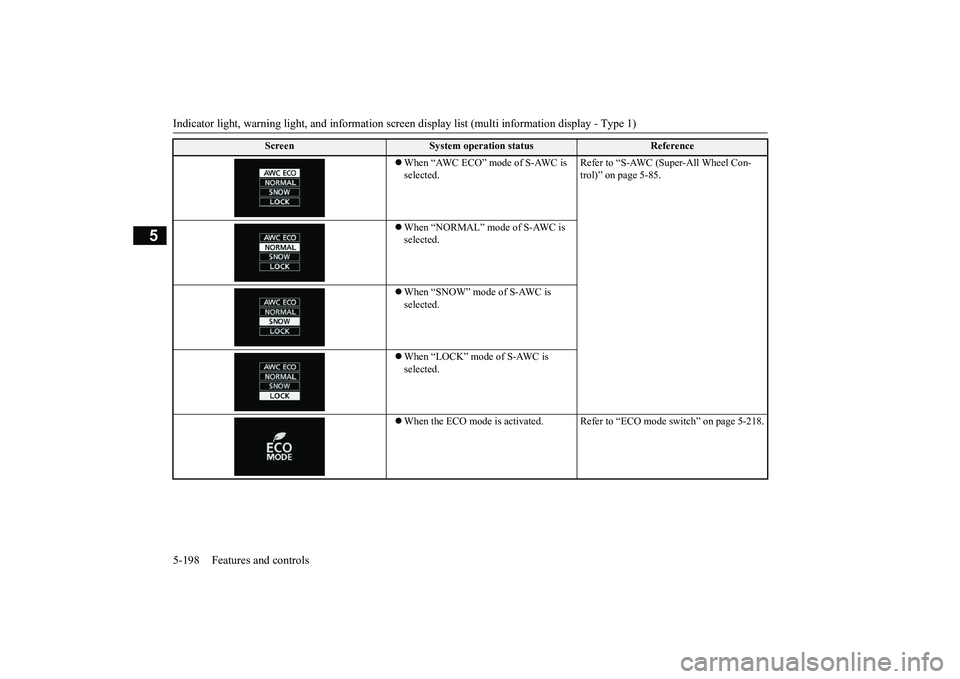

Indicator light, warning light, and information screen display list (multi information display - Type 1)
5
When “AWC ECO” mode of S-AWC is selected.
Refer to “S-AWC (Super-All Wheel Con-trol)” on page 5-85.
When “NORMAL” mode of S-AWC is selected.When “SNOW” mode of S-AWC is selected.When “LOCK” mode of S-AWC is selected.When the ECO mode is ac
tivated. Refer to “ECO m
ode switch” on page 5-218.
Screen
System operation status
Reference
BK0249100US.book 198 ページ ２０１７年５月１０日　水曜日　午前８時４９分

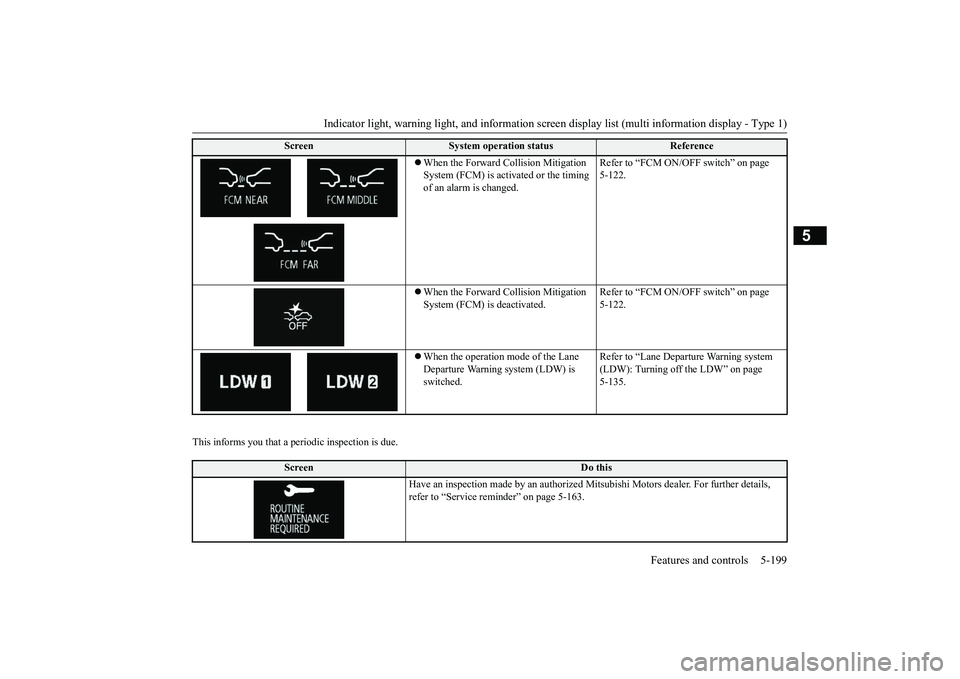

Indicator light, warning light, and information screen display list (multi information display - Type 1)
Features and controls 5-199
5
This informs you that a periodic inspection is due.
When the Forward Collision Mitigation System (FCM) is acti
vated or the timing
of an alarm is changed.
Refer to “FCM ON/OFF switch” on page 5-122.
When the Forward Collision Mitigation System (FCM) is deactivated.
Refer to “FCM ON/OFF switch” on page 5-122.
When the operation mode of the Lane Departure Warning system (LDW) is switched.
Refer to “Lane Departure Warning system (LDW): Turning off the LDW” on page 5-135.
Screen
Do this
Have an inspection made by an authorized Mi
tsubishi Motors dealer
. For further details,
refer to “Service remin
der” on page 5-163.
Screen
System operation status
Reference
