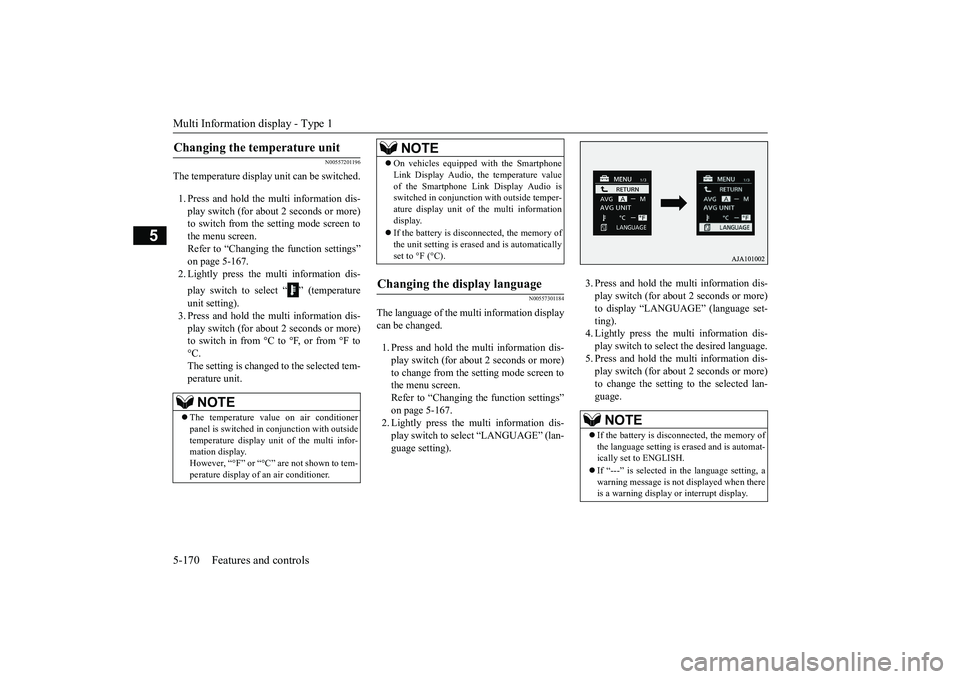

MITSUBISHI OUTLANDER III 2018 Owners Manual

Multi Information display - Type 15-170 Features and controls
5
N00557201196
The temperature display unit can be switched.1. Press and hold the multi information dis-play switch (for about 2 seconds or more)to switch from the setting mode screen tothe menu screen.Refer to “Changing the function settings”on page 5-167.2. Lightly press the multi information dis-play switch to select “ ” (temperatureunit setting).3. Press and hold the multi information dis-play switch (for about 2 seconds or more)to switch in from °C to °F, or from °F to°C.The setting is changed to the selected tem-perature unit.
N00557301184
The language of the multi information displaycan be changed.1. Press and hold the mu
lti information dis-
play switch (for about 2 seconds or more)to change from the setting mode screen tothe menu screen.Refer to “Changing th
e function settings”
on page 5-167.2. Lightly press the multi information dis-play switch to se
lect “LANGUAGE” (lan-
guage setting).
3. Press and hold the multi information dis-play switch (for about 2 seconds or more)to display “LANGUAGE” (language set-ting).4. Lightly press the multi information dis-play switch to select
the desired language.
5. Press and hold the multi information dis-play switch (for about 2 seconds or more)to change the setting to the selected lan-guage.
Changing the temperature unit
NOTE
The temperature value on air conditionerpanel is switched in
conjunction with outside
temperature display unit of the multi infor-mation display.However, “°F” or “°C” are not shown to tem-perature display of
an air conditioner.
On vehicles equipped with the SmartphoneLink Display Audio, the temperature valueof the Smartphone Link Display Audio isswitched in conjunction
with outside temper-
ature display unit of the multi informationdisplay.If the battery is disconnected, the memory ofthe unit setting is erased and is automaticallyset to °F (°C).
Changing the display language
NOTE
NOTE
If the battery is disconnected, the memory ofthe language setting is erased and is automat-ically set to ENGLISH.If “---” is selected in the language setting, awarning message is not displayed when thereis a warning display or interrupt display.
BK0249100US.book 170 ページ ２０１７年５月１０日　水曜日　午前８時４９分

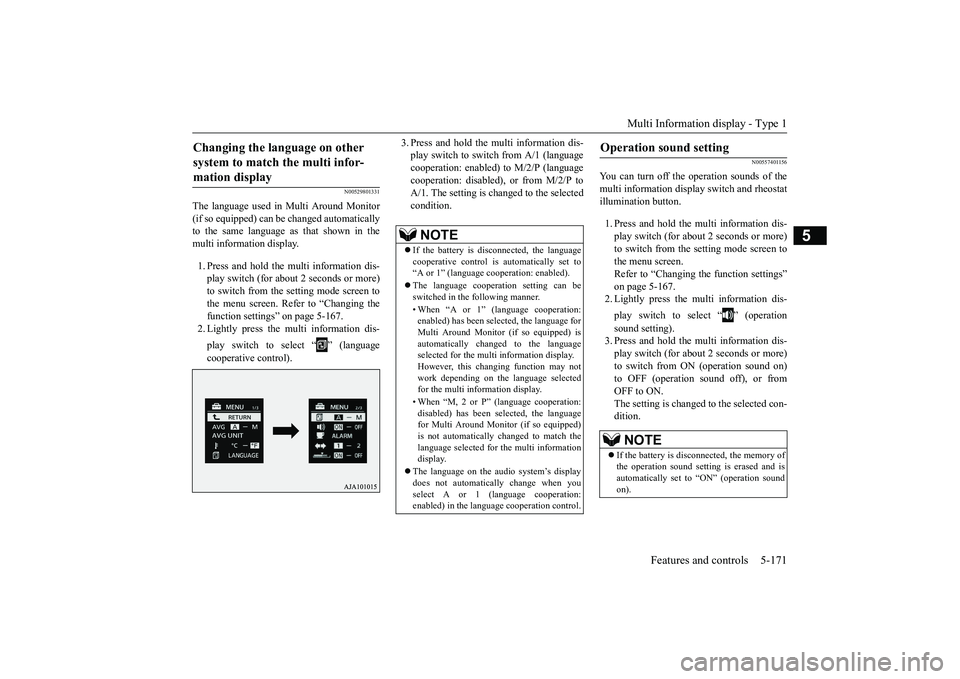

Multi Information display - Type 1
Features and controls 5-171
5
N00529801331
The language used in Multi Around Monitor(if so equipped) can be
changed automatically
to the same language as
that shown in the
multi information display. 1. Press and hold the mu
lti information dis-
play switch (for about 2 seconds or more)to switch from the setting mode screen tothe menu screen. Refer to “Changing thefunction settings” on page 5-167. 2. Lightly press the multi information dis-play switch to select “ ” (languagecooperative control).
3. Press and hold the multi information dis-play switch to swit
ch from A/1 (language
cooperation: enabled)
to M/2/P (language
cooperation: disabled
), or from M/2/P to
A/1. The setting is changed to the selectedcondition.
N00557401156
You can turn off the operation sounds of themulti information displa
y switch and rheostat
illumination button.1. Press and hold the multi information dis-play switch (for about 2 seconds or more)to switch from the setting mode screen tothe menu screen.Refer to “Changing th
e function settings”
on page 5-167.2. Lightly press the multi information dis-play switch to select “ ” (operationsound setting).3. Press and hold the multi information dis-play switch (for about 2 seconds or more)to switch from ON (operation sound on)to OFF (operation sound off), or fromOFF to ON.The setting is changed to the selected con-dition.
Changing the language on other system to match the multi infor-mation display
NOTE
If the battery is disconnected, the languagecooperative control is
automatically set to
“A or 1” (language
cooperation: enabled).
The language coopera
tion setting can be
switched in the following manner.• When “A or 1” (l
anguage cooperation:
enabled) has been selected, the language forMulti Around Monitor (if so equipped) isautomatically cha
nged to the language
selected for the multi information display.However, this changing function may notwork depending on the language selectedfor the multi information display.• When “M, 2 or P”
(language cooperation:
disabled) has been
selected, the language
for Multi Around Monitor (if so equipped)is not automatically changed to match thelanguage selected for the multi informationdisplay.
The language on the audio system’s displaydoes not automatically change when youselect A or 1 (l
anguage cooperation:
enabled) in the langua
ge cooperation control.
Operation sound setting
NOTE
If the battery is disconnected, the memory ofthe operation sound setting is erased and isautomatically
set to “ON” (operation sound
on).
BK0249100US.book 171 ページ ２０１７年５月１０日　水曜日　午前８時４９分

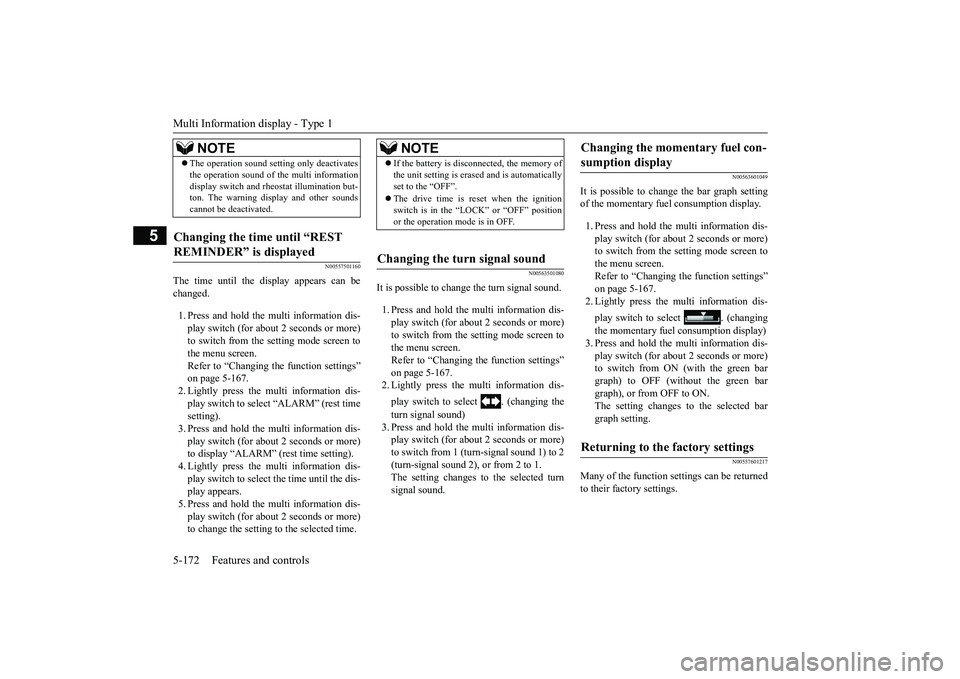

Multi Information display - Type 15-172 Features and controls
5
N00557501160
The time until the di
splay appears can be
changed.1. Press and hold the multi information dis-play switch (for about 2 seconds or more)to switch from the setting mode screen tothe menu screen.Refer to “Changing the function settings”on page 5-167.2. Lightly press the multi information dis-play switch to select “ALARM” (rest timesetting).3. Press and hold the multi information dis-play switch (for about 2 seconds or more)to display “ALARM” (rest time setting).4. Lightly press the multi information dis-play switch to select the time until the dis-play appears.5. Press and hold the multi information dis-play switch (for about 2 seconds or more)to change the setting to the selected time.
N00563501080
It is possible to cha
nge the turn signal sound.
1. Press and hold the mu
lti information dis-
play switch (for about 2 seconds or more)to switch from the setting mode screen tothe menu screen.Refer to “Changing th
e function settings”
on page 5-167.2. Lightly press the multi information dis-play switch to select . (changing theturn signal sound)3. Press and hold the mu
lti information dis-
play switch (for about 2 seconds or more)to switch from 1 (turn-signal sound 1) to 2(turn-signal sound 2), or from 2 to 1.The setting changes to the selected turnsignal sound.
N00563601049
It is possible to change the bar graph settingof the momentary fuel consumption display.1. Press and hold the multi information dis-play switch (for about 2 seconds or more)to switch from the setting mode screen tothe menu screen.Refer to “Changing the function settings”on page 5-167.2. Lightly press the multi information dis-play switch to
select . (changing
the momentary fuel consumption display)3. Press and hold the multi information dis-play switch (for about 2 seconds or more)to switch from ON (with the green bargraph) to OFF (without the green bargraph), or from OFF to ON.The setting changes to the selected bargraph setting.
N00557601217
Many of the function settings can be returnedto their factory settings.
The operation sound sett
ing only deactivates
the operation sound of the multi informationdisplay switch and rheostat illumination but-ton. The warning di
splay and other sounds
cannot be deactivated.
Changing the time until “REST REMINDER” is displayed
NOTE
NOTE
If the battery is disconnected, the memory ofthe unit setting is erased and is automaticallyset to the “OFF”.The drive time is reset when the ignitionswitch is in the “LOCK” or “OFF” positionor the operation mode is in OFF.
Changing the turn signal sound
Changing the momentary fuel con-sumption display Returning to the factory settings
BK0249100US.book 172 ページ ２０１７年５月１０日　水曜日　午前８時４９分

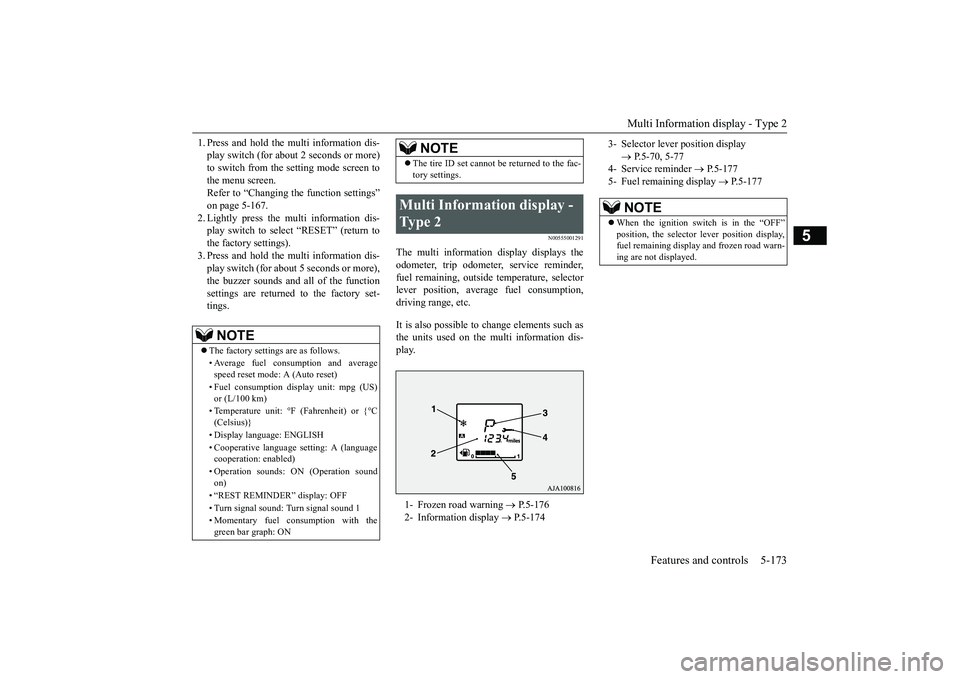

Multi Information display - Type 2
Features and controls 5-173
5
1. Press and hold the mu
lti information dis-
play switch (for about 2 seconds or more)to switch from the setting mode screen tothe menu screen.Refer to “Changing th
e function settings”
on page 5-167.2. Lightly press the multi information dis-play switch to select “RESET” (return tothe factory settings).3. Press and hold the mu
lti information dis-
play switch (for about 5 seconds or more),the buzzer sounds and all of the functionsettings are returned to the factory set-tings.
N00555001291
The multi information display displays theodometer, trip odometer, service reminder,fuel remaining, outside
temperature, selector
lever position, averag
e fuel consumption,
driving range, etc.It is also possible to change elements such asthe units used on the multi information dis-play.
NOTE
The factory settings are as follows.• Average fuel consumption and averagespeed reset mode: A (Auto reset)• Fuel consumption di
splay unit: mpg (US)
or (L/100 km)• Temperature unit: °F (Fahrenheit) or {°C(Celsius)}• Display language: ENGLISH• Cooperative language
setting: A (language
cooperation: enabled)• Operation sounds: ON (Operation soundon)• “REST REMINDER” display: OFF• Turn signal sound: Turn signal sound 1• Momentary fuel consumption with thegreen bar graph: ON
The tire ID set cannot be returned to the fac-tory settings.
Multi Information display - Type 2 1- Frozen road warning
 P.5-176
2- Information display
 P.5-174
NOTE
3- Selector lever position display
 P.5-70, 5-77
4- Service reminder
 P.5-177
5- Fuel remaining display
 P.5-177
NOTE
When the ignition switch is in the “OFF”
lever position display,
fuel remaining display and frozen road warn-ing are not displayed.
BK0249100US.book 173 ページ ２０１７年５月１０日　水曜日　午前８時４９分

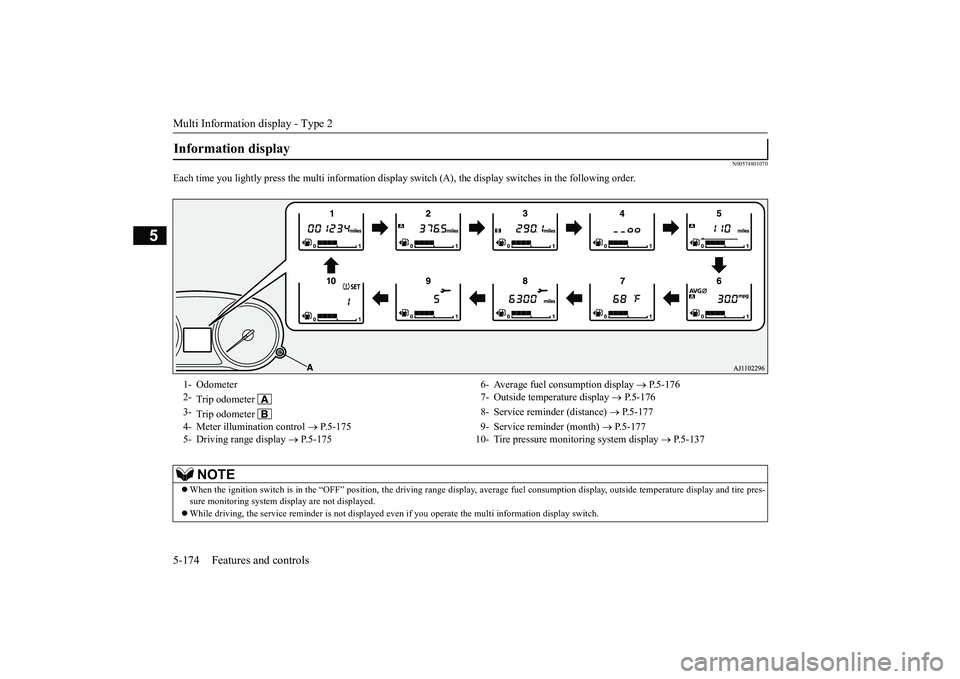

Multi Information display - Type 25-174 Features and controls
5
N00574801070
Each time you lightly press th
e multi information display switch (A), th
e display switches in
the following order.
Information display 1- Odometer 6- Average fuel
consumption display
 P.5-176
2-
Trip odometer
7- Outside temperature display
 P.5-176
3-
Trip odometer
8- Service reminder (distance)
 P.5-177
4- Meter illumination control
 P.5-175 9- Service reminder (month)
 P.5-177
5- Driving range display
 P.5-175 10- Tire pressure monitoring system display
 P.5-137
NOTE
When the ignition switch is in the “OFF” position, the driving ra
nge display, average fuel consum
ption display, outside tempera
ture display and tire pres-
sure monitoring system di
splay are not displayed.
While driving, the service reminder is
not displayed even if you operate th
e multi information display switch.
BK0249100US.book 174 ページ ２０１７年５月１０日　水曜日　午前８時４９分

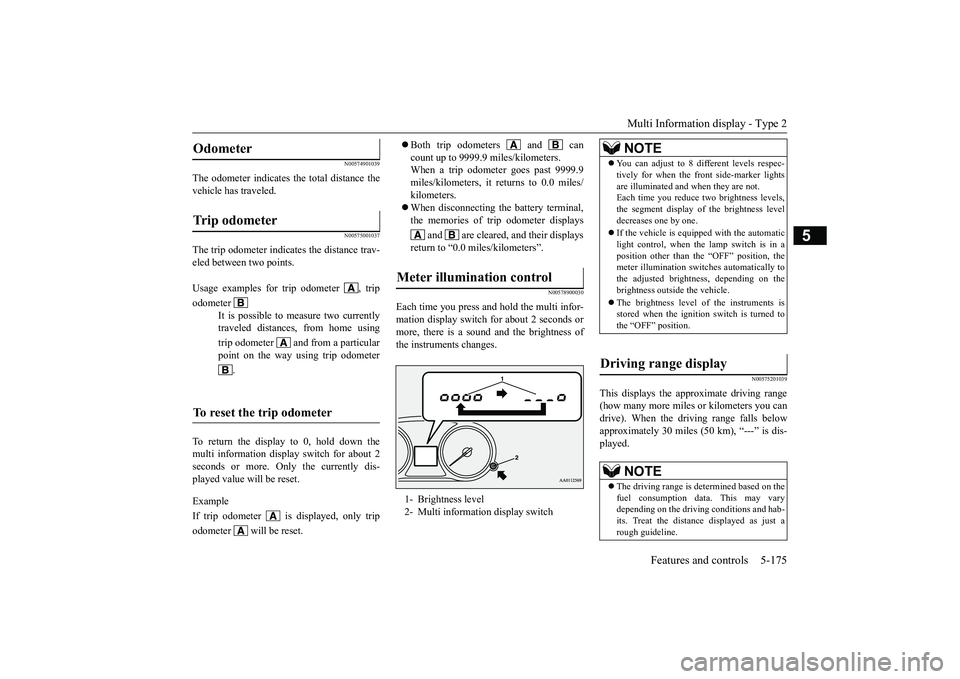

Multi Information display - Type 2
Features and controls 5-175
5
N00574901039
The odometer indicates the total distance thevehicle has traveled.
N00575001037
The trip odometer indicates the distance trav-eled between two points.To return the display to 0, hold down themulti information display switch for about 2seconds or more. Only the currently dis-played value wi
ll be reset.
ExampleIf trip odometer is displayed, only tripodometer will be reset.
Both trip odometers and cancount up to 9999.9 m
iles/kilometers.
When a trip odometer goes past 9999.9miles/kilometers, it returns to 0.0 miles/kilometers.When disconnecting th
e battery terminal,
the memories of trip odometer displays
and are cleared, and their displays
return to “0.0 miles/kilometers”.
N00578900030
Each time you press a
nd hold the multi infor-
mation display switch for about 2 seconds ormore, there is a sound and the brightness ofthe instruments changes.
N00575201039
This displays the approximate driving range(how many more miles or
kilometers you can
drive). When the driving range falls belowapproximately 30 miles (
50 km), “---” is dis-
played.
Odometer Trip odometer Usage examples for trip odometer , tripodometer
It is possible to
measure two currently
traveled distances, from home usingtrip odometer and from a particularpoint on the way using trip odometer
.
To reset the trip odometer
Meter illumination control 1- Brightness level2- Multi information display switch
NOTE
You can adjust to 8 di
fferent levels respec-
tively for when the front side-marker lightsare illuminated and when they are not.Each time you reduce tw
o brightness levels,
the segment display of
the brightness level
decreases one by one.If the vehicle is equi
pped with the automatic
light control, when the lamp switch is in aposition other than the
“OFF” position, the
meter illumination switches automatically tothe adjusted bright
ness, depending on the
brightness outsi
de the vehicle.
The brightness level of the instruments isstored when the ignition switch is turned tothe “OFF” position.
Driving range display
NOTE
The driving range is determined based on thefuel consumption data. This may varydepending on the drivi
ng conditions and hab-
its. Treat the distance displayed as just arough guideline.
BK0249100US.book 175 ページ ２０１７年５月１０日　水曜日　午前８時４９分

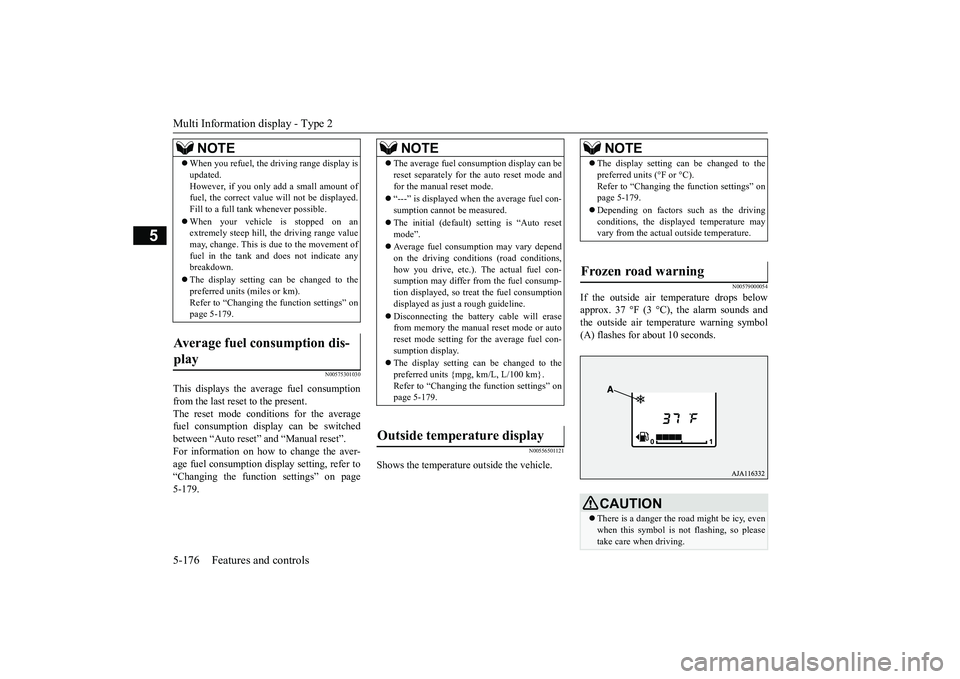

Multi Information display - Type 25-176 Features and controls
5
N00575301030
This displays the average fuel consumptionfrom the last reset to the present.The reset mode conditions for the averagefuel consumption disp
lay can be switched
between “Auto reset”
and “Manual reset”.
For information on how to change the aver-age fuel consumption display setting, refer to“Changing the function settings” on page5-179.
N00556501121
Shows the temperature
outside the vehicle.
N00579000054
If the outside air temperature drops belowapprox. 37 °F (3 °C), the alarm sounds andthe outside air temperature warning symbol(A) flashes for about 10 seconds.
When you refuel, the driving range display isupdated.However, if you only add a small amount offuel, the correct value
will not be displayed.
Fill to a full tank whenever possible.When your vehicle is stopped on anextremely steep hill, th
e driving range value
may, change. This is due to the movement offuel in the tank and does not indicate anybreakdown.The display setting can be changed to thepreferred units (miles or km).Refer to “Changing th
e function settings” on
page 5-179.
Average fuel consumption dis-play
NOTE
NOTE
The average fuel cons
umption display can be
reset separately for the auto reset mode andfor the manual reset mode.“---” is displayed when the average fuel con-sumption cannot be measured.The initial (default) setting is “Auto resetmode”.Average fuel consumption may vary dependon the driving conditi
ons (road conditions,
how you drive, etc.). The actual fuel con-sumption may differ from the fuel consump-tion displayed, so treat the fuel consumptiondisplayed as just
a rough guideline.
Disconnecting th
e battery cable will erase
from memory the manual reset mode or autoreset mode setting for the average fuel con-sumption display.The display setting can be changed to thepreferred units {mpg, km/L, L/100 km}.Refer to “Changing the
function settings” on
page 5-179.
Outside temperature display
NOTE
The display setting ca
n be changed to the
preferred units (°F or °C).
e function settings” on
page 5-179.Depending on factors such as the drivingconditions, the displa
yed temperature may
vary from the actual outside temperature.
Frozen road warning
CAUTIONThere is a danger the ro
ad might be icy, even
when this symbol is not flashing, so pleasetake care when driving.
BK0249100US.book 176 ページ ２０１７年５月１０日　水曜日　午前８時４９分

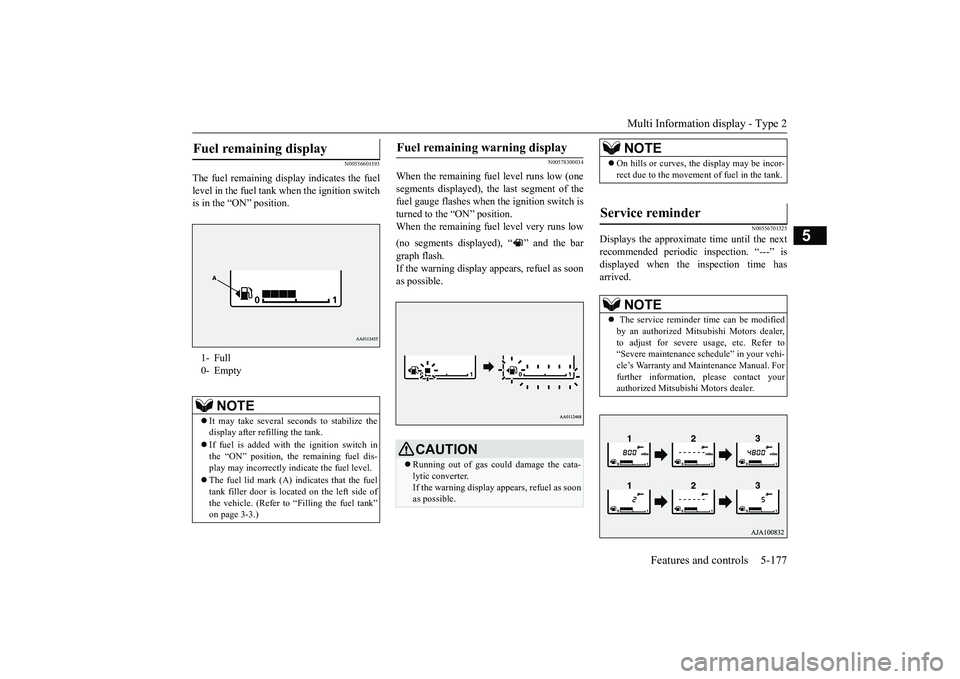

Multi Information display - Type 2
Features and controls 5-177
5
N00556601193
The fuel remain
ing display indicates the fuel
level in the fuel tank when the ignition switchis in the “ON” position.
N00578300034
When the remaining fuel level runs low (onesegments displayed), the last segment of thefuel gauge flashes when
the ignition switch is
turned to the “ON” position.When the remaining fuel level very runs low(no segments displayed), “ ” and the bargraph flash.If the warning display a
ppears, refuel as soon
as possible.
N00556701325
Displays the approximate time until the nextrecommended periodic inspection. “---” isdisplayed when the inspection time hasarrived.
Fuel remaining display 1- Full0- Empty
NOTE
It may take several se
conds to stabilize the
display after refilling the tank.If fuel is added with the ignition switch inthe “ON” position, th
e remaining fuel dis-
play may incorrectly i
ndicate the fuel level.
The fuel lid mark (A) indicates that the fueltank filler door is located on the left side ofthe vehicle. (Refer to “Filling the fuel tank”
Fuel remaining warning display
CAUTIONRunning out of gas coul
d damage the cata-
lytic converter.If the warning display appears, refuel as soonas possible.
NOTE
On hills or curves, the display may be incor-rect due to the movement of fuel in the tank.
Service reminder
NOTE
 The service reminder
time can be modified
by an authorized Mitsubishi Motors dealer,to adjust for severe usage, etc. Refer to“Severe maintenance sc
hedule” in your vehi-
cle’s Warranty and Main
tenance Manual. For
further information,
please contact your
authorized Mitsubish
i Motors dealer.
BK0249100US.book 177 ページ ２０１７年５月１０日　水曜日　午前８時４９分

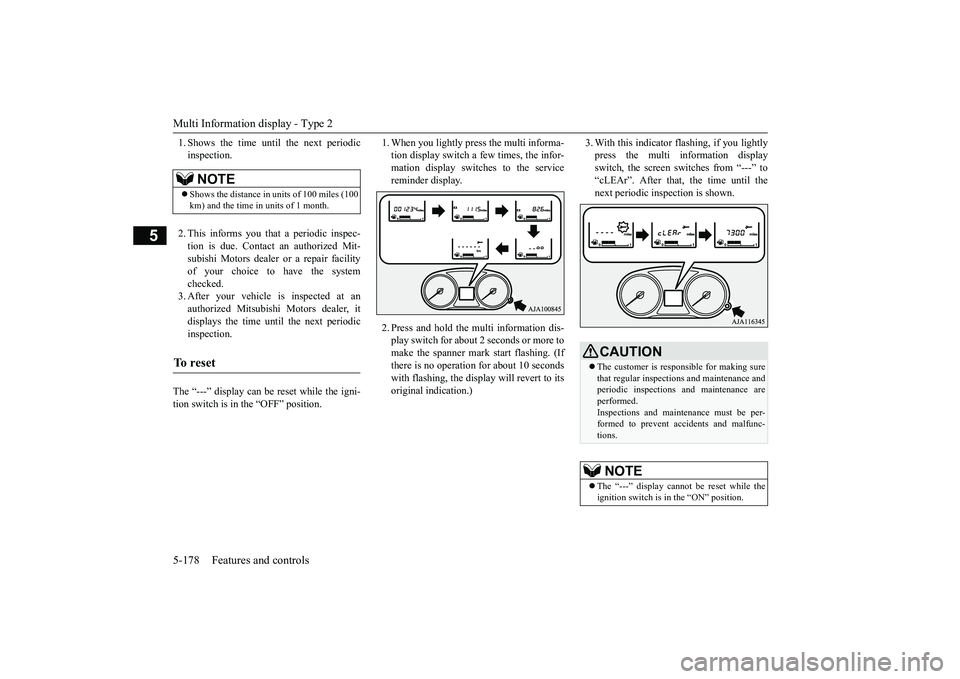

Multi Information display - Type 25-178 Features and controls
5
1. Shows the time until the next periodicinspection.2. This informs you that a periodic inspec-tion is due. Contact
an authorized Mit-
subishi Motors dealer or a repair facilityof your choice to have the systemchecked.3. After your vehicle is inspected at anauthorized Mitsubishi Motors dealer, itdisplays the time until the next periodicinspection.
The “---” display can be reset while the igni-tion switch is in the “OFF” position.
1. When you lightly press the multi informa-tion display switch a few times, the infor-mation display switches to the servicereminder display.2. Press and hold the mu
lti information dis-
play switch for about 2 seconds or more tomake the spanner mark start flashing. (Ifthere is no operation for about 10 secondswith flashing, the display will revert to itsoriginal indication.)
3. With this indicator flashing, if you lightlypress the multi information displayswitch, the screen sw
itches from “---” to
“cLEAr”. After that, the time until thenext periodic inspection is shown.
NOTE
Shows the distance in units of 100 miles (100km) and the time in units of 1 month.
To r e s e t
CAUTIONThe customer is responsible for making surethat regular inspections
and maintenance and
periodic inspections
and maintenance are
performed.Inspections and mainte
nance must be per-
formed to prevent accidents and malfunc-tions.NOTE
The “---” display cannot
be reset while the
ignition switch is in the “ON” position.
BK0249100US.book 178 ページ ２０１７年５月１０日　水曜日　午前８時４９分

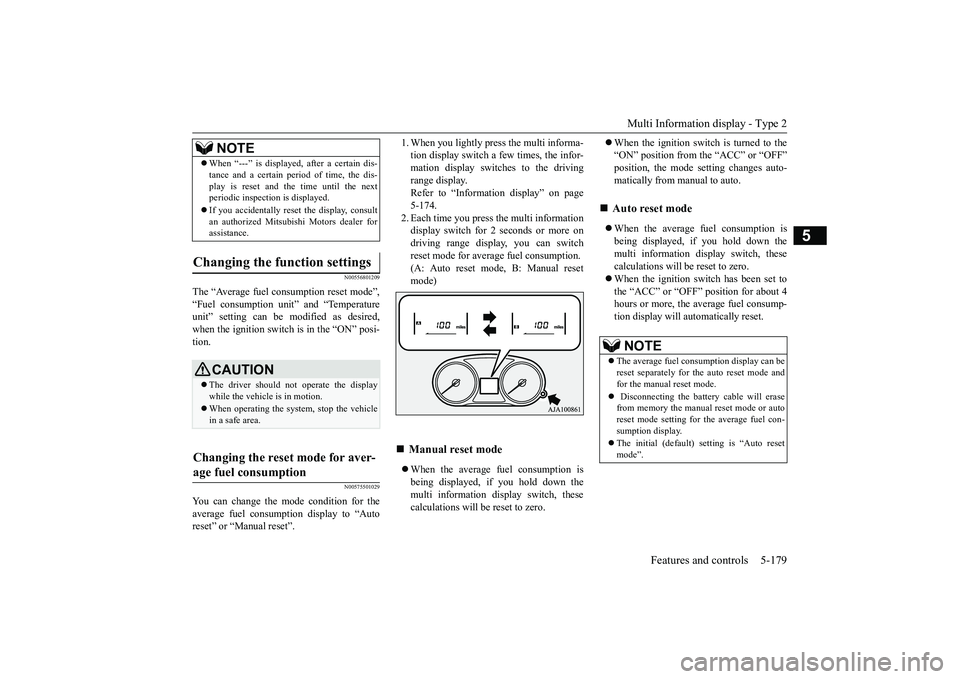

Multi Information display - Type 2
Features and controls 5-179
5
N00556801209
The “Average fuel consumption reset mode”,
it” and “Temperature
unit” setting can be
modified as desired,
when the ignition switch is in the “ON” posi-tion.
N00575501029
You can change the mode condition for theaverage fuel consumption display to “Autoreset” or “Manual reset”.
tion display switch a few times, the infor-mation display switches to the drivingrange display.Refer to “Information display” on page5-174.2. Each time you press the multi informationdisplay switch for 2 seconds or more ondriving range display, you can switchreset mode for average fuel consumption.(A: Auto reset mode, B: Manual resetmode)When the average fuel consumption isbeing displayed, if you hold down themulti information display switch, thesecalculations will
be reset to zero.
When the ignition switch is turned to the“ON” position from the “ACC” or “OFF”position, the mode se
tting changes auto-
matically from manual to auto.When the average fuel consumption isbeing displayed, if you hold down themulti information display switch, thesecalculations will be reset to zero.When the ignition switch has been set tothe “ACC” or “OFF” position for about 4hours or more, the average fuel consump-tion display will automatically reset.
When “---” is displaye
d, after a certain dis-
tance and a certain pe
riod of time, the dis-
play is reset and the time until the nextperiodic inspecti
on is displayed.
If you accidentally rese
t the display, consult
an authorized Mitsubishi Motors dealer forassistance.
Changing the function settings
CAUTIONThe driver should not operate the displaywhile the vehicle is in motion.When operating the system, stop the vehiclein a safe area.
Changing the reset mode for aver-age fuel consumption
NOTE

Manual reset mode

Auto reset mode NOTE
The average fuel cons
umption display can be
reset separately for the auto reset mode andfor the manual reset mode. Disconnecting the batt
ery cable will erase
from memory the manual reset mode or autoreset mode setting for the average fuel con-sumption display.The initial (default) setting is “Auto resetmode”.
BK0249100US.book 179 ページ ２０１７年５月１０日　水曜日　午前８時４９分
