1. Lock switch p. 4-35
2. Electric remote-controlled outside rear-view mirrors switch p. 7-09
3. Central door lock switch p. 4-16
4. Electric window control switch p. 4-34
5. Head restraints p. 5-05
6. Supplemental restraint system (SRS) - curtain airbag p. 5-26, 5-33
7. Room lamp (rear) p. 8-78, 11-25
8. Armrest p. 5-05 Cup holder p. 8-82
9. Rear seat p. 5-05
10. Tether anchorages for child restraint system (for front passenger’s seat) p. 5-23
11. Supplemental restraint system (SRS) - side airbag (for front seat)* p. 5-26, 5-33
12. Front seat p. 5-03
13. Inside rear-view mirror p. 7-07 Multi Around Monitor* p. 7-106
Interior
1-09OGGE18E1Overview1RHD
Page 12 of 538

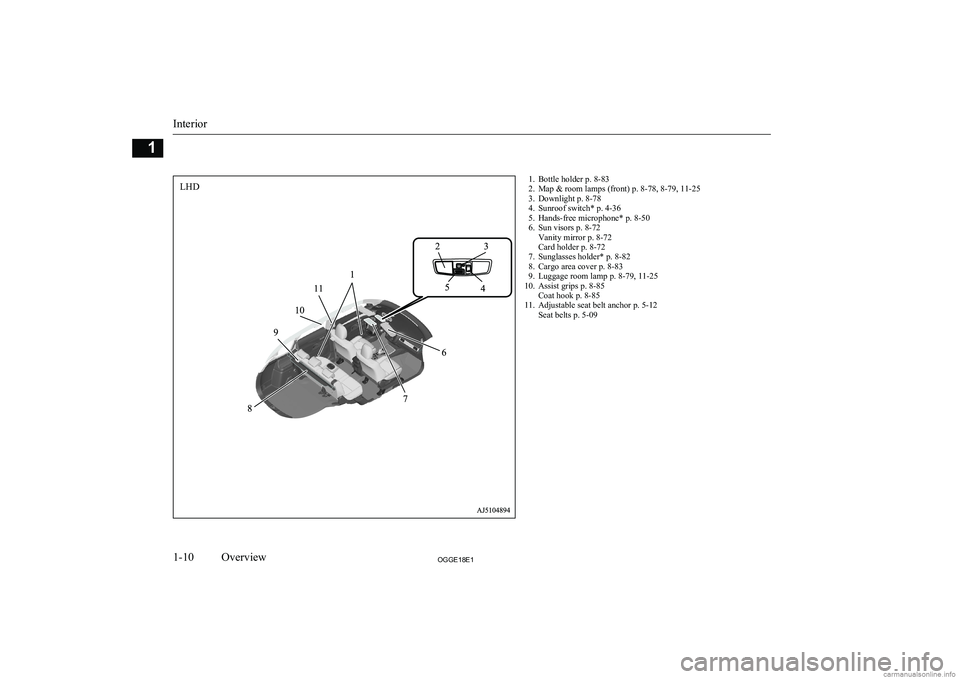

1. Bottle holder p. 8-83
2. Map & room lamps (front) p. 8-78, 8-79, 11-25
3. Downlight p. 8-78
4. Sunroof switch* p. 4-36
5. Hands-free microphone* p. 8-50
6. Sun visors p. 8-72 Vanity mirror p. 8-72
Card holder p. 8-72
7. Sunglasses holder* p. 8-82
8. Cargo area cover p. 8-83
9. Luggage room lamp p. 8-79, 11-25
10. Assist grips p. 8-85 Coat hook p. 8-85
11. Adjustable seat belt anchor p. 5-12 Seat belts p. 5-09
Interior
1-10OGGE18E1Overview1LHD
Page 13 of 538
1. Bottle holder p. 8-83
2. Adjustable seat belt anchor p. 5-12 Seat belts p. 5-09
3. Assist grips p. 8-85 Coat hook p. 8-85
4. Luggage room lamp p. 8-79, 11-25
5. Cargo area cover p. 8-83
6. Sunglasses holder* p. 8-82
7. Sun visors p. 8-72 Vanity mirror p. 8-72
Card holder p. 8-72
8. Hands-free microphone* p. 8-50
9. Map & room lamps (front) p. 8-78, 8-79, 11-25
10. Downlight p. 8-78
11. Sunroof switch* p. 4-36
Interior
1-11OGGE18E1Overview1RHD
Page 14 of 538
Luggage areaE085003013891. Tether anchorages for child restraint system p. 5-23
2. Tools p. 9-06
3. Accessory socket* p. 8-74 220-240 V AC power supply* p. 8-75
4. Luggage hook p. 8-85
5. Jack p. 9-06
6. Luggage floor box p. 8-81
7. EV charging cable* p. 3-07
8. Auxiliary battery p. 11-09
9. Tyre repair kit p. 9-07
Luggage area
1-12OGGE18E1Overview1
Page 15 of 538
Outside (Front)E085004023581. Front-view camera* p. 7-1062. Bonnet p. 11-04
3. Windscreen wipers p. 6-62
4. Sensor* [for Automatic High-Beam (AHB), Forward Collision Mitigation System (FCM) and Lane Departure Warning (LDW)]
p. 6-54, 7-64, 7-85
Rain sensor p. 6-62
5. Sunroof* p. 4-36
6. Electric window control p. 4-34
7. Fuel tank filler p. 2-14
8. Side turn-signal lamps p. 6-60, 11-24 Side view camera* p. 7-106
9. Ultrasonic misacceleration Mitigation System (UMS)* p. 7-74 Parking sensors* p. 7-98
10. Front fog lamps p. 6-61, 11-24, 11-27
11. Headlamps, high-beam p. 6-54, 11-24, 11-26
12. Headlamps, low beam p. 6-54, 11-24
13. Position lamps p. 6-52, 11-24 Daytime running lamps p. 11-27, 11-24
14. Front turn-signal lamps p. 6-60, 11-24, 11-27
15. Headlamps, high-beam p. 6-54, 11-24, 11-26
16. Headlamps, low beam p. 6-54, 11-24, 11-25
17. Position lamps p. 6-52, 11-24 Daytime running lamps p. 6-54, 11-24
18. Front turn-signal lamps p. 6-60, 11-24, 11-27
Outside (Front)
1-13OGGE18E1Overview1Halogen headlamps type LED headlamps type
Page 16 of 538
Outside (Rear)E085004023611. Antenna2. Tail lamps p. 11-24, 11-29
3. Keyless entry system p. 4-03 Keyless operation system p. 4-06
Locking and unlocking the doors p. 4-14
4. Changing tyres p. 9-13 Tyre pressure monitoring system (TPMS) p. 7-89
Tyre inflation pressures p. 11-10
Tyre rotation p. 11-11
Snow traction device (tyre chains) p. 11-13
Size of tyres and wheels p. 12-08
5. Charging lid p. 3-12 Charging port courtesy lamp p. 3-06
6. Stop lamps p. 11-24, 11-29
7. Rear turn-signal lamps p. 6-60, 11-24, 11-29
8. Reversing lamp (LHD vehicles) p. 11-24, 11-29 Rear fog lamp (RHD vehicles) p. 6-62, 11-24, 11-29
9. Ultrasonic misacceleration Mitigation System (UMS)* p. 7-74 Reversing sensor system* p. 7-94
Parking sensors* p. 7-98
10. Rear fog lamp (LHD vehicles) p. 6-62, 11-24, 11-29 Reversing lamp (RHD vehicles) p. 11-24, 11-29
11. Licence plate lamps p. 11-24, 11-30
12. Rear-view camera* p. 7-102, 7-106
13. Rear window wiper p. 6-65
14. Tailgate* p. 4-19 Electric tailgate* p. 4-20
15. High-mounted stop lamp p. 11-24
Outside (Rear)
1-14OGGE18E1Overview1
Page 17 of 538
Quick guideE08500500010Locking and unlocking the
doors and tailgate
E08500601483
Keyless entry system
Press the remote control switch, and all doors and the tailgate will be locked or unlocked as
desired.
The remote control switch will operate within
approximately 4 m from the vehicle.
Vehicles without MITSUBISHI Remote
Control
Vehicles with MITSUBISHI Remote Con-
trol
1- LOCK switch
2- UNLOCK switch
3- Electric tailgate switch
4- Indication lamp
5- Charging timer cancel switch*
Refer to “Keyless entry system” on page 4-03.
On vehicles with the electric tailgate, the tail-
gate can be opened automatically if you press
the electric tailgate switch (3) after unlocking the tailgate.
Refer to “Electric tailgate” on page 4-20.
On vehicles with the MITSUBISHI Remote
Control, the charging timer can be cancelled if you press the charging timer cancel switch (5) twice within 2 seconds.
Refer to “MITSUBISHI Remote Control”
on page 3-24
Keyless operation system
When you are carrying the keyless operation
key and within the operating range, if you
press the driver’s or front passenger’s door switch (A), or the tailgate switch (B) (when locking) and the tailgate open switch (C)(when unlocking), the doors and the tailgate
are locked/unlocked.
The operating range is approximately 70 cm
from the driver’s door switch, front passen- ger’s door switch and the tailgate switches.
Refer to “Keyless operation system” onpage 4-06.
Quick guide
1-15OGGE18E1Overview1
Page 18 of 538
Around the driver’s seat
E08500801687
1-Combination headlamps
Rotate the switch to turn on the lamps.
OFFAll lamps off {except for day-
time running lamps}
AUTO
With the operation mode of the power switch in the “ON” posi-
tion, head-lamps, position, tail, licence plate, instrument panellamps and downlight turn on and off automatically in accord-
ance with outside light level. {Daytime running lamps will go
on while the tail lamps are off.} All lamps turn off automatically
when the operation mode is put
in OFF.Position, tail, licence plate, in-
strument panel lamps and down- light onHeadlamps and other lamps go
on
Refer to “Combination headlamps and dipper switch” on page 6-52.
1-Turn-signal lever
The turn-signal lamps flash when the lever is
operated
1- Turn-signals
2- Lane-change signals
Refer to “Turn-signal lever” on page 6-60.
2-Steering wheel height and
reach adjustment
1. Release the lever while holding the
steering wheel up.
2. Adjust the steering wheel to the desired
position.
Quick guide
1-16OGGE18E1Overview1
Page 19 of 538
3.Securely lock the steering wheel by pull-
ing the lever fully upward.A-LockedB-Release
Refer to “Steering wheel height and reach adjustment” on page 7-07.
3-Power switch
If you are carrying the keyless operation key,
you can start the Plug-in Hybrid EV System.
If you press the power switch without de-
pressing the brake pedal, you can change the
operation mode in the order of OFF, ACC,
ON, OFF.OFF-The indication lamp (A) on the
power switch turns off.ACC-The indication lamp on the en-
gine switch illuminates orange.ON-The indication lamp on the pow-
er switch illuminates blue.
Refer to “Power switch” on page 7-12.
4-Wiper and washer switchMIST-Misting function
The wipers will operate
once.OFF-OffAUTO-Auto-wiper control
The wipers will automati- cally operate depending on
the degree of wetness on the windscreen.LO-SlowHI-Fast
The washer fluid will be sprayed onto the
windscreen by pulling the lever towards you.
Refer to “Wiper and washer switch” on page 6-62.
Quick guide
1-17OGGE18E1Overview1
Page 20 of 538
5-Electric remote-controlledoutside rear-view mirrors
To adjust the mirror position
L-Left outside mirror adjustmentR-Right outside mirror adjustment1-Up2-Down3-Right4-Left5-Mirror retractor switch
Refer to “Outside rear-view mirrors” on
page 7-09.
6-Electric window control
Press the switch down for opening the win-
dow, and pull the switch for closing.
1- Driver’s door window
2- Front passenger’s door window
3- Rear left door window
4- Rear right door window
5- Lock switch
Lock switch
If you press the switch (5), the passenger’s switches cannot be operated. To cancel, press
it once again.
Refer to “Electric window control” on
page 4-34.
7-Fuel tank filler door release
lever
Open the fuel tank filler door.
The fuel tank filler is located on the rear left
side of your vehicle.
Refer to “Filling the fuel tank” on page 2-14.
Charging lid
E08502100023
Firmly apply the parking brake, press the electrical parking switch to shift into the “P”
(PARK) position and put the operation mode of the power switch in the “OFF” position.
Quick guide
