MITSUBISHI OUTLANDER SPORT 2016 3.G Owners Manual

HomeLink® Wireless Control System (if so equipped)
Features and controls 5-169
5
The indicators will illuminate/blink in response to the following conditions: : Blinking : Illuminates
The HomeLink
® has the capability of listen-
ing to these messages at a range up to 820.2 feet (250 m) (open line
of sight), but range
may be reduced by obstacles such as housesor trees. You may have to slow your vehicle speed to receive the CLOSED or OPENED message feedback from the garage dooropener. If the unit is out of range before receiving either the UP or DOWN message from the door opener, both the UP andDOWN indicators will
flash red followed by
a continuous lit orange indicator in the direc- tion the door was last moving. Recall of the door state after initial feedbackis possible by simultaneously pressing either HomeLink
® buttons 1 and 2 or buttons 2 and
3 for 2 seconds. The last recorded messagewill be displayed for 3 seconds, again follow- ing the garage door status indication of the figure above.
N00585300036
To erase programming from the 3 buttons(individual buttons cannot be erased but can be “reprogrammed” as outlined below), fol- low the steps noted:
1. Press and hold the 2 outer HomeLink
®
buttons for at least
10 seconds. The indi-
cator will change from continuous yellow to rapidly flashing green.2. Release both buttons. 3. HomeLink
® is now in the train (or learn-
ing) mode and can be programmed at any time beginning with “Programming a new HomeLink
®” step 1.
N00585400037
To reprogram a HomeLink
® button, complete
the following. 1. Press and hold the desired HomeLink
®
button. Do not release the button. 2. The indicator light will begin to slowlyflash orange after 20 seconds. The Home- Link
® button can be released at this point.
Proceed with “Programming a new HomeLink
®” step 2.
Garage door opener closing
(orange)
Garage door opener closed
(green)
Out of range
(red)
Garage door opener opening
(orange)
Garage door opener opened
(green)
Out of range
(red)
Clearing the programmed information

NOTE
 Do not hold for longer than 20 seconds.
Reprogramming a single HomeLink
® button

BK0229600US.book
169 ページ ２０１５年１０月１日　木曜日　午後２時２９分

Interior lights 5-170 Features and controls
5
N00585600039
Your HomeLink
® system operates on a radio
frequency subject to Federal Communica- tions Commission (FCC) Rules (For vehiclessold in U.S.A.) and Industry Canada Rules (For vehicles sold in Canada). This device complies with Part 15 of the FCC Rules andRSS- 210 of the Industry Canada Rules. Operation is subject to the following two con- ditions.  This device may not cause harmful inter- ference.  This device must accept any interference that may be received, including interfer-ence that may cause undesired operation.
This equipment complies with FCC radiation exposure limits set forth for an uncontrolledenvironment. End Users must follow the spe-cific operating instructions for satisfying RF exposure compliance. This transmitter must be at least 12 inches (20 cm) from the userand must not be co-located or operating in conjunction with any other antenna or trans- mitter.The term “IC:” before the certification/regis- tration number only signifies that Industry Canada technical specifications were met.
N00525300562
NOTE
 If you do not complete the programming of a new device to the button, it will revert to the previously stored programming. For questions or comments, visit www.homelink.com,www.youtube.com/HomeLinkGentex, or by calling the HomeLink
® Hotline.
General information

CAUTION The transmitter has been tested and complies with FCC and IC rules. Changes or modifications not expressly approved by the party responsible for com- pliance could void the user’s authority tooperate the device.
Interior lights
NOTE
 Be aware that leaving the light illuminated with the engine off may run the battery down. Never leave the vehicle without checkingthat the light is off.
1- Cargo room light
 P.5-172
2- Dome light (Rear) (if so equipped)

P.5-171
3- Dome light (Front)/Reading lights

P.5-171Sunshade illumination dimming control switch (if so equipped)
 P.5-173
BK0229600US.book
170 ページ ２０１５年１０月１日　木曜日　午後２時２９分

Interior lights
Features and controls 5-171
5
N00525401472
1- (DOOR) The light illuminates when a door or the liftgate is opened. It goes off approxi- mately 30 seconds after the door or lift-gate is closed. However, the light goes off immediately in the following cases:• When the ignition switch is turned to the “ON” position or the operation mode is put in ON.• When the power door lock function is used to lock the vehicle.
• When the remote control transmitter of the keyless entry system or the F.A.S.T.- key is used to lock the vehicle. • If the vehicle is equipped with theF.A.S.T.-key, when the F.A.S.T.-key is used to lock the vehicle. 2- The light goes off regardless of whether a door or the liftgate is open or closed.
N00537600155
Regardless of the position of the dome light switch, when the lens is pressed, the light onthe side that was pressed will illuminate. Press the lens again to turn off the light.
N00525801258
Dome light (front)/Reading lights Dome light (front)
NOTE
 When the doors other than the driver’s door and liftgate are closed if the driver’s door is closed while its lock knob is in the lock posi-tion, the light goes off immediately.  When the key was used to start the engine, if the key is removed while the doors and lift- gate are closed, the light is illuminated and after approximately 30 seconds it goes off.  When the F.A.S.T.-key was used to start the engine, if the operation mode is put in OFFwhile the doors and liftgate are closed, the light illuminates and after approximately 30 seconds it goes off.  The time until the light goes off can be adjusted. See your authorized MitsubishiMotors dealer for details.
Reading lights Dome light (rear)
(if so equipped)
BK0229600US.book
171 ページ ２０１５年１０月１日　木曜日　午後２時２９分

Interior lights 5-172 Features and controls
5
1- ( )whether a door or the liftgate is open or closed. 2- (
)
The light illuminates when a door or the liftgate is opened. It goes off approxi- mately 30 seconds after the door or lift-gate is closed. However, the light goes off immediately in the following cases:• When the ignition switch is turned to the“ON” position or the operation mode is put in ON. • When the power door lock function isused to lock the vehicle. • When the remote control transmitter of the keyless entry system or the F.A.S.T.-key is used to lock the vehicle. • If the vehicle is equipped with the F.A.S.T.-key, when the F.A.S.T.-key isused to lock the vehicle.
3- ( ) door or the liftgate is open or closed.
N00526100163
The light illuminates when the liftgate isopened, and goes out when the liftgate is closed.
N00568500020
The brightness of the sunshade illuminationcan be adjusted to 3 different levels when the ignition switch or the operation mode is inON or ACC.Each time you press the switch, the bright- ness switches in sequence from high
 mid-
dle
 low
 off
 high.
NOTE
When the doors other than the driver’s door and liftgate are closed if
the driver’s door is
closed while its lock knob is in the lock posi- tion, the light goes off immediately.  When the key was used to start the engine, if the key is removed while the doors and lift- gate are closed, the light is illuminated andafter approximately 30 seconds it goes off.
 When the F.A.S.T.-key was used to start the engine, if the operation mode is put in OFF while the doors and liftgate are closed, the light illuminates and after approximately 30 seconds it goes off.  The time until the light goes off can be adjusted. See your au
thorized Mitsubishi
Motors dealer for details.
Cargo room light
NOTE
Sunshade illumination dim- ming control switch
(if so equipped)
NOTE
 The brightness can be adjusted even when the ignition switch is in the “OFF” position or the operation mode is in OFF, providedthat the sunshade illumination is turned on.
BK0229600US.book
172 ページ ２０１５年１０月１日　木曜日　午後２時２９分

Interior lights
Features and controls 5-173
5
N00568601031
The sunshade illumination turns on when the ignition switch or the operation mode is in ON or ACC. When the sunshade illu
mination is turned on,
it will go off approximately 30 seconds after the following operation is performed.
 When the key was used to start the engine, the key is removed while all doors and the liftgate remain closed.  For vehicles equipped with the F.A.S.T.- key, the operation mode is put in OFF while the engine is running and the doors and the liftgate are closed.
The sunshade illumination also turns on when a door or the liftgate is opened, and goes off 30 seconds after the door or the liftgate is closed, even when the engine switch is in the“OFF” position or the operation mode is in OFF. However, the sunshade illumination immedi-ately goes off in the following cases.  When the power door lock function is used to lock the vehicle.  When the remote control transmitter of the keyless entry system or the F.A.S.T.- key is used to lock the vehicle.
 If the vehicle is equipped with the F.A.S.T.-key, when the F.A.S.T.-key is used to lock the vehicle.
N00526301452
 If any of the interior lights are left switched on with the ignition switch is in the “OFF” position or the operation mode is in OFF, it goes off automatically afterapproximately 30 minutes.
Sunshade illumination
(if so
equipped)
NOTE
 The sunshade illumination does not turn on if the sunshade illumination dimming controlswitch is off. Refer to “Sunshade illumination dimming control switch” on page 5-172.
NOTE
 The time until the sunshade illumination goes off can be adjusted. If it is adjusted, thetime until the dome light go off is also adjusted automatically at the same time. See your authorized Mitsubishi Motorsdealer for details.
NOTE
 When the doors other than the driver’s door and liftgate are closed if the driver’s door is closed while its lock knob is in the lock posi- tion, the light goes off immediately.  The sunshade illumination does not turn on if the sunshade illumination dimming controlswitch is off.  The time until the sunshade illumination goes off can be adjusted. If it is adjusted, the time until the dome light go off is also adjusted automatically at the same time. Seeyour authorized Mitsubishi Motors dealer for details.
Interior light auto-cutout func- tion (dome light and other lights)
BK0229600US.book
173 ページ ２０１５年１０月１日　木曜日　午後２時２９分

Storage spaces 5-174 Features and controls
5
 The lights will illuminate again after they automatically go off if the ignition switch or the engine switch is operated, or if the keyless entry system or the F.A.S.T.-keyis operated.
N00526400469
N00551500204
To open, pull the lever (A).
There is a pen holder inside the glove com- partment.
NOTE
 The interior light auto-cutout function can be deactivated. The time until the lights automatically go offcan be adjusted. See your authorized Mitsubishi Motors dealer for details.
Storage spaces
CAUTION Never leave lighters, carbonated drink cans, or spectacles in the cabin when parking the vehicle in hot sunshine. The cabin will become extremely hot, so lighters and otherflammable items may catch fire and unopened drink cans (including beer cans) may rupture. The heat may also deform or crack plastic spectacle lenses and other spec- tacle parts that are made of plastic. Keep the lids of storage spaces closed while driving the vehicle. A lid or the contents of astorage space could otherwise cause injuries during a sudden stop.
NOTE
 Do not leave valuables in any storage space when leaving the vehicle.
1- Floor console box 2- Glove compartmentGlove compartment
WA R N I N G An open glove compartment door can cause a serious injury
or death to the front
passenger in an accident, even if the pas-senger is wearing his/her seat belt. Always keep the glove compartment door closed when driving.
NOTE
 When the lights are illuminated with the light switch in the “ ”, “ ”, or “AUTO” trol), the glove conpartment light illumi- nates.
Pen holder
BK0229600US.book
174 ページ ２０１５年１０月１日　木曜日　午後２時２９分

Storage spaces
Features and controls 5-175
5
There is a card holder inside the glove com- partment.
N00551601257
To open the console box, lift the release lever(A) and raise the lid.
Upper and lower boxes ar
e located inside the
floor console box.
NOTE
 There is a limit to the size of pens that can be stored in the holder. Forcing large pens into the holder could cause damage.
Card holder
Floor console box Ty p e 1
Ty p e 2
NOTE
 The floor console box can also be used as an arm rest.Refer to the “Arm rest” section on page 4-6.
1- Upper box 2- Lower box
NOTE
 The USB input terminal is located in the floor console box (if so equipped). Fordetails, refer to “USB input terminal” on page 5-160.12
BK0229600US.book
175 ページ ２０１５年１０月１日　木曜日　午後２時２９分

Cup holders 5-176 Features and controls
5

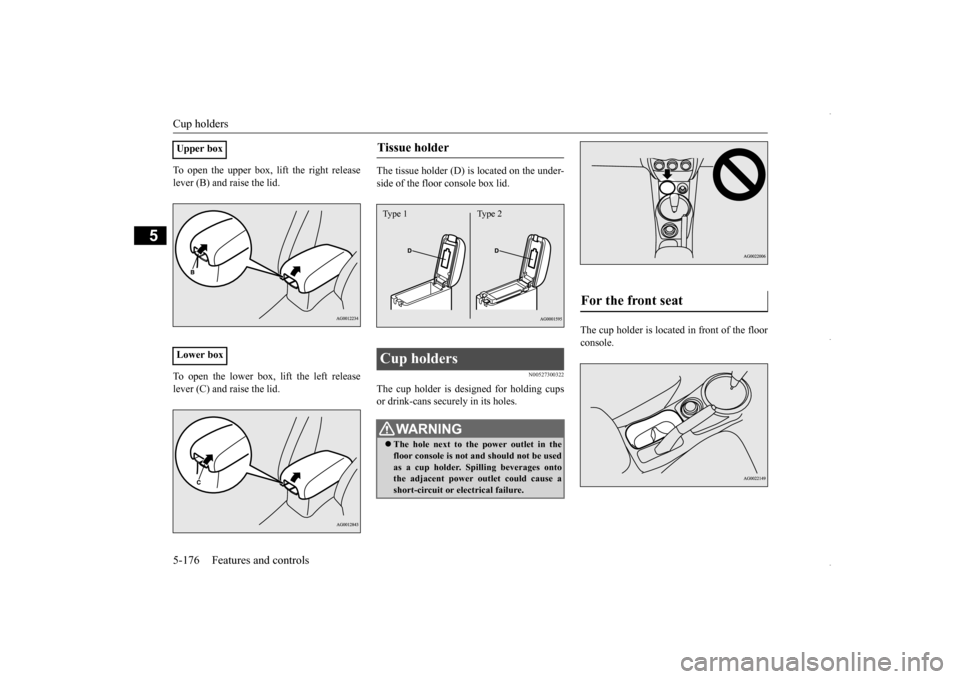

To open the upper box, lift the right release lever (B) and raise the lid. To open the lower box, lift the left release lever (C) and raise the lid.
The tissue holder (D) is located on the under- side of the floor console box lid.
N00527300322
The cup holder is designed for holding cups or drink-cans securely in its holes.
The cup holder is located in front of the floor console.
Upper box Lower box
Tissue holder Cup holders
WA R N I N G The hole next to the power outlet in the floor console is not and should not be used as a cup holder. Spilling beverages ontothe adjacent power outlet could cause a short-circuit or electrical failure.Type 1 Type 2
For the front seat
BK0229600US.book
176 ページ ２０１５年１０月１日　木曜日　午後２時２９分

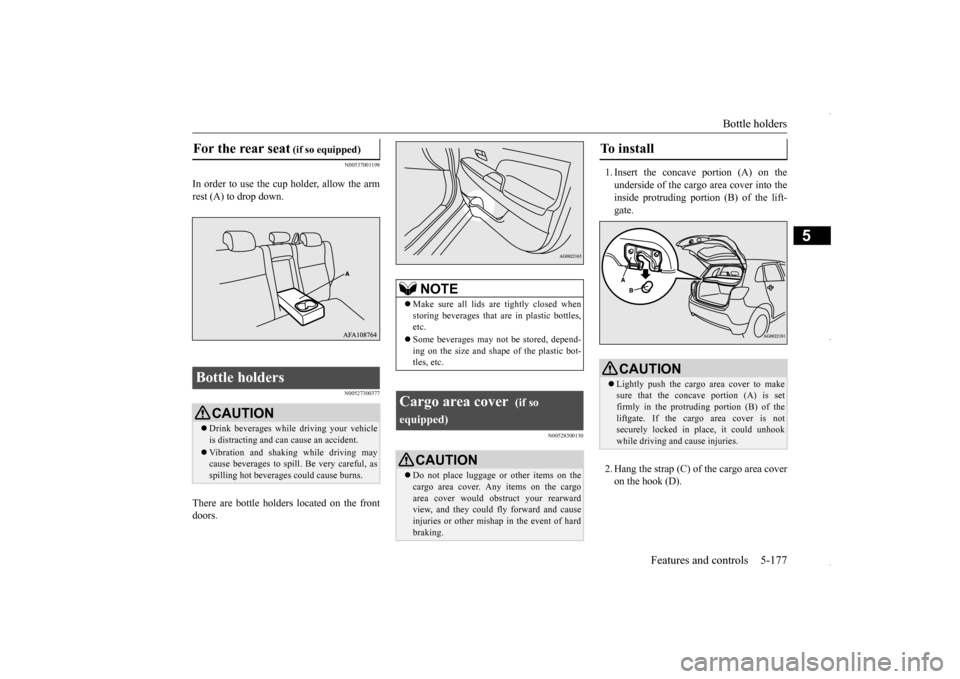

Bottle holders
Features and controls 5-177
5
N00537001198
In order to use the cup holder, allow the arm rest (A) to drop down.
N00527300377
There are bottle holders located on the front doors.
N00528300130
1. Insert the concave portion (A) on theunderside of the cargo area cover into the inside protruding portion (B) of the lift-gate. 2. Hang the strap (C) of the cargo area cover on the hook (D).
For the rear seat
(if so equipped)
Bottle holders
CAUTION Drink beverages while driving your vehicle is distracting and can cause an accident. Vibration and shaking while driving may cause beverages to spill. Be very careful, asspilling hot beverages could cause burns.
NOTE
 Make sure all lids are tightly closed when storing beverages that are in plastic bottles, etc.  Some beverages may not be stored, depend- ing on the size and shape of the plastic bot-tles, etc.
Cargo area cover
(if so
equipped)
CAUTION Do not place luggage or other items on the cargo area cover. Any items on the cargo area cover would obstruct your rearwardview, and they could fly forward and cause injuries or other mishap in the event of hard braking.
To install

CAUTION Lightly push the cargo area cover to make sure that the concave portion (A) is setfirmly in the protruding portion (B) of the liftgate. If the cargo area cover is not securely locked in place, it could unhookwhile driving and cause injuries.
BK0229600US.book
177 ページ ２０１５年１０月１日　木曜日　午後２時２９分

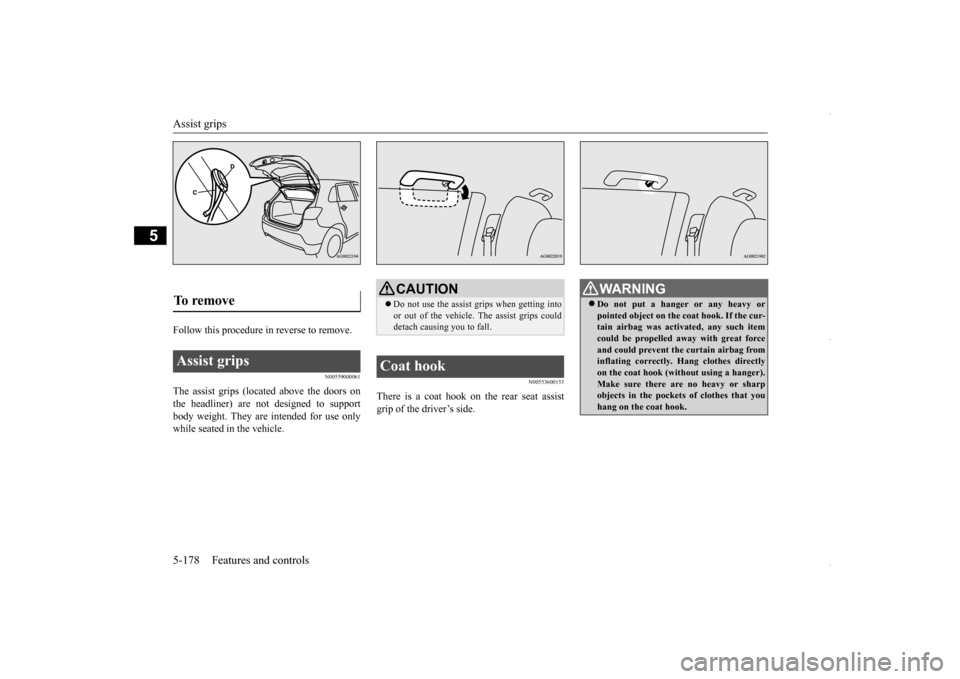

Assist grips 5-178 Features and controls
5
Follow this procedure in reverse to remove.
N00559000061
The assist grips (located above the doors on the headliner) are not designed to support body weight. They are intended for use only while seated in the vehicle.
N00553600153
There is a coat hook on the rear seat assistgrip of the driver’s side.
To remove

Assist grips
CAUTION Do not use the assist grips when getting into or out of the vehicle. The assist grips could detach causing you to fall.
Coat hook
WA R N I N G Do not put a hanger or any heavy or pointed object on the coat hook. If the cur- tain airbag was activated, any such itemcould be propelled away with great force and could prevent the curtain airbag from inflating correctly. Hang clothes directlyon the coat hook (without using a hanger). Make sure there are no heavy or sharp objects in the pockets of clothes that youhang on the coat hook.
