3Multi-information display
N00555000164

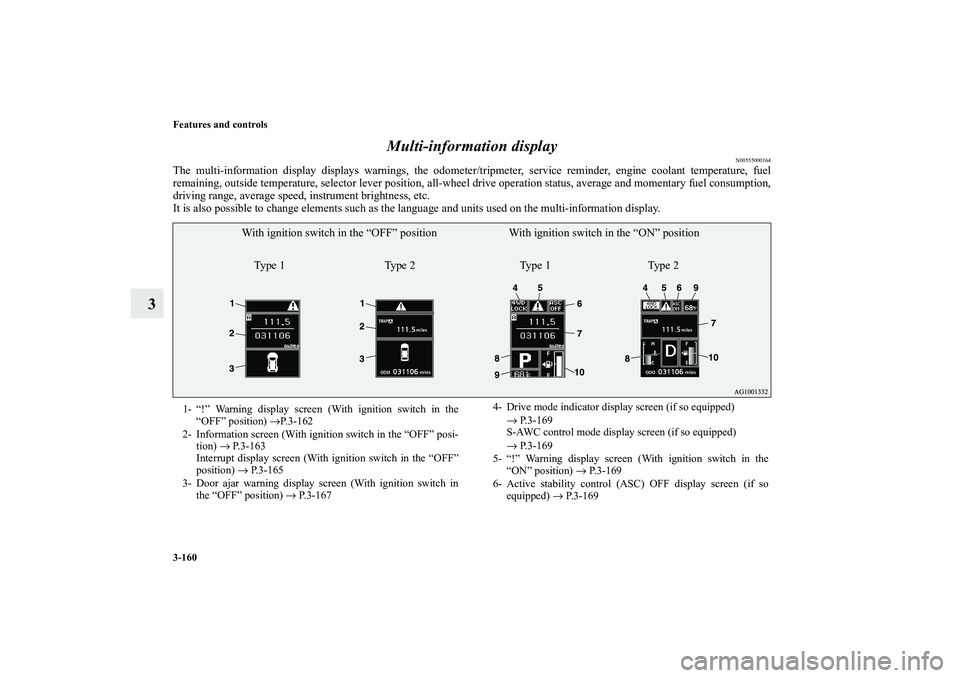

The multi-information display displays warnings, the odometer/tripmeter, service reminder, engine coolant temperature, fuel
remaining, outside temperature, selector lever position, all-wheel drive operation status, average and momentary fuel consumption,
driving range, average speed, instrument brightness, etc.
It is also possible to change elements such as the language and units used on the multi-information display.
With ignition switch in the “OFF” position With ignition switch in the “ON” position
Type 1 Type 2 Type 1 Type 2
1- “!” Warning display screen (With ignition switch in the
“OFF” position) →P.3-162
2- Information screen (With ignition switch in the “OFF” posi-
tion) → P.3-163
Interrupt display screen (With ignition switch in the “OFF”
position) → P.3-165
3- Door ajar warning display screen (With ignition switch in
the “OFF” position) → P.3-1674- Drive mode indicator display screen (if so equipped)
→ P.3-169
S-AWC control mode display screen (if so equipped)
→ P.3-169
5- “!” Warning display screen (With ignition switch in the
“ON” position) → P.3-169
6- Active stability control (ASC) OFF display screen (if so
equipped) → P.3-169
BK0115300US.book 160 ページ ２００９年７月１６日　木曜日　午前９時１３分

Features and controls
3-161
3
NOTE

The fuel units, temperature units, display language, and
other settings can be changed.
Refer to “Changing the function settings (With ignition
switch in the “ON” position)” on page 3-180.


The display screen is different depending on whether the
ignition switch in the “OFF” or “ON” position.
Refer to “Information screen (With ignition switch in the
“OFF” position)” on page 3-163.
Refer to “Warning display list (With ignition switch in the
“OFF” position)” on page 3-198.
Refer to “Information screen (With ignition switch turned
from the “OFF” position to the “ON” position)” on page
3-167.
Refer to “Information screen (With ignition switch in the
“ON” position)” on page 3-170.
Refer to “Warning display list (With ignition switch in the
“ON” position)” on page 3-200.

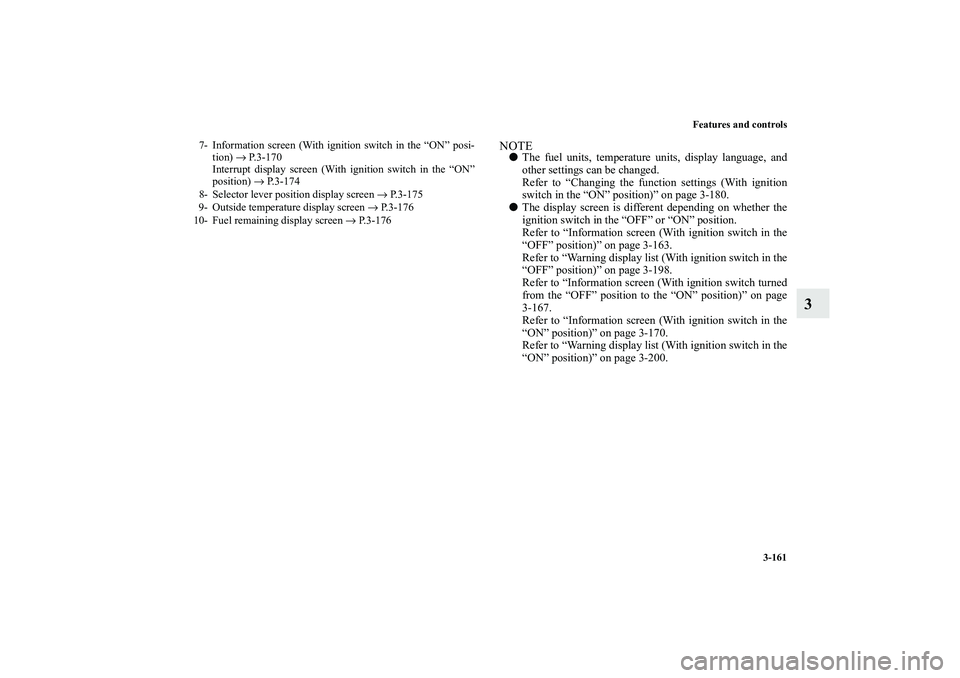

7- Information screen (With ignition switch in the “ON” posi-
tion) → P.3-170
Interrupt display screen (With ignition switch in the “ON”
position) → P.3-174
8- Selector lever position display screen → P.3-175
9- Outside temperature display screen → P.3-176
10- Fuel remaining display screen → P.3-176
BK0115300US.book 161 ページ ２００９年７月１６日　木曜日　午前９時１３分

3-162 Features and controls
3
Multi-information meter switch
N00555100123

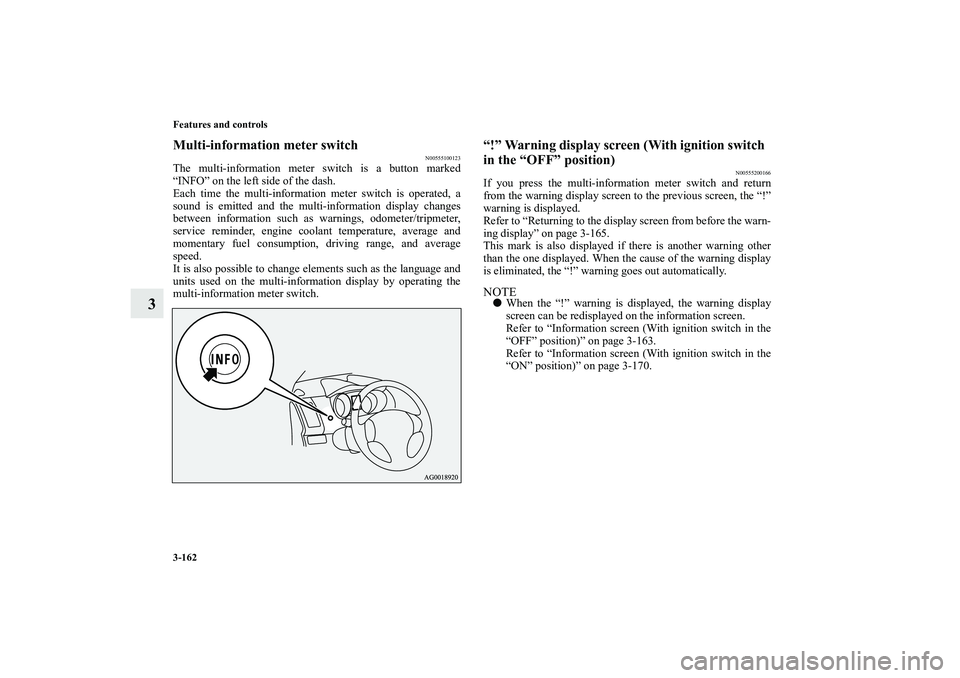

The multi-information meter switch is a button marked
“INFO” on the left side of the dash.
Each time the multi-information meter switch is operated, a
sound is emitted and the multi-information display changes
between information such as warnings, odometer/tripmeter,
service reminder, engine coolant temperature, average and
momentary fuel consumption, driving range, and average
speed.
It is also possible to change elements such as the language and
units used on the multi-information display by operating the
multi-information meter switch.
“!” Warning display screen (With ignition switch
in the “OFF” position)
N00555200166
If you press the multi-information meter switch and return
from the warning display screen to the previous screen, the “!”
warning is displayed.
Refer to “Returning to the display screen from before the warn-
ing display” on page 3-165.
This mark is also displayed if there is another warning other
than the one displayed. When the cause of the warning display
is eliminated, the “!” warning goes out automatically.NOTE

When the “!” warning is displayed, the warning display
screen can be redisplayed on the information screen.
Refer to “Information screen (With ignition switch in the
“OFF” position)” on page 3-163.
Refer to “Information screen (With ignition switch in the
“ON” position)” on page 3-170.
BK0115300US.book 162 ページ ２００９年７月１６日　木曜日　午前９時１３分

Features and controls
3-163
3

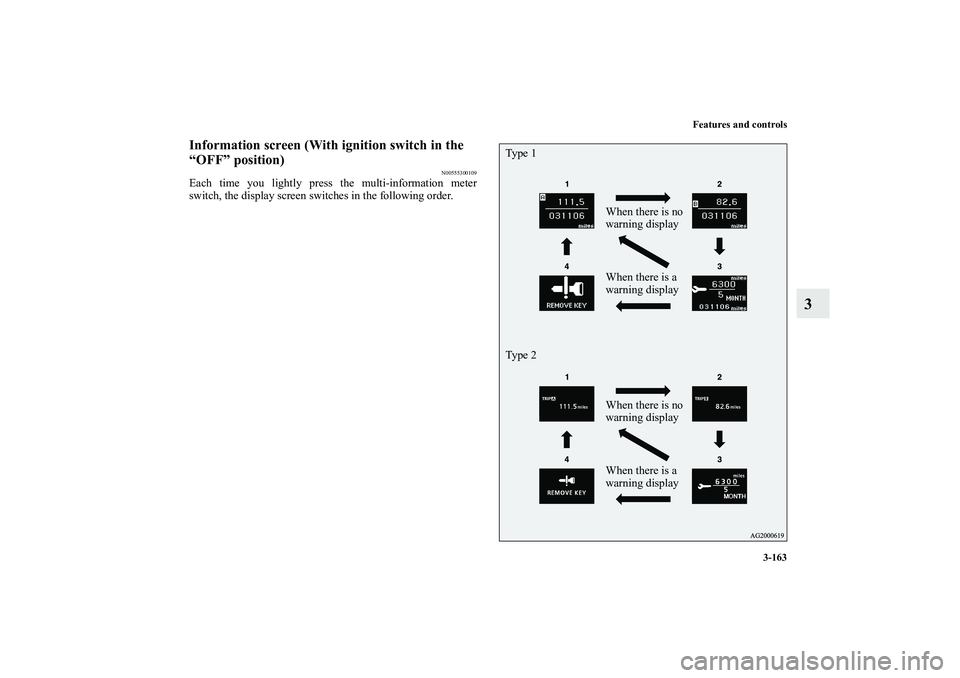

Information screen (With ignition switch in the
“OFF” position)
N00555300109
Each time you lightly press the multi-information meter
switch, the display screen switches in the following order.
When there is no
warning display
When there is a
warning display Ty p e 1
Ty p e 2
When there is no
warning display
When there is a
warning display
BK0115300US.book 163 ページ ２００９年７月１６日　木曜日　午前９時１３分

3-164 Features and controls
3

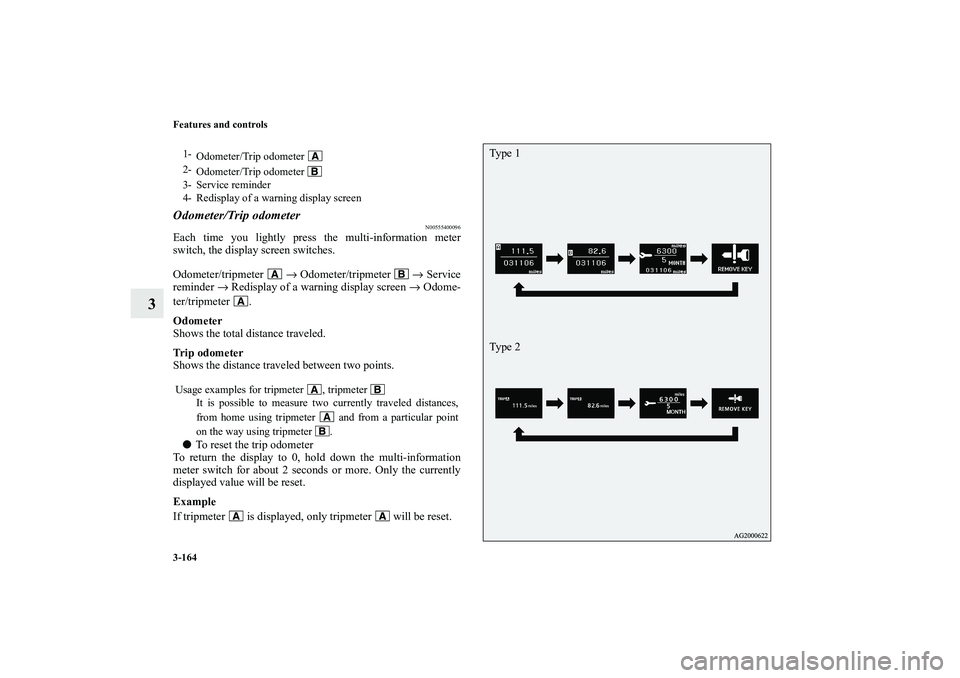

Odometer/Trip odometer
N00555400096
Each time you lightly press the multi-information meter
switch, the display screen switches.
Odometer/tripmeter → Odometer/tripmeter → Service
reminder → Redisplay of a warning display screen → Odome-
ter/tripmeter .
Odometer
Shows the total distance traveled.
Trip odometer
Shows the distance traveled between two points.

To reset the trip odometer
To return the display to 0, hold down the multi-information
meter switch for about 2 seconds or more. Only the currently
displayed value will be reset.
Example
If tripmeter is displayed, only tripmeter will be reset.
1-
Odometer/Trip odometer
2-
Odometer/Trip odometer
3- Service reminder
4- Redisplay of a warning display screen
Usage examples for tripmeter , tripmeter
It is possible to measure two currently traveled distances,
from home using tripmeter and from a particular point
on the way using tripmeter .
Ty p e 1
Ty p e 2
BK0115300US.book 164 ページ ２００９年７月１６日　木曜日　午前９時１３分

Features and controls
3-165
3
NOTE

If there is no warning display, the switching sequence is:
odometer/tripmeter → odometer/tripmeter → ser-
vice reminder → odometer/tripmeter .


Both tripmeters and can count up to 9999.9
miles/kilometers.
When a tripmeter goes past 9999.9 miles/kilometers, it
returns to 0.0 miles/kilometers.


When disconnecting the battery terminal, the memories of
tripmeter displays and are cleared, and their dis-
plays return to “0.0 miles/kilometers”.
Service reminder
N00555500013
Shows the distance and number of months until the next peri-
odic inspection.
Refer to “Service reminder” on page 3-177.

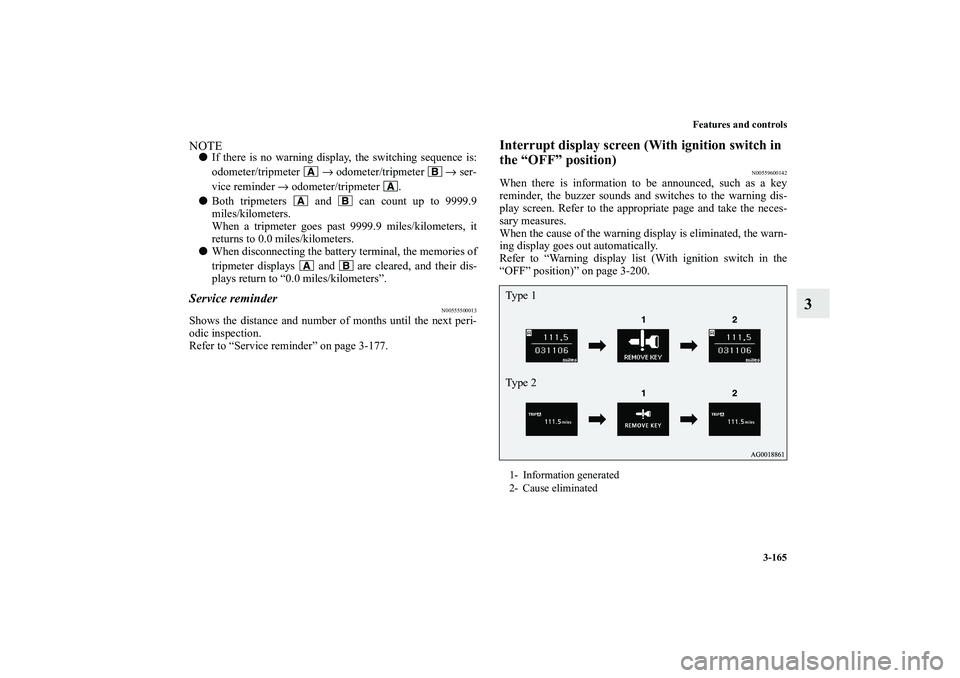

Interrupt display screen (With ignition switch in
the “OFF” position)
N00559600142
When there is information to be announced, such as a key
reminder, the buzzer sounds and switches to the warning dis-
play screen. Refer to the appropriate page and take the neces-
sary measures.
When the cause of the warning display is eliminated, the warn-
ing display goes out automatically.
Refer to “Warning display list (With ignition switch in the
“OFF” position)” on page 3-200.1- Information generated
2- Cause eliminatedTy p e 1
Ty p e 2
BK0115300US.book 165 ページ ２００９年７月１６日　木曜日　午前９時１３分

3-166 Features and controls
3

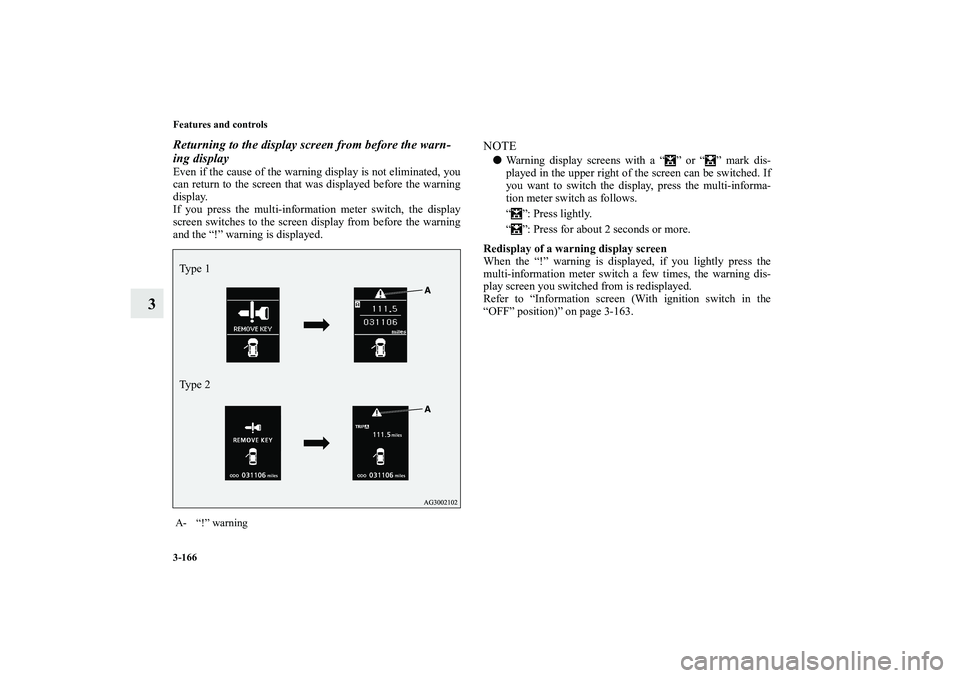

Returning to the display screen from before the warn-
ing displayEven if the cause of the warning display is not eliminated, you
can return to the screen that was displayed before the warning
display.
If you press the multi-information meter switch, the display
screen switches to the screen display from before the warning
and the “!” warning is displayed.
NOTE

Warning display screens with a “ ” or “ ” mark dis-
played in the upper right of the screen can be switched. If
you want to switch the display, press the multi-informa-
tion meter switch as follows.
“ ”: Press lightly.
“ ”: Press for about 2 seconds or more.
Redisplay of a warning display screen
When the “!” warning is displayed, if you lightly press the
multi-information meter switch a few times, the warning dis-
play screen you switched from is redisplayed.
Refer to “Information screen (With ignition switch in the
“OFF” position)” on page 3-163.
A- “!” warningTy p e 1
Ty p e 2BK0115300US.book 166 ページ ２００９年７月１６日　木曜日　午前９時１３分

Features and controls
3-167
3

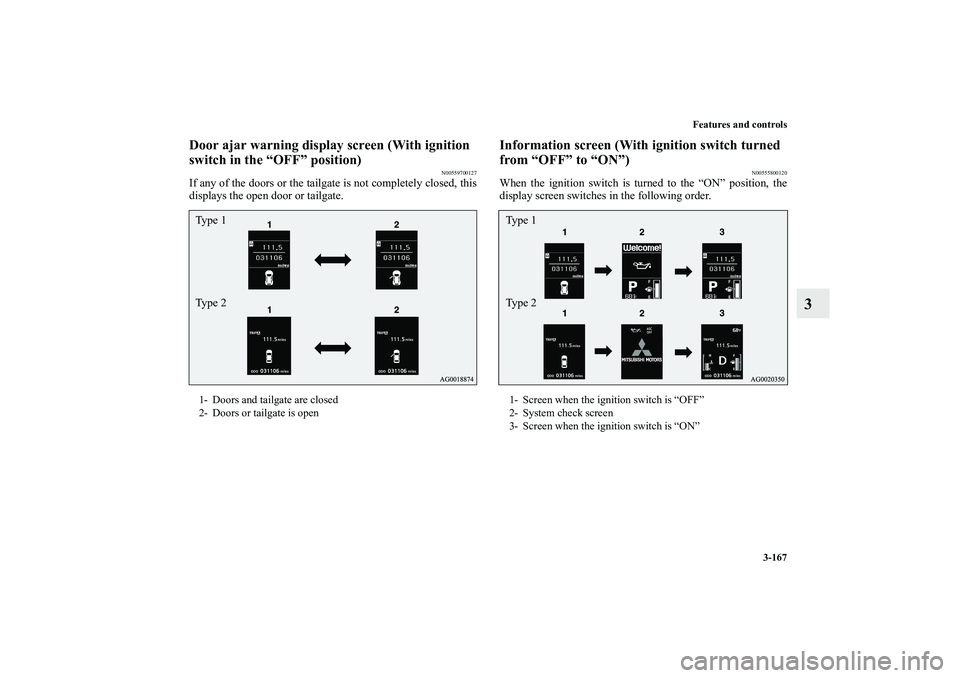

Door ajar warning display screen (With ignition
switch in the “OFF” position)
N00559700127
If any of the doors or the tailgate is not completely closed, this
displays the open door or tailgate.
Information screen (With ignition switch turned
from “OFF” to “ON”)
N00555800120
When the ignition switch is turned to the “ON” position, the
display screen switches in the following order.
1- Doors and tailgate are closed
2- Doors or tailgate is openTy p e 1
Ty p e 2
1- Screen when the ignition switch is “OFF”
2- System check screen
3- Screen when the ignition switch is “ON”Type 1
Type 2
BK0115300US.book 167 ページ ２００９年７月１６日　木曜日　午前９時１３分

3-168 Features and controls
3

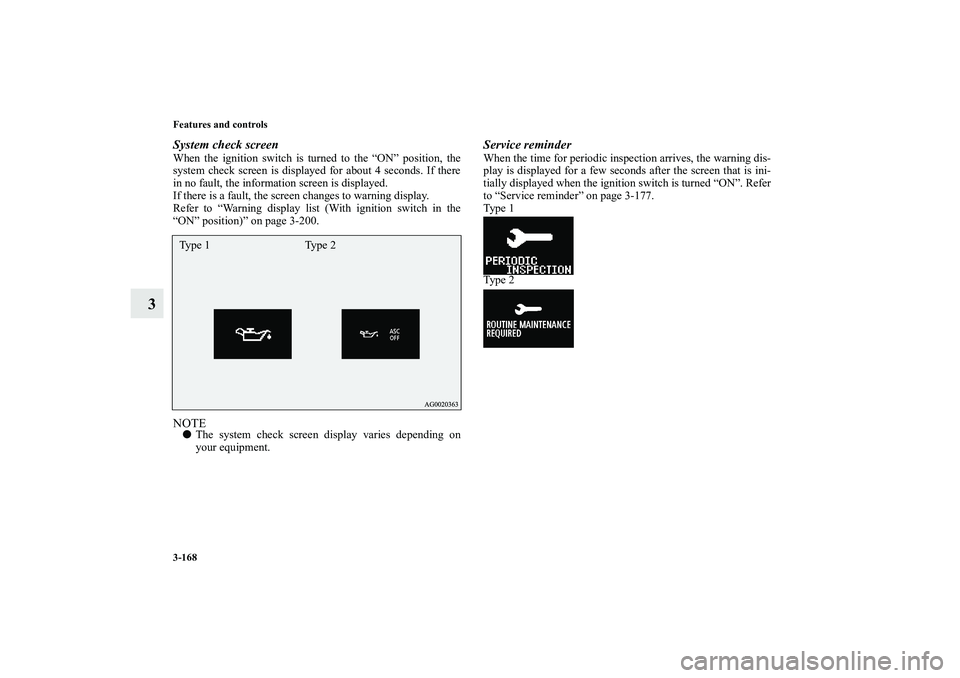

System check screenWhen the ignition switch is turned to the “ON” position, the
system check screen is displayed for about 4 seconds. If there
in no fault, the information screen is displayed.
If there is a fault, the screen changes to warning display.
Refer to “Warning display list (With ignition switch in the
“ON” position)” on page 3-200.NOTE

The system check screen display varies depending on
your equipment.
Service reminderWhen the time for periodic inspection arrives, the warning dis-
play is displayed for a few seconds after the screen that is ini-
tially displayed when the ignition switch is turned “ON”. Refer
to “Service reminder” on page 3-177.
Ty p e 1
Ty p e 2
Type 1 Type 2BK0115300US.book 168 ページ ２００９年７月１６日　木曜日　午前９時１３分

Features and controls
3-169
3

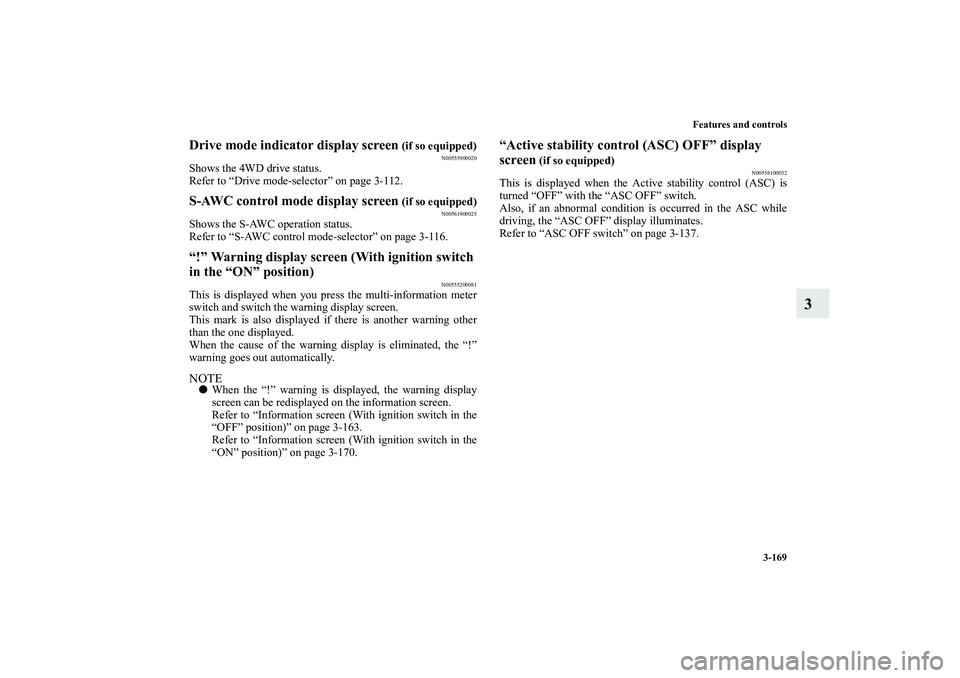

Drive mode indicator display screen
