6-22 For emergencies
6

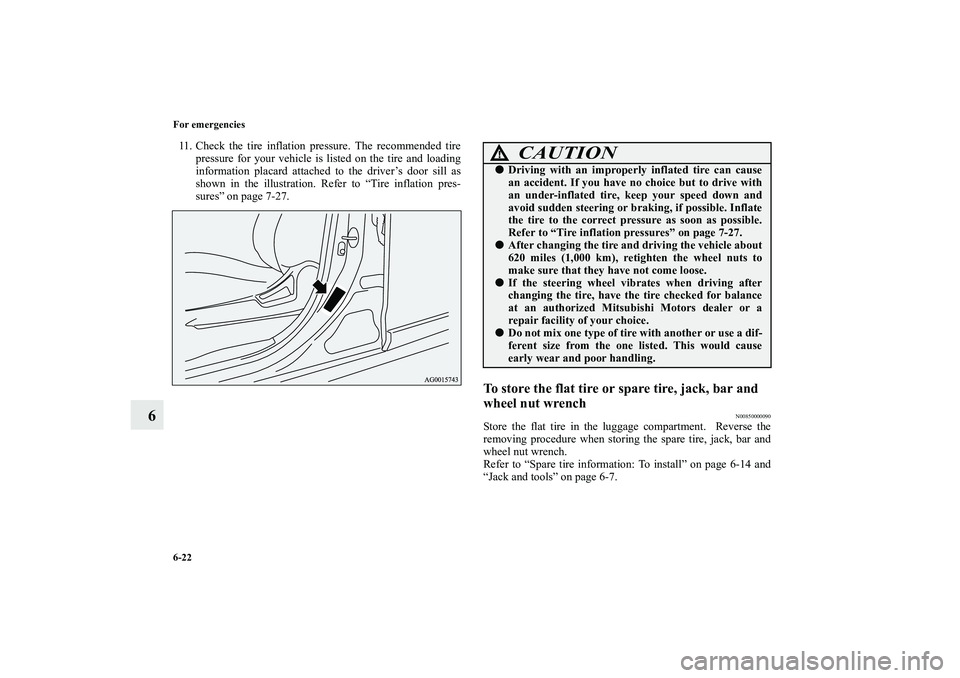

11. Check the tire inflation pressure. The recommended tire
pressure for your vehicle is listed on the tire and loading
information placard attached to the driver’s door sill as
shown in the illustration. Refer to “Tire inflation pres-
sures” on page 7-27.
To store the flat tire or spare tire, jack, bar and
wheel nut wrench
N00850000090
Store the flat tire in the luggage compartment. Reverse the
removing procedure when storing the spare tire, jack, bar and
wheel nut wrench.
Refer to “Spare tire information: To install” on page 6-14 and
“Jack and tools” on page 6-7.
CAUTION
!
Driving with an improperly inflated tire can cause
an accident. If you have no choice but to drive with
an under-inflated tire, keep your speed down and
avoid sudden steering or braking, if possible. Inflate
the tire to the correct pressure as soon as possible.
Refer to “Tire inflation pressures” on page 7-27.
After changing the tire and driving the vehicle about
620 miles (1,000 km), retighten the wheel nuts to
make sure that they have not come loose.
If the steering wheel vibrates when driving after
changing the tire, have the tire checked for balance
at an authorized Mitsubishi Motors dealer or a
repair facility of your choice.
Do not mix one type of tire with another or use a dif-
ferent size from the one listed. This would cause
early wear and poor handling.
BK0115300US.book 22 ページ ２００９年７月１６日 木曜日 午前９時１３分
Page 592 of 714
For emergencies
6-23
6

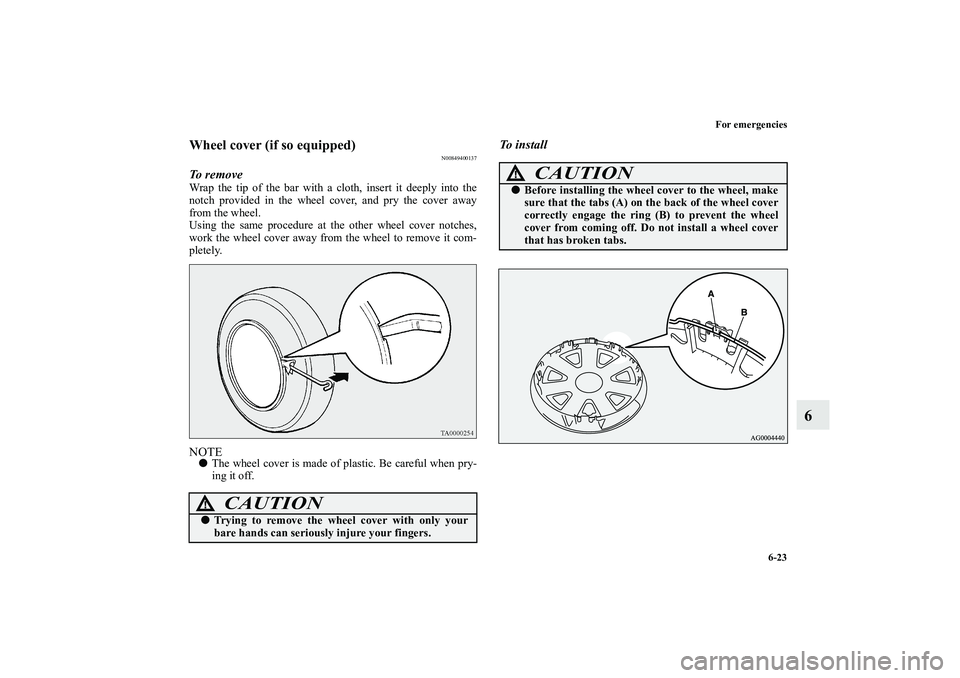

Wheel cover (if so equipped)
N00849400137
To r e m o v eWrap the tip of the bar with a cloth, insert it deeply into the
notch provided in the wheel cover, and pry the cover away
from the wheel.
Using the same procedure at the other wheel cover notches,
work the wheel cover away from the wheel to remove it com-
pletely.NOTE
The wheel cover is made of plastic. Be careful when pry-
ing it off.
To i n s t a l l
CAUTION
!
Trying to remove the wheel cover with only your
bare hands can seriously injure your fingers.
CAUTION
!
Before installing the wheel cover to the wheel, make
sure that the tabs (A) on the back of the wheel cover
correctly engage the ring (B) to prevent the wheel
cover from coming off. Do not install a wheel cover
that has broken tabs.
BK0115300US.book 23 ページ ２００９年７月１６日 木曜日 午前９時１３分
Page 593 of 714
6-24 For emergencies
6

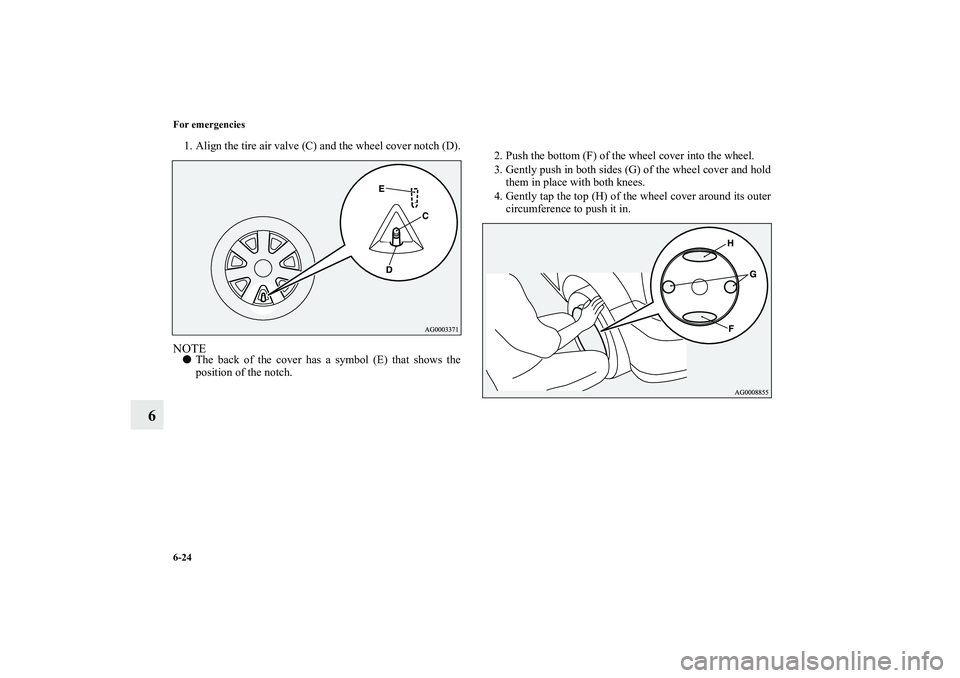

1. Align the tire air valve (C) and the wheel cover notch (D).NOTE
The back of the cover has a symbol (E) that shows the
position of the notch.2. Push the bottom (F) of the wheel cover into the wheel.
3. Gently push in both sides (G) of the wheel cover and hold
them in place with both knees.
4. Gently tap the top (H) of the wheel cover around its outer
circumference to push it in.
BK0115300US.book 24 ページ ２００９年７月１６日 木曜日 午前９時１３分
Page 594 of 714
For emergencies
6-25

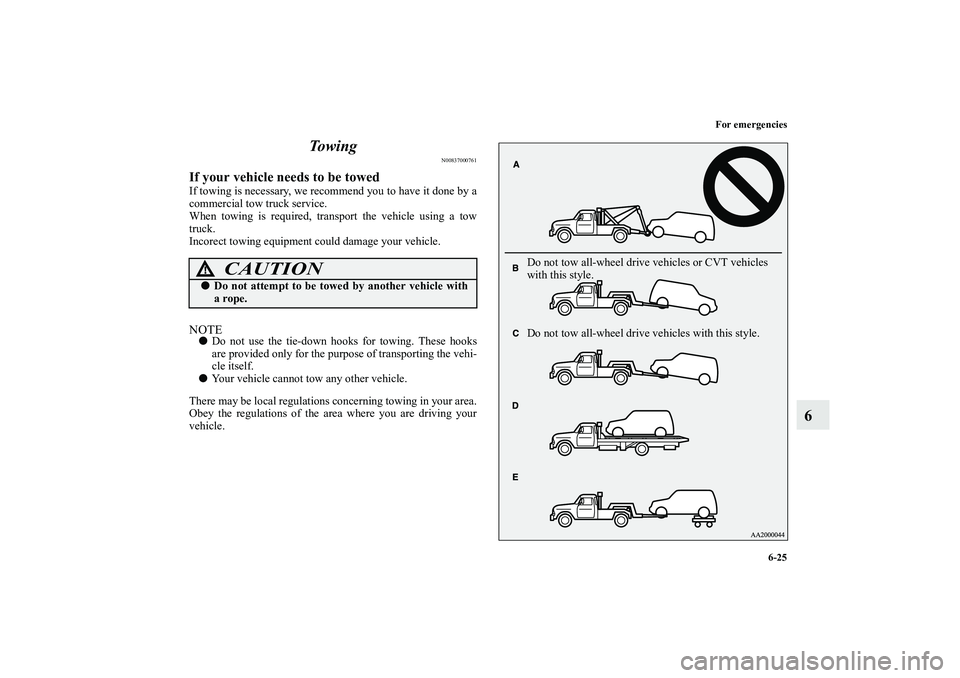

6 To w i n g
N00837000761
If your vehicle needs to be towedIf towing is necessary, we recommend you to have it done by a
commercial tow truck service.
When towing is required, transport the vehicle using a tow
truck.
Incorect towing equipment could damage your vehicle.NOTE
Do not use the tie-down hooks for towing. These hooks
are provided only for the purpose of transporting the vehi-
cle itself.
Your vehicle cannot tow any other vehicle.
There may be local regulations concerning towing in your area.
Obey the regulations of the area where you are driving your
vehicle.
CAUTION
!
Do not attempt to be towed by another vehicle with
a rope.
Do not tow all-wheel drive vehicles with this style. Do not tow all-wheel drive vehicles or CVT vehicles
with this style.
BK0115300US.book 25 ページ ２００９年７月１６日 木曜日 午前９時１３分
Page 595 of 714
6-26 For emergencies
6

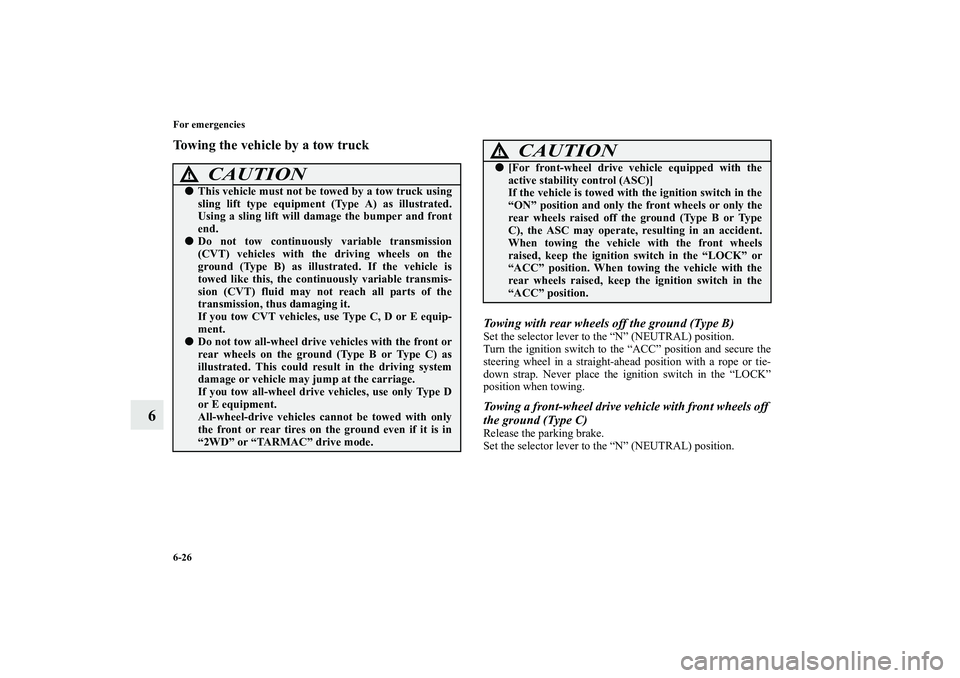

Towing the vehicle by a tow truck
Towing with rear wheels off the ground (Type B)Set the selector lever to the “N” (NEUTRAL) position.
Turn the ignition switch to the “ACC” position and secure the
steering wheel in a straight-ahead position with a rope or tie-
down strap. Never place the ignition switch in the “LOCK”
position when towing.Towing a front-wheel drive vehicle with front wheels off
the ground (Type C)Release the parking brake.
Set the selector lever to the “N” (NEUTRAL) position.
CAUTION
!
This vehicle must not be towed by a tow truck using
sling lift type equipment (Type A) as illustrated.
Using a sling lift will damage the bumper and front
end.
Do not tow continuously variable transmission
(CVT) vehicles with the driving wheels on the
ground (Type B) as illustrated. If the vehicle is
towed like this, the continuously variable transmis-
sion (CVT) fluid may not reach all parts of the
transmission, thus damaging it.
If you tow CVT vehicles, use Type C, D or E equip-
ment.
Do not tow all-wheel drive vehicles with the front or
rear wheels on the ground (Type B or Type C) as
illustrated. This could result in the driving system
damage or vehicle may jump at the carriage.
If you tow all-wheel drive vehicles, use only Type D
or E equipment.
All-wheel-drive vehicles cannot be towed with only
the front or rear tires on the ground even if it is in
“2WD” or “TARMAC” drive mode.
[For front-wheel drive vehicle equipped with the
active stability control (ASC)]
If the vehicle is towed with the ignition switch in the
“ON” position and only the front wheels or only the
rear wheels raised off the ground (Type B or Type
C), the ASC may operate, resulting in an accident.
When towing the vehicle with the front wheels
raised, keep the ignition switch in the “LOCK” or
“ACC” position. When towing the vehicle with the
rear wheels raised, keep the ignition switch in the
“ACC” position.CAUTION
!
BK0115300US.book 26 ページ ２００９年７月１６日 木曜日 午前９時１３分
Page 596 of 714
For emergencies
6-27

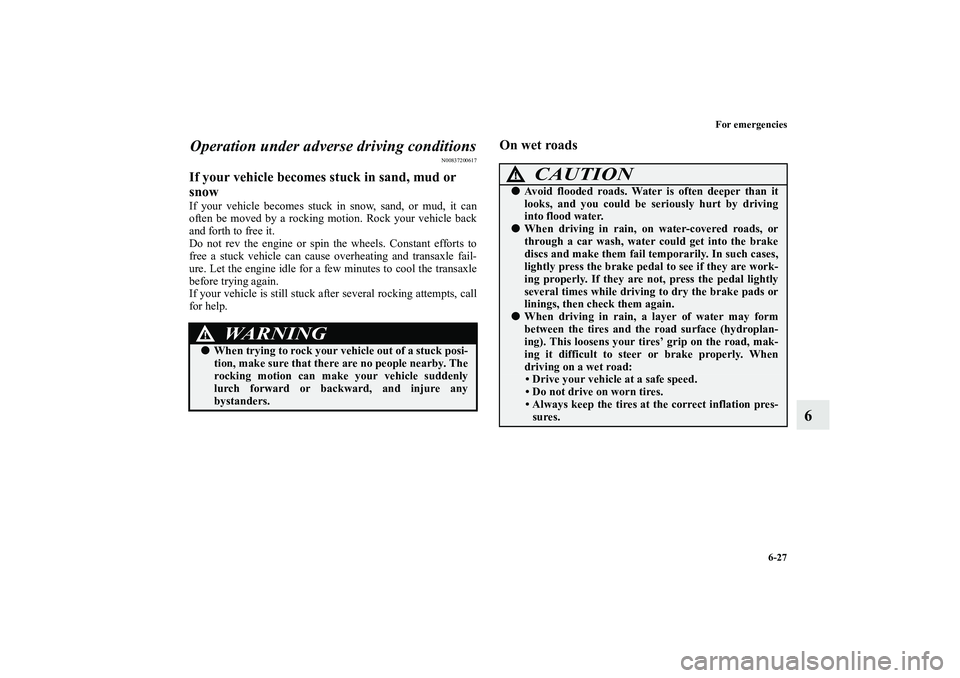

6 Operation under adverse driving conditions
N00837200617
If your vehicle becomes stuck in sand, mud or
snowIf your vehicle becomes stuck in snow, sand, or mud, it can
often be moved by a rocking motion. Rock your vehicle back
and forth to free it.
Do not rev the engine or spin the wheels. Constant efforts to
free a stuck vehicle can cause overheating and transaxle fail-
ure. Let the engine idle for a few minutes to cool the transaxle
before trying again.
If your vehicle is still stuck after several rocking attempts, call
for help.
On wet roads
WA R N I N G
!
When trying to rock your vehicle out of a stuck posi-
tion, make sure that there are no people nearby. The
rocking motion can make your vehicle suddenly
lurch forward or backward, and injure any
bystanders.
CAUTION
!
Avoid flooded roads. Water is often deeper than it
looks, and you could be seriously hurt by driving
into flood water.
When driving in rain, on water-covered roads, or
through a car wash, water could get into the brake
discs and make them fail temporarily. In such cases,
lightly press the brake pedal to see if they are work-
ing properly. If they are not, press the pedal lightly
several times while driving to dry the brake pads or
linings, then check them again.
When driving in rain, a layer of water may form
between the tires and the road surface (hydroplan-
ing). This loosens your tires’ grip on the road, mak-
ing it difficult to steer or brake properly. When
driving on a wet road: Drive your vehicle at a safe speed.
Do not drive on worn tires.
Always keep the tires at the correct inflation pres-
sures.
BK0115300US.book 27 ページ ２００９年７月１６日 木曜日 午前９時１３分
Page 597 of 714
6-28 For emergencies
6

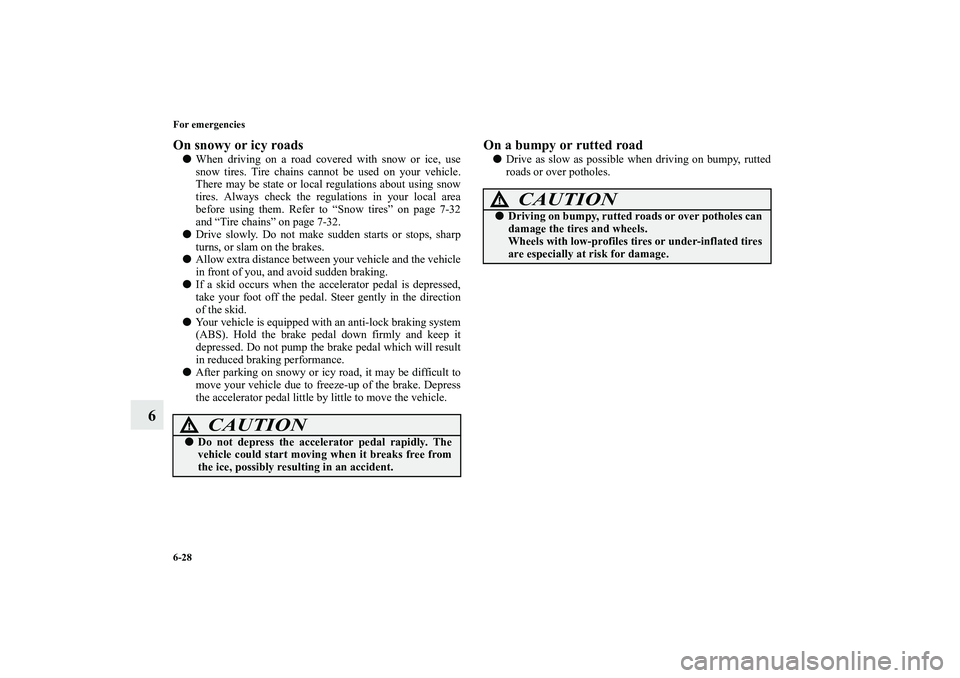

On snowy or icy roads
When driving on a road covered with snow or ice, use
snow tires. Tire chains cannot be used on your vehicle.
There may be state or local regulations about using snow
tires. Always check the regulations in your local area
before using them. Refer to “Snow tires” on page 7-32
and “Tire chains” on page 7-32.
Drive slowly. Do not make sudden starts or stops, sharp
turns, or slam on the brakes.
Allow extra distance between your vehicle and the vehicle
in front of you, and avoid sudden braking.
If a skid occurs when the accelerator pedal is depressed,
take your foot off the pedal. Steer gently in the direction
of the skid.
Your vehicle is equipped with an anti-lock braking system
(ABS). Hold the brake pedal down firmly and keep it
depressed. Do not pump the brake pedal which will result
in reduced braking performance.
After parking on snowy or icy road, it may be difficult to
move your vehicle due to freeze-up of the brake. Depress
the accelerator pedal little by little to move the vehicle.
On a bumpy or rutted road
Drive as slow as possible when driving on bumpy, rutted
roads or over potholes.
CAUTION
!
Do not depress the accelerator pedal rapidly. The
vehicle could start moving when it breaks free from
the ice, possibly resulting in an accident.
CAUTION
!
Driving on bumpy, rutted roads or over potholes can
damage the tires and wheels.
Wheels with low-profiles tires or under-inflated tires
are especially at risk for damage.
BK0115300US.book 28 ページ ２００９年７月１６日 木曜日 午前９時１３分
Page 598 of 714
7

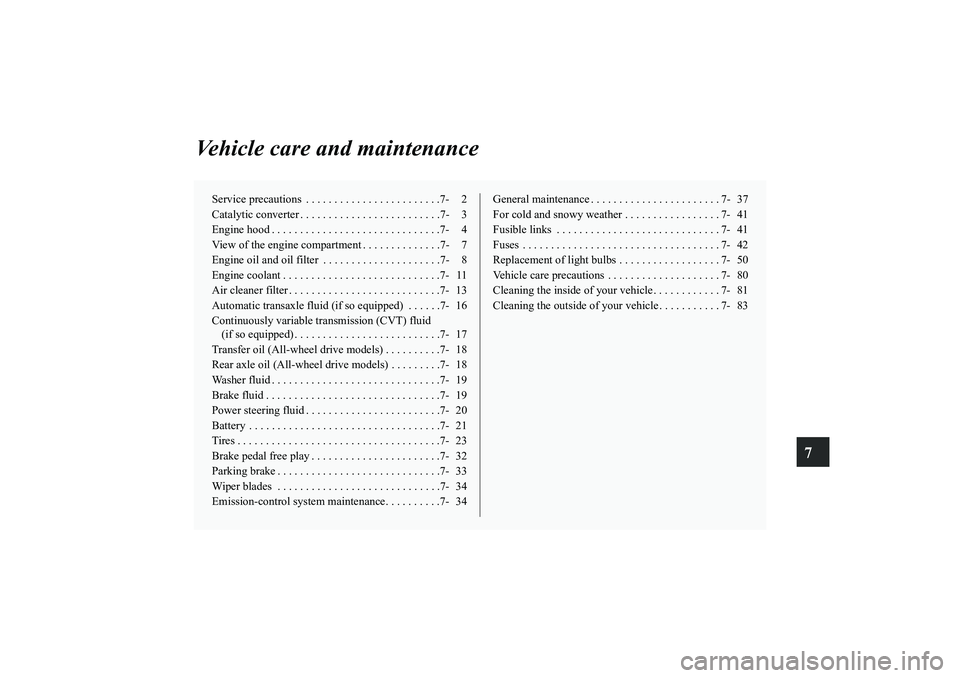

Vehicle care and maintenance
Service precautions . . . . . . . . . . . . . . . . . . . . . . . .7- 2
Catalytic converter . . . . . . . . . . . . . . . . . . . . . . . . .7- 3
Engine hood . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .7- 4
View of the engine compartment . . . . . . . . . . . . . .7- 7
Engine oil and oil filter . . . . . . . . . . . . . . . . . . . . .7- 8
Engine coolant . . . . . . . . . . . . . . . . . . . . . . . . . . . .7- 11
Air cleaner filter . . . . . . . . . . . . . . . . . . . . . . . . . . .7- 13
Automatic transaxle fluid (if so equipped) . . . . . .7- 16
Continuously variable transmission (CVT) fluid
(if so equipped) . . . . . . . . . . . . . . . . . . . . . . . . . .7- 17
Transfer oil (All-wheel drive models) . . . . . . . . . .7- 18
Rear axle oil (All-wheel drive models) . . . . . . . . .7- 18
Washer fluid . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .7- 19
Brake fluid . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .7- 19
Power steering fluid . . . . . . . . . . . . . . . . . . . . . . . .7- 20
Battery . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .7- 21
Tires . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .7- 23
Brake pedal free play . . . . . . . . . . . . . . . . . . . . . . .7- 32
Parking brake . . . . . . . . . . . . . . . . . . . . . . . . . . . . .7- 33
Wiper blades . . . . . . . . . . . . . . . . . . . . . . . . . . . . .7- 34
Emission-control system maintenance. . . . . . . . . .7- 34General maintenance . . . . . . . . . . . . . . . . . . . . . . . 7- 37
For cold and snowy weather . . . . . . . . . . . . . . . . . 7- 41
Fusible links . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7- 41
Fuses . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7- 42
Replacement of light bulbs . . . . . . . . . . . . . . . . . . 7- 50
Vehicle care precautions . . . . . . . . . . . . . . . . . . . . 7- 80
Cleaning the inside of your vehicle . . . . . . . . . . . . 7- 81
Cleaning the outside of your vehicle . . . . . . . . . . . 7- 83
BK0115300US.book 1 ページ ２００９年７月１６日 木曜日 午前９時１３分
Page 599 of 714
7-2 Vehicle care and maintenance
7Service precautions
N00937300286
Taking regular care of your vehicle will preserve its value and
appearance as long as possible.
You can do some of the maintenance work yourself, and the
rest should only be performed by an authorized Mitsubishi
Motors dealer or a repair facility of your choice.
If you discover a malfunction or other problem, have it cor-
rected by an authorized Mitsubishi Motors dealer or a repair
facility of your choice.
This section describes the maintenance inspections that you
can do yourself, if you so desire. Follow the instructions and
precautions for each procedure.
Have you purchased the Mitsubishi Motors Diamond Care Pro-
tection Plan? The Plan supplements your new vehicle warran-
ties. See your authorized Mitsubishi Motors dealer for details.
WA R N I N G
!
When checking or servicing the inside of the engine
compartment, be sure the engine is stopped and has
had a chance to cool down.
If you need to work in the engine compartment with
the engine running, be especially careful that your
clothing, hair, etc. does not get caught in the fan,
drive belts, or other moving parts.
The fan can turn on automatically even if the engine
is not running. Turn the ignition switch to the
“LOCK” position to be safe while you work in the
engine compartment.
Do not smoke or allow open flames around fuel or
the battery. The fumes are flammable.
Be extremely careful when working around the bat-
tery. It contains poisonous and corrosive sulfuric
acid.
Do not get under your vehicle while it is on a jack.
Always use properly rated automotive jack stands.
Handling your vehicle’s parts and materials in the
wrong way can injure you. Ask an authorized Mit-
subishi Motors dealer or a repair facility of your
choice if you have questions.WA R N I N G
!
BK0115300US.book 2 ページ ２００９年７月１６日 木曜日 午前９時１３分
Page 600 of 714
Vehicle care and maintenance
7-3

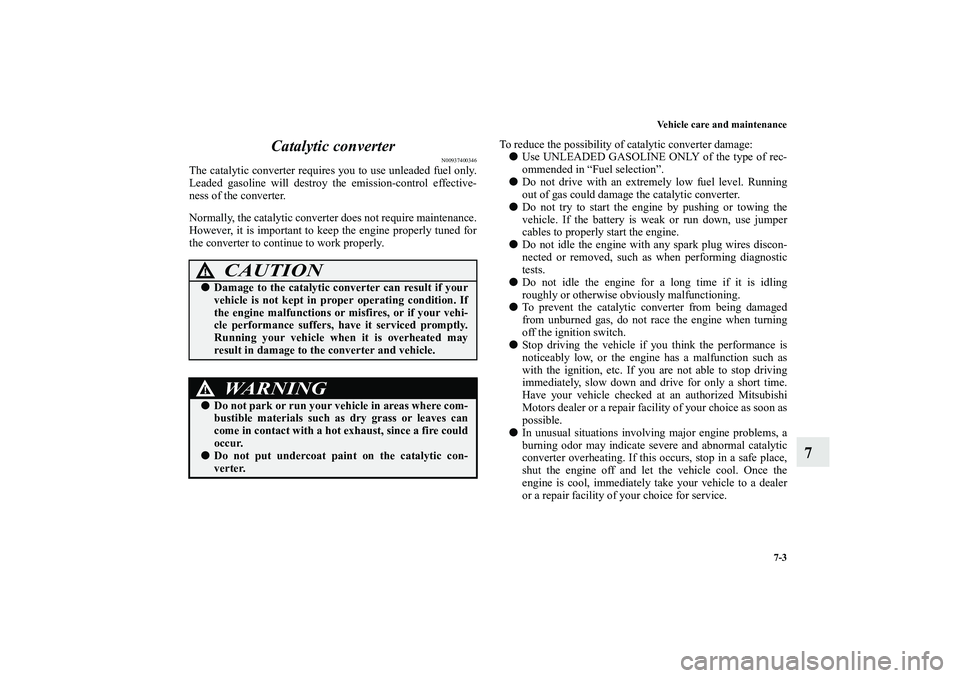

7 Catalytic converter
N00937400346
The catalytic converter requires you to use unleaded fuel only.
Leaded gasoline will destroy the emission-control effective-
ness of the converter.
Normally, the catalytic converter does not require maintenance.
However, it is important to keep the engine properly tuned for
the converter to continue to work properly.To reduce the possibility of catalytic converter damage:
Use UNLEADED GASOLINE ONLY of the type of rec-
ommended in “Fuel selection”.
Do not drive with an extremely low fuel level. Running
out of gas could damage the catalytic converter.
Do not try to start the engine by pushing or towing the
vehicle. If the battery is weak or run down, use jumper
cables to properly start the engine.
Do not idle the engine with any spark plug wires discon-
nected or removed, such as when performing diagnostic
tests.
Do not idle the engine for a long time if it is idling
roughly or otherwise obviously malfunctioning.
To prevent the catalytic converter from being damaged
from unburned gas, do not race the engine when turning
off the ignition switch.
Stop driving the vehicle if you think the performance is
noticeably low, or the engine has a malfunction such as
with the ignition, etc. If you are not able to stop driving
immediately, slow down and drive for only a short time.
Have your vehicle checked at an authorized Mitsubishi
Motors dealer or a repair facility of your choice as soon as
possible.
In unusual situations involving major engine problems, a
burning odor may indicate severe and abnormal catalytic
converter overheating. If this occurs, stop in a safe place,
shut the engine off and let the vehicle cool. Once the
engine is cool, immediately take your vehicle to a dealer
or a repair facility of your choice for service.
CAUTION
!
Damage to the catalytic converter can result if your
vehicle is not kept in proper operating condition. If
the engine malfunctions or misfires, or if your vehi-
cle performance suffers, have it serviced promptly.
Running your vehicle when it is overheated may
result in damage to the converter and vehicle.WA R N I N G
!
Do not park or run your vehicle in areas where com-
bustible materials such as dry grass or leaves can
come in contact with a hot exhaust, since a fire could
occur.
Do not put undercoat paint on the catalytic con-
verter.
BK0115300US.book 3 ページ ２００９年７月１６日 木曜日 午前９時１３分
