MITSUBISHI OUTLANDER XL 2010 Owners Manual

7-4 Vehicle care and maintenance

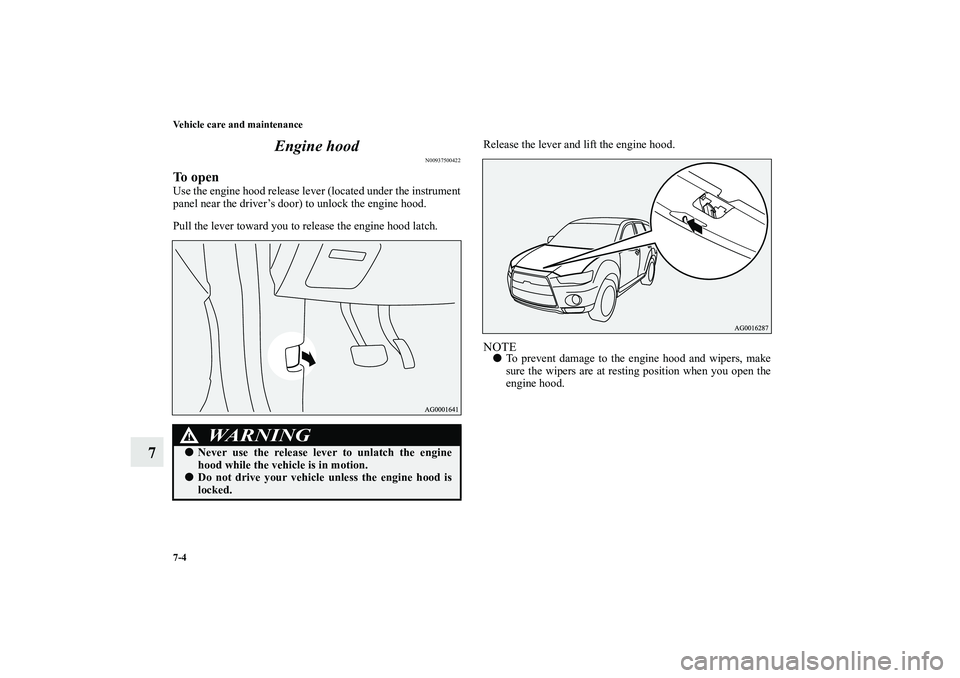

7Engine hood
N00937500422
To openUse the engine hood release lever (located under the instrument
panel near the driver’s door) to unlock the engine hood.
Pull the lever toward you to release the engine hood latch.Release the lever and lift the engine hood.
NOTE

To prevent damage to the engine hood and wipers, make
sure the wipers are at resting position when you open the
engine hood.
WA R N I N G
!

Never use the release lever to unlatch the engine
hood while the vehicle is in motion.


Do not drive your vehicle unless the engine hood is
locked.
BK0115300US.book 4 ページ ２００９年７月１６日　木曜日　午前９時１３分

Vehicle care and maintenance
7-5
7

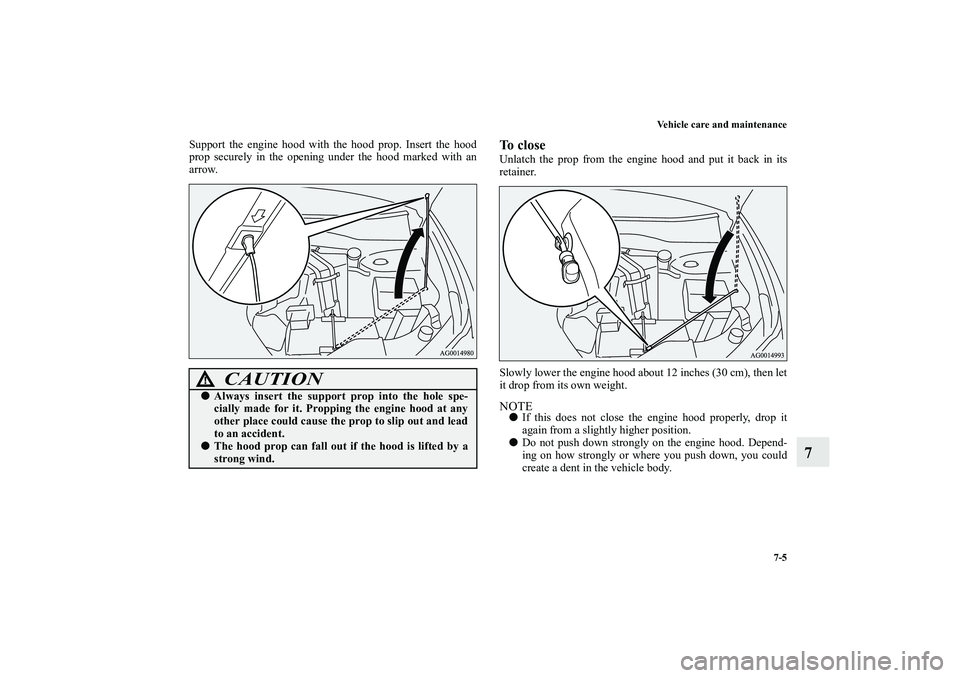

Support the engine hood with the hood prop. Insert the hood
prop securely in the opening under the hood marked with an
arrow.
To closeUnlatch the prop from the engine hood and put it back in its
retainer.
Slowly lower the engine hood about 12 inches (30 cm), then let
it drop from its own weight.NOTE

If this does not close the engine hood properly, drop it
again from a slightly higher position.


Do not push down strongly on the engine hood. Depend-
ing on how strongly or where you push down, you could
create a dent in the vehicle body.
CAUTION
!

Always insert the support prop into the hole spe-
cially made for it. Propping the engine hood at any
other place could cause the prop to slip out and lead
to an accident.


The hood prop can fall out if the hood is lifted by a
strong wind.
BK0115300US.book 5 ページ ２００９年７月１６日　木曜日　午前９時１３分

7-6 Vehicle care and maintenance
7

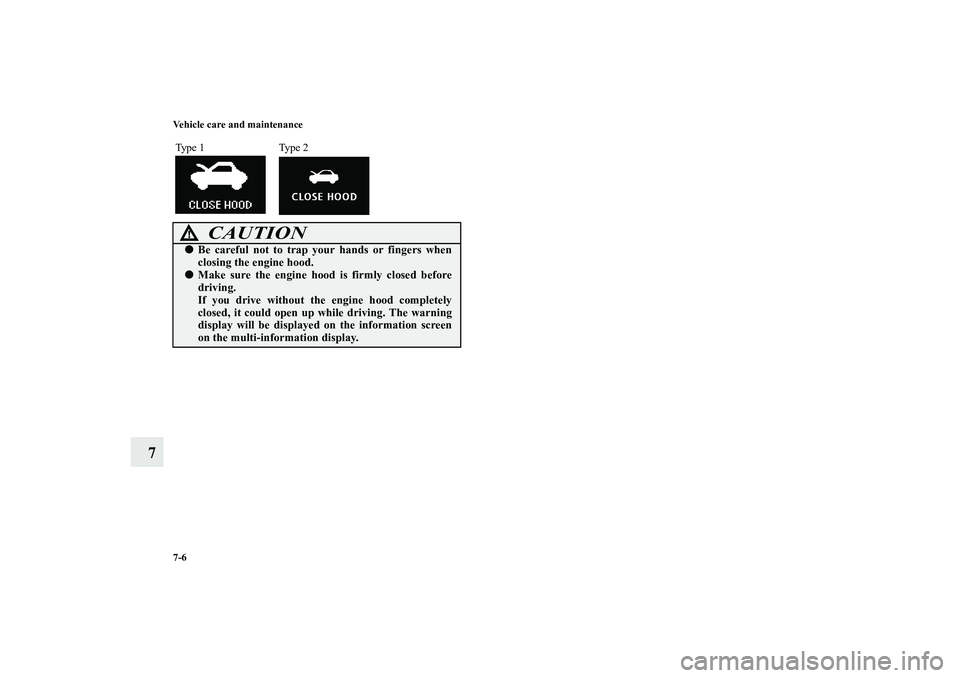

Type 1 Type 2
CAUTION
!

Be careful not to trap your hands or fingers when
closing the engine hood.


Make sure the engine hood is firmly closed before
driving.
If you drive without the engine hood completely
closed, it could open up while driving. The warning
display will be displayed on the information screen
on the multi-information display.
BK0115300US.book 6 ページ ２００９年７月１６日　木曜日　午前９時１３分

Vehicle care and maintenance
7-7

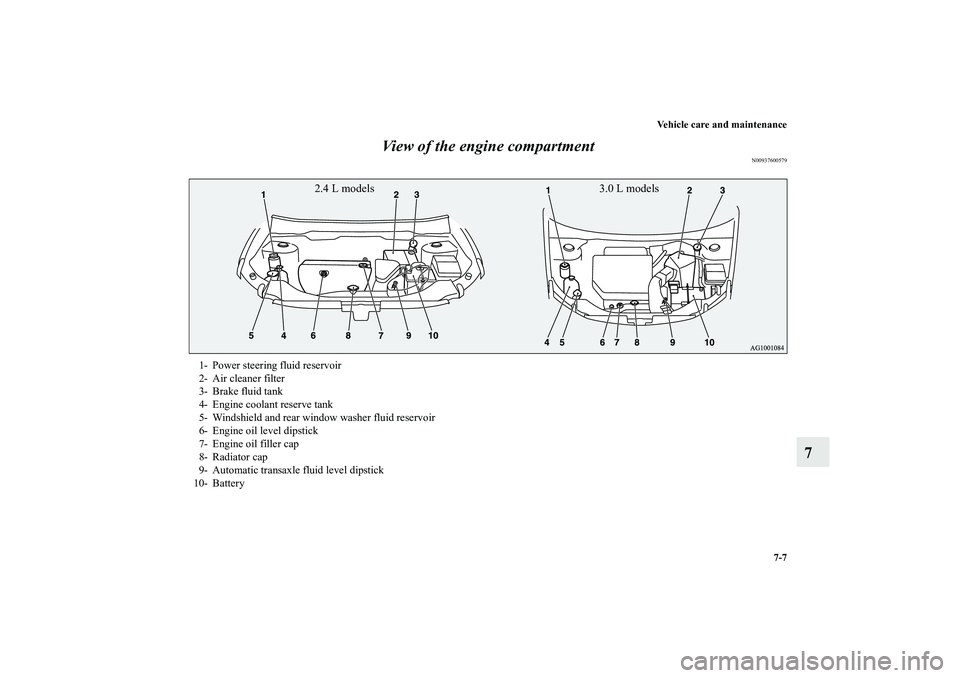

7 View of the engine compartment
N00937600579
2.4 L models 3.0 L models
1- Power steering fluid reservoir
2- Air cleaner filter
3- Brake fluid tank
4- Engine coolant reserve tank
5- Windshield and rear window washer fluid reservoir
6- Engine oil level dipstick
7- Engine oil filler cap
8- Radiator cap
9- Automatic transaxle fluid level dipstick
10- Battery
BK0115300US.book 7 ページ ２００９年７月１６日　木曜日　午前９時１３分

7-8 Vehicle care and maintenance

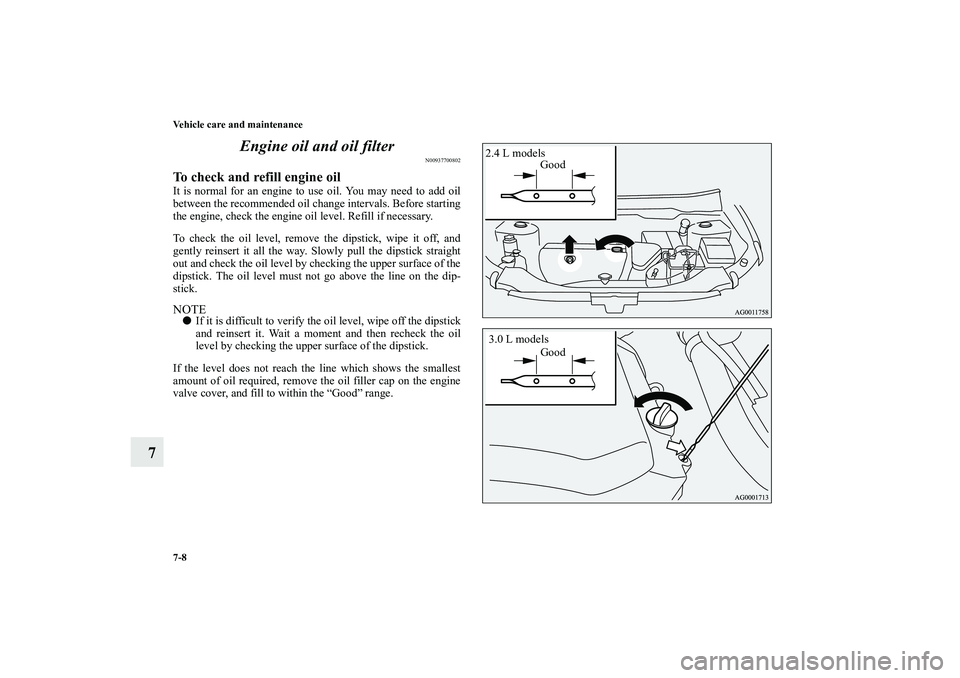

7Engine oil and oil filter
N00937700802
To check and refill engine oilIt is normal for an engine to use oil. You may need to add oil
between the recommended oil change intervals. Before starting
the engine, check the engine oil level. Refill if necessary.
To check the oil level, remove the dipstick, wipe it off, and
gently reinsert it all the way. Slowly pull the dipstick straight
out and check the oil level by checking the upper surface of the
dipstick. The oil level must not go above the line on the dip-
stick.NOTE

If it is difficult to verify the oil level, wipe off the dipstick
and reinsert it. Wait a moment and then recheck the oil
level by checking the upper surface of the dipstick.
If the level does not reach the line which shows the smallest
amount of oil required, remove the oil filler cap on the engine
valve cover, and fill to within the “Good” range.
2.4 L models
Good
Good 3.0 L models
BK0115300US.book 8 ページ ２００９年７月１６日　木曜日　午前９時１３分

Vehicle care and maintenance
7-9
7
NOTE

Engine oil consumption is greatly influenced by payload,
engine speed, etc.


The engine oil will deteriorate rapidly if the vehicle is
subjected to severe conditions (for example, repeated
operation on rough roads, in mountainous regions, on
roads with many uphill and downhill gradients, or over
short distances). Consequently, the oil will require earlier
replacement in accordance with the schedule in the
“WARRANTY AND MAINTENANCE MANUAL”.
Engine oil identification markMitsubishi Motors recommends using only engine oils with the
ILSAC certification symbol on the front of the container.
CAUTION
!

Overfilling will cause oil aeration and loss of oil
pressure, which could damage the engine.WA R N I N G
!

Used engine oil is poisonous, and can damage your
skin. Prolonged and repeated contact may cause
serious skin disorders, including dermatitis and can-
cer. Do not let used oil touch your skin and wash
thoroughly after working with it.


Keep used oil out of the reach of children.
ILSAC certification symbol
BK0115300US.book 9 ページ ２００９年７月１６日　木曜日　午前９時１３分

7-10 Vehicle care and maintenance
7

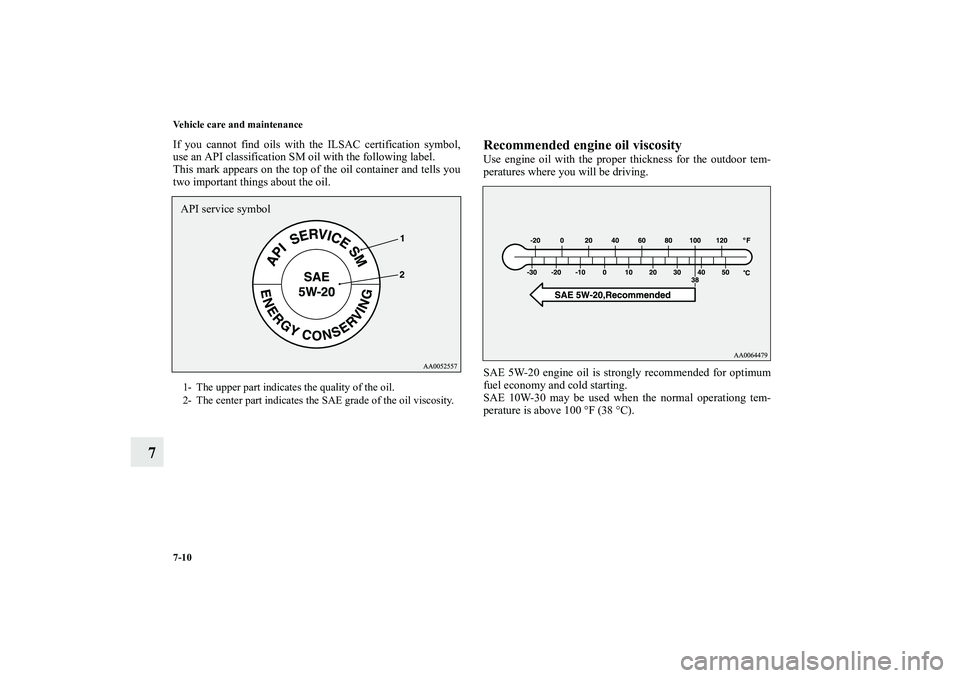

If you cannot find oils with the ILSAC certification symbol,
use an API classification SM oil with the following label.
This mark appears on the top of the oil container and tells you
two important things about the oil.
Recommended engine oil viscosityUse engine oil with the proper thickness for the outdoor tem-
peratures where you will be driving.
SAE 5W-20 engine oil is strongly recommended for optimum
fuel economy and cold starting.
SAE 10W-30 may be used when the normal operationg tem-
perature is above 100 °F (38 °C).
1- The upper part indicates the quality of the oil.
2- The center part indicates the SAE grade of the oil viscosity.API service symbol
BK0115300US.book 10 ページ ２００９年７月１６日　木曜日　午前９時１３分

Vehicle care and maintenance
7-11
7
To replace the oil filterThe oil filter should be replaced at the time or mileage speci-
fied in the “WARRANTY AND MAINTENANCE MAN-
UAL”.
Only use high quality replacement filters on this vehicle. The
manufacturer’s specifications for Genuine Mitsubishi oil filters
require that the filter can withstand a pressure of 256 psi (1.8
MPa). A Genuine Mitsubishi oil filter is the best replacement
filter.
Follow the installation instructions printed on the filter.
Engine coolant
N00937800425
To check the coolant levelThe engine coolant reserve tank (A) lets you quickly see when
you need to add coolant. When the engine is cold, the level of
the coolant in the reserve tank should be between the FULL
and LOW marks. The radiator usually stays full so there is no
reason to remove the radiator cap (B) except when you check
the coolant freeze point or replace the antifreeze coolant.FULL
LOW
BK0115300US.book 11 ページ ２００９年７月１６日　木曜日　午前９時１３分

7-12 Vehicle care and maintenance
7
To add coolantUse Mitsubishi Genuine Coolant or an equivalent.
Mitsubishi Genuine Coolant provides excellent protection
against corrosion and rust formation on all metals, including
aluminum, and prevents clogs in the radiator, heater, cylinder
head, engine block, etc.
If you need to add coolant often, or if the level in the reserve
tank does not drop when the engine cools, the cooling system
should be pressure-tested for leaks. Take your vehicle to an
authorized Mitsubishi Motors dealer or a repair facility of your
choice for testing.
Radiator capThe radiator cap must be tight sealed to prevent losing coolant,
which may result in engine damage. Only use a Genuine Mit-
subishi Parts radiator cap, or an approved equivalent.Points to remember

Do not overfill the reserve tank.


Your vehicle uses a special radiator cap that stays sealed
and lets the coolant flow from the reserve tank back to the
radiator when the engine cools down. If you need to
change the cap, use the exact same kind.


Check the coolant freeze point in the radiator with the
proper gauge, and only when it is safe. If you add anti-
freeze, the contents of the reserve tank must be protected
against freezing.


Keep the front of the radiator and condenser clean.
CAUTION
!

Do not use alcohol or methanol antifreeze or any
engine coolants that contain them. Using the wrong
antifreeze can corrode aluminum parts.


When you need to add coolant to the reserve tank,
use at least a 50 % concentration of ethylene-glycol
antifreeze in water. Do not overfill. Use a higher con-
centration (not over 60 %) when the outside temper-
ature is -31 °F (-35 °C) or lower. When the engine is
working very hard (for example, during mountain
driving and/or when the outside temperature is
high), use a 50 % concentration. You can check the
concentration level with a gauge from an automotive
supply store, or your authorized Mitsubishi Motors
dealer or service station can check it for you. Use
only high quality ethylene-glycol antifreeze coolant
that is made to prevent corrosion of all cooling sys-
tem metals.


Do not top off the tank with plain water only. Water
by itself boils at a lower temperature and does not
stop rust or freezing. If the water freezes, it will
damage your cooling system. Do not use tapwater. It
can cause corrosion and rust.WA R N I N G
!

Wait for the engine to cool down before opening the
radiator cap. Otherwise hot steam or boiling coolant
could spray up from the radiator and scald you.CAUTION
!
BK0115300US.book 12 ページ ２００９年７月１６日　木曜日　午前９時１３分

Vehicle care and maintenance
7-13
7


If the engine coolant temperature does not rise after the
engine is warmed-up, take your vehicle to an authorized
Mitsubishi Motors dealer or a repair facility of your
choice to have the thermostat checked, and replaced if
necessary.

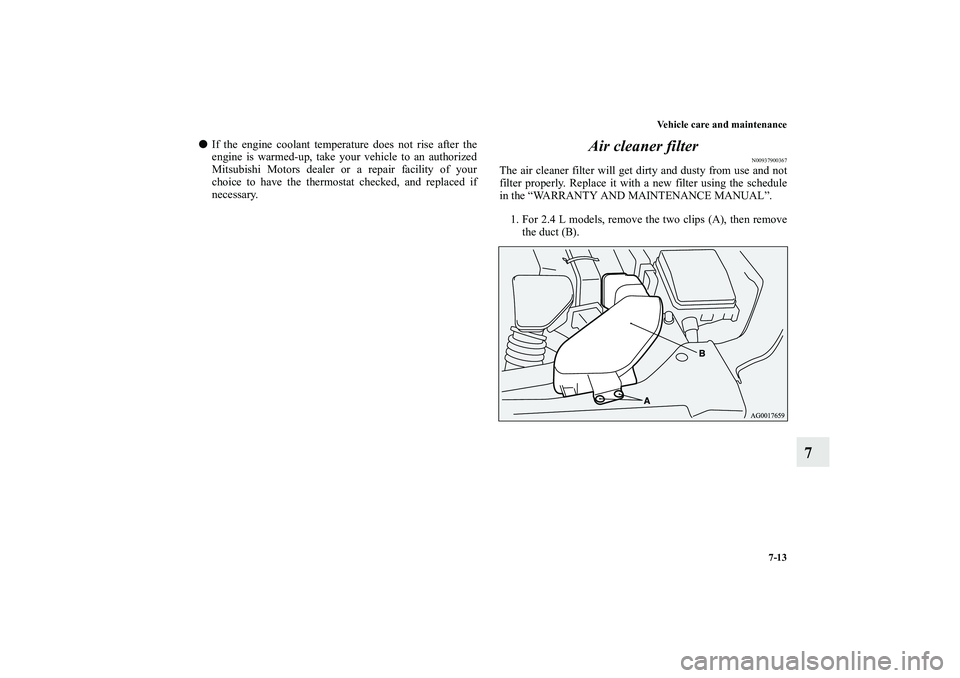

Air cleaner filter
N00937900367
The air cleaner filter will get dirty and dusty from use and not
filter properly. Replace it with a new filter using the schedule
in the “WARRANTY AND MAINTENANCE MANUAL”.
1. For 2.4 L models, remove the two clips (A), then remove
the duct (B).
