MITSUBISHI OUTLANDER XL 2010 Owners Manual

7-14 Vehicle care and maintenance
7

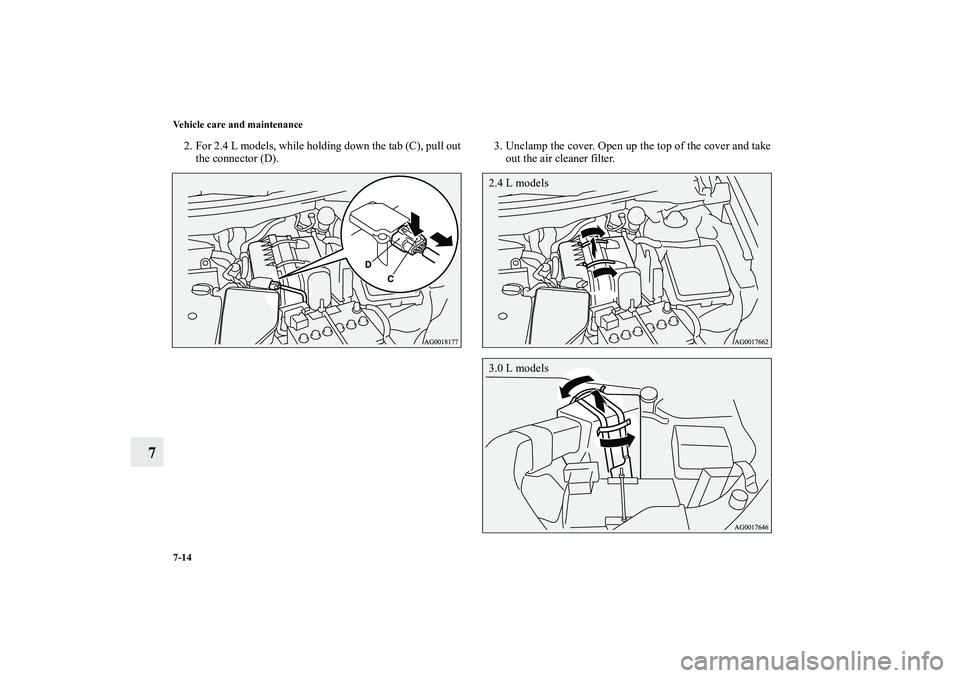

2. For 2.4 L models, while holding down the tab (C), pull out
the connector (D).3. Unclamp the cover. Open up the top of the cover and take
out the air cleaner filter.
2.4 L models3.0 L models
BK0115300US.book 14 ページ ２００９年７月１６日　木曜日　午前９時１３分

Vehicle care and maintenance
7-15
7

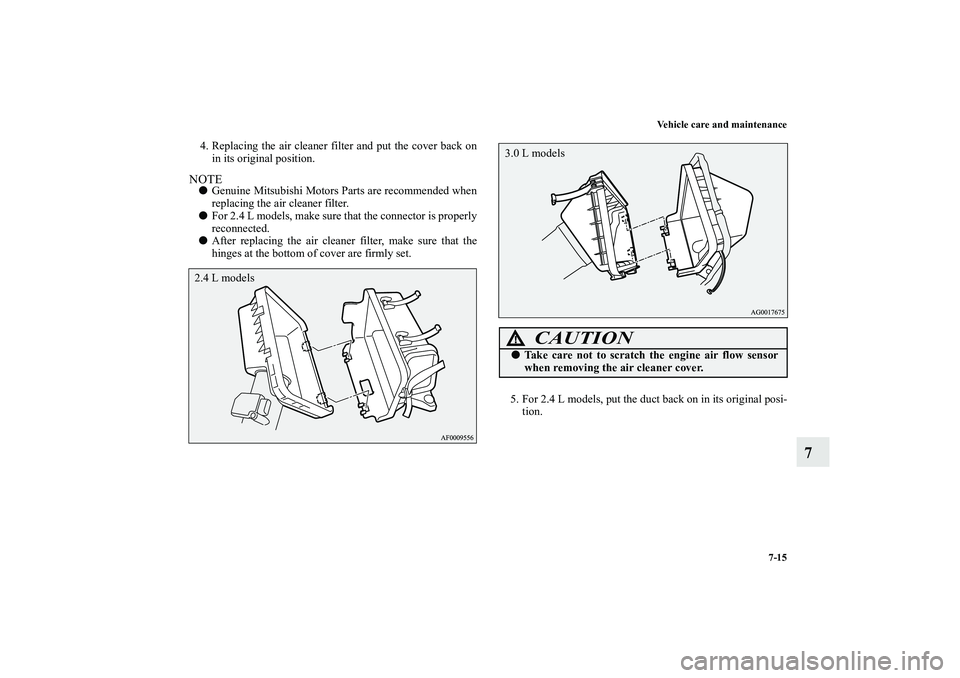

4. Replacing the air cleaner filter and put the cover back on
in its original position.NOTE

Genuine Mitsubishi Motors Parts are recommended when
replacing the air cleaner filter.


For 2.4 L models, make sure that the connector is properly
reconnected.


After replacing the air cleaner filter, make sure that the
hinges at the bottom of cover are firmly set.
5. For 2.4 L models, put the duct back on in its original posi-
tion.
2.4 L models
CAUTION
!

Take care not to scratch the engine air flow sensor
when removing the air cleaner cover.
3.0 L models
BK0115300US.book 15 ページ ２００９年７月１６日　木曜日　午前９時１３分

7-16 Vehicle care and maintenance

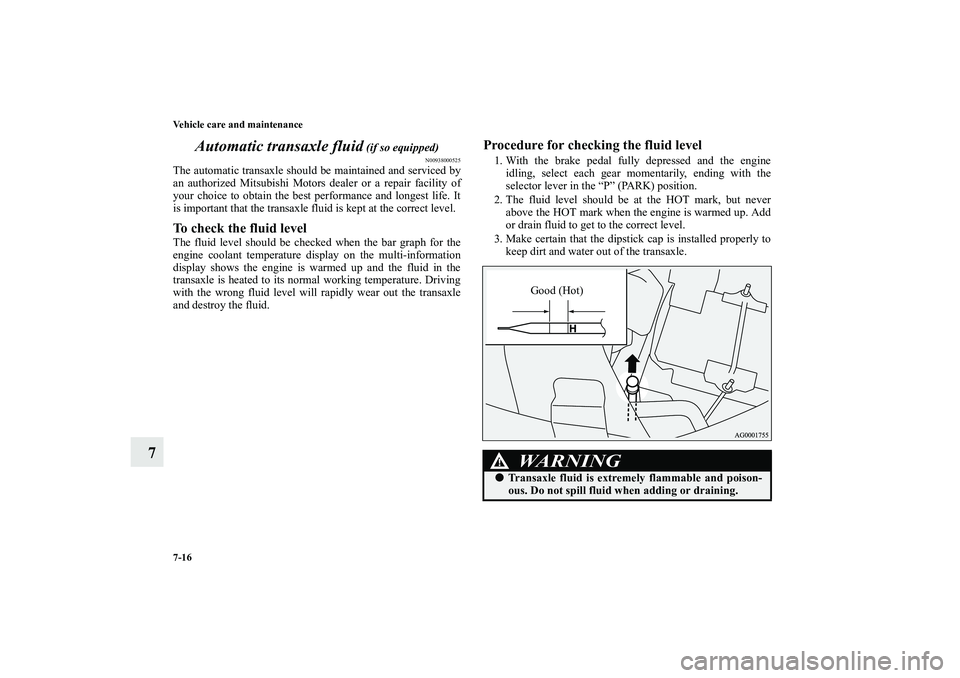

7Automatic transaxle fluid
(if so equipped)
N00938000525
The automatic transaxle should be maintained and serviced by
an authorized Mitsubishi Motors dealer or a repair facility of
your choice to obtain the best performance and longest life. It
is important that the transaxle fluid is kept at the correct level.To check the fluid levelThe fluid level should be checked when the bar graph for the
engine coolant temperature display on the multi-information
display shows the engine is warmed up and the fluid in the
transaxle is heated to its normal working temperature. Driving
with the wrong fluid level will rapidly wear out the transaxle
and destroy the fluid.
Procedure for checking the fluid level1. With the brake pedal fully depressed and the engine
idling, select each gear momentarily, ending with the
selector lever in the “P” (PARK) position.
2. The fluid level should be at the HOT mark, but never
above the HOT mark when the engine is warmed up. Add
or drain fluid to get to the correct level.
3. Make certain that the dipstick cap is installed properly to
keep dirt and water out of the transaxle.
WA R N I N G
!

Transaxle fluid is extremely flammable and poison-
ous. Do not spill fluid when adding or draining.
Good (Hot)
BK0115300US.book 16 ページ ２００９年７月１６日　木曜日　午前９時１３分

Vehicle care and maintenance
7-17
7

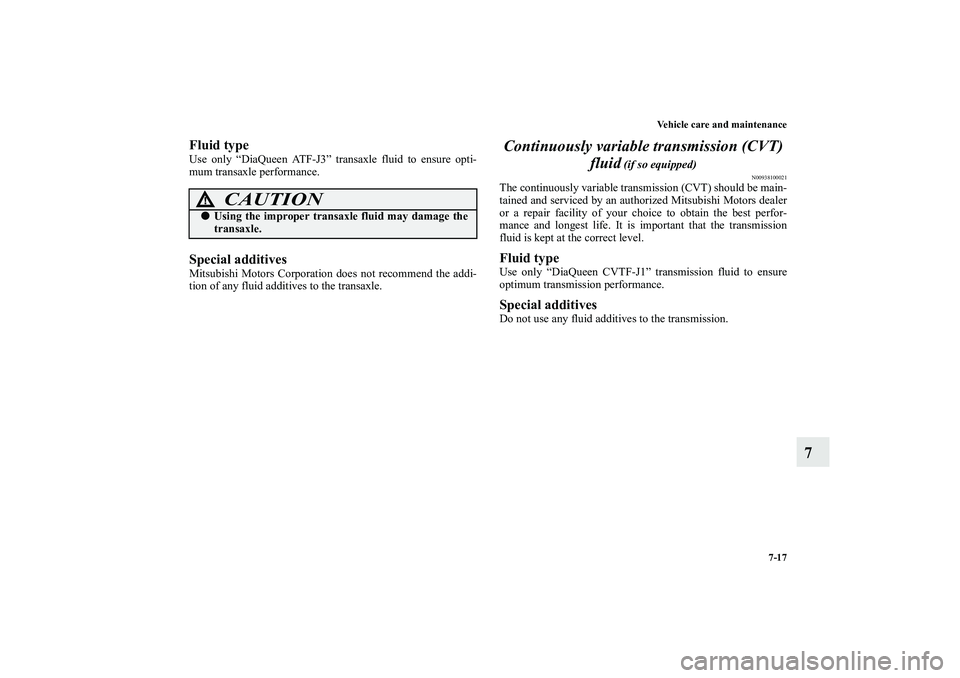

Fluid typeUse only “DiaQueen ATF-J3” transaxle fluid to ensure opti-
mum transaxle performance.Special additivesMitsubishi Motors Corporation does not recommend the addi-
tion of any fluid additives to the transaxle.
Continuously variable transmission (CVT)
fluid
(if so equipped)
N00938100021
The continuously variable transmission (CVT) should be main-
tained and serviced by an authorized Mitsubishi Motors dealer
or a repair facility of your choice to obtain the best perfor-
mance and longest life. It is important that the transmission
fluid is kept at the correct level.Fluid typeUse only “DiaQueen CVTF-J1” transmission fluid to ensure
optimum transmission performance.Special additivesDo not use any fluid additives to the transmission.
CAUTION
!

Using the improper transaxle fluid may damage the
transaxle.
BK0115300US.book 17 ページ ２００９年７月１６日　木曜日　午前９時１３分

7-18 Vehicle care and maintenance

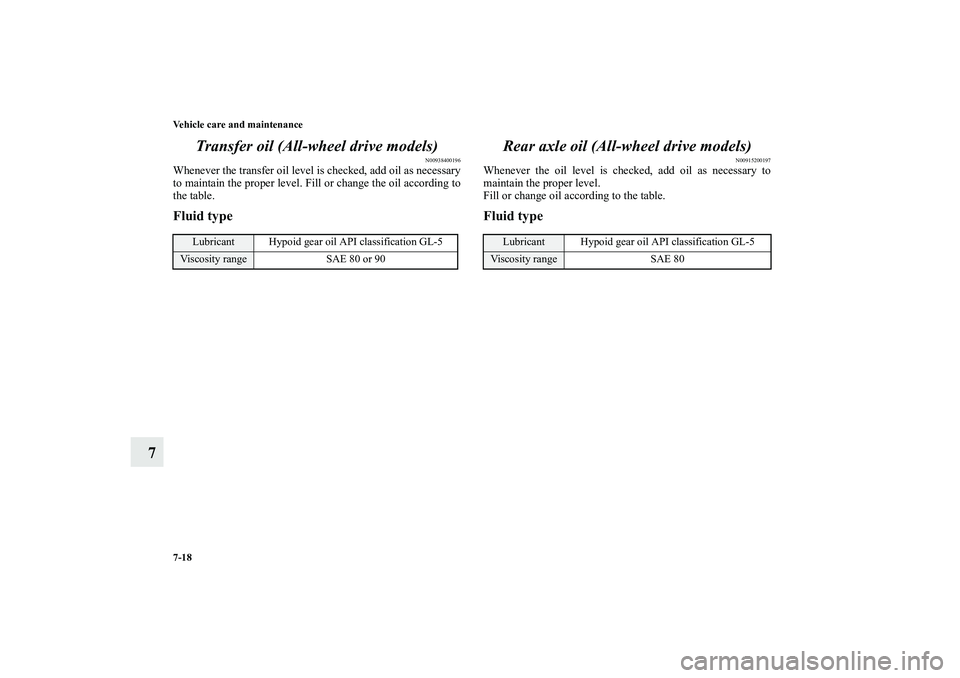

7Transfer oil (All-wheel drive models)
N00938400196
Whenever the transfer oil level is checked, add oil as necessary
to maintain the proper level. Fill or change the oil according to
the table.Fluid type
Rear axle oil (All-wheel drive models)
N00915200197
Whenever the oil level is checked, add oil as necessary to
maintain the proper level.
Fill or change oil according to the table.Fluid type
Lubricant Hypoid gear oil API classification GL-5
Viscosity range SAE 80 or 90
Lubricant Hypoid gear oil API classification GL-5
Viscosity range SAE 80
BK0115300US.book 18 ページ ２００９年７月１６日　木曜日　午前９時１３分

Vehicle care and maintenance
7-19

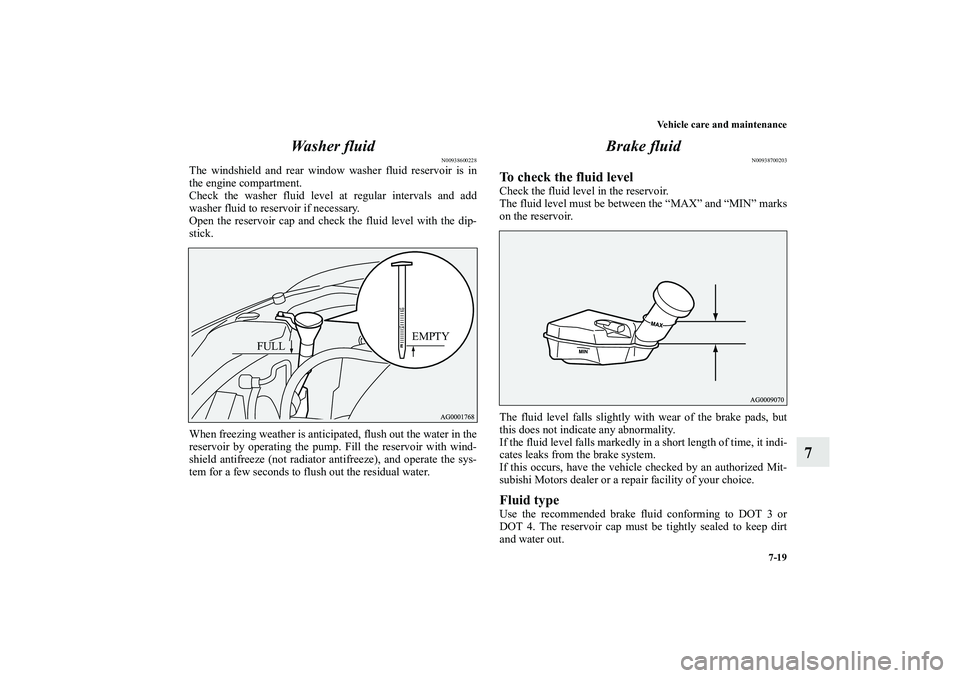

7 Wa s h e r f l u i d
N00938600228
The windshield and rear window washer fluid reservoir is in
the engine compartment.
Check the washer fluid level at regular intervals and add
washer fluid to reservoir if necessary.
Open the reservoir cap and check the fluid level with the dip-
stick.
When freezing weather is anticipated, flush out the water in the
reservoir by operating the pump. Fill the reservoir with wind-
shield antifreeze (not radiator antifreeze), and operate the sys-
tem for a few seconds to flush out the residual water.
Brake fluid
N00938700203
To check the fluid levelCheck the fluid level in the reservoir.
The fluid level must be between the “MAX” and “MIN” marks
on the reservoir.
The fluid level falls slightly with wear of the brake pads, but
this does not indicate any abnormality.
If the fluid level falls markedly in a short length of time, it indi-
cates leaks from the brake system.
If this occurs, have the vehicle checked by an authorized Mit-
subishi Motors dealer or a repair facility of your choice.Fluid typeUse the recommended brake fluid conforming to DOT 3 or
DOT 4. The reservoir cap must be tightly sealed to keep dirt
and water out.
FULLEMPTY
BK0115300US.book 19 ページ ２００９年７月１６日　木曜日　午前９時１３分

7-20 Vehicle care and maintenance
7Power steering fluid
N00939000261

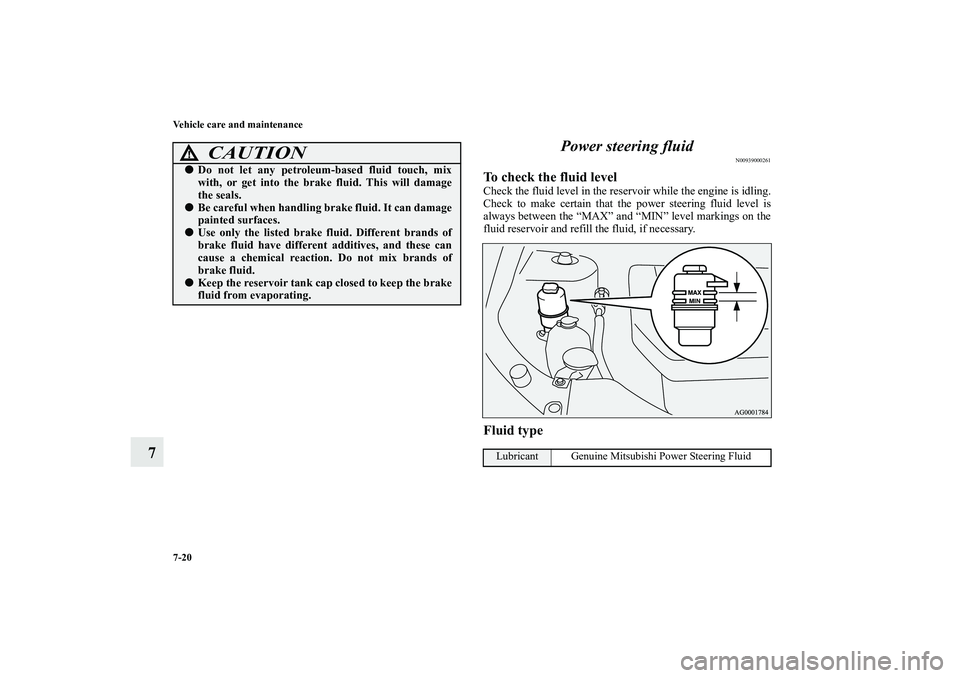

To check the fluid levelCheck the fluid level in the reservoir while the engine is idling.
Check to make certain that the power steering fluid level is
always between the “MAX” and “MIN” level markings on the
fluid reservoir and refill the fluid, if necessary.Fluid type
CAUTION
!

Do not let any petroleum-based fluid touch, mix
with, or get into the brake fluid. This will damage
the seals.


Be careful when handling brake fluid. It can damage
painted surfaces.


Use only the listed brake fluid. Different brands of
brake fluid have different additives, and these can
cause a chemical reaction. Do not mix brands of
brake fluid.


Keep the reservoir tank cap closed to keep the brake
fluid from evaporating.
Lubricant Genuine Mitsubishi Power Steering Fluid
BK0115300US.book 20 ページ ２００９年７月１６日　木曜日　午前９時１３分

Vehicle care and maintenance
7-21
7 Battery
N00939100839

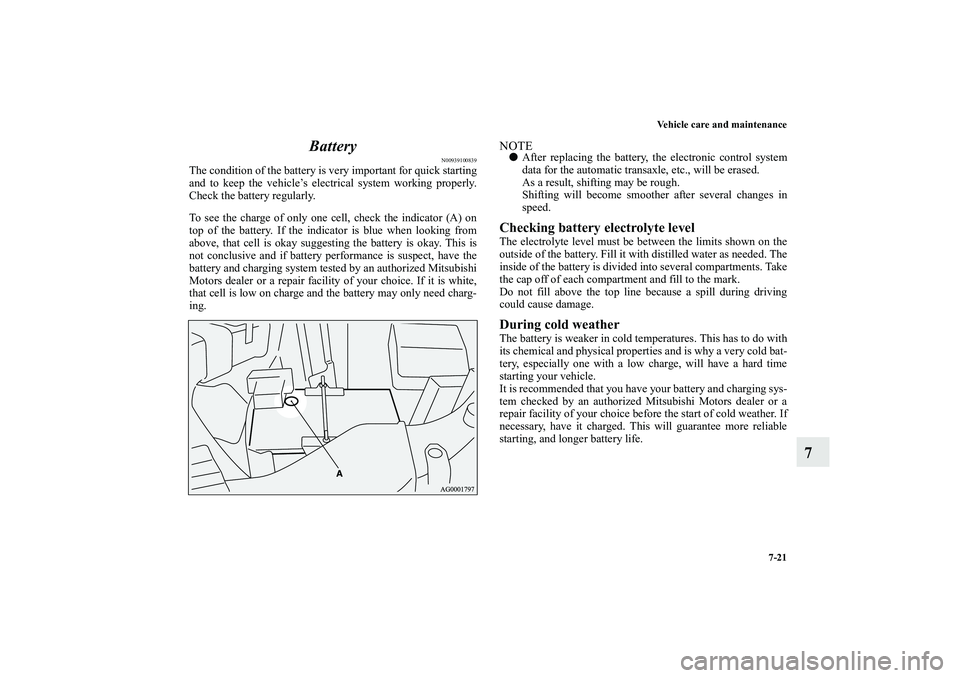

The condition of the battery is very important for quick starting
and to keep the vehicle’s electrical system working properly.
Check the battery regularly.
To see the charge of only one cell, check the indicator (A) on
top of the battery. If the indicator is blue when looking from
above, that cell is okay suggesting the battery is okay. This is
not conclusive and if battery performance is suspect, have the
battery and charging system tested by an authorized Mitsubishi
Motors dealer or a repair facility of your choice. If it is white,
that cell is low on charge and the battery may only need charg-
ing.
NOTE

After replacing the battery, the electronic control system
data for the automatic transaxle, etc., will be erased.
As a result, shifting may be rough.
Shifting will become smoother after several changes in
speed.
Checking battery electrolyte levelThe electrolyte level must be between the limits shown on the
outside of the battery. Fill it with distilled water as needed. The
inside of the battery is divided into several compartments. Take
the cap off of each compartment and fill to the mark.
Do not fill above the top line because a spill during driving
could cause damage.During cold weatherThe battery is weaker in cold temperatures. This has to do with
its chemical and physical properties and is why a very cold bat-
tery, especially one with a low charge, will have a hard time
starting your vehicle.
It is recommended that you have your battery and charging sys-
tem checked by an authorized Mitsubishi Motors dealer or a
repair facility of your choice before the start of cold weather. If
necessary, have it charged. This will guarantee more reliable
starting, and longer battery life.
BK0115300US.book 21 ページ ２００９年７月１６日　木曜日　午前９時１３分

7-22 Vehicle care and maintenance
7

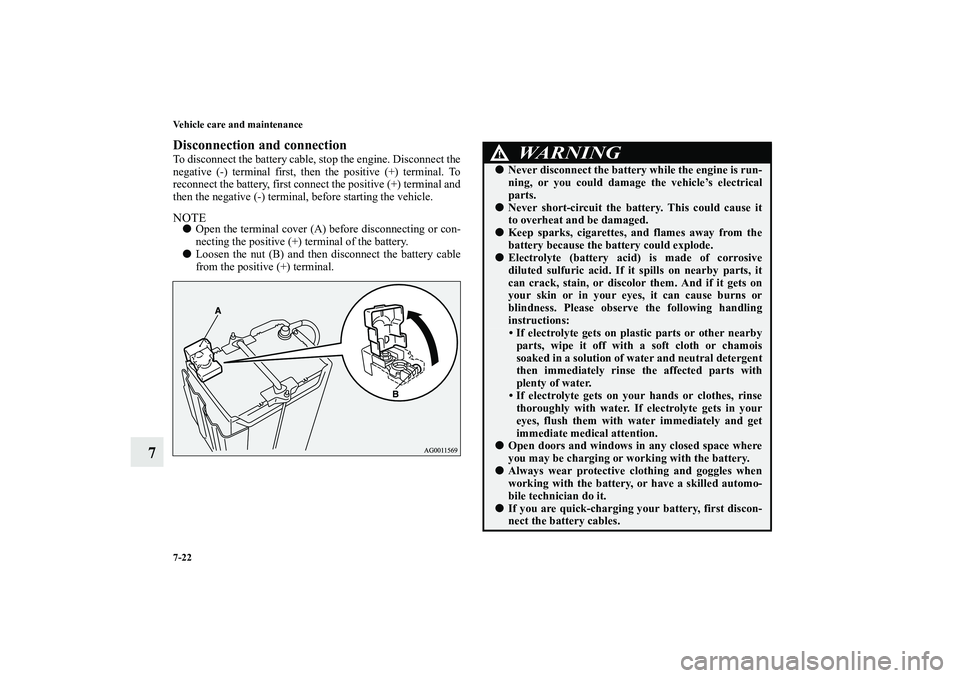

Disconnection and connectionTo disconnect the battery cable, stop the engine. Disconnect the
negative (-) terminal first, then the positive (+) terminal. To
reconnect the battery, first connect the positive (+) terminal and
then the negative (-) terminal, before starting the vehicle.NOTE

Open the terminal cover (A) before disconnecting or con-
necting the positive (+) terminal of the battery.


Loosen the nut (B) and then disconnect the battery cable
from the positive (+) terminal.
WA R N I N G
!

Never disconnect the battery while the engine is run-
ning, or you could damage the vehicle’s electrical
parts.


Never short-circuit the battery. This could cause it
to overheat and be damaged.


Keep sparks, cigarettes, and flames away from the
battery because the battery could explode.


Electrolyte (battery acid) is made of corrosive
diluted sulfuric acid. If it spills on nearby parts, it
can crack, stain, or discolor them. And if it gets on
your skin or in your eyes, it can cause burns or
blindness. Please observe the following handling
instructions: If electrolyte gets on plastic parts or other nearby
parts, wipe it off with a soft cloth or chamois
soaked in a solution of water and neutral detergent
then immediately rinse the affected parts with
plenty of water.
 If electrolyte gets on your hands or clothes, rinse
thoroughly with water. If electrolyte gets in your
eyes, flush them with water immediately and get
immediate medical attention.


Open doors and windows in any closed space where
you may be charging or working with the battery.


Always wear protective clothing and goggles when
working with the battery, or have a skilled automo-
bile technician do it.


If you are quick-charging your battery, first discon-
nect the battery cables.
BK0115300US.book 22 ページ ２００９年７月１６日　木曜日　午前９時１３分

Vehicle care and maintenance
7-23
7
NOTE

Check each battery terminal for corrosion. You can stop
more corrosion by washing with a solution of baking soda
and water. Grease the posts and clamps after cleaning or
tightening them.


Check to see that the battery is securely installed and can-
not be moved. Also check each terminal for tightness.


If you will not be driving your vehicle for a long period of
time, remove the battery and store it in a place where the
battery fluid will not freeze. The battery only should be
stored with a full charge.


Before cleaning the battery, tighten all the filler port caps
to keep dirt and moisture out.

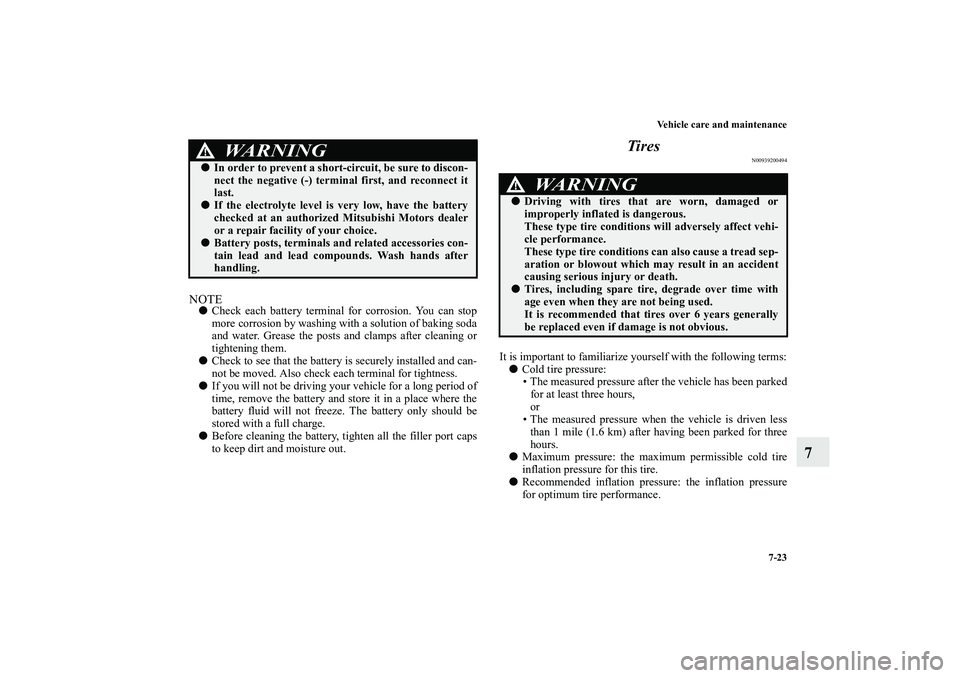

Tires
N00939200494
It is important to familiarize yourself with the following terms:

Cold tire pressure:
 The measured pressure after the vehicle has been parked
for at least three hours,
or
 The measured pressure when the vehicle is driven less
than 1 mile (1.6 km) after having been parked for three
hours.


Maximum pressure: the maximum permissible cold tire
inflation pressure for this tire.


Recommended inflation pressure: the inflation pressure
for optimum tire performance.


In order to prevent a short-circuit, be sure to discon-
nect the negative (-) terminal first, and reconnect it
last.


If the electrolyte level is very low, have the battery
checked at an authorized Mitsubishi Motors dealer
or a repair facility of your choice.


Battery posts, terminals and related accessories con-
tain lead and lead compounds. Wash hands after
handling.WA R N I N G
!
WA R N I N G
!

Driving with tires that are worn, damaged or
improperly inflated is dangerous.
These type tire conditions will adversely affect vehi-
cle performance.
These type tire conditions can also cause a tread sep-
aration or blowout which may result in an accident
causing serious injury or death.


Tires, including spare tire, degrade over time with
age even when they are not being used.
It is recommended that tires over 6 years generally
be replaced even if damage is not obvious.
BK0115300US.book 23 ページ ２００９年７月１６日　木曜日　午前９時１３分
