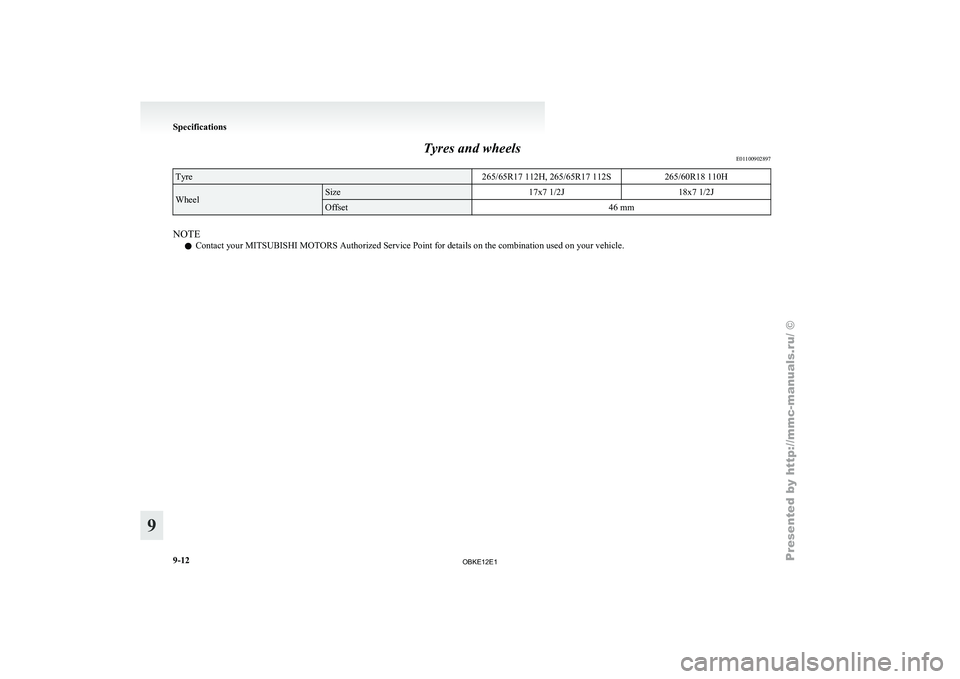

Tyres and wheels
E01100902897Tyre
265/65R17 112H, 265/65R17 112S265/60R18 110HWheel Size
17x7 1/2J18x7 1/2J Offset
46 mmNOTE
l Contact your MITSUBISHI MOTORS Authorized Service Point for details on the combination used on your vehicle. Specifications
9-12
9

OBKE12E1

Fuel consumption
E01101100661
3-door models Model Combined Urban conditions Extra-urban conditions
CO
2 (g/km) Fuel consumption
(L/100 km) CO
2 (g/km) Fuel consumption
(L/100 km) CO
2 (g/km) Fuel consumption
(L/100 km) 3200 models M/T
*1
207 7.8251 9.5181 6.9 M/T
*2
221 8.4271 10.3 1937.3 A/T
*1
216 8.2263 10.0 1897.2 A/T
*2
239 9.0286 10.8 2128.0 A/T
*3
220 8.4262 10.0 1967.43800 models
32213.4 42017.6 26711.2
*1 : Vehicles except for Russia, Ukraine and Kazakhstan
*2 : Vehicles for Russia, Ukraine and Kazakhstan
*3 : Vehicles with only the front seat NOTE
l The values shown above apply to a vehicle on which optional equipment has not been fitted.
l The results given do not express or imply any guarantee of the fuel consumption of the particular vehicle.
The
vehicle itself
has not been tested and there are inevitably differences between individual vehicles of the same model. In addition, this vehicle may incor-
porate particular modifications. Furthermore, the driver’s style and road and traffic conditions, as well as the extent to which the vehicle has been driven and
the standard of maintenance, will all affect its fuel consumption. Specifications
9-13 9

OBKE12E1

5-door models
Model Combined Urban conditions Extra-urban conditions
CO
2 (g/km) Fuel consumption
(L/100 km) CO
2 (g/km) Fuel consumption
(L/100 km) CO
2 (g/km) Fuel consumption
(L/100 km) 3000 models M/T
287 12.2 37215.8 23710.0 A/T
288 12.2 37515.9 23710.03200 models M/T
*1
213 8.1254 9.6189 7.2 M/T
*2
221 8.427110.3 1937.3 A/T
*1
224 8.526710.1 1997.5 A/T
*2
239 9.028610.8 2128.0 A/T
*3
228 8.626610.1 2067.83800 models
32413.5 42317.7 26811.2
*1 : Vehicles except for Russia, Ukraine and Kazakhstan
*2 : Vehicles for Russia, Ukraine and Kazakhstan
*3 : Vehicles with only the front seat NOTE
l The values shown above apply to a vehicle on which optional equipment has not been fitted.
l The results given do not express or imply any guarantee of the fuel consumption of the particular vehicle.
The
vehicle itself
has not been tested and there are inevitably differences between individual vehicles of the same model. In addition, this vehicle may incor-
porate particular modifications. Furthermore, the driver’s style and road and traffic conditions, as well as the extent to which the vehicle has been driven and
the standard of maintenance, will all affect its fuel consumption. Specifications
9-14
9

OBKE12E1

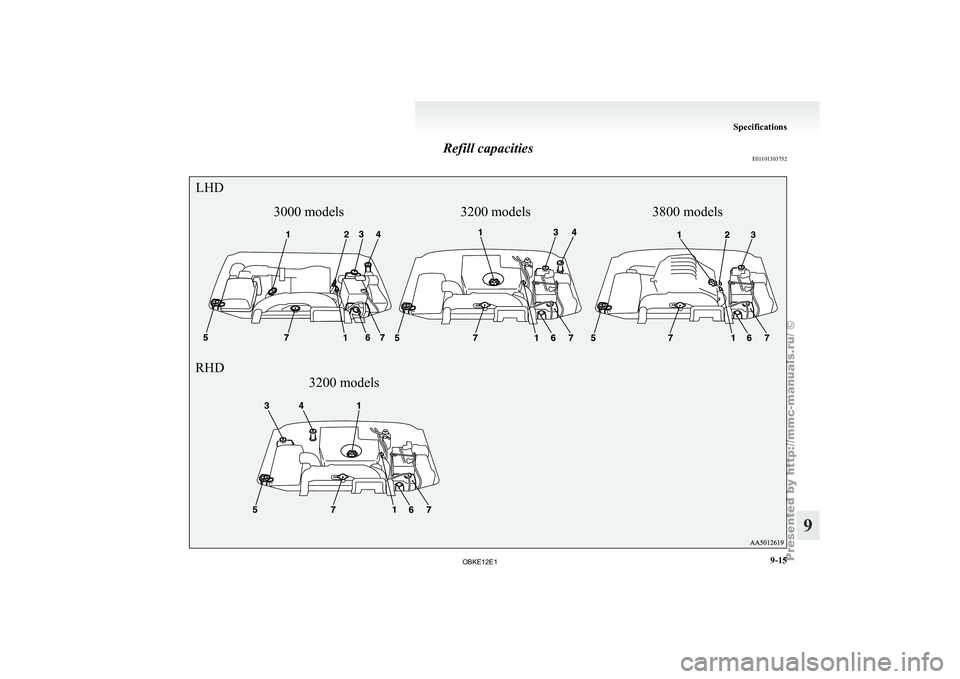

Refill capacities
E011013037523000 models3200 models
3200 models 3800 models
LHD
RHD Specifications
9-15 9

OBKE12E1

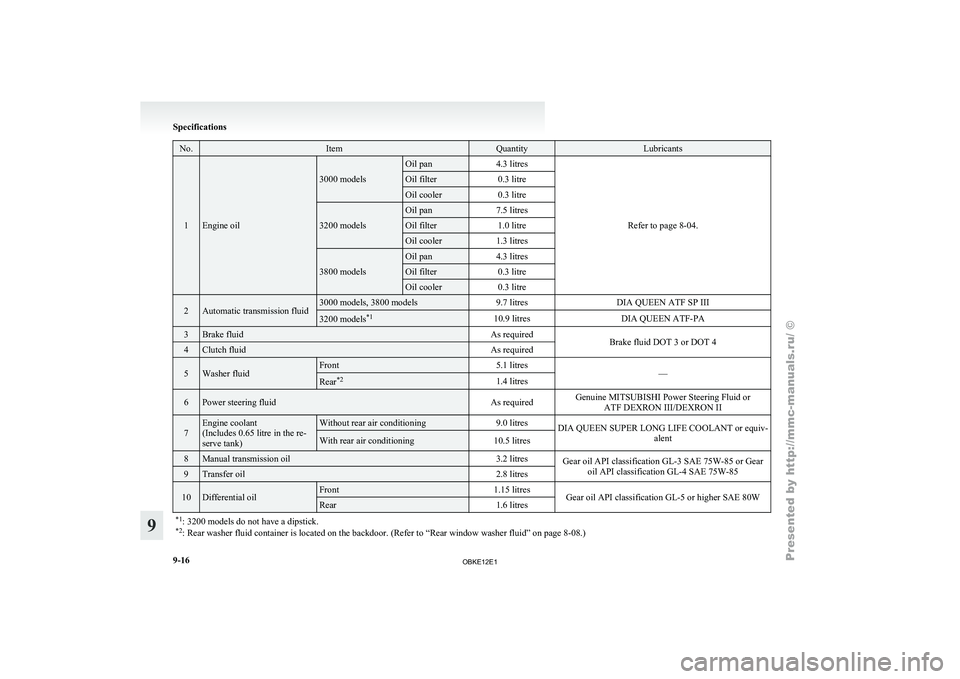

No. Item Quantity Lubricants
1 Engine oil 3000 models Oil pan
4.3 litres
Refer to page 8-04. Oil filter
0.3 litre Oil cooler
0.3 litre 3200 models Oil pan
7.5 litres Oil filter
1.0 litre Oil cooler
1.3 litres 3800 models Oil pan
4.3 litres Oil filter
0.3 litre Oil cooler
0.3 litre2 Automatic transmission fluid 3000 models, 3800 models
9.7 litresDIA QUEEN ATF SP III 3200 models
*1
10.9 litresDIA QUEEN ATF-PA3 Brake fluid
As required
Brake fluid DOT 3 or DOT 44 Clutch fluid
As required5 Washer fluid Front
5.1 litres
— Rear
*2
1.4 litres6 Power steering fluid
As requiredGenuine MITSUBISHI Power Steering Fluid or
ATF DEXRON III/DEXRON II 7 Engine coolant
(Includes 0.65 litre in the re-
serve tank) Without rear air conditioning
9.0 litres
DIA QUEEN SUPER LONG LIFE COOLANT or equiv-
alent With rear air conditioning
10.5 litres8 Manual transmission oil
3.2 litres
Gear oil API classification GL-3 SAE 75W-85 or Gear
oil API classification GL-4 SAE 75W-85 9 Transfer oil
2.8 litres10 Differential oil Front
1.15 litres
Gear oil API classification GL-5 or higher SAE 80W Rear
1.6 litres
*1 : 3200 models do not have a dipstick.
*2 : Rear washer fluid container is located on the backdoor. (Refer to “Rear window washer fluid” on page 8-08.)Specifications
9-16
9

OBKE12E1

No. Item Quantity Lubricants
11 Refrigerant
(air conditioning) Without rear air conditioning
530 - 570 g
HFC-134a With rear air conditioning
850 - 890 g
*1 : 3200 models do not have a dipstick.
*2 : Rear washer fluid container is located on the backdoor. (Refer to “Rear window washer fluid” on page 8-08.) Specifications
9-17 9

OBKE12E1

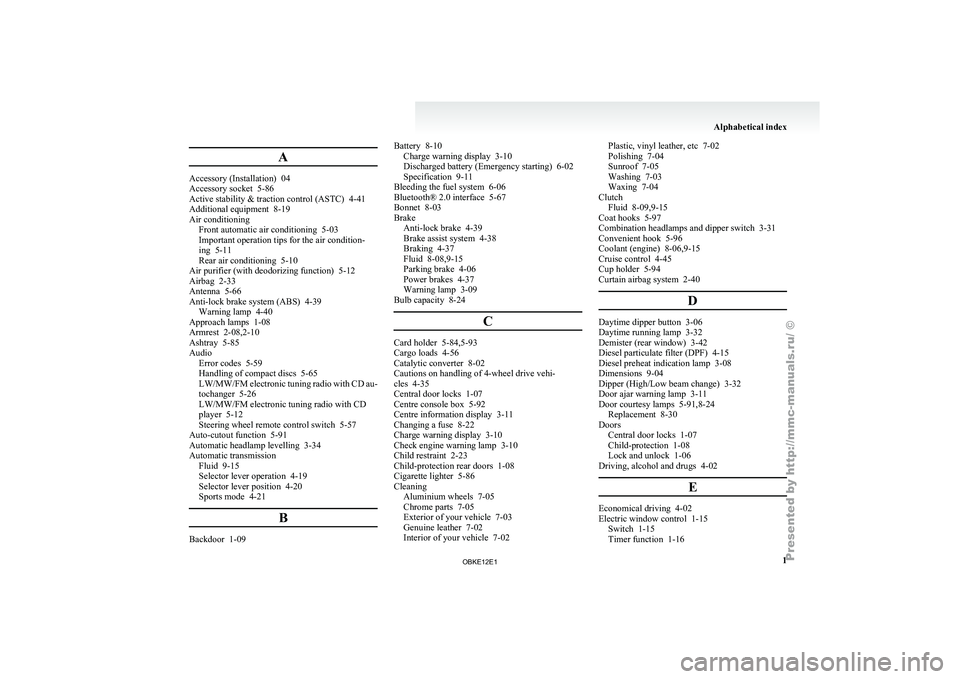

OBKE12E1
