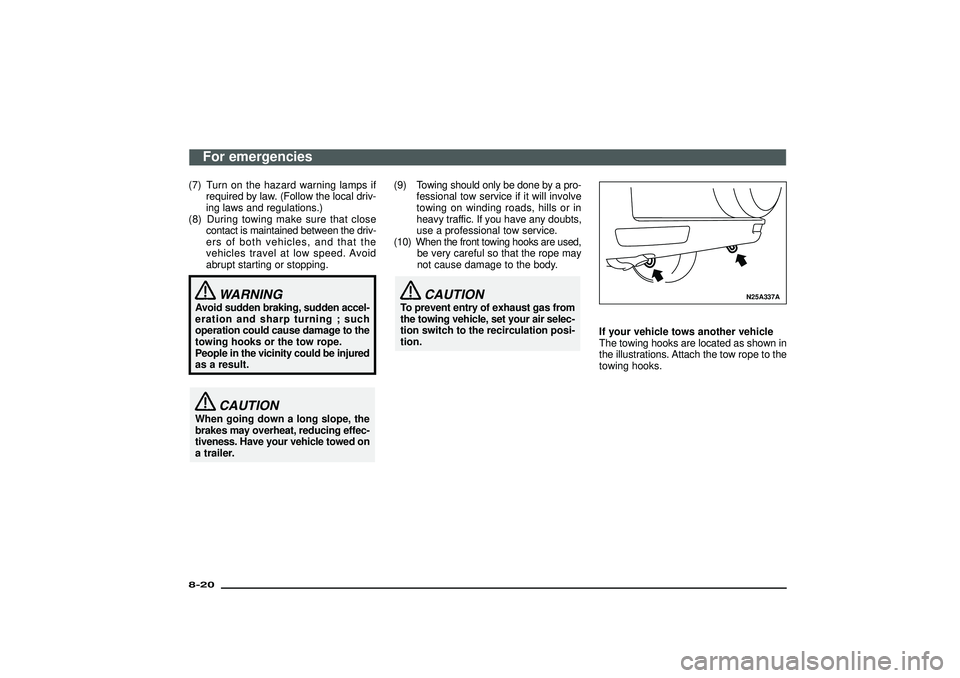

(7) Turn on the hazard warning lamps if
required by law. (Follow the local driv-
ing laws and regulations.)
(8) During towing make sure that close
contact is maintained between the driv-
ers of both vehicles, and that the
vehicles travel at low speed. Avoid
abrupt starting or stopping.
WARNING
Avoid sudden braking, sudden accel-
eration and sharp turning ; such
operation could cause damage to the
towing hooks or the tow rope.
People in the vicinity could be injured
as a result.
CAUTION
When going down a long slope, the
brakes may overheat, reducing effec-
tiveness. Have your vehicle towed on
a trailer.(9) Towing should only be done by a pro-
fessional tow service if it will involve
towing on winding roads, hills or in
heavy traffic. If you have any doubts,
use a professional tow service.
(10) When the front towing hooks are used,
be very careful so that the rope may
not cause damage to the body.
CAUTION
To prevent entry of exhaust gas from
the towing vehicle, set your air selec-
tion switch to the recirculation posi-
tion.
N25A337A
If your vehicle tows another vehicle
The towing hooks are located as shown in
the illustrations. Attach the tow rope to the
towing hooks.
For emergencies
8-20Div:
Out put date:

CAUTION

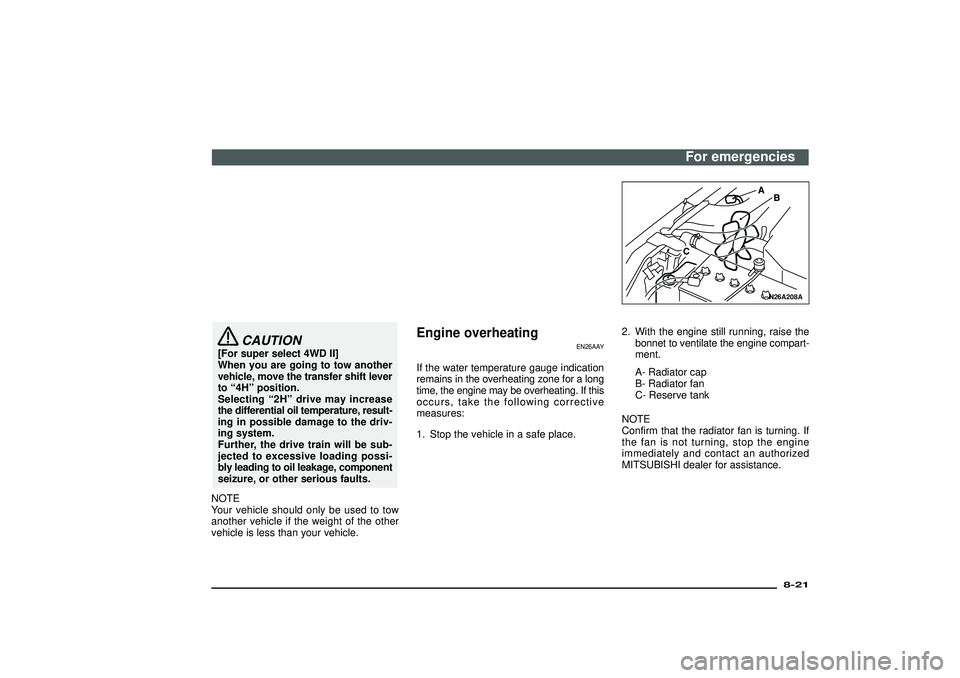

[For super select 4WD II]
When you are going to tow another
vehicle, move the transfer shift lever
to“4H”position.
Selecting“2H”drive may increase
the differential oil temperature, result-
ing in possible damage to the driv-
ing system.
Further, the drive train will be sub-
jected to excessive loading possi-
bly leading to oil leakage, component
seizure, or other serious faults.
NOTE
Your vehicle should only be used to tow
another vehicle if the weight of the other
vehicle is less than your vehicle.
Engine overheating
EN26AAY
If the water temperature gauge indication
remains in the overheating zone for a long
time, the engine may be overheating. If this
occurs, take the following corrective
measures:
1. Stop the vehicle in a safe place.
N26A208A
2. With the engine still running, raise the
bonnet to ventilate the engine compart-
ment.
A- Radiator cap
B- Radiator fan
C- Reserve tank
NOTE
Confirm that the radiator fan is turning. If
the fan is not turning, stop the engine
immediately and contact an authorized
MITSUBISHI dealer for assistance.
For emergencies
8-21
Div:
Out put date:

Tyre inflation pressure
EM13AOIbar (kPa)
To 5 passengers To max. load At trailer towing
Front Rear Front Rear Front Rear
235/80R16 109S2.0 (200),
2.0 (200)*2.0 (200),
2.1 (210)*2.0 (200),
2.0 (200)*2.2 (220),
2.4 (240)*2.0 (200) 2.4 (240)
265/70R16 112H2.0 (200),
2.0 (200)*2.0 (200),
2.0 (200)*2.0 (200),
2.0 (200)*2.0 (200),
2.3 (230)*2.0 (200) 2.4 (240)
265/70R16 112S2.0 (200),
2.0 (200)*2.0 (200),
2.0 (200)*2.0 (200),
2.0 (200)*2.0 (200),
2.2 (220)*2.0 (200) 2.4 (240)
*: Above 160 km/h
Check the tyre inflation pressure of all the tyres while they are cold; if insufficient or excessive, adjust to the specified value.
After the tyre inflation pressure has been adjusted, check the tyres for damage and air leaks. Be sure to put rubber caps on the valves.
Maintenance
9-14Div:
Out put date:

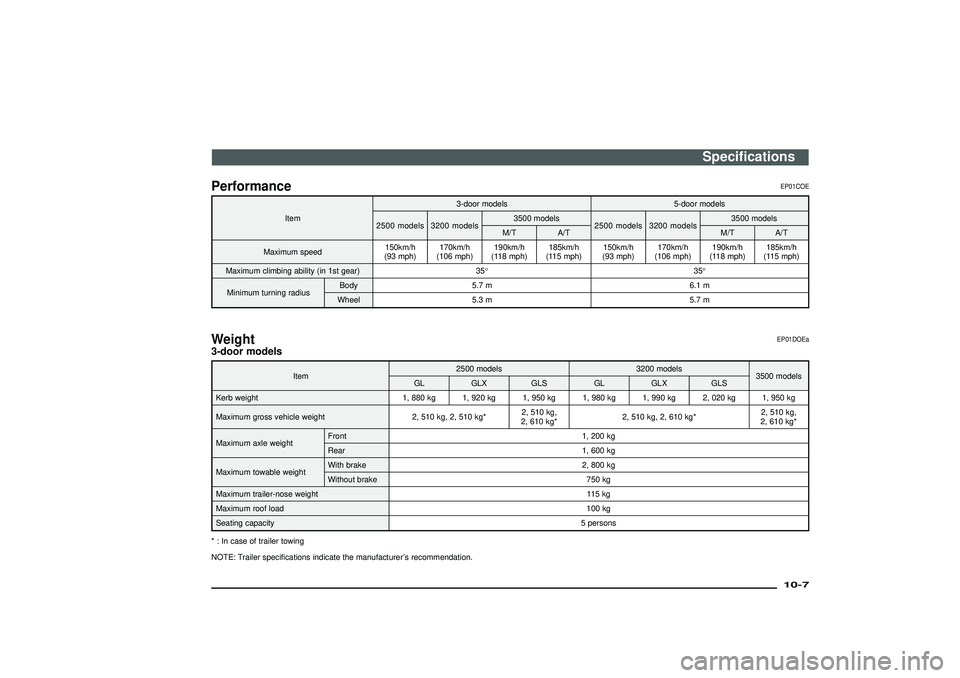

Performance
EP01COE
Item3-door models 5-door models
2500 models 3200 models3500 models
2500 models 3200 models3500 models
M/T A/T M/T A/T
Maximum speed150km/h
(93 mph)170km/h
(106 mph)190km/h
(118 mph)185km/h
(115 mph)150km/h
(93 mph)170km/h
(106 mph)190km/h
(118 mph)185km/h
(115 mph)
Maximum climbing ability (in 1st gear) 35°35°
Minimum turning radiusBody 5.7 m 6.1 m
Wheel 5.3 m 5.7 m
Weight
EP01DOEa
3-door models
Item2500 models 3200 models
3500 models
GL GLX GLS GL GLX GLS
Kerb weight 1, 880 kg 1, 920 kg 1, 950 kg 1, 980 kg 1, 990 kg 2, 020 kg 1, 950 kg
Maximum gross vehicle weight 2, 510 kg, 2, 510 kg*2, 510 kg,
2, 610 kg*2, 510 kg, 2, 610 kg*2, 510 kg,
2, 610 kg*
Maximum axle weightFront 1, 200 kg
Rear 1, 600 kg
Maximum towable weightWith brake 2, 800 kg
Without brake 750 kg
Maximum trailer-nose weight11 5 k g
Maximum roof load100 kg
Seating capacity5 persons
* : In case of trailer towing
NOTE: Trailer specifications indicate the manufacturer’s recommendation.
Specifications
10-7
Div:
Out put date:

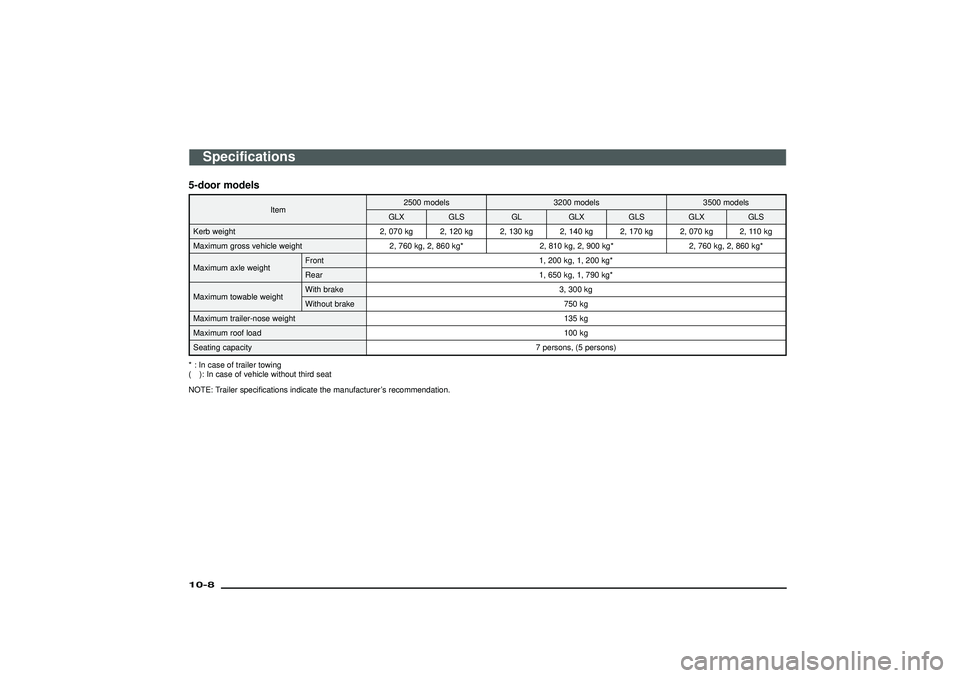

5-door models
Item2500 models 3200 models 3500 models
GLX GLS GL GLX GLS GLX GLS
Kerb weight 2, 070 kg 2, 120 kg 2, 130 kg 2, 140 kg 2, 170 kg 2, 070 kg 2, 110 kg
Maximum gross vehicle weight 2, 760 kg, 2, 860 kg* 2, 810 kg, 2, 900 kg* 2, 760 kg, 2, 860 kg*
Maximum axle weightFront 1, 200 kg, 1, 200 kg*
Rear 1, 650 kg, 1, 790 kg*
Maximum towable weightWith brake 3, 300 kg
Without brake 750 kg
Maximum trailer-nose weight135 kg
Maximum roof load100 kg
Seating capacity7 persons, (5 persons)
* : In case of trailer towing
( ): In case of vehicle without third seat
NOTE: Trailer specifications indicate the manufacturer’s recommendation.
Specifications
10-8Div:
Out put date:

Parking ............................................................... 5-43
Parking brake ..................................................... 5-42
Parking brake lever stroke ................................. 9-19
Part time 4WD ................................................... 5-24
Performance ...................................................... 10-7
Power steering fluid ............................................. 9-9
Power steering system ...................................... 5-49
Pregnant women restraint .................................. 3-41
Rear differential lock .......................................... 5-34
Rear fog lamp switch ......................................... 4-22
Rear heater/Rear air conditioning ...................... 6-52
Rear seat (3-door models)/Second seat (5-door models) ......................... 3-12
Rear shelf (3-door models) ................................ 6-69
Rear side/quarter window .................................. 2-15
Rear window demister switch ............................ 4-21
Rear window wiper and washer switch .............. 4-19
Removal of water from the fuel filter (diesel- powered vehicles only) ...................... 8-24
Replacement of lamp bulbs ............................... 8-34
Rheostat (meter illumination control) ................. 4-23
Roof carrier precaution ....................................... 1-11
Room lamps ....................................................... 4-24
Running-in recommendations .............................. 5-2
RV meter ............................................................ 4-40
Safe driving techniques ..................................... 1-13
Seat adjustment ................................................... 3-3
Seat arrangement ................................................ 3-3
Seat belt inspection ........................................... 3-41
Seat belts ........................................................... 3-30
Side box ............................................................. 6-67
Snow tyres ......................................................... 9-16
Spare wheel ....................................................... 8-11
Speedometer ....................................................... 4-2
Starting ............................................................... 5-12
Steering wheel height adjustment ...................... 5-49
Sun visors .......................................................... 6-56
Sunroof .............................................................. 2-15
Super select 4WD II (SS4 II) ............................. 5-28
Supplemental restraint system (SRS)-air bag ... 3-42 Tachometer .......................................................... 4-3
Third seat (5-door models) ................................ 3-14
Tools and jack ...................................................... 8-3
Towing ................................................................ 8-17
Trailer towing ....................................................... 5-8
Transmission ...................................................... 10-9
Tyre chains ......................................................... 9-16
Tyre inflation pressure ....................................... 9-14
Tyre rotation ....................................................... 9-15
Tyres and wheels ............................................. 10-10
UKW/MW/LW electronic tuning radio
with CD player ................................................ 6-17
UKW/MW/LW electronic tuning radio with tape player ................................................ 6-2
Used engine oils safety instructions .................. 1-13
Vanity mirror ....................................................... 6-58
Vehicle identification number plate (RHD vehicles only) ....................................... 10-3
Vehicle information code plate ........................... 10-3
Ventilation slots .................................................. 9-21
Ventilators .......................................................... 6-35
Washer fluid ....................................................... 9-11
Water temperature gauge .................................... 4-5
Weatherstripping ................................................ 9-21
Weight ................................................................ 10-7
Wheel condition ................................................. 9-12
Windscreen wiper and washer switch ................ 4-17
Wiper blades ............................................... 7-7, 9-19
Wiper deicer switch ........................................... 4-24
Alphabetical index
10 -19
