key MITSUBISHI SHOGUN 2003 (in English) Service Manual

N25A336A

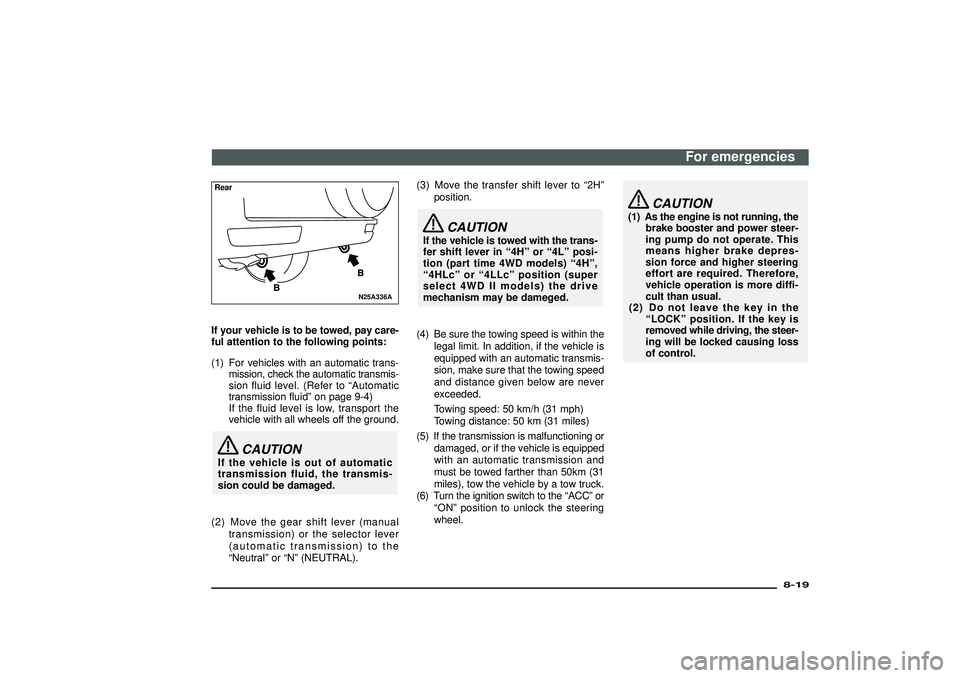

RearIf your vehicle is to be towed, pay care-
ful attention to the following points:
(1) For vehicles with an automatic trans-
mission, check the automatic transmis-
sion fluid level. (Refer to“Automatic
transmission fluid”on page 9-4)
If the fluid level is low, transport the
vehicle with all wheels off the ground.
CAUTION
If the vehicle is out of automatic
transmission fluid, the transmis-
sion could be damaged.
(2) Move the gear shift lever (manual
transmission) or the selector lever
(automatic transmission) to the
“Neutral”or“N”(NEUTRAL).(3) Move the transfer shift lever to“2H”
position.
CAUTION
If the vehicle is towed with the trans-
fer shift lever in“4H”or“4L”posi-
tion (part time 4WD models)“4H”,
“4HLc”or“4LLc”position (super
select 4WD II models) the drive
mechanism may be dameged.
(4) Be sure the towing speed is within the
legal limit. In addition, if the vehicle is
equipped with an automatic transmis-
sion, make sure that the towing speed
and distance given below are never
exceeded.
Towing speed: 50 km/h (31 mph)
Towing distance: 50 km (31 miles)
(5) If the transmission is malfunctioning or
damaged, or if the vehicle is equipped
with an automatic transmission and
must be towed farther than 50km (31
miles), tow the vehicle by a tow truck.
(6) Turn the ignition switch to the“ACC”or
“ON”position to unlock the steering
wheel.
CAUTION
(1) As the engine is not running, the
brake booster and power steer-
ing pump do not operate. This
means higher brake depres-
sion force and higher steering
effort are required. Therefore,
vehicle operation is more diffi-
cult than usual.
(2) Do not leave the key in the
“LOCK”position. If the key is
removed while driving, the steer-
ing will be locked causing loss
of control.
For emergencies
8-19
Div:
Out put date:

CAUTION
(1) Do not smoke or have any other
open flame near the vehicle
while bleeding the fuel system.
(2) Be sure to carefully clean away
any spilt fuel which could ignite
and cause a fire.
N07B021A

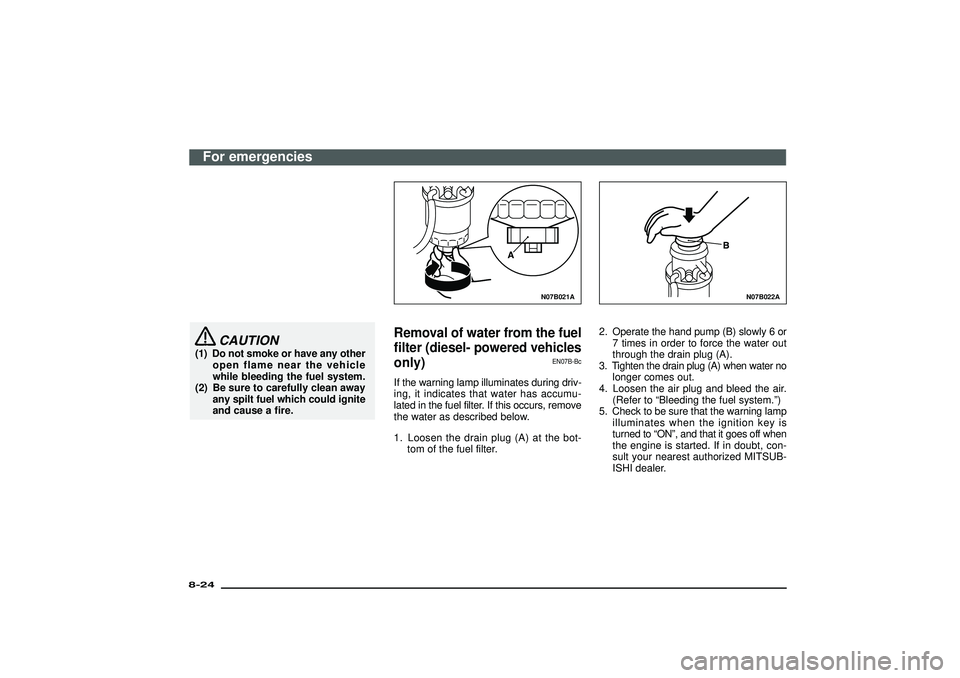

Removal of water from the fuel
filter (diesel- powered vehicles
only)
EN07B-Bc
If the warning lamp illuminates during driv-
ing, it indicates that water has accumu-
lated in the fuel filter. If this occurs, remove
the water as described below.
1. Loosen the drain plug (A) at the bot-
tom of the fuel filter.
N07B022A
2. Operate the hand pump (B) slowly 6 or
7 times in order to force the water out
through the drain plug (A).
3. Tighten the drain plug (A) when water no
longer comes out.
4. Loosen the air plug and bleed the air.
(Refer to“Bleeding the fuel system.”)
5. Check to be sure that the warning lamp
illuminates when the ignition key is
turned to“ON”, and that it goes off when
the engine is started. If in doubt, con-
sult your nearest authorized MITSUB-
ISHI dealer.
For emergencies
8-24Div:
Out put date:

M08A023A

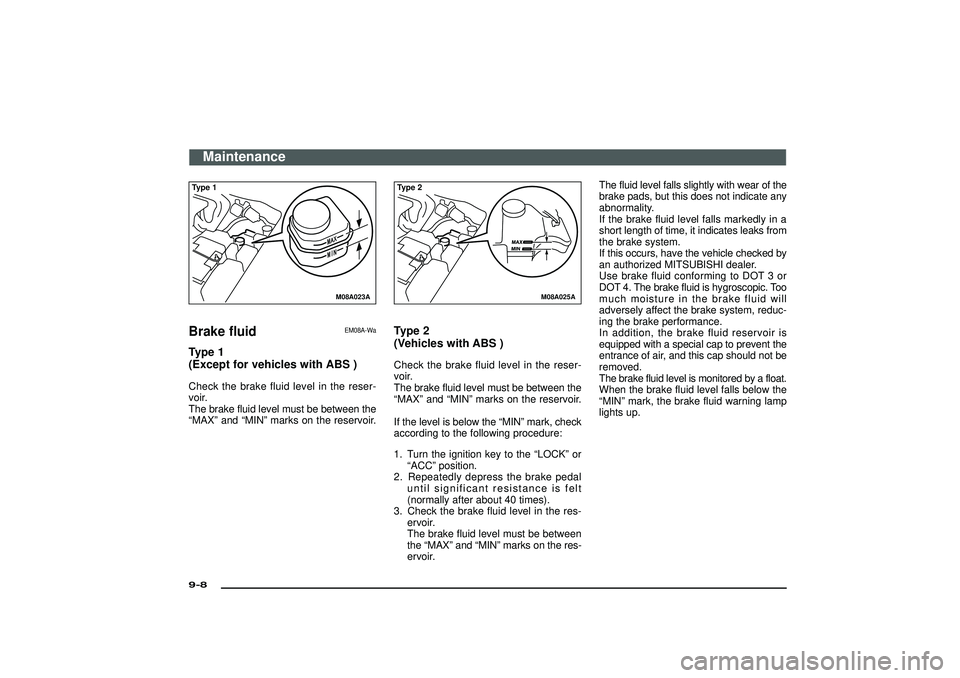

Type 1Brake fluid
EM08A-Wa
Type 1
(Except for vehicles with ABS )Check the brake fluid level in the reser-
voir.
The brake fluid level must be between the
“MAX”and“MIN”marks on the reservoir.
M08A025A
Type 2Type 2
(Vehicles with ABS )Check the brake fluid level in the reser-
voir.
The brake fluid level must be between the
“MAX”and“MIN”marks on the reservoir.
If the level is below the“MIN”mark, check
according to the following procedure:
1. Turn the ignition key to the“LOCK”or
“ACC”position.
2. Repeatedly depress the brake pedal
until significant resistance is felt
(normally after about 40 times).
3. Check the brake fluid level in the res-
ervoir.
The brake fluid level must be between
the“MAX”and“MIN”marks on the res-
ervoir.The fluid level falls slightly with wear of the
brake pads, but this does not indicate any
abnormality.
If the brake fluid level falls markedly in a
short length of time, it indicates leaks from
the brake system.
If this occurs, have the vehicle checked by
an authorized MITSUBISHI dealer.
Use brake fluid conforming to DOT 3 or
DOT 4. The brake fluid is hygroscopic. Too
much moisture in the brake fluid will
adversely affect the brake system, reduc-
ing the brake performance.
In addition, the brake fluid reservoir is
equipped with a special cap to prevent the
entrance of air, and this cap should not be
removed.
The brake fluid level is monitored by a float.
When the brake fluid level falls below the
“MIN”mark, the brake fluid warning lamp
lights up.
Maintenance
9-8Div:
Out put date:

Accessory boxes ................................................ 6-62
Accessory socket ............................................... 6-61
Additional equipment ......................................... 9-21
Air purifier ........................................................... 6-55
Antenna .............................................................. 6-35
Anti-lock brake system (ABS) ............................ 5-45
Armrest .............................................................. 3-13
Ashtray ............................................................... 6-60
Audio system anti-theft feature ......................... 6-32
Automatic air conditioning .................................. 6-43
Automatic transmission fluid ................................ 9-4
Automatic transmissionINVECS-II Sport Mode 5A/T(Intelligent & Innovative
Vehicle Electronic Control SystemII ) ........... 5-17
Auto-speed (cruise) control ................................ 5-53
Backdoor ............................................................ 2-10
Battery ................................................................. 9-6
Bleeding the fuel system (diesel-powered vehicles only) ..................... 8-23
Bonnet .................................................................. 2-9
Brake fluid ............................................................ 9-8
Brake pedal free play ......................................... 9-18
Braking ............................................................... 5-44
Capacities ........................................................ 10-16
Catalytic converter ............................................... 5-6
Cautions on handling of 4WD vehicles .............. 5-42
CD (Compact-Disc) player ................................. 6-30
Central door locks ................................................ 2-8
Changing a fuse ................................................. 8-33
Chassis number ................................................. 10-2
“Child-protection” rear doors (5-door models) ..... 2-6
Child restraint ..................................................... 3-33
Cigarette lighter .................................................. 6-59
Cleaning the inside of your vehicle ...................... 7-2
Cleaning the outside of your vehicle .................... 7-4
Clutch fluid ......................................................... 9-10
Clutch pedal free play ........................................ 9-18
Combination head lamps, dipper and turn signal switch ................................................... 4-14
Correct 4-wheel drive operation ......................... 5-38
Cup tray ............................................................. 6-65 Dimensions ........................................................ 10-6
Doors ................................................................... 2-4
Driving and alcohol ............................................ 1-13
Economical driving ............................................... 5-7
Electric remote-controlled outside
rear-view mirrors ............................................ 5-51
Electric window control ...................................... 2-12
Electrical system .............................................. 10-10
Electronic immobilizer (Anti-theft starting system) ............................... 2-2
Emergency starting ............................................ 8-25
Engine ................................................................ 10-9
Engine coolant ..................................................... 9-5
Engine number ................................................... 10-2
Engine oil ............................................................. 9-2
Engine overheating ............................................ 8-21
Exterior and interior lamp operation ................... 9-18
Front fog lamp switch ......................................... 4-22
Front heater/ Manual air conditioning .................................. 6-36
Front seat ............................................................. 3-6
Fuel consumption ............................................. 10-12
Fuel gauge ........................................................... 4-4
Fuel, engine coolant, oil and exhaust gas leakage ......................... 9-17
Fuses ................................................................. 8-28
Genuine parts .................................................... 1-12
Glove box ........................................................... 6-63
Handling of cassette tapes ................................ 6-33
Hazard warning flasher switch ........................... 4-20
Headlamp levelling switch ................................. 4-16
Headlamps washer switch ................................. 4-19
Head restraints ................................................... 3-28
Heated seats ...................................................... 3-10
Hinges and latches lubrication ........................... 9-19
Horn switch ........................................................ 4-24
How to set a CD autochanger ........................... 6-31 If a tyre is punctured .......................................... 8-13
If the vehicle breaks down ................................... 8-2
Ignition switch ..................................................... 5-11
Indication and warning lamps .............................. 4-6
Inside rear-view mirror ....................................... 5-50
Installation of accessories .................................. 1-10
Installation position for warning triangle ............. 6-67
Instruments .......................................................... 4-2
Jack and jack handle ........................................... 8-5
Jacking up the vehicle ......................................... 8-8
Keyless entry system ........................................... 2-5
Keys ..................................................................... 2-2
Limited-slip differential ....................................... 5-48
Luggage compartment lamp .............................. 4-26
Luggage floor box .............................................. 6-66
Making a flat seat ............................................... 3-26
Making a luggage area ...................................... 3-14
Manual outside rear-view mirrors ...................... 5-51
Manual transmission .......................................... 5-15
Meter, gauge and indication/
warning lamp operation .................................. 9-18
MITSUBISHI active stability & traction control system (M-ASTC) .................. 5-57
Modifications/alterations to the electric or fuel systems ................................... 1-11
Multi centre display ............................................ 4-27
Notes regarding diesel fuel .............................. 10-14
Odometer/Tripmeter ............................................. 4-3
Operation under adverse driving conditions ......................................................... 8-2
Other specifications .......................................... 10-11
Outside rear-view mirror .................................... 5-50
