MITSUBISHI SHOGUN 2008 Owner's Manual (in English)

Starting and driving
4-19
4
Starting the engine (p
etrol-powered vehicles)
E00601701297
Normal conditionsThe starting procedure is as follows: 1. Insert the ignition key and fasten the seat belt. 2. Make sure the parking brake is applied.3. Depress and hold the brake pedal. 4. Make sure the selector lever is in the “P” (PARK) posi-
tion.
5. After turning the ignition key to the “ON” position, make
certain that all warning lamps are functioning properly before starting the engine.
6. Turn the ignition key to the “START” position without
depressing the accelerator pedal, and release it when the engine starts.
NOTE●
A ticking noise may be hear
d after starting the engine.
This is not an abnormal co
ndition. The noise will disap-
pear after a short time of engine running. If the ticking noise continues after the engine is warmedup, we recommend you to have your vehicle checked.
BK-BK2008E1ENUK.en-uk-Section7.fm Page
19 Wednesday, January 9, 2008 4:36 PM

4-20 Starting and driving
4
At extreme cold ambient temperatureIf the engine won’t start, de
press the accelerator pedal about
halfway while cranking the engi
ne. Once the engine starts,
release the accelerator pedal.Flooded engineIf the engine was flooded during starting, first operate the starter for 5 to 6 seconds whil
e fully depressing the accelerator
pedal, then start the engine
without depressing the accelerator
pedal.Using the MIVEC engineThe MIVEC engine automatically switches its intake-valve control between a low-speed mo
de and a high-speed mode in
accordance with driving conditi
ons for maximum engine per-
formance.NOTE●
To protect the engine, the high-speed mode may not be selected while the engine coolant temperature is low. In such a case, the engine revo
lutions do not rise to over
5,000 rpm even if the acceler
ator pedal is depressed.
Starting the engine (d
iesel-powered vehicles)
E00601800086
1. Insert the ignition key and fasten the seat belt. 2. Make sure the parking brake is applied. 3. Depress and hold the brake pedal. 4. Fully depress the clutch pedal (M/T).5. On vehicles with M/T, place
the gearshift lever in the “N”
(Neutral) position. On vehicles with A/T, make sure the selector lever is inthe “P” (PARK) position.
6. Turn the ignition key to the “ON” position.
The diesel preheat indication lamp will first illuminate,and then after a short time go
out, indicating that preheat-
ing is completed.
CAUTION
!●
When starting the engine, make sure that you press on the brake pedal. At extreme cold ambient tem- perature move your foot
to the brake pedal immedi-
ately after the en
gine has started.
Vehicles with M/T Vehicles with A/T
BK-BK2008E1ENUK.en-uk-Section7.fm Page
20 Wednesday, January 9, 2008 4:36 PM

Starting and driving
4-21
4
NOTE●
If the engine is cold, the di
esel preheat indication lamp is
on for a longer time.
●
When the engine has not been
started within about 5 sec-
onds after the diesel preheat
indication lamp went out,
return the ignition key to the “LOCK” position. Then, turn the key to the “ON” position to preheat the engine again.
●
When the engine is warm, th
e diesel preheat indication
lamp does not come on even
if the ignition key is placed
in the “ON” position. Start the engine by turning the ignition key right to the“START” position.
7. Turn the ignition key to the “START” position without
depressing the acceler
ator pedal, and release it when the
engine starts.
Fuel injection amount learning process (diesel- powered vehicles)
E00616000044
To keep exhaust emissions and engine noise low, the engine very occasionally performs a
learning process for the fuel
injection amount. The engine sounds slightly di
fferent from usual while the
learning process is taking pl
ace. The change in the engine
sound does not indicate a fault.
BK-BK2008E1ENUK.en-uk-Section7.fm Page
21 Wednesday, January 9, 2008 4:36 PM

4-22 Starting and driving
4

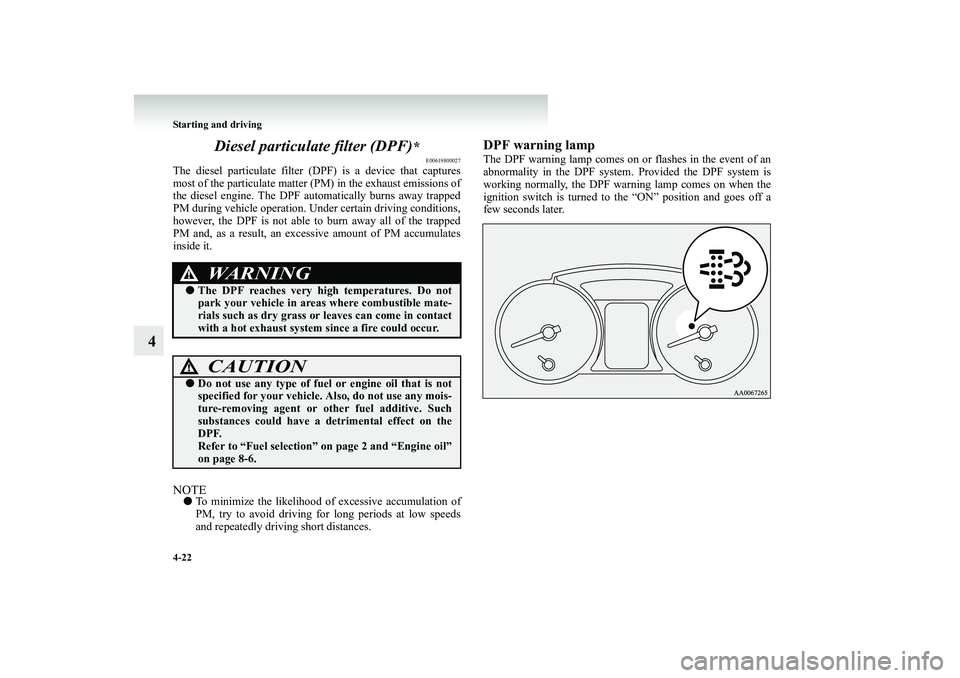

Diesel particulate filter (DPF)
*
E00619800027
The diesel particulate filter
(DPF) is a device that captures
most of the particulate matter
(PM) in the exhaust emissions of
the diesel engine. The DPF auto
matically burns away trapped
PM during vehicle operation. Under certain driving conditions, however, the DPF is not able to burn away all of the trapped PM and, as a result, an exces
sive amount of PM accumulates
inside it.NOTE●
To minimize the likelihood
of excessive accumulation of
PM, try to avoid driving for long periods at low speeds and repeatedly driv
ing short distances.
DPF warning lampThe DPF warning lamp comes on or
flashes in the event of an
abnormality in the DPF system
. Provided the DPF system is
working normally, the DPF warning lamp comes on when the ignition switch is turned to the “ON” position and goes off a few seconds later.
WARNING
!●
The DPF reaches very high temperatures. Do not park your vehicle in areas where combustible mate- rials such as dry grass or leaves can come in contact with a hot exhaust system since a fire could occur.CAUTION
!●
Do not use any type of fuel or engine oil that is not specified for your vehicle.
Also, do not use any mois-
ture-removing agent or other fuel additive. Such substances could have a de
trimental effect on the
DPF. Refer to “Fuel selection” on page 2 and “Engine oil” on page 8-6.
BK-BK2008E1ENUK.en-uk-Section7.fm Page
22 Wednesday, January 9, 2008 4:36 PM

Starting and driving
4-23
4
If the DPF warning lamp
comes on during vehicle
operationSteady illumination of the DPF warning lamp shows that the DPF has not been able to burn away all of the trapped PM and that, as a result, an excessive amount of PM has accumulatedinside it. To enable the DPF to burn away the PM, try to drive the vehicle as follows: ●
With the needle of the water temperature gauge stabilized in roughly the middle of the scale, drive for about 20 min- utes at a speed of at least 40 km/h (25 mph).
If the DPF warning lamp subsequently stays on, contact yourMITSUBISHI MOTORS Auth
orized Service Point.
If the DPF warning lamp flashes during vehicle operationFlashing of the DPF warning lamp
indicates an abnormality in
the DPF system. Have the syst
em inspected by a MITSUBISHI
MOTORS Authorized Service Point.
Manual transmission
E00602000072
The shift pattern is shown on the gearshift lever knob. Be sure to always fully depress the clutch pedal before attempting to shift the lever.
CAUTION
!●
You do not have to cont
inuously drive exactly as
indicated above. Always strive to drive safely in accordance with
road conditions.
CAUTION
!●
Continuing to drive wi
th the DPF warning lamp
flashing could result in engine trouble and DPFdamage.
CAUTION
!●
Do not move the gearshif
t lever into reverse while
the vehicle is moving forward; doing so will damage the transmission.
●
Do not rest your foot on
the clutch pedal while driv-
ing as this will cause premature clutch wear or dam- age.
BK-BK2008E1ENUK.en-uk-Section7.fm Page
23 Wednesday, January 9, 2008 4:36 PM

4-24 Starting and driving
4
NOTE●
If it is hard to shift into 1st, depress the clutch pedal again; the shift will then be easier to make.
●
To shift into reverse from the 5th gear, move the gearshift lever to the “N” (Neutral) position, and then shift it into reverse.

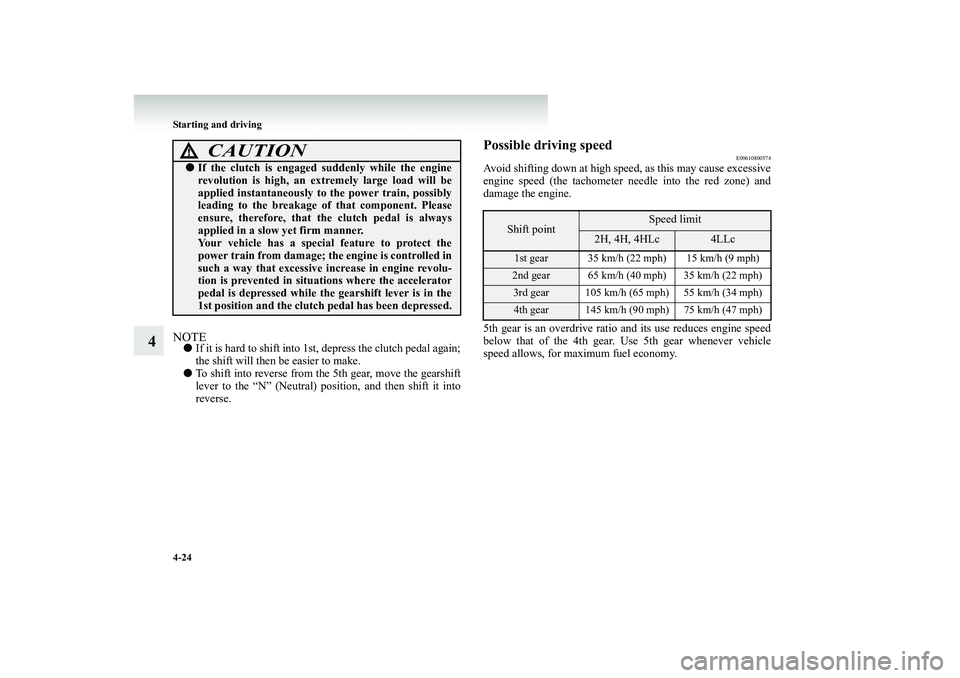

Possible driving speed
E00610800574
Avoid shifting down at high speed, as this may cause excessive engine speed (the tachometer
needle into the red zone) and
damage the engine. 5th gear is an overdrive ratio and its use reduces engine speed below that of the 4th gear. Us
e 5th gear whenever vehicle
speed allows, for maximum fuel economy.
●
If the clutch is engaged
suddenly while the engine
revolution is high, an ex
tremely large load will be
applied instantaneously to the power train, possiblyleading to the breakage of that component. Please ensure, therefore, that the clutch pedal is always applied in a slow yet firm manner.Your vehicle has a special feature to protect the power train from damage; th
e engine is controlled in
such a way that excessive in
crease in engine revolu-
tion is prevented in situ
ations where the accelerator
pedal is depressed while the gearshift lever is in the 1st position and the clutch pedal has been depressed.CAUTION
!
Shift point
Speed limit
2H, 4H, 4HLc
4LLc
1st gear 35 km/h (22 mph) 15 km/h (9 mph)2nd gear 65 km/h (40 mph) 35 km/h (22 mph)3rd gear 105 km/h (65 mph) 55 km/h (34 mph)4th gear 145 km/h (90 mph) 75 km/h (47 mph)
BK-BK2008E1ENUK.en-uk-Section7.fm Page
24 Wednesday, January 9, 2008 4:36 PM

Starting and driving
4-25
4
Automatic transmissi
on INVECS-II Sports
Mode 5A/T (Intellige
nt & Innovative Vehi-
cle Electronic Control System II)
E00603200101
Designed for optimum control and equipped with adaptive con- trol capabilities, the electronica
lly controlled transmission opti-
mally matches gear shifts to almost all driving and roadconditions.NOTE●
During running-in period or immediately after reconnec- tion of the battery cable, there may be a case where gear shifts are not made smoothly. This does not indicate afaulty transmission. Gear shifts will become smoot
h after the transmission has
been shifted several times by
the electronic control sys-
tem.
Selector lever operation
E00603300522
The transmission has 5 forwar
d gears and 1 reverse gear.
The individual gears are select
ed automatically, depending on
the position of the gear
selector lever, the speed of the vehicle
and the position of the accelerator pedal.The selector lever has 2 gates; the main gate (1) and the manual gate (2).
CAUTION
!●
This system is strictly in
tended to provide supple-
mentary functions. When travelling downhill under certain conditions or immedi
ately after st
arting off
when the automatic transmission is cold, no auto-matic shiftdown may be made. The driver should shiftdown to a lower gear to use engine braking. Try to drive safely at all time.
BK-BK2008E1ENUK.en-uk-Section7.fm Page
25 Wednesday, January 9, 2008 4:36 PM

4-26 Starting and driving
4

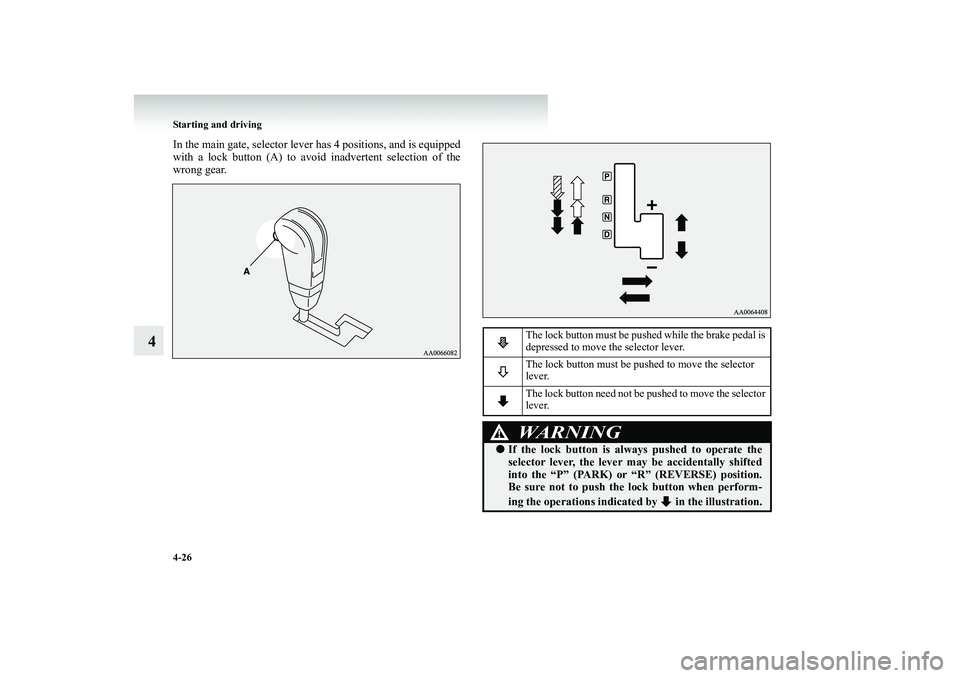

In the main gate, selector lever has 4 positions, and is equipped with a lock button (A) to avoid inadvertent selection of the wrong gear.
The lock button must be pushed while the brake pedal is depressed to move the selector lever. The lock button must be pushed to move the selector lever. The lock button need not be pushed to move the selector lever.WARNING
!●
If the lock button is alw
ays pushed to operate the
selector lever, the lever may be accidentally shifted into the “P” (PARK) or “R” (REVERSE) position.Be sure not to push the
lock button when perform-
ing the operations indicated
by in the illustration.
BK-BK2008E1ENUK.en-uk-Section7.fm Page
26 Wednesday, January 9, 2008 4:36 PM

Starting and driving
4-27
4
NOTE●
If the brake pedal is not depressed and held, the shift-lock device activates to prevent the selector lever from being moved from the “P” (PARK) position.

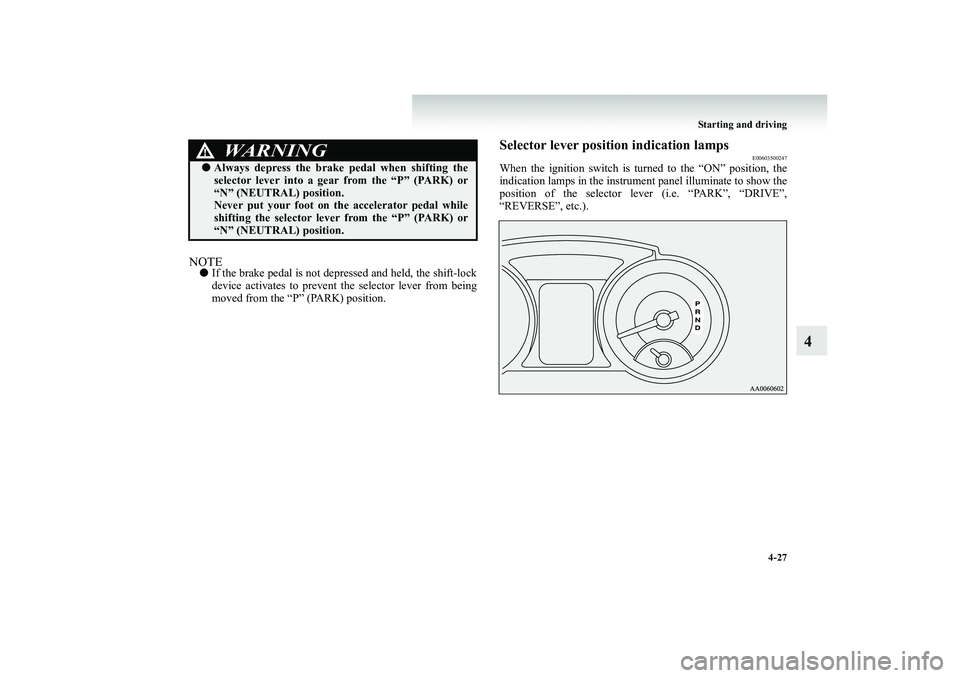

Selector lever position indication lamps
E00603500247
When the ignition switch is turned to the “ON” position, theindication lamps in the instrument panel illuminate to show the position of the selector le
ver (i.e. “PARK”, “DRIVE”,
“REVERSE”, etc.).
●
Always depress the brake
pedal when shifting the
selector lever into a gear from the “P” (PARK) or “N” (NEUTRAL) position.Never put your foot on
the accelerator pedal while
shifting the selector lever from the “P” (PARK) or “N” (NEUTRAL) position.WARNING
!
BK-BK2008E1ENUK.en-uk-Section7.fm Page
27 Wednesday, January 9, 2008 4:36 PM

4-28 Starting and driving
4
Selector lever po
sitions (Main gate)
E00603800400
“P” PARKThis position locks the transmis
sion to prevent the vehicle
from moving. The engine can be started in this position.“R” REVERSEThis position is to back up.
“N” NEUTRALAt this position the transmission is disengaged. It is the same as the neutral position on a M/T, and should only be used when the vehicle is stationary for an extended length of time during driving, such as in a traffic jam.“D” DRIVEThis position is for normal driving. The transmission automati- cally selects a suitable gear
for your speed and acceleration.
Engine braking is automatical
ly applied when necessary,
depending on road conditions.
CAUTION
!●
Never shift into the “P” (PARK) or “R” (REVERSE) position while
the vehicle is in motion
to avoid a transmission damage.
WARNING
!●
Never move the selector lever to the “N” (NEU- TRAL) position while driv
ing. A serious accident
could occur since you coul
d accidentally move the
lever into the “P” (PARK) or “R” (REVERSE) posi- tion or you will lose engine braking.
●
On a gradient the engine should be started in the “P” (PARK) position, not in the “N” (NEUTRAL) position.
●
Always keep your right
foot on the brake pedal
when shifting into or out of “N” (NEUTRAL), to minimize the risk of loss of control.CAUTION
!●
Never shift into the “D” (DRIVE) position from the “R” (REVERSE) position while the vehicle is in motion to avoid transmission damage.
BK-BK2008E1ENUK.en-uk-Section7.fm Page
