key MITSUBISHI SHOGUN 2008 (in English) Owner's Guide

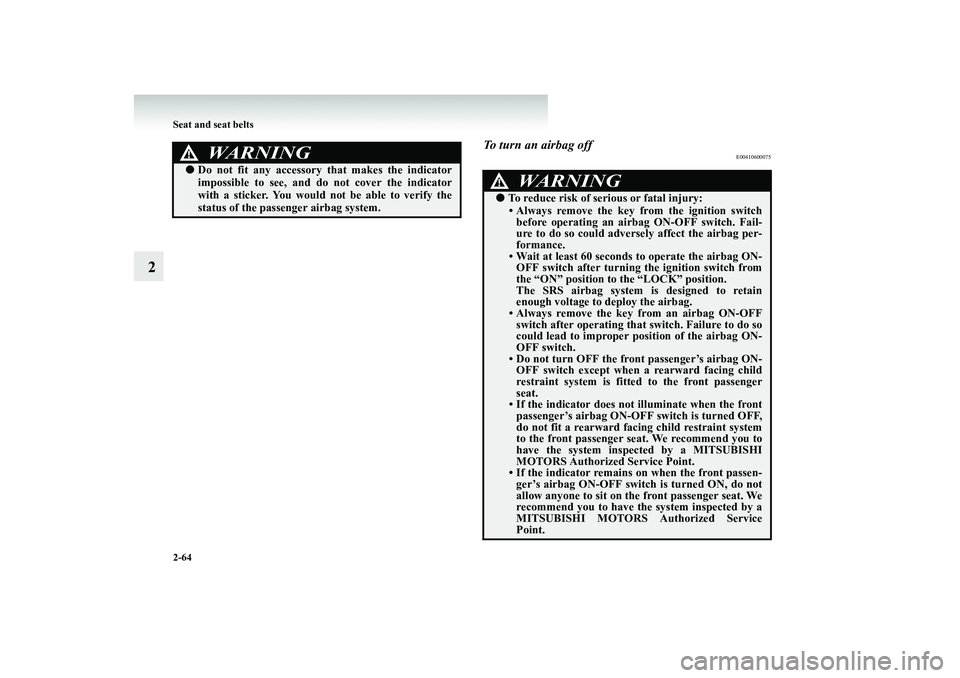

2-64 Seat and seat belts
2
To turn an airbag off
E00410600075
WARNING
!●
Do not fit any accessory
that makes the indicator
impossible to see, and do
not cover the indicator
with a sticker. You would no
t be able to verify the
status of the passenger airbag system.
WARNING
!●
To reduce risk of serious or fatal injury:• Always remove the key from the ignition switch before operating an ai
rbag ON-OFF switch. Fail-
ure to do so could advers
ely affect the airbag per-
formance. • Wait at least 60 seconds
to operate the airbag ON-
OFF switch after turning
the ignition switch from
the “ON” position to the “LOCK” position. The SRS airbag system is designed to retainenough voltage to deploy the airbag. • Always remove the key from an airbag ON-OFF switch after operati
ng that switch. Failure to do so
could lead to improper posi
tion of the airbag ON-
OFF switch. • Do not turn OFF the front passenger’s airbag ON-OFF switch except when
a rearward facing child
restraint system is fitt
ed to the front passenger
seat.• If the indicator does not illuminate when the front passenger’s airbag ON-OFF
switch is turned OFF,
do not fit a rearward facing child restraint systemto the front passenger seat. We recommend you to have the system inspected by a MITSUBISHI MOTORS Authorized
Service Point.
• If the indicator remains
on when the front passen-
ger’s airbag ON-OFF switch is turned ON, do not allow anyone to sit on the front passenger seat. Werecommend you to have th
e system inspected by a
MITSUBISHI MOTORS
Authorized Service
Point.
BK-BK2008E1ENUK.en-uk-Section5.fm Page
64 Wednesday, January 9, 2008 4:28 PM

Seat and seat belts
2-65
2
To turn an airbag off, follow these steps: 1. Insert the key into the airbag ON-OFF switch, and turn it
to the “OFF” position.
2. Remove the key from the key opening of that airbag ON-
OFF switch.
3. Insert the key into the ignition switch, and turn the igni-
tion to the “ON” position. The front passenger’s airbagOFF indication lamp will stay on.
The front passenger’s airbag is
now deactivated and will not
deploy until switched on again.
Driver’s and passenger’s front airbag system
E00407400372
The driver’s airbag is located
under the padded cover in the
middle of the steering wheel. Th
e front passenger’s airbag is
contained in the instrument panel above the glove box. The driver’s airbag inflates at
two different rates according to
the severity of the impact. The front passenger’s airbag de
ploys at the same time as the
driver’s airbag, even if the passe
nger seat is not occupied, and
inflates at two different rates
according to the severity of the
impact.
BK-BK2008E1ENUK.en-uk-Section5.fm Page
65 Wednesday, January 9, 2008 4:28 PM

Seat and seat belts

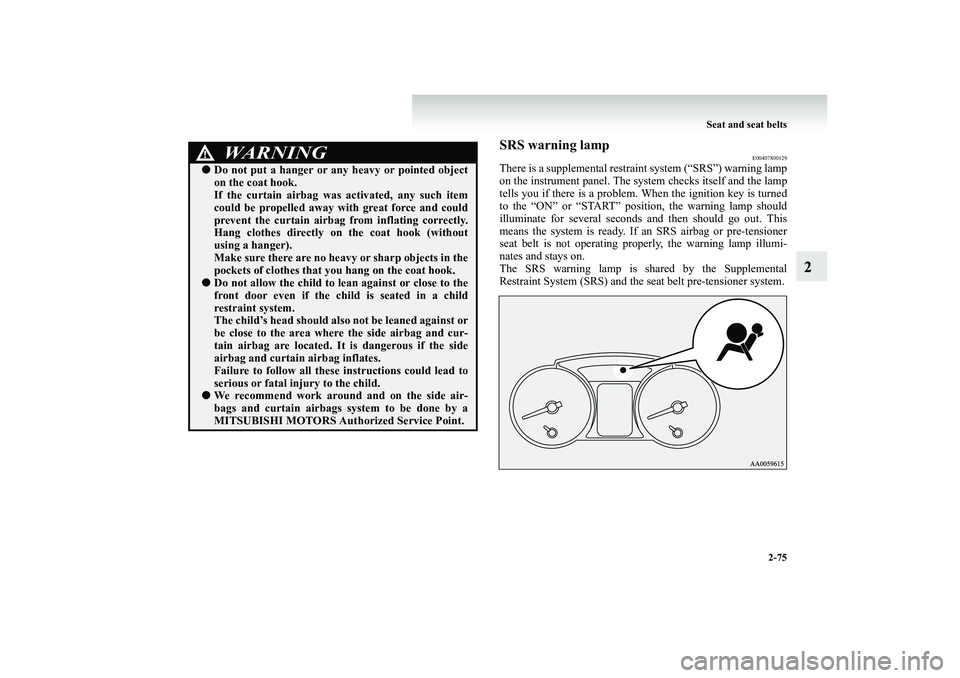

2-75
2
SRS warning lamp
E00407800129
There is a supplemental restra
int system (“SRS”) warning lamp
on the instrument panel. The sy
stem checks itself and the lamp
tells you if there is a problem.
When the ignition key is turned
to the “ON” or “START” position, the warning lamp shouldilluminate for several seconds and then should go out. This means the system is ready. If
an SRS airbag or pre-tensioner
seat belt is not operating properly, the warning lamp illumi-nates and stays on. The SRS warning lamp is shared by the Supplemental Restraint System (SRS) and the
seat belt pre-tensioner system.
WARNING
!●
Do not put a hanger or any heavy or pointed object on the coat hook.If the curtain airbag was
activated, any such item
could be propelled away with great force and could prevent the curtain airbag
from inflating correctly.
Hang clothes directly on
the coat hook (without
using a hanger). Make sure there are no heavy or sharp objects in thepockets of clothes that you
hang on the coat hook.
●
Do not allow the child to lean against or close to the front door even if the ch
ild is seated in a child
restraint system. The child’s head should also not be leaned against orbe close to the area where the side airbag and cur- tain airbag are located. It
is dangerous if the side
airbag and curtain airbag inflates.Failure to follow all these
instructions
could lead to
serious or fatal injury to the child.
●
We recommend work around and on the side air- bags and curtain airbags system to be done by a MITSUBISHI MOTORS Auth
orized Service Point.
BK-BK2008E1ENUK.en-uk-Section5.fm Page
75 Wednesday, January 9, 2008 4:28 PM

Instruments and controls
3-17
3
Door-ajar warning lamp
E00503300635
This lamp illuminates when a door or the back- door is either open or
incompletely closed.
If the vehicle speed reaches approximately 8 km/h (5 mph) with a door or the backdoor openor incompletely closed, the warning lamp flashes 8 times and a buzzer simultaneously sounds 8 times as a warning.NOTE●
On vehicles with keyless entry system, the lamp remains illuminated for a certain period and then goes out automatically.
●
Buzzer settings can be
changed at a your
MITSUBISHI MOTORS Authorized Serv- ice Point to:• No buzzer operation
(buzzer disabled)
• Continuous buzzer operation
Centre information display
*
E00517800080
When the ignition switch is turned to the “ACC” position, the screen switches on automatically.NOTE●
Placing a cellular phone in the monitor’s small storage compartment may weaken th
e phone’s reception. This
does not indicate a fau
lt with the system.
●
Use of wireless devices such as transceivers or a cellular phone near the monitor may make the following condition on the display. This does not indicate a fault with the sys-tem. • The screen goes dark temporarily. • The compass may not show the correct direction.
●
Depending on the angle of view, you may see reddish hor- izontal lines on the monitor.
The lines are a characteristic
of the vacuum fluorescent display (VFD) used in the mon-itor. They do not indicate a fault.
CAUTION
!●
Before moving your vehicle, check that the warning lamp is OFF.
CAUTION
!●
The driver should not oper
ate the display while the
vehicle is in motion.
BK-BK2008E1ENUK.en-uk-Section6.fm Page
17 Wednesday, January 9, 2008 4:32 PM

Instruments and controls

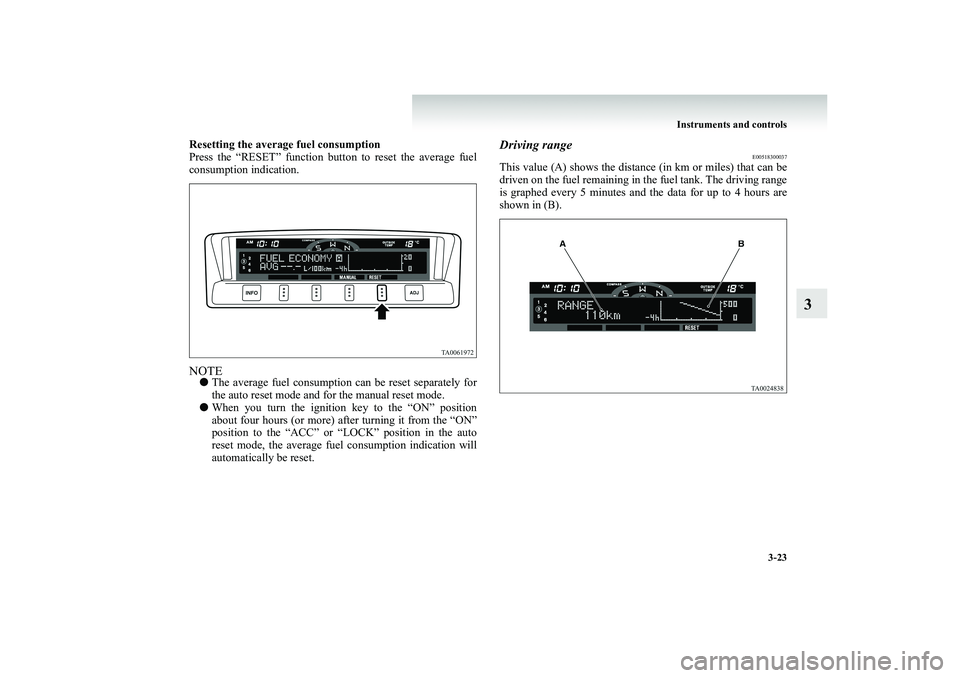

3-23
3
Resetting the averag
e fuel consumption
Press the “RESET” function button to reset the average fuel consumption indication.NOTE●
The average fuel co
nsumption can be reset separately for
the auto reset mode and for the manual reset mode.
●
When you turn the ignition key to the “ON” position about four hours (or more) after turning it from the “ON” position to the “ACC” or “LOCK” position in the autoreset mode, the average fuel
consumption indication will
automatically be reset.
Driving range
E00518300037
This value (A) shows the distance
(in km or miles) that can be
driven on the fuel remaining in the fuel tank. The driving range is graphed every 5 minutes and the data for up to 4 hours areshown in (B).
BK-BK2008E1ENUK.en-uk-Section6.fm Page
23 Wednesday, January 9, 2008 4:32 PM

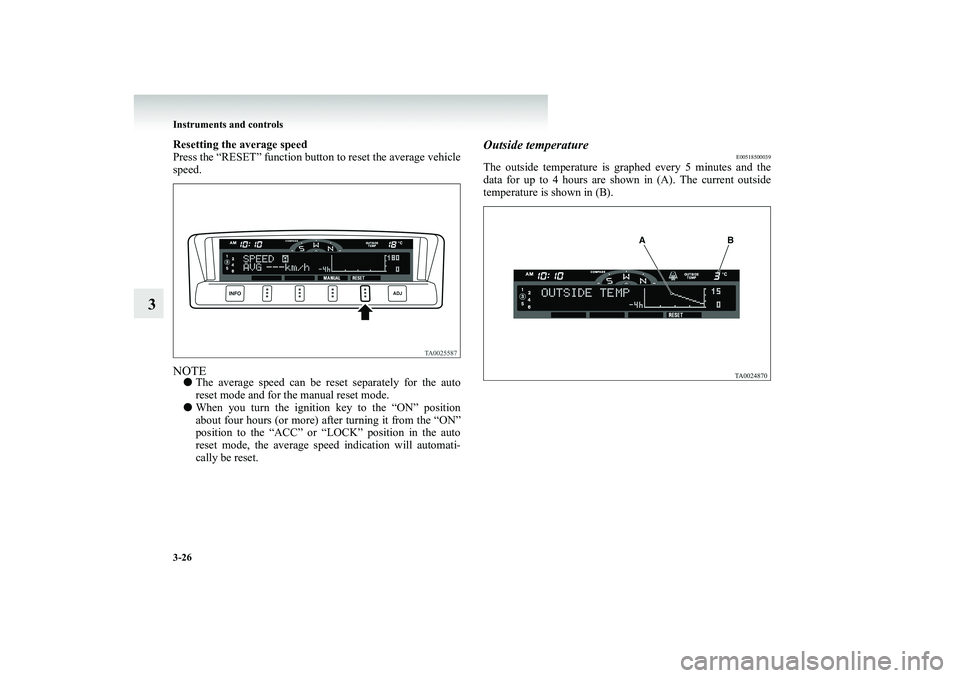

3-26 Instruments and controls
3
Resetting the average speed Press the “RESET” function button
to reset the average vehicle
speed.NOTE●
The average speed can be reset separately for the auto reset mode and for the manual reset mode.
●
When you turn the ignition key to the “ON” position about four hours (or more) after turning it from the “ON” position to the “ACC” or “LOCK” position in the autoreset mode, the average speed
indication will automati-
cally be reset.
Outside temperature
E00518500039
The outside temperature is gr
aphed every 5 minutes and the
data for up to 4 hours are shown in (A). The current outside temperature is shown in (B).
BK-BK2008E1ENUK.en-uk-Section6.fm Page
26 Wednesday, January 9, 2008 4:32 PM

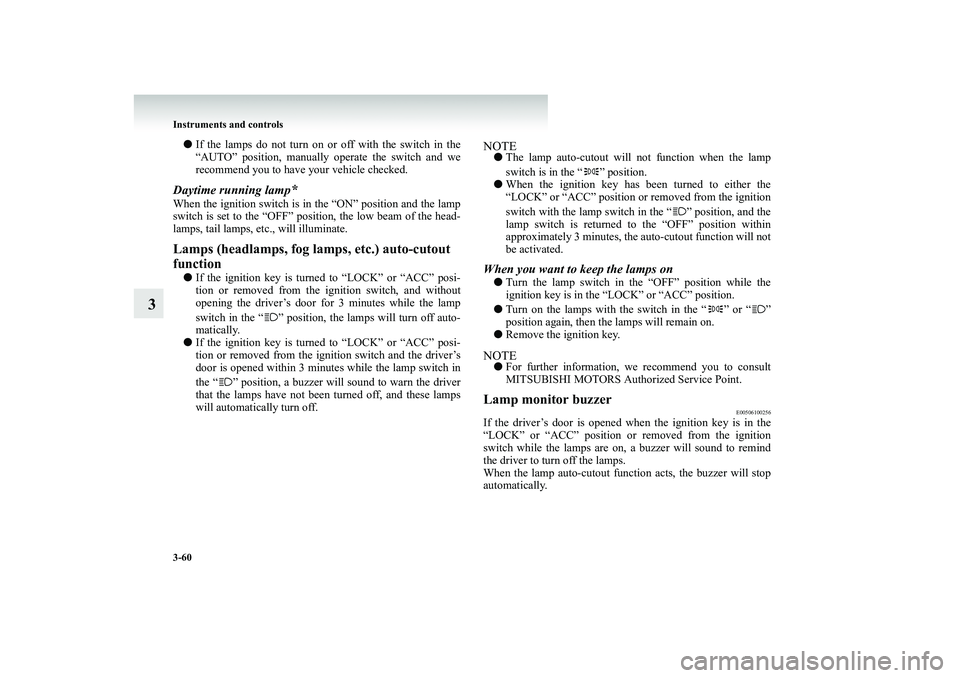

3-60 Instruments and controls
3
●
If the lamps do not turn on or off with the switch in the “AUTO” position, manually operate the switch and we recommend you to have your vehicle checked.
Daytime running lamp
*
When the ignition switch is in the “ON” position and the lamp switch is set to the “OFF” position, the low beam of the head-lamps, tail lamps, etc., will illuminate.Lamps (headlamps, fog lamps, etc.) auto-cutout function●
If the ignition key is turned to “LOCK” or “ACC” posi- tion or removed from the ignition switch, and without opening the driver’s door for 3 minutes while the lamp switch in the “ ” position, the lamps will turn off auto- matically.
●
If the ignition key is turned to “LOCK” or “ACC” posi- tion or removed from the ignition switch and the driver’s door is opened within 3 minutes while the lamp switch in the “ ” position, a buzzer will sound to warn the driver that the lamps have not been turned off, and these lamps will automatically turn off.
NOTE●
The lamp auto-cutout will not function when the lamp switch is in the “ ” position.
●
When the ignition key has b
een turned to either the
“LOCK” or “ACC” position or removed from the ignition switch with the lamp switch in the “ ” position, and the lamp switch is returned to the “OFF” position within approximately 3 minutes, the auto-cutout function will notbe activated.
When you want to keep the lamps on●
Turn the lamp switch in the “OFF” position while the ignition key is in the “LOCK” or “ACC” position.
●
Turn on the lamps with the switch in the “ ” or “ ” position again, then the lamps will remain on.
●
Remove the ignition key.
NOTE●
For further information, we recommend you to consult MITSUBISHI MOTORS Authorized Service Point.
Lamp monitor buzzer
E00506100256
If the driver’s door is opened when the ignition key is in the“LOCK” or “ACC” position or removed from the ignitionswitch while the lamps are on,
a buzzer will sound to remind
the driver to turn off the lamps. When the lamp auto-cutout func
tion acts, the buzzer will stop
automatically.
BK-BK2008E1ENUK.en-uk-Section6.fm Page
60 Wednesday, January 9, 2008 4:32 PM

3-66 Instruments and controls
3
Hazard warning flasher switch
E00506600440
Use the hazard warning flasher switch when the vehicle has to be parked on the road for any emergency. The hazard warning flashers can always be operated, regard-less of the position of the ignition key. Push the switch to turn on the
hazard warning flashers, all turn-
signal lamps flash continuously. To turn them off, push the switch again.NOTE●
It is possible for a buzzer to
sound with flashing of the
turn-signal lamps. For furt
her information, we recom-
mend you to consult a MITSUBISHI MOTORS Author-ized Service Point.
Fog lamp switch
E00506700047
Front fog lamp switch*
E00508300281
The front fog lamps illuminate only when the headlamps or taillamps are on. Push the switch to turn on the front fog lamps,and push the switch again to turn them off. The indication lamp in the instrument cluster will illuminate while the front fog lamps are on.LHD RHD
BK-BK2008E1ENUK.en-uk-Section6.fm Page
66 Wednesday, January 9, 2008 4:32 PM

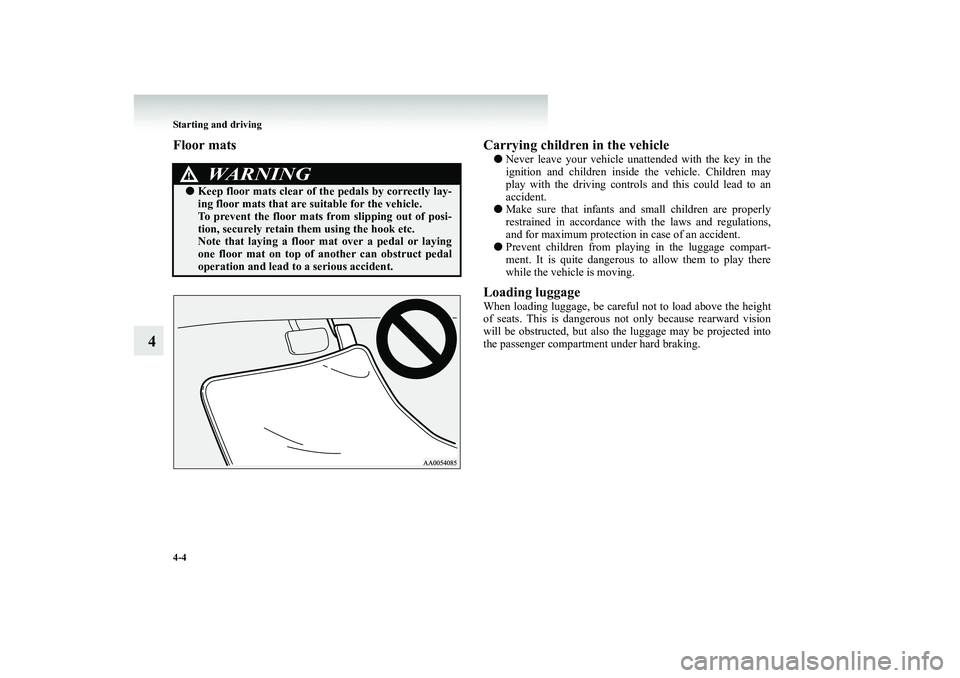

4-4 Starting and driving
4
Floor mats Carrying children in the vehicle
●
Never leave your vehicle unattended with the key in the ignition and children inside the vehicle. Children mayplay with the driving controls
and this could lead to an
accident.
●
Make sure that infants and small children are properly restrained in accordance with the laws and regulations, and for maximum protection
in case of an accident.
●
Prevent children fr
om playing in the luggage compart-
ment. It is quite dangerous to allow them to play there while the vehicle is moving.
Loading luggageWhen loading luggage, be careful not to load above the height of seats. This is dangerous no
t only because rearward vision
will be obstructed, but also the luggage may be projected into the passenger compartment under hard braking.
WARNING
!●
Keep floor mats clear of th
e pedals by correctly lay-
ing floor mats that are suitable for the vehicle. To prevent the floor mats from slipping out of posi- tion, securely retain th
em using the hook etc.
Note that laying a floor mat over a pedal or laying one floor mat on top of an
other can obstruct pedal
operation and lead to a serious accident.
BK-BK2008E1ENUK.en-uk-Section7.fm Page 4 Wednesday, January 9, 2008 4:36 PM

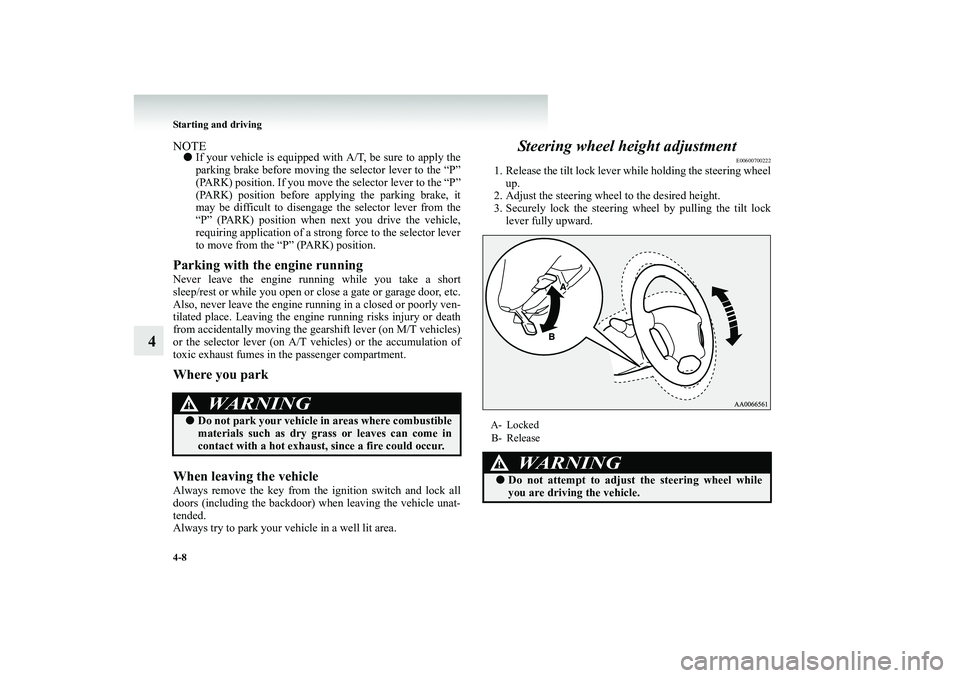

4-8 Starting and driving
4
NOTE●
If your vehicle is equipped with A/T, be sure to apply the parking brake before moving the selector lever to the “P” (PARK) position. If you move
the selector lever to the “P”
(PARK) position before applying the parking brake, itmay be difficult to disengage the selector lever from the “P” (PARK) position when next you drive the vehicle, requiring application of a strong force to the selector leverto move from the “P” (PARK) position.
Parking with the engine runningNever leave the engine running while you take a short sleep/rest or while you open or cl
ose a gate or garage door, etc.
Also, never leave the engine running in a closed or poorly ven-tilated place. Leaving the engine
running risks injury or death
from accidentally moving the g
earshift lever (on M/T vehicles)
or the selector lever (on A/T
vehicles) or the accumulation of
toxic exhaust fumes in the passenger compartment.Where you park When leaving the vehicleAlways remove the key from the ignition switch and lock all doors (including the backdoor) when leaving the vehicle unat- tended.Always try to park your vehicle in a well lit area.
Steering wheel height adjustment
E00600700222
1. Release the tilt lock lever
while holding the steering wheel
up.
2. Adjust the steering wheel
to the desired height.
3. Securely lock the steering wheel by pulling the tilt lock
lever fully upward.
WARNING
!●
Do not park your vehicle in
areas where combustible
materials such as dry grass or leaves can come incontact with a hot exhaust,
since a fire could occur.
A- Locked B- Release
WARNING
!●
Do not attempt to adjust
the steering wheel while
you are driving the vehicle.
BK-BK2008E1ENUK.en-uk-Section7.fm Page 8 Wednesday, January 9, 2008 4:36 PM
