LW/MW/FM electronic tuning radio with
CD autochanger
*
E00708500706
The audio system can be used when the ignition switch is in the “ON” or “ACC” position.NOTE●
To listen to the audio system while the engine is stopped, turn the ignition key to the “ACC” position.
●
If a cellular phone is used in
side the vehicle, it may create
noise from the audio equipment. This does not mean thatanything is wrong with your audio equipment. In such a case, use the cellular phone at a place as far as possible from the audio equipment.
●
If foreign objects or water get into the audio equipment, or if smoke or a strange odour comes from it, immediately turn off the audio system. We recommend you to have itchecked. Never try to repair it by yourself. Avoid continu- ous usage without inspection by a qualified person.
Volume and tone control panel
E00708600433
1- PWR (On-Off) button 2- VOL (Volume control) button 3- Memory select buttons4- MENU button 5- Sound adjust button 6- Display
BK-BK2008E1ENUK.en-uk-Section8.fm Page
43 Wednesday, January 9, 2008 4:41 PM

5-86 For pleasant driving
5

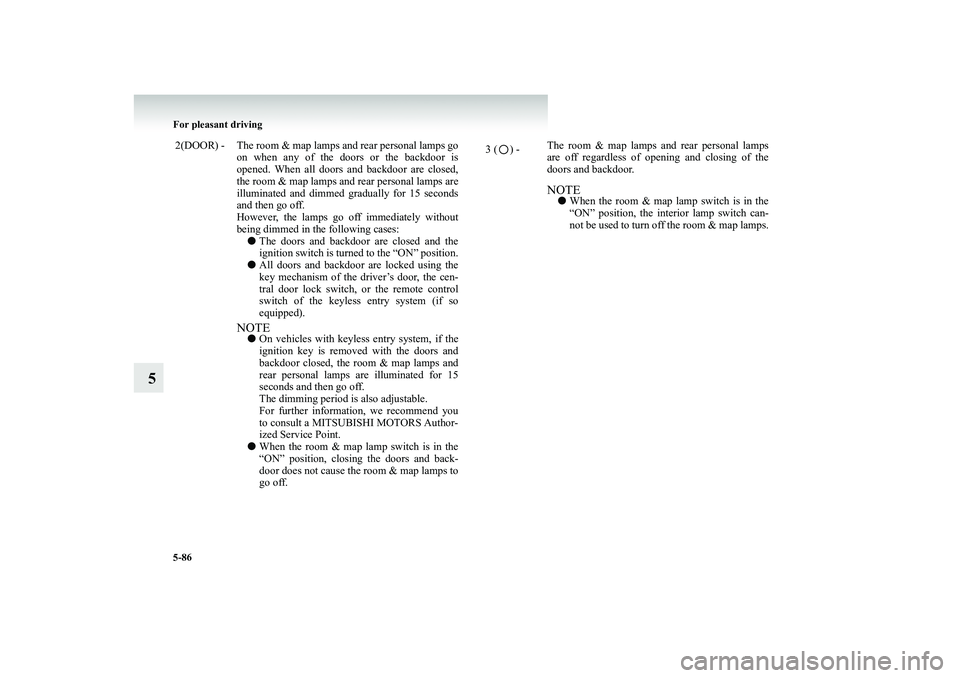

2(DOOR) - The room & map lamps and rear personal lamps go
on when any of the doors or the backdoor isopened. When all doors and backdoor are closed,the room & map lamps and rear personal lamps areilluminated and dimmed gradually for 15 secondsand then go off.However, the lamps go off immediately withoutbeing dimmed in the following cases:●
The doors and backdoor are closed and the ignition switch is turned to the “ON” position.
●
All doors and backdoor are locked using the key mechanism of the driver’s door, the cen-tral door lock switch, or the remote controlswitch of the keyless entry system (if soequipped).
NOTE●
On vehicles with keyless entry system, if the ignition key is removed with the doors andbackdoor closed, the room & map lamps andrear personal lamps are illuminated for 15seconds and then go off.The dimming period is also adjustable.For further information, we recommend youto consult a MITSUBISHI MOTORS Author-ized Service Point.
●
When the room & map lamp switch is in the “ON” position, closing the doors and back-door does not cause the room & map lamps togo off.
3 ( ) -
The room & map lamps and rear personal lamps are off regardless of opening and closing of thedoors and backdoor.NOTE●
When the room & map lamp switch is in the “ON” position, the interior lamp switch can-not be used to turn off the room & map lamps.
BK-BK2008E1ENUK.en-uk-Section8.fm Page
86 Wednesday, January 9, 2008 4:41 PM

5-88 For pleasant driving
5
NOTE●
When the interior lamp switch is in the “ ” position, the lamp remains off even when the lens (A) is pressed and any of the doors or the backdoor is opened.

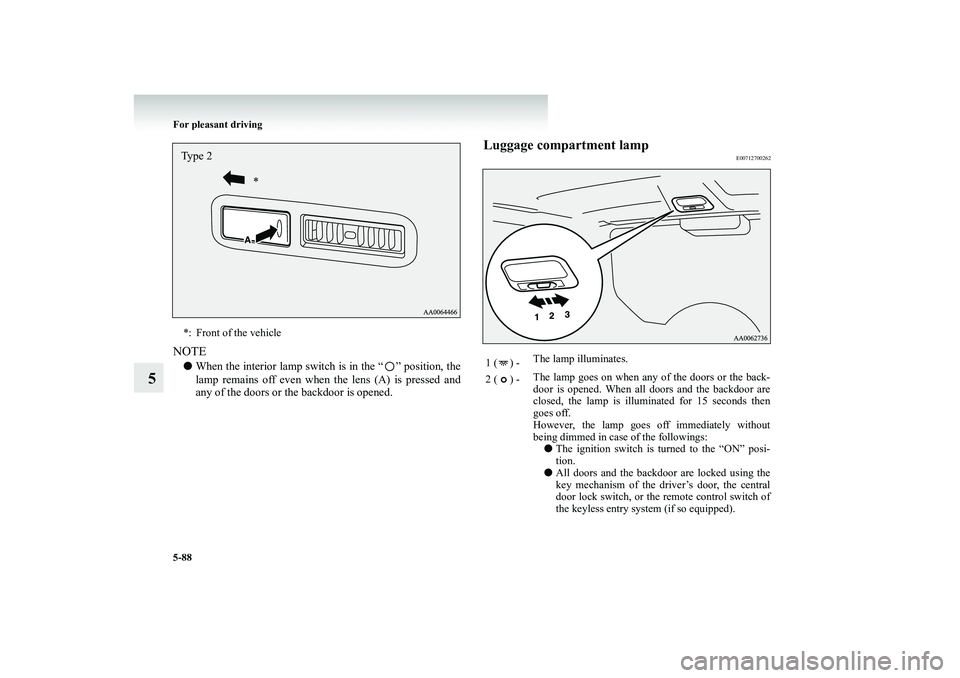

Luggage compartment lamp
E00712700262
*: Front of the vehicleTy p e 2
*
1 ( ) -
The lamp illuminates.
2 ( ) -
The lamp goes on when any of the doors or the back- door is opened. When all doors and the backdoor areclosed, the lamp is illuminated for 15 seconds thengoes off.However, the lamp goes off immediately withoutbeing dimmed in case of the followings:●
The ignition switch is turned to the “ON” posi- tion.
●
All doors and the backdoor are locked using the key mechanism of the driver’s door, the centraldoor lock switch, or the remote control switch ofthe keyless entry system (if so equipped).
BK-BK2008E1ENUK.en-uk-Section8.fm Page
88 Wednesday, January 9, 2008 4:41 PM

For pleasant driving
5-89
5

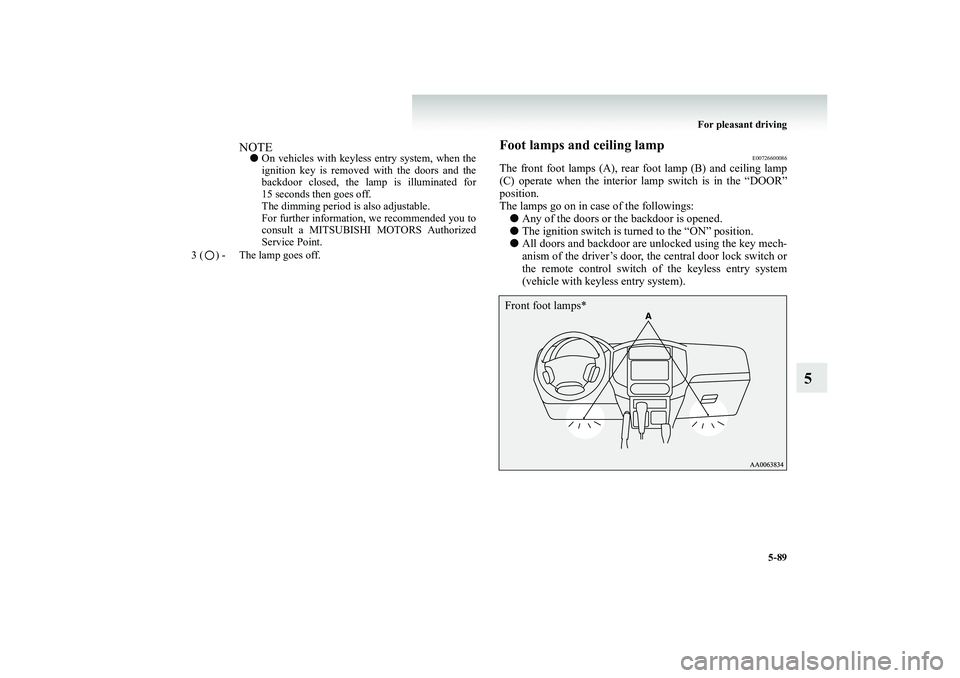

Foot lamps and ceiling lamp
E00726600086
The front foot lamps (A), rear foot lamp (B) and ceiling lamp (C) operate when the interior lamp switch is in the “DOOR” position. The lamps go on in case of the followings:●
Any of the doors or the backdoor is opened.
●
The ignition switch is turned to the “ON” position.
●
All doors and backdoor are unlocked using the key mech- anism of the driver’s door, th
e central door lock switch or
the remote control switch of the keyless entry system (vehicle with keyless entry system).
NOTE●
On vehicles with keyless entry system, when the ignition key is removed with the doors and thebackdoor closed, the lamp is illuminated for15 seconds then goes off.The dimming period is also adjustable.For further information, we recommended you toconsult a MITSUBISHI MOTORS AuthorizedService Point.
3 ( ) - The lamp goes off.
Front foot lamps*
BK-BK2008E1ENUK.en-uk-Section8.fm Page
89 Wednesday, January 9, 2008 4:41 PM

5-90 For pleasant driving
5

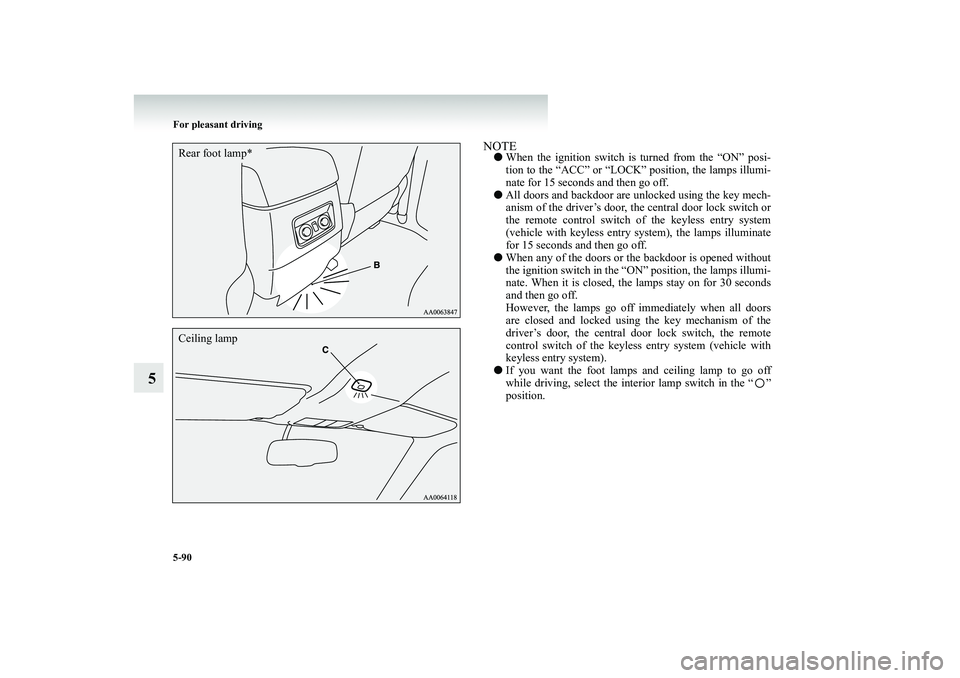

NOTE●
When the ignition switch is turned from the “ON” posi- tion to the “ACC” or “LOCK” position, the lamps illumi- nate for 15 seconds and then go off.
●
All doors and backdoor are un
locked using the key mech-
anism of the driver’s door, th
e central door lock switch or
the remote control switch
of the keyless entry system
(vehicle with keyless entry system), the lamps illuminatefor 15 seconds and then go off.
●
When any of the doors or the backdoor is opened without the ignition switch in the “ON” position, the lamps illumi-nate. When it is closed, the lamps stay on for 30 seconds and then go off. However, the lamps go off immediately when all doorsare closed and locked using the key mechanism of the driver’s door, the central d
oor lock switch, the remote
control switch of the keyless entry system (vehicle withkeyless entry system).
●
If you want the foot lamps and ceiling lamp to go off while driving, select the interior lamp switch in the “ ”position.
Rear foot lamp*Ceiling lampBK-BK2008E1ENUK.en-uk-Section8.fm Page
90 Wednesday, January 9, 2008 4:41 PM

5-92 For pleasant driving
5

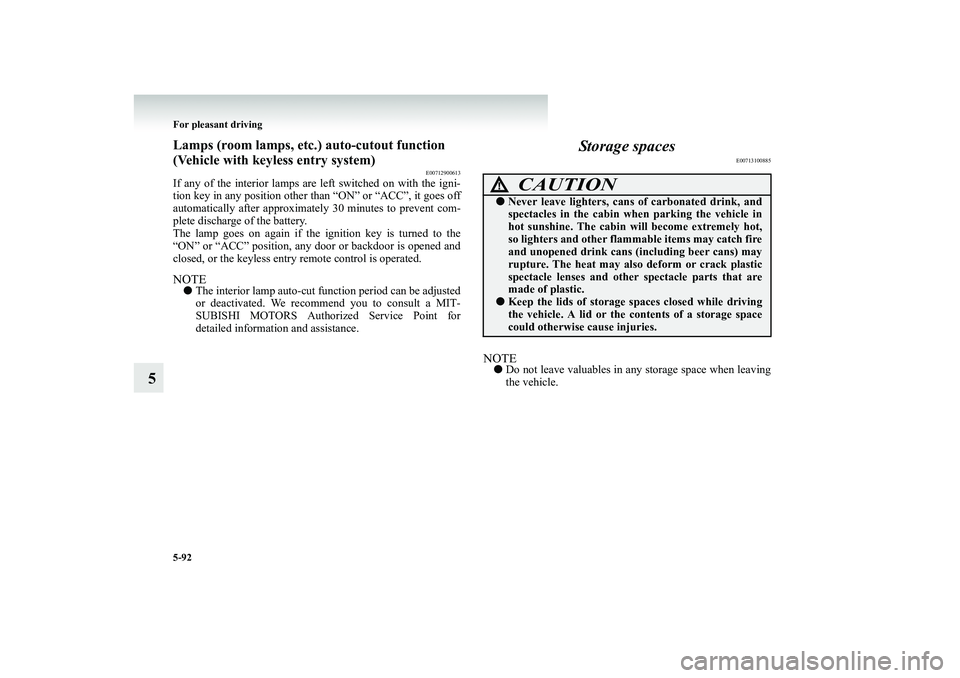

Lamps (room lamps, etc.
) auto-cutout function
(Vehicle with keyless entry system)
E00712900613
If any of the interior lamps are
left switched on with the igni-
tion key in any position other than “ON” or “ACC”, it goes offautomatically after approximately
30 minutes to prevent com-
plete discharge of the battery. The lamp goes on again if the ignition key is turned to the“ON” or “ACC” position, any door or backdoor is opened and closed, or the keyless entry
remote control is operated.
NOTE●
The interior lamp auto-cut fu
nction period can be adjusted
or deactivated. We recomm
end you to consult a MIT-
SUBISHI MOTORS Authorized Service Point for detailed information and assistance.
Storage spaces
E00713100885
NOTE●
Do not leave valuables in an
y storage space when leaving
the vehicle.
CAUTION
!●
Never leave lighters, cans
of carbonated drink, and
spectacles in the cabin when parking the vehicle in hot sunshine. The cabin w
ill become extremely hot,
so lighters and other fla
mmable items may catch fire
and unopened drink cans (i
ncluding beer cans) may
rupture. The heat may also
deform or crack plastic
spectacle lenses and other spectacle parts that aremade of plastic.
●
Keep the lids of storage sp
aces closed while driving
the vehicle. A lid or the co
ntents of a storage space
could otherwise cause injuries.
BK-BK2008E1ENUK.en-uk-Section8.fm Page
92 Wednesday, January 9, 2008 4:41 PM

For pleasant driving
5-93
5

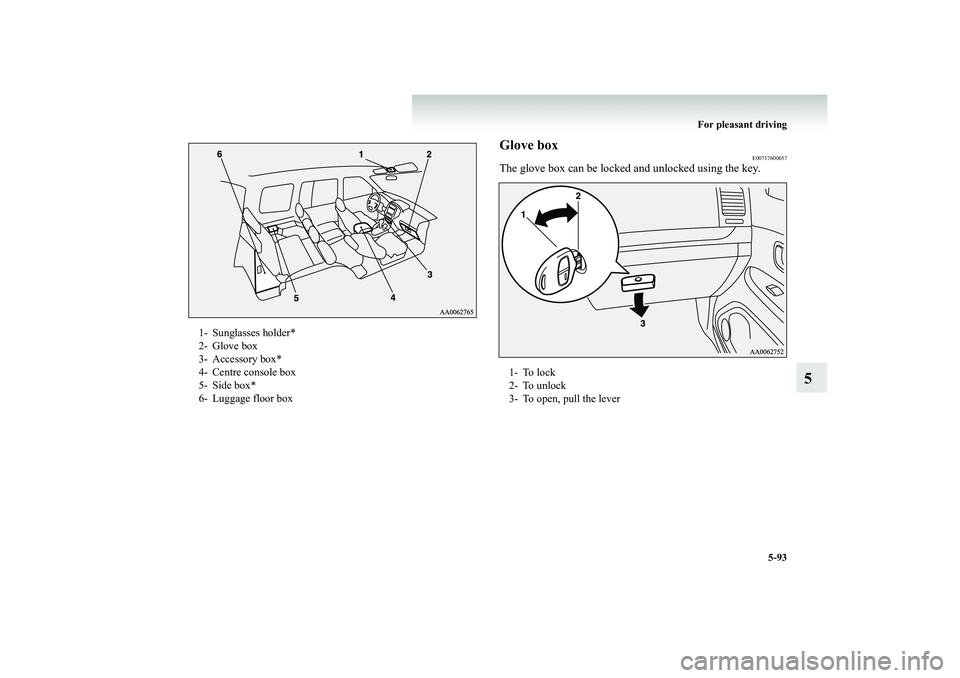

Glove box
E00717600657
The glove box can be locked and unlocked using the key.
1- Sunglasses holder* 2- Glove box 3- Accessory box* 4- Centre console box5- Side box* 6- Luggage floor box
1- To lock2- To unlock 3- To open, pull the lever
BK-BK2008E1ENUK.en-uk-Section8.fm Page
93 Wednesday, January 9, 2008 4:41 PM

6-16 For emergencies
6
2. With the snap pin (C) pushed, insert the inside handle
until it is locked.
How to change a tyre
E00801201757
Before changing a tyre, first stop your vehicle in a safe, flat location. 1. Park the vehicle on level and stable ground.2. Set the parking brake firmly. 3. On vehicles with manual transmission, turn the ignition
key to the “LOCK” position, move the gearshift lever tothe “R” (Reverse) position. On vehicles with automatic transmission, move the selec- tor lever to the “P” (PARK) position, turn the ignition keyto the “LOCK” position.
4. Turn on the hazard flashers an
d set up a warning triangle,
flashing signal lamp, etc., at an
adequate distance from the
vehicle, and have all your
passengers leave the vehicle.
BK-BK2008E1ENUK.en-uk-Section9.fm Page
16 Wednesday, January 9, 2008 4:46 PM

For emergencies
6-31
6

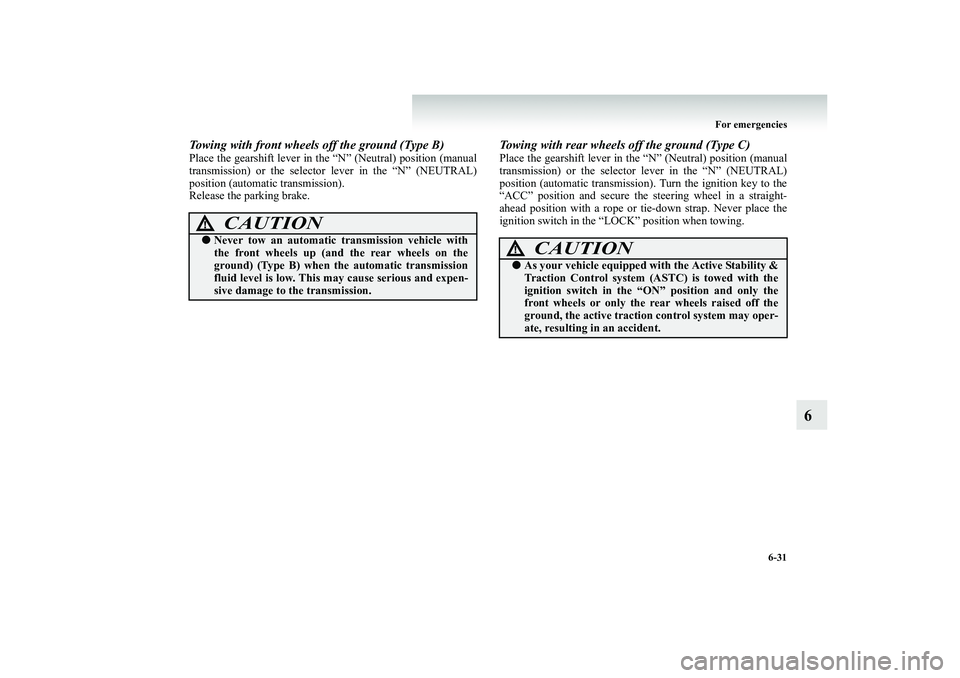

Towing with front wheels off the ground (Type B)Place the gearshift lever in the
“N” (Neutral) position (manual
transmission) or the selector
lever in the “N” (NEUTRAL)
position (automatic transmission). Release the parking brake.
Towing with rear wheels off the ground (Type C)Place the gearshift lever in the “N” (Neutral) position (manualtransmission) or the selector
lever in the “N” (NEUTRAL)
position (automatic transmission). Turn the ignition key to the “ACC” position and secure the
steering wheel in a straight-
ahead position w
ith a rope or tie-down
strap. Never place the
ignition switch in the “LOCK” position when towing.
CAUTION
!●
Never tow an automatic transmission vehicle with the front wheels up (and the rear wheels on theground) (Type B) when the automatic transmission fluid level is low. This may cause serious and expen- sive damage to the transmission.
CAUTION
!●
As your vehicle equipped with the Active Stability & Traction Control system (A
STC) is towed with the
ignition switch in the “ON” position and only thefront wheels or only the rear wheels raised off the ground, the active traction control system may oper- ate, resulting in an accident.
BK-BK2008E1ENUK.en-uk-Section9.fm Page
31 Wednesday, January 9, 2008 4:46 PM

For emergencies
6-33
6

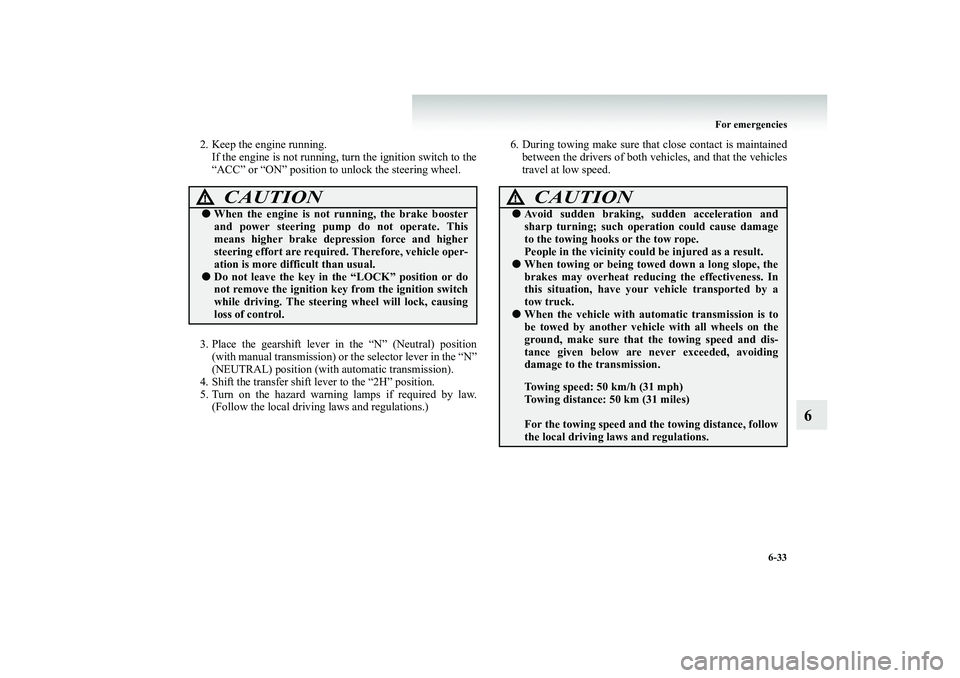

2. Keep the engine running.
If the engine is not running, turn the ignition switch to the “ACC” or “ON” position to unlock the steering wheel.
3. Place the gearshift lever in
the “N” (Neutral) position
(with manual transmission) or the selector lever in the “N” (NEUTRAL) position (with automatic transmission).
4. Shift the transfer shift lever to the “2H” position. 5. Turn on the hazard warning
lamps if required by law.
(Follow the local driving laws and regulations.)
6. During towing make sure th
at close contact is maintained
between the drivers of both ve
hicles, and that the vehicles
travel at low speed.
CAUTION
!●
When the engine is not r
unning, the brake booster
and power steering pump do not operate. This means higher brake depression force and highersteering effort are required.
Therefore, vehicle oper-
ation is more difficult than usual.
●
Do not leave the key in the “LOCK” position or do not remove the ignition ke
y from the ignition switch
while driving. The steering
wheel will lock, causing
loss of control.
CAUTION
!●
Avoid sudden braking,
sudden acceleration and
sharp turning; such opera
tion could cause damage
to the towing hooks or the tow rope.People in the vicinity coul
d be injured as a result.
●
When towing or being towed down a long slope, the brakes may overheat reduci
ng the effectiveness. In
this situation, have your
vehicle transported by a
tow truck.
●
When the vehicle with auto
matic transmission is to
be towed by another vehicl
e with all wheels on the
ground, make sure that the towing speed and dis- tance given below are never exceeded, avoidingdamage to the transmission. Towing speed: 50 km/h (31 mph) Towing distance: 50 km (31 miles) For the towing speed and th
e towing distance, follow
the local driving laws and regulations.
BK-BK2008E1ENUK.en-uk-Section9.fm Page
33 Wednesday, January 9, 2008 4:46 PM
