jacking points MITSUBISHI SHOGUN 2008 Owner's Manual (in English)

For emergencies
6-23
6

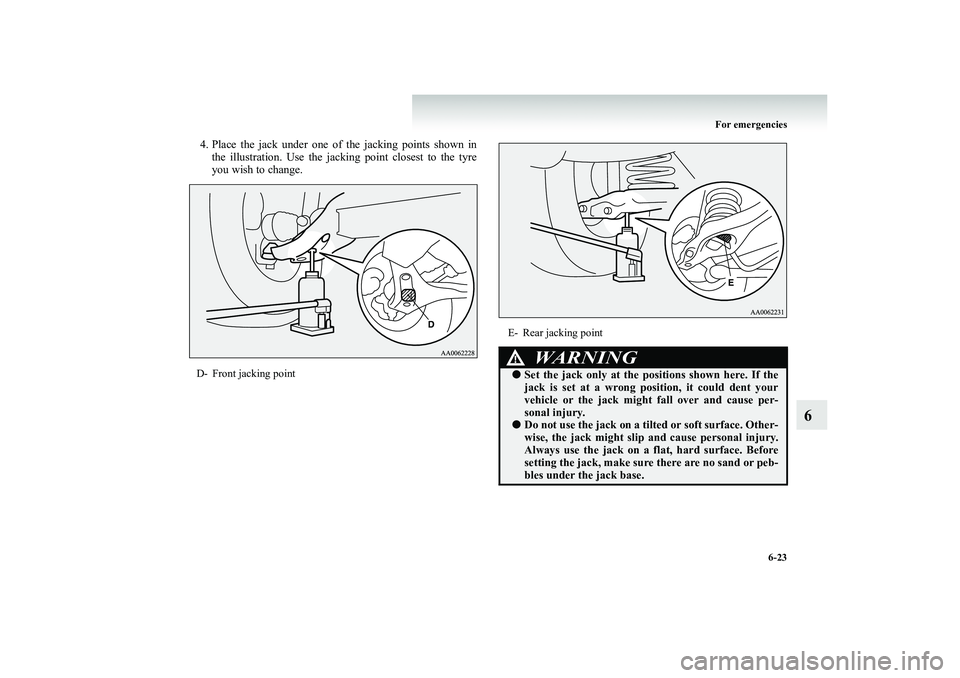

4. Place the jack under one of
the jacking points shown in
the illustration. Use the jack
ing point closest to the tyre
you wish to change.
D- Front jacking point
E- Rear jacking point
WARNING
!●
Set the jack only at the po
sitions shown here. If the
jack is set at a wrong position, it could dent yourvehicle or the jack might
fall over and cause per-
sonal injury.
●
Do not use the jack on a tilt
ed or soft surface. Other-
wise, the jack might slip
and cause personal injury.
Always use the jack on a
flat, hard surface. Before
setting the jack, make sure there are no sand or peb-bles under the jack base.
