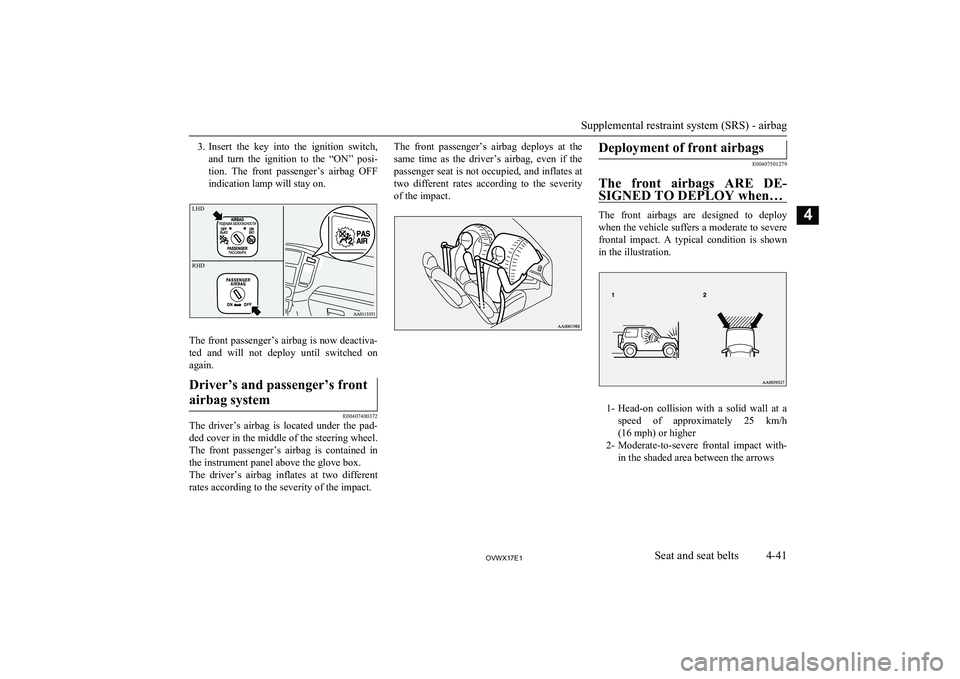

3.Insert the key into the ignition switch,
and turn the ignition to the “ON” posi-
tion. The front passenger’s airbag OFF
indication lamp will stay on.
The front passenger’s airbag is now deactiva- ted and will not deploy until switched on
again.
Driver’s and passenger’s front
airbag system
E00407400372
The driver’s airbag is located under the pad- ded cover in the middle of the steering wheel. The front passenger’s airbag is contained in
the instrument panel above the glove box.
The driver’s airbag inflates at two different rates according to the severity of the impact.
The front passenger’s airbag deploys at the
same time as the driver’s airbag, even if the
passenger seat is not occupied, and inflates at two different rates according to the severity of the impact.Deployment of front airbags
E00407501279
The front airbags ARE DE- SIGNED TO DEPLOY when…
The front airbags are designed to deploy when the vehicle suffers a moderate to severefrontal impact. A typical condition is shown
in the illustration.
1- Head-on collision with a solid wall at a
speed of approximately 25 km/h
(16 mph) or higher
2- Moderate-to-severe frontal impact with-
in the shaded area between the arrows
Supplemental restraint system (SRS) - airbag
4-41OVWX17E1Seat and seat belts4LHD
RHD

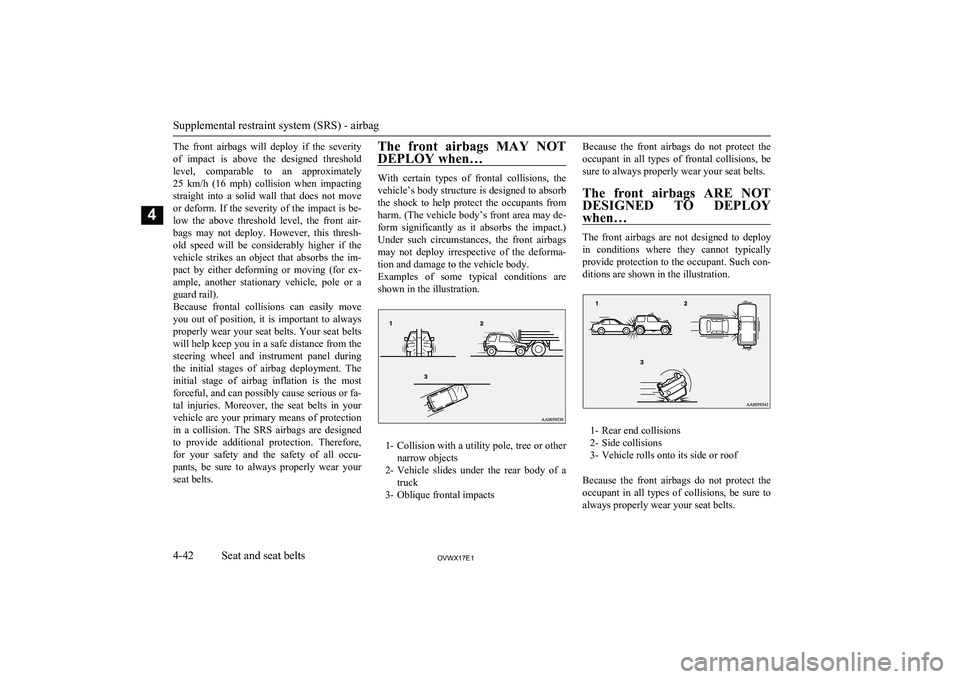

The front airbags will deploy if the severityof impact is above the designed threshold
level, comparable to an approximately
25 km/h (16 mph) collision when impacting straight into a solid wall that does not move
or deform. If the severity of the impact is be- low the above threshold level, the front air- bags may not deploy. However, this thresh- old speed will be considerably higher if the
vehicle strikes an object that absorbs the im-
pact by either deforming or moving (for ex-
ample, another stationary vehicle, pole or a guard rail).
Because frontal collisions can easily move you out of position, it is important to always
properly wear your seat belts. Your seat belts will help keep you in a safe distance from the
steering wheel and instrument panel during
the initial stages of airbag deployment. The initial stage of airbag inflation is the most
forceful, and can possibly cause serious or fa- tal injuries. Moreover, the seat belts in your
vehicle are your primary means of protection in a collision. The SRS airbags are designed
to provide additional protection. Therefore,
for your safety and the safety of all occu- pants, be sure to always properly wear your
seat belts.The front airbags MAY NOT
DEPLOY when…
With certain types of frontal collisions, the
vehicle’s body structure is designed to absorb the shock to help protect the occupants fromharm. (The vehicle body’s front area may de-form significantly as it absorbs the impact.) Under such circumstances, the front airbags
may not deploy irrespective of the deforma- tion and damage to the vehicle body.
Examples of some typical conditions are
shown in the illustration.
1- Collision with a utility pole, tree or other
narrow objects
2- Vehicle slides under the rear body of a
truck
3- Oblique frontal impacts
Because the front airbags do not protect the
occupant in all types of frontal collisions, be
sure to always properly wear your seat belts.
The front airbags ARE NOT DESIGNED TO DEPLOY
when…
The front airbags are not designed to deploy
in conditions where they cannot typically provide protection to the occupant. Such con-ditions are shown in the illustration.
1- Rear end collisions
2- Side collisions
3- Vehicle rolls onto its side or roof
Because the front airbags do not protect the occupant in all types of collisions, be sure to
always properly wear your seat belts.
Supplemental restraint system (SRS) - airbag
4-42OVWX17E1Seat and seat belts4

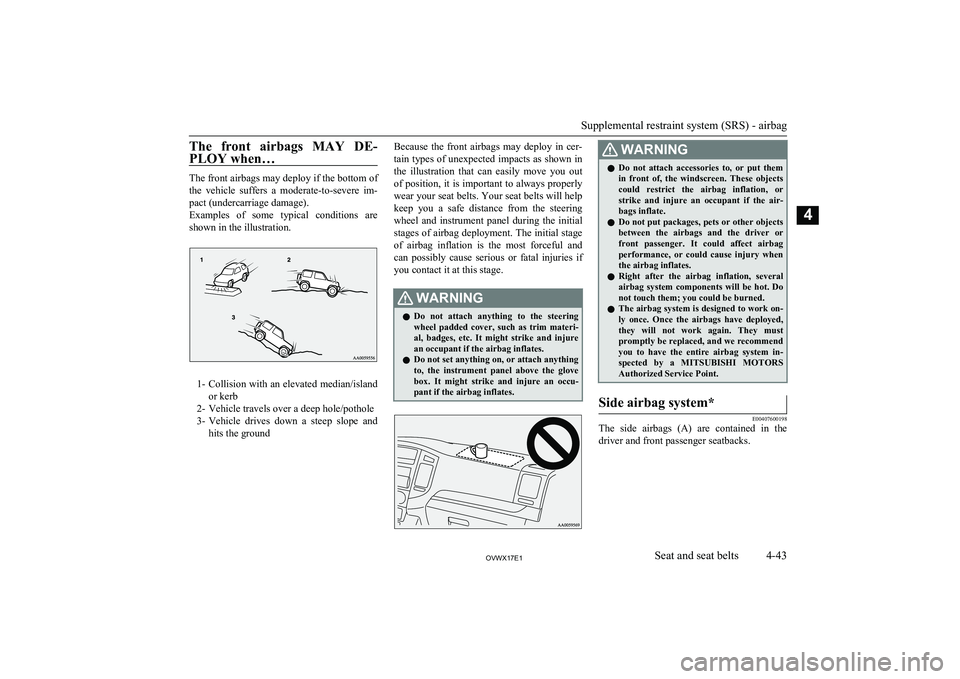

The front airbags MAY DE-PLOY when…
The front airbags may deploy if the bottom ofthe vehicle suffers a moderate-to-severe im-
pact (undercarriage damage).
Examples of some typical conditions are shown in the illustration.
1- Collision with an elevated median/island
or kerb
2- Vehicle travels over a deep hole/pothole
3- Vehicle drives down a steep slope and
hits the ground

Because the front airbags may deploy in cer- tain types of unexpected impacts as shown in
the illustration that can easily move you out
of position, it is important to always properly wear your seat belts. Your seat belts will help
keep you a safe distance from the steering
wheel and instrument panel during the initial
stages of airbag deployment. The initial stage of airbag inflation is the most forceful andcan possibly cause serious or fatal injuries if
you contact it at this stage.WARNINGl Do not attach anything to the steering
wheel padded cover, such as trim materi- al, badges, etc. It might strike and injure
an occupant if the airbag inflates.
l Do not set anything on, or attach anything
to, the instrument panel above the glove box. It might strike and injure an occu- pant if the airbag inflates.WARNINGl Do not attach accessories to, or put them
in front of, the windscreen. These objects
could restrict the airbag inflation, or strike and injure an occupant if the air-
bags inflate.
l Do not put packages, pets or other objects
between the airbags and the driver orfront passenger. It could affect airbagperformance, or could cause injury when the airbag inflates.
l Right after the airbag inflation, several
airbag system components will be hot. Do
not touch them; you could be burned.
l The airbag system is designed to work on-
ly once. Once the airbags have deployed, they will not work again. They must
promptly be replaced, and we recommend
you to have the entire airbag system in- spected by a MITSUBISHI MOTORS
Authorized Service Point.Side airbag system*
E00407600198
The side airbags (A) are contained in the
driver and front passenger seatbacks.
Supplemental restraint system (SRS) - airbag
4-43OVWX17E1Seat and seat belts4

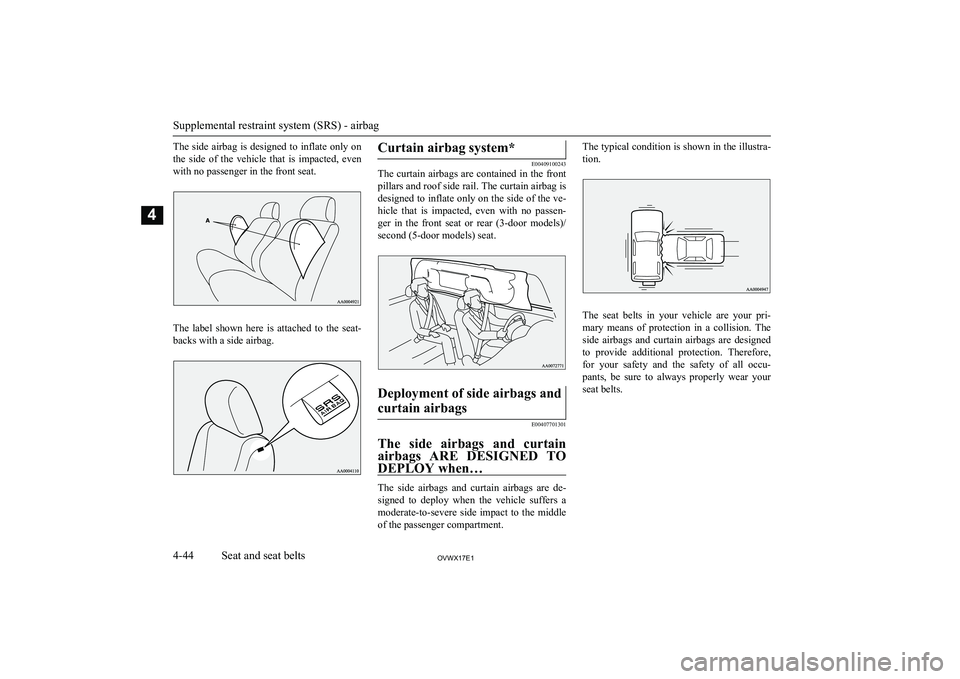

The side airbag is designed to inflate only onthe side of the vehicle that is impacted, evenwith no passenger in the front seat.
The label shown here is attached to the seat- backs with a side airbag.
Curtain airbag system*
E00409100243
The curtain airbags are contained in the front
pillars and roof side rail. The curtain airbag is
designed to inflate only on the side of the ve- hicle that is impacted, even with no passen- ger in the front seat or rear (3-door models)/
second (5-door models) seat.
Deployment of side airbags and
curtain airbags
E00407701301
The side airbags and curtain airbags ARE DESIGNED TO
DEPLOY when…
The side airbags and curtain airbags are de- signed to deploy when the vehicle suffers a moderate-to-severe side impact to the middleof the passenger compartment.
The typical condition is shown in the illustra-
tion.
The seat belts in your vehicle are your pri- mary means of protection in a collision. The side airbags and curtain airbags are designed
to provide additional protection. Therefore,
for your safety and the safety of all occu- pants, be sure to always properly wear your
seat belts.
Supplemental restraint system (SRS) - airbag
4-44OVWX17E1Seat and seat belts4

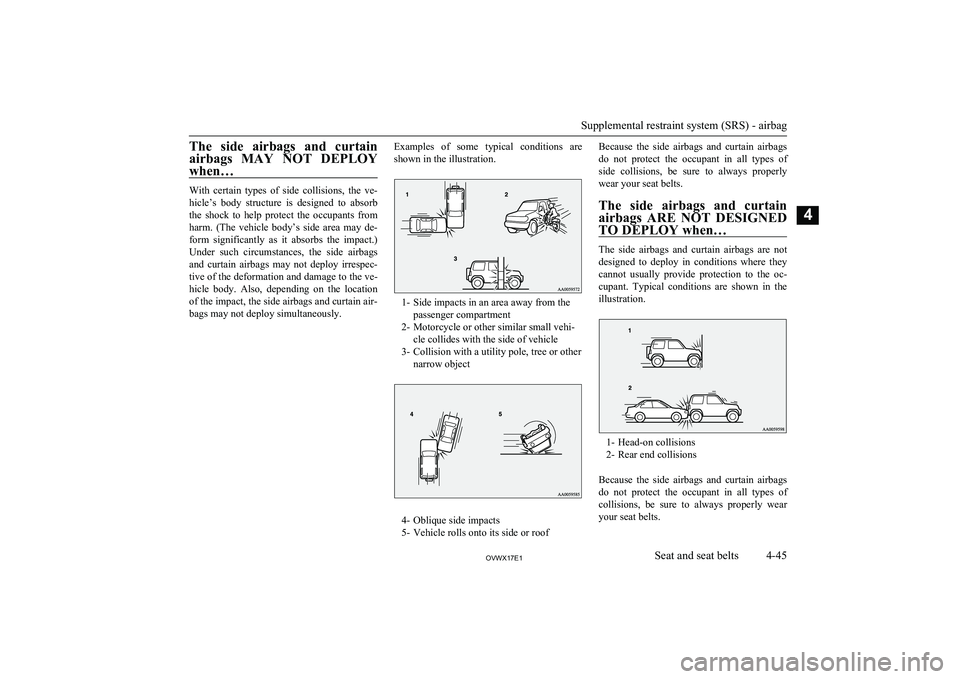

The side airbags and curtainairbags MAY NOT DEPLOY
when…
With certain types of side collisions, the ve-
hicle’s body structure is designed to absorb
the shock to help protect the occupants fromharm. (The vehicle body’s side area may de-form significantly as it absorbs the impact.) Under such circumstances, the side airbags and curtain airbags may not deploy irrespec-tive of the deformation and damage to the ve-
hicle body. Also, depending on the location
of the impact, the side airbags and curtain air-
bags may not deploy simultaneously.
Examples of some typical conditions are
shown in the illustration.
1- Side impacts in an area away from the passenger compartment
2- Motorcycle or other similar small vehi- cle collides with the side of vehicle
3- Collision with a utility pole, tree or other narrow object
4- Oblique side impacts
5- Vehicle rolls onto its side or roof
Because the side airbags and curtain airbags
do not protect the occupant in all types of side collisions, be sure to always properlywear your seat belts.
The side airbags and curtain
airbags ARE NOT DESIGNED TO DEPLOY when…
The side airbags and curtain airbags are notdesigned to deploy in conditions where they
cannot usually provide protection to the oc- cupant. Typical conditions are shown in the
illustration.
1- Head-on collisions
2- Rear end collisions
Because the side airbags and curtain airbags do not protect the occupant in all types of collisions, be sure to always properly wearyour seat belts.
Supplemental restraint system (SRS) - airbag
4-45OVWX17E1Seat and seat belts4

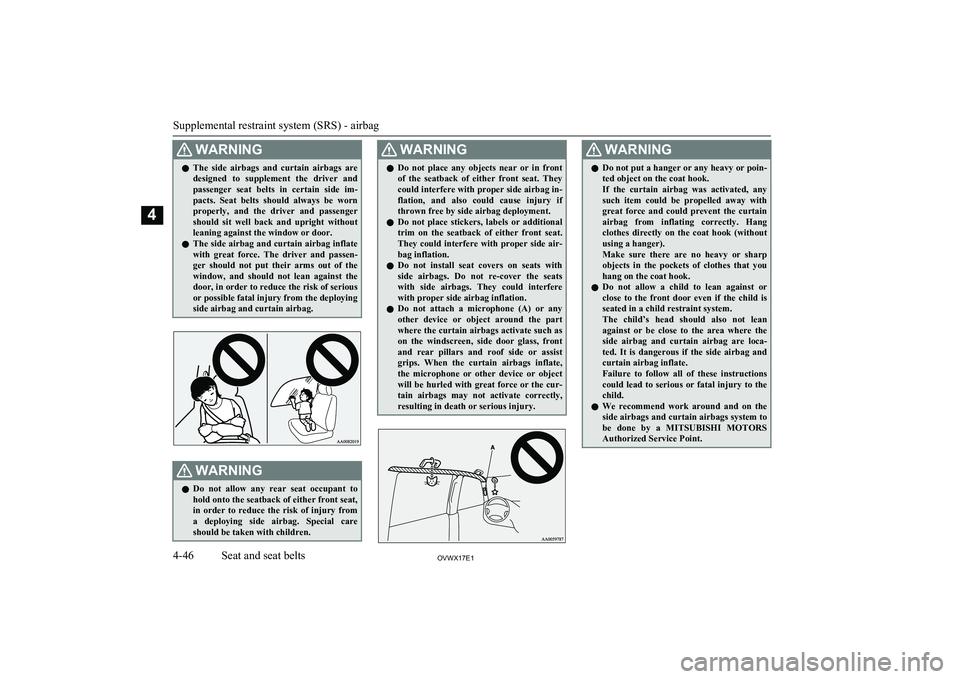

WARNINGlThe side airbags and curtain airbags are
designed to supplement the driver and passenger seat belts in certain side im-
pacts. Seat belts should always be worn properly, and the driver and passenger
should sit well back and upright without
leaning against the window or door.
l The side airbag and curtain airbag inflate
with great force. The driver and passen- ger should not put their arms out of the window, and should not lean against the
door, in order to reduce the risk of serious
or possible fatal injury from the deploying
side airbag and curtain airbag.WARNINGl Do not allow any rear seat occupant to
hold onto the seatback of either front seat,
in order to reduce the risk of injury from
a deploying side airbag. Special care
should be taken with children.WARNINGl Do not place any objects near or in front
of the seatback of either front seat. They could interfere with proper side airbag in-
flation, and also could cause injury if thrown free by side airbag deployment.
l Do not place stickers, labels or additional
trim on the seatback of either front seat.
They could interfere with proper side air- bag inflation.
l Do not install seat covers on seats with
side airbags. Do not re-cover the seats with side airbags. They could interfere
with proper side airbag inflation.
l Do not attach a microphone (A) or any
other device or object around the part where the curtain airbags activate such as
on the windscreen, side door glass, front and rear pillars and roof side or assistgrips. When the curtain airbags inflate,
the microphone or other device or object will be hurled with great force or the cur- tain airbags may not activate correctly,resulting in death or serious injury.WARNINGl Do not put a hanger or any heavy or poin-
ted object on the coat hook.
If the curtain airbag was activated, any
such item could be propelled away with
great force and could prevent the curtain
airbag from inflating correctly. Hang clothes directly on the coat hook (withoutusing a hanger).
Make sure there are no heavy or sharp objects in the pockets of clothes that you
hang on the coat hook.
l Do not allow a child to lean against or
close to the front door even if the child is seated in a child restraint system.
The child’s head should also not lean
against or be close to the area where the side airbag and curtain airbag are loca-
ted. It is dangerous if the side airbag and
curtain airbag inflate.
Failure to follow all of these instructions
could lead to serious or fatal injury to the child.
l We recommend work around and on the
side airbags and curtain airbags system to
be done by a MITSUBISHI MOTORS
Authorized Service Point.
Supplemental restraint system (SRS) - airbag
4-46OVWX17E1Seat and seat belts4

SRS warning lamp
E00407801706
There is a Supplemental Restraint System
(“SRS”) warning lamp on the instrument panel. The system checks itself every time the ignition switch is turned to the “ON” po-
sition. The SRS warning lamp will come on
for several seconds and then go out. This is
normal and means the system is working properly. If there is a problem involving one or more of the SRS components, the warning
lamp will come on and stay on.
The SRS warning lamp is shared by the SRS
airbag and the seat belt pretensioner system.
WARNINGl If any of the following conditions occur,
there may be a problem with the SRS air- bags and/or seat belt pretensioners, and they may not function properly in a colli-WARNINGsion or may suddenly activate without a
collision:
• Even when the ignition switch is
in“ON” position, the SRS warning lamp does not come on or it remains
on.
• The SRS warning lamp comes on while
driving.
The SRS airbags and seat belt pretension- ers are designed to help reduce the risk of
serious injury or death in certain colli- sions. If either of the above conditions oc-
curs, immediately have your vehicle checked by a MITSUBISHI MOTORS
Authorized Service Point.SRS servicing
E00407901390
WARNINGl We recommend any maintenance per-
formed on or near the components of the
SRS to be performed by a MITSUBISHI
MOTORS Authorized Service Point.
Improper work on the SRS components
or wiring could result in inadvertent de- ployment of the airbags, or could render
the SRS inoperative; either situation could result in serious injury.WARNINGl Do not modify your steering wheel, seat
belt retractor or any other SRS compo- nents. For example, replacement of the
steering wheel, or modifications to the
front bumper or body structure can ad- versely affect SRS performance and lead
to possible injury.
l If your vehicle has sustained any damage,
we recommend you to have the SRS in- spected to ensure it is in proper workingorder.
l On vehicles equipped with side airbags,
do not modify your front seats, centre pil- lar and centre console.
It can adversely affect SRS performance and lead to possible injury. If you found
any tear, scratch, crack or damage to the
seat fabric near the side airbag, the por-
tion of the front and rear pillars and roof side rail, you should have the SRS inspec- ted by a MITSUBISHI MOTORS Au-
thorized Service Point.NOTEl When you transfer ownership of the vehicle
to some other person, we urge you to alert
the new owner that it is equipped with the SRS and refer the new owner to the applica- ble section in this owner’s manual.
Supplemental restraint system (SRS) - airbag
4-47OVWX17E1Seat and seat belts4

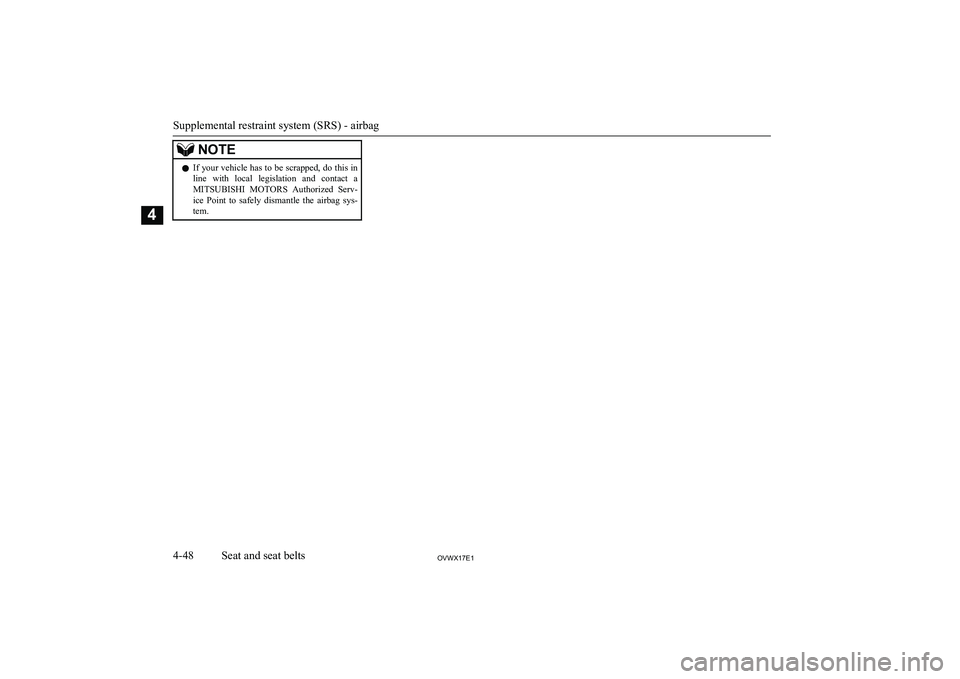

NOTElIf your vehicle has to be scrapped, do this in
line with local legislation and contact a
MITSUBISHI MOTORS Authorized Serv-
ice Point to safely dismantle the airbag sys- tem.
Supplemental restraint system (SRS) - airbag
4-48OVWX17E1Seat and seat belts4

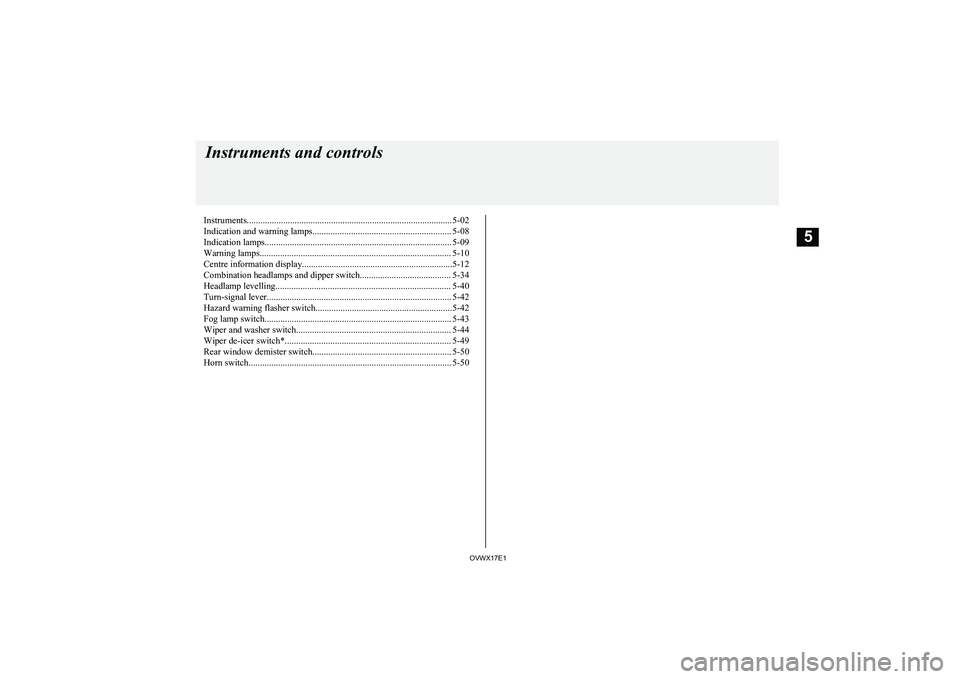

Instruments.......................................................................................... 5-02
Indication and warning lamps............................................................. 5-08
Indication lamps.................................................................................. 5-09
Warning lamps.................................................................................... 5-10
Centre information display..................................................................5-12
Combination headlamps and dipper switch........................................ 5-34
Headlamp levelling............................................................................. 5-40
Turn-signal lever................................................................................. 5-42
Hazard warning flasher switch............................................................5-42 Fog lamp switch.................................................................................. 5-43
Wiper and washer switch.................................................................... 5-44
Wiper de-icer switch*......................................................................... 5-49
Rear window demister switch............................................................. 5-50
Horn switch......................................................................................... 5-50Instruments and controls
OVWX17E15

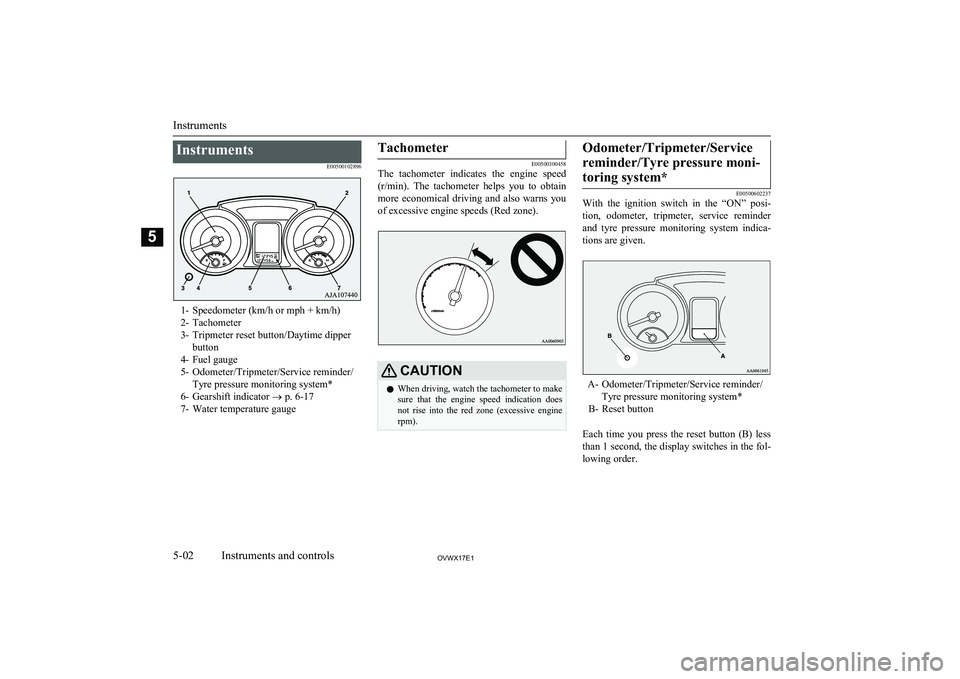

InstrumentsE00500102896
1- Speedometer (km/h or mph + km/h)
2- Tachometer
3- Tripmeter reset button/Daytime dipper button
4- Fuel gauge
5- Odometer/Tripmeter/Service reminder/ Tyre pressure monitoring system*
6- Gearshift indicator ® p. 6-17
7- Water temperature gauge
Tachometer
E00500300458
The tachometer indicates the engine speed
(r/min). The tachometer helps you to obtain
more economical driving and also warns you
of excessive engine speeds (Red zone).
CAUTIONl When driving, watch the tachometer to make
sure that the engine speed indication does not rise into the red zone (excessive enginerpm).Odometer/Tripmeter/Service
reminder/Tyre pressure moni-toring system*
E00500602237
With the ignition switch in the “ON” posi-
tion, odometer, tripmeter, service reminder
and tyre pressure monitoring system indica-
tions are given.
A- Odometer/Tripmeter/Service reminder/ Tyre pressure monitoring system*
B- Reset button
Each time you press the reset button (B) less
than 1 second, the display switches in the fol- lowing order.
Instruments
5-02OVWX17E1Instruments and controls5
